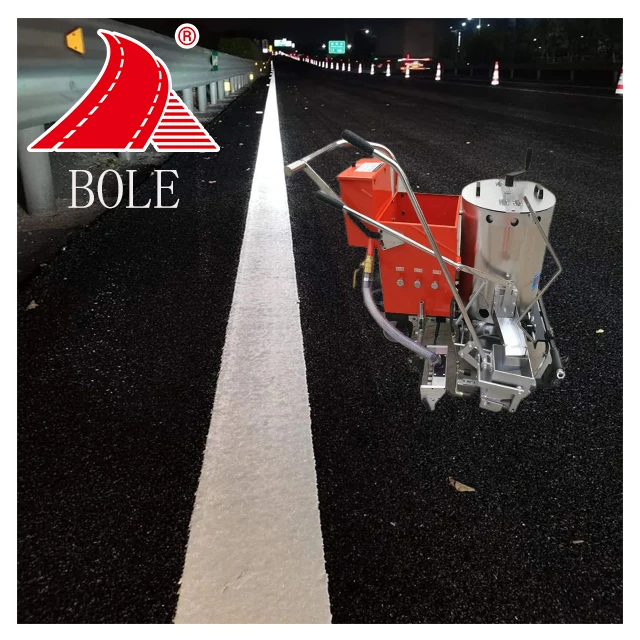

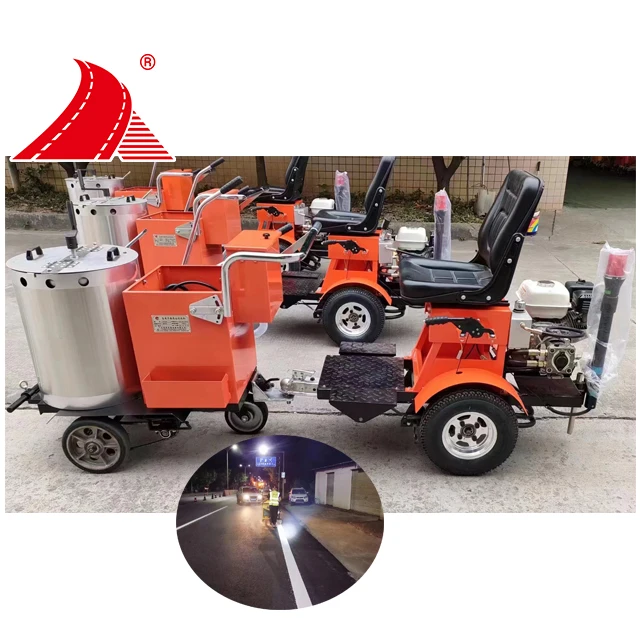

ISO9001 factory 15cm size of shoe road marking machine with moped chair driving type road marking machine
- Category: >>>
- Supplier: Guangdong Bole Road Sign Technology Co. Ltd
Share on (1601060435515):
Product Overview
Description
Specification
Paint barrels: | Double stainless steel heating insulation barrels, capacity 100 kg, plug-in manually mixer devices, removable devices |
Glass Bead storage box: | 10 kg / box |
Glass beads sow browser: | synchronous clutch spread with speed gearshift device |
Crossed Doo: | High-precision ultra-thin material manufacturing, scraper-type structure, the standard configuration of 150 mm |
Landing knife: | Carbide, with eccentric sleeve device can adjust the thickness of the scope marking :1-2.5 mm |
Tire: | Alloy Wheel Unit, a special heat-resistant rubber, after the last round with positioning devices for the body along a straight line direction |
Heating method: | liquefied petroleum gas |
Subscript Line Width: | 150 mm engineering requirements in accordance with the replacement of different specifications crossed Doo |
Size: | 1200*900*950 mm |
Weight | 135kgs |
1. insulation barrel: double-layer stainless steel insulation heating barrel, double-layer stainless steel bottom, 100kg capacity,
vertical manual mixing device, and removable barrel design. 2. glass bead storage tank: 10kg/ box 3. adjustable glass bead seeder:
synchronous clutch seeder, with speed regulating and shifting device. Adjustable width 50-200mm 4. scoring bucket: it is made of
high-precision ultra-thin material and has a scraper structure. It adopts a single scoring bucket handle. The knife is closed
without material leakage. The marking edges are aligned, the head and tail are aligned, and the thickness is uniform. 5. floor
cutter: hard alloy, with eccentric sleeve device, which can adjust the marking thickness range: 1-3mm. 6. rubber wheel: aluminum
alloy wheel stock, special heat-resistant rubber, and the rear wheel is equipped with a positioner to ensure a straight line. 7.
positioner: the rear tail wheel is equipped with a positioner to ensure that the vehicle body can walk in a straight line or turn
freely 8. marking width: the standard configuration is 150mm, with different specifications such as
50/100/150/200/250/300/400/450mm. The marking bucket and glass bead spreader of different specifications can be replaced according
to the engineering requirements
vertical manual mixing device, and removable barrel design. 2. glass bead storage tank: 10kg/ box 3. adjustable glass bead seeder:
synchronous clutch seeder, with speed regulating and shifting device. Adjustable width 50-200mm 4. scoring bucket: it is made of
high-precision ultra-thin material and has a scraper structure. It adopts a single scoring bucket handle. The knife is closed
without material leakage. The marking edges are aligned, the head and tail are aligned, and the thickness is uniform. 5. floor
cutter: hard alloy, with eccentric sleeve device, which can adjust the marking thickness range: 1-3mm. 6. rubber wheel: aluminum
alloy wheel stock, special heat-resistant rubber, and the rear wheel is equipped with a positioner to ensure a straight line. 7.
positioner: the rear tail wheel is equipped with a positioner to ensure that the vehicle body can walk in a straight line or turn
freely 8. marking width: the standard configuration is 150mm, with different specifications such as
50/100/150/200/250/300/400/450mm. The marking bucket and glass bead spreader of different specifications can be replaced according
to the engineering requirements
Product Description
1.Torches
2.Trunk
3. Stirring Shaft
3. Stirring Shaft
4. Paint Input Door
5.Stainless Steel Heat Preservation Kettle
5.Stainless Steel Heat Preservation Kettle
6. Paint Output Door
7. Pointing Needle
7. Pointing Needle
8. Hanger & Front Burner
9.Landing Knife
9.Landing Knife
10.Rear Burner
11.Marking Mold Glass Bead Box
12. Rear Burner
11.Marking Mold Glass Bead Box
12. Rear Burner

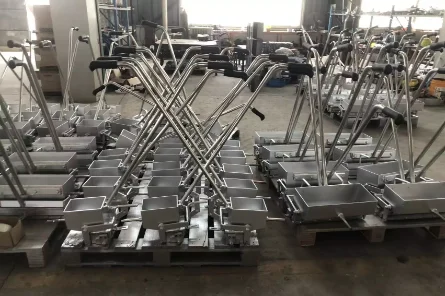

13. Marking Mold Handle
14.Paint Output Door Handle
14.Paint Output Door Handle
. The kettle is provided with a filter screen, which can filter out impurities in the paint when receiving materials.
Filter Screen
Through the transmission system of gear bite to control the glass beads box to sow automatically.
Glass beads dispenser for dispensing glass beads synchronously and quantitatively. It makes the dispensing synchronization with the marking line and ensure the quantity of dispensing is controllable and adjustable.
When the marking want to be straight , you can fix rear wheel, make the body point rectilinear direction and move forward to reduce labour.
With his feet to the right can pulled locator poles , the rear wheel can be fixed. Then left to pull back to reset.
With his feet to the right can pulled locator poles , the rear wheel can be fixed. Then left to pull back to reset.
Marking Mold Bottom
Contact me
Vivian Lai
sales manager
Tel:+86 020 34546872
Whatsapp/wechat/Phone number: + 86 13427557901
Packing & Delivery
1.Wooden box package
2.135Kg/box3.thermoplastic price glow in the dark for road marking paint
FAQ
1.Q:Are you trading company or factory?
A:We are factory in Guangzhou China.
2.Q:Do you provide samples?Is it free or extra?And sampling time?
A:Yes,we could offer the sample for free within 2.5 kg.But Freight is burden by you.
We could finished sample within 3 days.
3.Q:If we have special requirement,such as Glass bead content,special color of paint,could you make it?
A:Yes,we have a professional technical team,you only need tell usour requirement.Then we could give you some scheme, And quote to you fast.
4.Q:What is your terms of payment?
A:Payment <=3000 USD,100% in advance.Payment >=3000USD,30% T/T in advance,balance before shippment.
A:We are factory in Guangzhou China.
2.Q:Do you provide samples?Is it free or extra?And sampling time?
A:Yes,we could offer the sample for free within 2.5 kg.But Freight is burden by you.
We could finished sample within 3 days.
3.Q:If we have special requirement,such as Glass bead content,special color of paint,could you make it?
A:Yes,we have a professional technical team,you only need tell usour requirement.Then we could give you some scheme, And quote to you fast.
4.Q:What is your terms of payment?
A:Payment <=3000 USD,100% in advance.Payment >=3000USD,30% T/T in advance,balance before shippment.
