DC24V handle assembly handle Tiller head control handle for electric pallet stacker pallet jack truck
- Category: >>>
- Supplier: Zhejiang E-P Imp. & Exp. Co. Ltd.
Share on (1601060467426):
Product Overview
Description
Product Overview

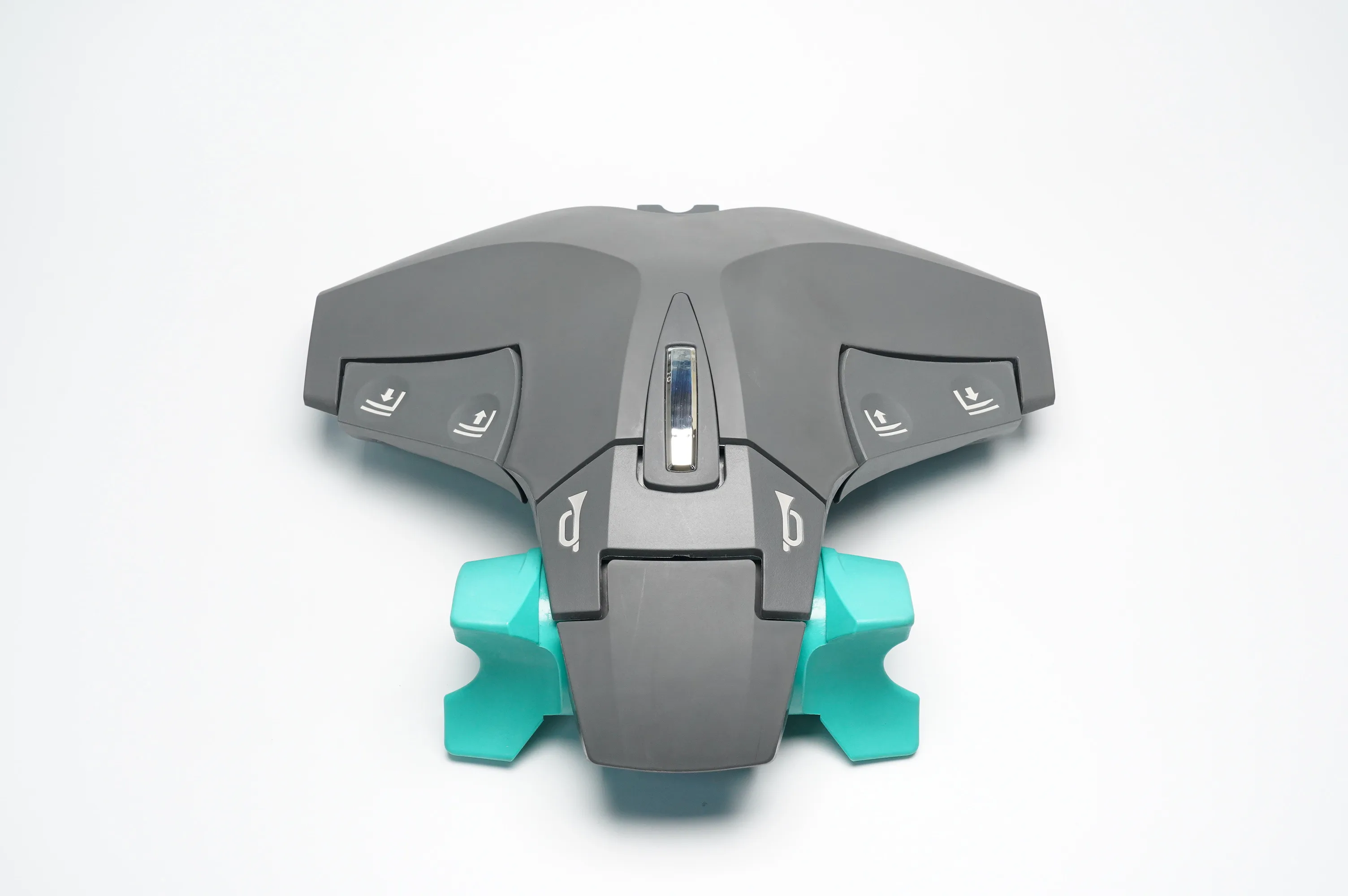

ER Tiller Head
One model is suitable for the Jungheinrich ERE/ERC/ERD series models.
FEATURES AT A GLANCE
1.ForForce ER tiller head is well-designed and can be adapted to Jungheinrich electric pallet trucks, electric stackers and order pickers
2.Forfore ER tiller head could automacical select the CAN baud-rate according to the truck baud-rate
3.Forforce ER tiller head can use on ERE/ERC/ERD trucks,one tiller head cover all the truck model.
4.Hall effect sensor increase the reliability and life time
5.Environmental protection of major components through an epoxy layer over the circuit board assures operation in harsh environments
conditions.
6.Input polarity protection to ensure no damage occurs to the throttle if it is incorrectly wired .
5.Environmental protection of major components through an epoxy layer over the circuit board assures operation in harsh environments
conditions.
6.Input polarity protection to ensure no damage occurs to the throttle if it is incorrectly wired .
PRODUCT SPECIFICATIONS
No | Item | Data |
1 | Opearting voltage | 16-40V |
2 | Communication mode | CAN |
3 | Protection Class | IP54 |
4 | Tiller head Weight(kg) | 3kg |
5 | Box Dimensions(mm) | 36cm×36cm×16cm |
6 | Operating Temperature-(℃) | -20℃-55℃ |
7 | storage Temperature-(℃) | 0℃-40℃ |
8 | Warranty period | 1 year |
PRODUCT CONFIGURATION
Reverse side
Side button
Connector
Production Process
SALES AND SERVICE NETWORK
Certifications
