Product Overview
Description

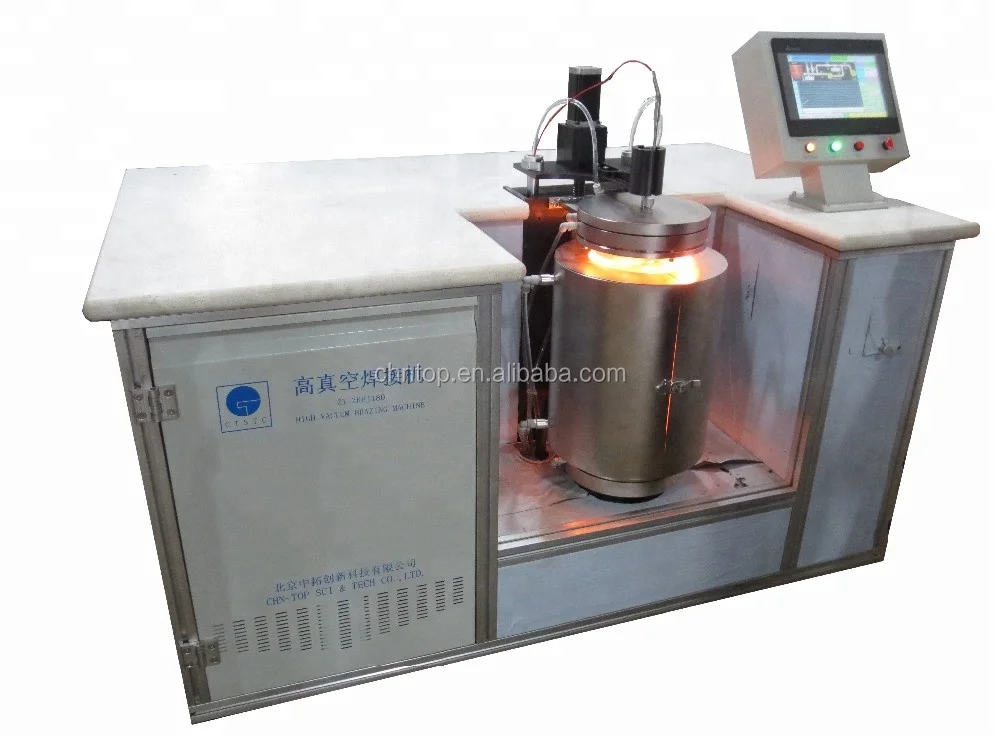

ZT-ZKHJ180 VACUUM BRAZING MACHINE
1, PLC control, SCR heating, touch panel,
automatic implement after simple setting with easy temperature control.
2, No oxidation, clean surface, environment-friendly.
3, Brazing quantity is more than 500pcs (for CNGA1204), reduce total cost.
4, The machine is fully automatic and once loaded, the cycle time is approximately 70-120 mins.
5, Reduction of distortion even very small tool insert can be brazed.
6, High brazing strength, 2 times higher than induction welding.
7, Advanced artificial quartz stone for table-board, elegant, high temperature resistance.
Besides the standard machine, we can offer OEM according to clients’ requirement.
automatic implement after simple setting with easy temperature control.
2, No oxidation, clean surface, environment-friendly.
3, Brazing quantity is more than 500pcs (for CNGA1204), reduce total cost.
4, The machine is fully automatic and once loaded, the cycle time is approximately 70-120 mins.
5, Reduction of distortion even very small tool insert can be brazed.
6, High brazing strength, 2 times higher than induction welding.
7, Advanced artificial quartz stone for table-board, elegant, high temperature resistance.
Besides the standard machine, we can offer OEM according to clients’ requirement.
Dimensions | 1600*950*900mm (L*W*H) |
Power Supply | 120: 380V-3Phases-5Wires/15KW 180: 380V-3Phases-5Wires/20KW |
Rated Power | 20KW |
Chamber | Quartz Glass Tube |
Chamber Size | 120: φ120*L500*T4 (mm) 180: φ180*L500*T4 (mm) |
Brazing Capability | 120: CNGA1204 appr.300pcs/cycle 180: CNGA1204 appr.600pcs/cycle |
Max Temperature | 950︒C |
Max Vacuum Rate | 10-6 Torr (10-4 Pa) |
Vacuum Rate | 10-4 Torr (10-2 Pa) |
Heating Source | 12 pcs halogen tubes / 18 pcs halogen tubes |
Chilling | Water cooling |
Vacuum Process | 1, Cleaning 2, Fixing Flux 3, Drying:200︒C 30mins 4, Brazing/Welding 5, Packing |
MATERIALS
Natural diamond, Monocrystal diamond, PCD, PCBN, CVD and Cermet.
SUBSTRATE MATERIAL
Cermet, Tungsten carbide, Steel, Stainless steel, Steel alloy, Ceramic and etc.
Natural diamond, Monocrystal diamond, PCD, PCBN, CVD and Cermet.
SUBSTRATE MATERIAL
Cermet, Tungsten carbide, Steel, Stainless steel, Steel alloy, Ceramic and etc.
1, Washing, put the work piece into the Ultrasonic cleaning machine for 15-20 minutes;2, Fixing;
3, Drying, adjust the drying oven at 210 degree for 10-15 minutes;
4, Brazing/Welding, put the work piece into the chamber, according to preset program welding;

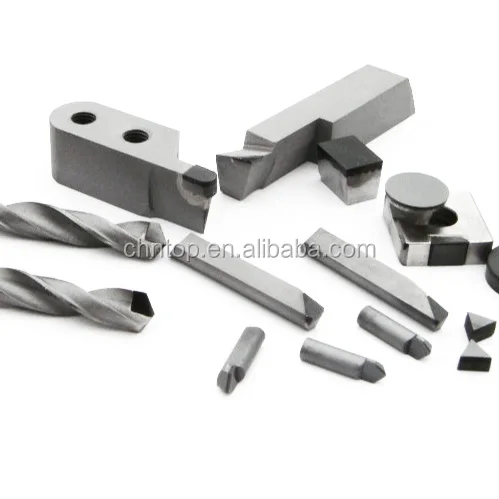

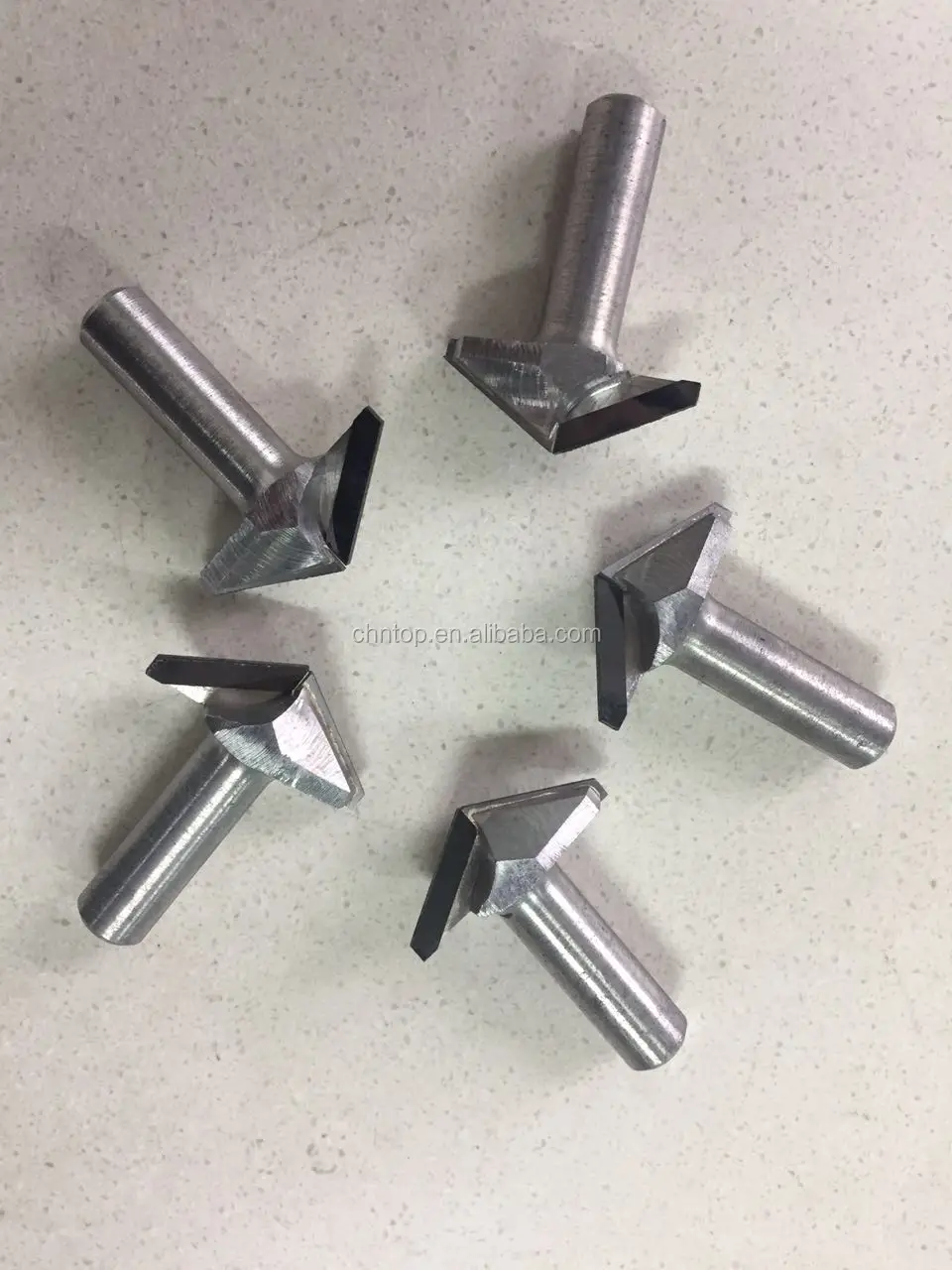

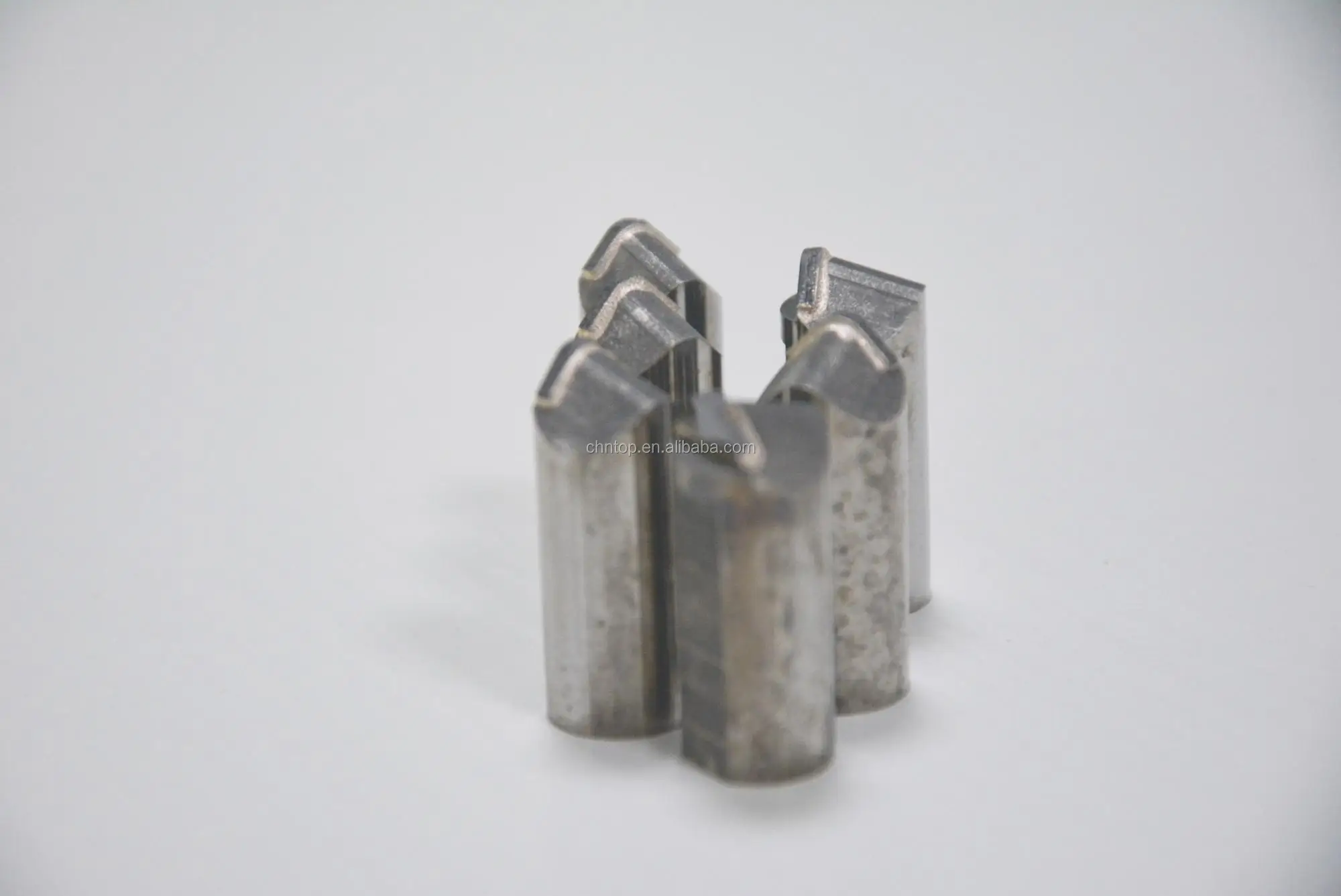

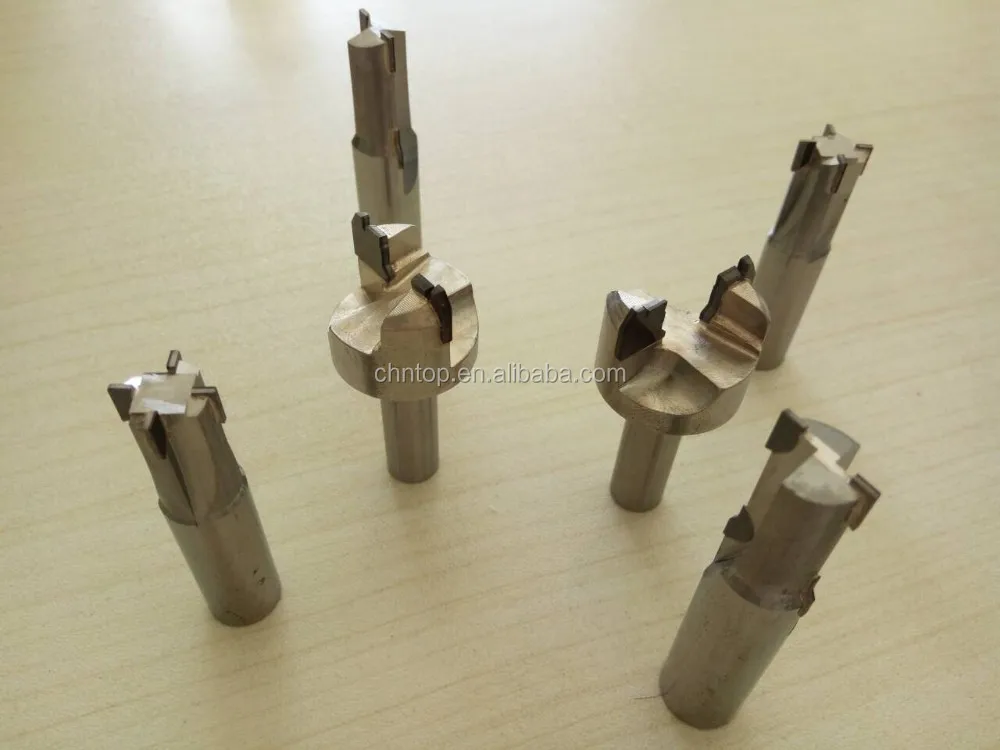

5, Finished brazing / welding and below are the ready goods.
PACKING
Bubble film - Carton box - Wooden box
Q: Are you trading company or manufacturer ?
A: We are manufactory for PCD,CBN diamond tools equipments and service, we have our own R&D team and production workshop. We can develop our customers' unique products according to their needs.
Q: How long is your delivery time?
A: Generally it is 2-3 days for CNC diamonds tools machining, and 45-60 days for machines.
Q: How about your after-sales system?
A: We have a comprehensive after-sales system, which can provide one-on-one online video service according to the needs of customers, and one-on-one service to solve customers' worries.
Q: How about your delivery date for PCD/PCBN blank?
A: 1), PCD/PCBN Blank, we have signed a Chinese agency agreement with international big brands, customers do not need to worry about genuine and delivery problems;
2), We can provide a wide range of products with PCD/ PCBN Blank, customers can choose goods according to different needs, we also have self-developed domestic PCD with high quality, the price is very competitive.
Q: How about the cutting thickness and width of Laser cutting machine?
A: 1), Cutting thickness, single-sided cutting maximum thickness of 4-5mm, double-sided cutting maximum thickness of 8 10mm.
2), Slit width: 0.05-0.15mm, accuracy can reach 0.01mm.
A: We are manufactory for PCD,CBN diamond tools equipments and service, we have our own R&D team and production workshop. We can develop our customers' unique products according to their needs.
Q: How long is your delivery time?
A: Generally it is 2-3 days for CNC diamonds tools machining, and 45-60 days for machines.
Q: How about your after-sales system?
A: We have a comprehensive after-sales system, which can provide one-on-one online video service according to the needs of customers, and one-on-one service to solve customers' worries.
Q: How about your delivery date for PCD/PCBN blank?
A: 1), PCD/PCBN Blank, we have signed a Chinese agency agreement with international big brands, customers do not need to worry about genuine and delivery problems;
2), We can provide a wide range of products with PCD/ PCBN Blank, customers can choose goods according to different needs, we also have self-developed domestic PCD with high quality, the price is very competitive.
Q: How about the cutting thickness and width of Laser cutting machine?
A: 1), Cutting thickness, single-sided cutting maximum thickness of 4-5mm, double-sided cutting maximum thickness of 8 10mm.
2), Slit width: 0.05-0.15mm, accuracy can reach 0.01mm.
