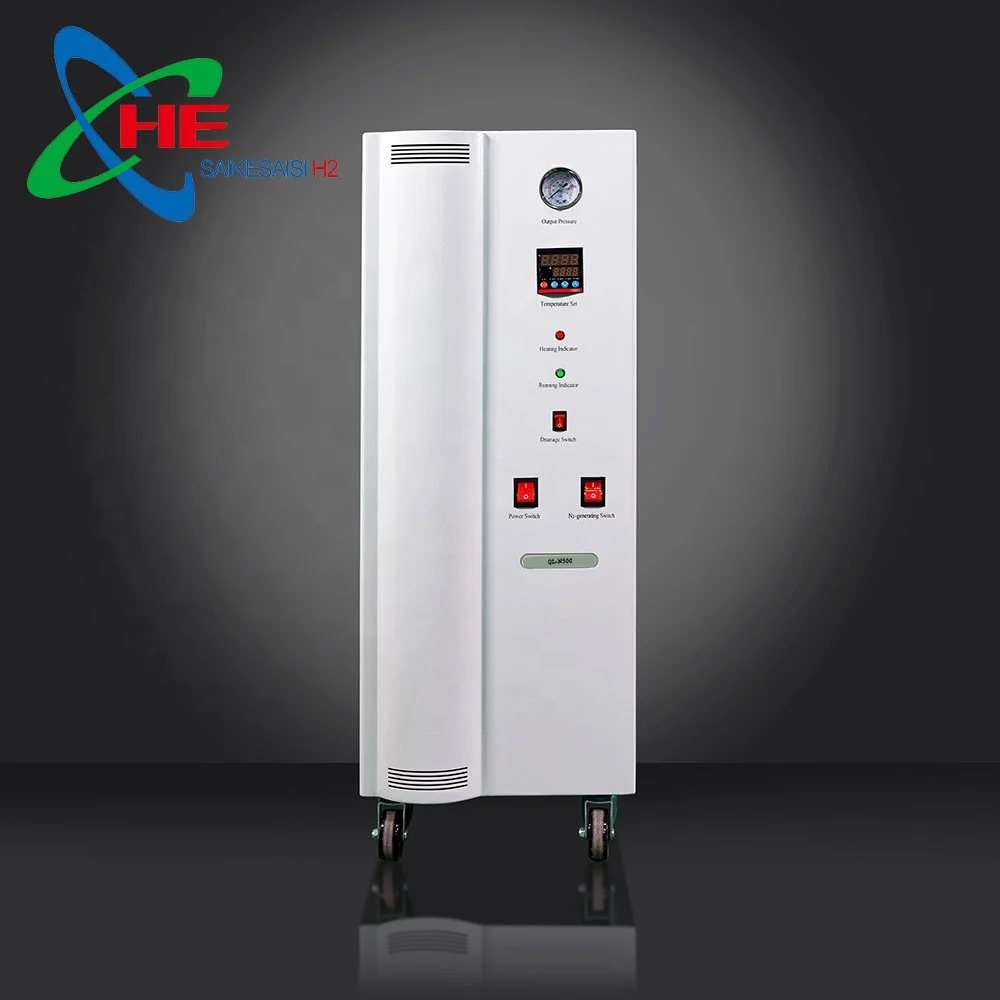

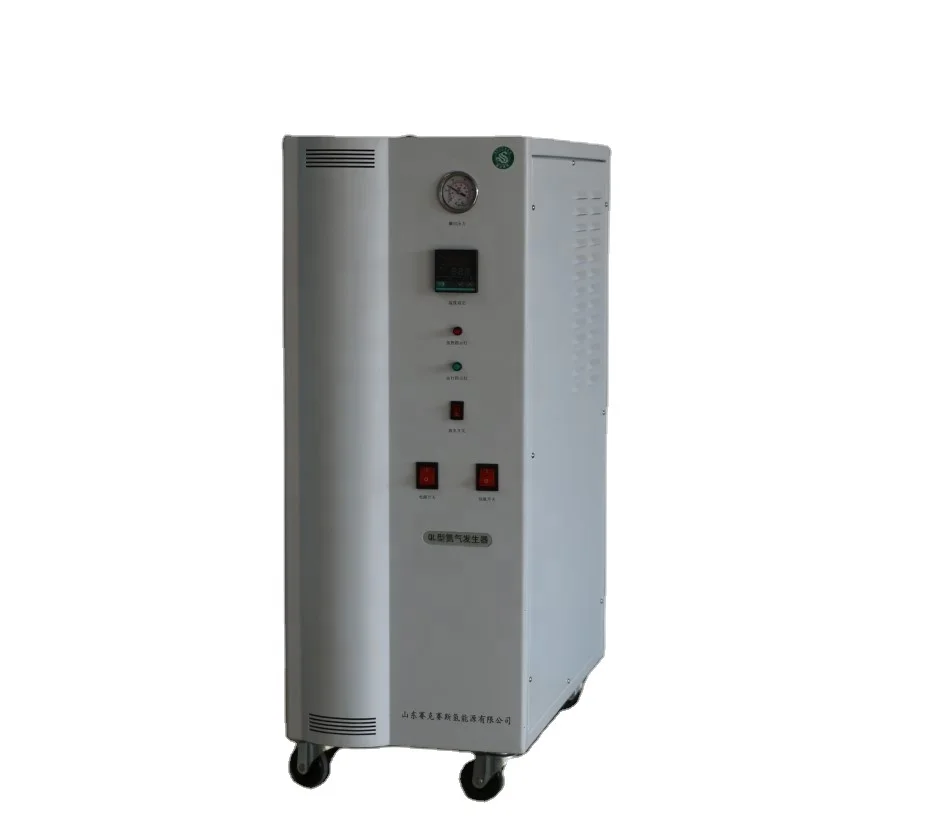

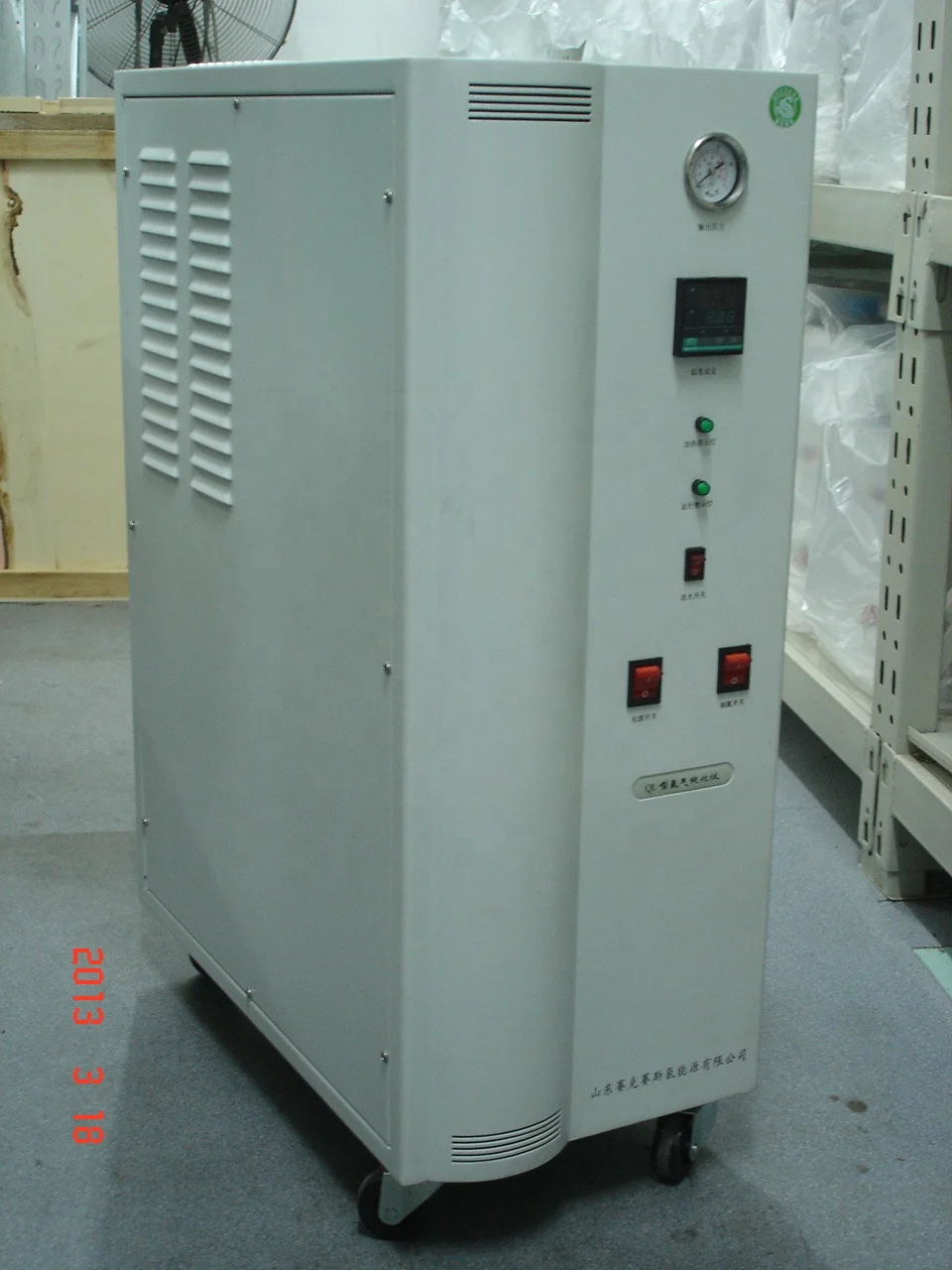

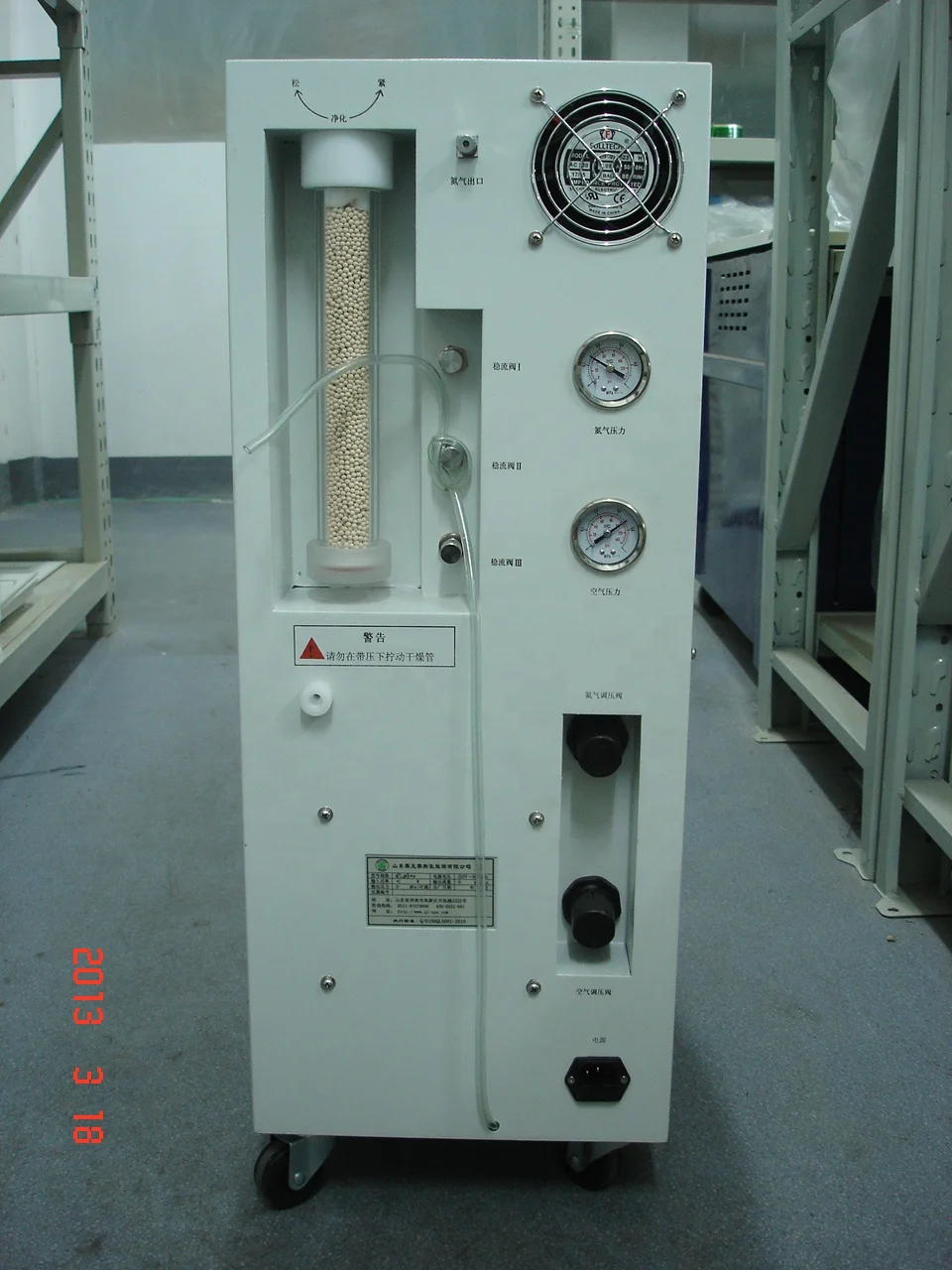

Nitrogen generator for GC in the lab
Nitrogen generator for GC in the lab
Nitrogen generator for GC in the lab
Nitrogen generator for GC in the lab
Nitrogen generator for GC in the lab
Nitrogen generator for GC in the lab
Nitrogen generator for GC in the lab

Nitrogen generator for GC in the lab

Share on (1601060855794):


Price:$1,580.00 - $1,800.00

Quantity:


Product Overview

Description



Feature and Advantage


1. Nitrogen generator is the ideal ultra-pure nitrogen source for GC (gas chromatography), LC/MS (liquid mass coupling instrument) and thermal analyzer.
2. High purity nitrogen gas was produced continuously by PSA tech.
3. Labs no longer need to use inconvenient and dangerous high-pressure nitrogen cylinders.
4. The structure is small and takes up little valuable lab space.


Product Description


The QL series nitrogen generator adopt PSA and advanced purification technology to produce ultra pure nitrogen. After the compressed air is initially dried and filtered through the condensing tube and filter, it enters the CMS column in the purification mode and removes most of the O2, CO2,moisture and hydrocarbons to produce clean and dry high-purity nitrogen.




Specification


Model
QL-N300A
Output flow (ml/min)
0-300
Output pressure (MPa)
0-0.4
Nitrogen purity
99.999%
Power voltage V
AC220 50-60Hz
Environmental  conditions
0-40 ℃ No large amount of dust pollution, corrosive gas
Input power (W)
< 680
Machine weight (KG)
50
Dimension (L*W*H) mm
520*290*700


Application


1. Carrier gas for all brands of GC and detector
2. Supplementary gas source
3. GPC gas source


Packing & Delivery




Plywood boxes are adopted to guarantee a safe and clean goods delivery.
