Lifepo4 100ah 12v full capacity solar hybrid system solar 10kwh lithium ion Lfp lithium ion battery 5kwh 48v Lifepo4 batterypack
- Category: >>>
- Supplier: Huizhou Ruidejin New Energy Co. Ltd.
Share on (1601060903404):
Product Overview
Description
Products Description

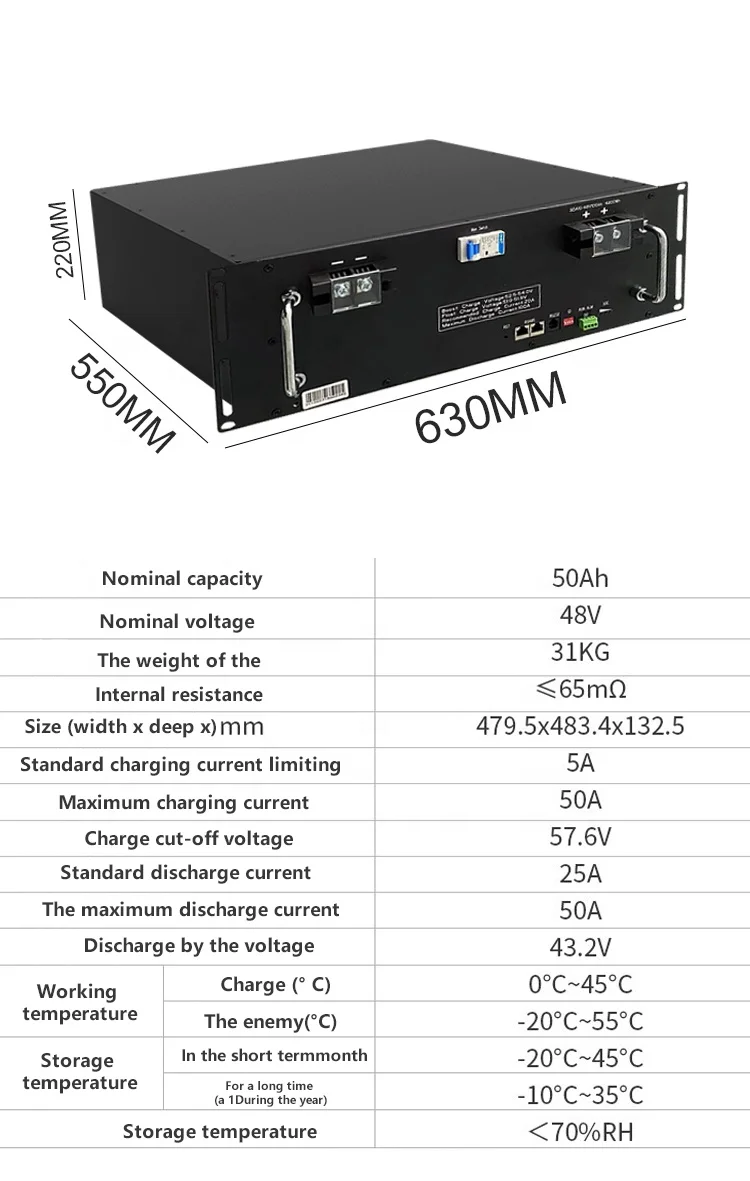

Product Paramenters
project | 25.6V280Ah | 48V50Ah | 48V100Ah | 48V150Ah | 48V200Ah |
Battery Type | LIFEPO4 | LIFEPO4 | LIFEPO4 | LIFEPO4 | LIFEPO4 |
Single battery specifications and models | 3.2V/280Ah | 3.2V/50Ah | 3.2V/50Ah | 3.2V/50Ah | 3.2V/100Ah |
Charge cut-off voltage | Single 3.65V | Single 3.65V | Single 3.65V | Single 3.65V | Single 3.65V |
Discharge cut-off voltage | Single 2.5V | Single 2.5V | Single 2.5V | Single 2.5V | Single 2.5V |
Combination model | 25.6V280AH | 48V50Ah | 48V100Ah | 48V150Ah | 48V200Ah |
series-parallel mode | 8S1P | 16S1P | 2P16S | 3P16S | 2P16S |
DC side nominal voltage | 25.6V | 51.2V | 51.2V | 51.2V | 51.2V |
Nominal energy | 7.168kWh | 2.56kWh | 5.12kWh | 7.68kWh | 10.24kWh |
DC side working voltage range | 29.2~20V | 40~58.4V | 40~58.4V | 40~58.4V | 40~58.4V |
Standard charging current (A) | 50A | 25A | 50A | 75A | 100A |
Maximum charging current (A) | 75A | 25A | 50A | 75A | 100A |
Standard discharge current (A) | 160A | 50A | 100A | 150A | 200A |
Maximum discharge current (A) | 200A | 50A | 100A | 150A | 200A |
range of working temperature | Charge：0℃~55℃ | 0℃~55℃ | 0℃~55℃ | 0℃~55℃ | 0℃~55℃ |
freed：-20℃~55℃ | -20℃~55℃ | -20℃~55℃ | -20℃~55℃ | -20℃~55℃ | |
Storage temperature | within 1 month：-40℃~45℃ | -40℃~45℃ | -40℃~45℃ | -40℃~45℃ | -40℃~45℃ |
within 6 months：-20℃~35℃ | -20℃~35℃ | -20℃~35℃ | -20℃~35℃ | -20℃~35℃ | |
Weight (kg) | 70±2 | 42±2 | 58±2 | 70±2 | 90±2 |

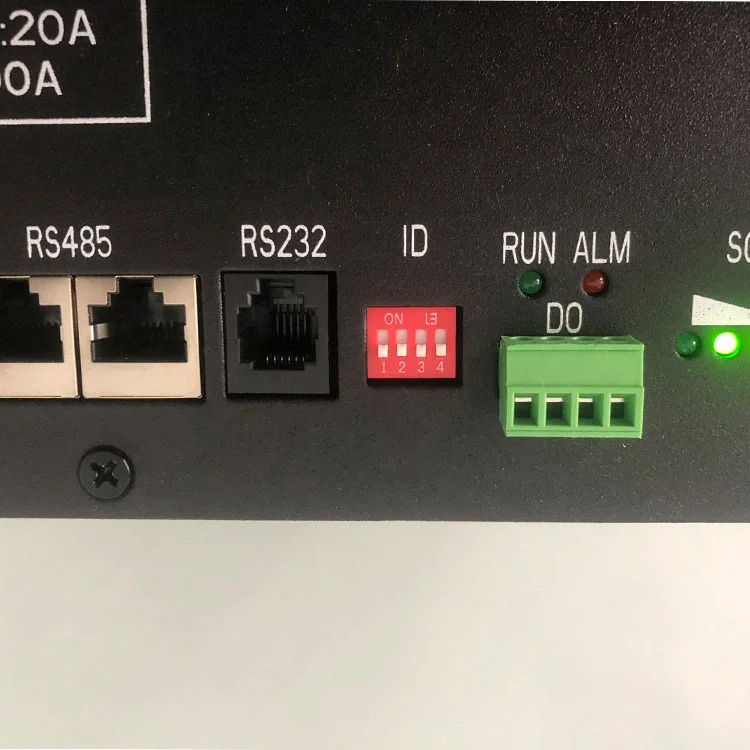

Product communication mode | RS485, Ethernet, CAN | RS485、232、CAN | RS485、232、CAN | RS485、232、CAN | RS485、232、CAN |

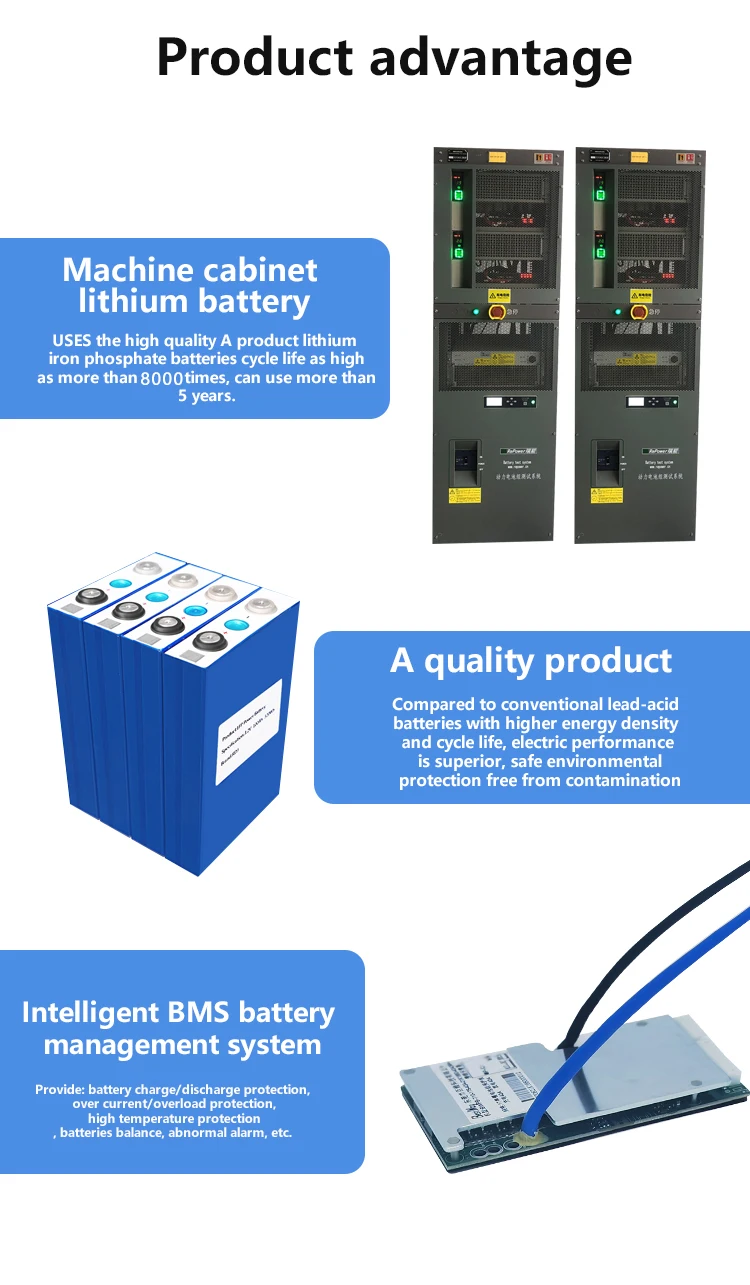

Our Advantages

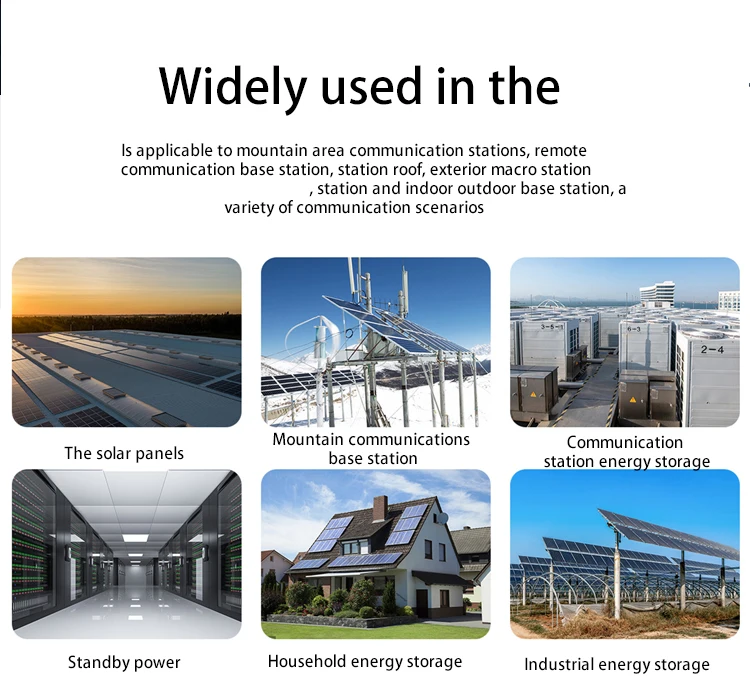

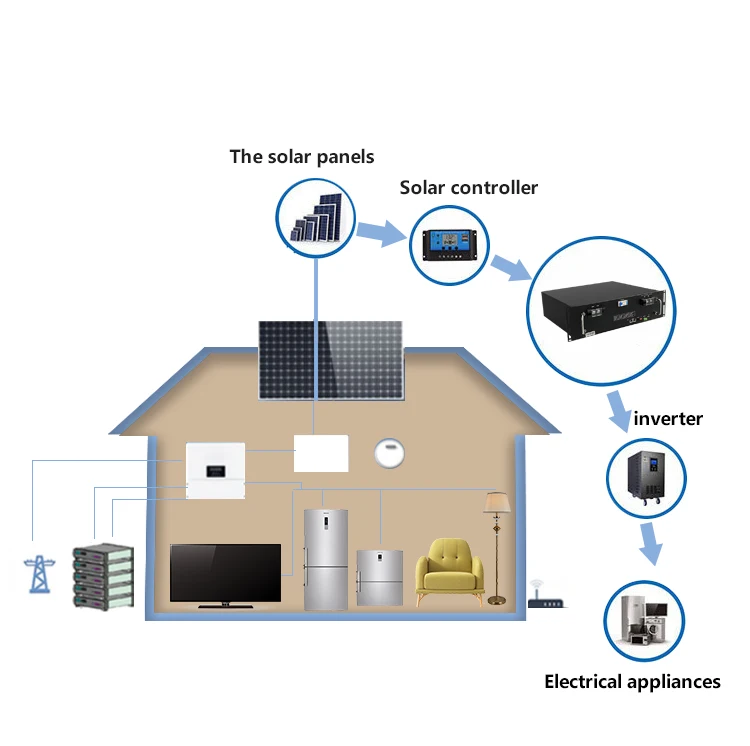

Applications
Company Profile
Why Choose Us
Shipping
* The power supply will be packed in a standard box and then packed into a carton.
* We will deliver thebatteriesbyexpressdelivery such as DHL, TNT, UPS, FEDEX. For large orders, we can also ship batteries by sea or air.
* The delivery timeofproduction will depend on your quantity. It usually takes 5-15 working days, and samples will be
shippedwithin 15 workingdays.Strictly follow national requirements. Testing and certification from start to finish. Strictly
follow therequirements oftheaviation sector. From big to small, we pay attention to the details of packaging and strictly followthecompany'srequirements.From the inside to the outside, to ensure the safety of the goods in transit. The packaging forlandtransportationand seatransportation is the same: the batteries in the packaging box are separated by corrugated boxes andfoampads to ensurethat thebatteries do not touch or collide with each other during transportation and ensure product safety.
* The delivery timeofproduction will depend on your quantity. It usually takes 5-15 working days, and samples will be
shippedwithin 15 workingdays.Strictly follow national requirements. Testing and certification from start to finish. Strictly
follow therequirements oftheaviation sector. From big to small, we pay attention to the details of packaging and strictly followthecompany'srequirements.From the inside to the outside, to ensure the safety of the goods in transit. The packaging forlandtransportationand seatransportation is the same: the batteries in the packaging box are separated by corrugated boxes andfoampads to ensurethat thebatteries do not touch or collide with each other during transportation and ensure product safety.
FAQ
Q: Is the freight on the website accurate?
A:Please contact us before you order,the default freight on the websiteisbasicallycalculated according to theusualairfreightprice, different countries,differentorder weight, different freight.Pleasecontactus in time, we will provide youwiththebestshipping way and accurate freight.
Q:Does the shipping way to our country include tax?
A:It depends on the country and the shipping way you choose. Most Asian countries, most
Europeancountries,theUnitedStates,andCanada have tax-included shipping channels.
Q: Why the transportation time is so long and the tracking number not updated in nearly a month?
A:As you know, the battery (especially the high-power battery) is special commodity, the terms of transportation are very strict.
We transit our products by formal DG logistic channel, it is more slowly than the normal logistic,becauseitneedswaittheDGship/train schedule. Due to the particularity of the product and logistic, the tracking numberweprovidewillnotupdatedbeforethe goods passes the customs in your country. Don't worry, your goods is still in normal transit.Whenthegoodspasses throughthe customs in your country, the tracking information will updated, and you will receive it within 3-5 days.
Q:Is this product safe?
A:Passed the overcharge, over discharge, over temperature, short circuit, acupuncture and othersafetytests,nofire,noexplosionatany circumstance.
Q:How to confirm the high quality of the product you sent me?
A:Our batteries are all grade A, No matter how many you order, we will test each product before sending out.
Q:The battery is so heavy, will it damaged easily on the road?
A:This is also a matter of great concerm to us. After long-term improvement and verification, ourpackagingisnowverysafeandreliable. When youopen the package, you will definitely feel our sincerity.
Q:Is it OK to print my logo on the product?
A:Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
A:Please contact us before you order,the default freight on the websiteisbasicallycalculated according to theusualairfreightprice, different countries,differentorder weight, different freight.Pleasecontactus in time, we will provide youwiththebestshipping way and accurate freight.
Q:Does the shipping way to our country include tax?
A:It depends on the country and the shipping way you choose. Most Asian countries, most
Europeancountries,theUnitedStates,andCanada have tax-included shipping channels.
Q: Why the transportation time is so long and the tracking number not updated in nearly a month?
A:As you know, the battery (especially the high-power battery) is special commodity, the terms of transportation are very strict.
We transit our products by formal DG logistic channel, it is more slowly than the normal logistic,becauseitneedswaittheDGship/train schedule. Due to the particularity of the product and logistic, the tracking numberweprovidewillnotupdatedbeforethe goods passes the customs in your country. Don't worry, your goods is still in normal transit.Whenthegoodspasses throughthe customs in your country, the tracking information will updated, and you will receive it within 3-5 days.
Q:Is this product safe?
A:Passed the overcharge, over discharge, over temperature, short circuit, acupuncture and othersafetytests,nofire,noexplosionatany circumstance.
Q:How to confirm the high quality of the product you sent me?
A:Our batteries are all grade A, No matter how many you order, we will test each product before sending out.
Q:The battery is so heavy, will it damaged easily on the road?
A:This is also a matter of great concerm to us. After long-term improvement and verification, ourpackagingisnowverysafeandreliable. When youopen the package, you will definitely feel our sincerity.
Q:Is it OK to print my logo on the product?
A:Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
