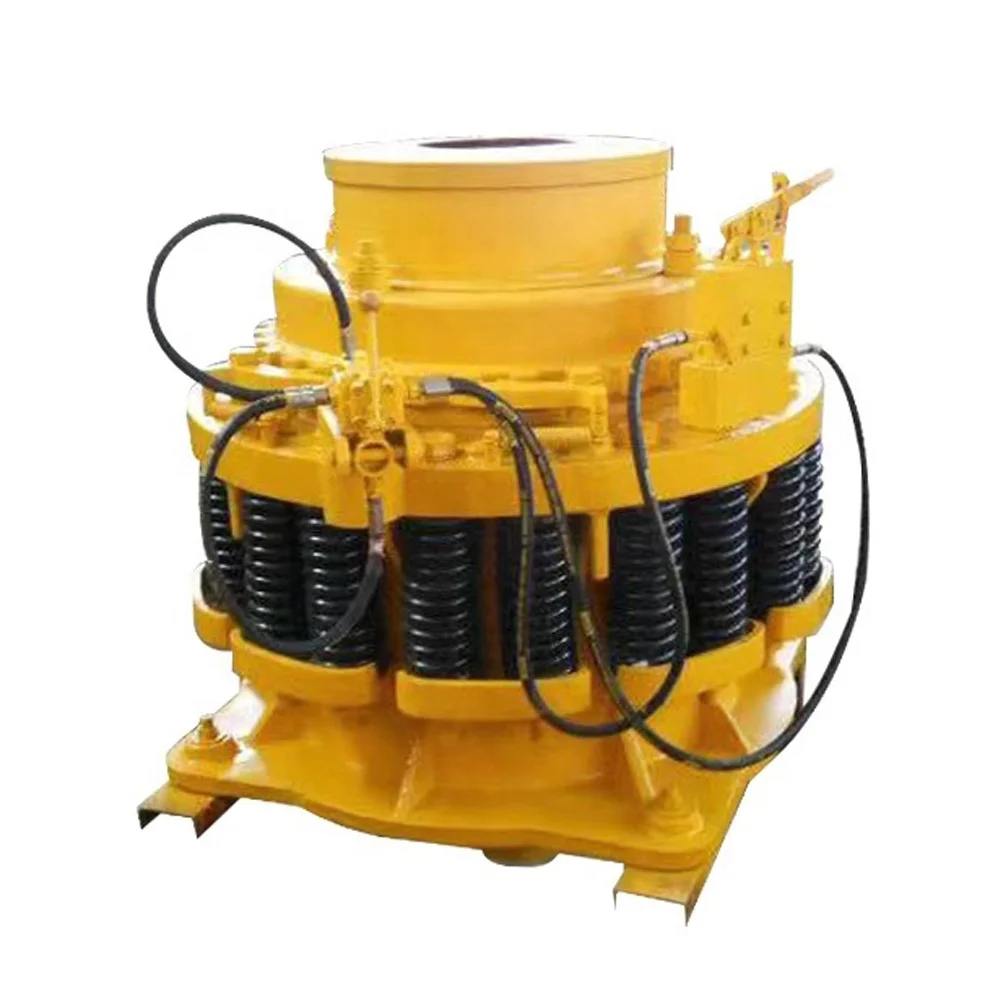

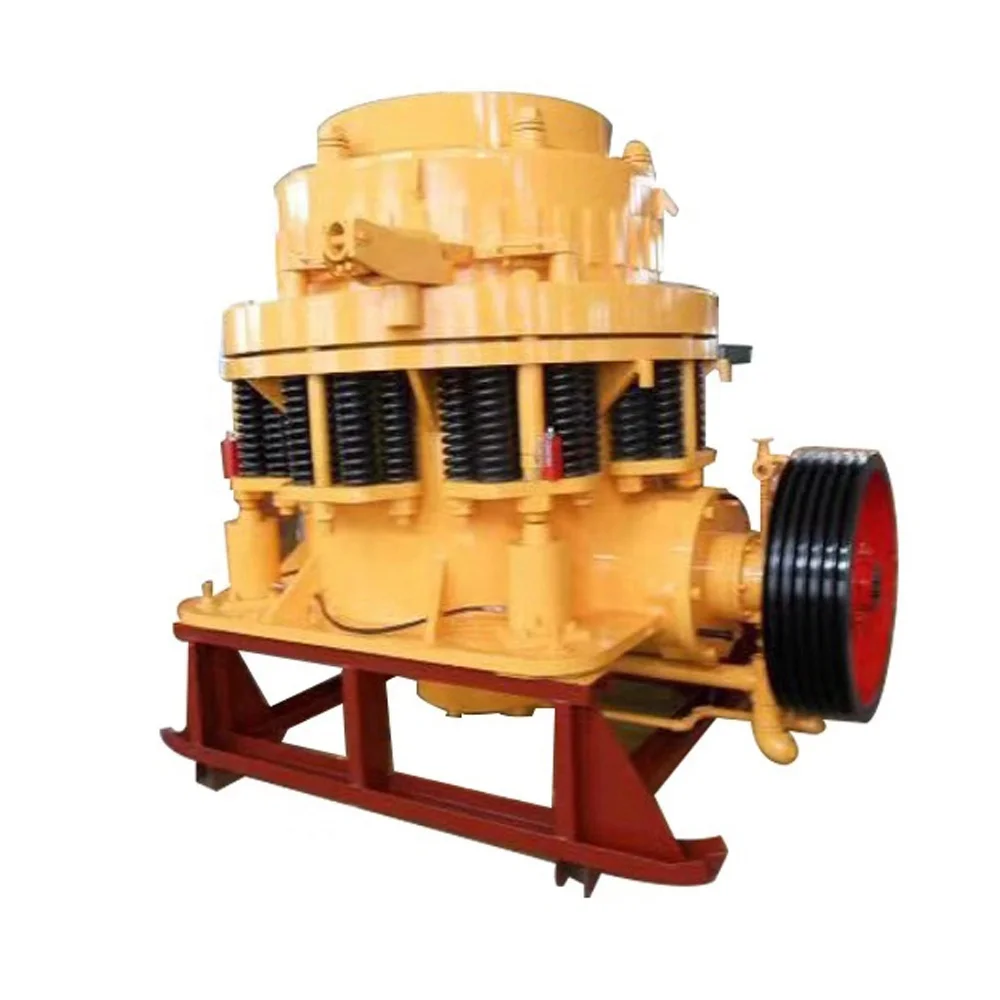

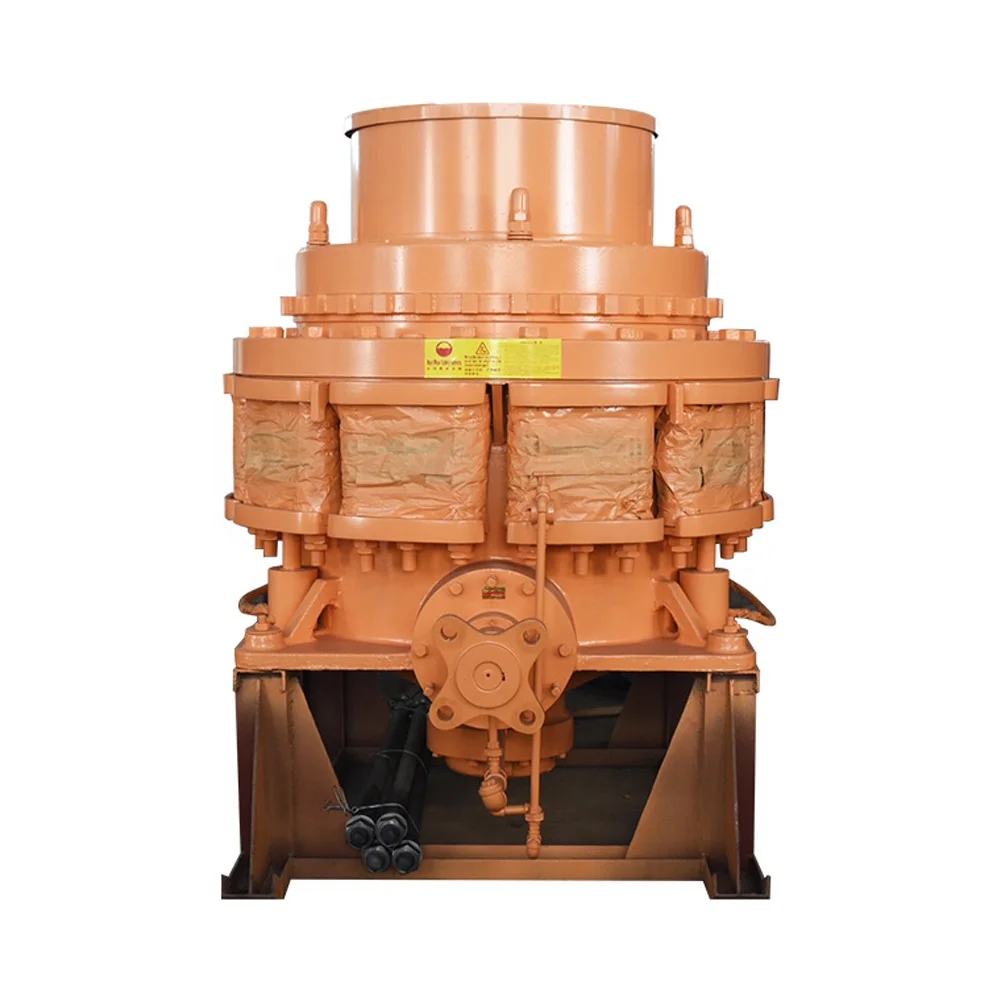

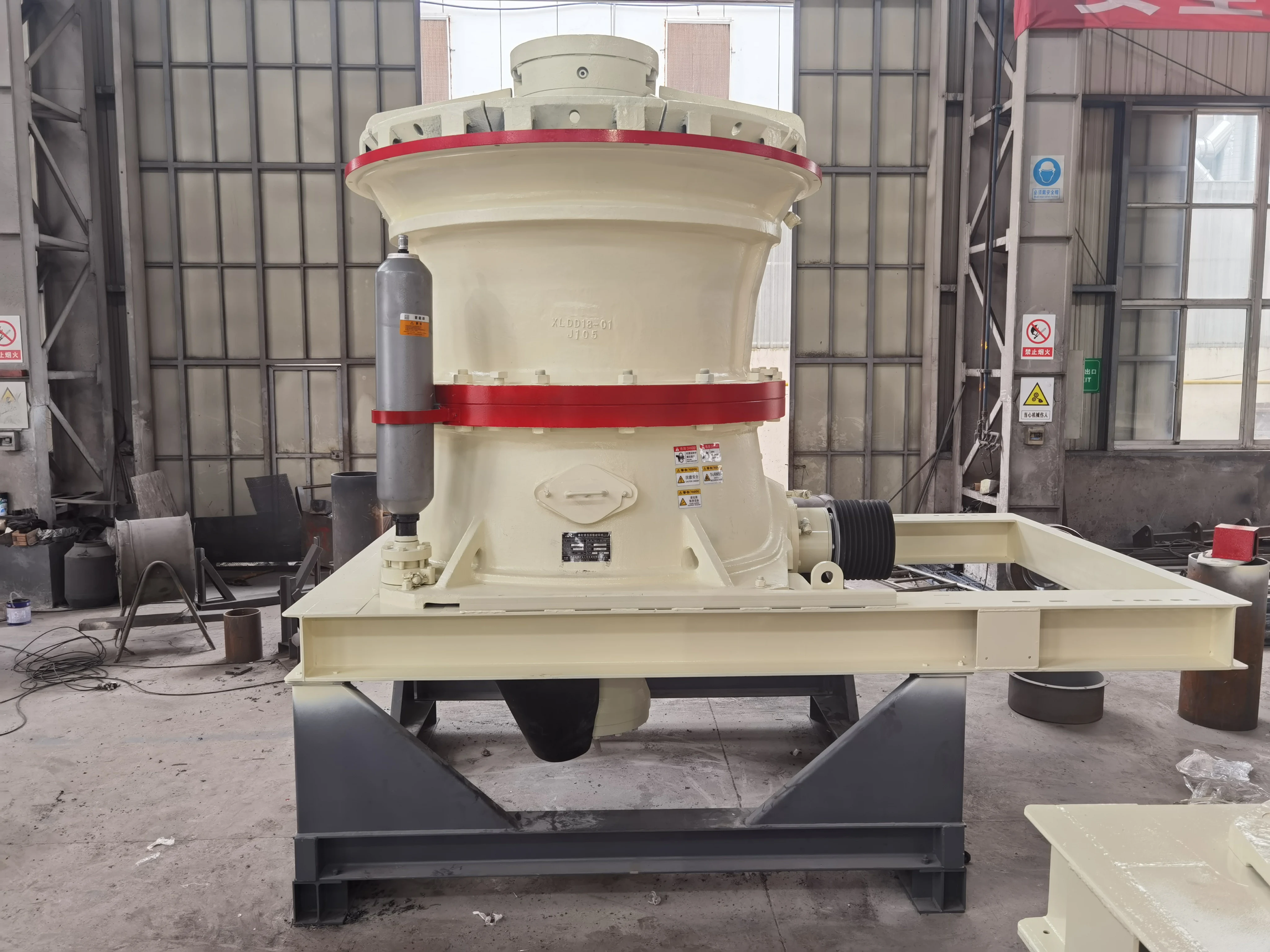

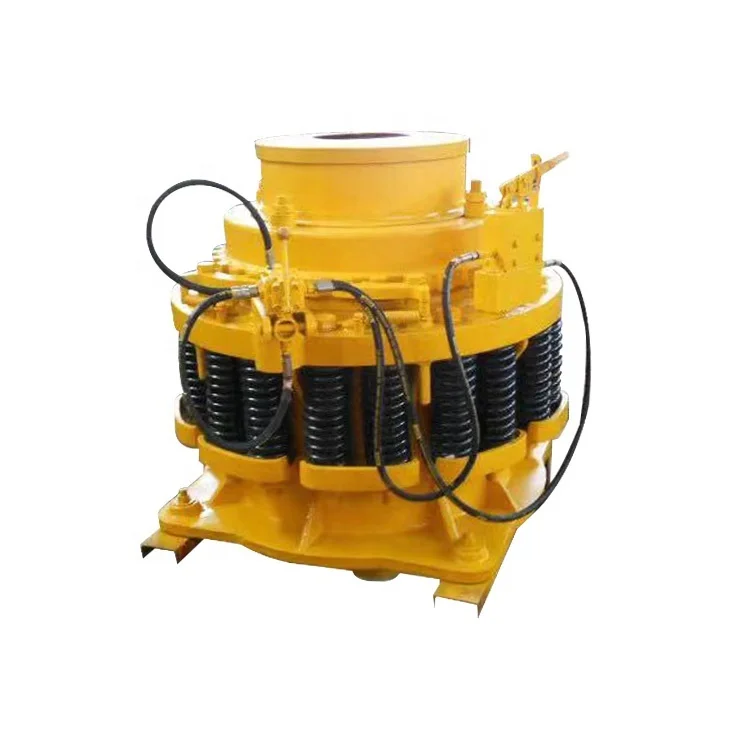

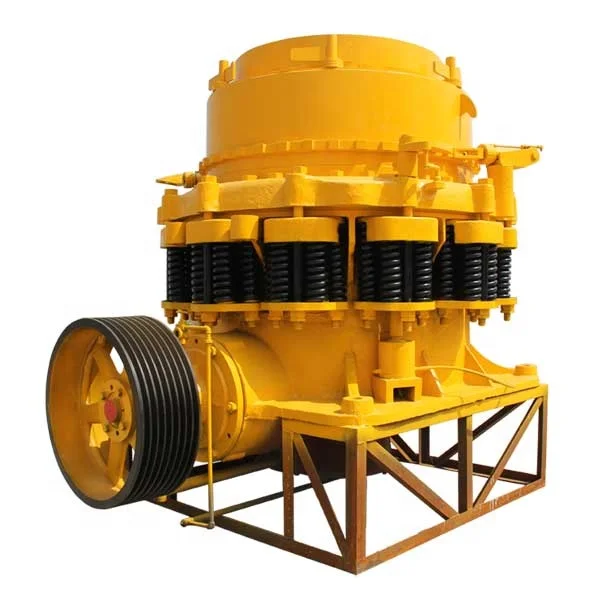

Mining stone crusher cone crusher spring cone crusher for cement machinery
- Category: >>>
- Supplier: Jiangyin Yuanzhou Mining Engineering Machinery Co. Ltd.
Share on (1601060910540):
Product Overview
Description
Product brief introduction
Hydraulic adjusting system provides safety protection and adjusting function of discharge port setting.
A heavy-duty hydraulic cylinder is used to support the spindle and adjust its position.
Hydraulic adjustment system provides automatic overload protection to ensure the safe passed of iron or other non-fragile materials and the spindle return to its original position automatically.

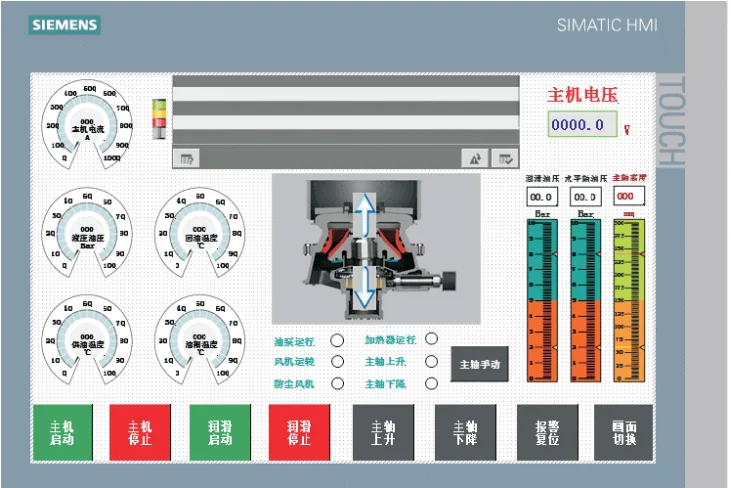

Hydraulic control system can monitor the actual crushing load inside the crusher, automatically optimize and adjust the crusher settings, so that the machine can always maximize its production potential.
Easy to operate and maintain
We have been investing considerable energy to make the cone crusher easier to operate and maintain. All maintenance and inspection can be done from the upper part of the crusher, which makes the operation of the crusher easier and the maintenance cost lower.
The tight sealing of the internal structure of the crusher can protect the equipment from dust and other small particles more effectively, thereby reducing the maintenance workload and further improving the service life of the crusher.
The hydraulic adjustment system can adjust the size of the discharge port and track the wear status of the liner, making it easy to plan the replacement of the liner and minimize downtime.
1.Provide safety protection and adjusting
2.function of discharge port setting.
3.through the calibration to understand the use of the liner.
2.function of discharge port setting.
3.through the calibration to understand the use of the liner.
4.timely remind and replacement of the liner.
Technical parameter

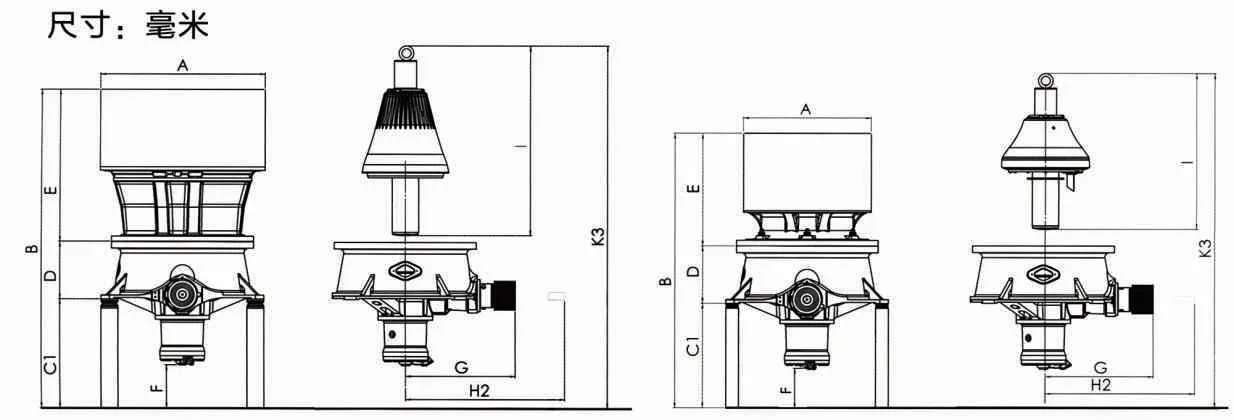

Note: The reference line (not the indoor floor) gives the minimum size for removal:
1. Hydraulic system cylinder 2. Pinion shaft 3. Spindle
1. Hydraulic system cylinder 2. Pinion shaft 3. Spindle
Size | DYS100 | DYS200 | DYS300 | DYS400 | DYH100 | DYH200 | DYH300 | DYH400 | DYH500 |
A | 1285 | 1635 | 200 | 2800 | 1078 | 1360 | 1540 | 1954 | 2450 |
B | 2902 | 3485 | 4075 | 5100 | 2560 | 2982 | 3410 | 4215 | 5475 |
C | 1020 | 1125 | 1300 | 1600 | 1020 | 1125 | 1300 | 1600 | 2000 |
D | 540 | 655 | 745 | 860 | 540 | 655 | 745 | 860 | 1228 |
H | 1342 | 1705 | 2030 | 2640 | 1000 | 1212 | 1365 | 1755 | 2045 |
I | 1703 | 2050 | 2420 | 2895 | 1425 | 1688 | 1985 | 2344 | 3095 |
K | 3600 | 4250 | 4930 | 5355 | 3000 | 3570 | 4000 | 4835 | 6600 |
The dimensions in the table are only used to guide the preparatory work before installation, not for foundation construction, etc
Approximate weight, kg
Approximate weight, kg

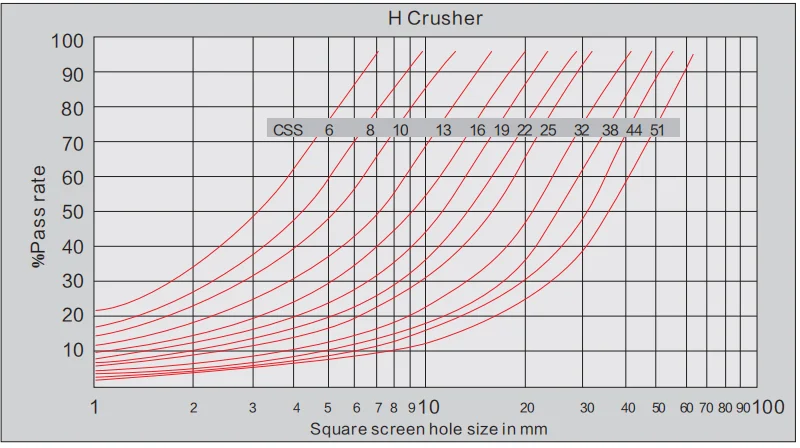

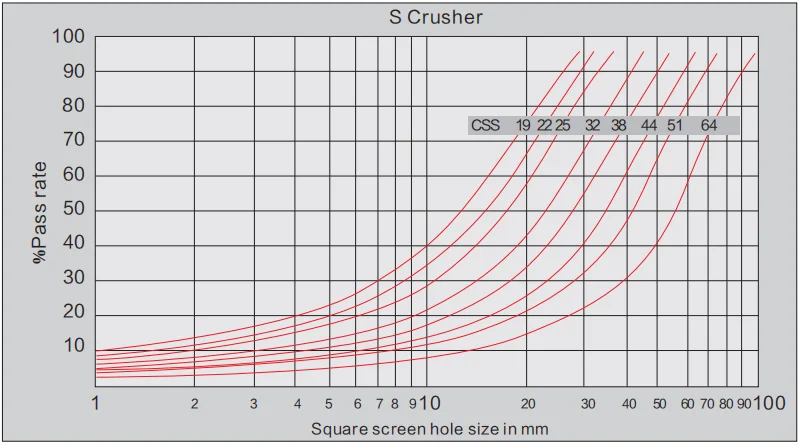

Product size curve
The product size curve and the percentage of crusher products less than the close-edged discharge port (square hole, millimeter) are related to the crushing work index (wi), feed size characteristics and other factors.

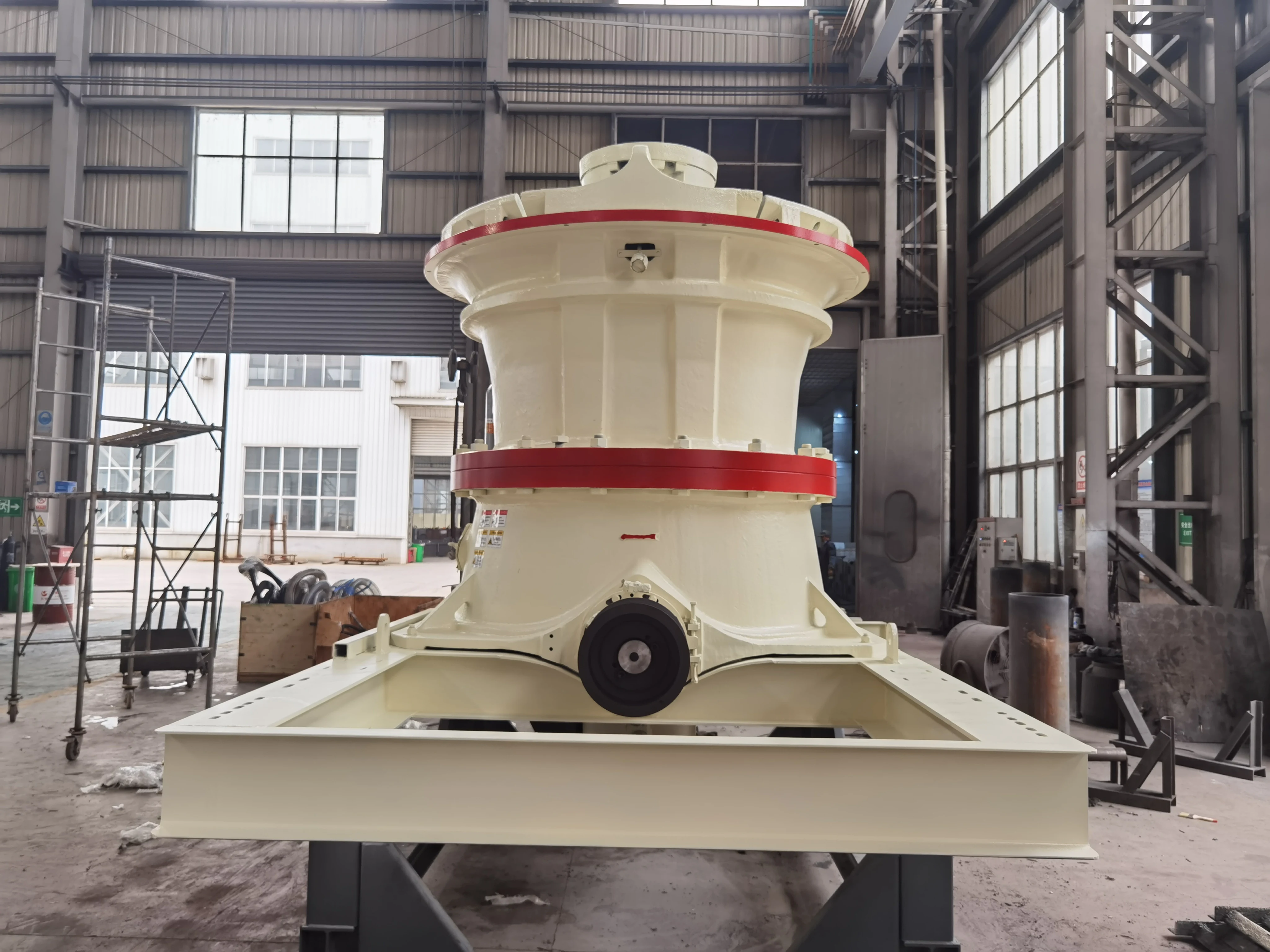

Site picture
