20L small scale chocolate conche/chocolate grinding machine mini chocolate making machine
20L small scale chocolate conche/chocolate grinding machine mini chocolate making machine
20L small scale chocolate conche/chocolate grinding machine mini chocolate making machine
20L small scale chocolate conche/chocolate grinding machine mini chocolate making machine
20L small scale chocolate conche/chocolate grinding machine mini chocolate making machine
20L small scale chocolate conche/chocolate grinding machine mini chocolate making machine
20L small scale chocolate conche/chocolate grinding machine mini chocolate making machine

20L small scale chocolate conche/chocolate grinding machine mini chocolate making machine

Share on (1601060911853):


Price:

Quantity:


Product Overview

Description



Product Description:

Application:
Chocolate conche refiner is the universal solution for making pure chocolate, compounds, coatings, pralines, truffles and
fillings,etc from small to medium capacities.
Chocolate conche refiner is versatile which means 3 in 1 manufacturing solution fullfillng the function of raw materials mixing,
refining and conching. Once a mixed mass is procured, the refining and conching process will start.

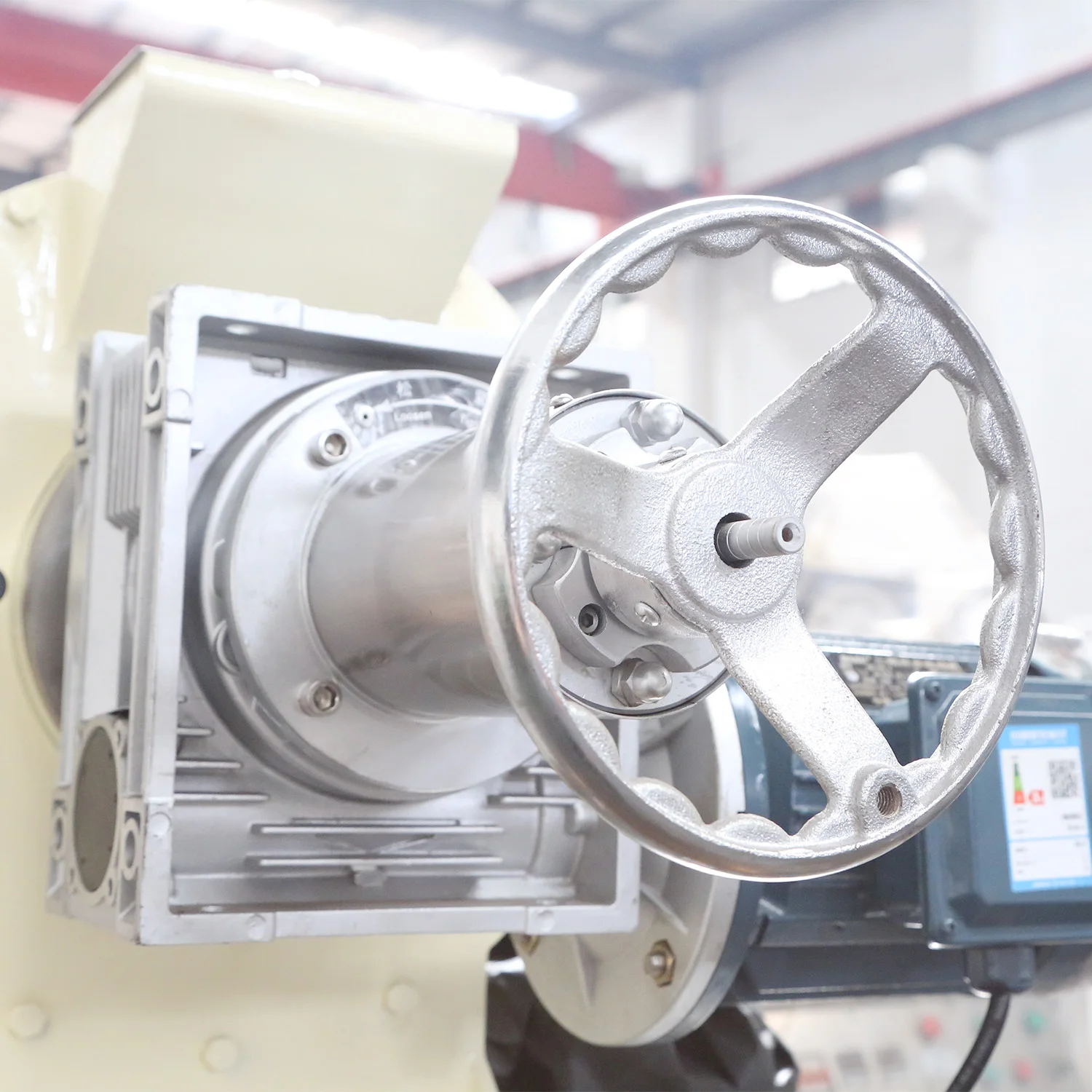

Our chocolate conche refiner has a main shaft which equipped with blades and a manual pressure adjustment wheel to adjust the
pressure on the raw materials between the baldes and lining bars. It allows reliable process control to achieve and maintain
constant mass quality between batches.

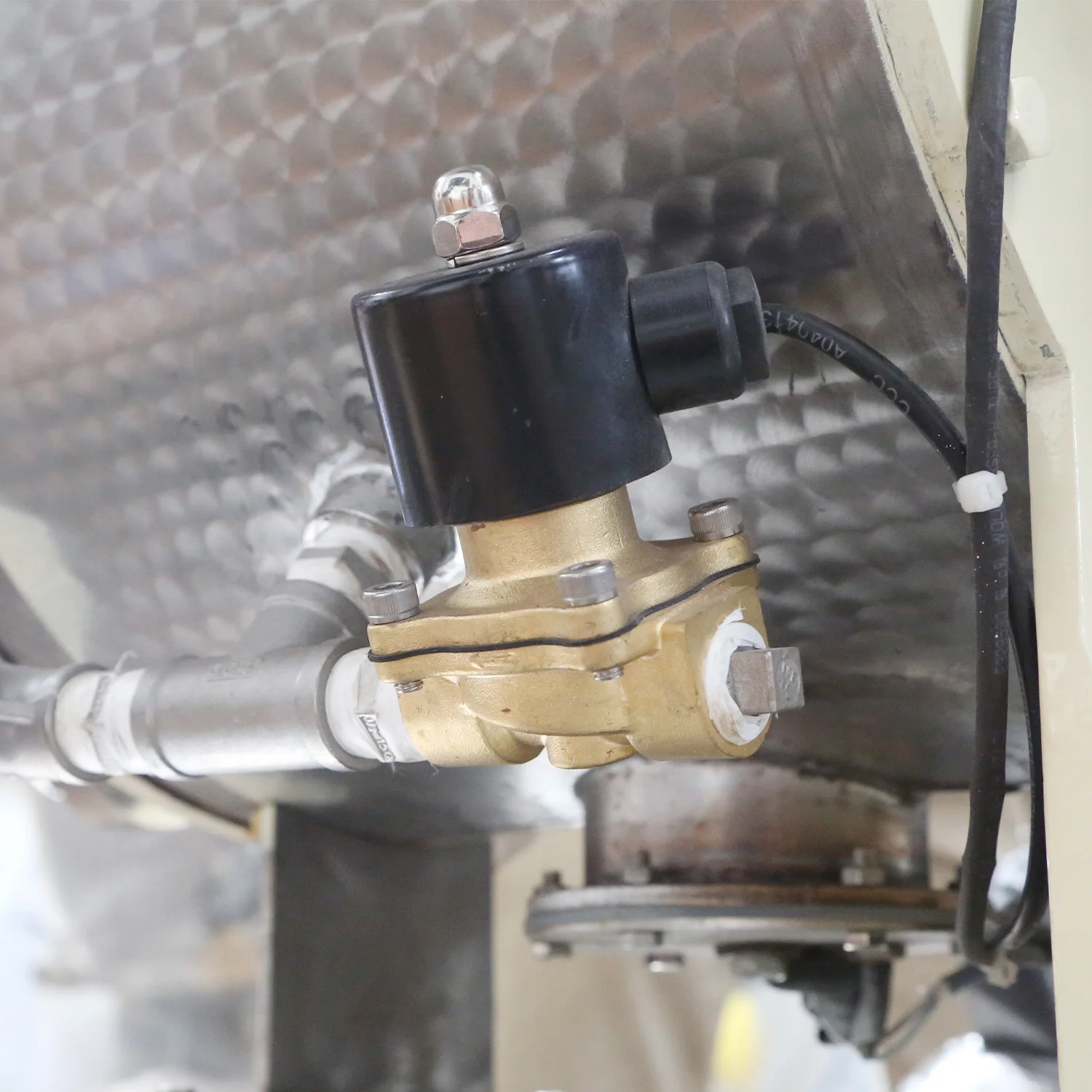

Moreover, our conche refiner has solenoid valve and automatic temperature water system. It makes proper tempeature inside conche
refiner come ture and customer will obtaine delicate chocolate mass.



Technical parameters:


Model/Project
20L
100L
500L
1000L
1500L
2000L
3000L
Maximum capicity(L)
20
100
500
1000
1500
2000
3000
Grinding Fineness(micron)
20-25
20-25
20-25
20-25
20-25
20-25
20-25
Main Axle Rotating Speed(rpm)
93
48
33
35
35
35
35
Grinding time(h)
8-10
12-16
16-22
16-22
16-22
16-22
16-22
Main moter power(kw)
1.5
5.5
15
22
30
37
45
Electrical heating power(kw)
0.6
2.5
5
2×2
6
3×2
12
Weight(kg)
295
1050
2572
3050
4850
5350
7500
Outside dimensions(mm)
920×600×1110
1200×1150×1050
2465×1146×1312
2627×1280×1520
2918×1650×1920
3040×1912×1920
3450×2016×2280

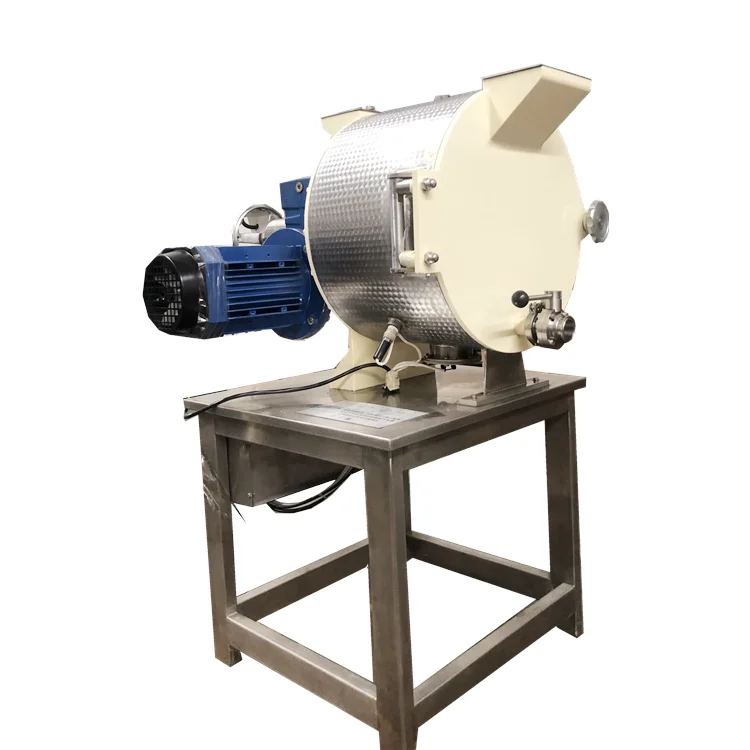

1. Our 20L chocolate conche refiner is proper production solution for chocolate shops and chocolate labs, because it’s with three functions: raw materials mixing, chocolate mass grinding&refining, and conching.
2. It can be used to make chocolate mass and various filling which used on chocolate.



Detail Picture:





Features:

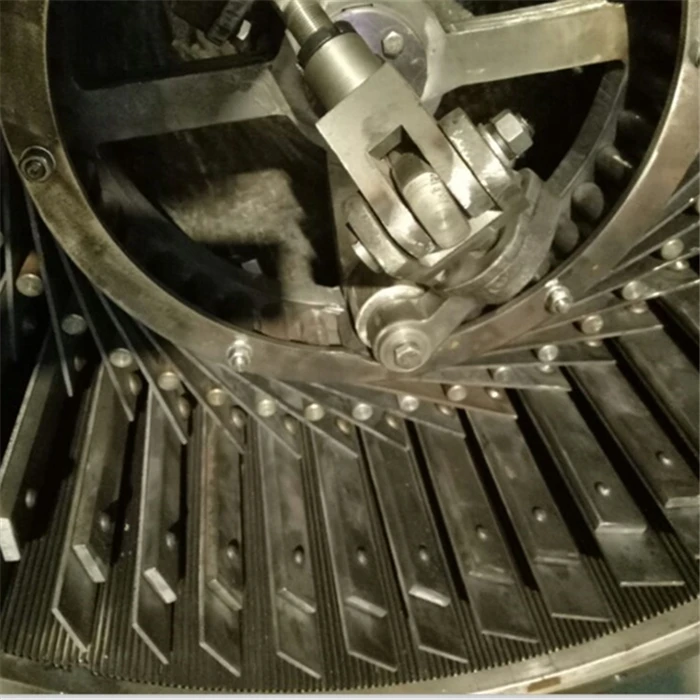

1. Material of blades and lining bars are Manganese steel which with long living time. Moreover, every piece of lining bars will be processed and strengthened by our special heating system.
2. Our 20L chocolate conche refiner is flexible to operators, the reasons are:
1)It can be open from front side, so it’s easy to cleaning and maintenance;
2)With solenoid valve and automatic temperature control system.
3. Limited space is suitable for our 20L conche refiner.



Processing Picture:

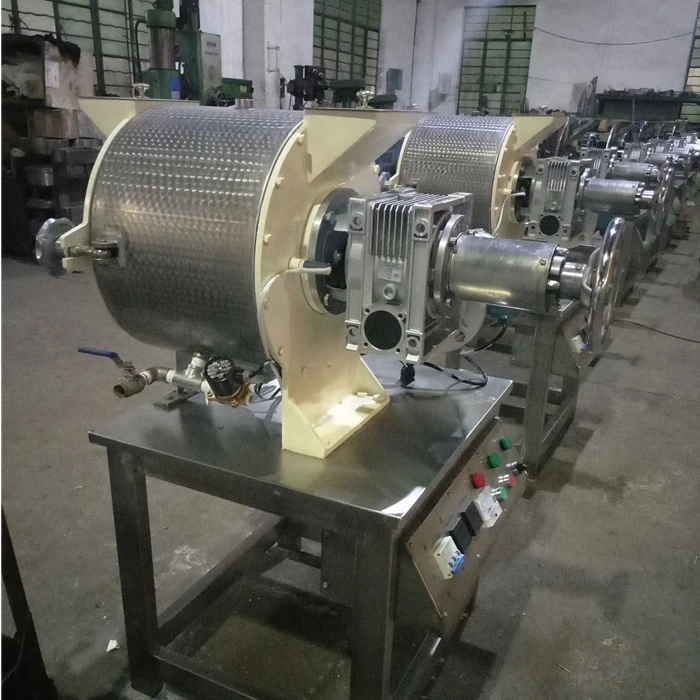

Workshop:




1. Since our 20L chocolate conche refiner is very convenient for chocolate shops and chocolate labs, it’s one of our hot sale
products always.
2. We can make 50 sets of 20L chocolate conche refiner/month. Moreover, except motor and electrical components, almost all parts
are made by ourselves. So we can control our quality very well.


Company Introduction:





Certificate:




Package & Shipping:
