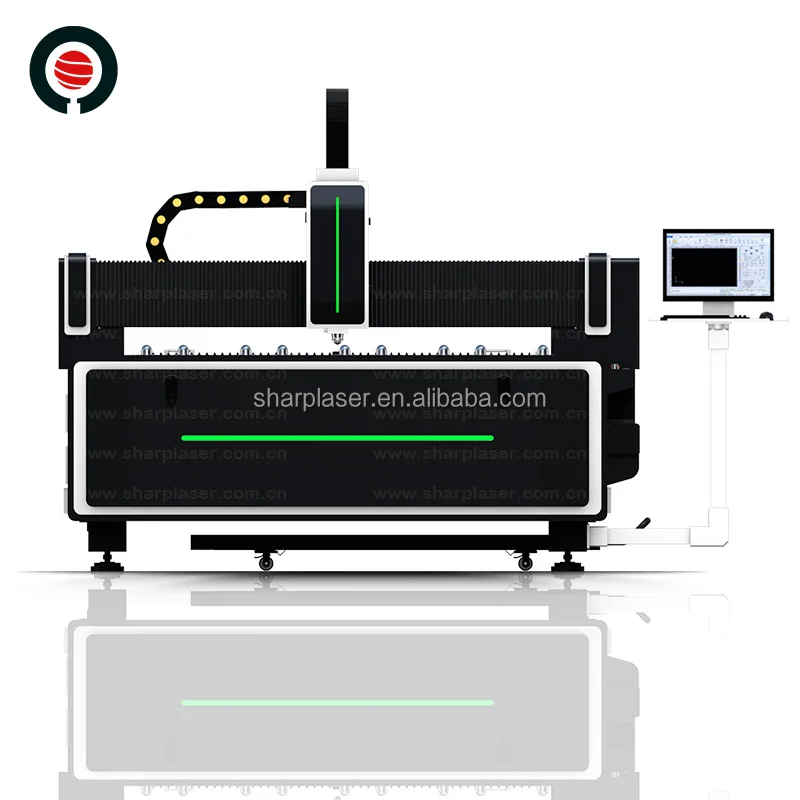

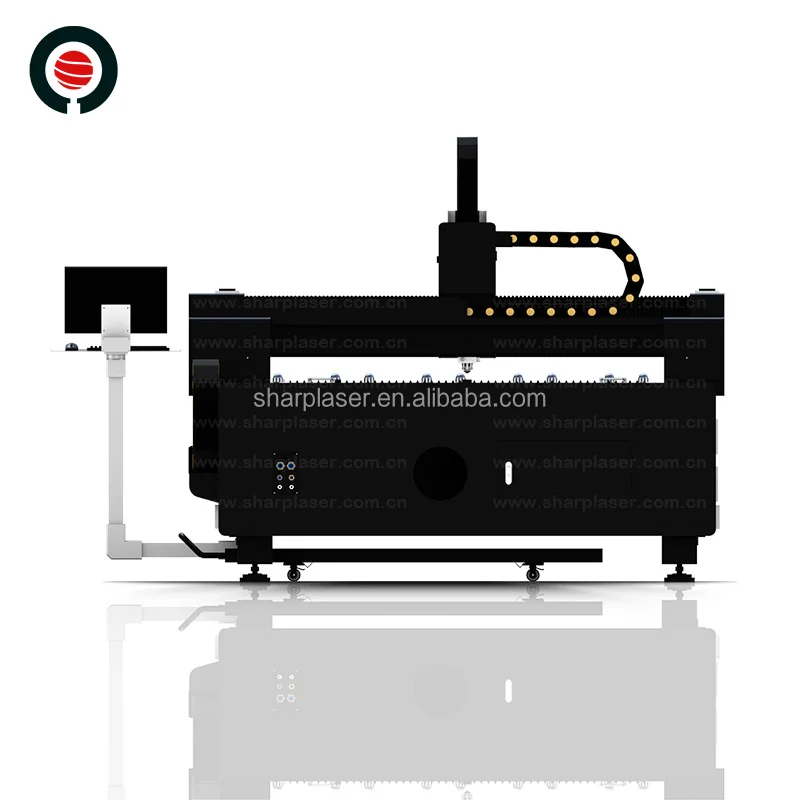

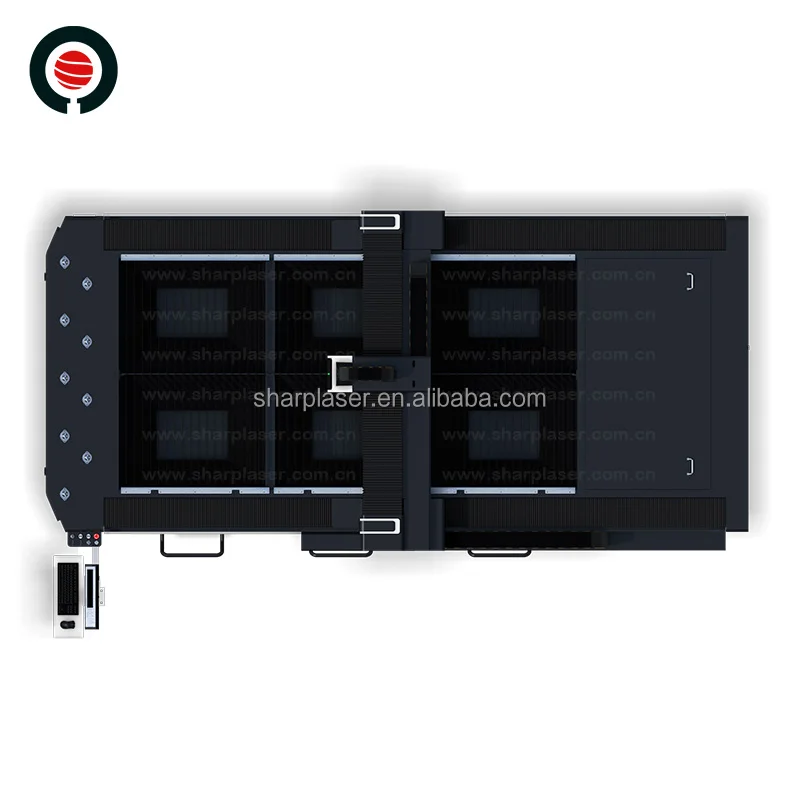

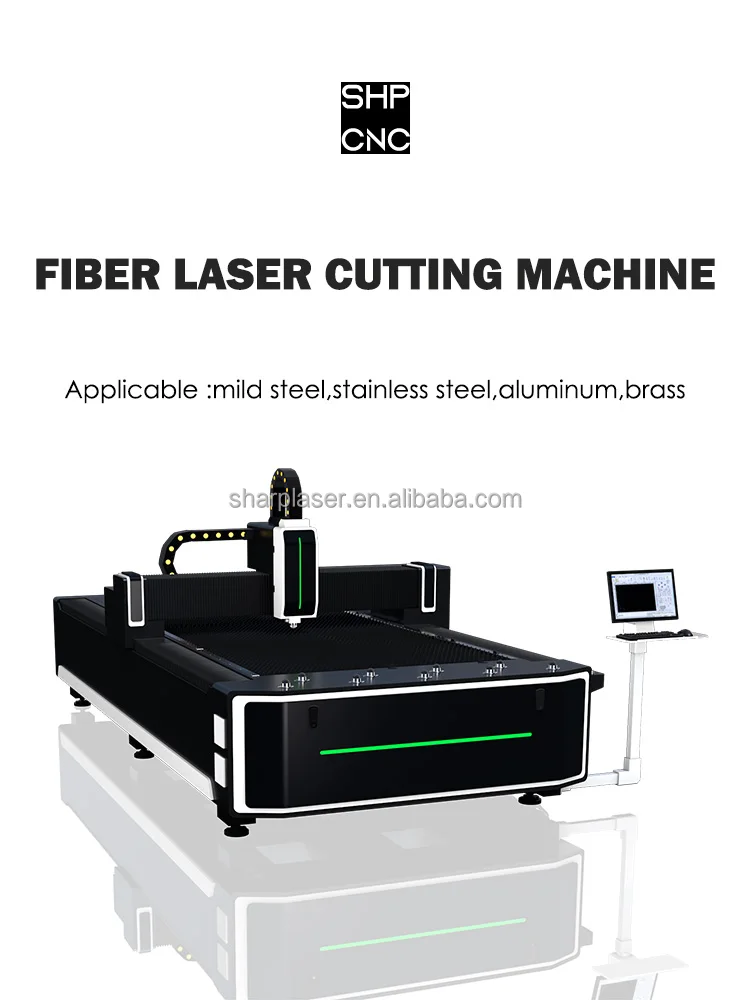

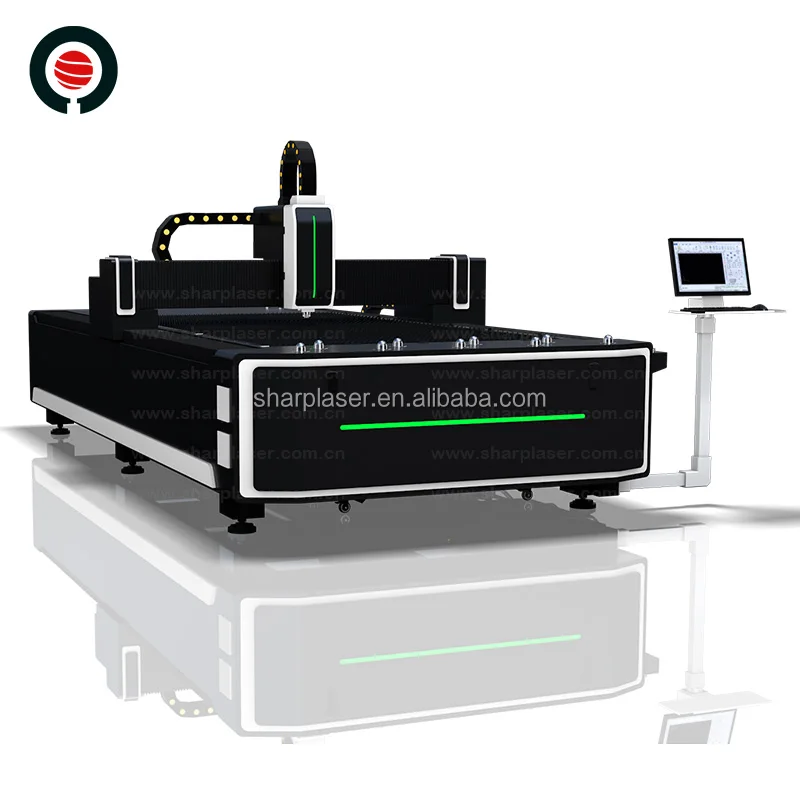

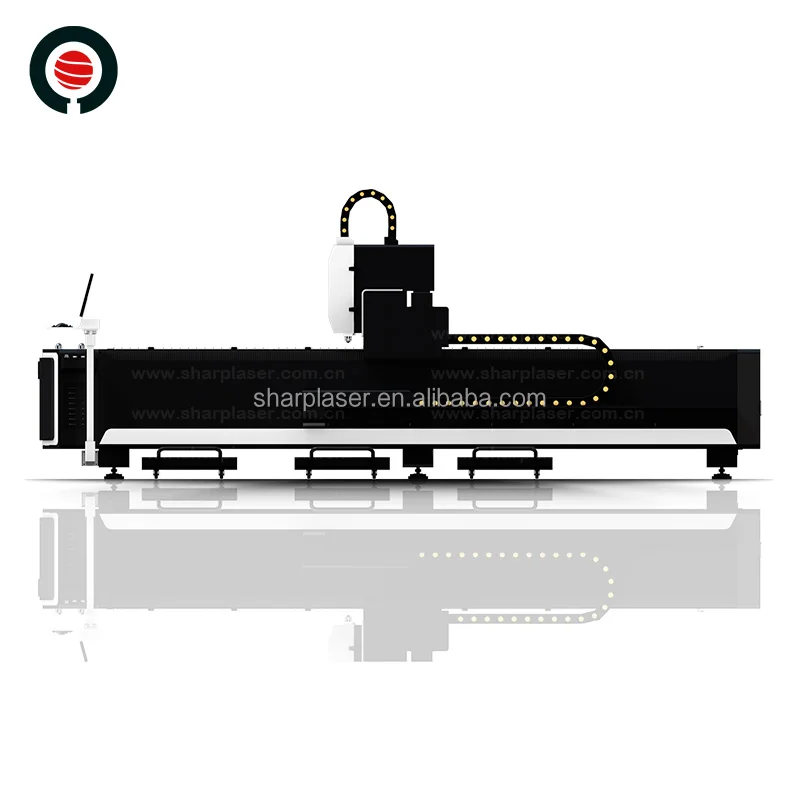

1500w 6000w 5mm stainless steel sheet 3015 cnc metal laser cutting machine

Name

CNC fiber laser cutting machine

Working size

1500*3000mm

Model

CF1530

Laser power (fiber laser)

1000w,1500w,2000w,3000w,4000w,6000w

laser brand

Max,Raycus,JPT,IPG optional

working bed

saw teeth blades and ventilation bed

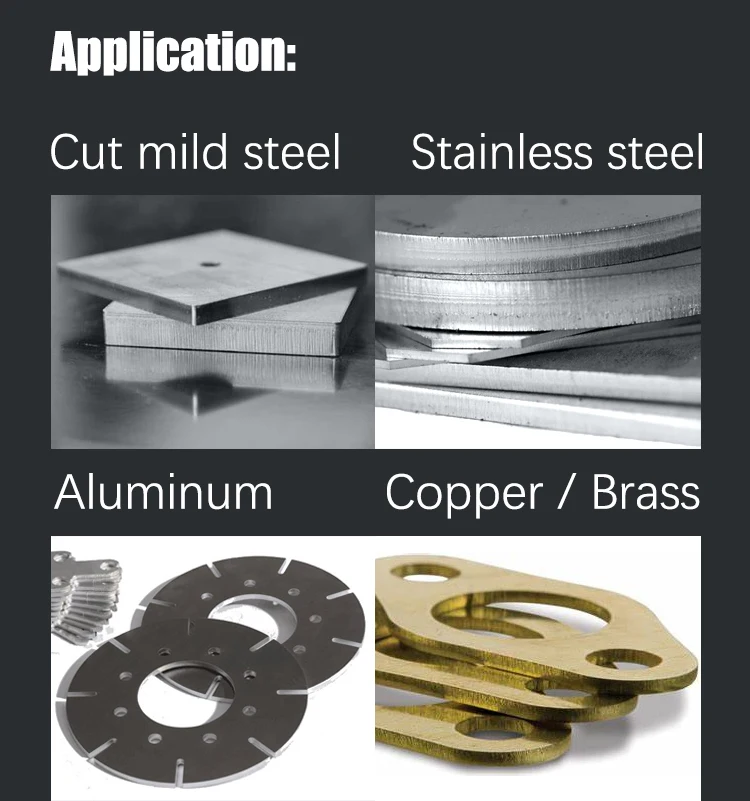

Max.cutting thickness

0-25mm,depending on materials and power

control method

Computer operation

Runing speed

0-90m/min

Cutting speed

0-35m/min

cutting accuracy

0.02mm

Repeatable locating accuracy

0.02mm

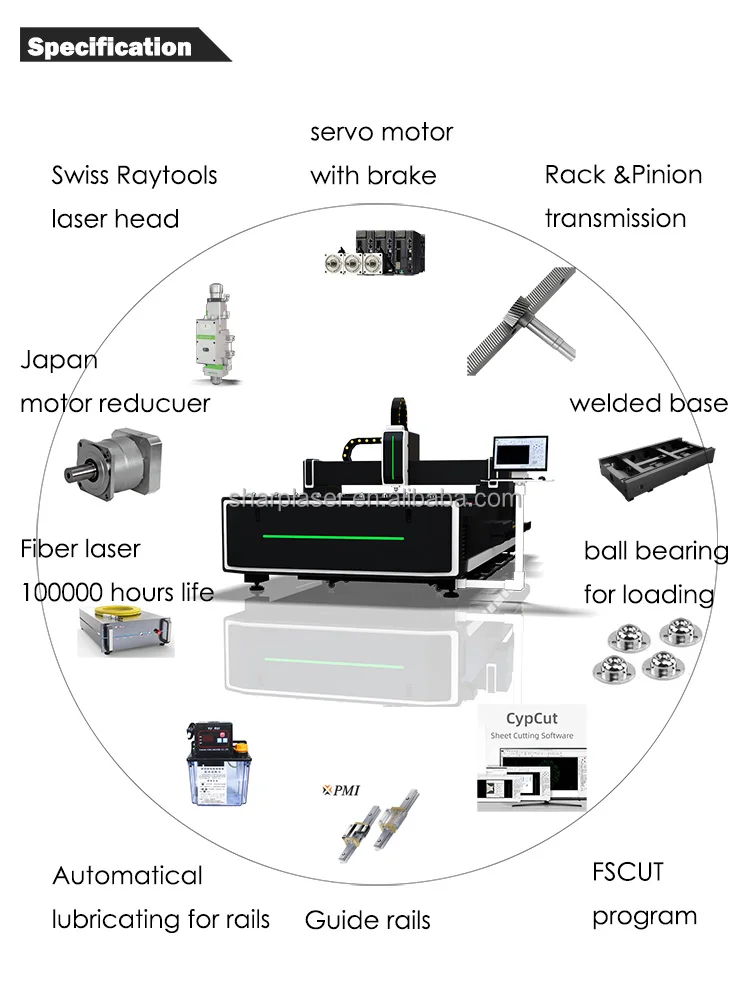

Motor and driver

750w servo motors and driver,rack and gear

transmission system

PMI Linear guide rails + rack and pinion gear

Memory

256MB

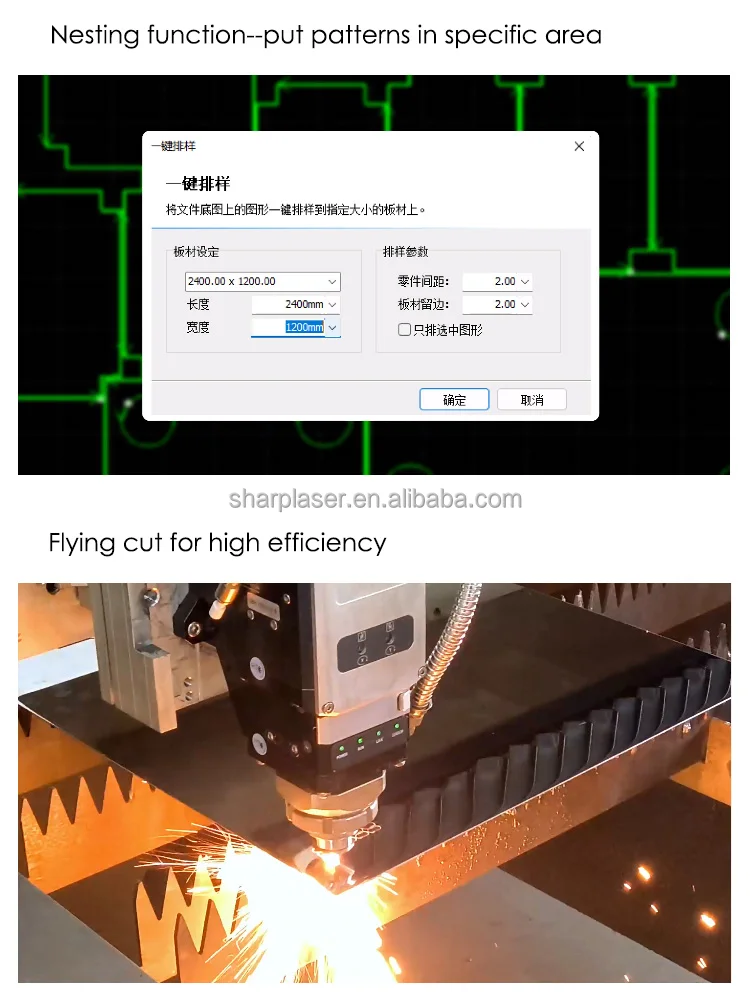

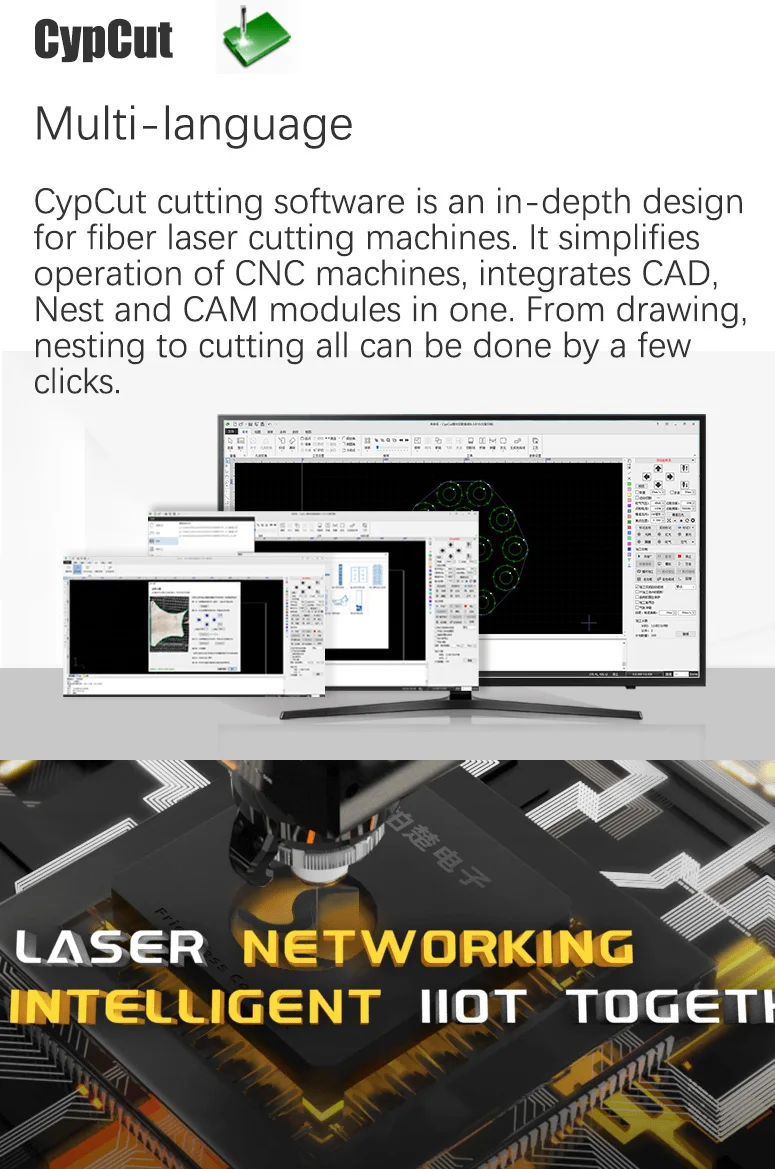

Software program

CYPCUT

Auxiliary accessories

Exhaust fan,fume tubes,water chiller,tools box

file format

*.plt, *.dst, *.dxf, *.dwg, *.ai, support AutoCAD, CorelDraw software

Voltage/ Frequency of machine table

3-Phase 340~420V

Dimension

4.5*2.15*1.1 m

Packing size

4.65*2.25*1.3m

Weight

2000KGS

Package

plywood crate for export/naked packing

warranty

2 years
