Professional Ophthalmic Ultrasound UBM Ultrasound Biomicroscope for Ophthalmic Clinic

Product Overview

Description

Ophthalmic Ultrasound UBM Ultrasound Biomicroscope

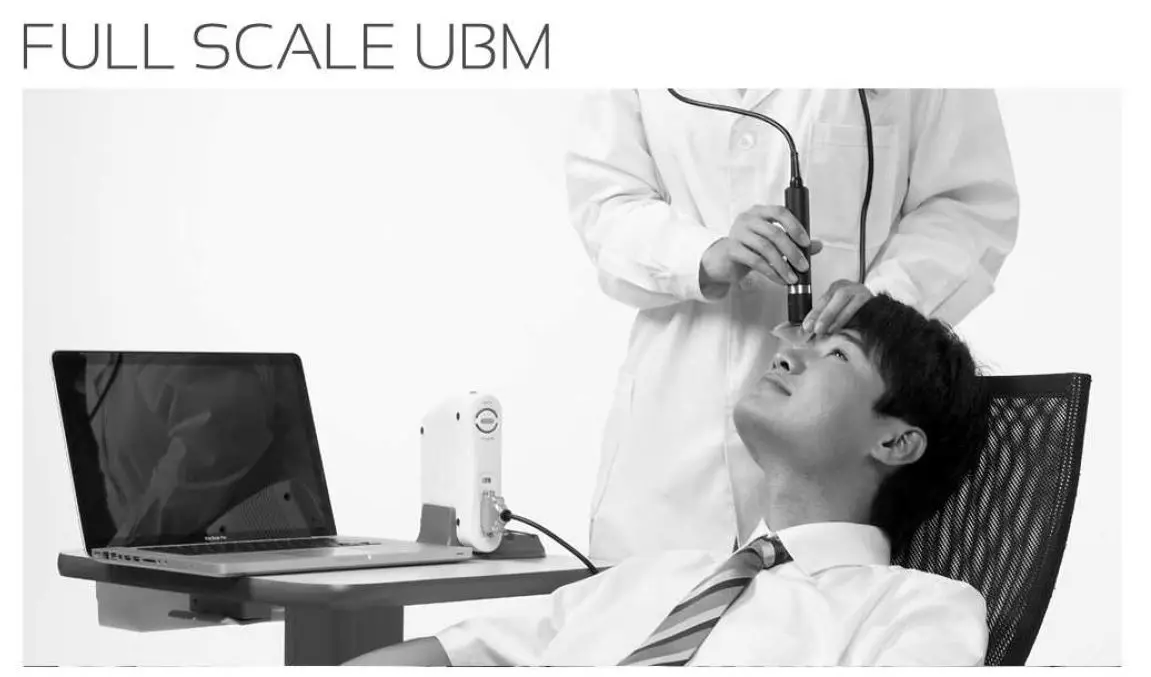

Full Scale UBM

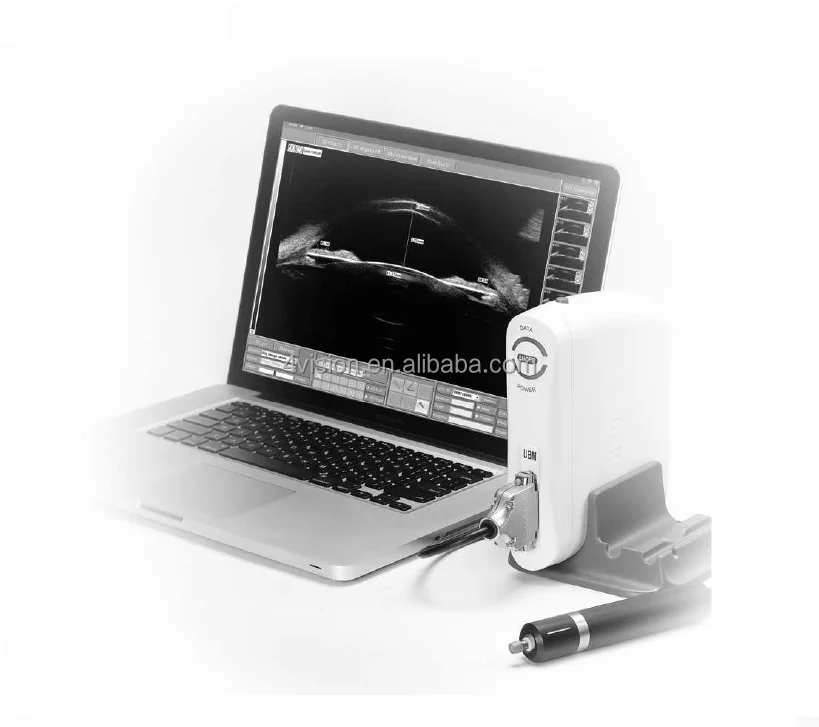

SW-3200U



Newvision Full Scale UBM is Used for measuring the structure and the di-agnosis of anterior segment, incuding comea, chamber angle, ciliarybody, iris, anterior chamber,double-angle etc. Has been widely used inglaucoma, eye injury and ciliary body disease.























Features:

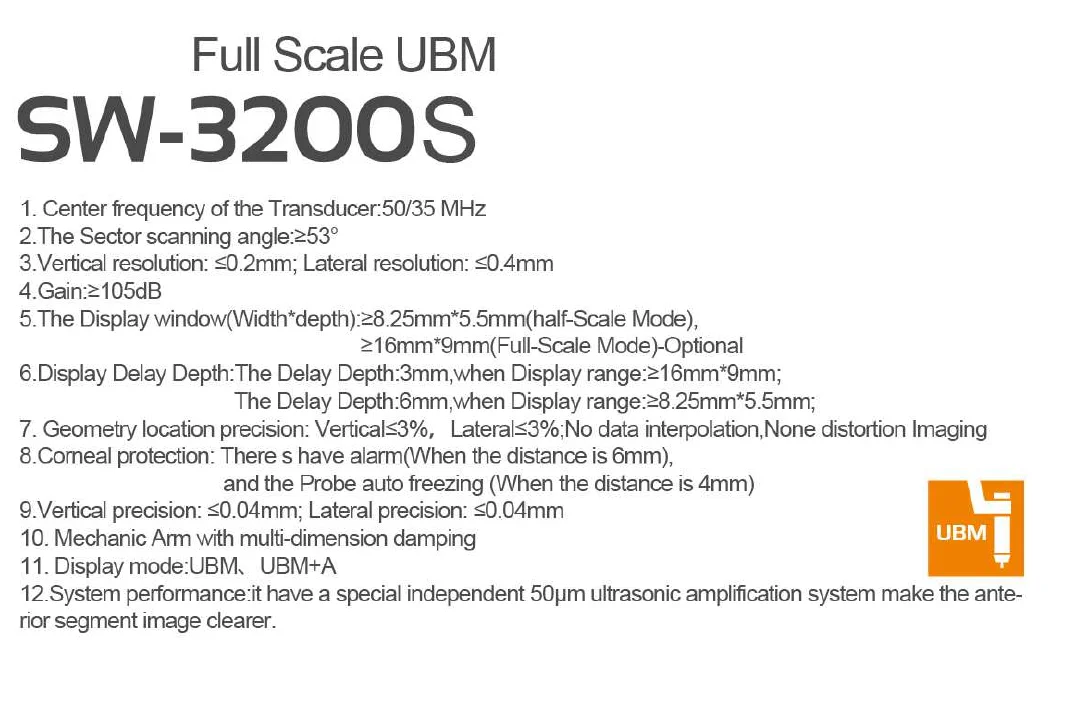

1.Center frequency of the Transducer:50/35 MHZ2.The Sector scanning angle:>53°3.Vertical resolution: ≤0.2mm, Lateral resolution: ≤0.4mm4.Gain:≥105dB
5.The Display window(Width*depth):28 25mm*5.5mm(half-Scale Mode),≥16mm*9mm(Full-Scale Mode)-Optional6.Display Delay Depth:The Delay Depth:3mm,when Display range:≥16mm*9mm;
The Delay Depth:6mm,when Display range:>8.25mm*5.5mm;7. Geometry location precision: Vertical≤3%, Lateral<3%;No data interpolation,None distortion lmaging8.Comeal protection: There s have alarm(When the distance is ómm),
and the Probe auto freezing (When the distance is 4mm)9.Vertical precision: ≤0.04mm; Lateral precision: s0.04mm10.Mechanic Amm with multi-dimension damping11.Display mode:UBM,UBM+A
UBM
12.System perfomance:it have a special independent 50ym ultrasonic amplification system make the ante.
rior segment image clearer.
