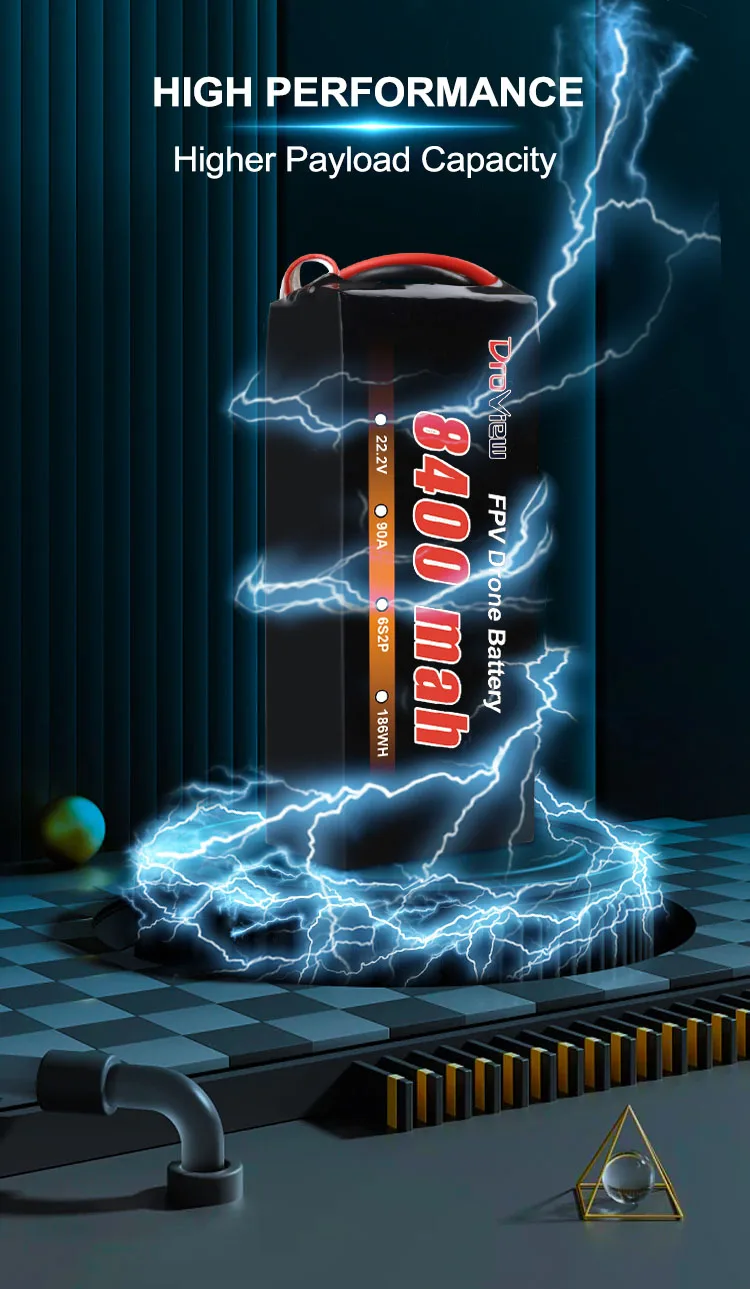

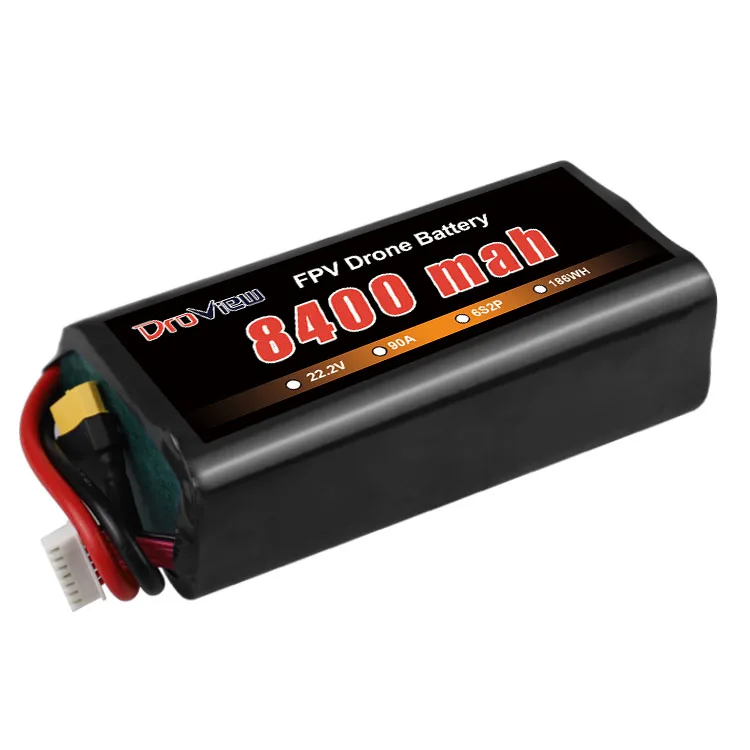

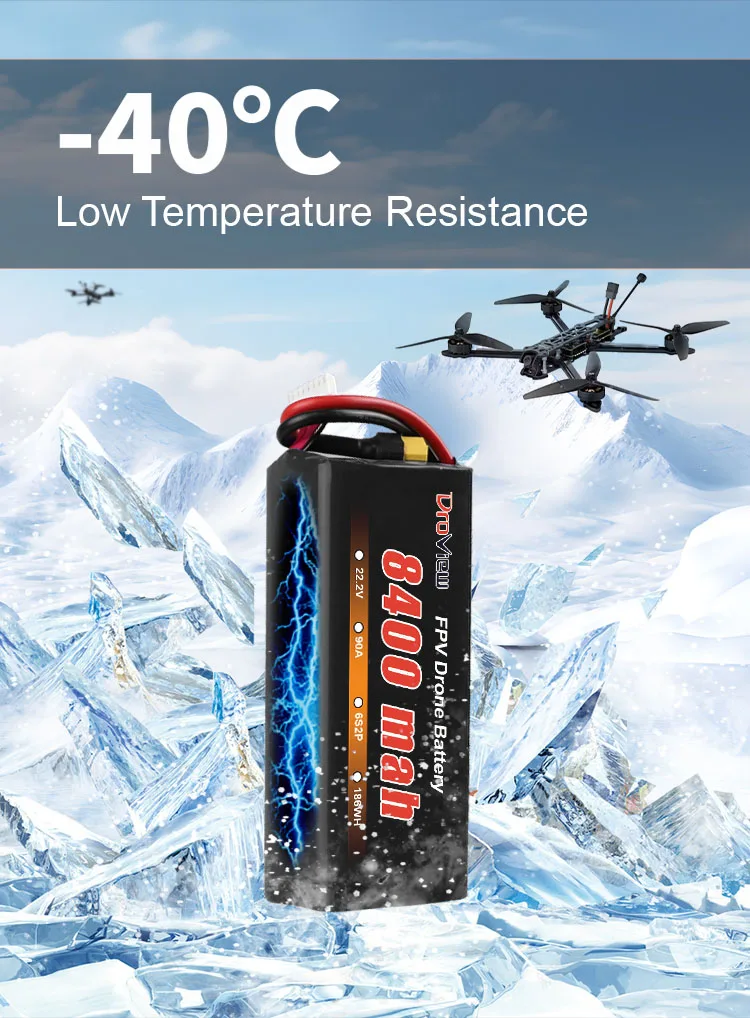

Molicel Battery 6S2P P42A 8400MAH 10C Low temperature resistance 40 degrees Celsius
- Category: >>>
- Supplier: SHENZHEN DROVIEW TECHNOLOGY CO LTD
Share on (1601060946221):
Product Overview
Description
Details Images
Products Description
DV07 Pro FPV Drone 7 Inch Specifications
1. Frame- 7Inch Carbon Fiber Frame 2. Stack-FC BL F405 ESC F60 Blheli-S 60A -6S 3. DroView 5.8G Reaper Extrme 2.5W 40CH
VTX /1.3G 1.6W VTX 4. DroView 1/3 CMOS 1500TVL Camera 5. DroView 2807 1300KV MOTOR 6. HQProp 7X4X3 7Inch 3-blade PC Props 7.Happymodel 915MHz RX ELRS 8.VTX Antenna 5.8G/1.3G RHCP 150MM 9. Battery Strap 20*300mm*2
DV09 Pro FPV Drone 9 Inch Specifications
1. Frame- 9Inch Carbon Fiber Frame 2. Stack-FC BL F405 ESC F60 Blheli-S 60A -6S 3. DroView 5.8G Reaper Extrme 2.5W 40CH VTX /1.3G 1.6W VTX 4. DroView 1/3 CMOS 1500TVL Camera 5. DroView 3110 1100KV MOTOR 6. HQProp 9 Inch 3-blade PC Props 7.Happymodel 915MHz RX ELRS 8.VTX Antenna 5.8G/1.3G RHCP 150MM 9. Battery Strap 20*300mm*2
DV10 Pro FPV Drone 10 Inch Specifications
1. Frame-DroView 10Inch Carbon Fiber Frame 2. Stack-F405 MK2 V2 F55 Blheli-S 55A -6S 3. DroView 5.8G Reaper Extrme 2.5W 40CH VTX /1.3G 1.6W VTX 4. DroView 1/3 CMOS 1500TVL Camera 5. DroView 3115 700KV MOTOR 6. German 1050Prop (2PAIRS) 7. Happymodel 915MHz RX ELRS 8.VTX Antenna 5.8G/1.3G RHCP 150MM 9. Battery Strap 20*300mm*2
DV13 Pro FPV Drone 13 Inch Specifications
1. Frame-DroView13 Inch Carbon Fiber Frame 2. Stack-F405 Blheli-S 80A -8S 3. DroView15.8G Reaper Extrme 2.5W 40CH VTX /1.3G 1.6W VTX 4. DroView1 1/3 CMOS 1800TVL Camera 5. DroView1 4214 660KV MOTOR 6. German 13 inches (2PAIRS) 7. Happymodel 915MHz RX ELRS 8.VTX Antenna 5.8G/1.3G RHCP 150MM 9. Battery Strap 20*400mm*2

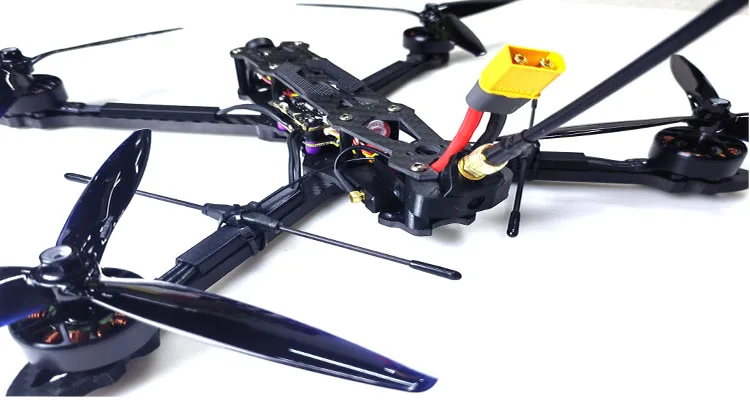

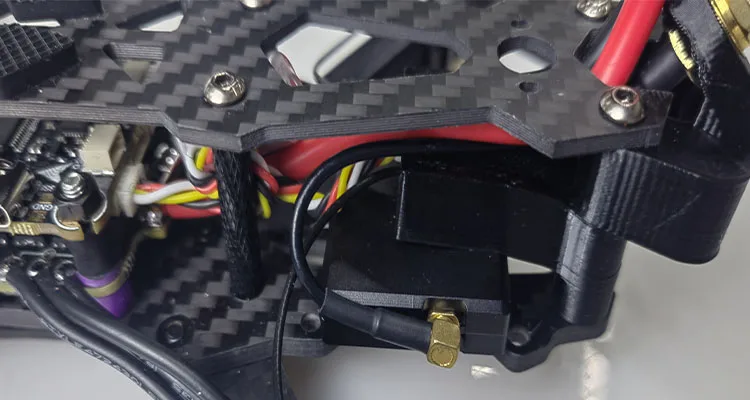

Demountable Arm with Motors, which is for safety shipment and Small Packing Volume
The amrs with motor for DroView FPV Drones are demountable. It only need to install 8PCS Scews when install the FPV Drones. In that case, we can ship the fpv drones by parts for safety shipment. At the meanwhile, the packing volume is smaller when ship by parts. In that case, we have help our client save much shipping cost.

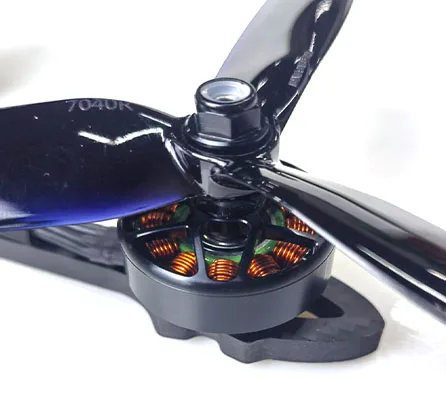

DV07 MOTOR & PROPELLER
Model: DroView 2807 -KV1300 *4pcs Motor Weight: 47.6g Motor Dimension:33.9*34mm Internal Resistance: 58mΩ Configuration: 12N/14P Shaft Diameter: 5.0mm Rated Voltage: 3-6S Peak Current: 45.79A Max Power: 1153.9W Max Pull: 2239g *4pcs Prop: GF7*3.5*3 No-load current:0.8A/12V silica gel:18#200mm

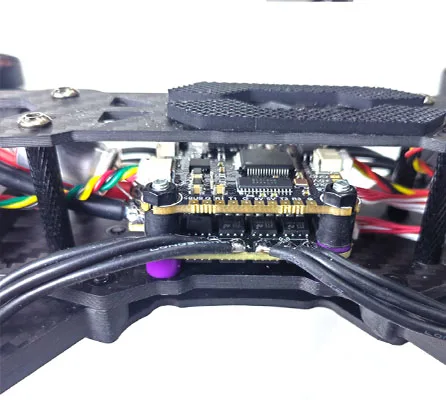

DV07 FC & ESC 4in1 STACK
Model: DroView F405 60A Stack ESC : F60 Blheli-S 60A -6S 37*42.7mm FC: BL F405 （42688P）37*37mm Mounting: 30.5*30.5mm Input: 2-6S Consistent Current: 60A BEC: 5V 3A, 10V 2A Temp Protection: YES Power Cable: 12AWG, 10cm Weight: 20.5g current sensor:YES motor output:8CH Universal serial port:4CH

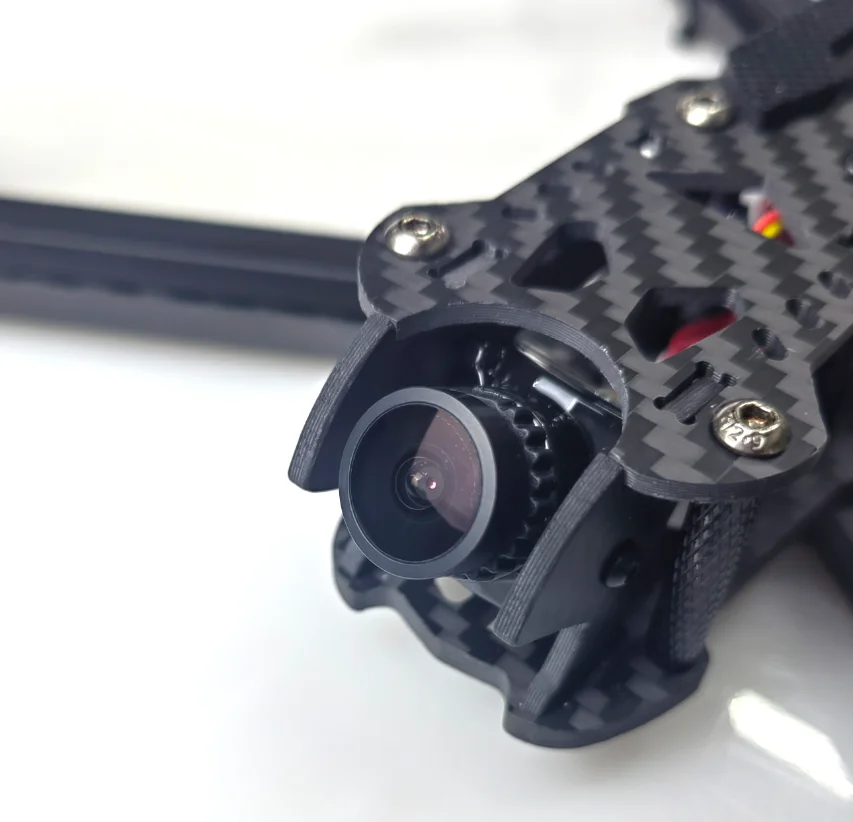

DV07 CAMERA
ITEM: DroView 1800TVL Camera Sensor: 1/3.cmos Resolution: 1800TVL FOV: 165° Lens: 2.1mm TV System: NTSC & PAL Image: 4:3/16:9 WDR: Super WDR Min.Illumination: 0.0001Lux Denoise:3DNR Video output:CVBS ElectronicShutter:PAL:1/50~100,000;NTSC:1/60~100,000 Wide voltage:5-40V Operation temperature:-20℃~+60℃ Weight:5.9g Size:19*19*20mm Option:Night vision or Thermal Imaging Camera
DV07 VIDEO TRANSMITTER
Item: Item: DroView 5.8G 2.5W VTX (1.3G 1.6W VTX Instead if 5.8G Chips short) Working Voltage:7-36V Working Current: ≤450mA (12V/800mW), ≤850mA (12V/2500mW) Video Input Impedance:75Ω Video Format: NTSC/PAL Antenna interface:MMCX 25mW/13.95dBm 500mW/26.02dBm 1000mW/30.3dBm 2500mW/34.04dBm Output Power:PIT/25/500/1000/2500mW Number of Channels: Standard 40 Channels (A/B/E/F/R) Image transmission protocol:SmartAudio Mounting Hole:20X20.M2 Dimension: 25*37*6.5mm Working Temp: -10-60℃ Weight: 19g

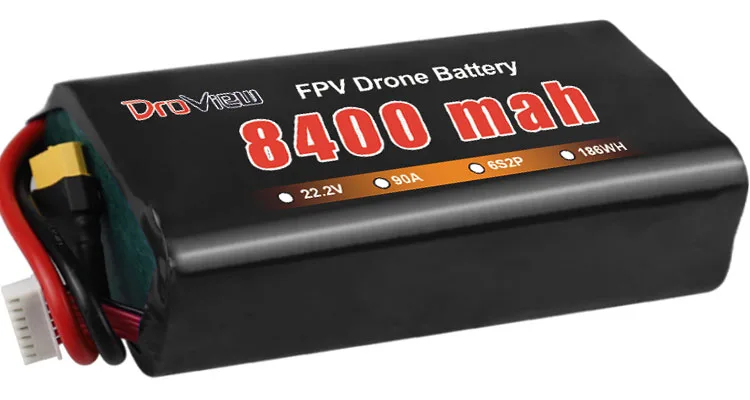

SUGGESTED BATTERY For DV07

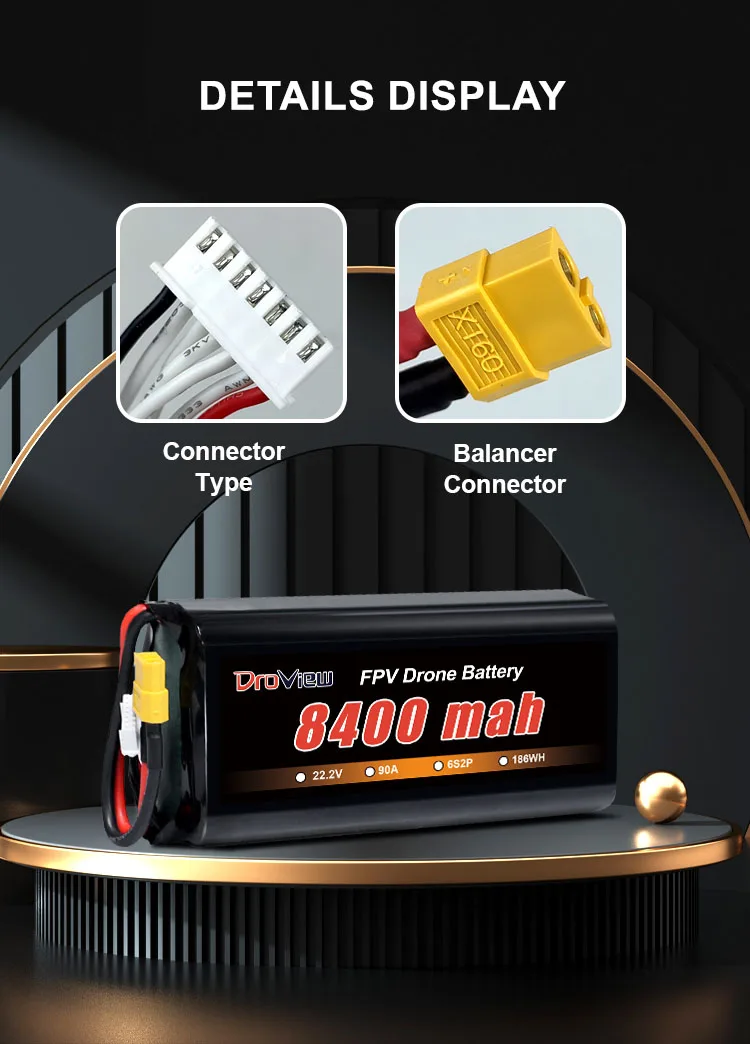

Model 1: DroView 6S2P 8400mAh Made by Molicel Cell P42A or P45B Weight: 920g Model 2: DroView 6S3P 8400mAh Made by Molicel Cell P28A Weight: 900g Model 3: DroView 6S3P 12000mAh Made by Molicel Cell P42A or P45B Weight: 1250g Battery Connector: XT60
Application
Company Profile
About Us
Established in 2004, Shenzhen DroView Technology Co Ltd. is a leading manufacturer and developer of FPV Drones, FPV Drone accessories and FPV Drone Batteries. Many FPV Drones accessories are our OEM items such as VTX, Stacks, Motors, Cameras and Carbon Fibre FPV Frame. With over 12,000 sqm of facilities and a team of 600+ employees, we not only make FPV drones and FPV accessories, but also operate a battery pack factory, focusing on Molicel Battery Packs and Lipo Battery Packs. Innovation and development are at the core of our company culture. Our team of skilled engineers and technicians work diligently to enhance the performance, durability, and functionality of our products, ensuring that we deliver the highest quality to our clients.
FAQ
Q: Are you a factory or a trading company? A: Professional manufacturer for FPV Drones and Accessories, 900+Workers,15000SQMS.
Q: How many can you make for FPV each month? A: 80,000 PCS FPV Drone each month
Q: What’s the lead-time for 2000pcs FPV Drones? A: Around 2-3 weeks, but need to check before order
Q: How many samples do you suggest to order? A:Extrusion damage may occur during transportation. It is recommended to order more than two samples
Q: What about the after-sale service? A: Free to change if it doesn’t work.
Q: Can you accept OEM? A: Yes, we can accept OEM, manufacture according to your requirement.
Q: What are your Delivery terms? A: We accept EXW, FOB, CFR, CIF. You can choose the one which is most convenient or cost effective for you.
Q: What are your main produced items? A: FPV Drones, Drone parts, Drone accessories, FPV drones Batteries
Q: What is the payment terms? A: T/T Bank Transfer, L/C, Western union and Trade Assurance.
