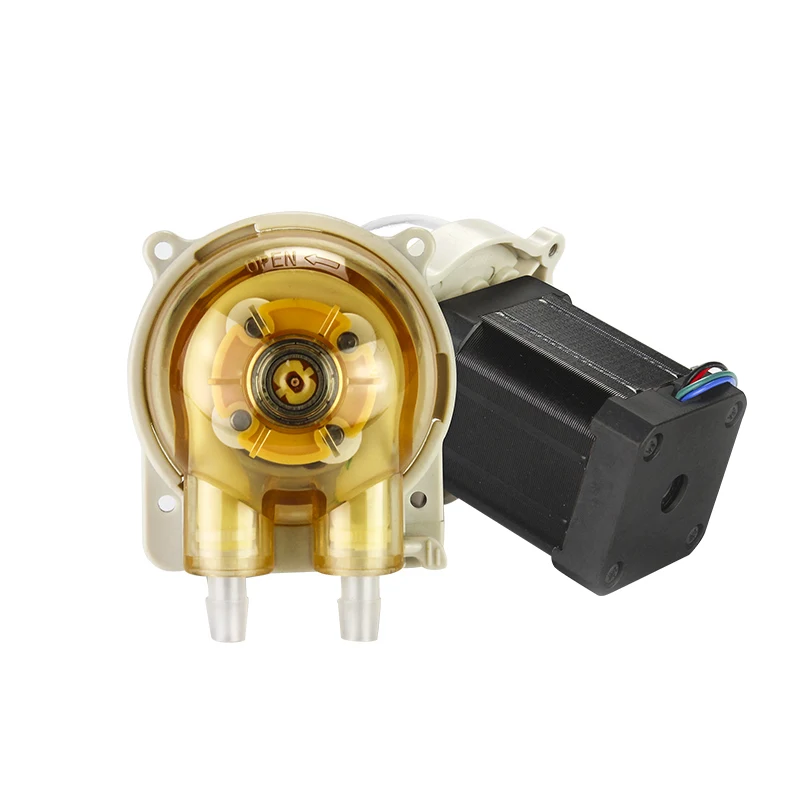

JIHPUMP Micro Small Peristaltic Pump 12V 24V with Tygon Tubing For Viscous Syrup Alcohol Filling
JIHPUMP Micro Small Peristaltic Pump 12V 24V with Tygon Tubing For Viscous Syrup Alcohol Filling
JIHPUMP Micro Small Peristaltic Pump 12V 24V with Tygon Tubing For Viscous Syrup Alcohol Filling
JIHPUMP Micro Small Peristaltic Pump 12V 24V with Tygon Tubing For Viscous Syrup Alcohol Filling
JIHPUMP Micro Small Peristaltic Pump 12V 24V with Tygon Tubing For Viscous Syrup Alcohol Filling
JIHPUMP Micro Small Peristaltic Pump 12V 24V with Tygon Tubing For Viscous Syrup Alcohol Filling
JIHPUMP Micro Small Peristaltic Pump 12V 24V with Tygon Tubing For Viscous Syrup Alcohol Filling

JIHPUMP Micro Small Peristaltic Pump 12V 24V with Tygon Tubing For Viscous Syrup Alcohol Filling

Share on (1601060986594):


Price:$29.00 - $40.00

Quantity:


Product Overview

Description



Corporate Strength:


Chongqing Jieheng Peristaltic Pumps Co., Ltd.
1.Peristaltic Pumps Professional Manufacturer and Supplier.
2.Focus on Peristaltic Pumps and OEM Pumps Customer Solutions for more than 16 years!
3.Million sets of peristaltic pumps been sold.




Products Description:

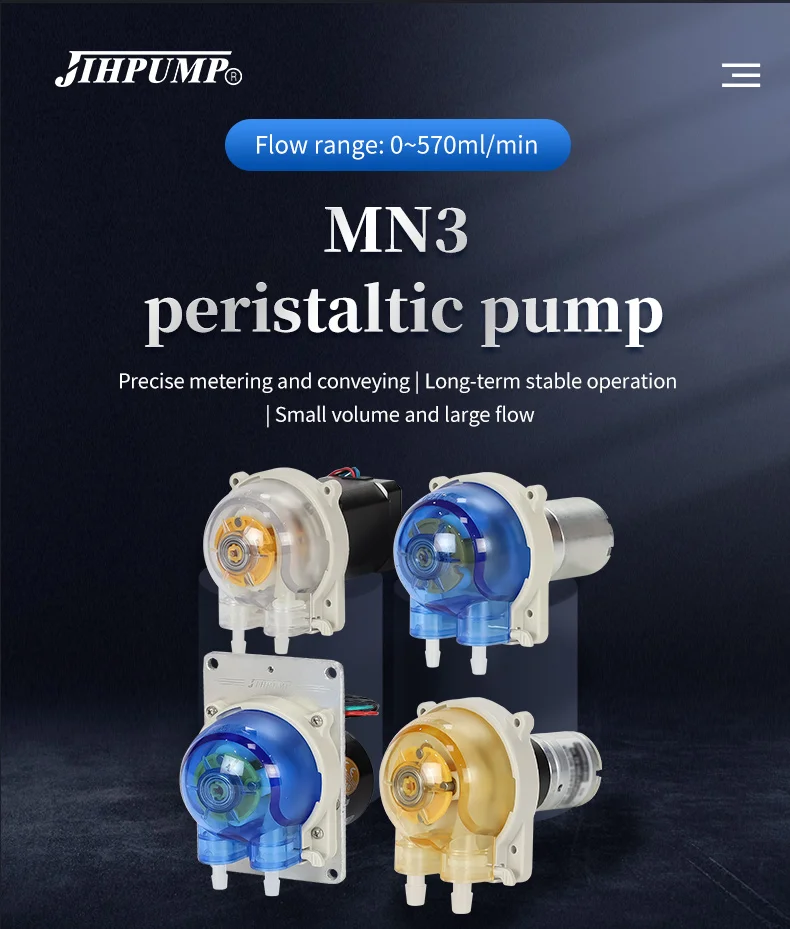

Features
Precise metering and conveying
Long life and high reliability
Tool-free tube replacement
2 rounds 4 rounds optional
3 types of motors are available
3 hose diameters
Various pump casing colors
Self-locking anti-drop buckle


Hot Sale Products ：




JIHPUMP 640ml/min Micro Peristaltic Pump 12V 24V with Food Grade Tubing For Liquid Syrup Alcohol Dosing

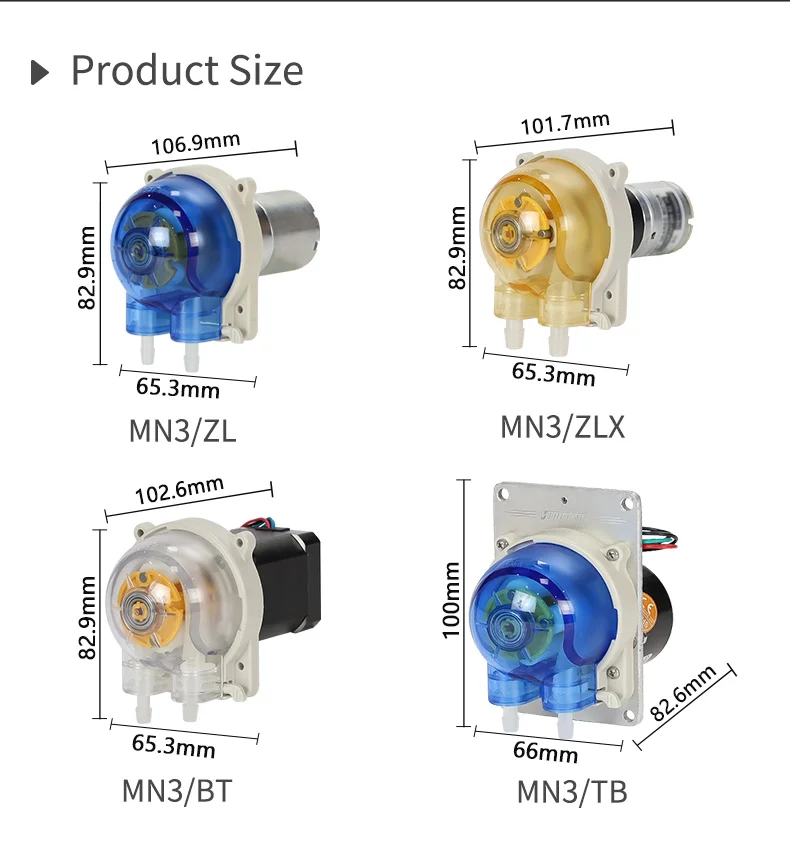

Product Parameters
Product name
mini stepper motor 12v 24v micro dosing price peristaltic pump for laundry medical liquid transfer filling machine pumps

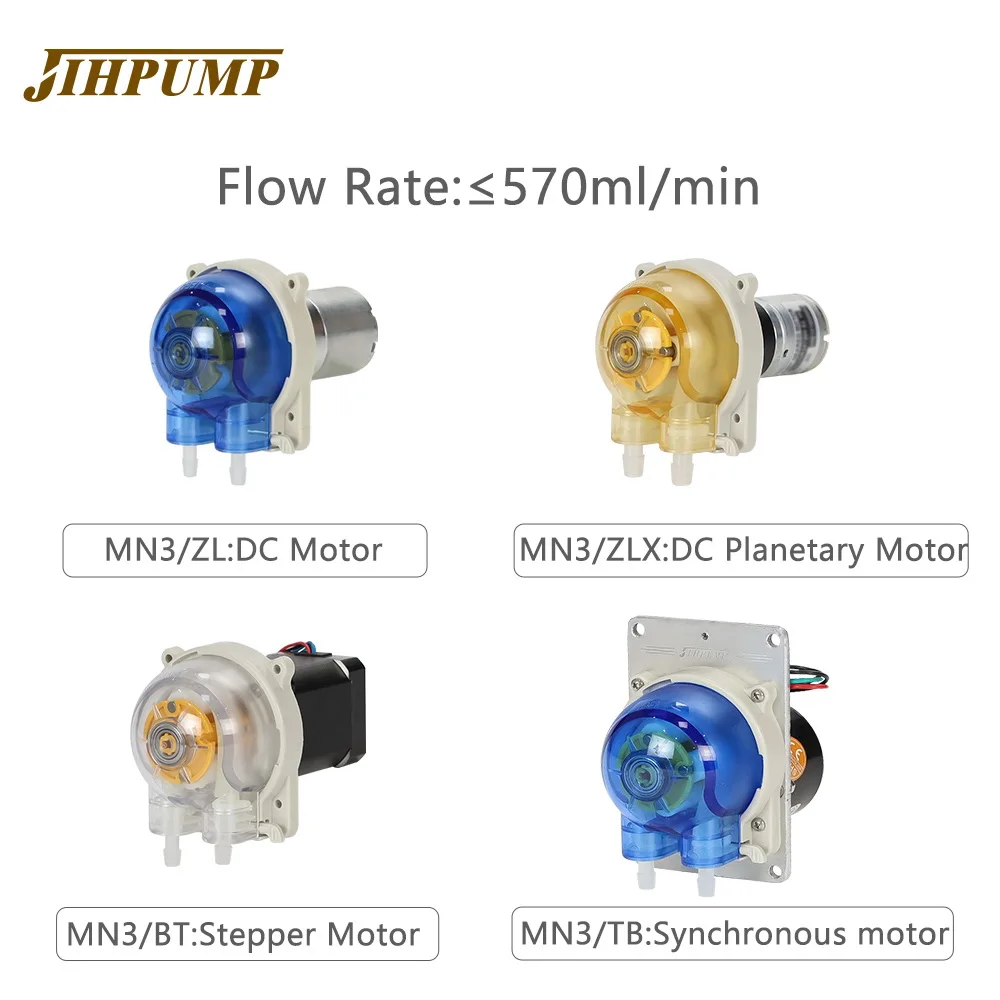

Product number
MN3/ZL
MN3/ZLX
MN3/BT
MN3/TB
Motor type
DC gear motor
DC planetary gear motor
stepper motor
Synchronous motor
Use electric
DC 12V,4A/24V，2A
DC 24V，2A
AC 220V,50Hz
Use power(W)
≤24W
≤48W
≤7W
Weight
263g
304g
552g
364g
Main material
Pump cover: Polycarbonate, Wheel set: Polyacetal, Base: Polyamide


Reference flow (unit: ml/min)
Product number
MN3/ZL
MN3/ZLX
MN3/BT
MN3/TB
       Motor speed
Hose model
178rpm
330rpm
138rpm
300rpm
1rpm
10rpm
30rpm
16#
80
150
70
140
0.45
5
13
25#
185
330
170
320
1.2
11
30
17#
360
560
255
570
2
18
52
Flow description
The flow rate is measured at room temperature of 23°C and no pressure at the inlet and outlet, using clean water.

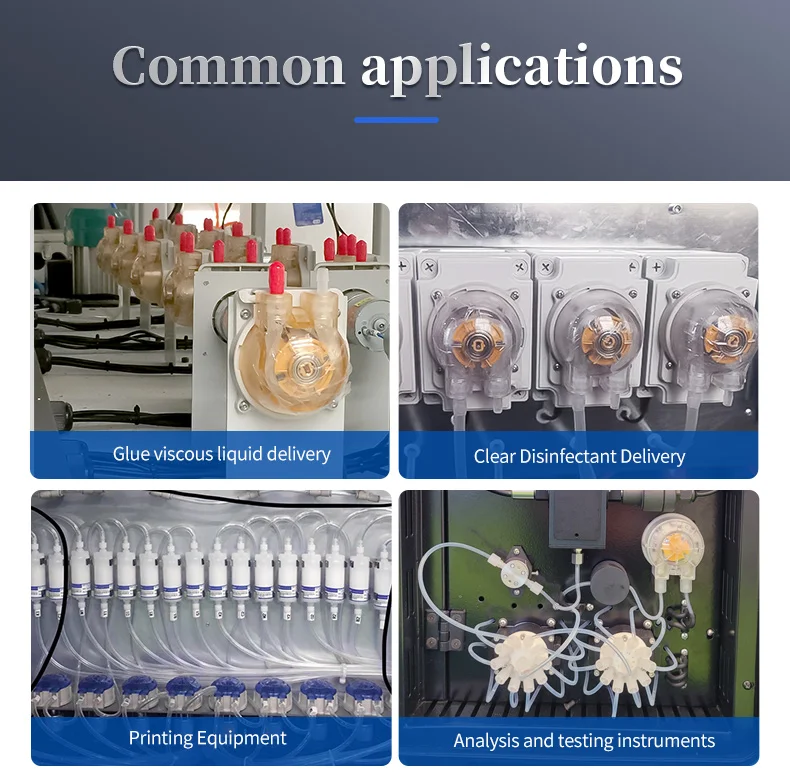

Common Applications: Glue viscous liquid delivery, Clear Disinfectant Delivery , Printing Equipment, Analysis and testing instruments , Automatic beverage machine , Food and Beverage Equipment
Applications Industry: washing cleaning industry, Analytical Instruments, Analytical Instruments, Inkjet Ink, Food and Drink industry, Experimental Research, Pharmaceutical Machinery, Industrial Machinery，Smart Home Appliances，.

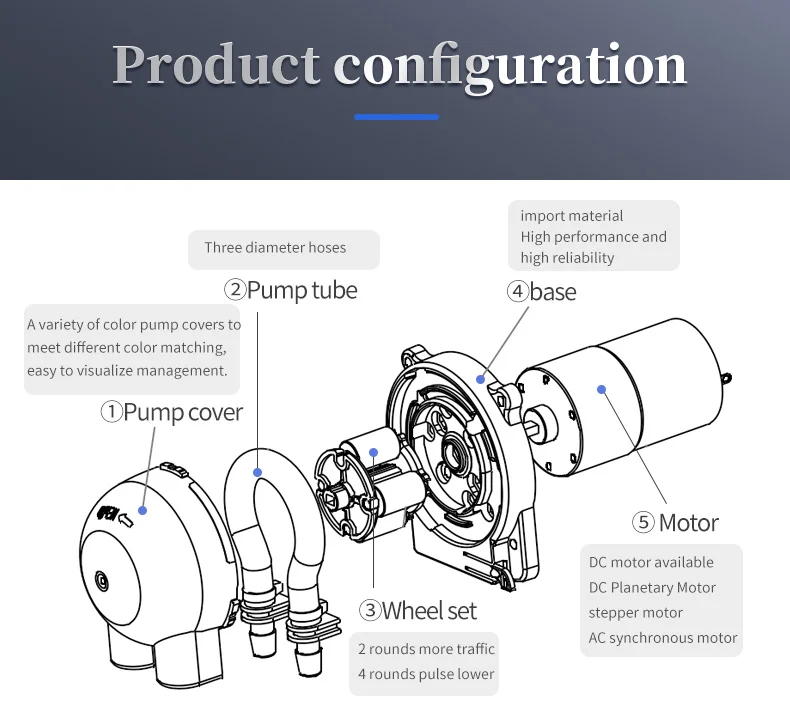

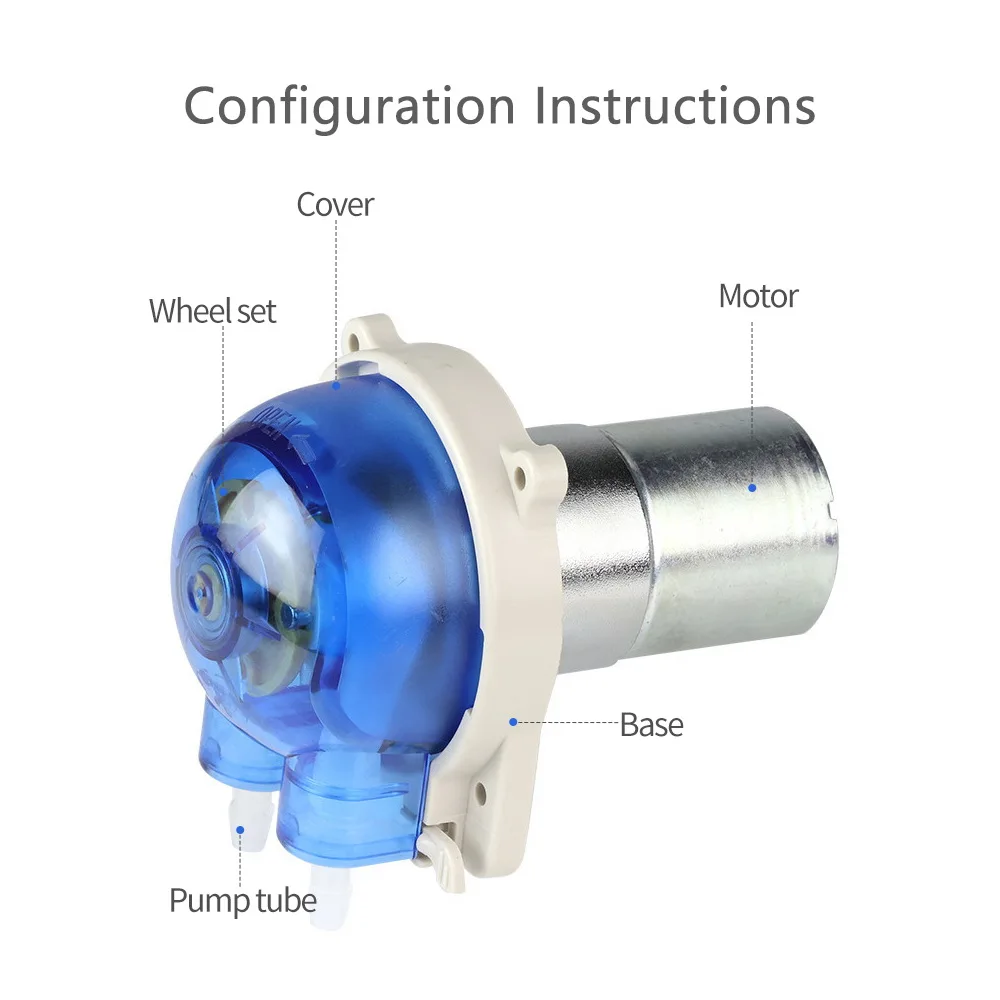

①pump cover ：A variety of color pump covers to meet different color matching, easy to visualize anagement.
②Pump tube：Three diameter hoses are available.
③Wheel set：2 rounds more traffic 4 rounds pulse lower.

④base ： import material High performance and high reliability.
⑤ Motor：DC motor available , DC Planetary Motor stepper motor , AC synchronous motor

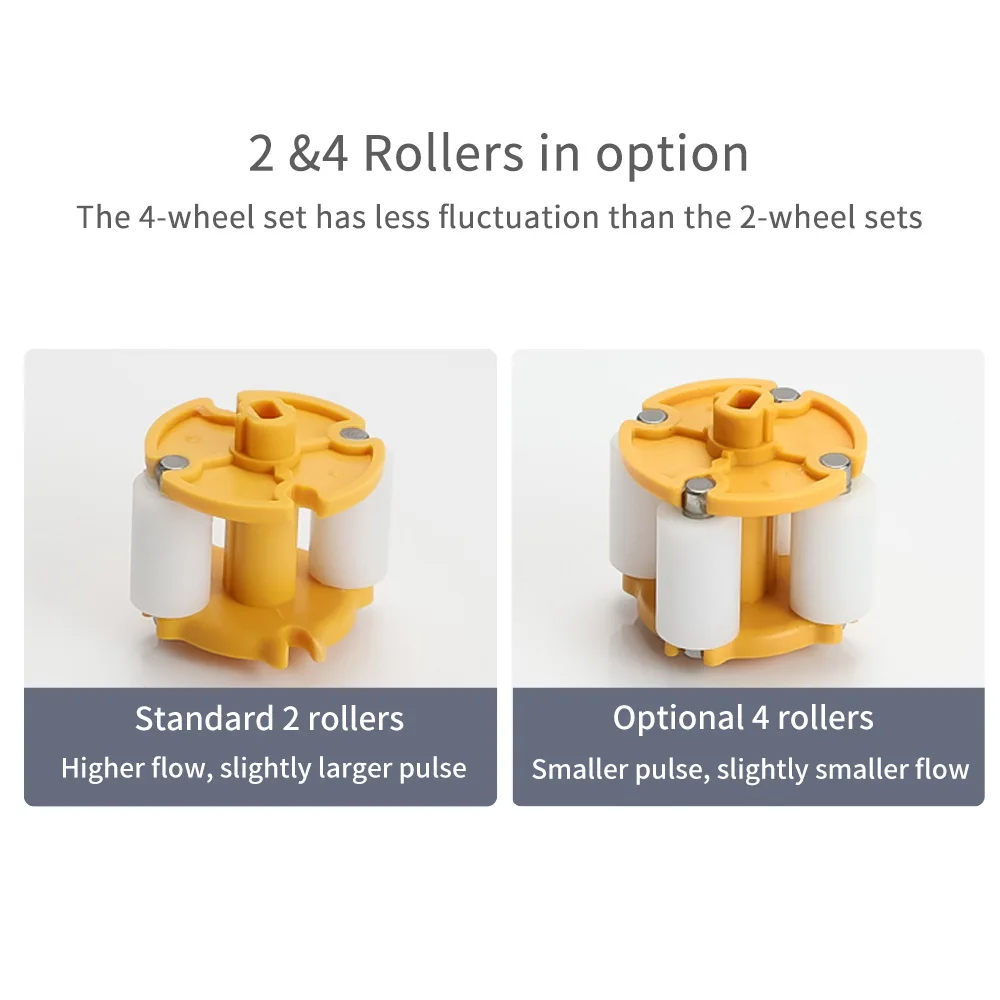

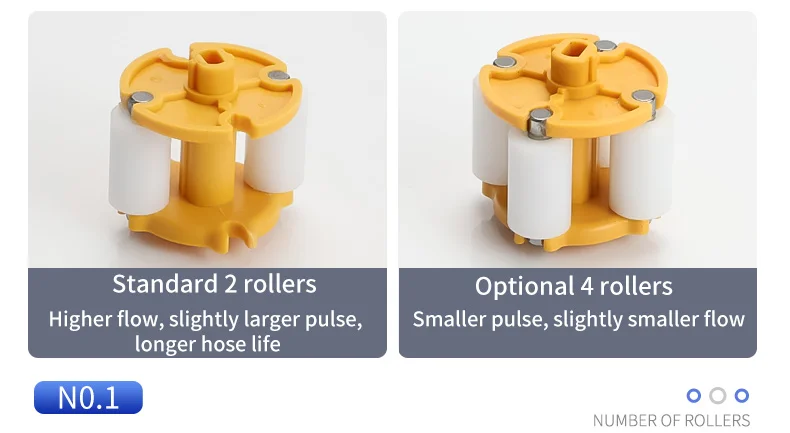

Number of rollers Affects flow and pulse
Standard 2 rollers :
Higher flow, slightly larger pulse, longer hose life
Optional 4 rollers :
Smaller pulse, slightly smaller flow.

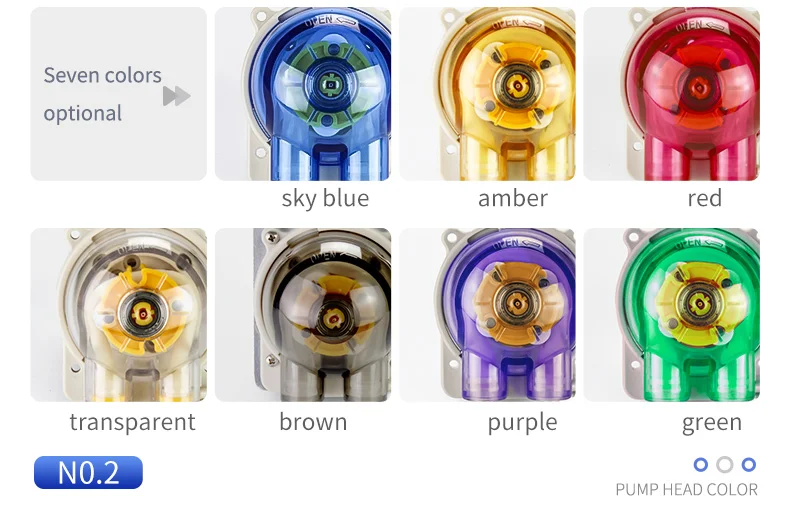

Various pump cover colors are available
Seven colors optional : sky blue , amber , red , transparent , brown , purple , green , Meet different color matching, easy to visualize management.

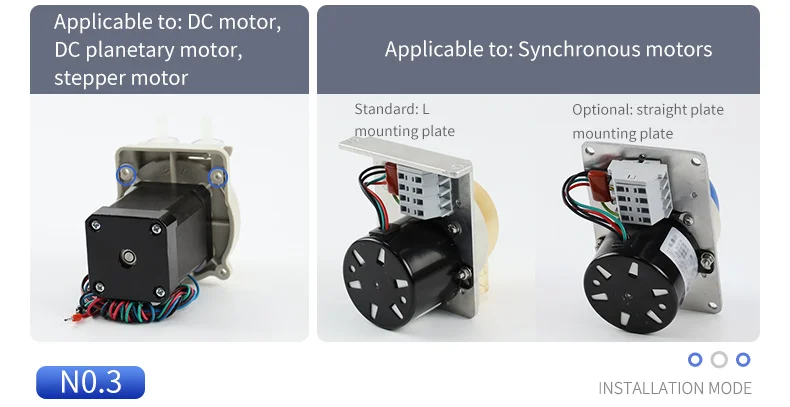

Plastic mounting hole
Four plastic mounting holes as shown Applicable to: DC motor, DC planetary motor, stepper motor.
L-shaped metal mounting plate
L-Shape mounting plate applicable to:Synchronous motors .
Straight plate mounting plate
Straight plate mounting plate applicable to:Synchronous motors .

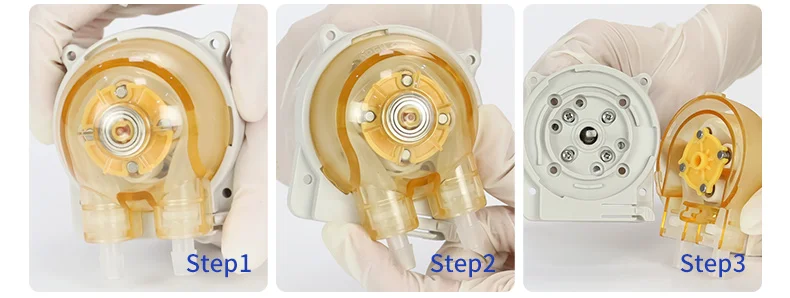

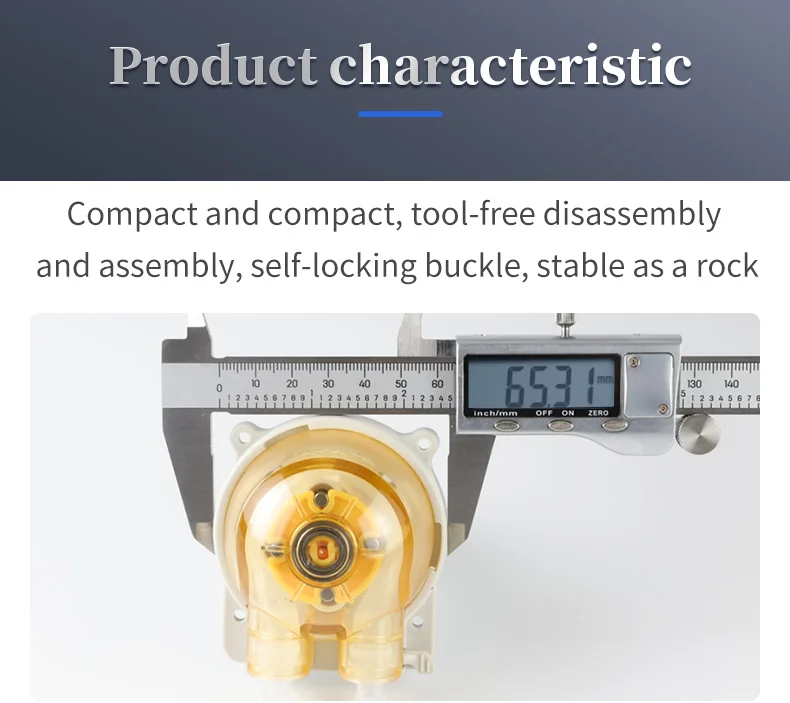

Easy installation and maintenance
Bayonet-type mounting mechanism, which can be disassembled and assembled without tools, for quick hose change and maintenance.


Certifications




Company Profile:




JIHPUMP Chongqing Jieheng Peristaltic Pumps Co., Ltd. is founded in 2006. We are a high-tech enterprise providing professional product application solutions, manufacturer and service provider of peristaltic and constant flow pumps. The company produces more than 50 series and over 200 models of peristaltic pump products. We have shipped more than one million cost-effective,high-reliability peristaltic pumps to users around the world in the food, beverage, chemical reagents, printing inks, detergents,laboratories, analytical instruments, fine chemicals, smart homes, medical care, biopharmaceuticals, environmental and industrial fields.




Packing&Shipping:




Contact Us :






FAQ:


1.What's your required liquid flow rate(ml/min) for the peristaltic pump?
After we know your liquid flow rate , we recommend the right peristaltic pump according to the flow rate.
-------------------------------------------------------------------------------------------------------------------------------------------
2.What liquid may be moved by the pump?
Different liquids have different viscosities. Some pumps can deliver low viscosity and some pumps can deliver high viscosity . Especially viscous liquids cannot be delivered by peristaltic pumps.
-------------------------------------------------------------------------------------------------------------------------------------------
3.Do you prefer to adjust the flow rate ? or fixed flow rate?
Peristaltic pump flow is adjustable or fixed according to your actual situation to choose, please tell our sales manager.
---------------------------------------------------------------------------------------------------------------------------------------------------------------
4.Can you please let us know the 3V, 6V, 12V, 24V or 220V pump that you need?
Peristaltic pumps run on electricity, so tell us what voltage you need to run on and we can help you choose the right pump.
---------------------------------------------------------------------------------------------------------------------------------------------------------------
5.Do you mount the pump on any equipment or not?
We need to know whether the peristaltic pump you use is installed on the equipment or can be used directly by plugging in the
power supply. The types of pumps used in the two cases are different.
---------------------------------------------------------------------------------------------------------------------------------------------------------------
