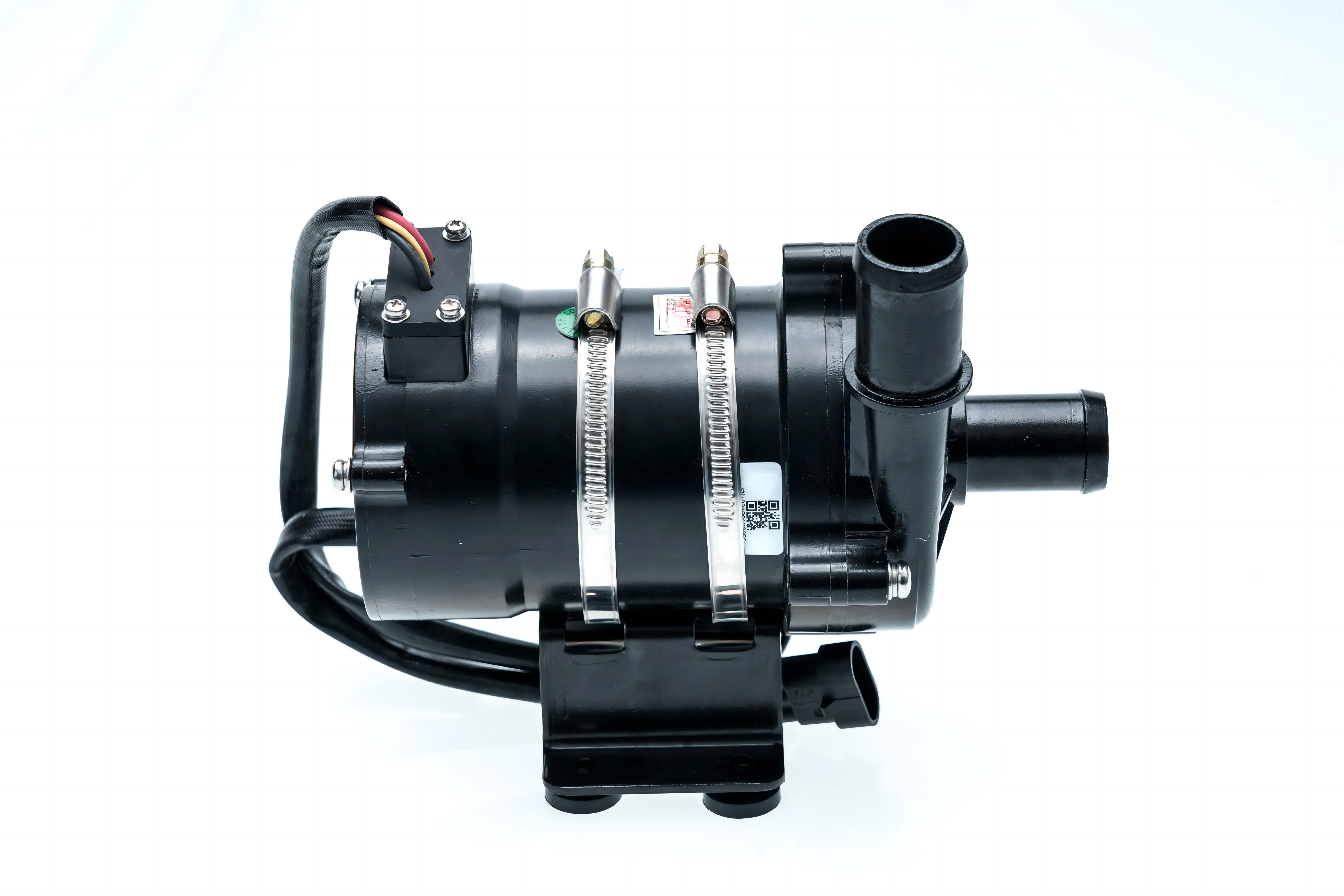

High Quality Water Pump Switch Controller 24 Volt Mini Engine Coolant Water Pump for EV Bus Truck
- Category: >>>
- Supplier: Hebei Shenhai Electrical Appliances Co. Ltd.
Share on (1601060999366):
Product Overview
Description
Product Description
Specification
Item | General Electric Water Pump for new energy cars | ||||
Model | HS- 030-622 | ||||
Voltage Rage | 18V-32V | Rated Voltage | 24V | ||
Ambient Temp | -50~+125℃ | Medium temperature | ≤105℃ | ||
dB | ≤60 | Service Life | ≥20000hours | ||
Waterproofing Grade | IP68 | OEM | Accepted | ||
Motor Type | Brushless Motor | Warranty | 2 Year | ||
Application | For cooling system in car or bus or truck | ||||
Define & Application Fields
Define & Application Fields
General Electric Water Pumps consist of the pump head, impeller, and the brushless motor, and the structure is tight, the weight
is light. Its operating principle is that the impeller is mounted on the rotor of the motor, the rotor and stator are separated by
a shield sleeve, and the heat generated by the motor can be derived through the cooling medium. High as a result, its working
environment adaptability, can adapt to -50~+125℃ ambient temperature, the life span of more than 15000 hours.
It is specially design for heat sink cooling system and air condition circulation system for new energy automobile.
Features:
1. Constant power, the voltage is 18 v - 132v change, pump power constant;
2. Overtemperature protection: when the environment temperature over 100 ℃ (limit temperature), water pump stop, in order to
guarantee the life of the pump, suggest installation position in low temperature or air flow better;
3. Over voltage protection: to withstand DC28V voltage 60 s;
4. Overload protection: when the pipeline has impurities, cause the pump current increases suddenly, the pump stop running;
5. Soft start;
6. PWM signal control functions.
General Electric Water Pumps consist of the pump head, impeller, and the brushless motor, and the structure is tight, the weight
is light. Its operating principle is that the impeller is mounted on the rotor of the motor, the rotor and stator are separated by
a shield sleeve, and the heat generated by the motor can be derived through the cooling medium. High as a result, its working
environment adaptability, can adapt to -50~+125℃ ambient temperature, the life span of more than 15000 hours.
It is specially design for heat sink cooling system and air condition circulation system for new energy automobile.
Features:
1. Constant power, the voltage is 18 v - 132v change, pump power constant;
2. Overtemperature protection: when the environment temperature over 100 ℃ (limit temperature), water pump stop, in order to
guarantee the life of the pump, suggest installation position in low temperature or air flow better;
3. Over voltage protection: to withstand DC28V voltage 60 s;
4. Overload protection: when the pipeline has impurities, cause the pump current increases suddenly, the pump stop running;
5. Soft start;
6. PWM signal control functions.
