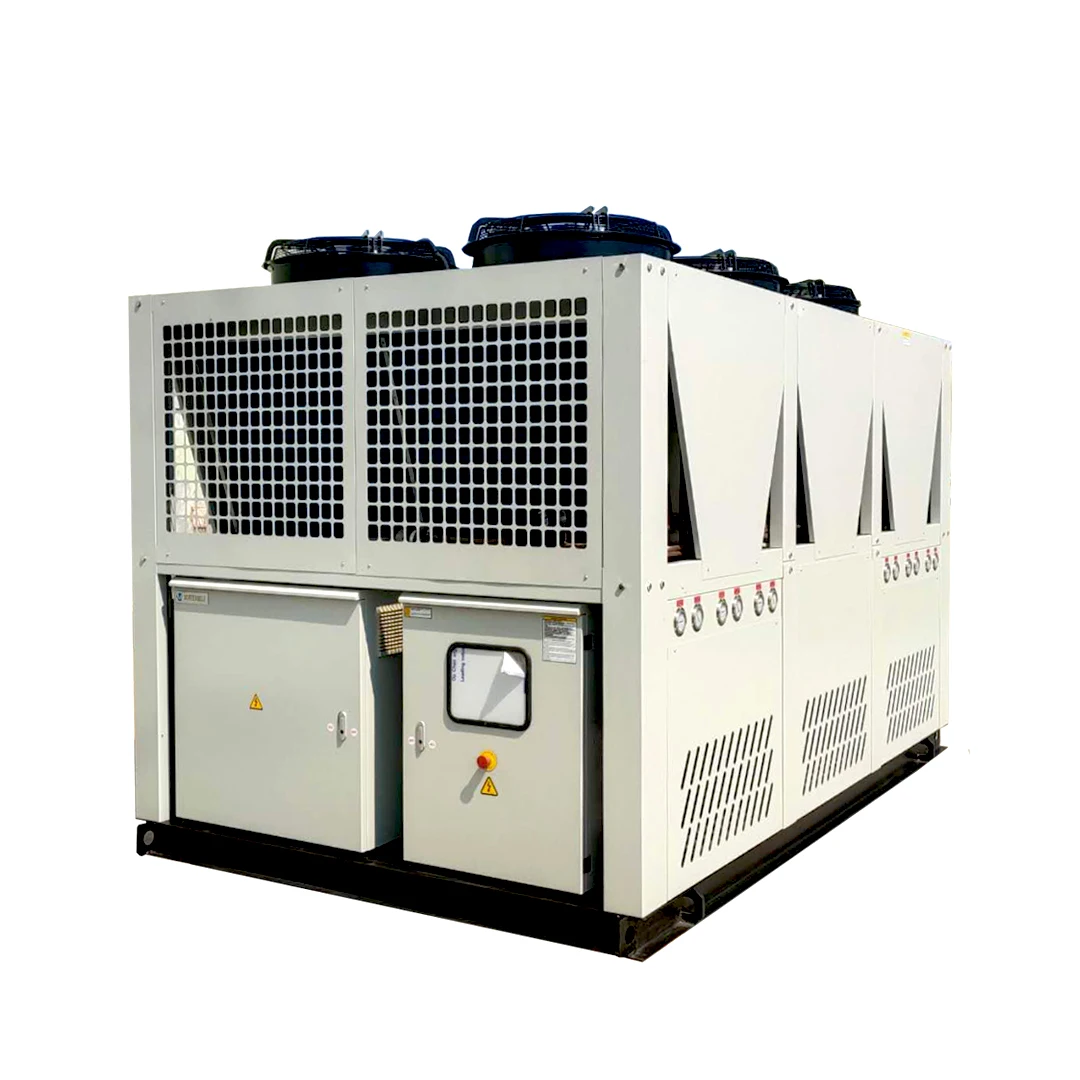

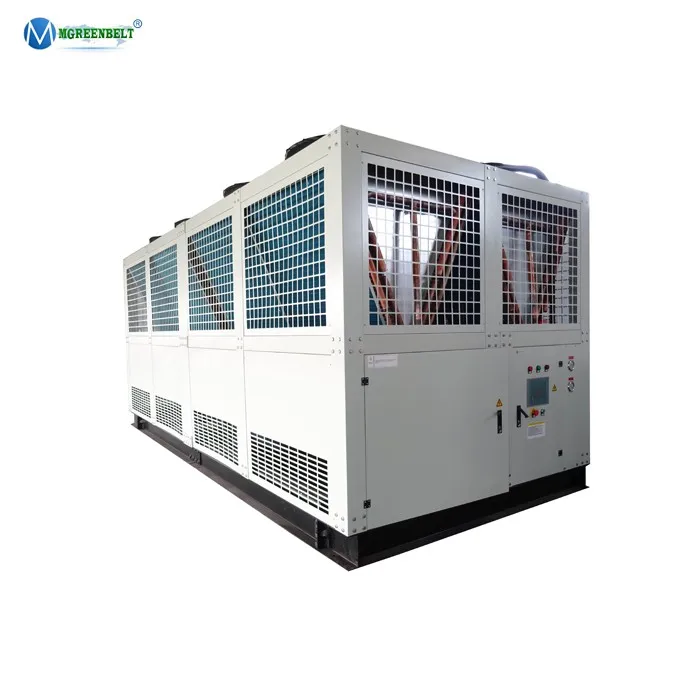

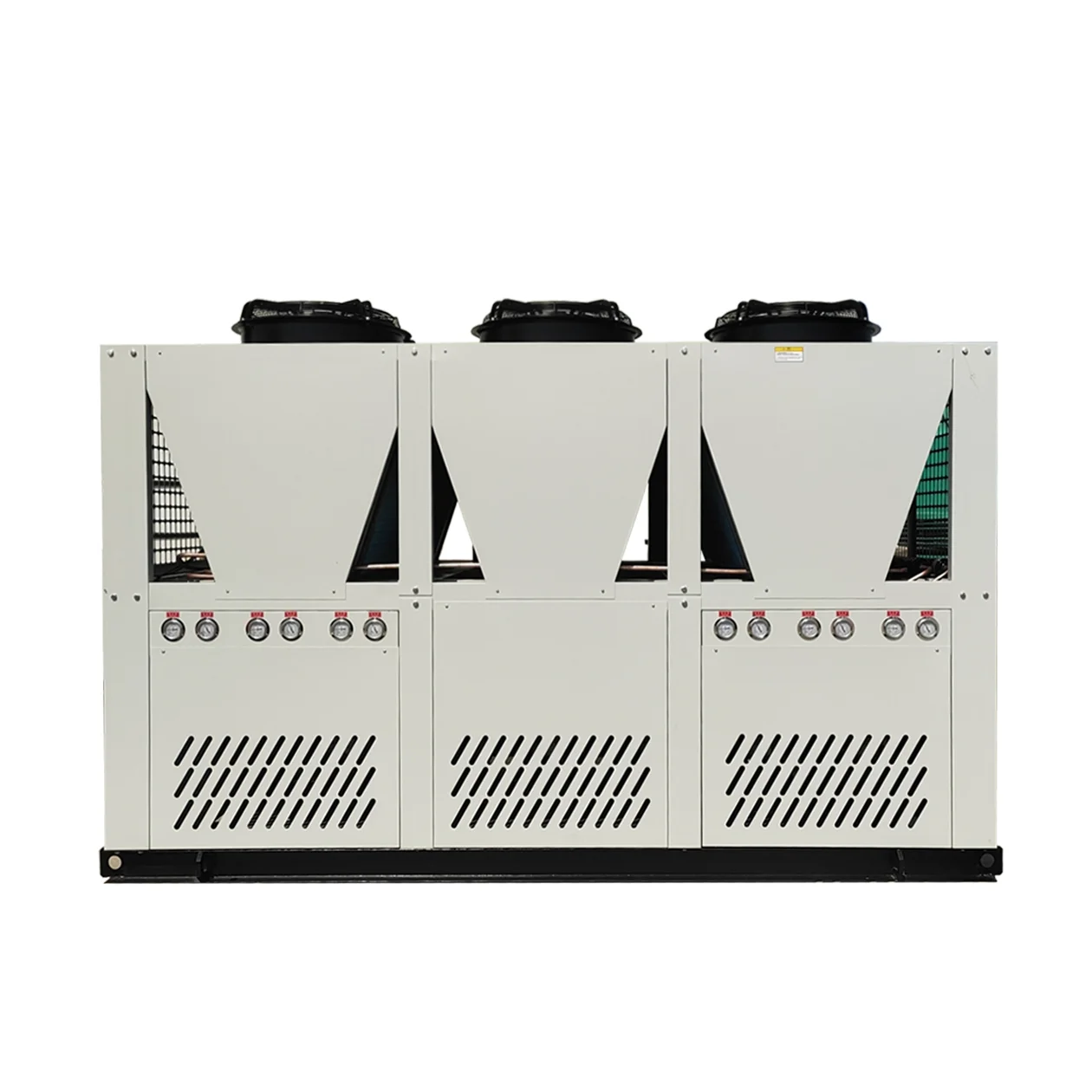

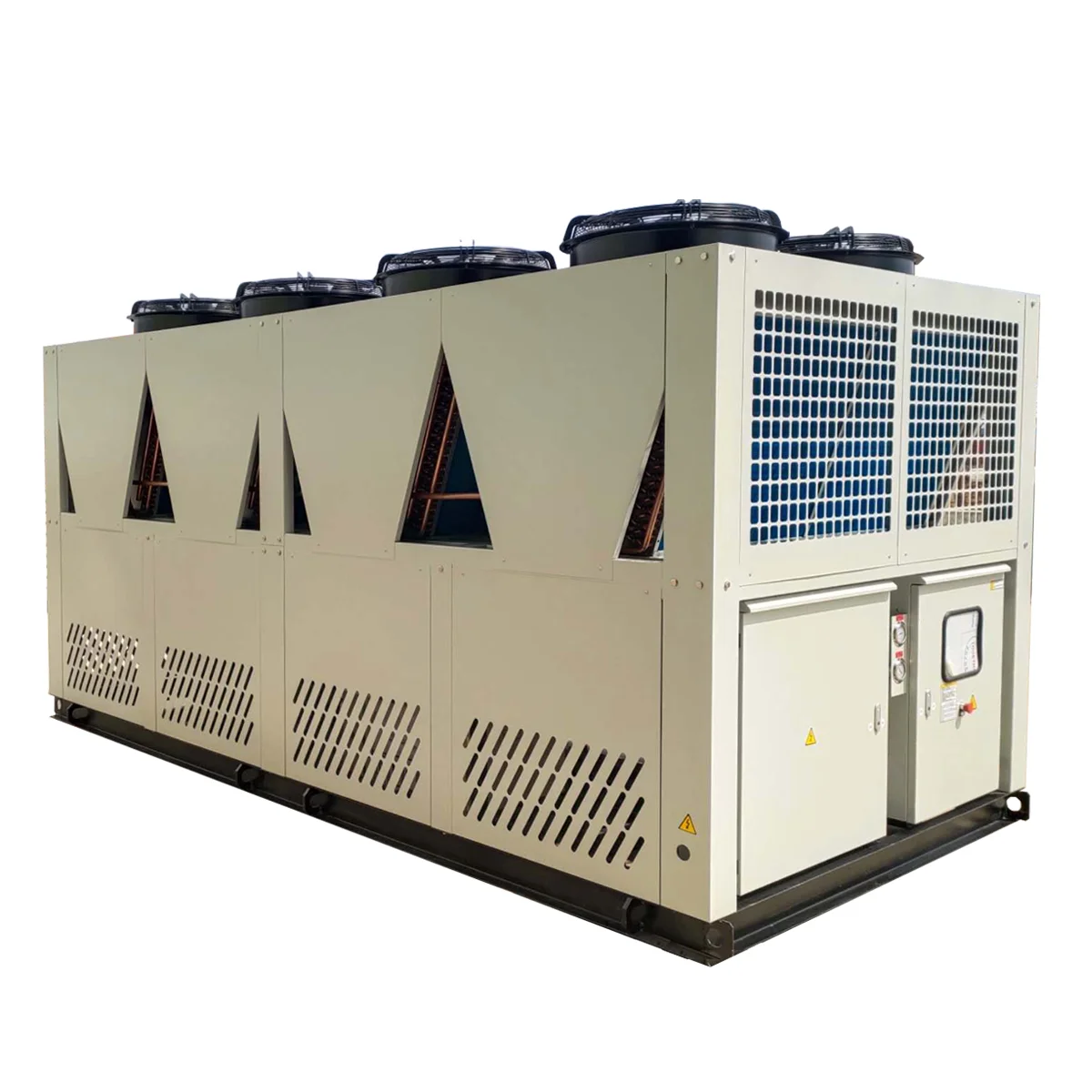

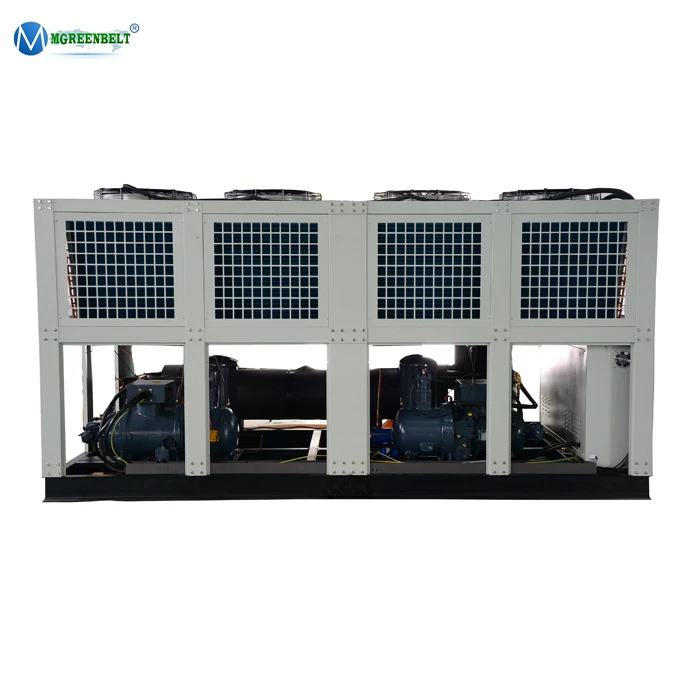

Air cooled screw chiller / 50 ton air cooled chiller / air cooled water chiller
- Category: >>>
- Supplier: Jinan Mgreenbelt Machinery Co. Ltd.
Share on (1601061034092):
Product Overview
Description
Product Description
Famous brand compressor
The unit adopts semi-hermetic screw compressor of Germany BITZER or Taiwan HANBEL brand. The latest 5-6
patented screw rotor profile with excellent efficiency. Adjustable stepless or stepped capacity control, energy efficient, stable
and quiet operation. Compressor starts in stages to minimise the impact on electricity. Stable, safe and low vibration operation.
The most advanced high-precision patented manufacturing process. Built-in fully intelligent monitoring and protection functions,
including thermal motor temperature monitoring, phase sequence monitoring, manual reset lockout, oil temperature sensor.
Microprogramming Control System
LCD touch screen interface. Industrial Siemens PLC centralized control combined with compressor capacity control system, precisely
monitor. Integrated protection for low temperature, high/low pressure, anti-freezing, phase missing, anti-phase, overload, motor
over temperature, oil differential, flow switch, start up latency. Optional operation language, menu leading, unit running state
easy to adjust.
A wide range of refrigerants and power sources are available
patented screw rotor profile with excellent efficiency. Adjustable stepless or stepped capacity control, energy efficient, stable
and quiet operation. Compressor starts in stages to minimise the impact on electricity. Stable, safe and low vibration operation.
The most advanced high-precision patented manufacturing process. Built-in fully intelligent monitoring and protection functions,
including thermal motor temperature monitoring, phase sequence monitoring, manual reset lockout, oil temperature sensor.
Microprogramming Control System
LCD touch screen interface. Industrial Siemens PLC centralized control combined with compressor capacity control system, precisely
monitor. Integrated protection for low temperature, high/low pressure, anti-freezing, phase missing, anti-phase, overload, motor
over temperature, oil differential, flow switch, start up latency. Optional operation language, menu leading, unit running state
easy to adjust.
A wide range of refrigerants and power sources are available
Standard design charging R22 CFC-free R407C, R410A, R404A, R134A
available. Standard design is 380V-415V/50Hz 3pH. 380V~415V, 50HZ/60HZ, different designs are available according to customers'
requirements.
Easy installation, quality is assured
Compact structure, less space demand and light in weight, easy for transport and installation.
Completely wired, inspected and tested pre-delivery, saving installation time and cost.
available. Standard design is 380V-415V/50Hz 3pH. 380V~415V, 50HZ/60HZ, different designs are available according to customers'
requirements.
Easy installation, quality is assured
Compact structure, less space demand and light in weight, easy for transport and installation.
Completely wired, inspected and tested pre-delivery, saving installation time and cost.
Details
Specification
Model | MG-80C | MG-110C | MG-155C | MG-200C | MG-260C | MG-300C | MG-420CF | ||||||||
Cooling capacity | Kcal/h | 67940 | 93740 | 206131580 | 177160 | 220160 | 264020 | 364640 | |||||||
kw | 79 | 109 | 153 | 15355.3 | 256 | 307 | 424 | ||||||||
Power input | 3PH-380V-50HZ | ||||||||||||||
Refrigerant | Type | R22/R407C | |||||||||||||
Control | Thermostatic expansion valve | ||||||||||||||
Compressor | Type | Semi-Closed screw chiller | |||||||||||||
Power（kw） | 28 | 37 | 51 | 66 | 79 | 94 | 127 | ||||||||

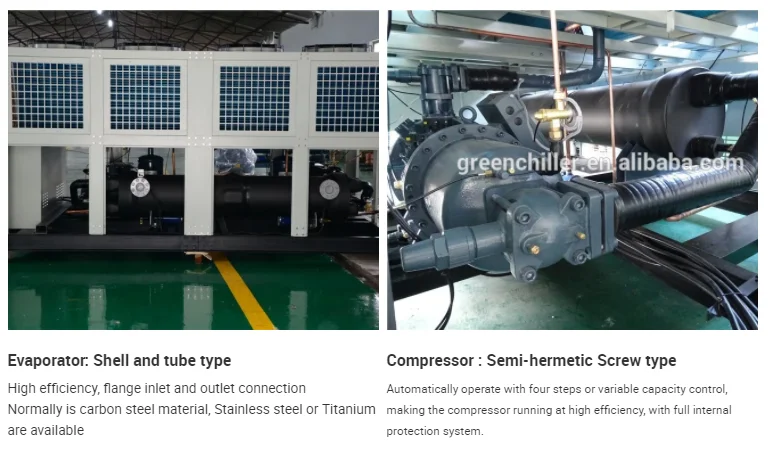

Evaporator | Type | High efficiency copper tube shell and tube type | |||||||||||||
Water flow m³/h | 14 | 19 | 26 | 35 | 44 | 53 | 73 | ||||||||
Inlet/Outlet | DN65 | DN65 | DN80 | DN80 | DN80 | DN80 | DN100 | ||||||||

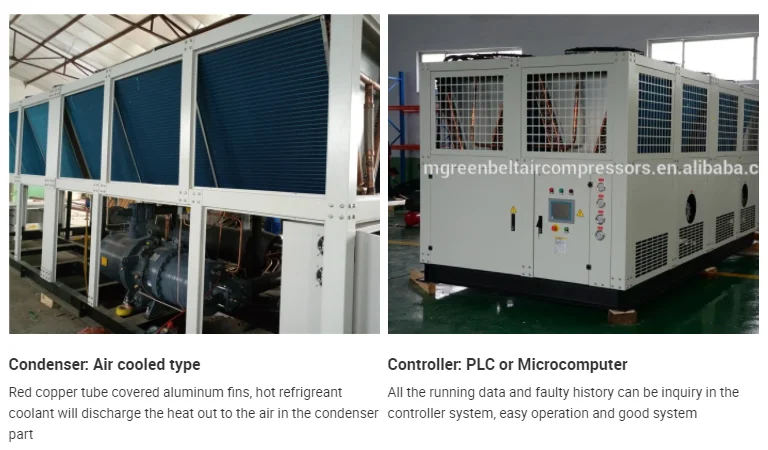

Condenser | Type | High efficiency hydrophilic aluminum foll finned type | |||||||||||||
Flow（m3/h) | 30000 | 40000 | 60000 | 80000 | 100000 | 120000 | 160000 | ||||||||
Protection System | Compressor overheat protection, high/low pressure protection,phase missing/sequence protection, flow rate protection, anti-frozen protection. | ||||||||||||||

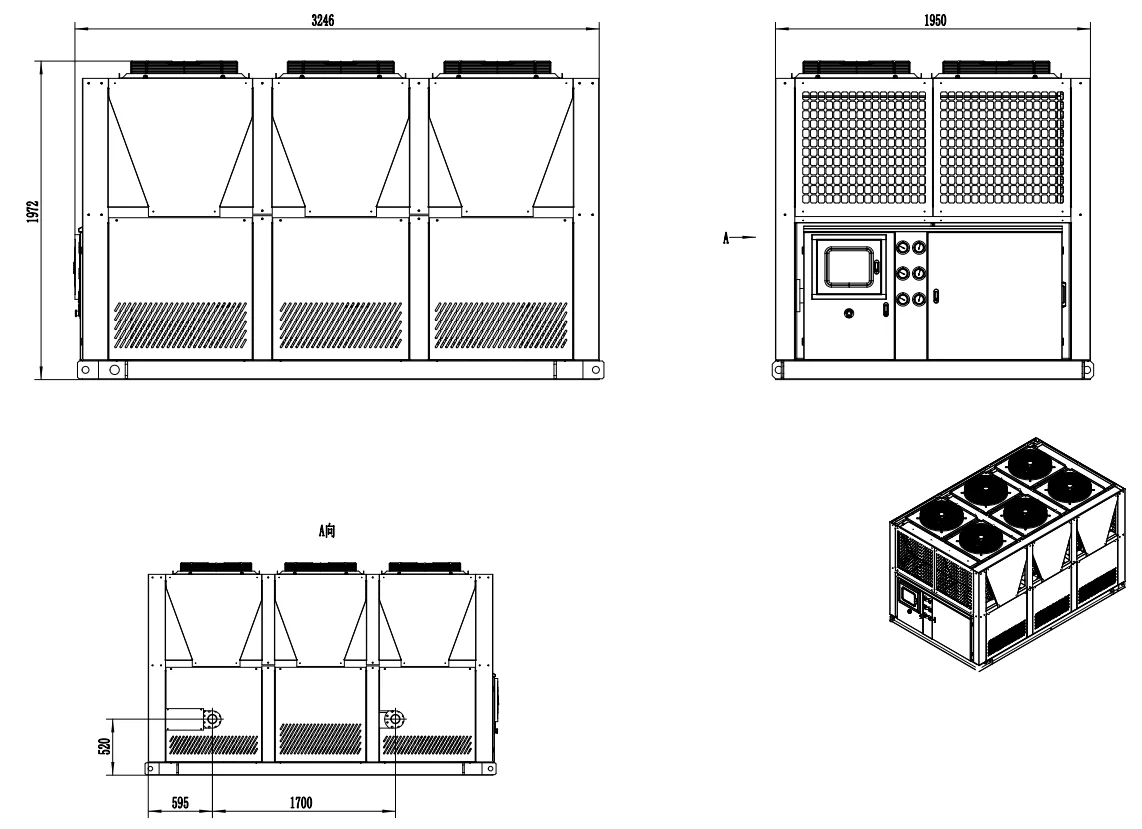

Dimension | L mm | 2720 | 2450 | 3250 | 4050 | 4050 | 4950 | 4680 | |||||||
W mm | 1120 | 1400 | 1950 | 1950 | 1950 | 1950 | 2250 | ||||||||
H mm | 1800 | 2100 | 2000 | 2000 | 2100 | 2100 | 2460 | ||||||||
Wight | kg | 1800 | 1900 | 2480 | 3000 | 3100 | 3600 | 5000 | |||||||

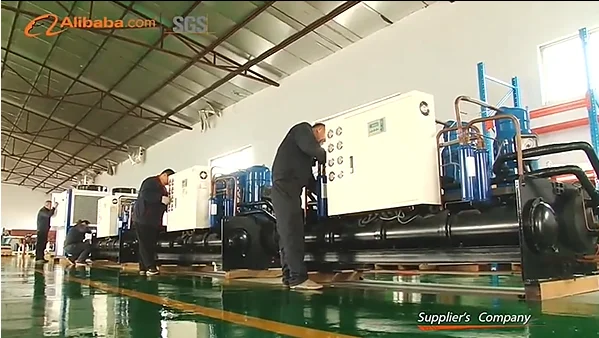

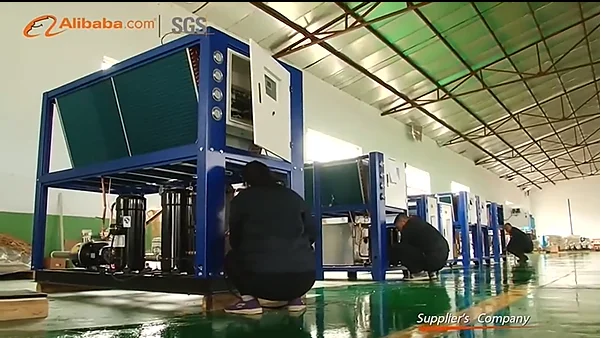

Company Profile
Established in 2003, MGREENBELT Specialized in manufacture chiller and chiller system including:
air chiller, water chiller, industrial chiller, oil chiller, glycol chiller, process chiller, screw chiller, mold temperature
controller, cold room project for over 20 years experience.
MGREENBELT promise offers the best chiller&chiller system solution with competitive price to clients worldwide.
11605 Square meters factory area;
Within over 1000 chiller units produce every year, we thrive on providing high-quality water chiller;
20 Years Refrigeration experience, and 13 years industrial chiller manufacture experience.
MGREENBELT is one of the top brand with a goods reputation in China market since 2003.
We have a strong and united engineering team with rich work experience in industrial chiller filed;
Chillers manufactured from MGREENBELT are installed over 100 countries worldwide.
1.We are factory.
2.We supply good quality and competitive price.
3.We supply installation support service.
4.We promise lifetime guarantee.
Looking to expand, or get into industrial chiller? Then check out us.
If you are looking for a good quality chiller supplier for your plant?
If you want to buy a new chiller to replace your old one?
please do not hesitate to contact MGREENBELT engineering to get your chiller refrigeration solution.
air chiller, water chiller, industrial chiller, oil chiller, glycol chiller, process chiller, screw chiller, mold temperature
controller, cold room project for over 20 years experience.
MGREENBELT promise offers the best chiller&chiller system solution with competitive price to clients worldwide.
11605 Square meters factory area;
Within over 1000 chiller units produce every year, we thrive on providing high-quality water chiller;
20 Years Refrigeration experience, and 13 years industrial chiller manufacture experience.
MGREENBELT is one of the top brand with a goods reputation in China market since 2003.
We have a strong and united engineering team with rich work experience in industrial chiller filed;
Chillers manufactured from MGREENBELT are installed over 100 countries worldwide.
1.We are factory.
2.We supply good quality and competitive price.
3.We supply installation support service.
4.We promise lifetime guarantee.
Looking to expand, or get into industrial chiller? Then check out us.
If you are looking for a good quality chiller supplier for your plant?
If you want to buy a new chiller to replace your old one?
please do not hesitate to contact MGREENBELT engineering to get your chiller refrigeration solution.

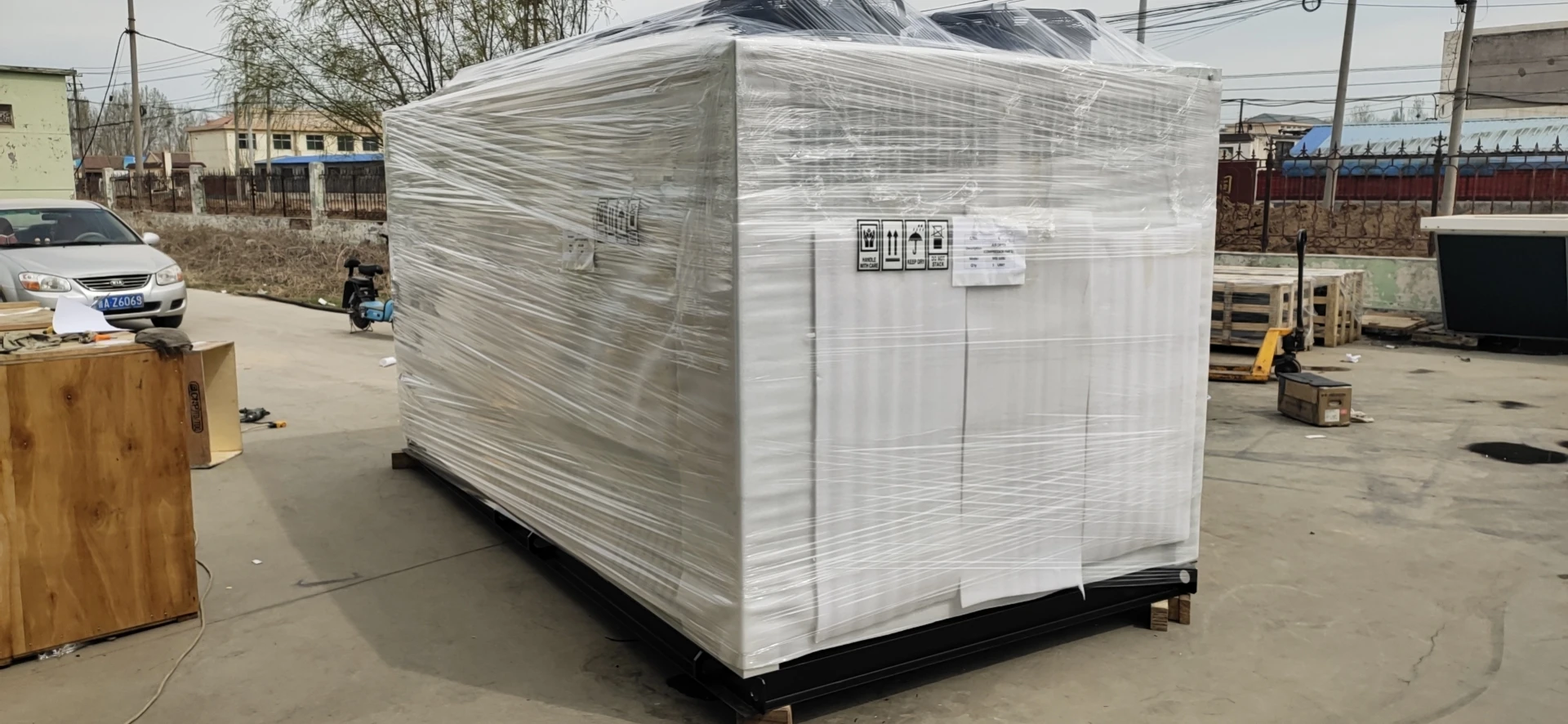

Packing & Delivery
FAQ
Q:How to choose a right chiller model? A:Please make sure the details as follow:
1.What's the flow rate need?
2.Inlet and outlettemperature need ?
Then we will calculate what's hte cooling capacity you need.
Q: How to quote a accurate solution for you?
A:After make sure the cooling capacity,please inform us:
1.What's the power supply need? Phase/Voltage/Frequency.
2.What's the refrigerant need? R22/R407C/R410A/R134A and etc.
If this water chiller not suitable for your working need, we have different chiller series, please choose it as follows.
1. Air Cooled Scroll Chiller : cooling capacity range from 1 ton to 35 tons;
2. Water Cooled Scroll Chiller : cooling capacity range from 1 ton to 40 tons;
3. Air Cooled Screw Chiller : cooling capacity range from 20 tons to 150 tons;
4. Water Cooled Screw Chiller :cooling capacity range from 25 ton to 400 tons;
Temperature range: -25 deg C~+35 deg C based on different industry working need.
1.What's the flow rate need?
2.Inlet and outlettemperature need ?
Then we will calculate what's hte cooling capacity you need.
Q: How to quote a accurate solution for you?
A:After make sure the cooling capacity,please inform us:
1.What's the power supply need? Phase/Voltage/Frequency.
2.What's the refrigerant need? R22/R407C/R410A/R134A and etc.
If this water chiller not suitable for your working need, we have different chiller series, please choose it as follows.
1. Air Cooled Scroll Chiller : cooling capacity range from 1 ton to 35 tons;
2. Water Cooled Scroll Chiller : cooling capacity range from 1 ton to 40 tons;
3. Air Cooled Screw Chiller : cooling capacity range from 20 tons to 150 tons;
4. Water Cooled Screw Chiller :cooling capacity range from 25 ton to 400 tons;
Temperature range: -25 deg C~+35 deg C based on different industry working need.

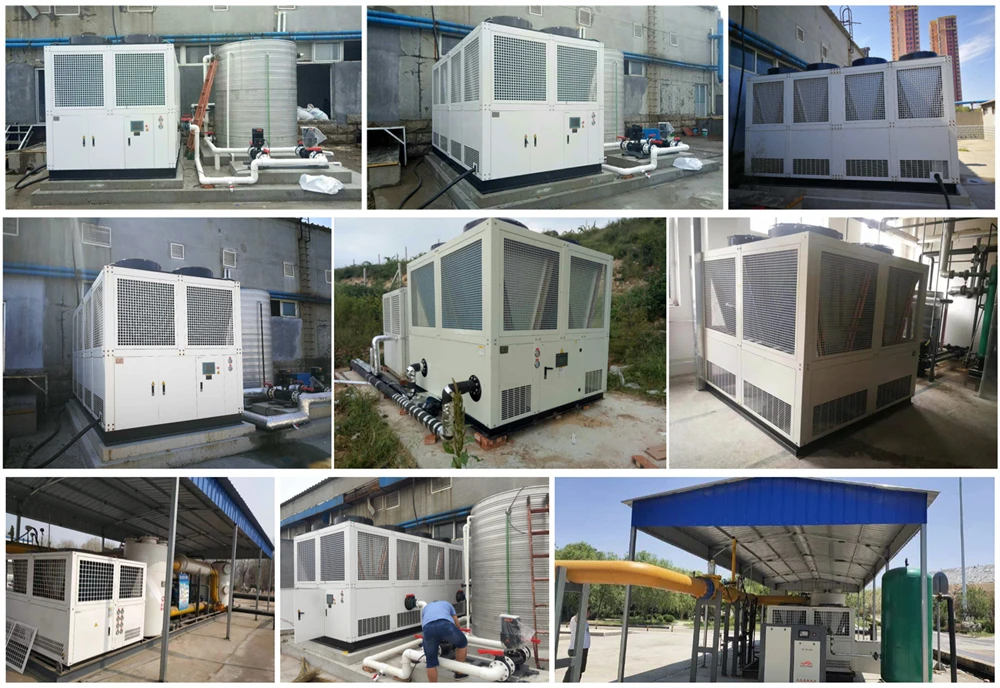

Customer site
