High quality Hot selling Factory Direct Cheap Screen Printer Machinery For Flat Film/Strip/Panel
- Category: >>>
- Supplier: Shenzhen Vility Automatic Machinery Co. Ltd.
Share on (1601061043389):
Product Overview
Description
Products Description

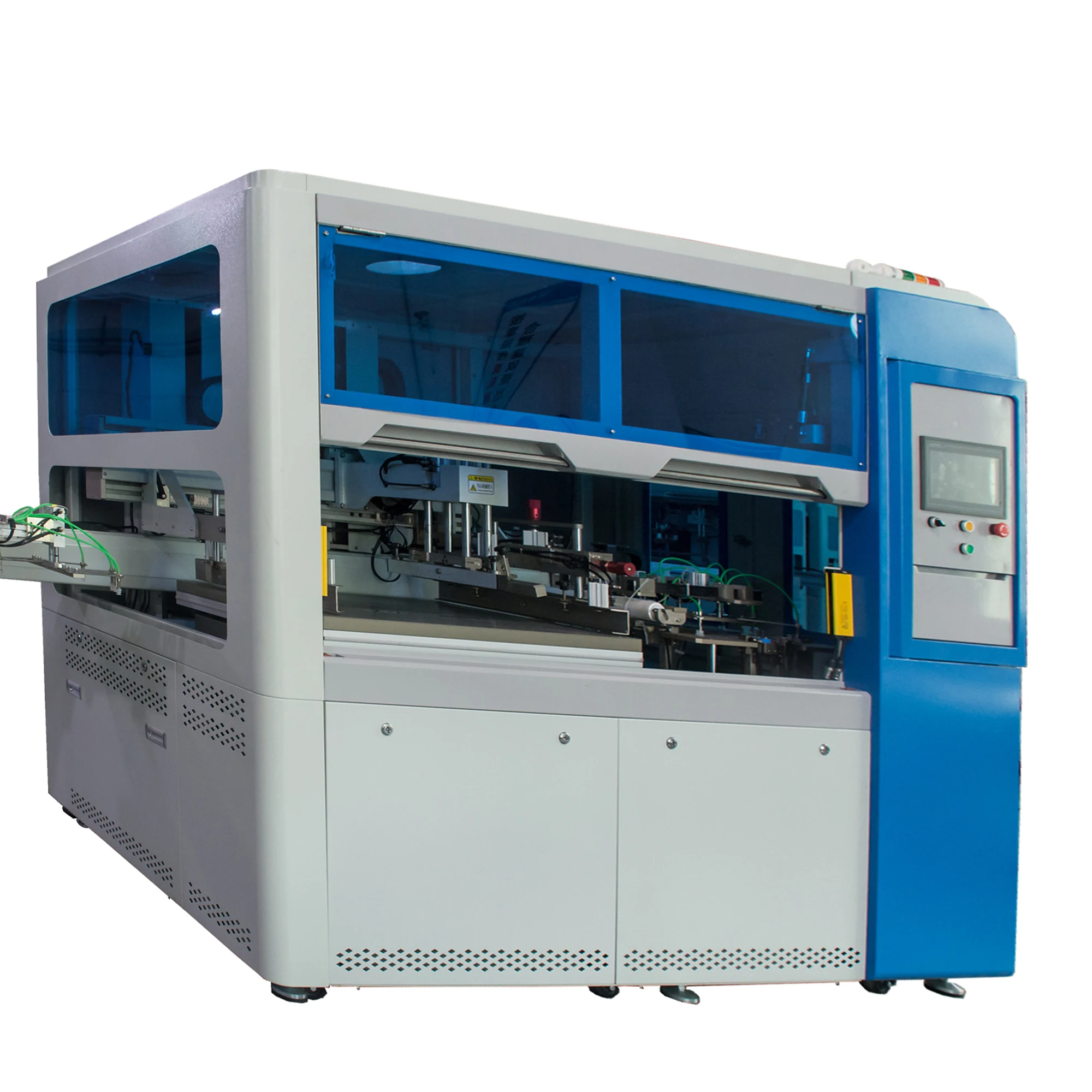

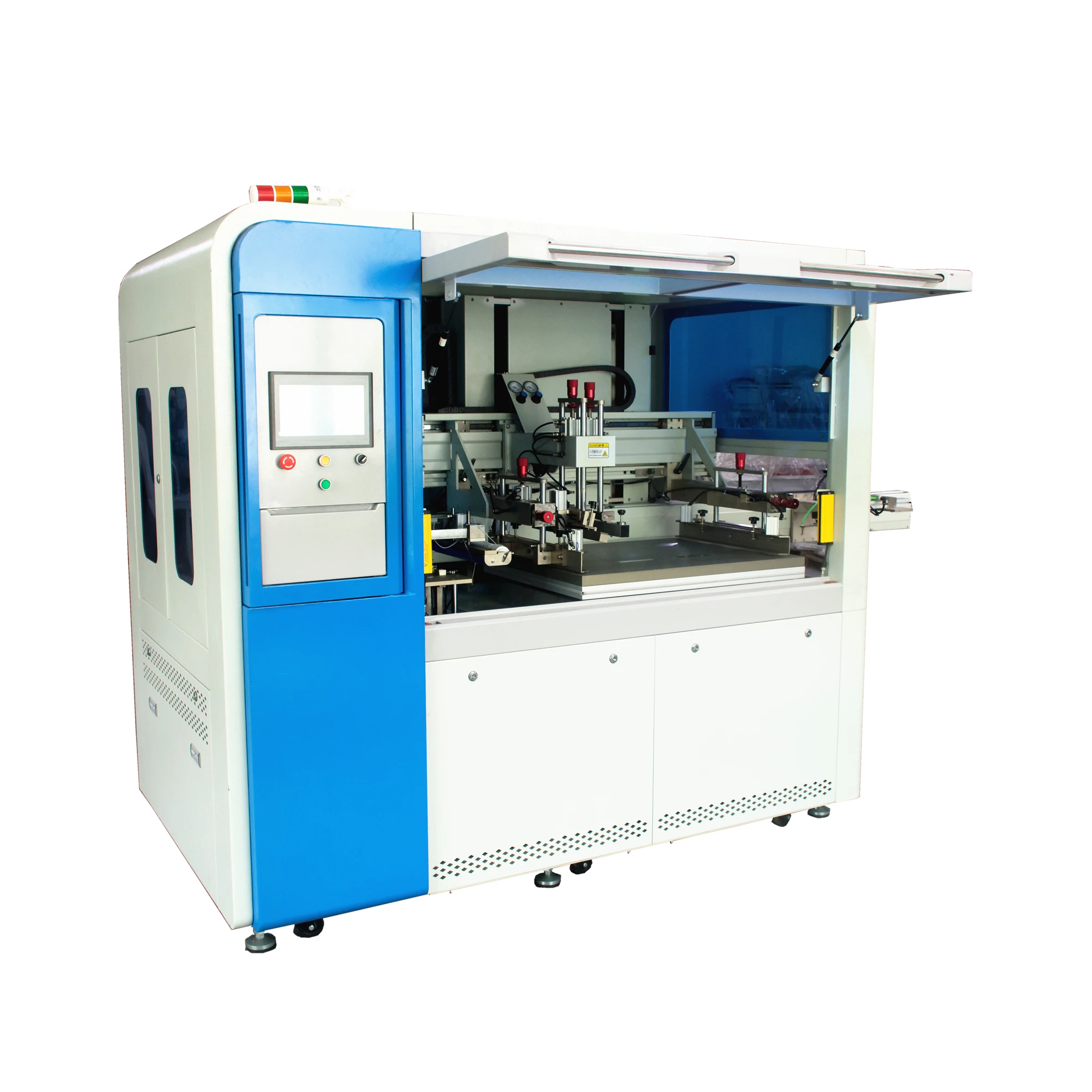

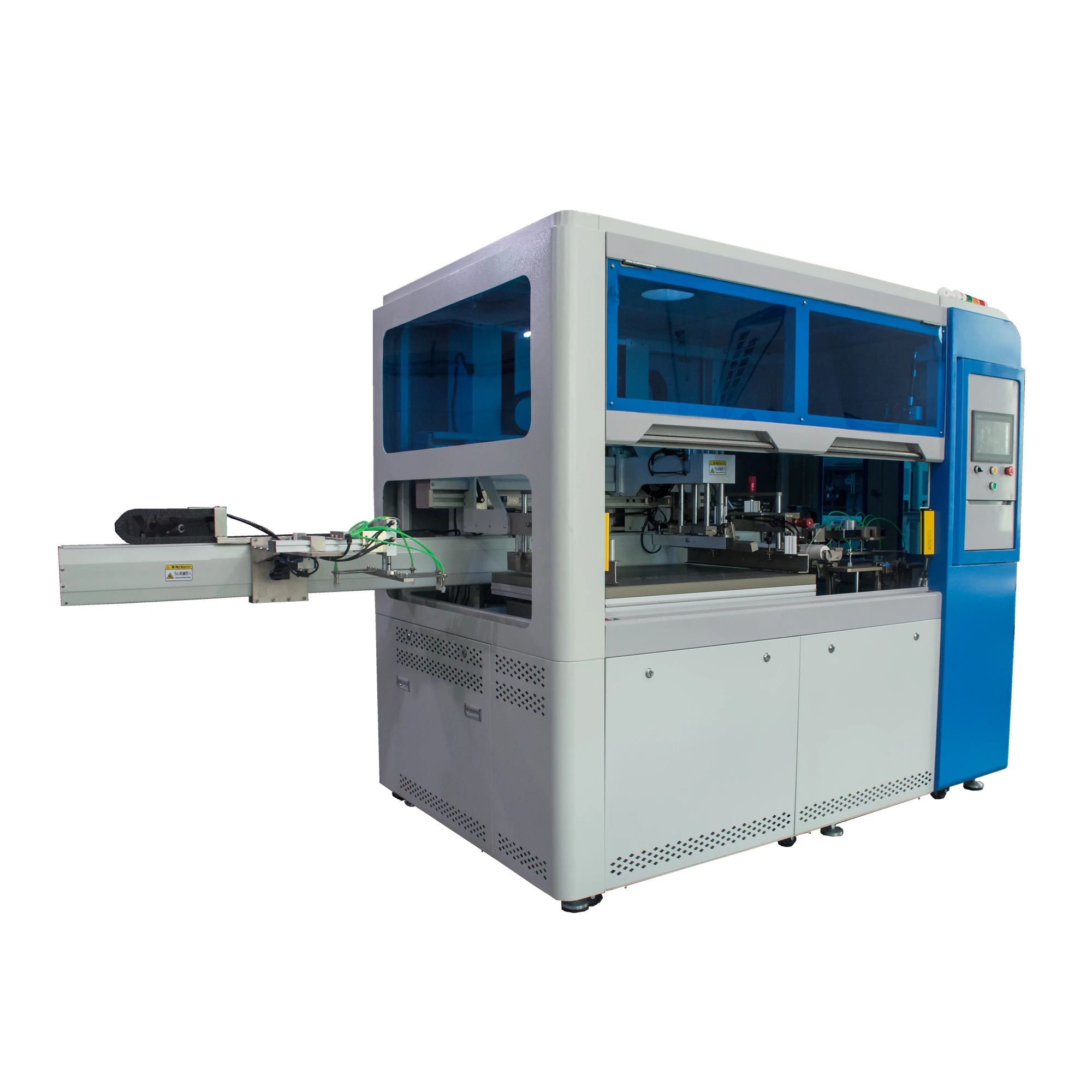

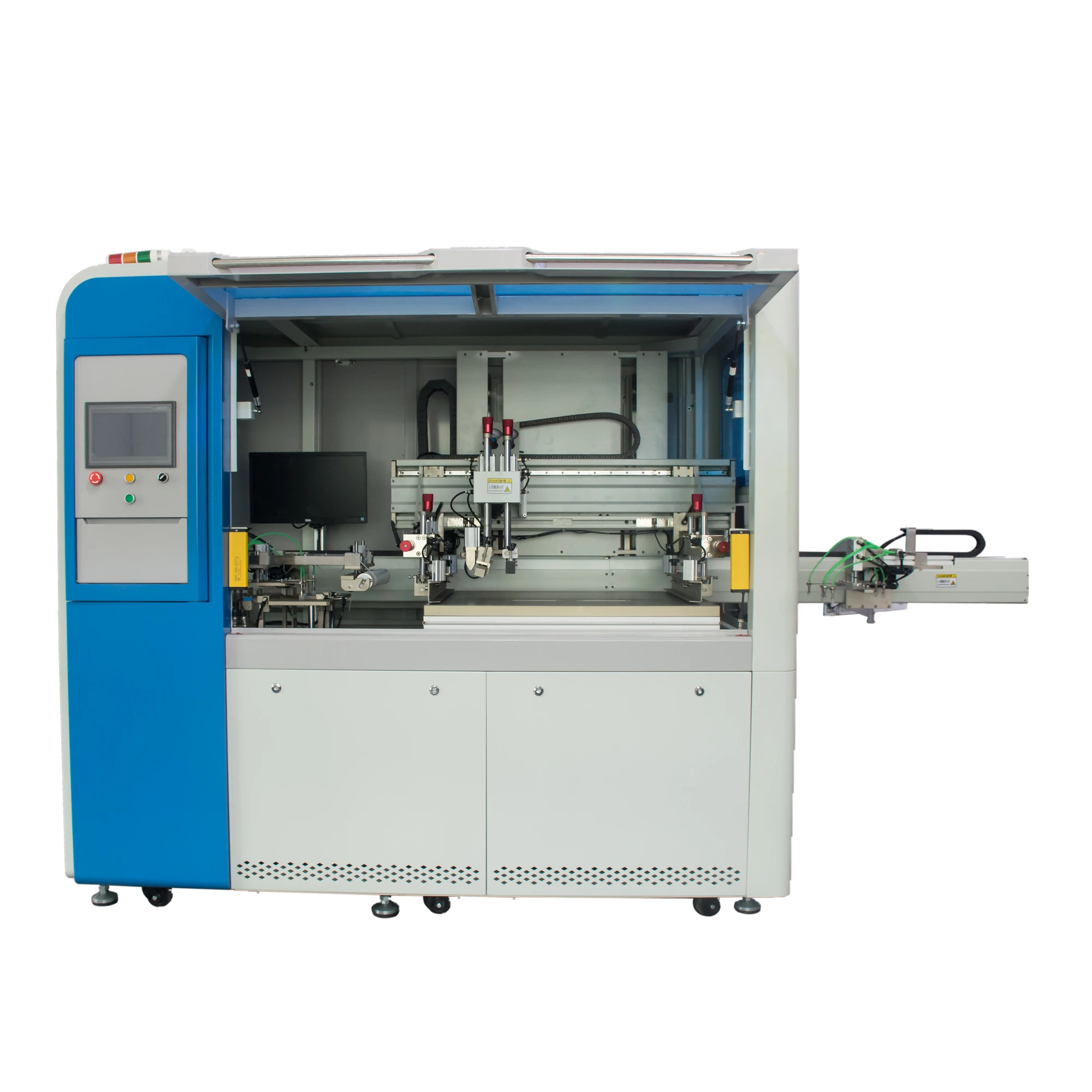

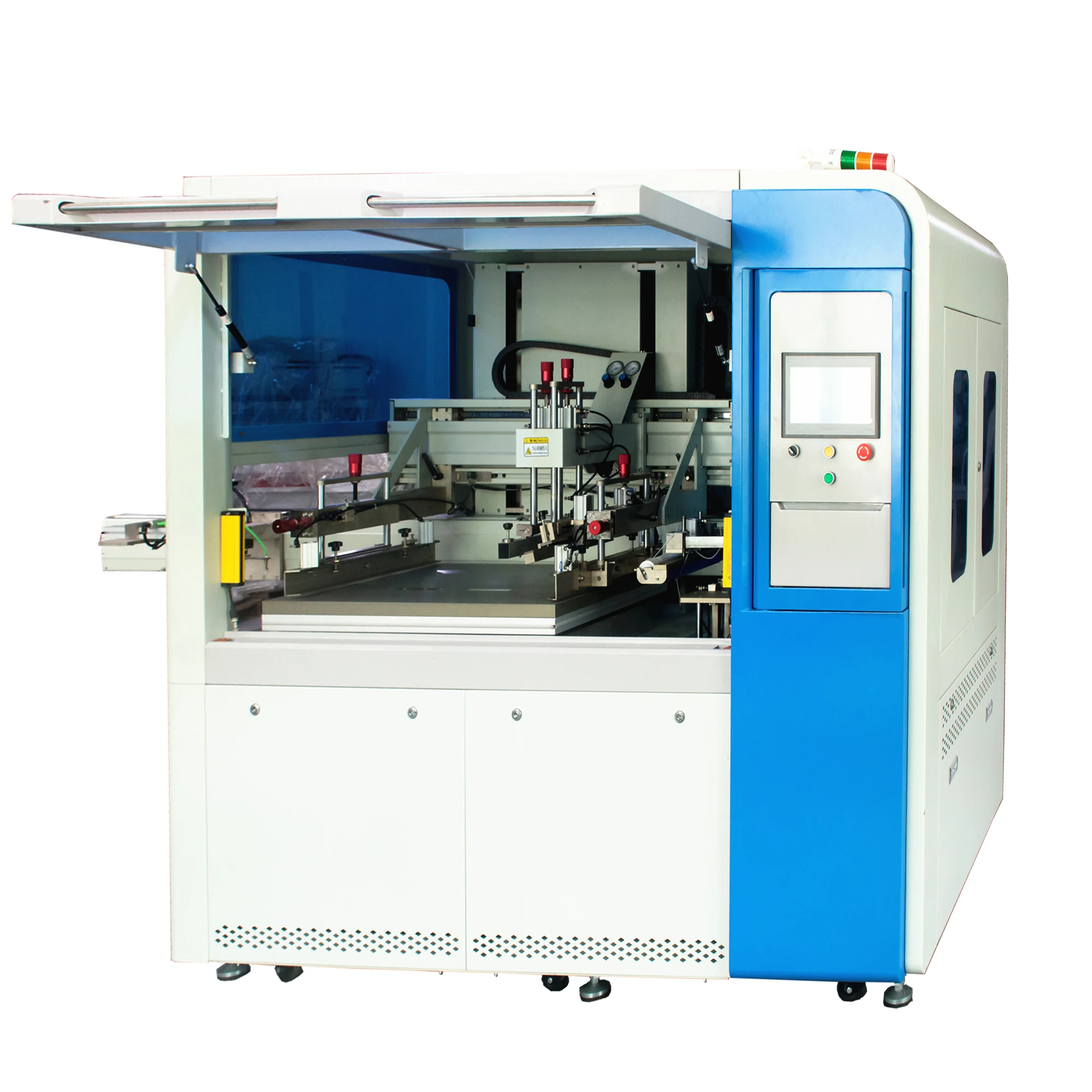

CCD Alignment Screen Printing Machine For Sheet
The CCD Alignment Screen Printing Machine for Sheet is the core machine of the sheet printing line.The whole process includes: automatic separate material - auto dust removal (including Initial positioning of clamping edge) - automatic loading - CCD alignment screen printing - automatic unloading - baking - auto collecting the finished product.
The machine is suitable for printing on sheet materials such as: membrane switches, glass covers, acrylic, ITO, conductive films, composite back covers, etc.High alignment accuracy, fast printing speed and the entire production line can be operated by just one person.
The machine is suitable for printing on sheet materials such as: membrane switches, glass covers, acrylic, ITO, conductive films, composite back covers, etc.High alignment accuracy, fast printing speed and the entire production line can be operated by just one person.
Details Images

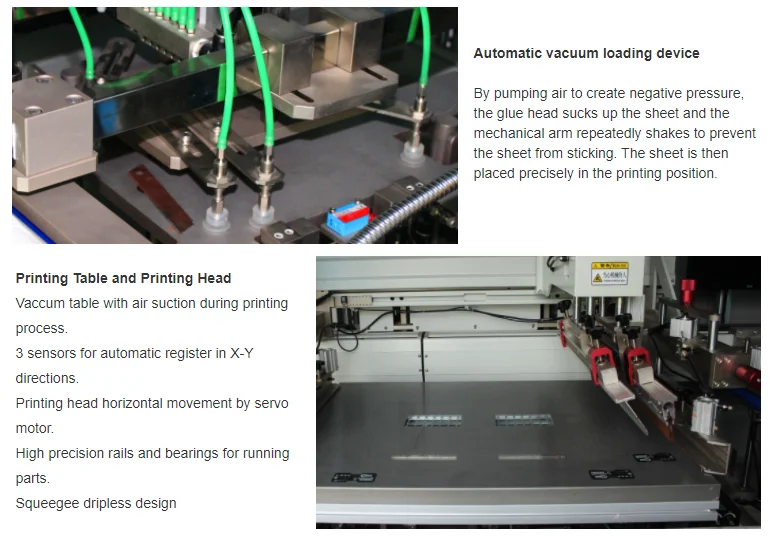

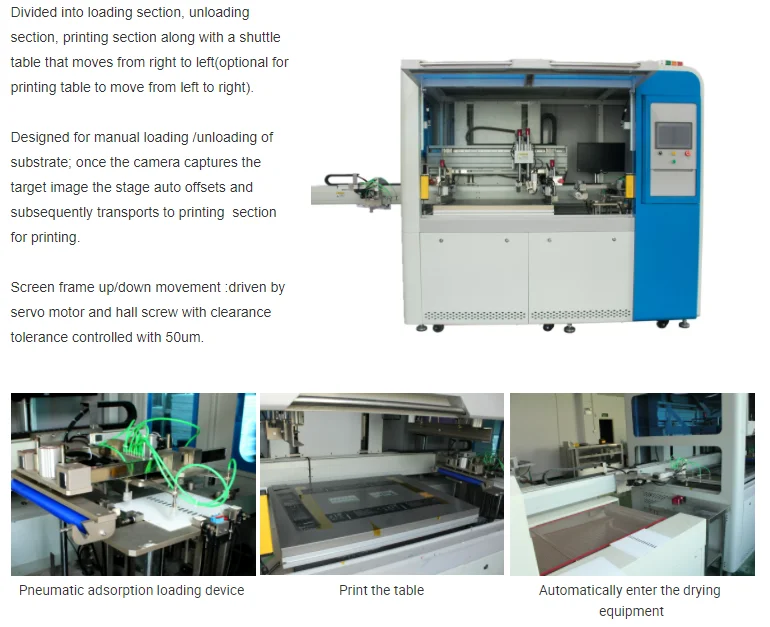

The CCD Alignment Screen Printing Machine for Sheet is Divided into loading section, unloading section, printing section along with a shuttle table that moves from right to left(optional for printing table to move from left to right). Designed for manual loading /unloading of substrate; once the camera captures the target image the stage auto offsets and subsequently transports to printing section for printing.
Screen frame up/down movement :driven by servo motor and hall screw with clearance tolerance controlled with 50um.
Screen frame up/down movement :driven by servo motor and hall screw with clearance tolerance controlled with 50um.
Automatically separate material→auto removal→auto loading→CCD alignment screen printing→auto unloading →dry →auto collecting the finished product.
The CCD Alignment Screen Printing Machine for Sheet is widely used in FPC,PET, PVC, transfer paper (film), floor heating film, geothermal film, electro thermal film, color paper, film, name plate, flexible circuit board, mobile phone keys, 3 m glue, glue, film switch, trademark laser, scratch CARDS, self-adhesive stickers, paper, ribbon, aluminum foil and copper foil this sheet material silk screen printing.
1,Automated equipment for sheet to sheet printing;
2,Industrial computer control,Servo motor transportation,HD CCD image positioning;
3,Automatic printing production.Meet the needs of high volume orders;
4,Dramatically reduce costs, Increase productivity;
5,CCD high-precision alignment,Guaranteed high-precision printing;
6,Equipment can make production schedule,Automatic alarm after production completion;
7,Automatic machine shutdown alarm after printing material is completed;
8,CCD adopts XYθ rotation alignment adjustment,No need to adjust the network;
9,Labor saving,One person can supervise multiple devices,Easy to operate,Easy to learn;
10,Use automatic dust and static elimination function,Cleaner materials;
2,Industrial computer control,Servo motor transportation,HD CCD image positioning;
3,Automatic printing production.Meet the needs of high volume orders;
4,Dramatically reduce costs, Increase productivity;
5,CCD high-precision alignment,Guaranteed high-precision printing;
6,Equipment can make production schedule,Automatic alarm after production completion;
7,Automatic machine shutdown alarm after printing material is completed;
8,CCD adopts XYθ rotation alignment adjustment,No need to adjust the network;
9,Labor saving,One person can supervise multiple devices,Easy to operate,Easy to learn;
10,Use automatic dust and static elimination function,Cleaner materials;

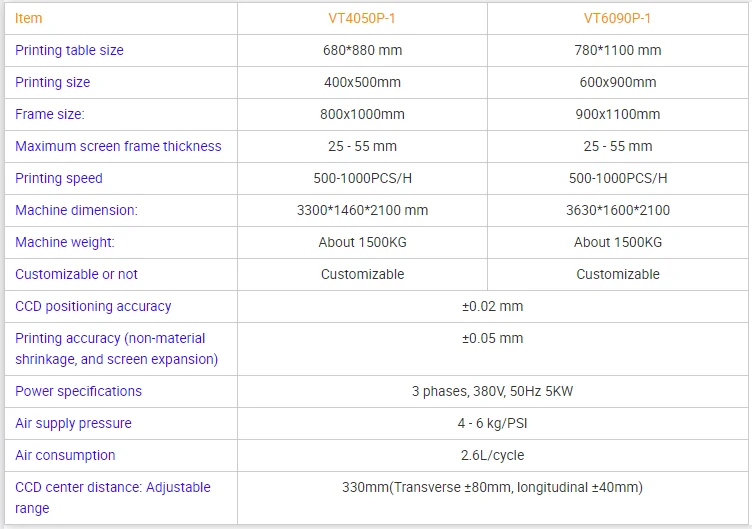

Product Paramenters
Warranty | 1 year |
The above parameters are for our standard CCD Alignment Screen Printing Machine for Sheet . If this specification meets your production requirements you can place your order directly and we will ship it to you immediately.
If you need to customise some of these parameters, we will improve them for you to ensure that the product meets your requirements exactly. As soon as the machine has been commissioned, we will deliver it to you
If you need to customise some of these parameters, we will improve them for you to ensure that the product meets your requirements exactly. As soon as the machine has been commissioned, we will deliver it to you

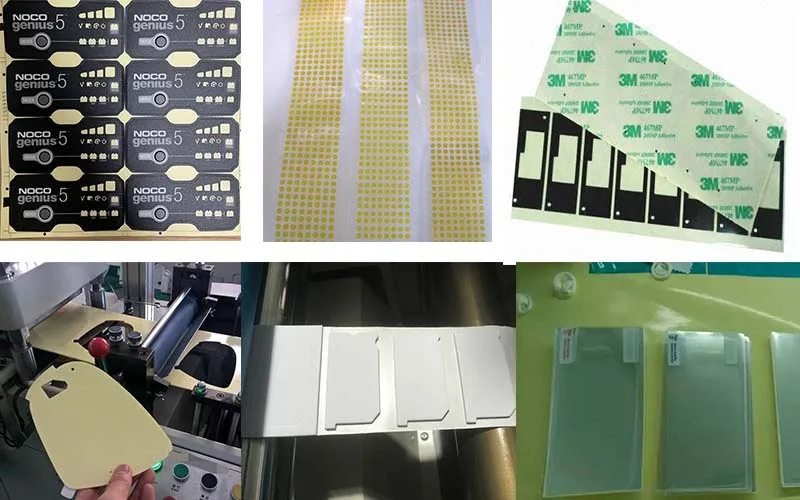

Samples
The characteristics
(1) Multi-color printing, automatic photocell eye counterpoint, computer control, automatic detection color code, if have any abnormal , it will stop automatic.
(2)Using numerical control motor, printing speed, return to the ink speed can be set in a random block.
(2)Using numerical control motor, printing speed, return to the ink speed can be set in a random block.
(3) Using numerical control motor, printing distance, return to the ink distance can be set in a random data.
(4)Automatic computing printing, and calculate the qty, and printing can be set automatically stop.
(5)photoelectric control feeding and discharging to avoid the surface damage of substrates, can improve the printing quality.
(6)Setting of printing speed and cycle run can be controlled via touch panel.
(4)Automatic computing printing, and calculate the qty, and printing can be set automatically stop.
(5)photoelectric control feeding and discharging to avoid the surface damage of substrates, can improve the printing quality.
(6)Setting of printing speed and cycle run can be controlled via touch panel.
According to customers' request, we accept customization, for example, adding anti-dust cover, exhaust cover, drying oven, tunnel furnace, UV curing machine, feeding direction, loading and unloading direction, etc.
Product packaging
The equipment will be packed in strict safety before transportation.As shown in the figure above.Try to ensure that no damage occurs in the course of transportation.
Due to the large size and heavy mass of the printing equipment, we generally use sea or road transport for transportation. You can choose to transport by sea route or by China-Europe Railway Express. As for the terms of trade, we usually adopt EXW,FOB or CIF.
The specific way can be confirmed in the process of communication and confirmation of the order.
Due to the large size and heavy mass of the printing equipment, we generally use sea or road transport for transportation. You can choose to transport by sea route or by China-Europe Railway Express. As for the terms of trade, we usually adopt EXW,FOB or CIF.
The specific way can be confirmed in the process of communication and confirmation of the order.
Company Profile
Our company is a representative of high-tech enterprises in Shenzhen, with perfect import and export qualifications, and more than 10 years of experience in the production and operation of automation equipment.
Our main products are CCD automation alignment machines which included in: CCD guide hole punching machine, CCD screen printing machine, CCD die cutting machine, CCD Fitting machine, Automation CCD testing machine for screen printing, Hardware, plastics and other industries. Those machines suit for both flat material and roll to roll material.And all products have obtained the domestic and international quality product certification,such as CE,ISO,CCC.
If you have any other requirements for product certification, please let us know.We will cooperate with you in accordance with your requirements to ensure that the products can go through the customs smoothly in the later testing and certification.
Our main products are CCD automation alignment machines which included in: CCD guide hole punching machine, CCD screen printing machine, CCD die cutting machine, CCD Fitting machine, Automation CCD testing machine for screen printing, Hardware, plastics and other industries. Those machines suit for both flat material and roll to roll material.And all products have obtained the domestic and international quality product certification,such as CE,ISO,CCC.
If you have any other requirements for product certification, please let us know.We will cooperate with you in accordance with your requirements to ensure that the products can go through the customs smoothly in the later testing and certification.
After-Sales Service
* Lifelong
* Spare parts
* Video technical and online support
* Field maintenance and repair service
* Engineers are available to service machinery overseas.
* Spare parts
* Video technical and online support
* Field maintenance and repair service
* Engineers are available to service machinery overseas.
FAQ
Q: Are you a factory or a trading company?
A: We are factory manufacturing packaging machines and we provide perfect OEM and after-sale service.
Q: Can you send me the video to show how the machine works?
A: Certainly, we have made video of every machine and uploaded them to Youtube.
Q: How can I know your machine works well?
A: Before delivery, we shall test the machine working condition for you.
Q: How can I know your machine is designed for my product?
A: You can send us samples of your product and we test it on machine.
Q: How can I pay my order?
A: We accept T/T, Western Union paying methods. For those orders less than 500USD, we accept PayPal to pay.
Q: Do you have a CE certificate?
A: For every model of machine, it has a CE certificate.
Your Satisfaction is Our Honor!
A: We are factory manufacturing packaging machines and we provide perfect OEM and after-sale service.
Q: Can you send me the video to show how the machine works?
A: Certainly, we have made video of every machine and uploaded them to Youtube.
Q: How can I know your machine works well?
A: Before delivery, we shall test the machine working condition for you.
Q: How can I know your machine is designed for my product?
A: You can send us samples of your product and we test it on machine.
Q: How can I pay my order?
A: We accept T/T, Western Union paying methods. For those orders less than 500USD, we accept PayPal to pay.
Q: Do you have a CE certificate?
A: For every model of machine, it has a CE certificate.
Your Satisfaction is Our Honor!
