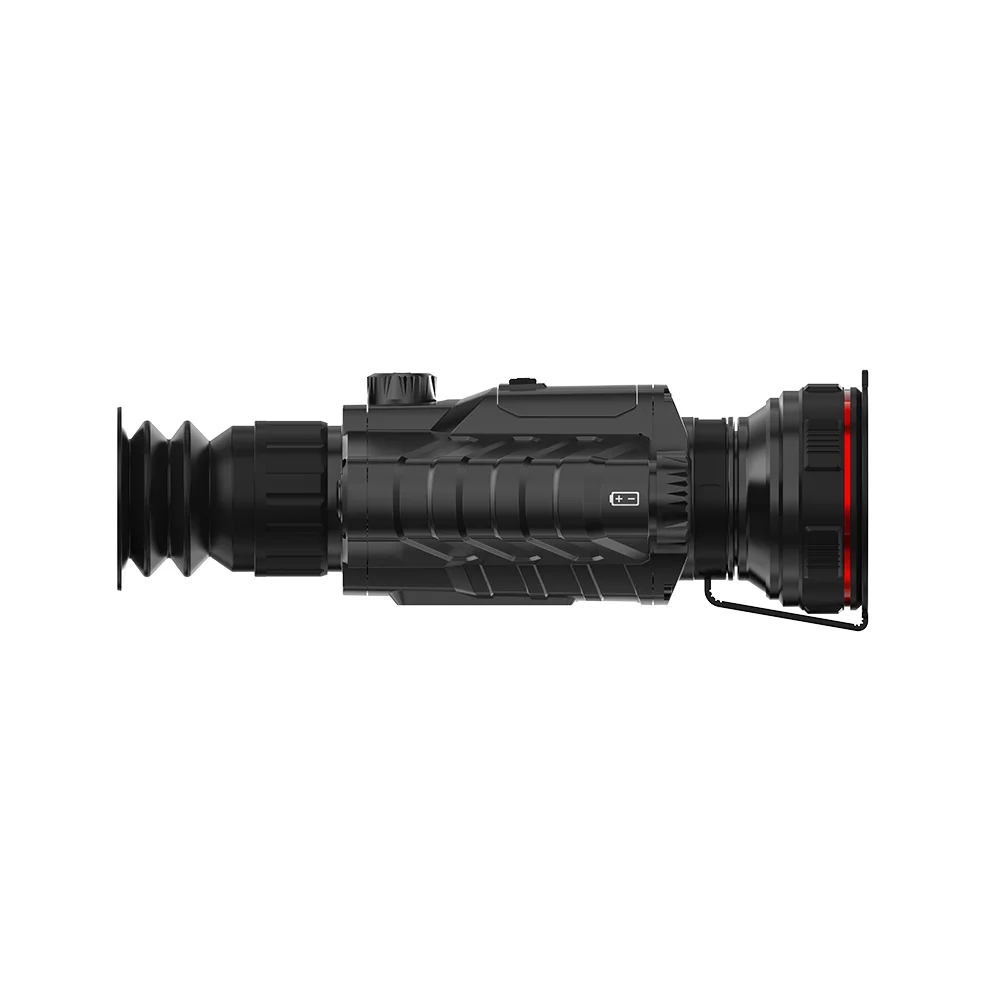

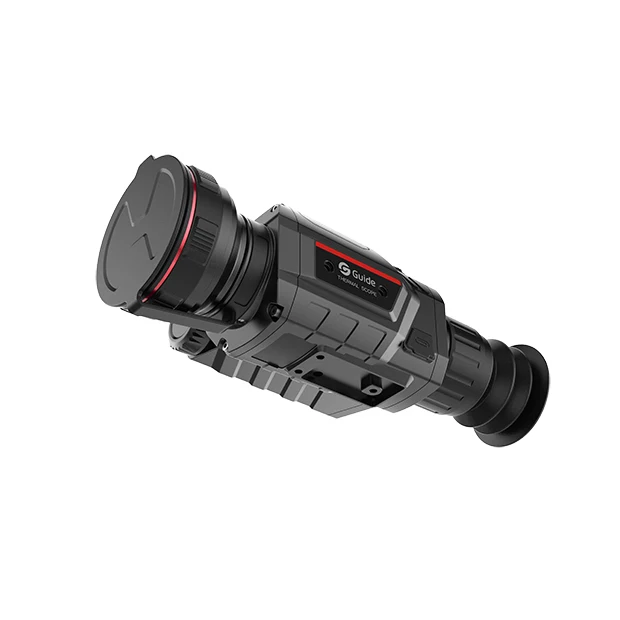

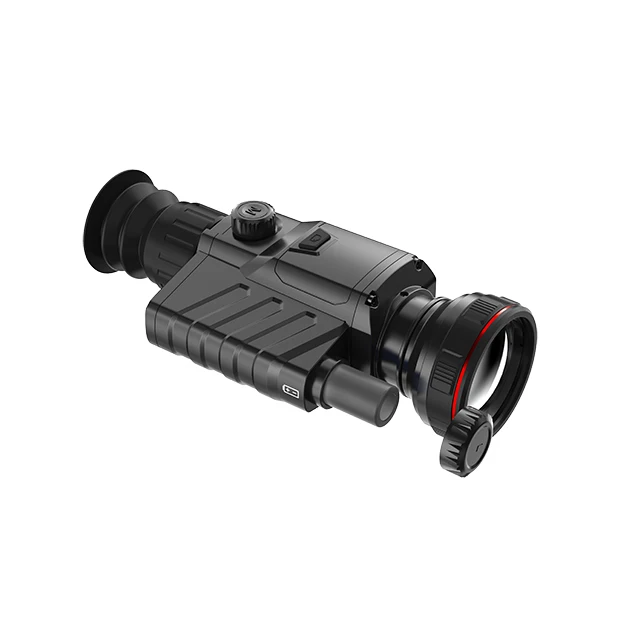

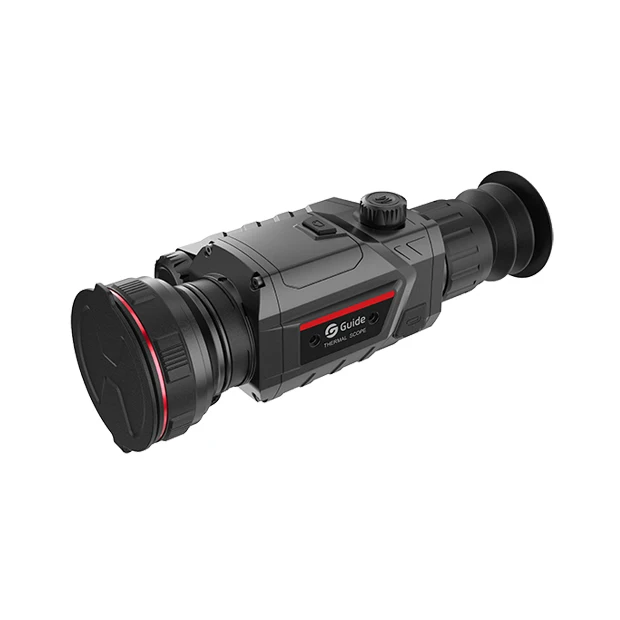

Guide TR650LRF Thermal Imaging Monocular Hunting Scope With ranging function
- Category: >>>
- Supplier: Guangzhou Specprecision Optics Products Co. Ltd
Share on (1601061107368):
Product Overview
Description
Specification
TR650 | ||
Detector | ||
Detector Type | VOx, 8 to 14 μm | |
Detector resolution | 640 × 480, 12 μm | |
NETD | ≤30mk | |
Frame rate | 50Hz | |
Lens | ||
Focal Length | 50 mm; F1.0 | |
Field of angle | 8.73° × 6.60° | |
Optical zoom | 3.5x | |
Focus | Manual | |
Digital zoom | 1x-8x | |
Power | ||
Battery type | Single, replaceable 18650 battery | |
Battery life | ≥ 8 hours | |
Interface | ||
USB | Type C USB 2.0 for power supply, data transfer, analog video output | |
Display | ||
Display type | 0.39’’ OLED | |
Resolution | 1024 × 768 | |
Eyepiece | Exit pupil distance ≥ 48 mm, Diopter ± 4 | |
Eyepiece zoom | 14X | |
Video output | Analog video | |
Functions | ||
Recording function | Photo/Video | |
Hot spot tracking | Available | |
Rough ranging | Available | |
PIP | Upper left, Upper middle, Upper right, Closed, PIP with division line | |
Scene modes | Enhanced, Highlight and Natural | |
Color palettes | White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot | |
Compensation modes | Automatic, shutter and scene compensation | |
WIFI | Transmission of real-time video via WIFI for remote control in the 2.4G frequency band and within 15 meters | |
Zero calibration | 50 m / 100 m / 200 m / 300 m / 500 m | |
Line type | 10 types | |
Other | OTA update | |
System | ||
Language settings | English / Russian / German / French / Italian / Spanish / Japanese / Korean | |
Memory capacity | 32GB | |
Environmental | ||
Operating Temperature | -30°C～50°C | |
Storage Temperature | -45°C to 70°C | |
Humidity | 10 % to 95 % non-condensing | |
Shock | 800 G at 1 ms half sine pulse (as per IEC60068-2-27) | |
Vibration | 10 Hz~150 Hz~10 Hz 0.15 mm (as per IEC60068-2-6) | |
Drop | 1m | |
Encapsulation | IP67 | |
Certificate | IP67, FCC, CE, RoHS, EAC, WEEE, UKCA, un38.3 | |
Detection range | ||
Detection range | 2000m | |
Physical | ||
Weight | ≤590 g | |
Size (L × W × H) | 219 × 88 × 66 mm | |

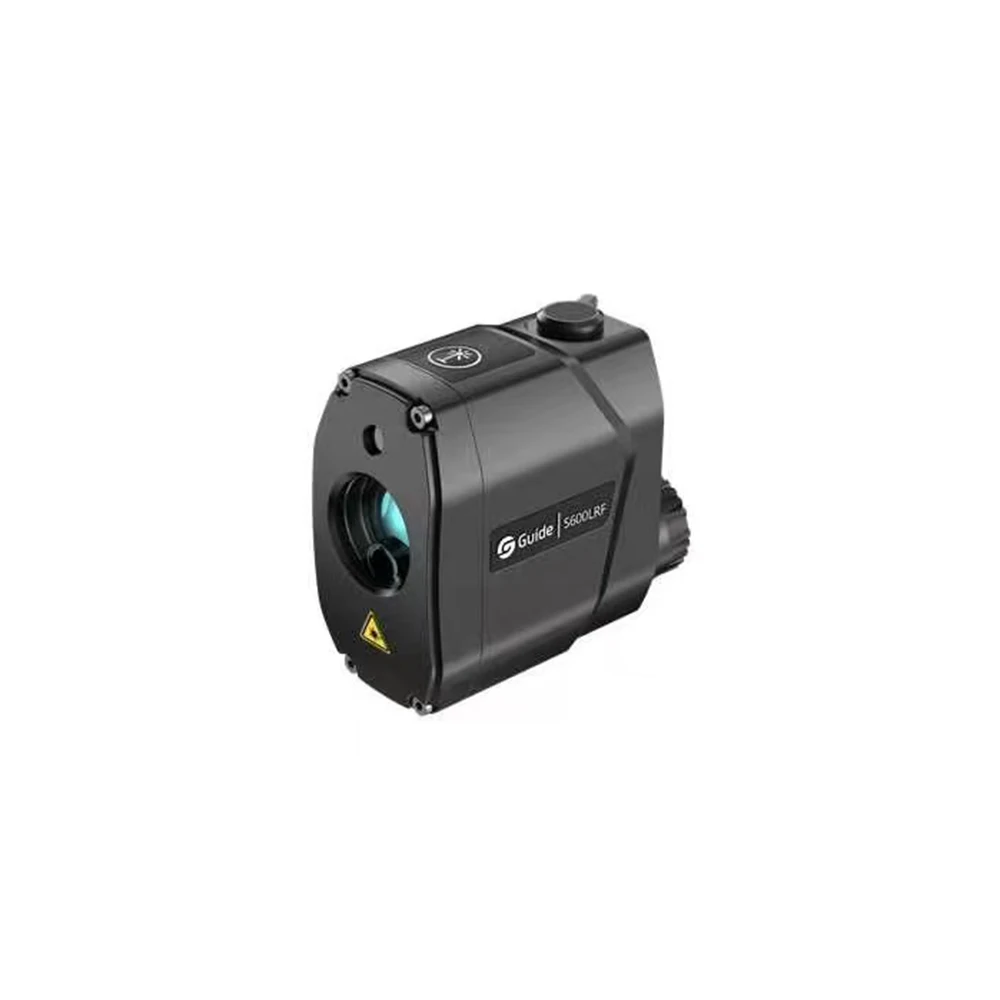

S600LRF | ||||
Specifications | ||||
Lens | Type | Optical glass | ||
Laser | Safety level | Class I for eye safety | ||
Laser wavelength | 905nm, Class I for eye safety | |||
Laser ranging | Maximum detecting range | 600m | ||
Minimum detecting range | 5m | |||
Power | Battery | CR123A | ||
Power supply | Battery | |||
Continuous work time | ≥5h | |||
Button | Bluetooth button | Available | ||
On/off button | Available | |||
Functions | Bluetooth | External remote control available | ||
Lasor indication | Available | |||
Interface | Mechanical interface | Standard PIC Mount | ||
Environmental | Working temperature | -20°C to 50°C | ||
Storage temperature | -45°C to 70°C | |||
Humidity | 10% to 95% non-condensing | |||
Impact | 800G/ms(10 times/s) by the optical axis direction | |||
Vibration | 10Hz～150Hz～10Hz 0.15mm IEC60068-2-6 | |||
Drop | 1m | |||
Certification | IP rating | IP67（Test conditions only） | ||
Certification | UN38.3、RoHS、CE、FCC、EAC、WEEE、UKCA | |||
Physical | Color | Black | ||
Size | 65×31×60mm | |||
Product Description
Why Choose Us
SPECPRECISON is a professional manufacturer of high-quality scopes, red dot sights, and accessories. We are dedicated to providing our customers with a wide range of services to meet their specific needs. With a modern production facility spanning over 3,000 square meters, we have invested in the latest advanced production equipment and technology to ensure that we can produce up to 20,000 scopes, red dot sights, and accessories every month.
Our comprehensive range of services includes ready-to-ship wholesale products, OEM and ODM services, and custom-designed products. With our ready-to-ship wholesale service, we offer customers small-quantity purchases that are readily available and can be delivered quickly. Our OEM and ODM services allow us to customize scopes, red dot sights, and accessories to meet our customers' unique specifications and requirements. Our experienced R&D team and advanced production capabilities enable us to provide personalized solutions that meet the highest quality standards while ensuring timely delivery.
As experts in scope manufacturing, we understand the importance of providing our customers with high-quality products. We use only the finest materials and the latest production techniques to ensure the precision and durability of our products. Our scopes come with a range of advanced features such as multi-coated lenses, adjustable objective lenses, and illuminated reticles. Our red dot sights are designed to be compact and lightweight while providing reliable target acquisition in a variety of shooting situations. We also offer a range of accessories such as mounts, rings, and covers to complement our scopes and red dot sights.
At SPECPRECISON, we are committed to providing our customers with comprehensive, high-quality services. Our goal is to exceed our customers' expectations by providing them with the best products and services available in the market. We strive to meet the specific needs of our customers and provide them with personalized solutions that are tailored to their unique requirements. Our focus on quality and customer satisfaction is reflected in everything we do, from product design and development to manufacturing and delivery.
In conclusion, SPECPRECISON is a leading manufacturer of high-quality scopes, red dot sights, and accessories. Our commitment to excellence in product design, production, and customer service has made us a trusted supplier to a wide range of customers worldwide. Whether you're looking for ready-to-ship wholesale products, custom-designed scopes and red dot sights, or a full range of accessories, SPECPRECISON has the expertise and experience to meet your needs.
Our comprehensive range of services includes ready-to-ship wholesale products, OEM and ODM services, and custom-designed products. With our ready-to-ship wholesale service, we offer customers small-quantity purchases that are readily available and can be delivered quickly. Our OEM and ODM services allow us to customize scopes, red dot sights, and accessories to meet our customers' unique specifications and requirements. Our experienced R&D team and advanced production capabilities enable us to provide personalized solutions that meet the highest quality standards while ensuring timely delivery.
As experts in scope manufacturing, we understand the importance of providing our customers with high-quality products. We use only the finest materials and the latest production techniques to ensure the precision and durability of our products. Our scopes come with a range of advanced features such as multi-coated lenses, adjustable objective lenses, and illuminated reticles. Our red dot sights are designed to be compact and lightweight while providing reliable target acquisition in a variety of shooting situations. We also offer a range of accessories such as mounts, rings, and covers to complement our scopes and red dot sights.
At SPECPRECISON, we are committed to providing our customers with comprehensive, high-quality services. Our goal is to exceed our customers' expectations by providing them with the best products and services available in the market. We strive to meet the specific needs of our customers and provide them with personalized solutions that are tailored to their unique requirements. Our focus on quality and customer satisfaction is reflected in everything we do, from product design and development to manufacturing and delivery.
In conclusion, SPECPRECISON is a leading manufacturer of high-quality scopes, red dot sights, and accessories. Our commitment to excellence in product design, production, and customer service has made us a trusted supplier to a wide range of customers worldwide. Whether you're looking for ready-to-ship wholesale products, custom-designed scopes and red dot sights, or a full range of accessories, SPECPRECISON has the expertise and experience to meet your needs.
High-quality
Specprecision offers high-quality optical products at a competitive price range, including red dot sights, Optics scopes,Tactical flashlights, Optics mounts, and tactical equipment. We prioritize quality over price when it comes to our customers' concerns. Our products stand apart from lower-quality alternatives in the market. While we strive to offer our products at the best possible prices, variations in manufacturing costs may result in price differences. Rest assured, our products maintain a high standard of quality despite any pricing variations.
FAQ
#1 Do you have your own factory?
We have our own factory with a team for optical design and production facilities.
#2 What are the quality and characteristics of your products?
We are the most cost-effective factory because we have a good supply chain and optical design team. Please tell me your product requirements, such as whether the scope needs to be shockproof, waterproof, nitrogen-filled, and whether the glass requires HD or ED glass. The prices for products with different quality requirements vary. It depends on your requirements for the product.
#3 Can you do OEM or ODM?
Yes, we offer custommade service to our clients. You need to provide us some technical data such as dimension and markings.
#4 Can item be printed our own logo?
Yes, You just need to give us your logo.If you need, we can customize the logo laser markings and product number for you.
#5 If we need a sample first, could you supply it for us please?
Yes sure, sample is available as your require. But please understand that we will choose the sample from our current stock,sometime maybe there is a little different of composition from your expectation, but it is enough for your reference. If you need us make a customized sample for you, it will charge small amount of cost.
#6 How could I payment?
Accept the payment via PayPal or Western Union or Bank T/T Wire Transaction /Alipay or Credit Card (in US only) etc.
#7 How can I track my order?
We mainly use EMS and ePacket e-EMS China post registered Air Mail for low quantity order. FEDX, DHL, TNT, UPS, SF Express for big quantity one. Later the tracking No. will be sent you after shipping, you can check them on official express website. on.
