Wholesale Um980 One Camera 1408 Channels Imu Visual Survey Cheap Gnss Rtk Gps Receiver Survey Instrument V300 Hi Target V500
- Category: >>>
- Supplier: Shanghai Apekstool Optoelectronic Technology Co. Ltd.
Share on (1601061111305):
Product Overview
Description
Product Description
China Brand One Camera Visual Survey 1408 Channels Imu Geophysical Survey Equipmenthi Target V300 Gnss Rtk Base And Rover
Futures:
*The king of stakeout with the bottom camera, Fast and accurate.
*New generation GNSS SoC chip, 1408 channels
*Built-in new generation high precision IMU tilt survey 60°, Automatic initialization upon startup.
*Internal 2W UHF radio can receive and transmit.
*Eternal 35W radio can work 10-20km typically.
*New generation GNSS SoC chip, 1408 channels
*Built-in new generation high precision IMU tilt survey 60°, Automatic initialization upon startup.
*Internal 2W UHF radio can receive and transmit.
*Eternal 35W radio can work 10-20km typically.

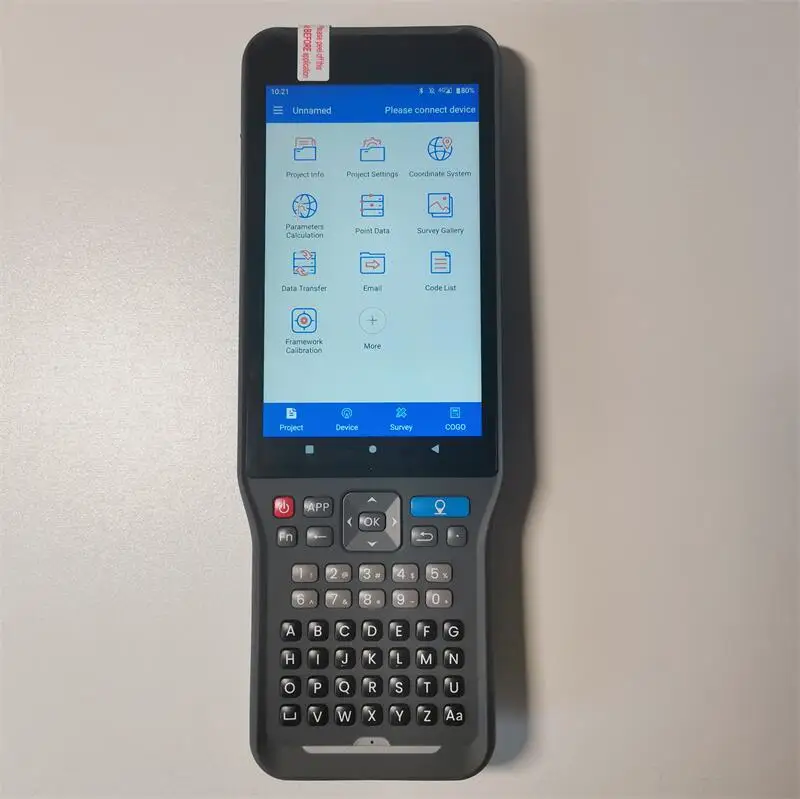

Data Collector
Specification
1408 Channels IMU Tilt Survey GNSS Receiver Hi-Target V300 Gnss Rtk With Camera | ||||
Number of channels | 1408 | |||
BDS | B1I，B2I，B3I，B1C，B2a，B2b | |||
GPS | L1C/A，L1C，L2P(Y)，L2C，L5 | |||
GLONASS | L1，L2 | |||
GALILEO | E1，E5a，E5b | |||
GALILEO | E1，E5a，E5b，E6* | |||
QZSS | L1，L2，L5，L6* | |||
IRNSS | L5* | |||
SBAS | L1，L2，L5 | |||
L-BAND* | YES | |||
Output format | ASCII: NMEA-0183, binary code | |||
Positioning output frequency | 1Hz~20Hz | |||
Differential support | CMR、RTCM2.X、RTCM3.0、RTCM3.2 | |||
Static format support | GNS, Rinex dual format static data | |||
Differential format | RTCM2.X, RTCM3.X | |||
Network mode | VRS, FKP, MAC; support NTRIP protocol | |||
Operating system | Linux operating system | |||
Data storage | Built-in 16GB ROM, supports automatic cycle storage of static data | |||
RTK positioning accuracy | Plane: ±(8+1×10-6D) mm | |||
Elevation: ±(15+1×10-6D) mm | ||||
Static positioning accuracy | Plane: ±(2.5+0.5×10-6D) mm | |||
Elevation: ±(5+0.5×10-6D) mm | ||||
DGPS positioning accuracy | Plane accuracy: ±0.25m+1ppm; | |||
Elevation accuracy: ±0.50m+1ppm | ||||
SBAS positioning accuracy | 0.5m | |||
Tilt measurement accuracy | 8mm+0.7mm/°tilt | |||
Visiual stakeout accuracy | 1cm | |||
Initialization time | <10 seconds | |||
Initialization reliability | ＞99.99% | |||
RTK keep technology | YES | |||
Function | Professional star-level night vision high-definition camera, super large viewing angle, support live-view stakeout | |||
Cellular mobile | Built-in 4G network communication: TDD-LTE, FDD-LTE, WCDMA, TD-SCDMA, EDGE，GPRS，GSM | |||
I/O Interface | USB type C interface; SMA interface | |||
WiFi | 802.11b/g access point and client mode, can provide WiFi hotspot service | |||
Bluetooth | Bluetooth® 2.4GHz, BT5.2 | |||
NFC | Support NFC IGRS | |||
Power | 1W/2W/5W adjustable | |||
RK/TK internal UHF radio | 0.5W/1W/2W adjustable 410MHz~470MHz | |||
HI-TARGET，TRIMTALK450S，TRIMMARKⅢ, TRANSEOT，SOUTH，CHC，SATEL | ||||
116 frequency bands adjustable | ||||
Electronic Bubbles | Realize Smart Alignment | |||
Tilt measurement | IMU | |||
Panel | Single button | |||
Indicator light | Satellite lights, signal lights, power lights | |||
battery | High capacity lithium battery 6800mAh, working time is more than 16 hours | |||
Input voltage | USB 15W charger | |||
size | Φ158mm×98mm | |||
weight | ≤1.2kg (including battery) | |||
Dust and water release | IP68 | |||
Anti-fall | Resistance to natural drop of 2 meters | |||
Operating temperature | -40℃~75℃ | |||
Storage temperature | -55℃~+85℃ | |||

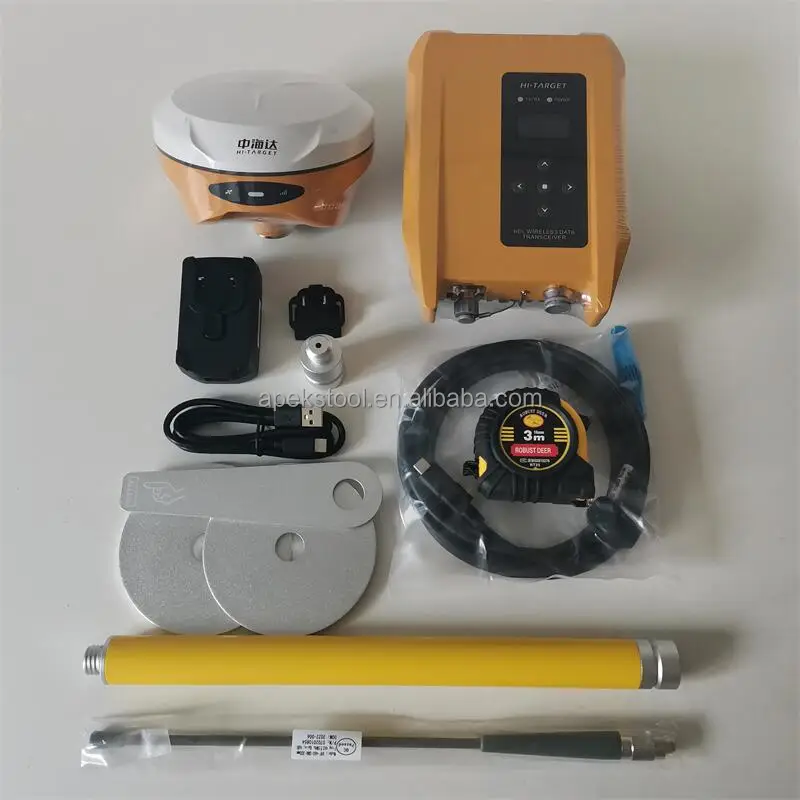

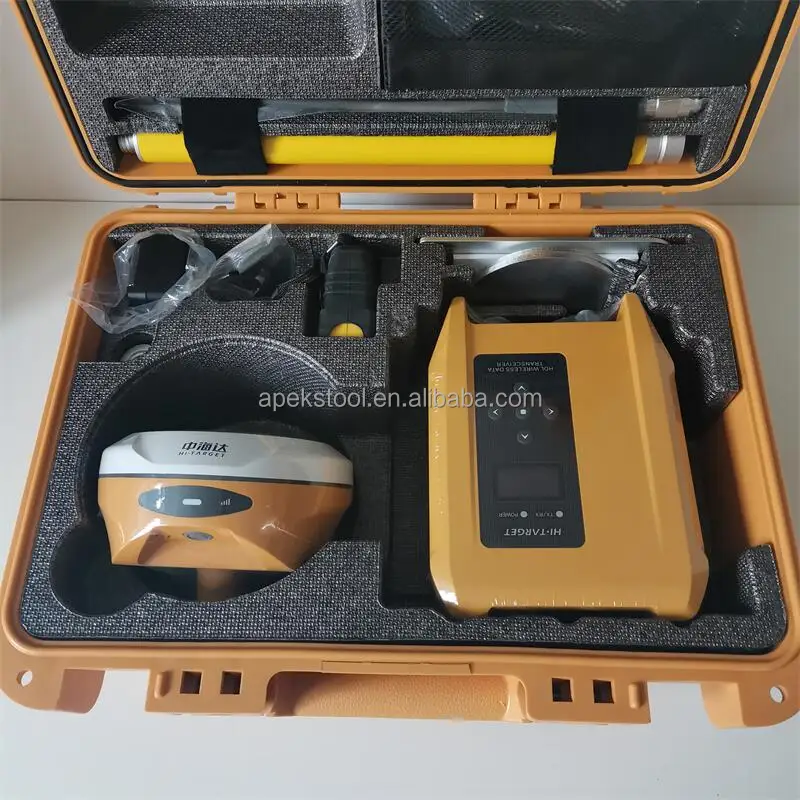

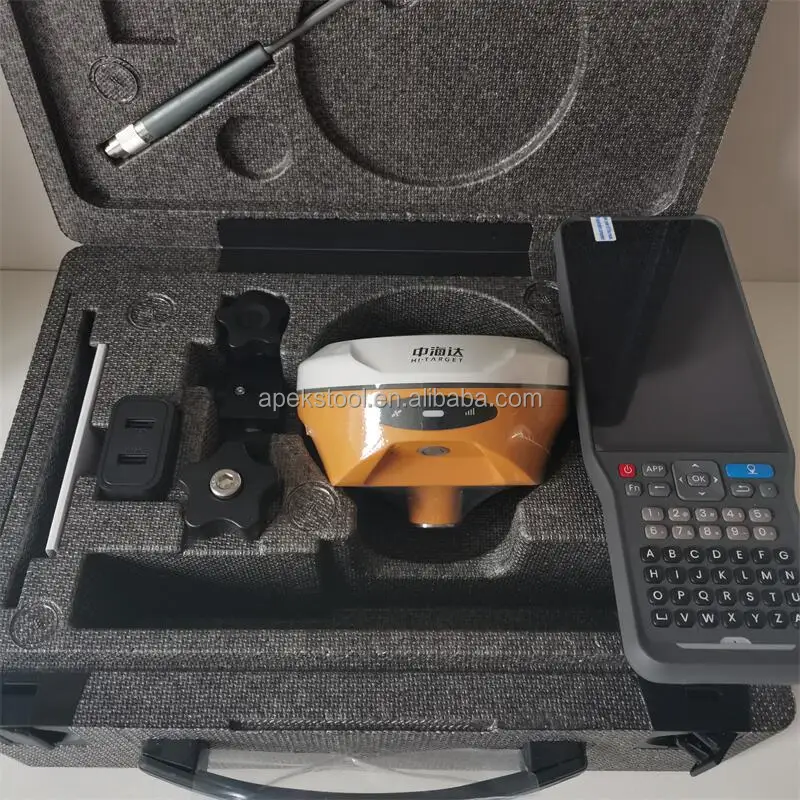

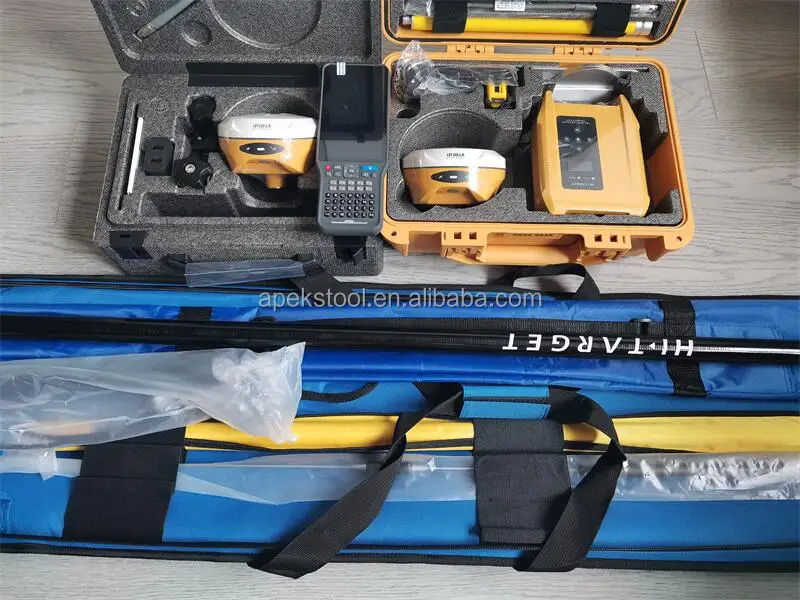

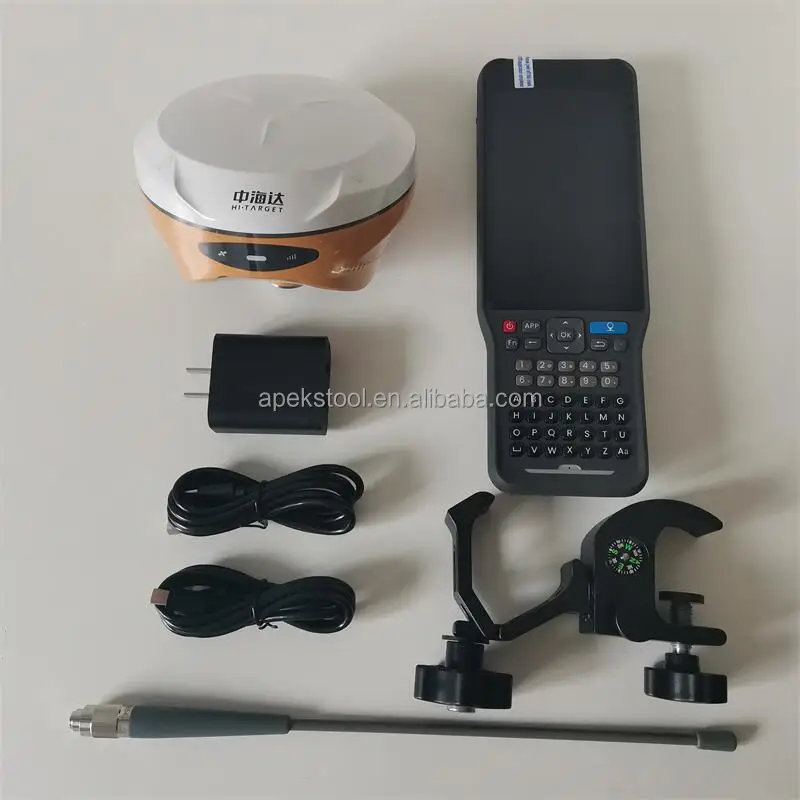

Packages
Company Profile
Shanghai Apekstool was founded and based in Shanghai, specializing in the manufacturing and sales of Surveying equipment. We are dedicated to being a professional provider for survey equipment. Our goal is to provide the best products and excellent service to our customers all over the world.
We are proud to guarantee that, with our strong technical background and communication capability, our sales/support engineers are able to answer your most complicated technical questions over the phone in English. That would save so much time for communication.
We have been involved in the geographic mapping industry for 6 years. We supply all products with reasonable prices and real-time support upon our own professional experience and high-quality supply chain.
We are proud to guarantee that, with our strong technical background and communication capability, our sales/support engineers are able to answer your most complicated technical questions over the phone in English. That would save so much time for communication.
Our business is growing and we invite you to be part of the success.
Contact us
Feedback
FAQ
Q: Who are we?
We are based in Shanghai, China and we are selling to Middle East, Africa, Southeast Asia, Eastern Asia, South America,North America, In almost every country we have customer representatives who can help us contact you.
Q: How do we process your order and give your warranty?
We can have order by the third party of Alibaba to ensure your order and payment safety.
We will process your order in our sales system, 1. to check machine appearance, 2. to register the machine permanent code, 3. to test machine fixed solution, 4. to pack and delivery. Our sales will follow up every step to the customer, giving you 100% assured experience and immersive online purchasing.
We have 12 months quality warranty and 24 hours online technical support
We are based in Shanghai, China and we are selling to Middle East, Africa, Southeast Asia, Eastern Asia, South America,North America, In almost every country we have customer representatives who can help us contact you.
Q: How do we process your order and give your warranty?
We can have order by the third party of Alibaba to ensure your order and payment safety.
We will process your order in our sales system, 1. to check machine appearance, 2. to register the machine permanent code, 3. to test machine fixed solution, 4. to pack and delivery. Our sales will follow up every step to the customer, giving you 100% assured experience and immersive online purchasing.
We have 12 months quality warranty and 24 hours online technical support
Q: What can you buy from us?
We have known brands GNSS RTK system , total station , theodolite , auto level , rotary laser level, drones and surveying
accessories. All products are new and original. Different brands and different price ranges of products can meet the needs of all customers. We can offer one-stop services.
Q: What services can we offer?
Accepted currencies of payment: USD, EUR, JPY, CAD, AUD, HKD, GBP, RMB, CHF.
We have known brands GNSS RTK system , total station , theodolite , auto level , rotary laser level, drones and surveying
accessories. All products are new and original. Different brands and different price ranges of products can meet the needs of all customers. We can offer one-stop services.
Q: What services can we offer?
Accepted currencies of payment: USD, EUR, JPY, CAD, AUD, HKD, GBP, RMB, CHF.
Accepted payment methods: T/T, L/C, MoneyGram, Credit Card, PayPal, Western Union, Cash
Languages: English, Chinese, Spanish, Japanese,Portuguese,German, Arabic, French, Russian, Korean, Italian
Languages: English, Chinese, Spanish, Japanese,Portuguese,German, Arabic, French, Russian, Korean, Italian
