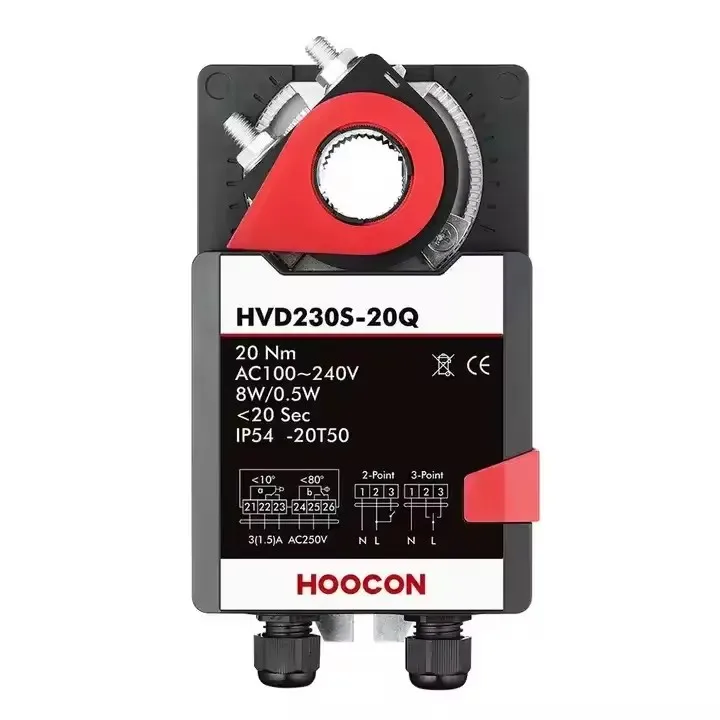

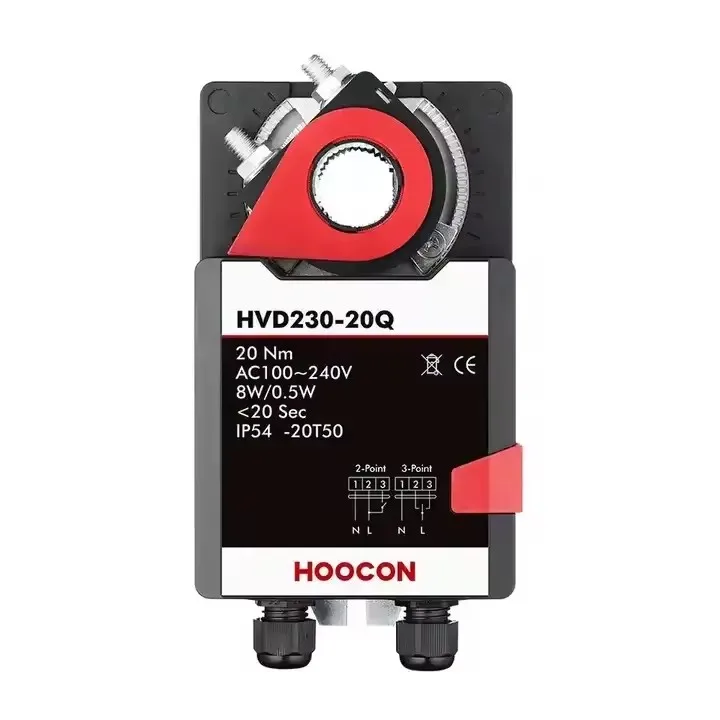

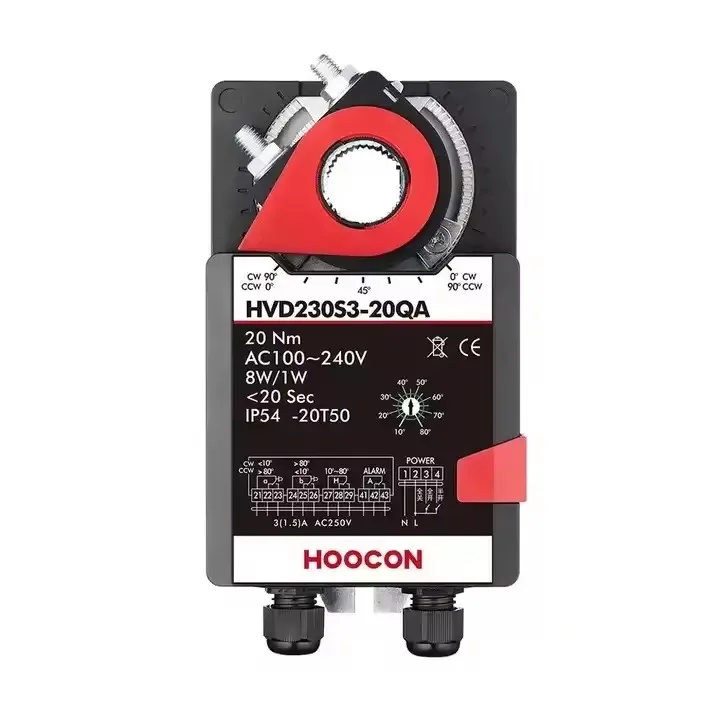

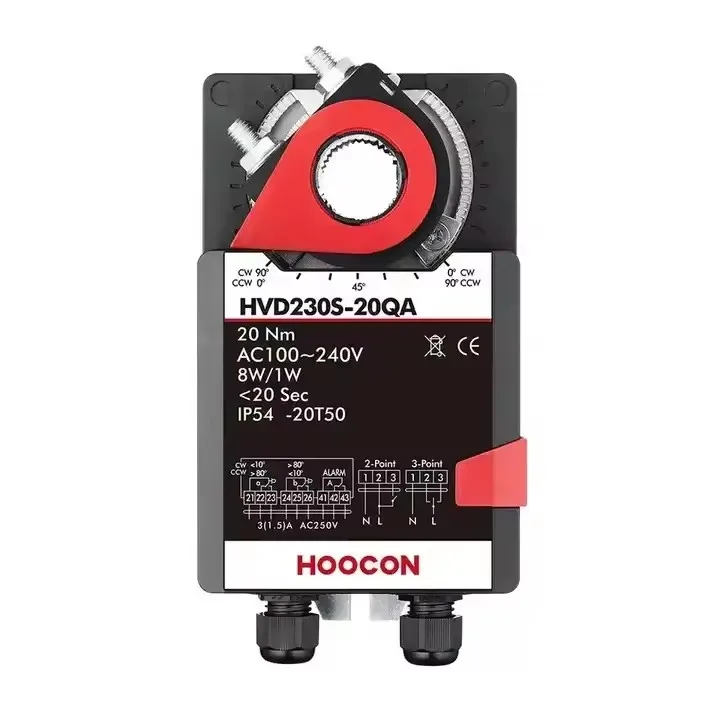

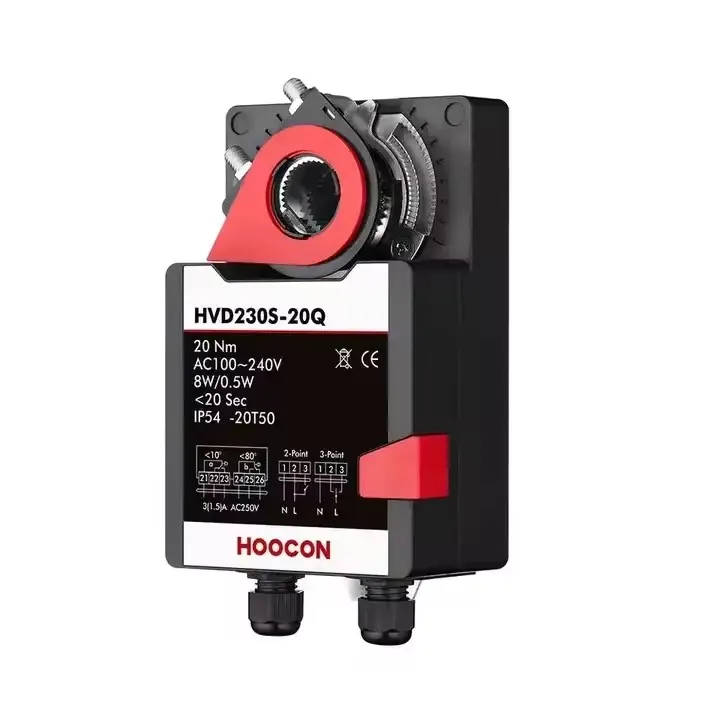

Factory Sale On Off Control 20Nm Damper High Speed Air Damper Actuator 230V
- Category: >>>
- Supplier: Ningbo Hoocon Automation Control Equipment Co. Ltd.
Share on (1601061135802):
Product Overview
Description
Products Description
Model Selection Table | ||||||||||
Torque | Running time | Control | Nominal voltage | Auxiliary Switch | Model/Type | |||||
20Nm | <20s(90°) | ON/OFF,2/3-Point | AC/DC24V | None | HVD24-20Q | |||||
2-SPDT | HVD24S-20Q | |||||||||
AC 100-240V | None | HVD230-20Q | ||||||||
2-SPDT | HVD230S-20Q | |||||||||
Technical specification | ||||
HVD24-20Q/HVD24S-20Q | HVD230-20Q/HVD230S-20Q | |||
Electrical data | ||||
Nominal voltage | AC/DC24V 50/60Hz | AC100-240V 50/60Hz | ||
Nominal voltage range | AC/DC 19.2...28.8v | AC 85...265v | ||
Power consumption: | 3W@Nominal torque/0.5W@holding | 3W@Nominal torque/0.5W@holding | ||
Wire sizing | 0.5mm2 | |||
Function data | ||||
Damper size | 4m2 | |||
Direction of rotation | Manual regulation | |||
Manual override | Gearing latch disengaged by push button, self-resetting | |||
Angle of rotation | Max90° | |||
Sound power level | 55dB | |||
Position indication | Mechanical | |||
Working Conditions | ||||
Protection class | III(safety low voltage) | II(totally insulated) | ||
Protection level | IP54 | |||
Ambient temperature | -20...+50℃/IEC 721-3-3 | |||
Inventory temperature | -30...+80℃/IEC 721-3-2 | |||
Humidity test | 95%RH non condensing(EN60730-1) | |||
Dimensions/Weight | ||||
Dimensions: | See”Dimensions” | |||
Shaft length | >60mm | |||
Shaft diameter | ○10...24mm □10×10...17×17 | |||
Weight | <1.4kg | |||
Recommend Products
Why Choose Us
Packing & Delivery
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 3-5 days if the goods are in stock. or it is 15-30 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment. If you have another question, pls feel free to contact us
