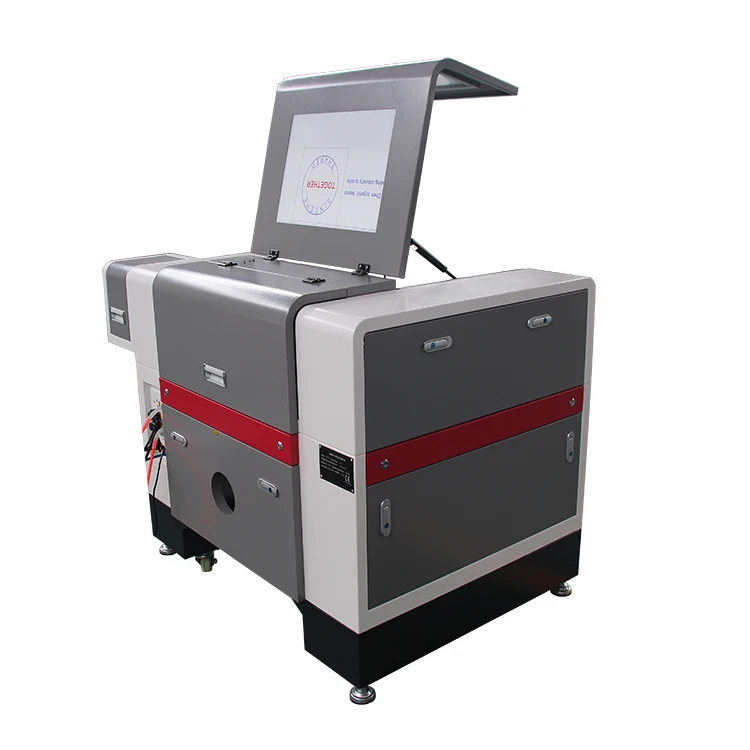

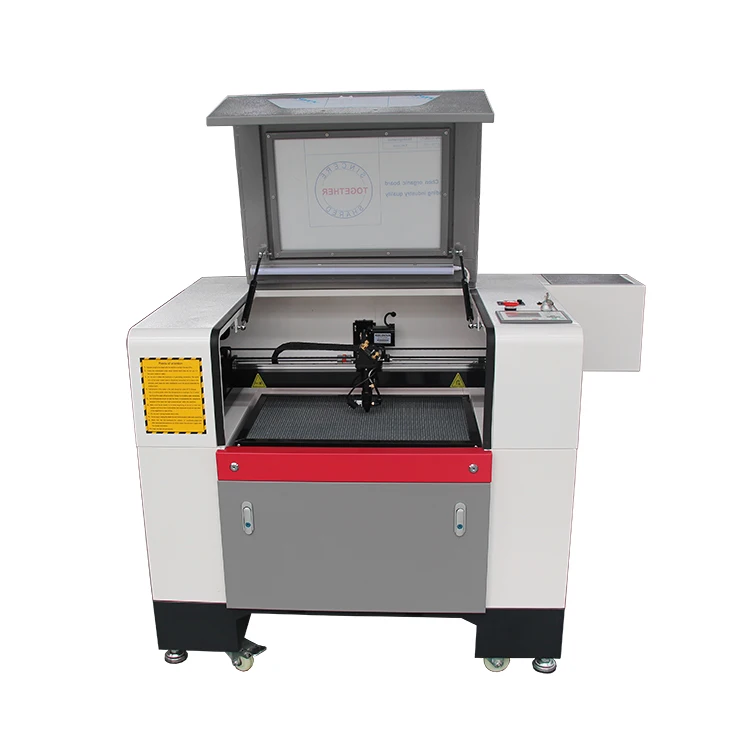

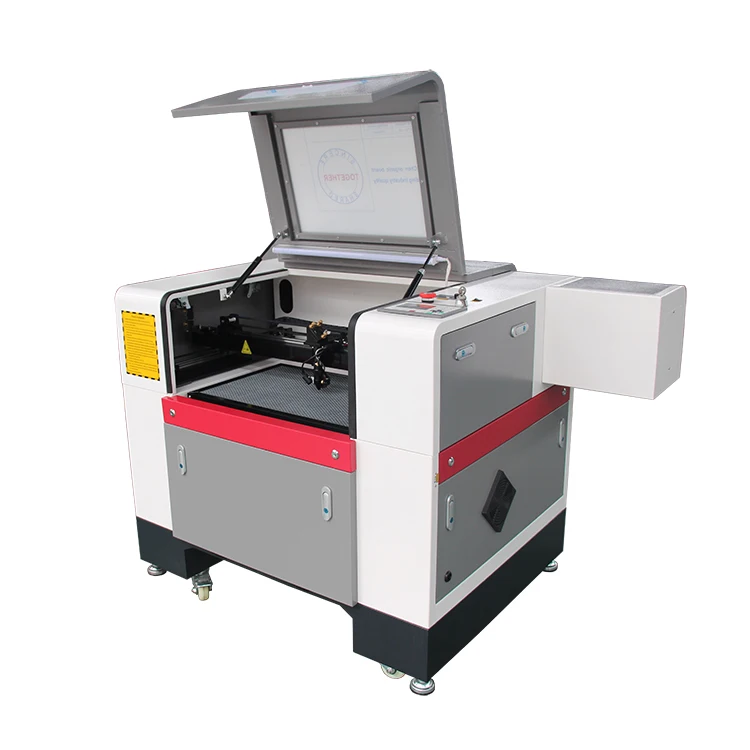

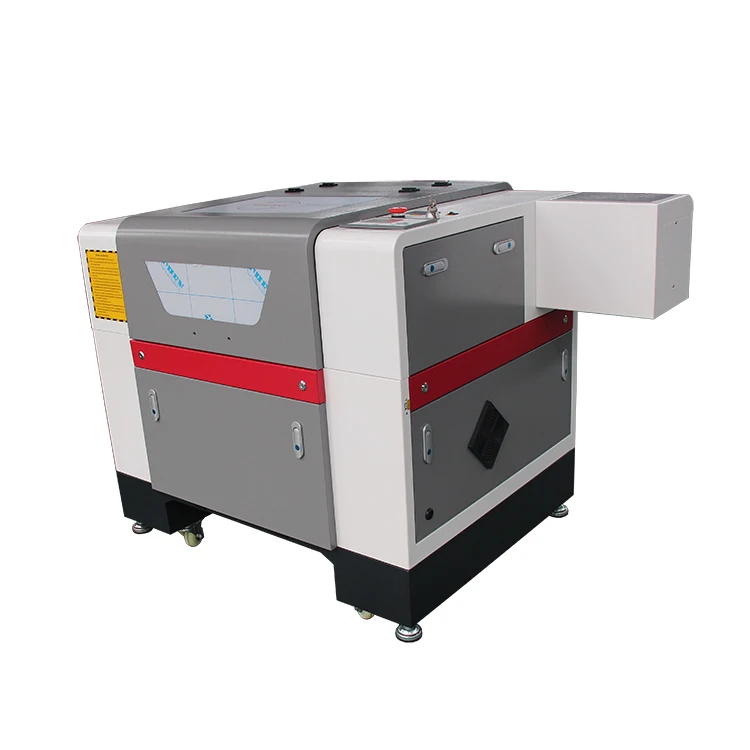

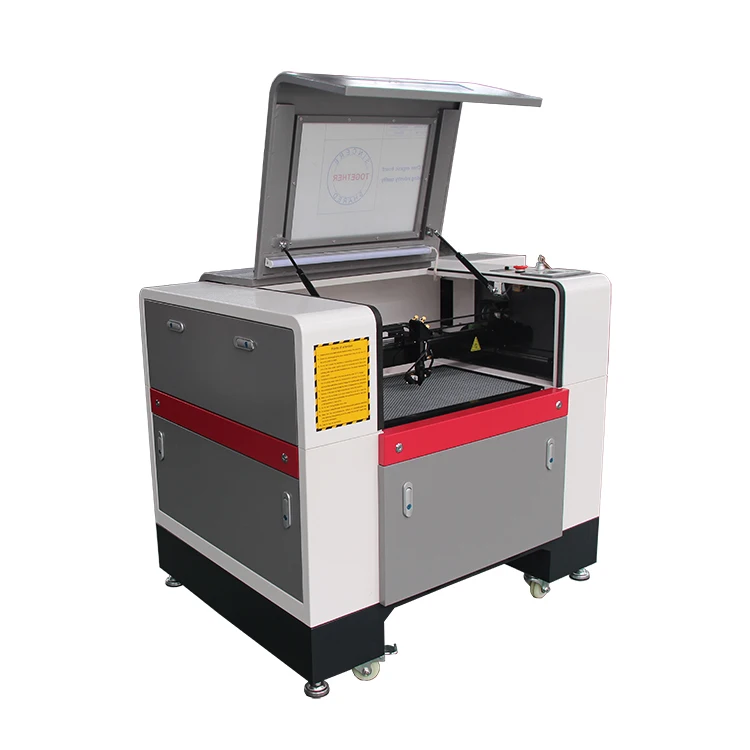

Hobby mini rubber stamp laser engraving machine 60x40cm540w
- Category: >>>
- Supplier: Jinan Suke Science & Technology Co. Ltd.
Share on (1601061231815):
Product Overview
Description
Products Description
Main Features
1. Special Compact structure design, Small footprint, light and smooth transmission,
both of engraving and cutting functions, and very good at engraving.
2. DSP offline Digital controlling technology, reliable and simple operation.
3. Latest software, match to various design software such as AutoCAD, CorelDraw etc.
4. Special USB interface, input design files directly to machine by a pen drive disc,
easy and fast.
5. LCD display control panel, real-time processing path display, user-friendly
interface.
6. Special pass through structures design, specifically for a variety of long plate
material continuous processing, without cutting, save time, save materials.
7. Electric lifting table, max height is 280mm, suitable for various thickness materials
( Optional device).
both of engraving and cutting functions, and very good at engraving.
2. DSP offline Digital controlling technology, reliable and simple operation.
3. Latest software, match to various design software such as AutoCAD, CorelDraw etc.
4. Special USB interface, input design files directly to machine by a pen drive disc,
easy and fast.
5. LCD display control panel, real-time processing path display, user-friendly
interface.
6. Special pass through structures design, specifically for a variety of long plate
material continuous processing, without cutting, save time, save materials.
7. Electric lifting table, max height is 280mm, suitable for various thickness materials
( Optional device).
Product Paramenters
Model | Laser cutting machine |
Working area | 600*400mm |
Laser tube power | 60W/80W/100W/130w/150w |
Laser tube type | Sealed CO2 laser tube, water-cooling, 10.6um |
Life of laser tube | 1500 hours |
Max Engraving speed | 0-60000mm/min |
Cutting speed | 0-30000mm/min |
Cutting thickness | 1-20mm acrylic (others determined by the material ) |
Resolution ratio | <0.01mm |
Location precision | <0.01mm |
Min shaping character | Chinese 2*2mm,English1*1mm |
Support graphic format | DST, PLT, BMP.HPGL,DXP and AI |
Software supported | CorelDraw, AutoCAD, Photoshop |
Power supply | AC110-220V 50-60HZ |
Operating temperature | 0– 40 centigrade degrees |
Operating humidity | 5%-95% Free of condensed water |
Interface | USB |
Assistant equipment | Exhuast-fans, water pump, air pump |
Driving system | stepper |
Control system | DSP |
Consuming power | <1,500W |
Net weight | 180kgs |
Gross weight | 220kgs |
Package size | 121*91*130cm |

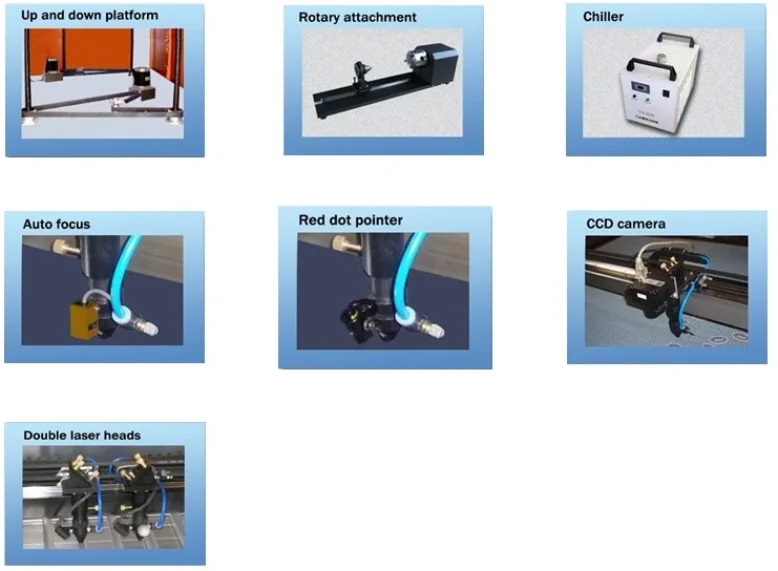

Optional part
Optional parts
1. RECI type laser tube (8000-10000 hours life time)
2. Bigger power tubes (100w, 130w, 150w etc)
3. High-grade cooling system (from 100w or bigger than 100w better to choose this)
4. double-head or more heads
5. Cylinder rotary clamp (for cylinder materials working. Like cup, pen, bottles etc)
6. irregular rotary clamp
7. servo motor
8. Red pointer
9. Ball screw transfer
10. Auto feeding system etc
2. Bigger power tubes (100w, 130w, 150w etc)
3. High-grade cooling system (from 100w or bigger than 100w better to choose this)
4. double-head or more heads
5. Cylinder rotary clamp (for cylinder materials working. Like cup, pen, bottles etc)
6. irregular rotary clamp
7. servo motor
8. Red pointer
9. Ball screw transfer
10. Auto feeding system etc
Exact materials
Cutting | Engraving | |
Wood | √ | √ |
Melamine | √ | √ |
Matte Board | √ | √ |
Wood veneer | √ | √ |
Cork | √ | √ |
Corian | √ | √ |
Anodized Aluminum | √ | |
Painted metals | √ | |
Metal | √(1.5mm) | √ |
Plastic | √ | √ |
Fiberglass | √ | √ |
Acrylic | √ | √ |
Fabric | √ | √ |
Glass | √ | |
Coated metal | √ | |
Ceramic | √ | |
Delrin | √ | √ |
Cloth | √ | √ |
Mylar | √ | √ |
pressboard | √ | √ |
Leather | √ | √ |
Rubber | √ | √ |
Marble | √ |
Samples
After-sale services
1. All of our machines warranty for 1 year since productions time, except for consumables.
Laser tube warranty:
40W: 3 months; 60W: 3 months; 80W: 6 months; 100W, 150W, 180W: 8 months;
Lens and mirrors are not within warranty scope.
2. Our technician can offer free training in our workshop, welcome to visit our factory.
3. Our technicians can offer online training and service directly to you
4. Our technicians can go to your place and offering service or training, but need you to bear all charges.
5. We have no holidays for our old customers.
Laser tube warranty:
40W: 3 months; 60W: 3 months; 80W: 6 months; 100W, 150W, 180W: 8 months;
Lens and mirrors are not within warranty scope.
2. Our technician can offer free training in our workshop, welcome to visit our factory.
3. Our technicians can offer online training and service directly to you
4. Our technicians can go to your place and offering service or training, but need you to bear all charges.
5. We have no holidays for our old customers.
