48 port fiber switch gigabit S5735 L48LP4S A V2
- Category: >>>
- Supplier: Combasst Industry Development (shanghai) Co. Limited
Share on (1601061306069):
Product Overview
Description
Products Description

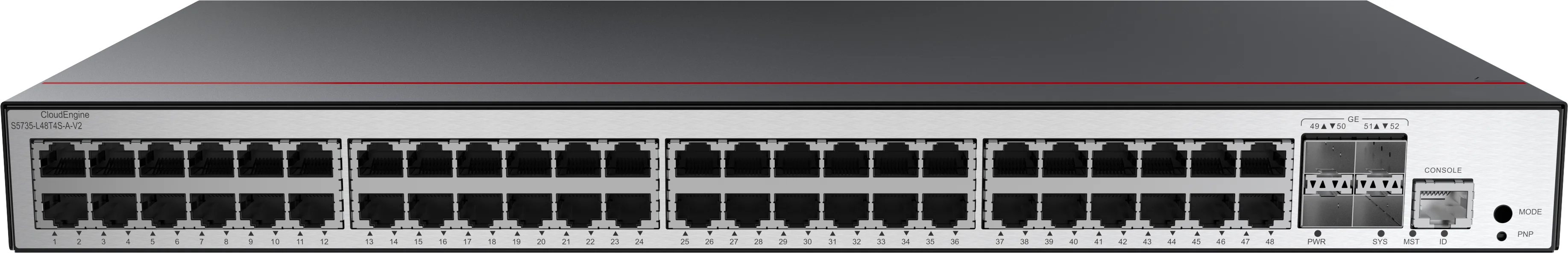

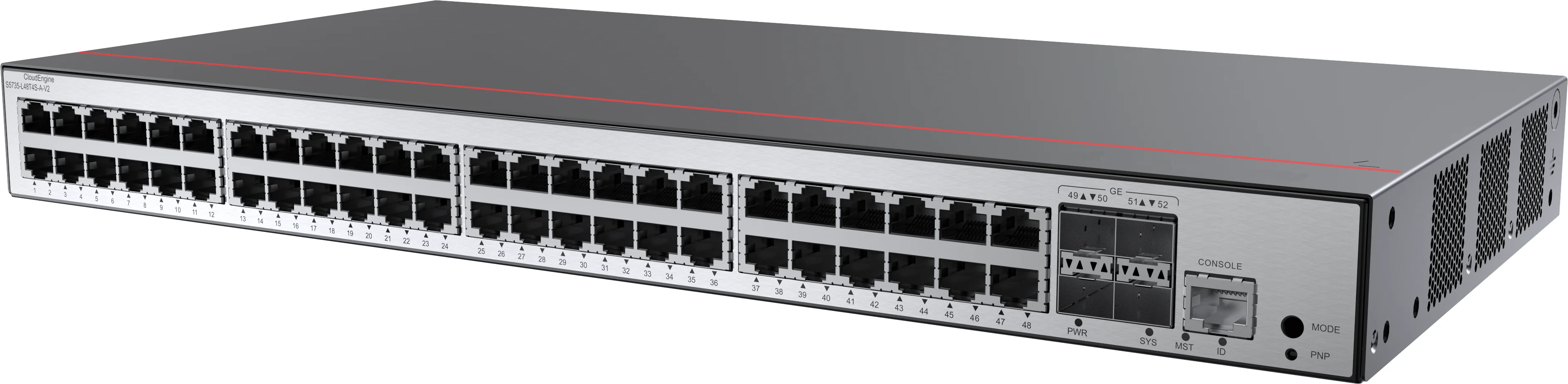

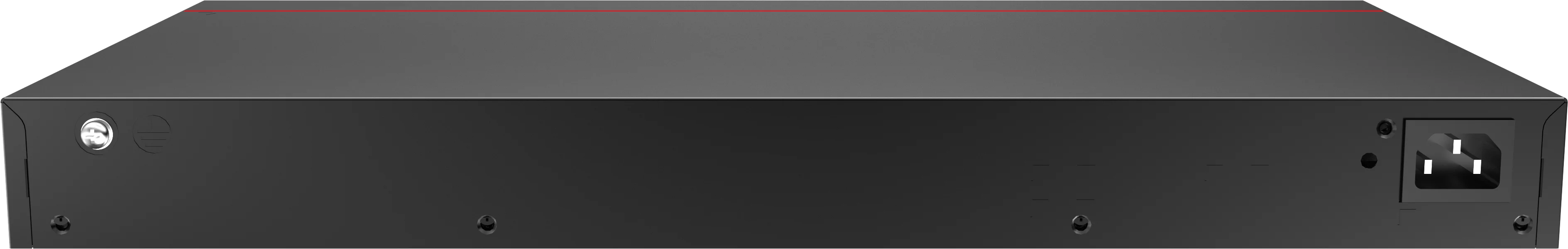

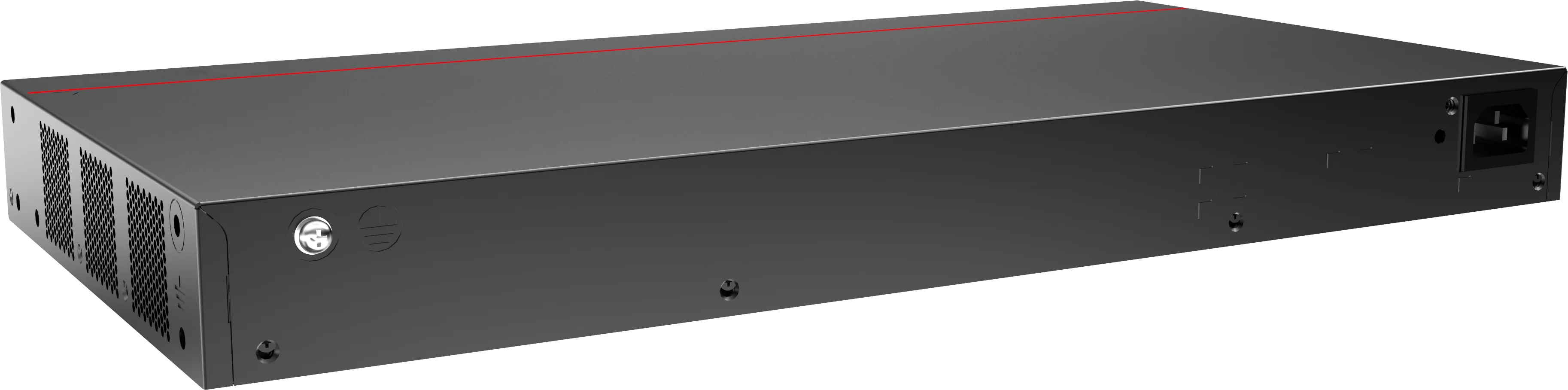

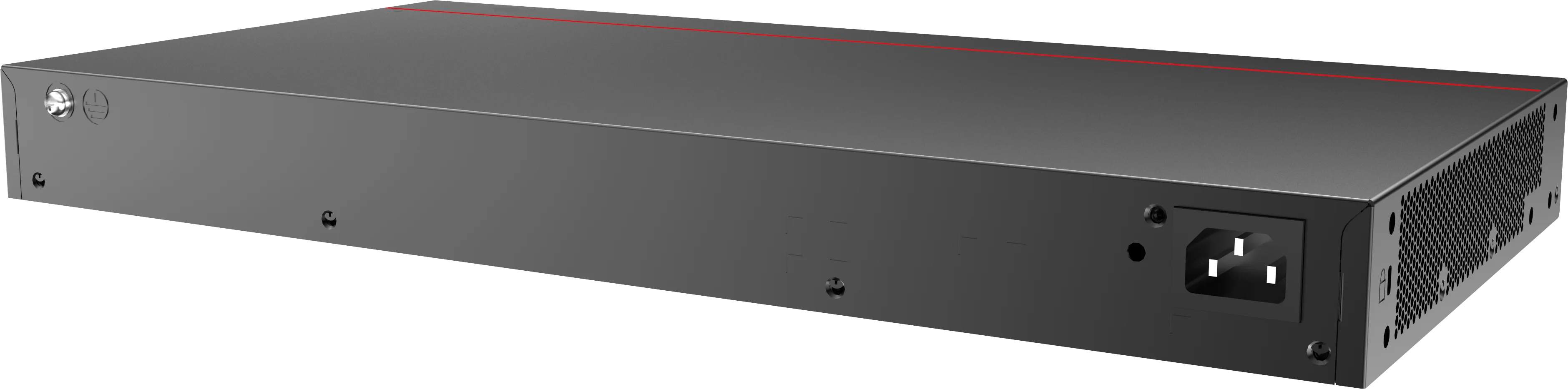

CloudEngine S5735-L48LP4S-A-V2 |
⚫ 48 x 10/100/1000Base-T ports, 4 x GE SFP ports ⚫ Built-in AC ⚫ PoE+ ⚫ Forwarding performance: 78 Mpps ⚫ Switching capacity: 104 Gbps/520 Gbps* |
Product Specifications
Item | CloudEngine S5735 - L48LP4S - A - V2 |
Fixed port | 48 x 10/100/1000Base - T ports(PoE+), 4 x GE SF P ports |
Dimensions (H x W x D) | 43.6 mm x 442 mm x 220 mm |
Chassis height | 1 U |
Chassis weight (including packaging) | 4.29 kg |
Power supply type | Built - in AC power |
Rated input voltage | 100 V AC to 240 V AC, 50/60 Hz |
Input voltage range | ⚫ AC input: 90 V AC to 290 V AC, 45 Hz to 65 Hz |
Maximum power consumption | ⚫ 63.7 W (without PD) ⚫ 462.8 W(with PD,PD Power consumption of :380W ） |
Noise | ⚫ Under normal temperature (sound power): 49.3dB (A) ⚫ Under high temperature (sound power): 63dB (A) ⚫ Under normal temperature (sound pressure): 37.3dB (A) |
Long - term operating temperature | ⚫ 0 - 1800 m altitude: - 5°C to +50°C ⚫ 1800 - 5000 m altitude: The operating temperature reduces by 1ºC every time the altitude increases by 220 m. |
Storage temperature | - 40°C to +70°C |
Relative humidity | 5% to 95% (non - condensing) |
Surge protection specification (service port) | ±4 kV in common mode |
Surge protection specification (power port) | ⚫ Differential mode : ± 6 kV ⚫ Common mode: ± 6 kV |
Heat dissipation | Air - cooled heat dissipation and intelligent speed adjustment |
Physical security | One Kensington lock slot, can be used to lock the device to mounting bracket |
Packing & Shipping
Packing
1. All products will be packed in carton, so the product can get effective protection to avoid damage.2. Packaging according to customer requirement.
Shipping
1. We shipping via DHL / FedEx / TNT etc for samll orders. Yow can get your packages in about 3-5 days all over the world.
2. For big order, we will arrange Air cargo for your shipment, so it will be much cheaper than DHL, UPS etc.
3. You can choose your own shipping agent, we will provide good cooperation for it.
Company Profile
Combasst Industry Development Co.,Ltd.
Established in 2004, it is committed to providing customers with diversified, professional and customized ICT products, solution consulting design, and technology implementation services. At the same time, it combines the advantages of equipment from well-known global manufacturers to serve major operators and private network users as well as commercial customers.
The company has a strong technical service and project sales team to provide customers with competitive ICT solutions and services. It has formed a technical leader in the field of communication industry, which can provide solutions for customers' different needs.
The company has a strong technical service and project sales team to provide customers with competitive ICT solutions and services. It has formed a technical leader in the field of communication industry, which can provide solutions for customers' different needs.
Why Choose Us
1,Customes can contact us for any question by Telephone, Skype, Trademanager, E-mail, Whatsapp, QQ etc.
2,All products have been tested and packaged in good condition before dispatch.
3,COMBASST will be responsible for defects in workmanship & materials and product’s quality issue while the product is used properly according to the manual and in warranty.
4,We provide 3-5 year warranty and life-long technical support for all our product.
5,Any part that upon COMBASST’s examination proves defective, return or other solutions per discussion.
6,Return and Freight:
1).Under Warranty: The customer is responsible for freight & insurance charges, includes custom charges when the equipment and/or parts is shipped to Manufacturer/Supplier for service.
COMBASST is responsible for the freight & insurance charges to the customer.
2).Warranty period: The customer is responsible for any freight & insurance charges.
7,We can provide detail documents and remote technology support for device installation and configuration if needed.
2,All products have been tested and packaged in good condition before dispatch.
3,COMBASST will be responsible for defects in workmanship & materials and product’s quality issue while the product is used properly according to the manual and in warranty.
4,We provide 3-5 year warranty and life-long technical support for all our product.
5,Any part that upon COMBASST’s examination proves defective, return or other solutions per discussion.
6,Return and Freight:
1).Under Warranty: The customer is responsible for freight & insurance charges, includes custom charges when the equipment and/or parts is shipped to Manufacturer/Supplier for service.
COMBASST is responsible for the freight & insurance charges to the customer.
2).Warranty period: The customer is responsible for any freight & insurance charges.
7,We can provide detail documents and remote technology support for device installation and configuration if needed.
