UV lamp ballast High quality for 40 95W T5 800mA UV lamps lighting

Main Ballast Technical Data

PH2-800-2/75U Application UV lamps

1*Lamp Types:GPH1554T5HO  GHO64T5  TUV64T5HO TUVPL-L95WHO TL100W

Wiring Diag:A

2*Lamp Types:GH436T5HO GPH846T5HO GPH893T5HO GHO36T5 TUV36T5HO TUV55WHO TUV75WHO TUVPL-L35WHO TUVPL-L60WHO

Wiring  Diag:B

Electronic Ballast Wiring Diagram

Electronic Ballast Dimension

l Technical Specifications

Mains Voltage:110-240VAC±10%

Mains Frequency: 50/60Hz

Power Factor: >0.98

Efficiency: >90%

Operating Frequency: 40-60KHz

Dimensions: 200*64*29mm

l Installation Requirement

Wire Gauge:0.5-1.0mm²

Max. cable length between ballasts and lamp:5m

LED specification:V_F=1.8-3.6V  I_F =5-20mA

(When it's necessary, series current limiting resistor is needed.)

Relay specification: Mains Voltage 5VDC±10% Mains Current 45mA±10%;

                      Max.start Voltage ≤3.75VDC Coil Resistance≥100Ω

l Mounting Restrictions

Disconnect Input Power Before Installing or Servicing.

Ballast Case Must Be Grounded.

Don’t short any two wires of the four outputs.

l Features

Starting:Preheat

Lamp status indication via DC signal output(Connected LED Requirement).

DC 5V±5% (5mA):lamp on.

DC 0V:lamp fault or on lamp.

 l Applications

All areas of applications include UV lamps.

=>Air purification

=>Industrial water treatment

=>Kitchen purification.

RENOWNUV, a professional brand established in 1996, is focused on offering complete proposals for air and water UV disinfection treatment. RENOWNUV has advanced purification compounding technology of photochemical reaction and photophysics process and design capability from Europe. Both RENOWNUV and LSVALLEY are our registed brand to meet different customers' needs on products.

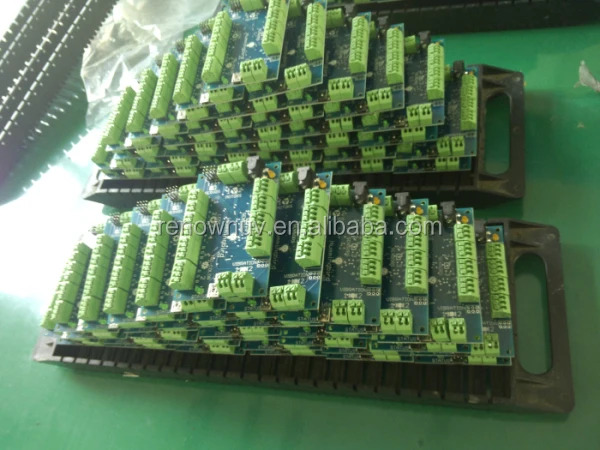

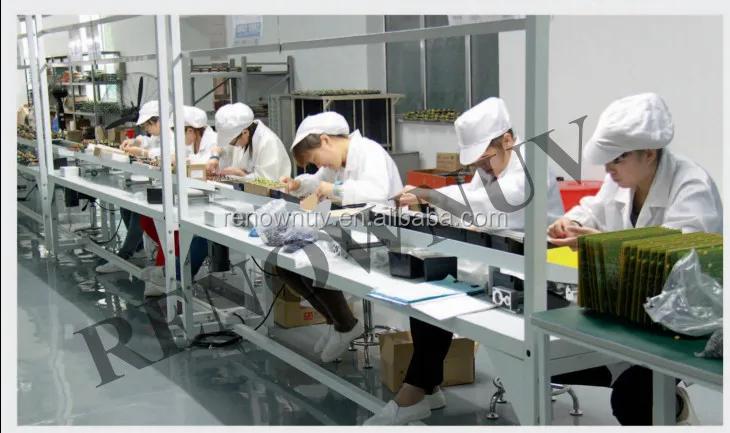

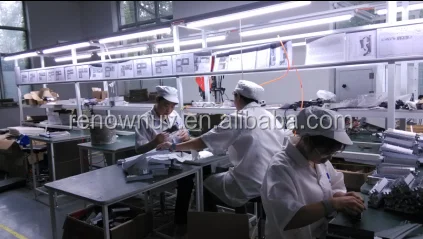

As a professional designer and manufacturer of UV lamp electronic ballast, RENOWNUV is delicated to develop high-quality electronic ballasts. Products are widely used in the fieds of sewage treatment, water purification, air purification, waste gas treatment, medical, priting and soon. RENOWNUV owns a professional and 10+ years experienced R & D team. Aiming to be “top China electronic ballast expert”, and insisting on meeting the customers requirement as the aim of researching and developing product. RENOWNU owns production line with annual production capacity reach 20 million pieces.

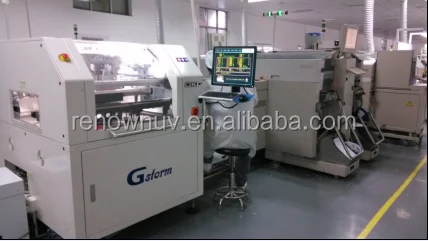

RENOWNUV owns full set of advanced production machines, like full automatic drying machine, automatic printing machine, high speed chip machine, automatic washing machine, off-line AOI visual inspection machine, automatic chain plug-in line and lead-free automatic wave soldering ect.

After years development, we gaind cooperation with many valueable customers by applying them different international certificates to meet different market needs. Till now, we have models of electronic ballast CE, UL, SAA etc certified.

Customers all around the world are welcome to consult us for special electronic ballast design, and certification application.

As an expert in China UV air & water products, RENOWNUV always persist in management concept of “Excellent Quality and Good Service”. We’ve established good cooperation with many famous customers by supplying them high qualified UV water sterilizer, UV air purifier and UV lamp electronic ballasts.

Our UV lamp electronic ballasts are well packed with cartons. Pallet will be used for large volume goods delivery. We offer multi delivery choices, like express, air shipping and sea shipping, for customers convenience.
