200kg/H Low Pressure Circulating Water Bath Vaporizer Gasifier For LPG
- Category: >>>
- Supplier: Xinxiang Chengde Energy Technology Equipment Co. Ltd.
Share on (1601061464804):
Product Overview
Description

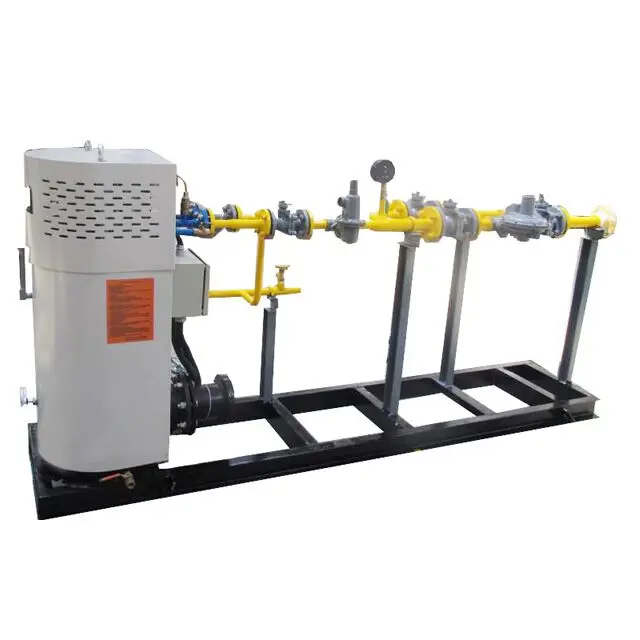

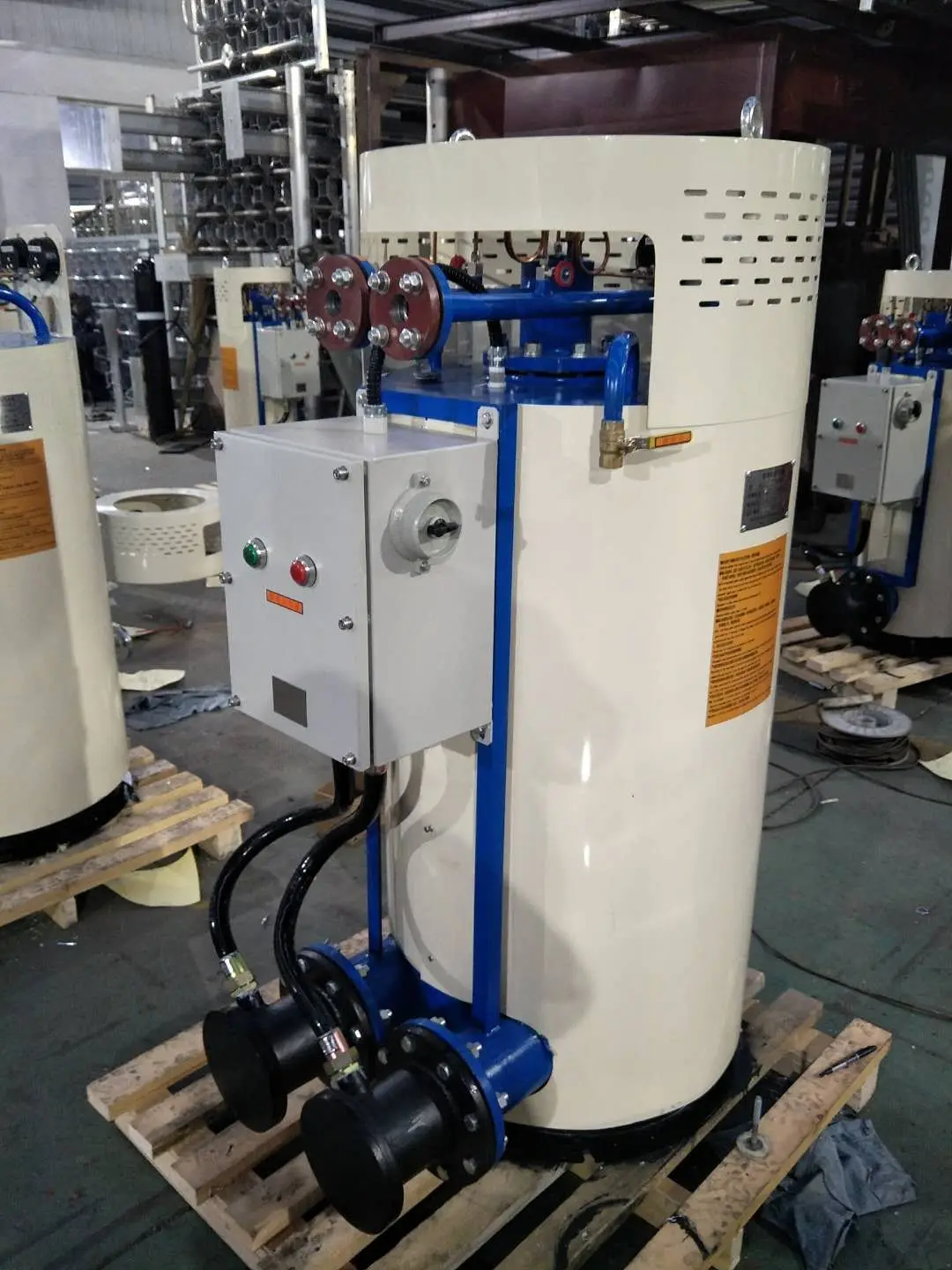

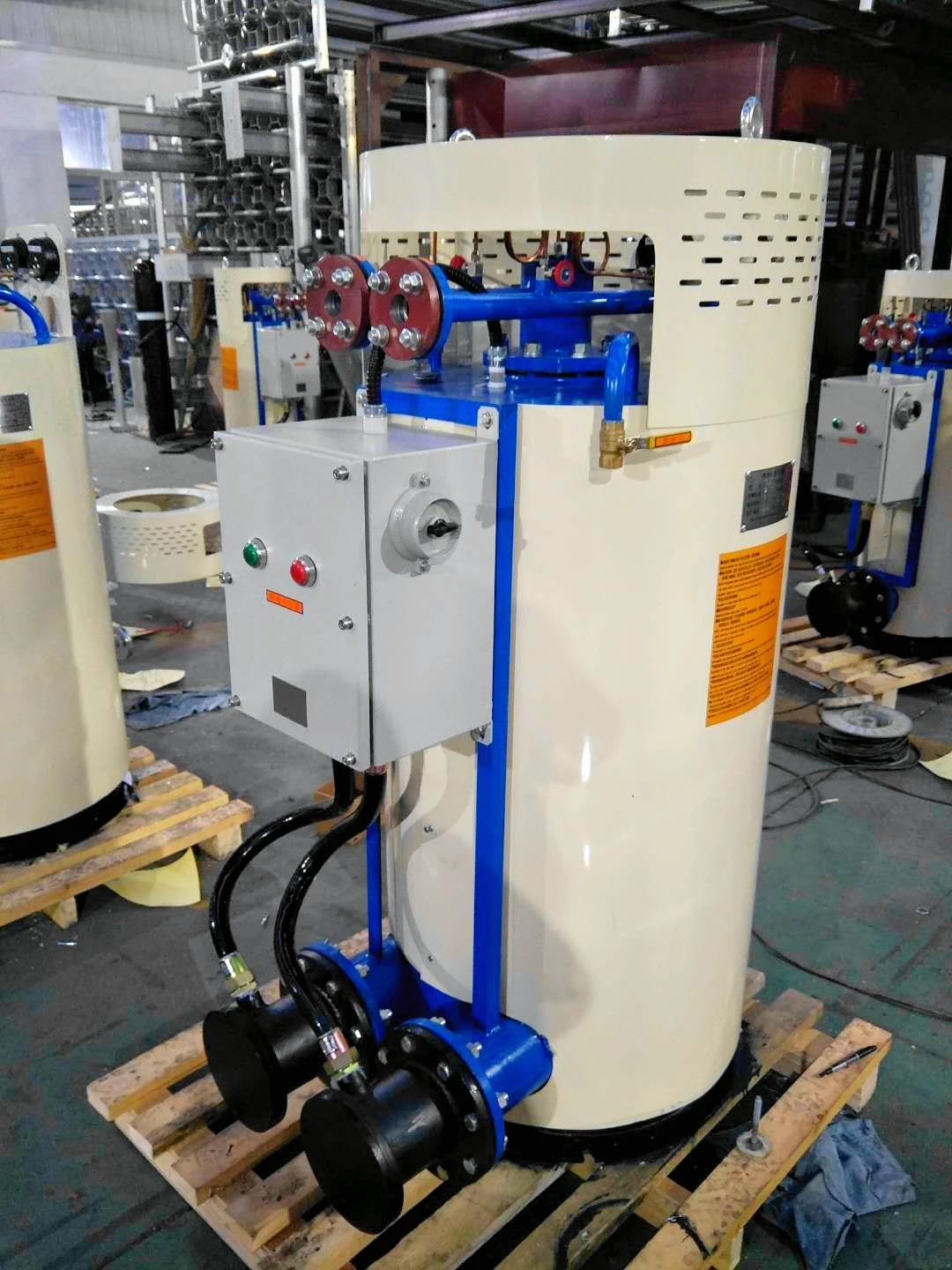

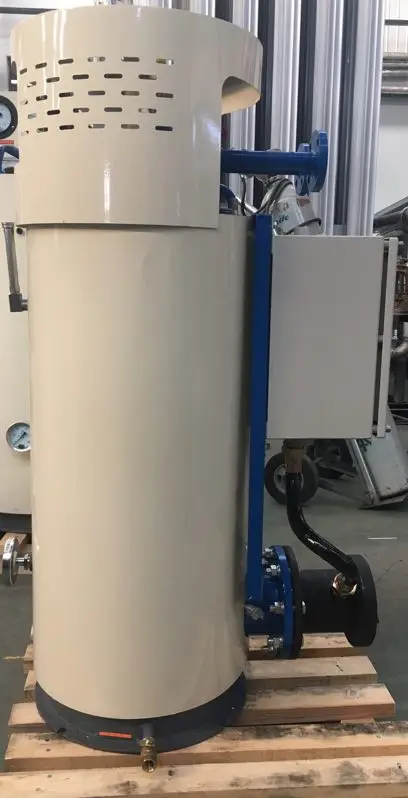

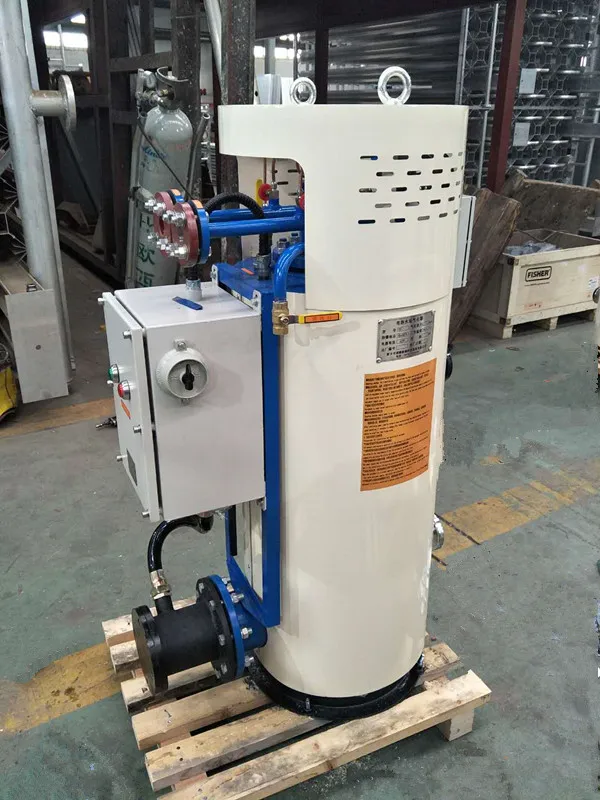

200kg/H Low Pressure Circulating Water-Bath Vaporizer Gasifier For LPG
Product introduction
LPG electric heating vaporizer is a safe, reliable automatic heat exchange equipment, it can be liquefied petroleum gas through full heat exchange so that the gasification rate is higher than the natural gasification, to the user's need Stable flow and pressure.
Optional Configuration
1.For the materials of the tunnel body ,you can choose carbon steel or stainless steel 2.The acousto-optic alarm of the temperature of the exits 3.Emergency cutting off equipment 4.The whole equipment is picking designed 5.We can design and produce according to the standard of electronic grade 6.It can adopts explosion prevention electric cabinet and explosion prevention electric heating equipment
Product Parameter
Model | YD-50 | YD-100 | YD-150 | YD-200 | YD-300 | YD-400 | YD-500 |
Vaporition capacity | 50Kg/h | 100Kg/h | 150Kg/h | 200Kg/h | 300Kg/h | 400Kg/h | 500Kg/h |
Power voltage | ~380V | ~380V | ~380V | ~380V | ~380V | ~380V | ~380V |
Power | 8KW | 15KW | 23KW | 30KW | 46KW | 60KW | 75KW |
Max Working pressure | 1.6MPa | 1.6MPa | 1.6MPa | 1.6MPa | 1.6MPa | 1.6MPa | 1.6MPa |
Working temperature | 60±2.5℃ | 60±2.5℃ | 60±2.5℃ | 60±2.5℃ | 60±2.5℃ | 60±2.5℃ | 60±2.5℃ |
Opening pressure of safety valve | 1.8 MPa | 1.8 MPa | 1.8 MPa | 1.8 MPa | 1.8 MPa | 1.8 MPa | 1.8 MPa |
Heat exchange medium | water | water | water | water | water | water | water |
Inlet size | DN15 | DN20 | DN20 | DN25 | DN25 | DN25 | DN25 |
Outlet size | DN20 | DN25 | DN25 | DN25 | DN40 | DN40 | DN50 |
Weight | 110Kg | 110 Kg | 150 Kg | 180 Kg | 240 Kg | 280Kg | 320 Kg |
our advantages
1.The device uses electricity as the heating source, and the water is indirectly heated by the heat transfer medium to liquid liquefied petroleum gas.The equipment has good air tightness.
2.The equipment has the characteristics of high automation control, convenient operation and safe and reliable.The automatic control part adopts the imported intelligent PI D temperature controller, which has the work indicator and various safety chain control devices.Including anti - liquid measures, overheating and power - off protection function.
3.The device is disabled in the form of siphon exhaust, which can completely eliminate the residue in the vaporizer.

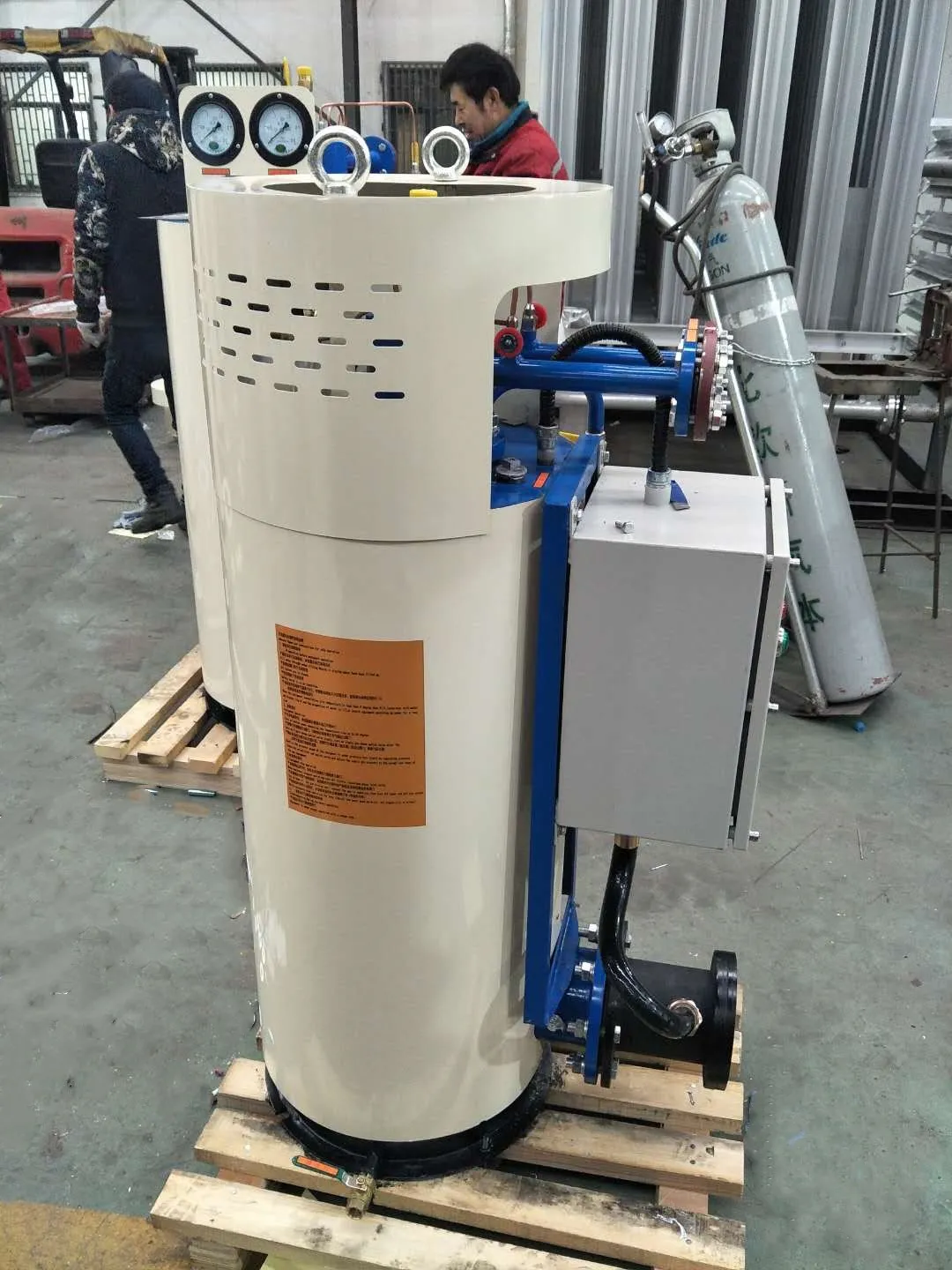

Product Packing

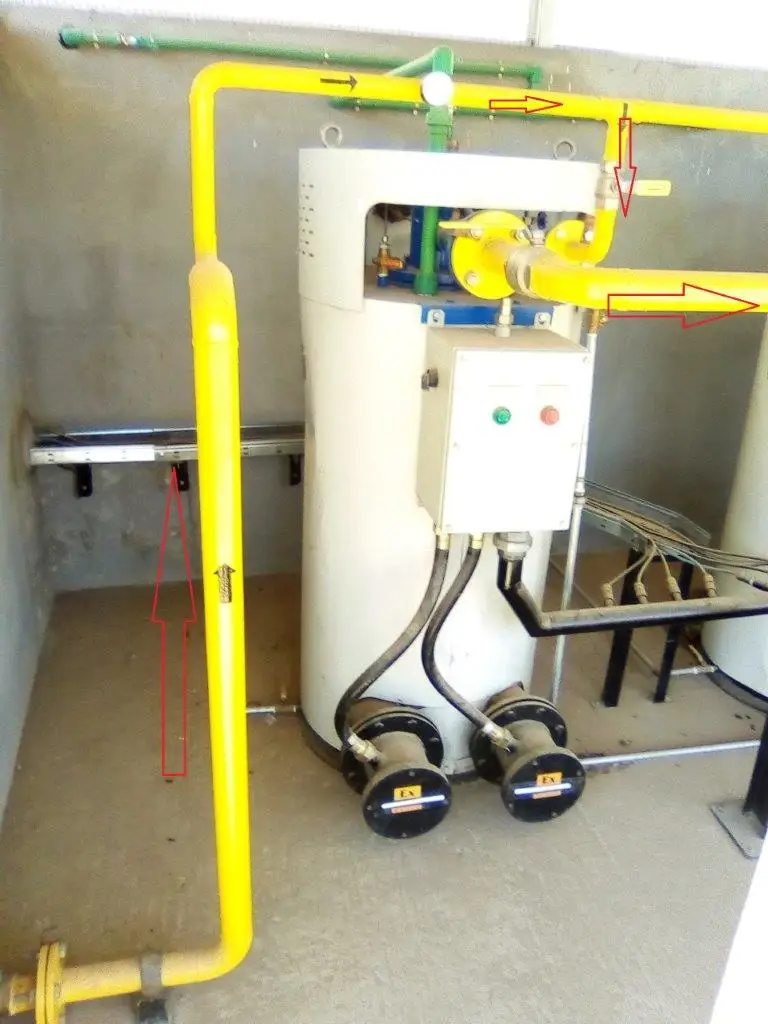

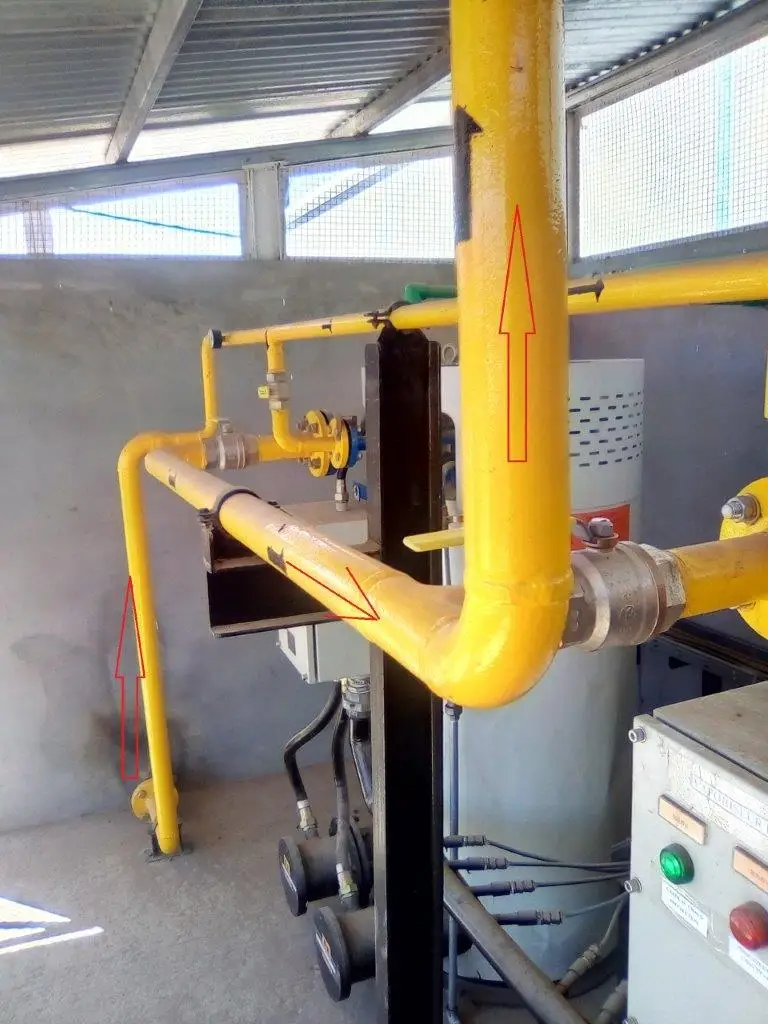

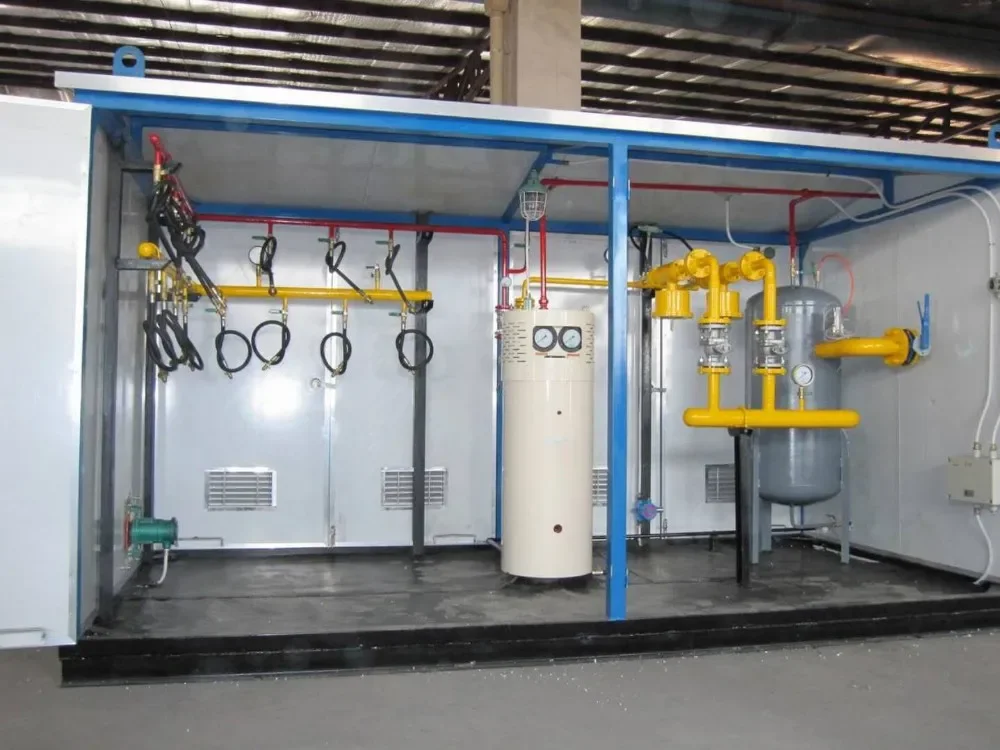

Project Case
Related Products
 |  |  |  |  |

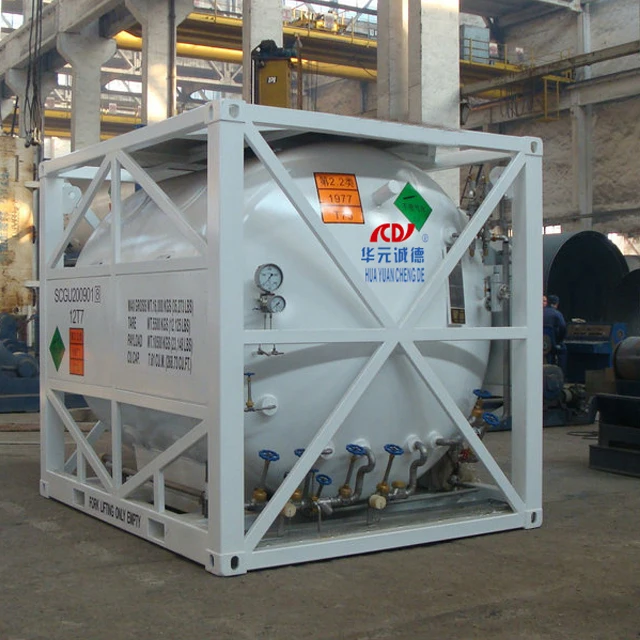

| ISO Tank Container | Cryogenic Liquid Pump | Micro Bulk Tank | Dewar Cylinder | Ambient Air Vaporizer |
