Product Overview
Description
BLD750 750W 3~36v 25a automotive 1 phase bldc motor, PWM control 3 phase 48 volt bldc controller 500w
BLDC DRIVER

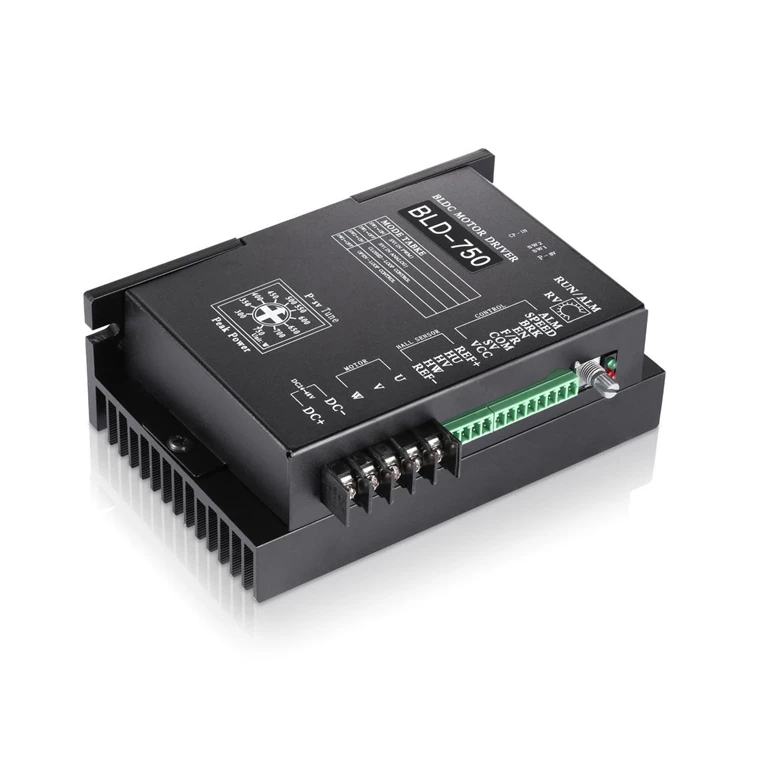

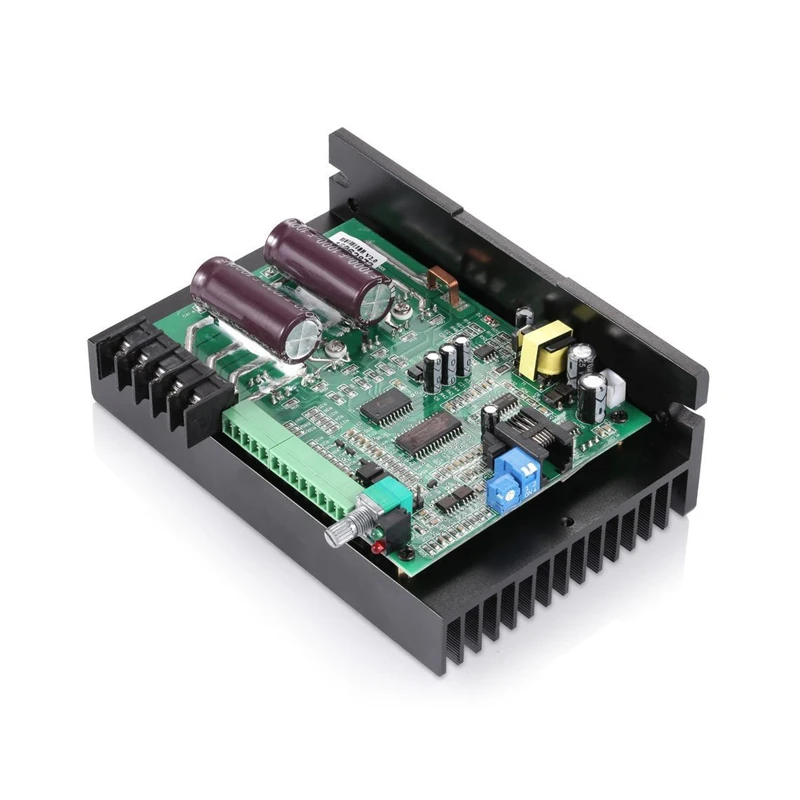

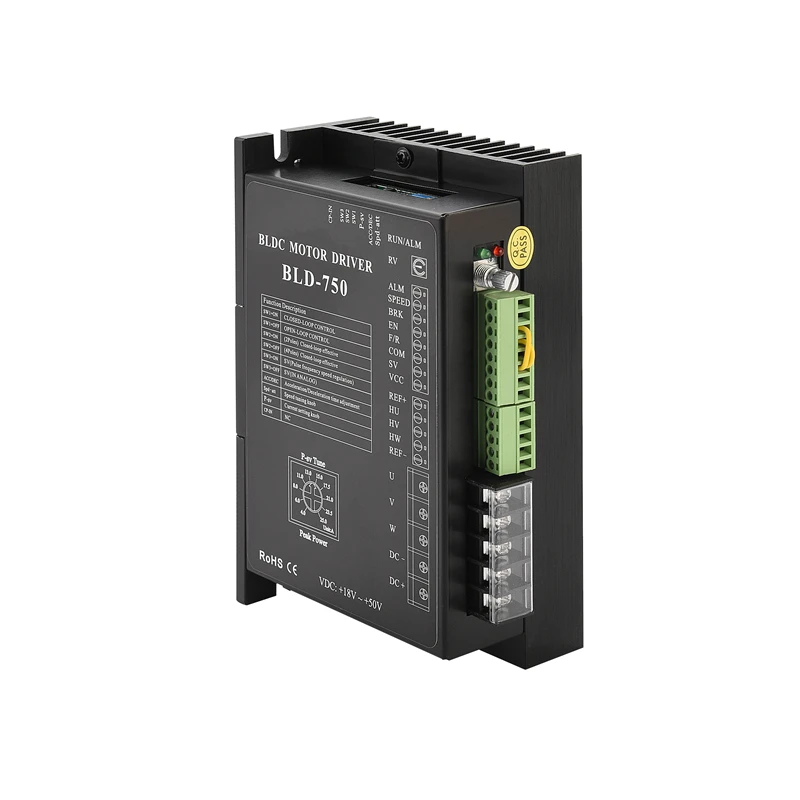

BLD-750 is designed by CAN-Tech and mainly for BLOC motors of 48v less 750w. With DSP controlling technology, it has features of high torque, low vibration, low noise, closed loop control and rich speed control modes.
| Model | Peak Current (A) | Rated Current (A) | Voltage | Adaptive |
| BLD-70 | 6 | 3 | 12-30VDC | ≤70W |
| BLD-120 | 15 | 8 | 12-30VDC | ≤120W |
| BLD-300B | 35 | 15 | 12-56VDC | ≤300W |
| BLD-300R | 20.6 | 2 | 15-62VDC | ≤300W |
| BLD-750 | 45 | 25 | 18-52VDC | ≤750W |
| BLDH-350 | 4 | 2 | 180-265VAC | ≤350W |
| BLDH-400R | 5.5 | - | 110-250VAC | ≤400W |
| BLDH-750 | 8 | 4 | 180-265VAC | ≤750W |
Features:
- Ace/Dec time setting
- Pole-pairs selection
- Open/closed loop control
- Max output current P-sv setting
- Restart
- Alarm indication
- Built-in RV speed setting
- External potentiometer speed setting
- External analog signal speed setting
- PWM speed setting
Electrical properties and environmental indicators:
Electrical properties
Driver parameter | Min Value | Typical Value | Max Value |
Voltage input DC (V) | 12 | 48 | 52 |
Current outpu(A) | - | - | 25 |
Motor speed range(rpm) | - | - | 20000 |
Hall signal voltage(V) | - | - | 5 |
Hall drive current (mA) | - | 20 | - |
External potentiometer(KQ) | - | 10 | - |
Environmental indicators
Heat Sinking Method | Natural cooling or fan-forced cooling |
Atmosphere | Avoid dust, oily mist and corrosive air |
Operating Temperature | 0~+40℃ |
Ambient Humidity | 90% or less (non-condensing) |
Vibration Resistance | 5.7rn/s2 maximum |
Storage Temperature | 0~+50℃ |

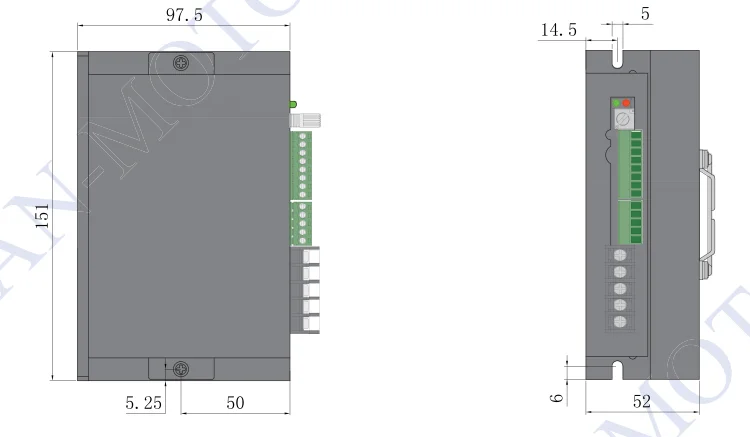

Dimension(Unit: mm)

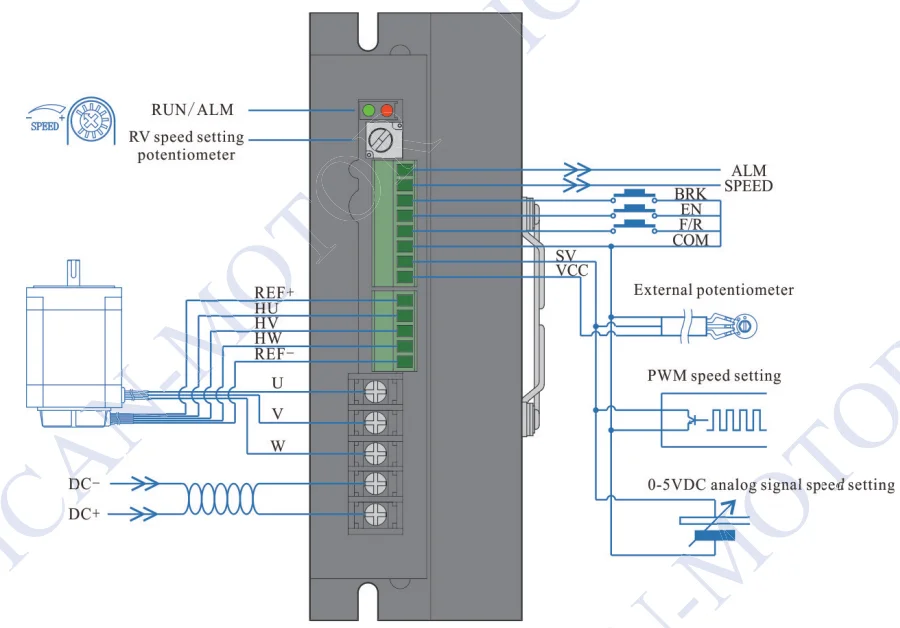

Driver interface
Matched motors
The following recommended motors are matched with BLD-750. They have stable speed, large torque, low noise and low vibration.

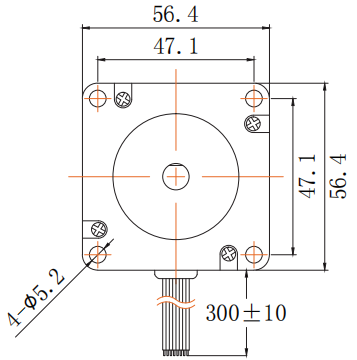

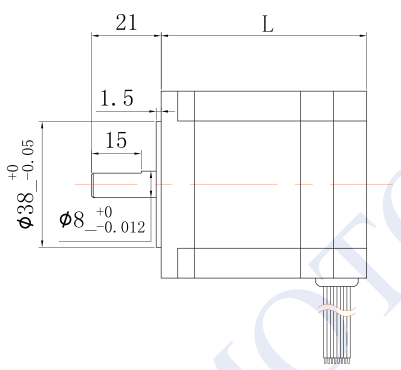

• 57*57mm square BLDC motor
Model | Output power (W) | Voltage (VDC) | Rated speed (RPM) | Rated torque (Nm) | Motor length (mm) |
57BLF-1830NBB | 188 | 24 | 3000 | 0.6 | 101 |

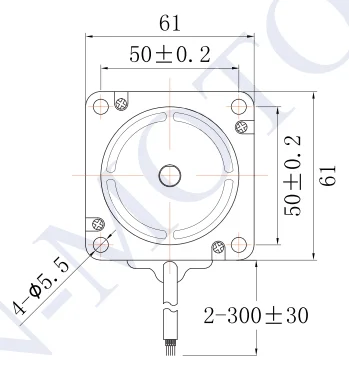

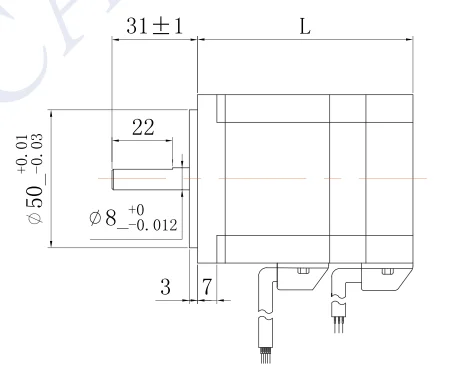

• 60*60mm square BLDC motor
Model | output power (W) | Voltage (VDC) | Rated speed (RPM) | Rated torque (Nm) | Motor length (mm) |
60BLF-0815NBB | 80 | 24 | 1500 | 0.5 | 100 |
60BLF-0830NBB | 80 | 24 | 3000 | 0.25 | 78 |
60BLF-1630NBB | 160 | 24 | 3000 | 0.5 | 100 |
60BLF-2430NBB | 240 | 48 | 3000 | 0.75 | 120 |
• 70*70mm square BLDC motor
Model | output power (W) | Voltage (VDC) | Rated speed (RPM) | Rated torque (Nm) | Motor length (mm) |
70BLF-3230LBB | 220 | 48 | 3000 | 0.7 | 82 |

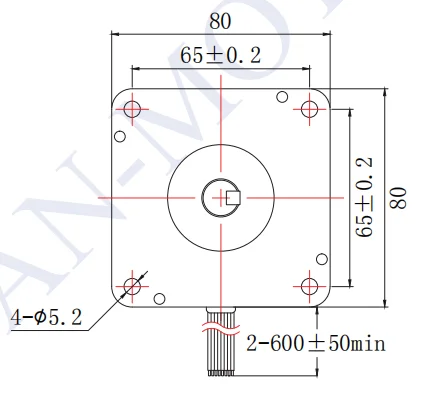

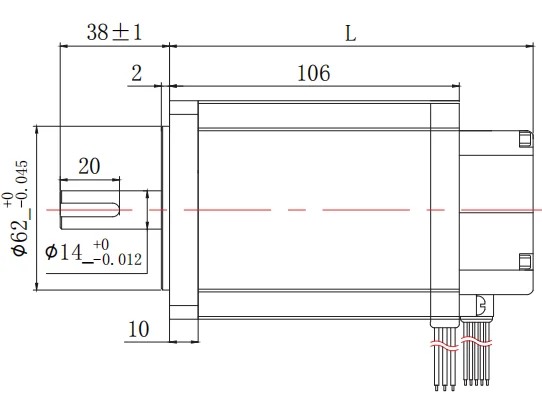

• 80*80mm square BLDC motor
Model | output power (W) | Voltage (VDC) | Rated speed (RPM) | Rated torque (Nm) | Motor length (mm) |
80BLF-3530LBB | 350 | 48 | 3000 | 1.2 | 130 |
80BLF-7530LBB | 750 | 48 | 3000 | 2.5 | 150 |

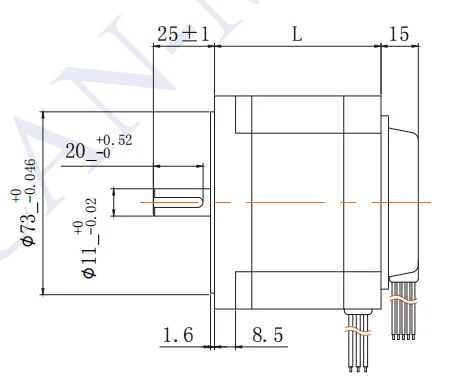

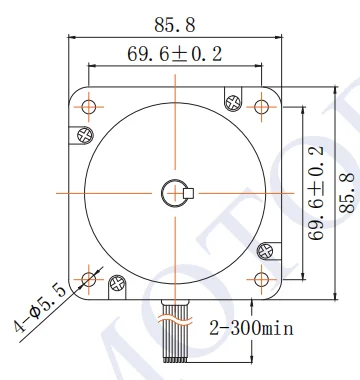

• 86*86mm square BLDC motor
Model | output power (W) | Voltage (VDC) | Rated speed (RPM) | Rated torque (Nm) | Motor length (mm) |
86BLF-2230LBB | 220 | 48 | 3000 | 0.7 | 82 |
86BLF-4430LBB | 440 | 48 | 3000 | 1.4 | 109 |
Application
Packaging
Company Information
1. Can you make the gearbox or gearmotor with custom specifications?
YES. We have strong R&D capability, also a great term of engineers, each of them have many work years experience.
2. Do you provide the samples?
YES. Our company can provide the samples to you.
3.Do you provide technology support?
YES. Our company have strong R&D capability, we can provide technology support if you need.
4. why should you buy from us not from other suppliers?
Professional one-to-one motor customized . The world's large enterprise of choice for high quality suppliers . ISO9001:2008 quality management system certification, through the CE, ROHS certification.
5. How to ship to us?
We will ship the samples to you according to the DHL or UPS or FEDEX etc account you provide.
6. How can I know the product is suitable for me?
Frist, you need to provide us the more details information about the product. We will recommend the item to you according to your requirement of specification. After you confirm, we will prepare the samples to you. also we will offer some good advances according to your product use.
