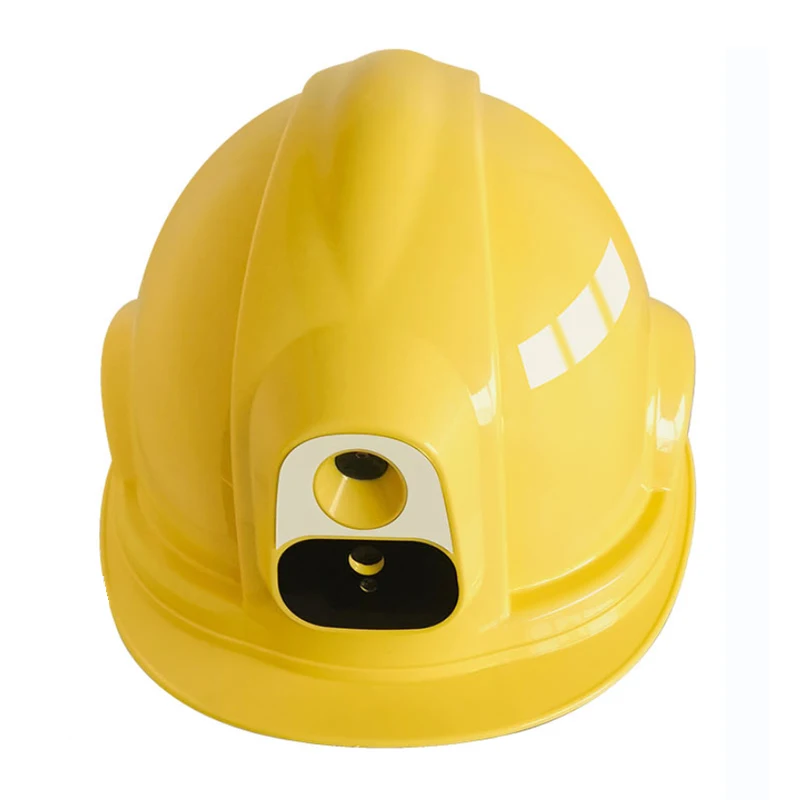

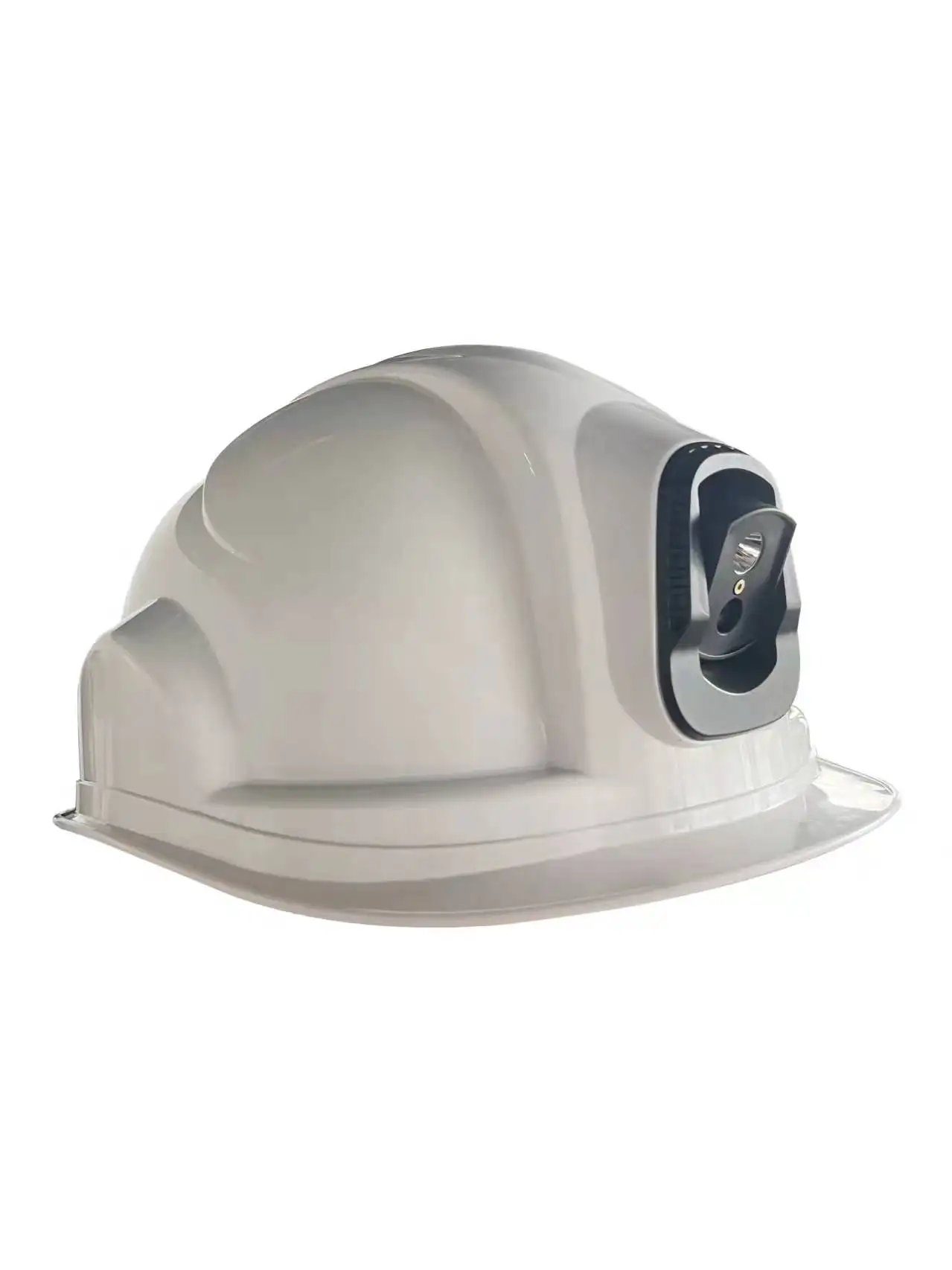

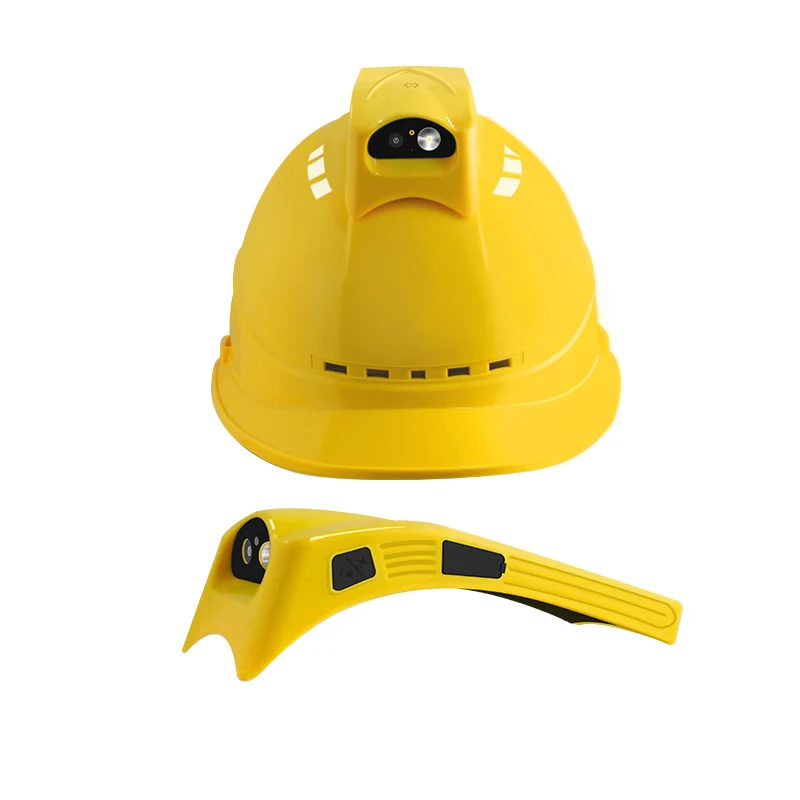

hard hat safety helmet camera with 4G wifi video camera for engineering construction mine

Product Overview

Description

hard hat safety mine helmet with 4g wifi video camera for engineering construction

Operating system: Android 7.1.1
Storage capacity: Built in Standard 32G, Support max 64G
4G/3G function Real-time data upload: Support live video streaming, remote monitoring real time video/audios on mobile phone APP and PC VMS
Wifi function: support 802.11b/g/n  protocol/2.4GHZ
GPS function: Built in Beidou global positioning module (support real time GPS tracking and playback GPS tracking.
Video resolution: 1920X1080 30fps and 720P 30fps; MP4/MKV format
Video Bitrate: 256kbps-8Mbps
Focus range: 0.5 meters - Infinity
Wide view angle:  140 degree
LED white light:  Built-in 1pcs large functional LED white light (1W) can see the face in 20M;see the body in 30M
Laser positioning: Built-in one laser, accurate positioning camera target without deviation
Night Vision Distance up to 10M in total darkness.
Waterproof IP67

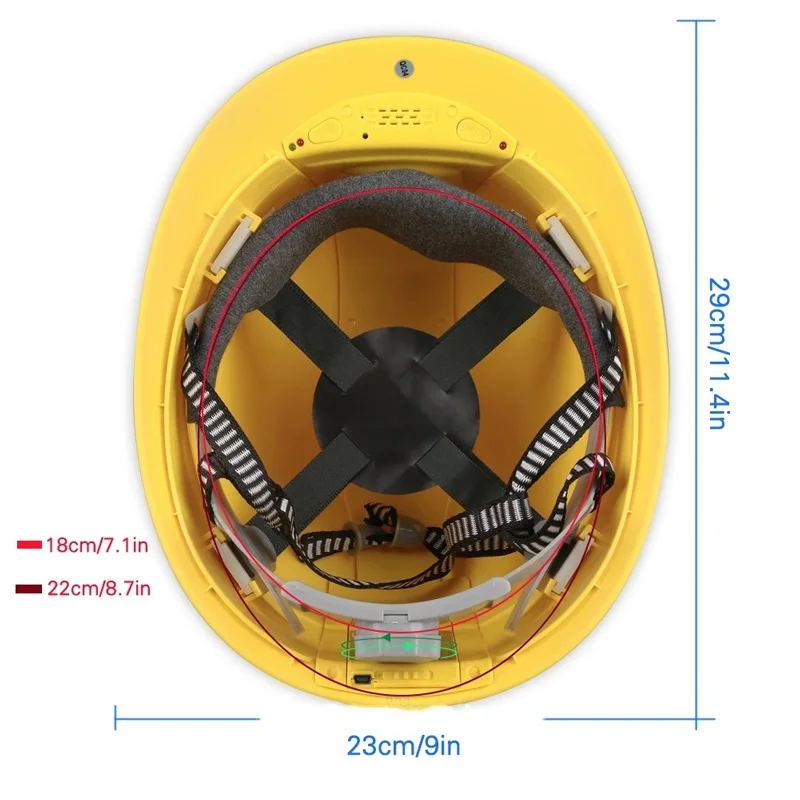

Dimension/weight 289*233*150mm/550g
Battery Replaceable 3300mAh battery,Only video recording ≥5 hours; Only lighting ≥6hours
Video Management software: Real time play: support real-time 25 Channels
Data upload: support 720P or 1080P H.264 data upload
Beidou/GPS: Same Smarteye screen can check up to 256 cameras position tracking
Wireless intercom: Real time 4G network wireless intercom, Multi devices intercom



4G Smart Helmet Camera-Specifications

Operating System: Android 7.1.1

Processor: Quad-core ARM@Cortex-A53 MPCore 1.3GHz/512KB unified L2 cache

Focusing Range: 0.5M---Infinity

FOV 140 °

Built in Storage 32GB (Max to 64GB)

With LED white light

Night Vision Distance: 10M in total darkness.

Laser Point Built-in one laser, accurate positioning camera target without deviation

Working Hours: Stand-by more than 25H, continuous working more than 8H

Waterproof Rating: IP67

Shock proof: Without any damage from 2M  high drop.

Battery: Removable and rechargeable High-performance polymer lithium battery,3300mAh

Image: 16MP JPEG format

APP Support installation of third-party APP for option

4G data uploading: Real time data uploading, Remote live video monitoring

Video Resolution: 1080P/720P 30fps.  MP4 format

Kbps 256kbps-8Mbps

Wireless Connection: Wi-Fi Support 802.11b/g/n protocol 2.4GHZ

3G/4G Full Netcom: 6 modules 17bands(FDD-LTE:BAND1/ 3/ 7

TDD-LTE:BAND38 39\\ 40\\ 41;

TD-SC DMA:BAND34\\39; CDMA2000: BC0;WCDM:BAND1\\2\\5\\8;GSM:BAND1\\3\\8)

GPS function: Built in Beidou global positioning module (support Google and Baidu Map)

LED white light help with color shooting at night.

Working Temperature: -30°C—70°C (-22°F—158°F)

Video Management Software platform: Real time play up to 25 channel videos

Beidou Positioning Same Smarteye screen can check up to 256 cameras position tracking

Data uploading: support 720P 1080P H.264 data upload

Wireless talkback: Real time 4G Wireless talkback (Group intercom, single calling)

Weight: 550G

Size:  289*233*150mm

White light Parameters

Voltage 2.85V-3.6V
Electric current 350MA-1A
Color temperature 5000-10000K
Luminous flux MAX 250Lumen(@1000mA)
Luminous angle 115°-130°
Power 1W
Luminous Distance Max 20 meters (65.62 Ft)
