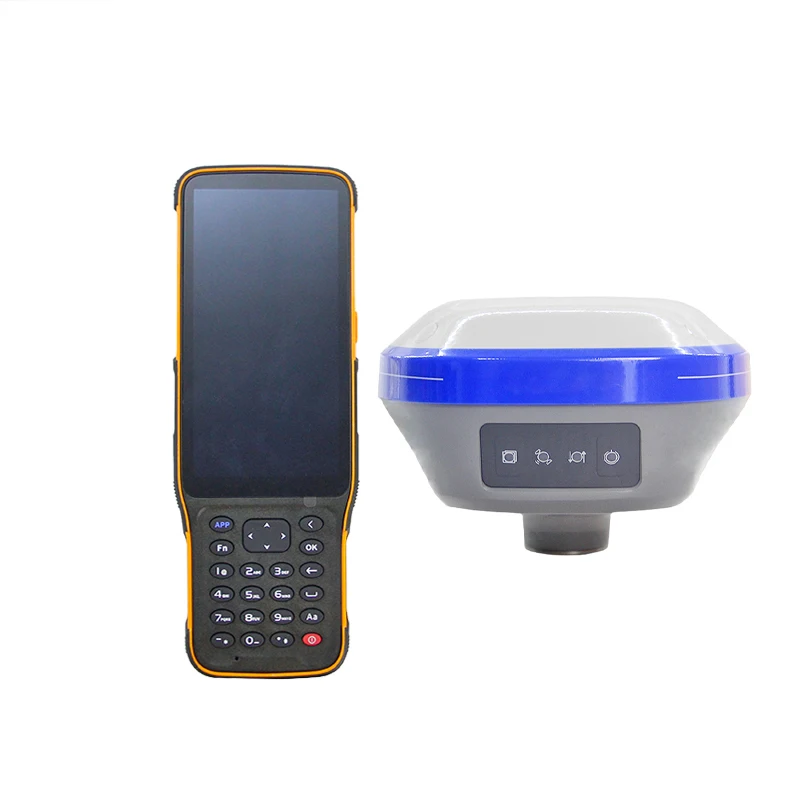

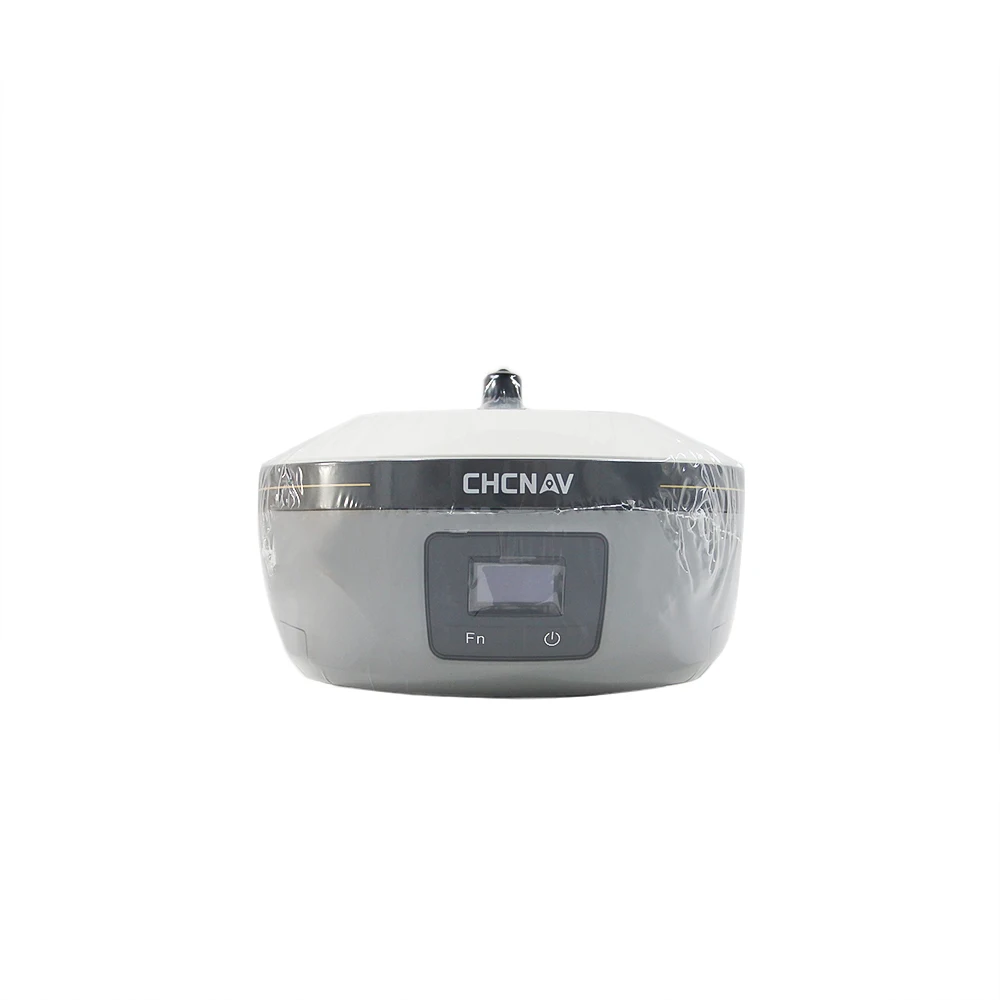

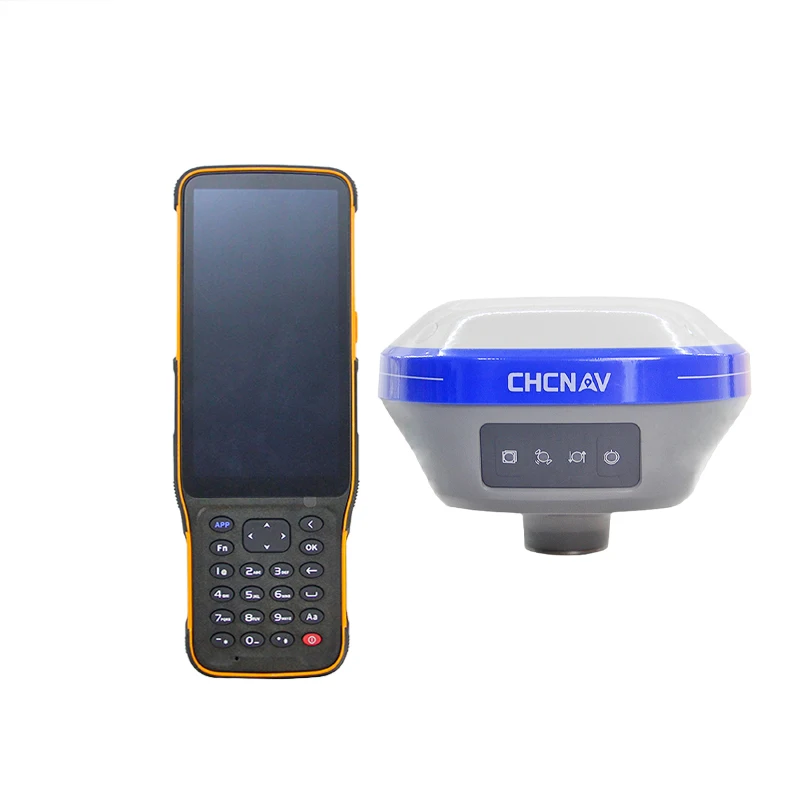

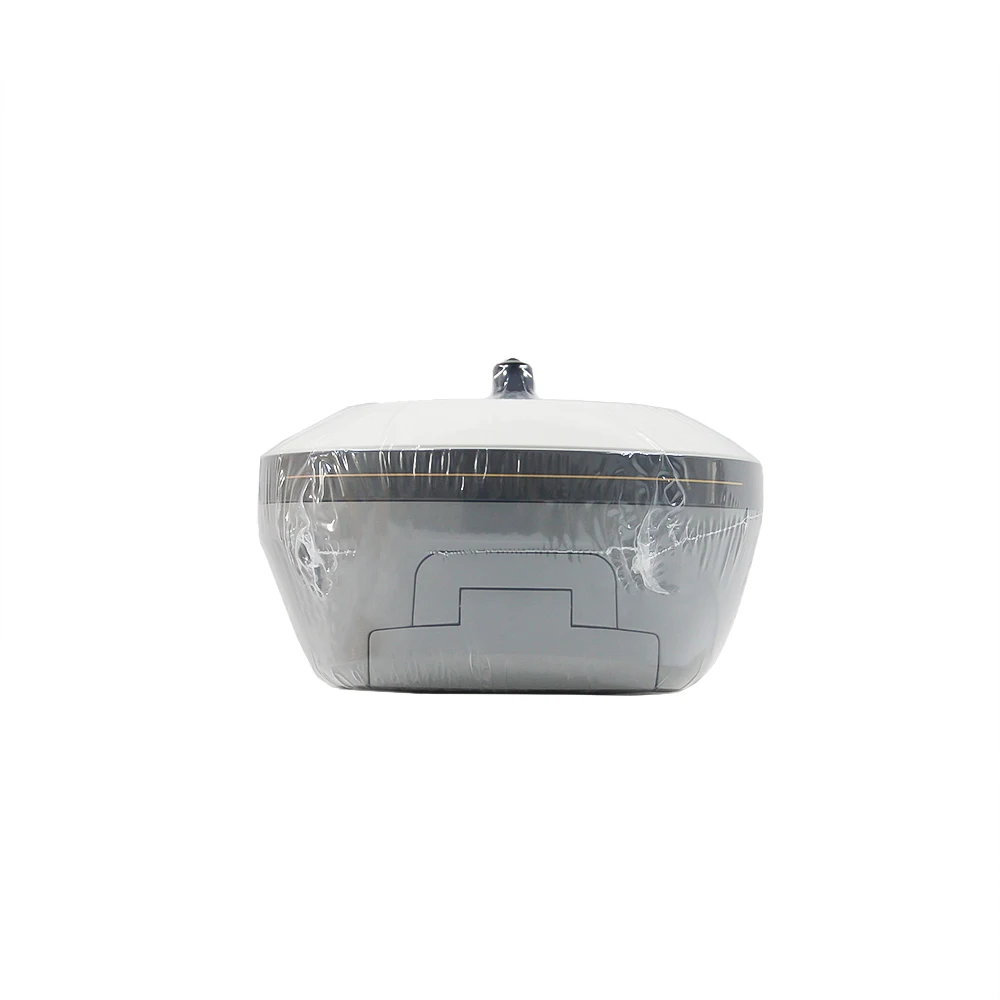

CHC IBASE I73 Surveying Instruments Gps Rtk ibase X6 B5 Gnss Receiver Cheap Price CHCNAV I73 I83 I93 X11 Differential Gps Rtk
- Category: >>>
- Supplier: Jiangxi Wonder Survey Co. Ltd.
Share on (1601061504254):
Product Overview
Description
| project | content | parameter |
| Receiver characteristics | satellite tracking | GPS+BDS+Glonass+Galileo+QZSS, supports the third generation of Beidou, supports five-star 16-band |
| number of channels | 624 channels | |
| operating system | LINUX system | |
| Initialization time | <5s (typ.) | |
| Initialization reliability | >99.99% | |
| Receiver appearance | button | 1 dynamic/static switch key, 1 power key |
| Indicator light | 1 differential signal light, 1 satellite light, 1 static data acquisition light, 1 power light | |
| Nominal accuracy | Static accuracy | Plane accuracy: ±(2.5+ 0.5×10-6×D) mm |
| Elevation accuracy: ±(5+0.5×10-6×D) mm | ||
| RTK accuracy | Plane accuracy: ±(8 + 1×10-6×D) mm | |
| Elevation accuracy: ±(15+ 1×10-6×D) mm | ||
| Single machine accuracy | 1.5m | |
| Code difference accuracy | Plane accuracy: ±(0.25 + 1×10-6×D) m | |
| Elevation accuracy: ±(0.5+ 1×10-6×D) m | ||
| Electrification parameters | Battery | Built-in 6800mAh lithium battery, supports 15 hours battery life of mobile station |
| External power supply | Support USB port external power supply | |
| Physical properties | Size (L*W*H) | 119mm*119mm*85mm |
| weight | 0.73kg | |
| Material | Magnesium alloy AZ91D body | |
| Operating temperature | -45℃~+75℃ | |
| storage temperature | -55℃~+85℃ | |
| Waterproof and dustproof | IP68 level | |
| Shock vibration | IK08 level | |
| Anti-drop | Resistance to free fall of 2 meters | |
| Data output | Output format | NMEA 0183, binary code |
| output method | BT/Wi-Fi/Radio | |
| Static storage | storage format | Can directly record HCN, HRC, RINEX |
| storage | Standard 8GB built-in storage | |
| Download method | Universal USB data download; HTTP download | |
| Data communication | I/O interface | 1 external UHF antenna interface |
| 1 USB-TypeC interface, support charging, power supply, data download | ||
| Network module | Handbook supports 4G full Netcom | |
| Radio station | Built-in high-frequency 450-470MHz single-receiving radio | |
| Blue tooth | BT4.0, backward compatible with BT2.x, compatible with Windows, Android, IOS systems | |
| data transmission | Wi-Fi data link | |
| Wi-Fi | 802.11 b/g/n | |
| NFC | Support NFC flash connection | |
| Receiver function | Super double collection | Support radio + network two-way data differential at the same time, provide comprehensive data services |
| One-click matching | Support handbook software to match base station data with one key | |
| Handbook parameters | model | HCE600 Android Measuring Handbook |
| The internet | 4G full Netcom, built-in eSIM free of three years of surveying and mapping traffic | |
| operating system | Android 10 | |
| CPU | Eight-core 2.0Ghz processor | |
| LCD screen | 5.5'' HD display | |
| Battery | 14 hours of battery life | |
| Three defenses | IP68 |
