Vertical Panel Saw Sliding Table Saw Machine

Share on (1601061537534):


Price:$3,000.00 - $3,200.00

Quantity:


Product Overview

Description



Product Description


 Precise. Powerful. Potential -- MJ61-32TAZ sliding table saw.


sosn machinery





sliding table saw (2)





•  Saw motor: 5.5kw+1.1kw


•  Maximum cutting length: 3200 mm


•  Main saw blade Up&down electric control.


Relying on quality is always a best choice!





Features:


If you want to select sliding table saw in your first own workshop, or you need a compact second machine,


even when large quantities and maximum productivity are important in industrial production


--- this MJ61-32TAZ is your reliable machine for all cases.








Technical parameter:


































































Dimension of sliding table



3200*410mm



Gross cut capacity



3200mm



Width of cut between saw blade and rip fence



1250mm



Saw blade diameter



300mm(250-350mm)



Height of cut(300mm)



90mm



Height of cut with saw blade 300mm at 45°



60mm



Tilting saw blade



0-45°



Main motor



5.5kw



Scoring motor



1.1kw



Speed of scoring saw blade



7000-8000rpm



Scoring saw blade diameter



120mm



Main spindle diameter



30mm



Scoring spindle diameter



20mm



Gross weight



950kg



Overall dimension



3150*3150*900mm






Products description:





























1

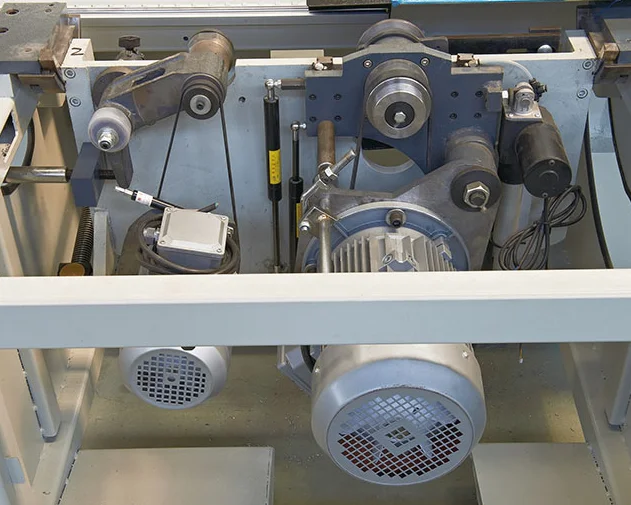

Sawing system: linear guide structure


Perfect inner structure, linear guide way to make sure the machine work precision, easy-operation.


2

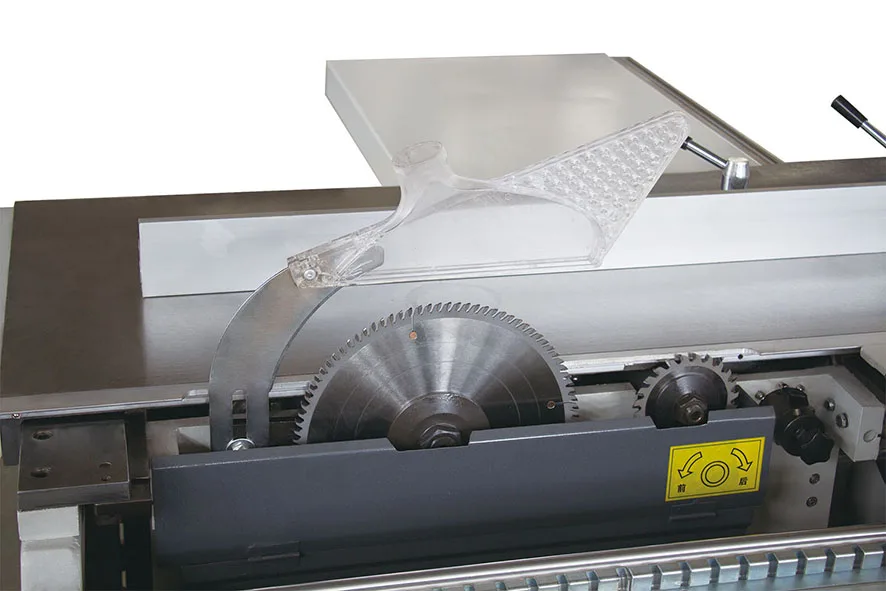

Automatic power off saw blade cover added the working safety.


3

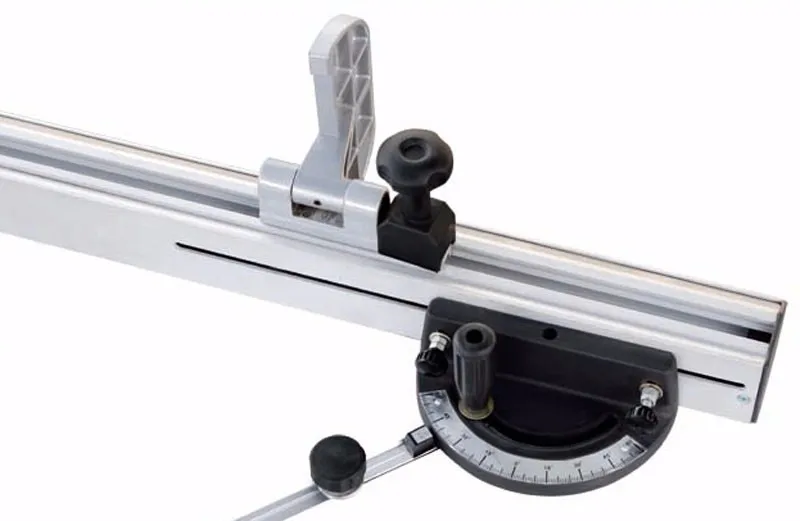

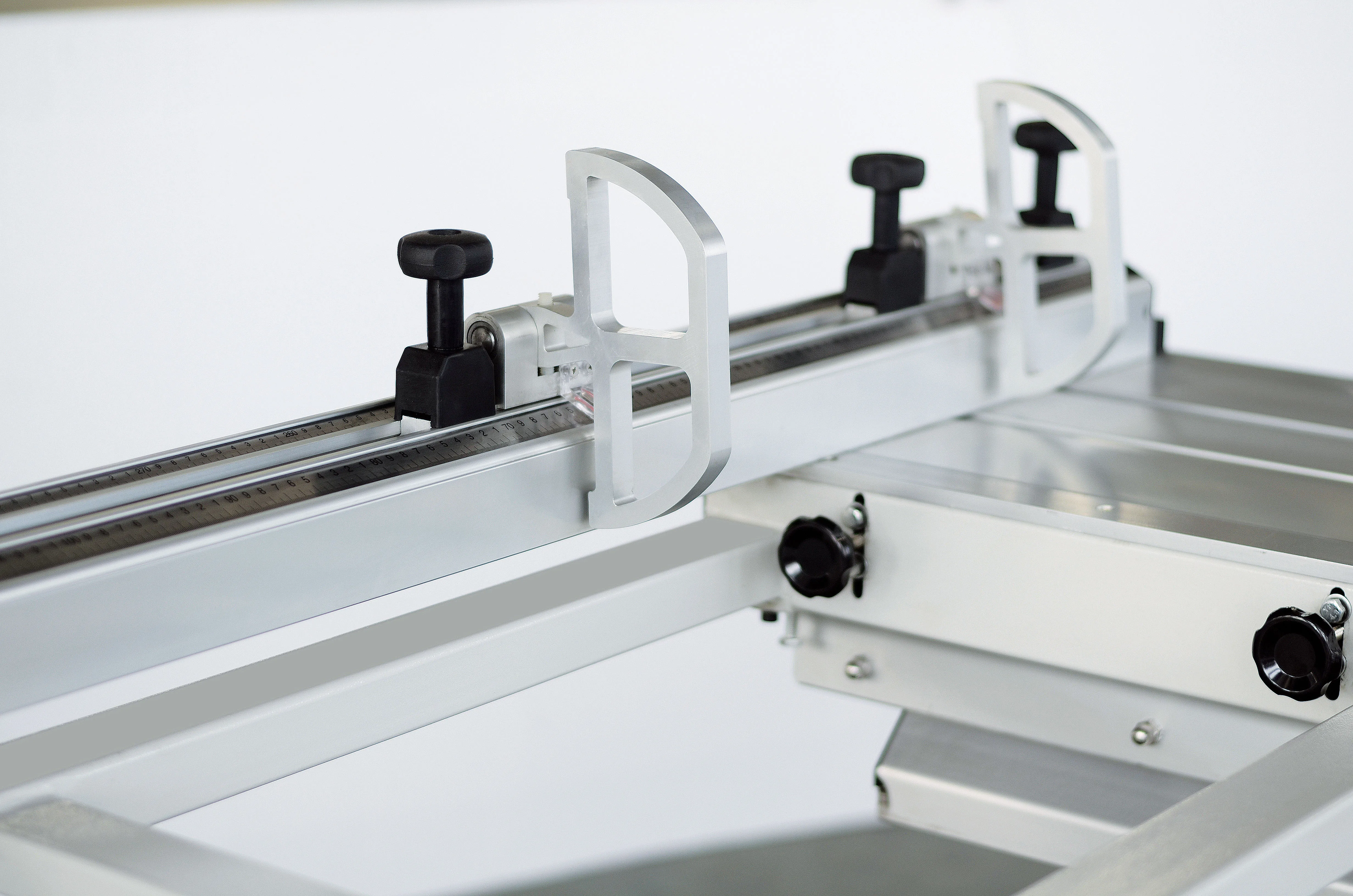

Aluminum extruded fence with large stopper, sliding table saw big ruler made of aluminum, ensure cutting precision,


enlarged baffle plate for strength saving, flexible pushing plate.


4

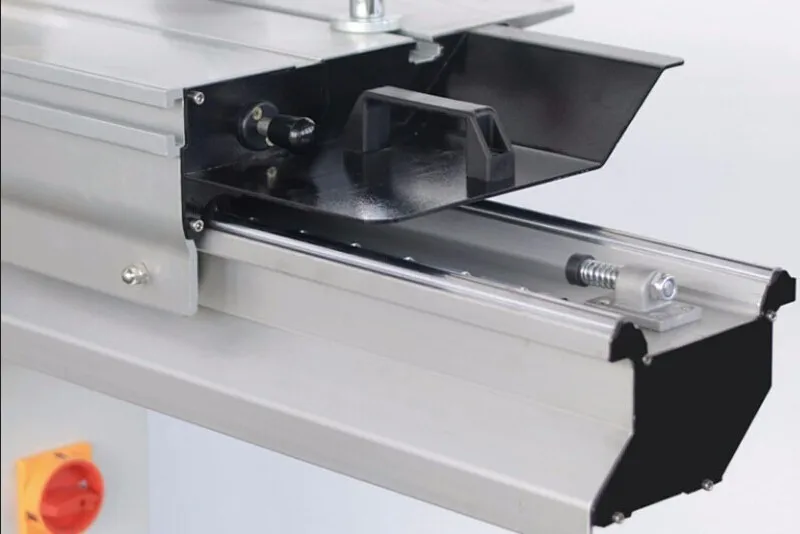

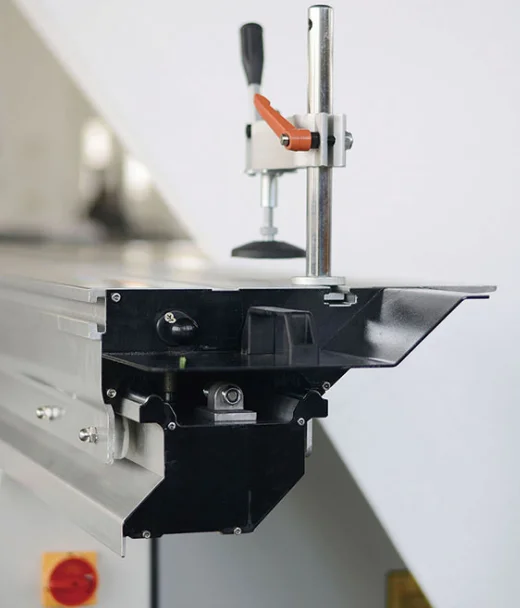

Steel bar Altendorf type sliding table, 3200 mm length*410mm width, with inner lock, more rigidity and strength, smooth movement.


5

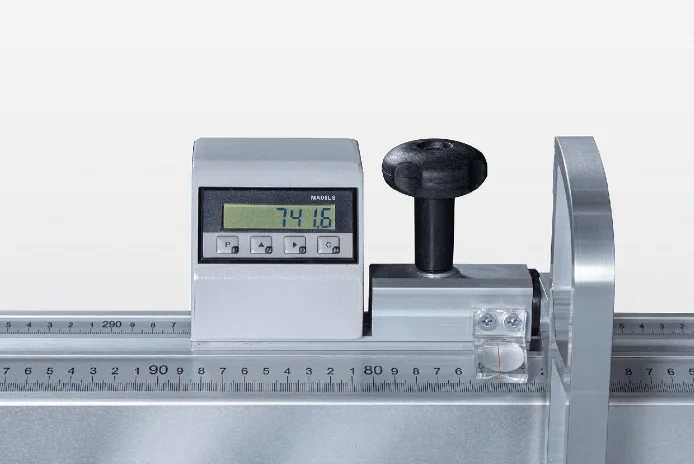

Digital display horizontal ruler


The adjustment accuracy can reach 0.1mm, and the cutting size is more accurate.


6

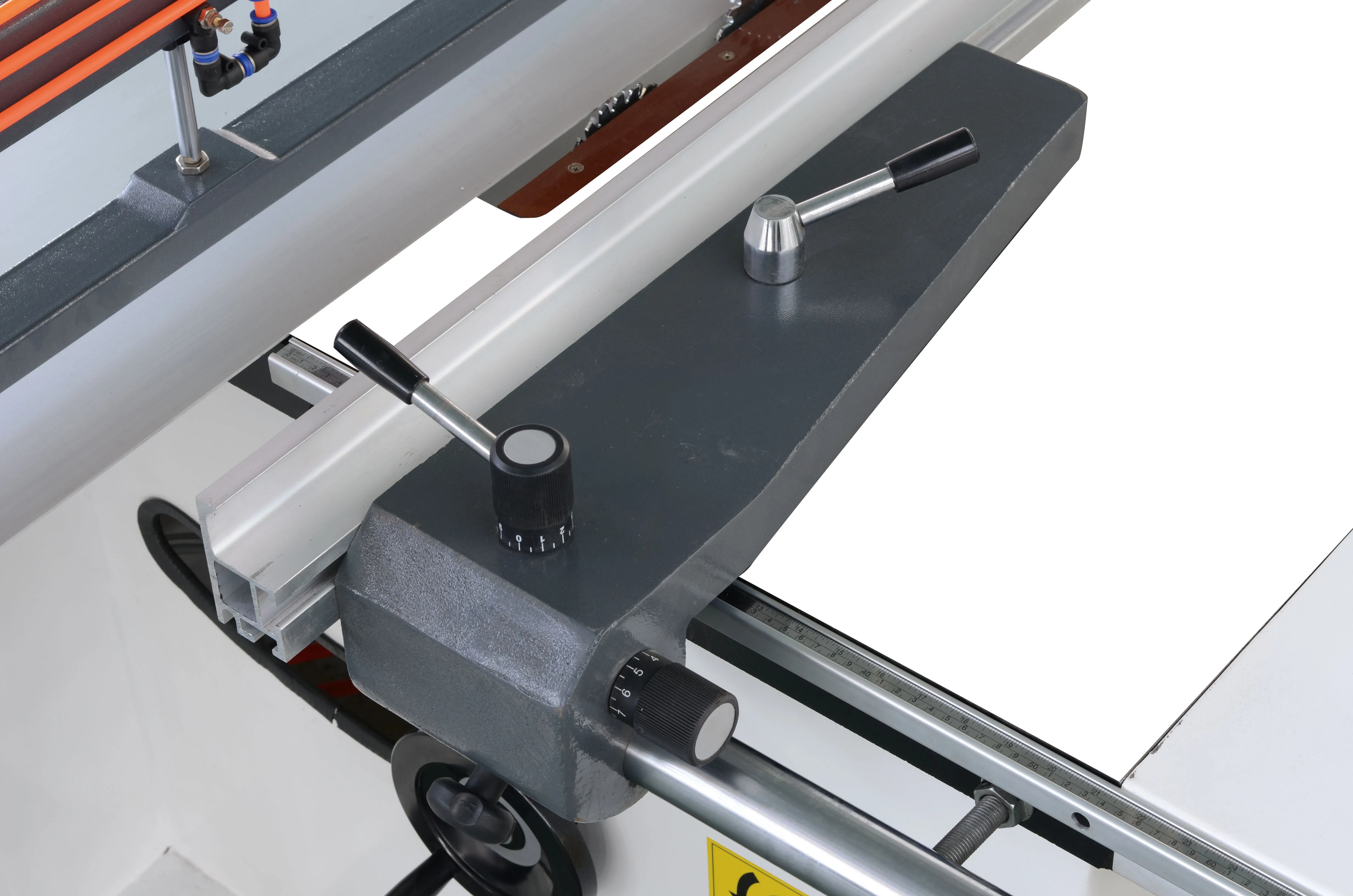

Rip fence fine micro adjustment, stable and precision.


The stop is easy to adjust and, thanks to the fine adjustment, can be adjusted very precisely by hand.


If large panels are to be divided up, the stop can be swiveled under the table level with one handle.

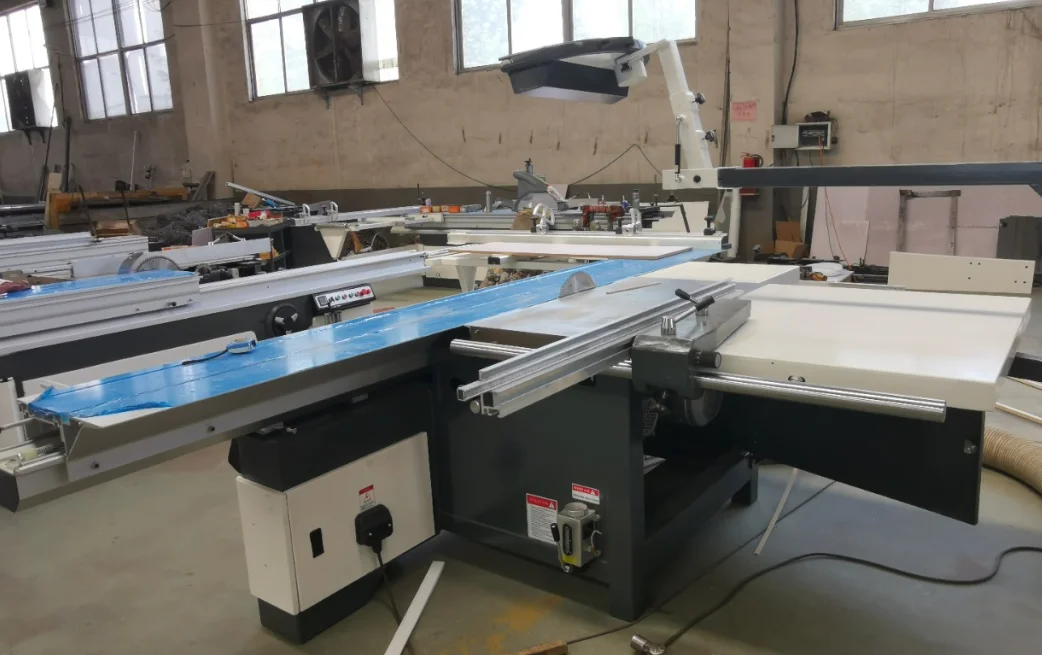

sliding table saw machine

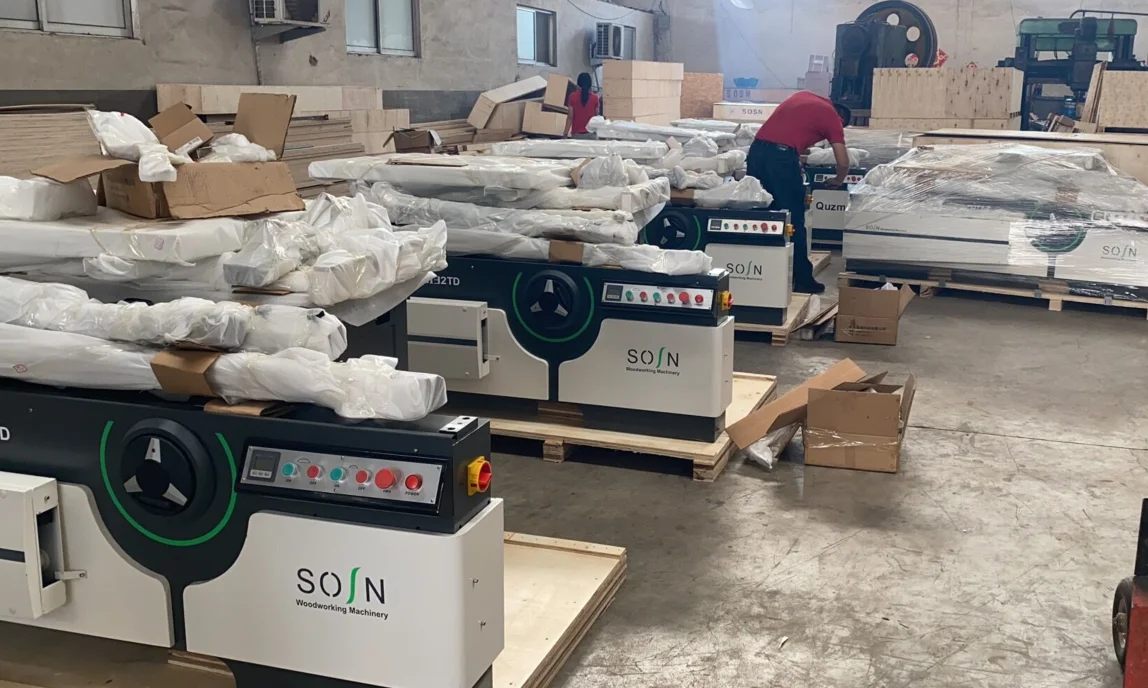

factory sliding table saw





As with our sliding table saw, we also place the highest demands on our service.


No matter what your concern is. Our service team is at your side quickly, competently and reliably.


Hand on it!








Finished Products


effect





Company Advantage


about us





Certificate&Prais


_07_08





Exhibition


_06





Packaging & Shipping


_09





FAQ


_10


Q: How to get the most suitable machine and best price?
A: Please tell us the material you want to working on? How to work on it Engraving Cutting Or other? What's the MAX size of these material ? length? Width Thickness?



Q: If we donot know how to use the machine, can you teach us?
A: Yes, we will, if you come to China. we will offer you free training until you can use machine freely. And if you are busy we will have the special engineer to your country, but you need tobear some fee like tickets, hotel and meal.



Q: Can you promise to deliver the machine in time?
A: Yes, we can.





Q: How about your guarantee period?
A: Once you have any questions during this time, we will solve it for free.
