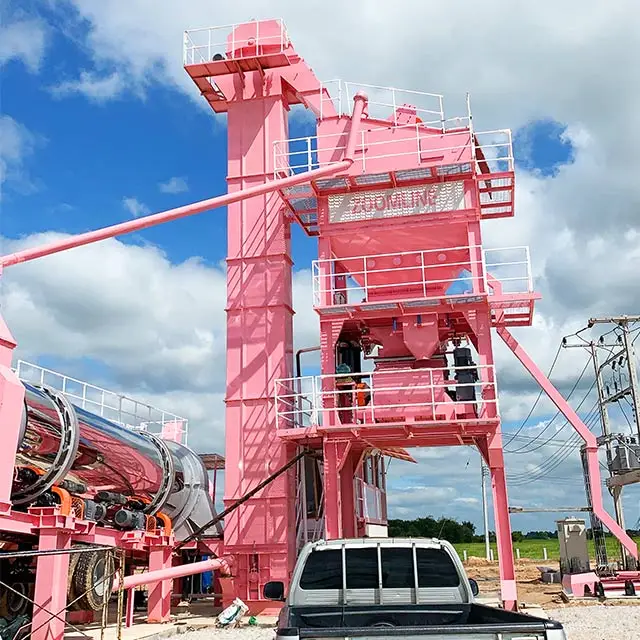

Road Equipment 120T/H Mobile Asphalt Mixing Plant Price

Features of 120t/h mobile asphalt mixing machine:

1. Modular design, convenient and fast to move and install.

2. Screening, hot storage, weighting are on one folding frame, can realize main tower “one truck to trail”.

3. Few transport vehicle, installation foundation need no special handle.

4. Compact design, cover very small area.

5. Accurate screening, weighting, batch mix can guarantee high quality.

6. International classic quality control system, has long distance fault detect and maintain function.

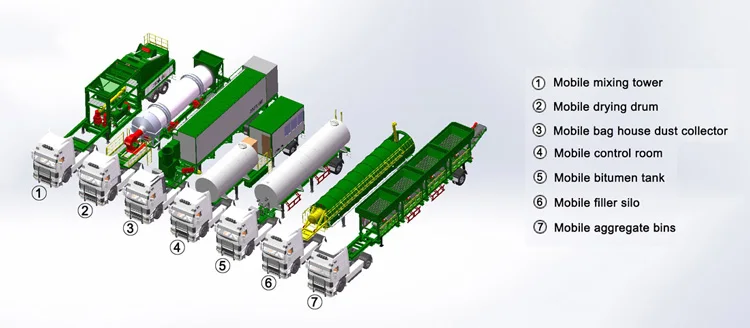

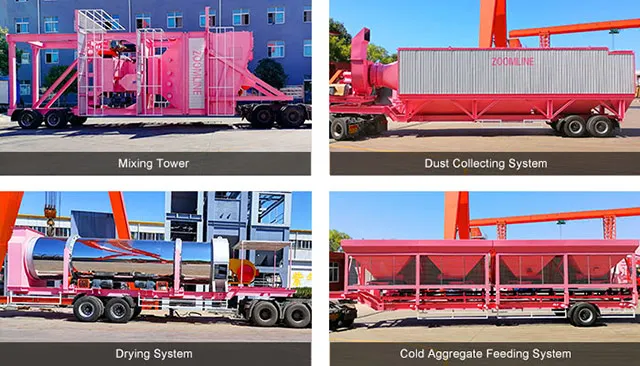

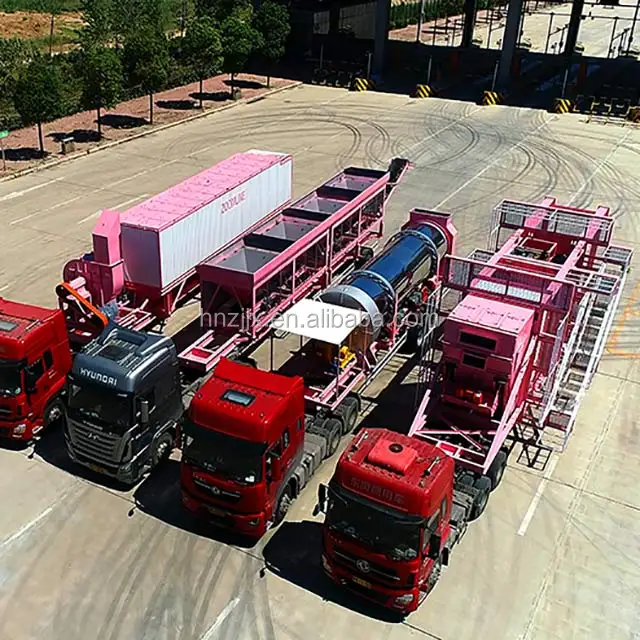

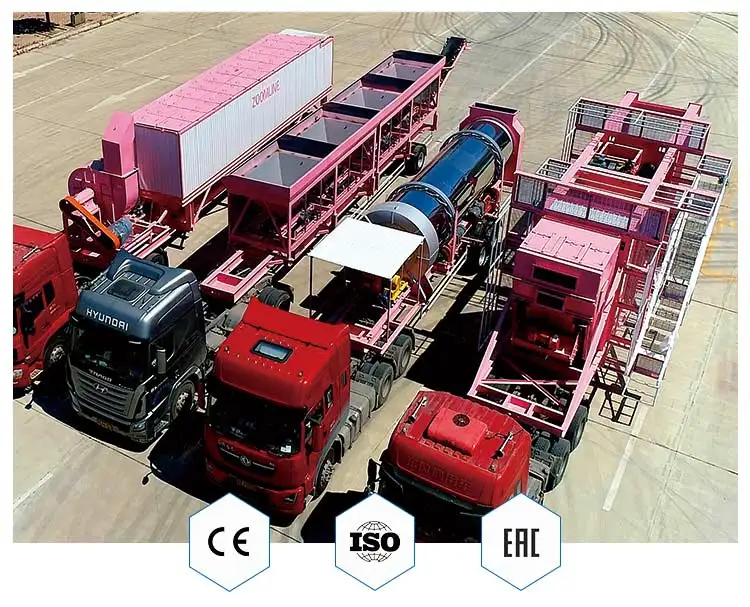

ZOOMLINE mobile asphalt mixing plant main components

Cold Feed System---Mobile Type

Drying Drum---Mobile Type

Hot Elevator---Mobile Type

Mixing Tower---Mobile Type

Dust Collecting System---Mobile Type

Filler Supplying System---Mobile Type

Control Room (Mobile chassis is an optional)

Bitumen Heating and Supply System (Mobile chassis is optional)

Fuel oil Supplying System (Mobile chassis is optional)

Cold Aggregate Feeding System

- The belt feeder adopts frequency conversion speed regulation, wide speed regulation range and high work efficiency.

- Each discharge port has a material shortage alarm device, and if there is no material or arching, it will alarm automatically.

- There is a vibrator on the sand bin to ensure normal operation.

- A screen is placed on the top of the cold aggregate hopper to avoid large material input.

- The conveyor belt adopts a jointless round belt, which runs smoothly and has a long service life.

- There is a simple screen to avoid large material input in the input port of the feeding belt conveyor, ,which can improve thermal efficiency, and ensure the working reliability of the drying drum, hot aggregate elevator and vibrating screen.

- Legs with support base to ensure adequate stability.

Drying System

- Optimized the blade geometry of the dryer to make the drying and heating process extremely efficient, reduce energy consumption, and increase the heating efficiency by 30% compared with the conventional design; due to the high heating efficiency, the surface temperature of the drum is relatively low, so the cooling after operation the time is greatly shortened.

- Completely insulated and composite aggregate drying drum. The support roller is driven by the friction of the polymer by the motor and the gear unit.

- Adopt the famous brand Honeywell temperature intelligent control system.

- Using Italian brand high combustion efficiency burners to ensure low exhaust emissions (such as carbon dioxide, low NO1 & NO2, sulfur dioxide).

- Diesel, heavy oil, natural gas, coal or multi-fuel burners.

- Using international standard parts, the maintenance cost is low.

- Integrated highly efficient burner on one mobile chassis.

Mixing Tower

- Integrated vibrating screen and thermal storage, weighing and blender in a mobile chassis for easy transport and installation.

- Improve vibration and amplitude to optimize the impact on the available screen.The optimum combination of vibration direction and screen box inclination ensures screen ratio and screen efficiency.

- Use the well-known brand TOLEDO weigh sensor to ensure accurate weighing and ensure the quality of asphalt mixture.

- The mixer is a three-dimensional hybrid design with an array of long arms, short shaft diameters and bidirectional mixing blades.

- The discharge process has been completely redesigned with minimal discharge time.

- The distance between the blade and the bottom of the mixer is also limited to the optimum minimum.

- Bitumen is sprayed from multi-points evenly over aggregate by one pressurized bitumen pump to achieve full coverage and high mixing efficiency.

- Legs with support base to ensure adequate stability.

Dust Collecting System

- Gravity type primary dust collector collects finer dust and saves consumption.

- The discharge of the secondary dust collector in the baghouse is less than 20mg/Nm3, which is environmentally friendly.

- Using the US Dopont NOMEX filter bags, it is resistant to high temperature and has a long service life. The filter bag can be replaced easily and without special tools.

- Intelligent temperature control system, when the dust temperature is higher than the set value, the cold air valve  turns on the cooling automatically to avoid the filter bag being damaged by high temperature.

- Using high-pressure pulse cleaning technology, it is beneficial to reduce bag wear, prolong service life and improve dust removal performance.

- Mobile chassis as optional according to project solution.

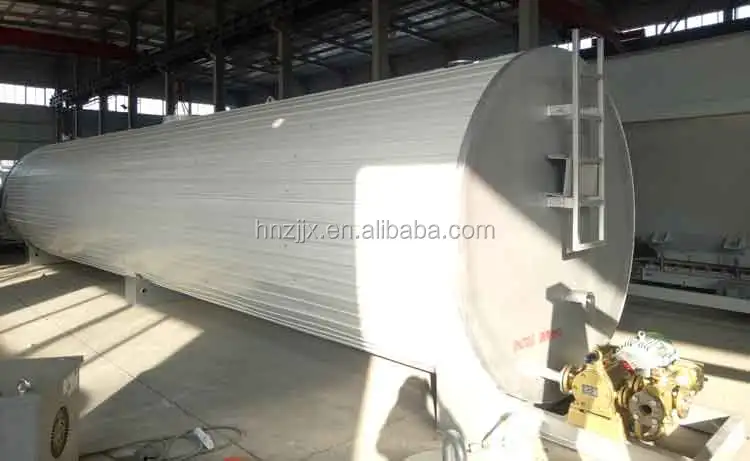

Bitumen tank

ZOOMLINE bitumen tanks can be used alone or matched with asphalt mixing plant. 3 types of bitumen tanks we can supply: hot oil heating bitumen tank; electric heating bitumen tank; directly heating bitumen tank.

1. Hot oil heating bitumen tanks is very common used during the production of asphalt plant. The bitumen tank should be equipped with thermal oil furnace. Several bitumen tanks can work together which one thermal oil furnace.

2. Electric heating bitumen tank is heated by the electrical heated tube. The structure is compact, easy installation and transportation, easy operation, high level of automation and no pollution. This kind of bitumen tank is widely used in some countries.

3. Container type directly heating bitumen tank. Compared with ordinary directly heating bitumen tank, this type bitumen tank is addressing the issue of high temperature of some parts and bitumen aging. Container type directly heating bitumen tank has the features of high thermal efficiency and container ship design which is very easy to install and transport. This type bitumen tank has the self-contained heating function and doesn’t need the additional thermal oil furnace.

Control system

- Using Germany SIEMENS electrical components, it can work stably even under harsh working conditions.

- Using Japan's ORON PLC and touch screen, which has strong data processing capability, automatic data sheet control, and can store various operational data in real time.

- All system power switches can be controlled through the control panel, which is easy to operate and easy to control.

- Multi-language compatibility, the display language can be selected according to customer preferences.

- The control cabinet is IP55 rated to meet the highest industry standards in the world.

- Container control room with thermal and acoustic insulation.

- Global remote automatic detection function.

- Mobile chassis as optional according to project solution.

Technical parameters of ZAP-M series mobile asphalt plant

Henan ZOOMLINE Machinery CO., Ltd is based in Nanyang Longsheng Industrial Park of Henan, ZOOMLINE Machinery is a professional manufacturer of asphalt mixing plant,coal burner,oil burner,gas burner and support equipments that draws on years' experiences and technology developments.

Our main asphalt mixing plants include:

Stationary asphalt mixing plant 40-320TPH,

Mobile asphalt mixing plant 40-160TPH,

Continuous asphalt mixing plant 20-160TPH,

Recycling asphalt mixing plant 60-120TPH

1.The whole asphalt mixing plant is designed according to standard high cabinet container, suitable for the construction requirement in both home and abroad.

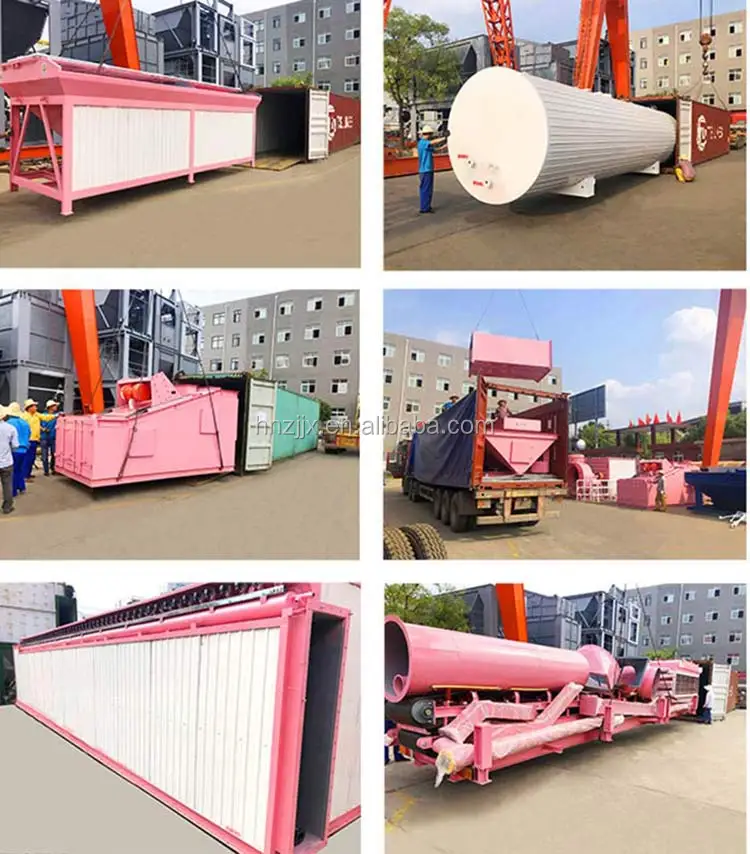

2.All the components of this asphalt plant can be put into the container, can greatly reduce transport cost.

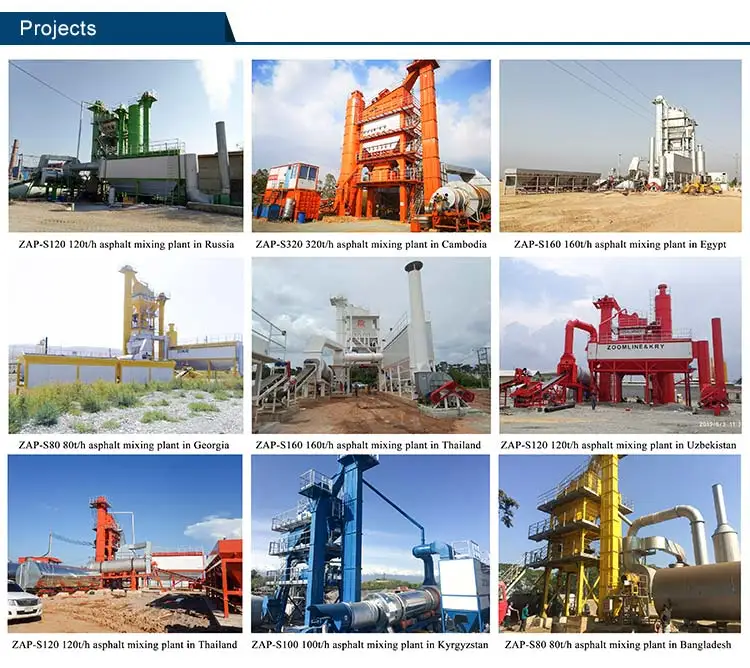

Our asphalt mixing plants have got CE,ISO,EAC certificate. Nowadays, our asphalt plant products have been sold to Russia, Cambodia, Bangladesh, Egypt, Uzbekistan, Kyrgyzstan, Pakistan, Georgia, Indonesia, Belgium and Thailand etc.
