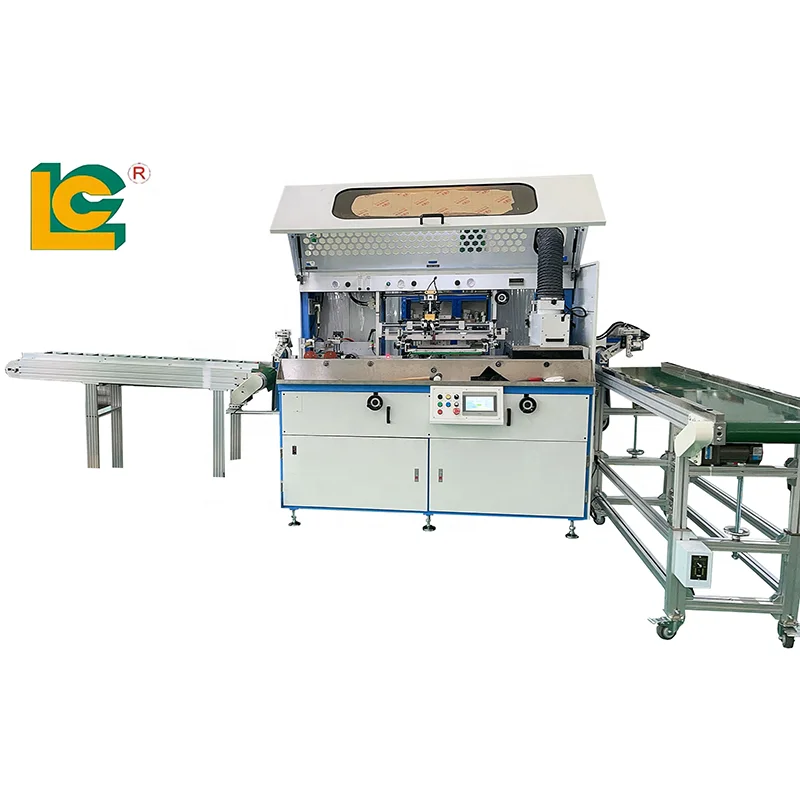

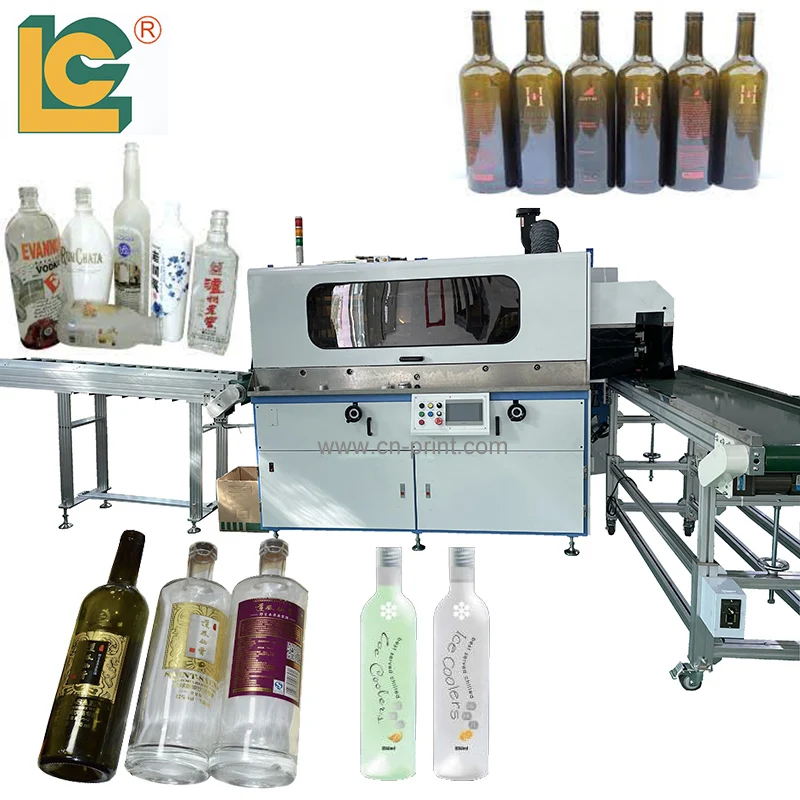

Glass Beverage Bottle Serigraphy Printing Machine Automatic Liquor Bottle UV Screen Printing Machine
- Category: >>>
- Supplier: Luen Cheong Printing Equipment Ltd.
Share on (1601061550001):
Product Overview
Description
Glass bottle Automatic screen printing machine Line with automatic blanking
Specification
Model Name | LC-GL130-1 |
Brand Name | LC |
Circular printing diameter | 60-100 mm |
Circular printing height | 80-310 mm |
Maximum Printing Speed | 30-35 pcs/min |
Power requirements | AC380V 3Phase 50Hz /60Hz |
Rated power | 7 KW |
Air pressure requirement | 5-8 Bar |
Machine size （mm） | L4700*W2500*H2100 (the specific object shall prevail) |
Mechanical weight | 1700 kg |
This machine can meet the needs of cylindrical printing, and is compatible with glass containers.
This machine through programmable logic controller (PLC) and high performance Touch Screen (Touch Screen) to achieve intelligent control of the whole machine work. With ADVANCED imported motors, variable speed devices and mechanical transmission to form a new high-speed transmission system, to achieve infinitely variable speed, synchronous transmission, no bottle no printing and other control
functions.
functions.
Machinery and equipment are exported to Europe, the United States, South Korea, the Middle East, South Africa, Mexico and other countries and regions, deeply trusted by customers at home and abroad.
Feature
1. It can be used for V-type inclined conveyor belt
2. Automatic feeding
3. flame surface treatment system
4. Continuously variable speed control system (frequency converter control)
5. Automatic printing
6. no bottle no printing system (using high photoelectric sensor, transparent bottle and black bottle can be reliably identified)
7. High temperature electric heating system
8. 90 degree mechanical hand material
2. Automatic feeding
3. flame surface treatment system
4. Continuously variable speed control system (frequency converter control)
5. Automatic printing
6. no bottle no printing system (using high photoelectric sensor, transparent bottle and black bottle can be reliably identified)
7. High temperature electric heating system
8. 90 degree mechanical hand material

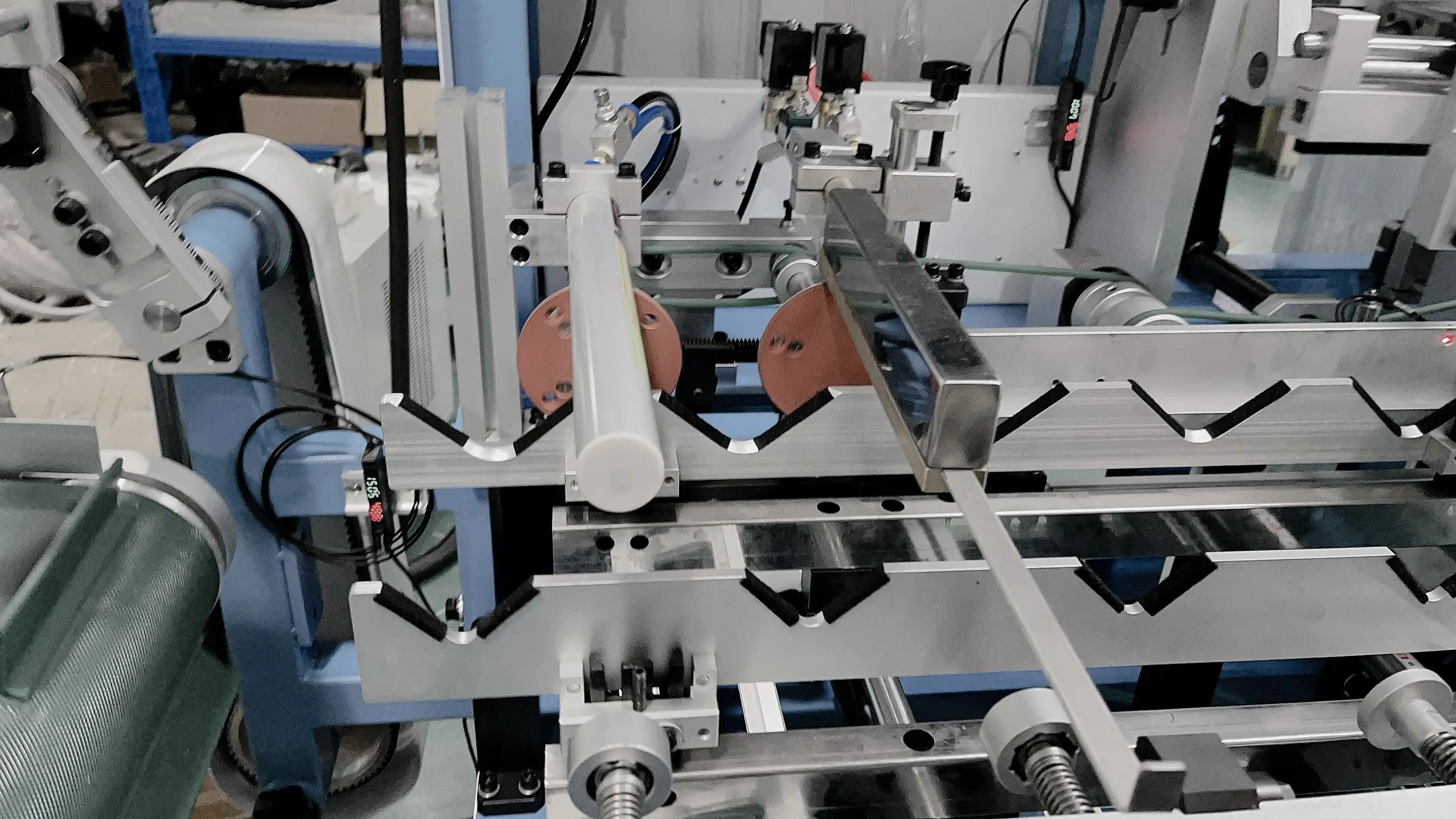

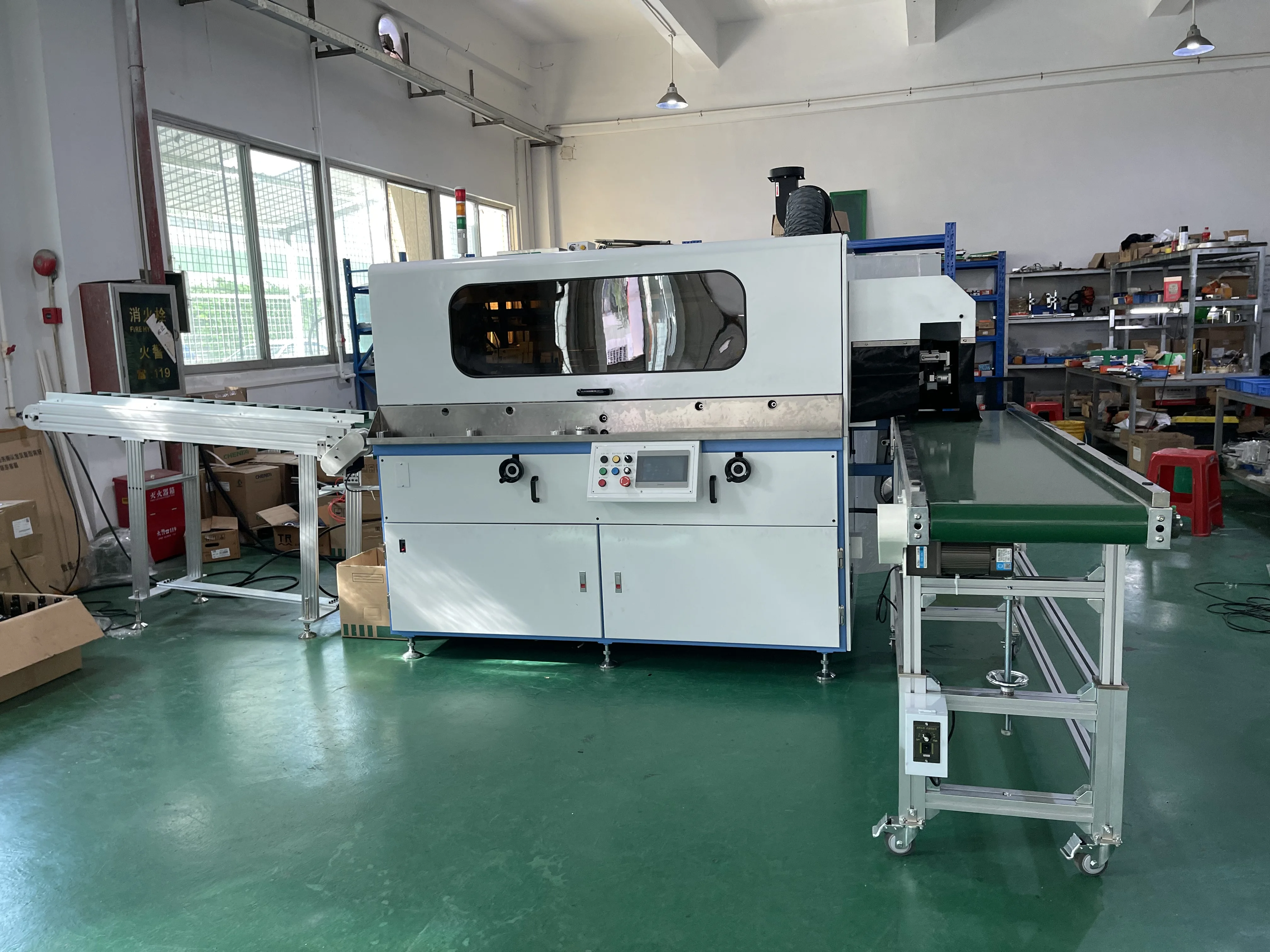

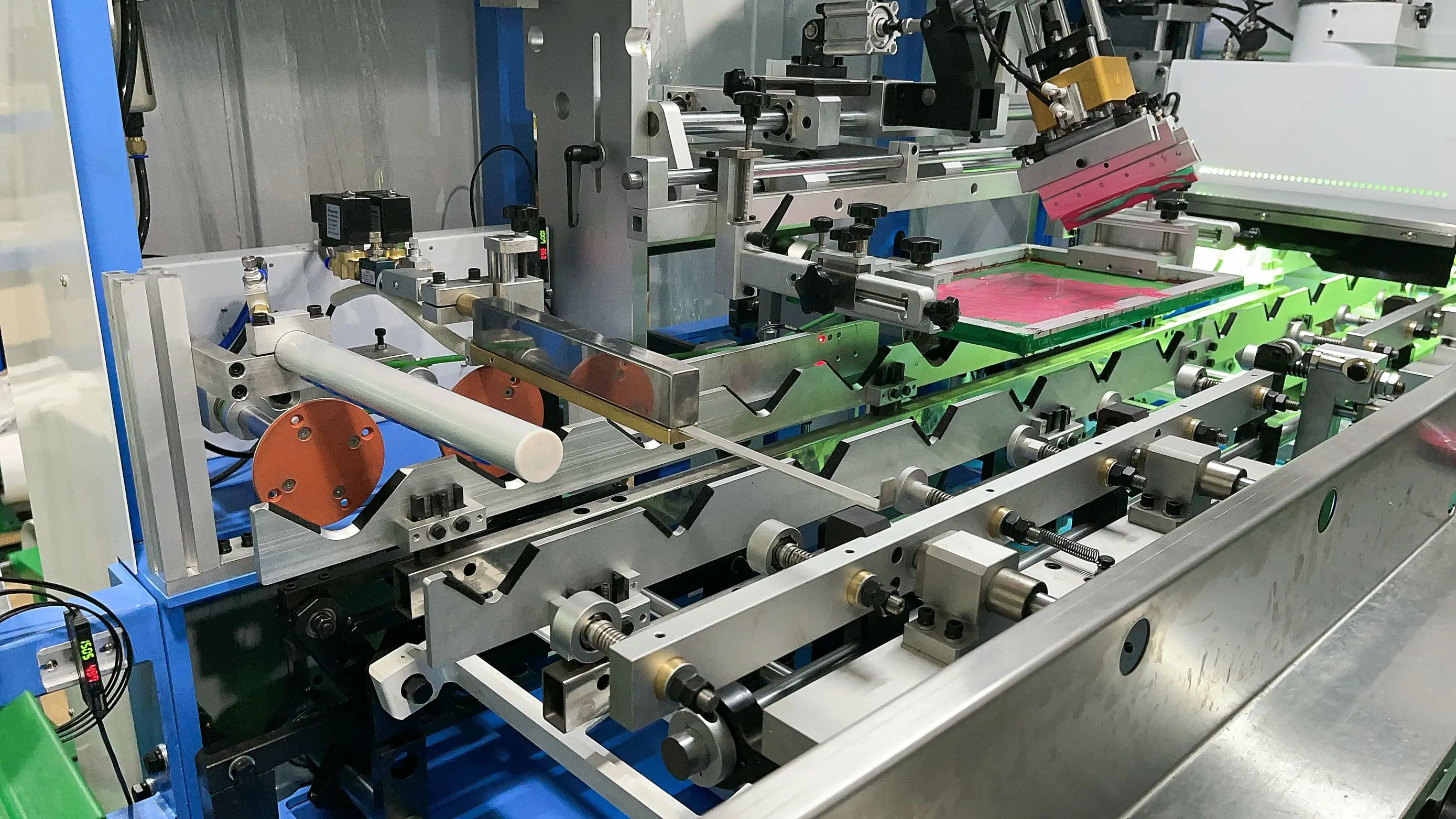

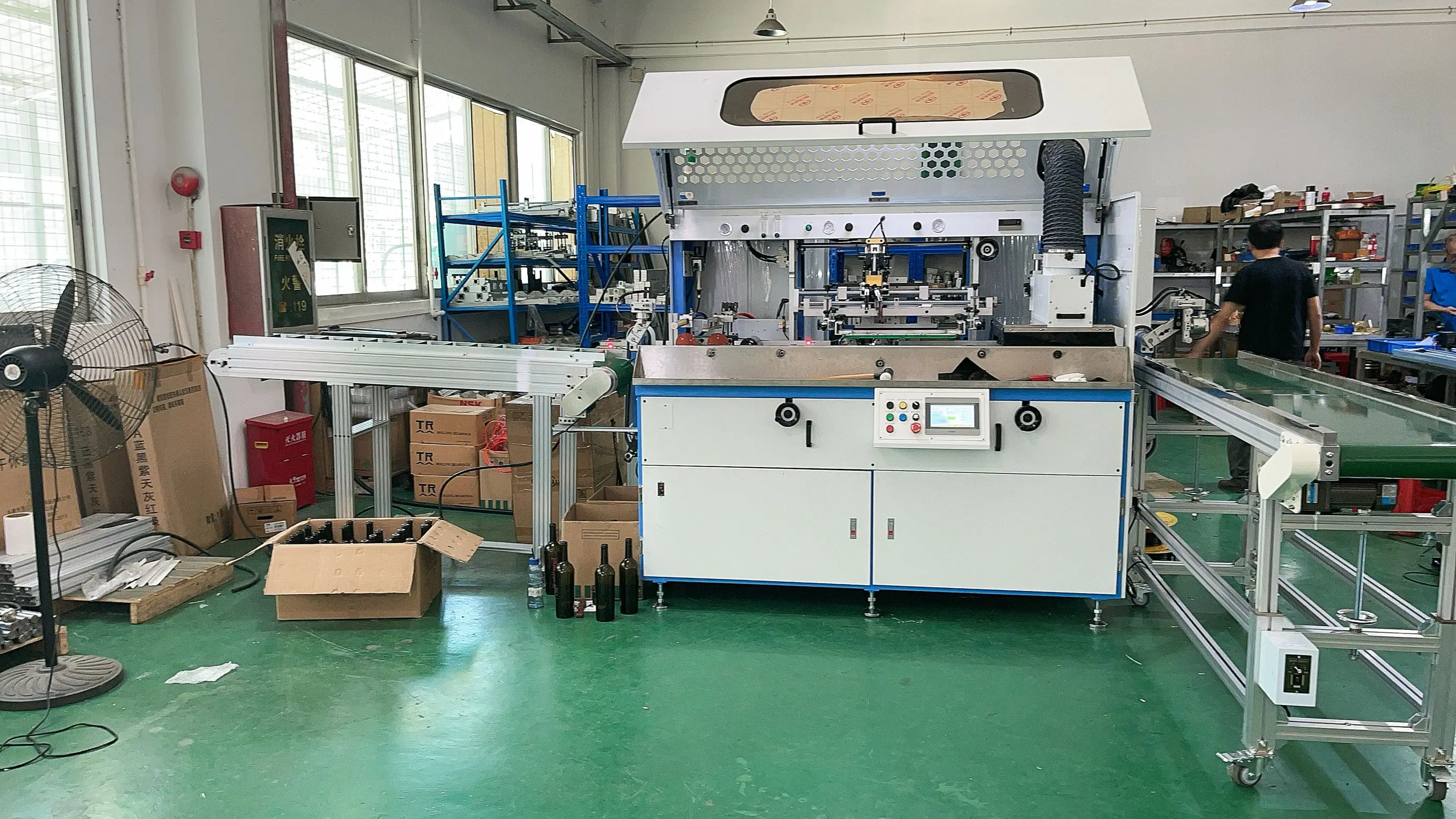

Machine photos

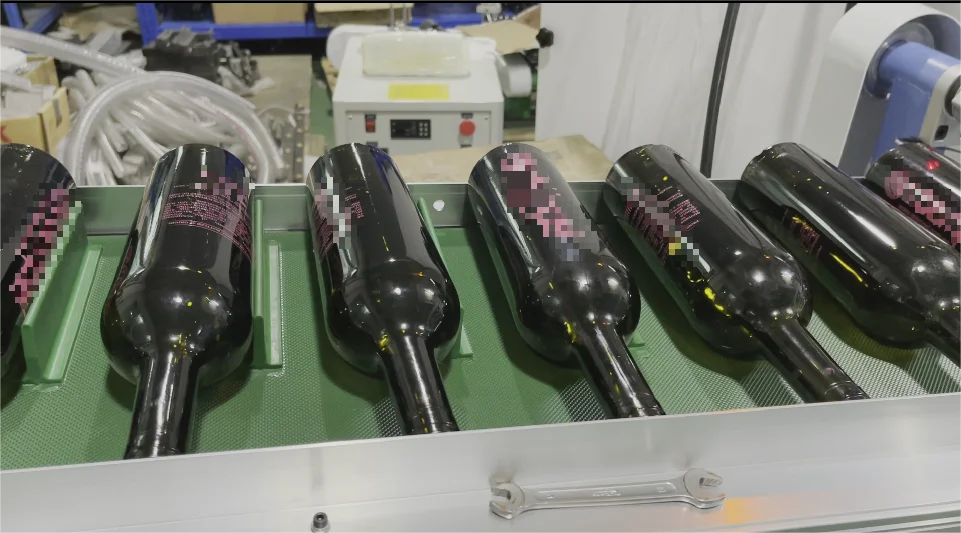

Printing Samples
