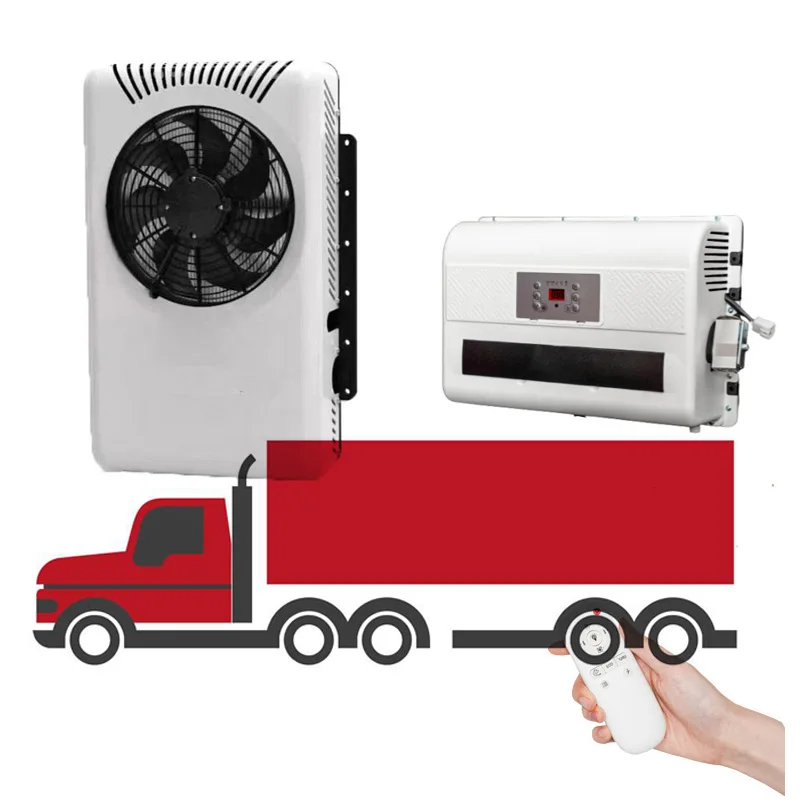

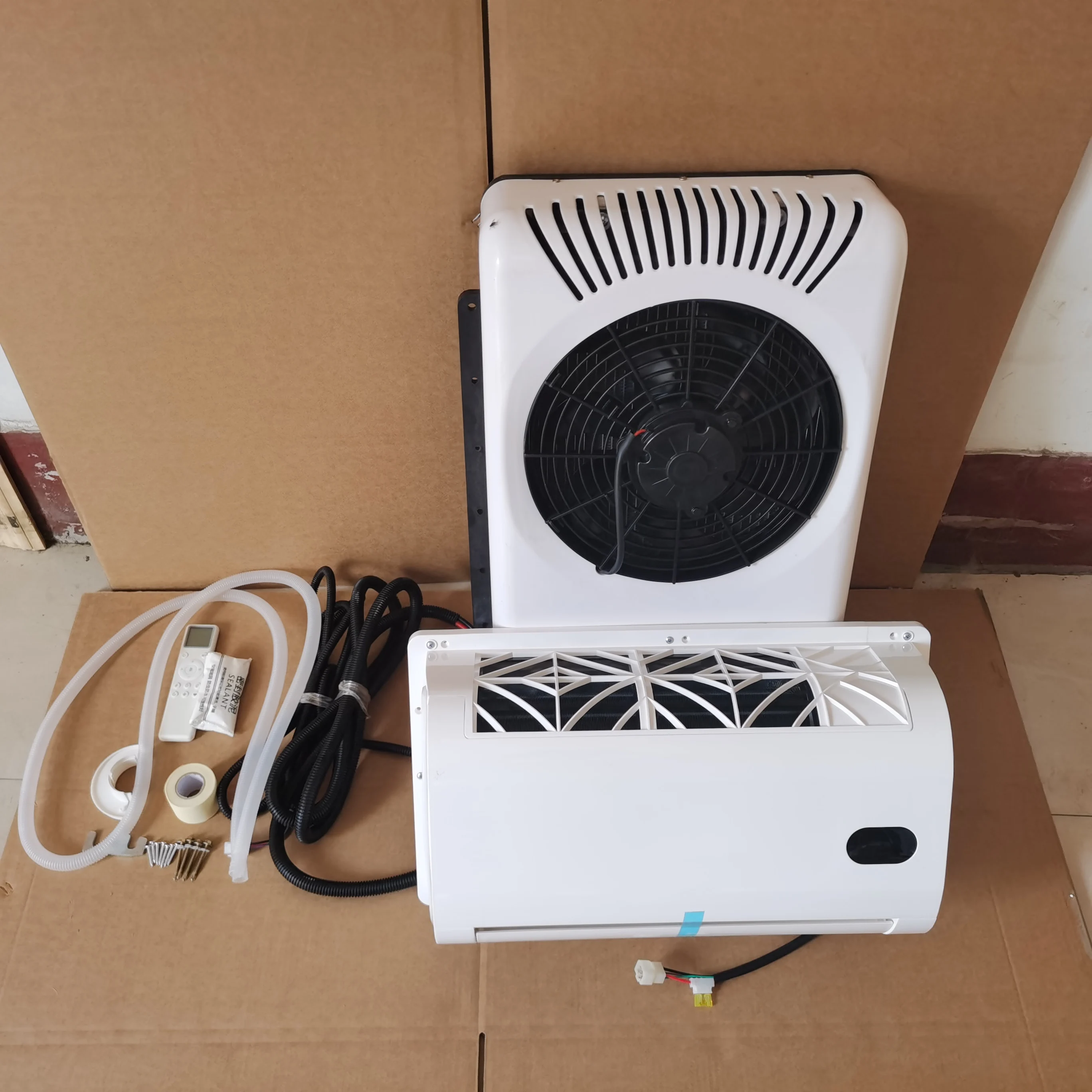

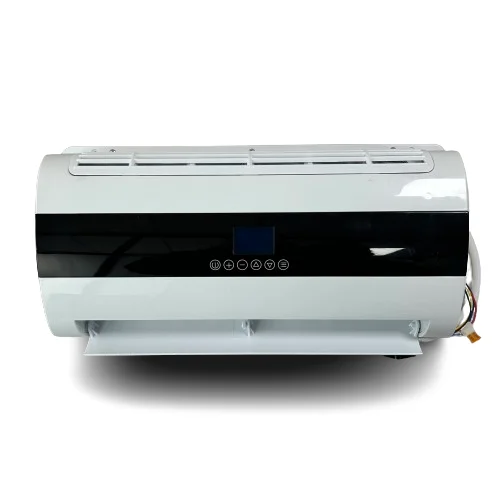

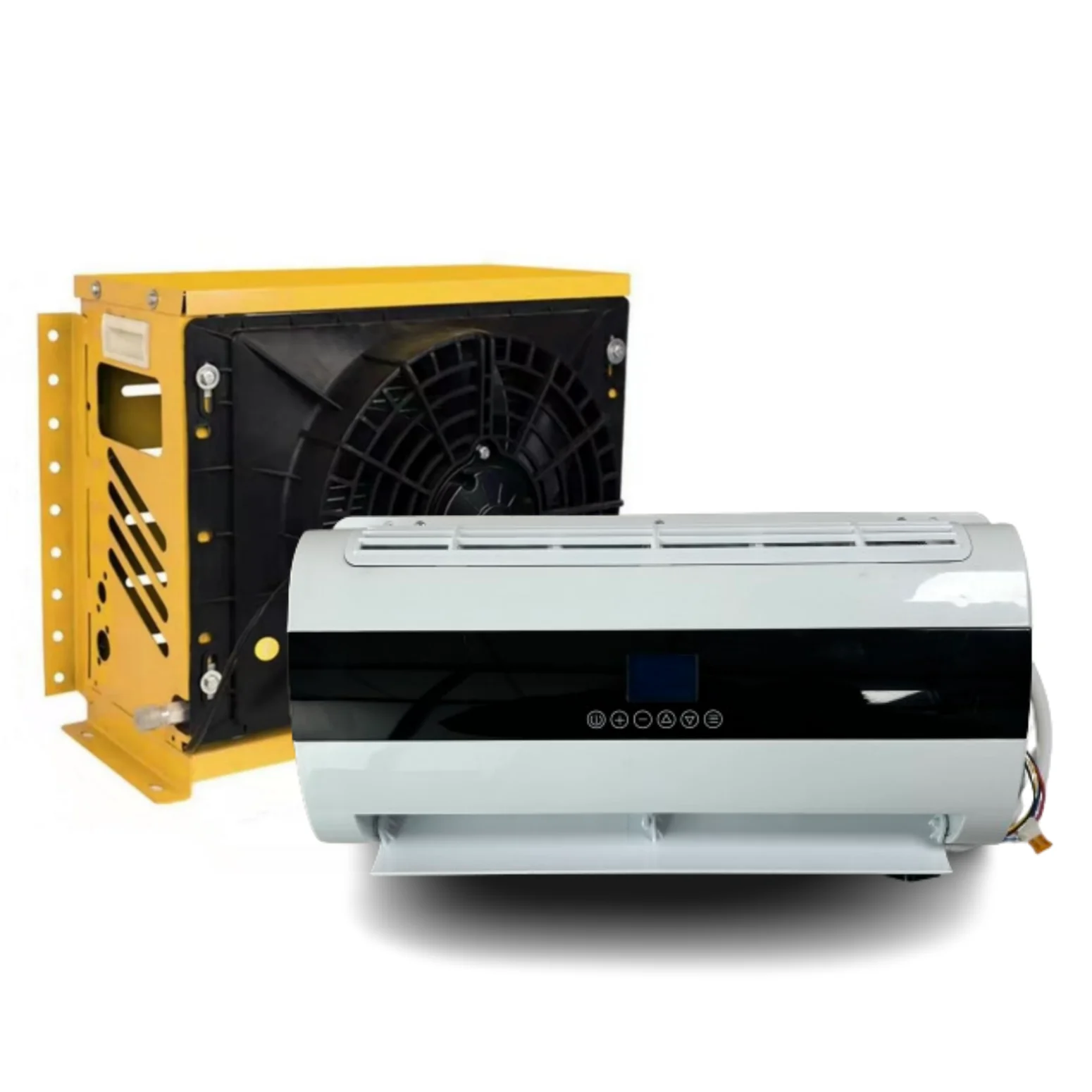

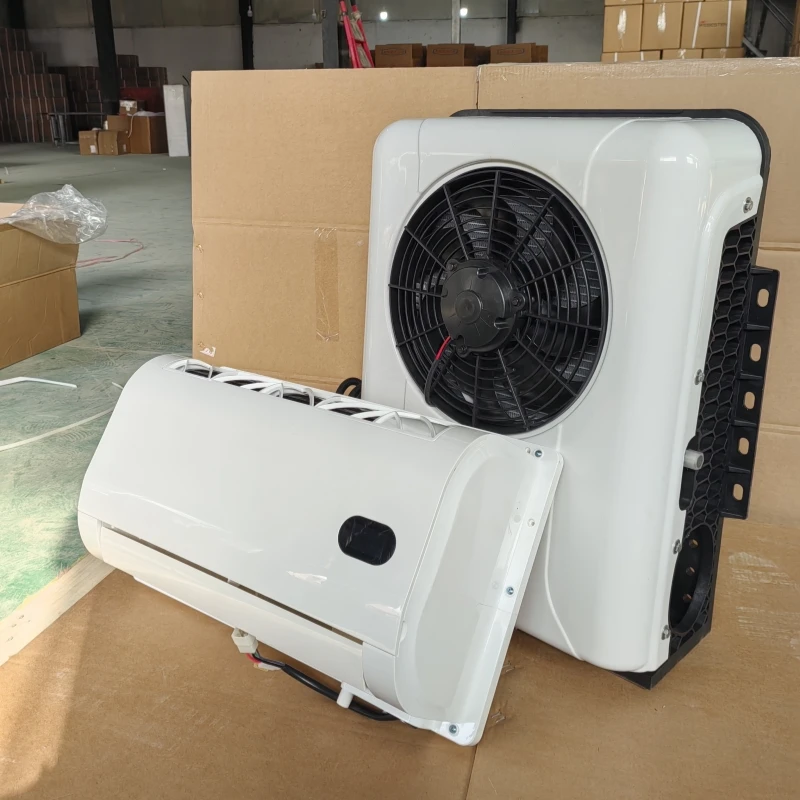

Air Conditioners For Truck 12 24 Volt Dc Air Conditioner for RV Semi Trucks Forklift Construction Vehicle Crane Excavator Van
- Category: >>>
- Supplier: Dezhou Chuangtao Mechanical And Electrical Equipment Co. Ltd.
Share on (1601061584552):
Product Overview
Description
Dc12v Intelligent Electric Rv Air Conditioner 12v Truck Rv Mini Truck Parking Cooler Air Conditioner
Air flow | 480 mc/h | Voltage | DC 12V/24V |
Operating temperature | 18~55℃ | Color | White,red and customized |
Cooling Capacity | 9000-10000BTU | Refrigerant | HFC134a Environment Friendly |
Temperature setting | 15-30℃ | Fit for | Truck, van, RV, mini bus |
Refrigeration rated current | 33A/ 70A | External machine size | 50*22*66.5 cm |

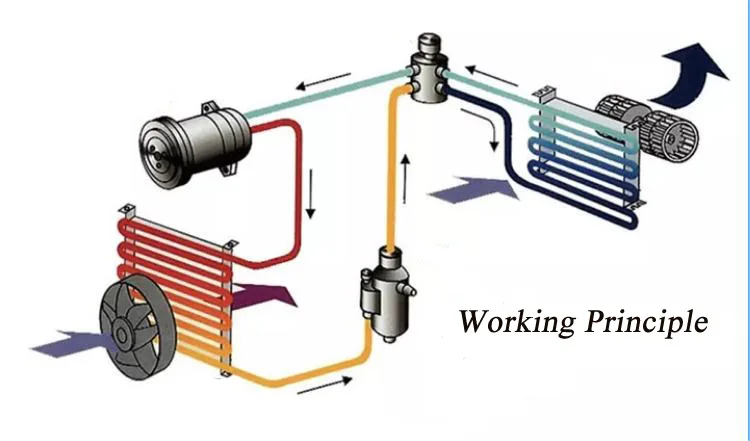

Air conditioners are divided into single-cold air conditioners and dual-purpose air conditioners. The working principle is the
same. In the past, most air conditioners used Freon as the making agent.
The characteristic of Freon is that when it changes from a gaseous state to a liquid state, it releases a lot of heat. When it
changes from liquid to gas, it will absorb a lot of heat. (That is, first absorb heat and vaporize and then liquefy to release
heat) The air conditioner is designed according to this principle.
same. In the past, most air conditioners used Freon as the making agent.
The characteristic of Freon is that when it changes from a gaseous state to a liquid state, it releases a lot of heat. When it
changes from liquid to gas, it will absorb a lot of heat. (That is, first absorb heat and vaporize and then liquefy to release
heat) The air conditioner is designed according to this principle.
Evaporator parameters | ||
Voltage | 12V/24V | |
Cooling Type | Cooling only | |
Coils | 32-Way Aluminum and Copper Coils | |
Motor power | 80 watts | |
Motor speed | 3800rpm | |
Expansion valve | 1.5 Ton O-ring expansion valve | |
Electric compressor parameters | ||
Voltage | DC12V/24V | |
Starting current | 75A/45-60A | |
Rated speed | 1800 rpm/3000rpm | |
Refrigerant oil | POE68/130ml-150ml(oil has already in compressor) | |
Refrigerant | R134A | |
Cooling capacity | 9800BTU/10000BTU | |
FAQ
Q: How long can the air conditioner run after parking?
A: It depends on the capacity of the battery equipped by your vehicle,
200Ah battery can work around 4-6 hours at night and around 5-7 hours.
200Ah battery can work around 4-6 hours at night and around 5-7 hours.

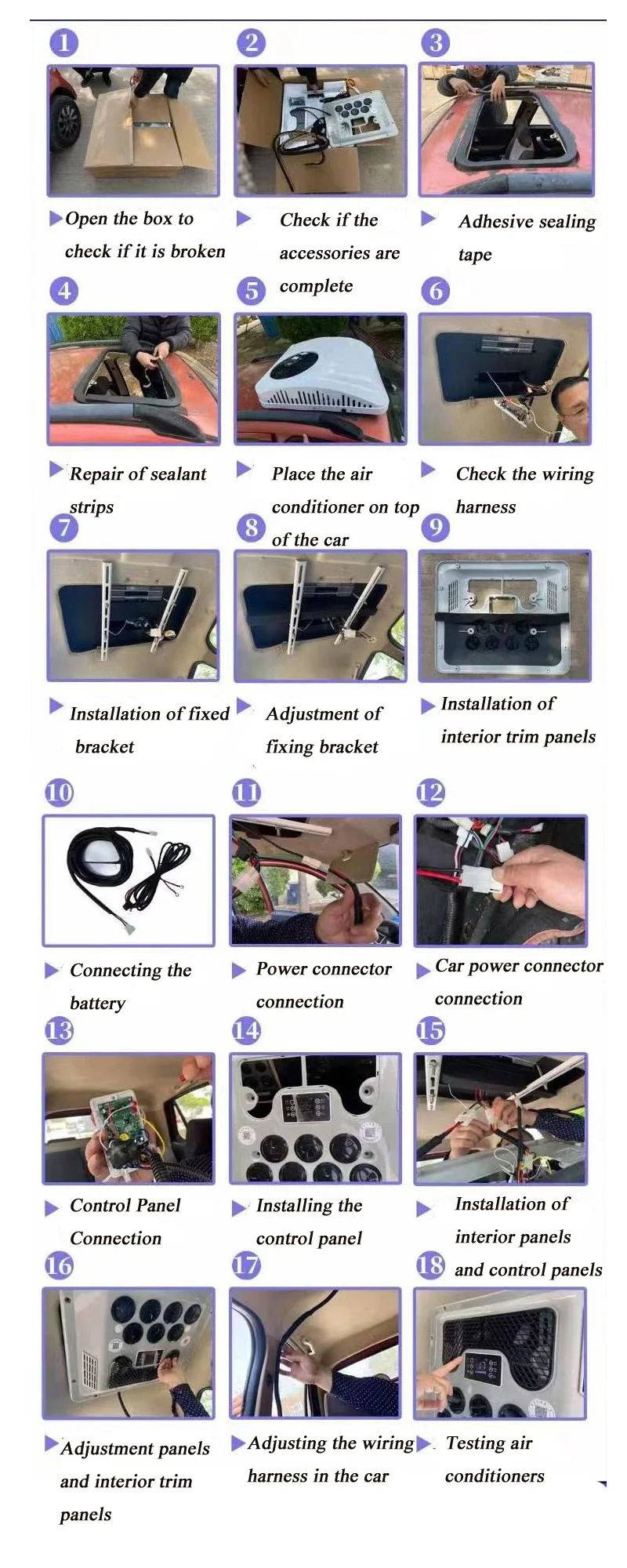

Q: What are the requirements for air conditioning installation?
A: 12V Battery: generator power greater than 980w, the battery cannot be less than 100A; 24V Battery: the generator power is greater than 1150w, and the battery should be greater than 100A.
Q: Do you have refrigerants in your products?
A: The air conditioner will choose to keep the refrigerant or evacuate it depending on the shipping method
Q: How much refrigerant needs to be charged to the air conditioner?
A: For split type, 600±10g refrigerant should be filled in. For the roof mount compact type, 560±10g refrigerant should be filled in. Refrigerant has high and low pressure, high-pressure 11-13mpa, and low-pressure 2.5-3mpa. It takes 20-30 minutes to fill the air conditioner with a vacuum before refilling the refrigerant.
Q: What warranty you can provide?
A: We provide a 2-year warranty.
Q: Can you accept OEM customers' logo
A: Yes, we can accept one with the customer logo and also the design.
