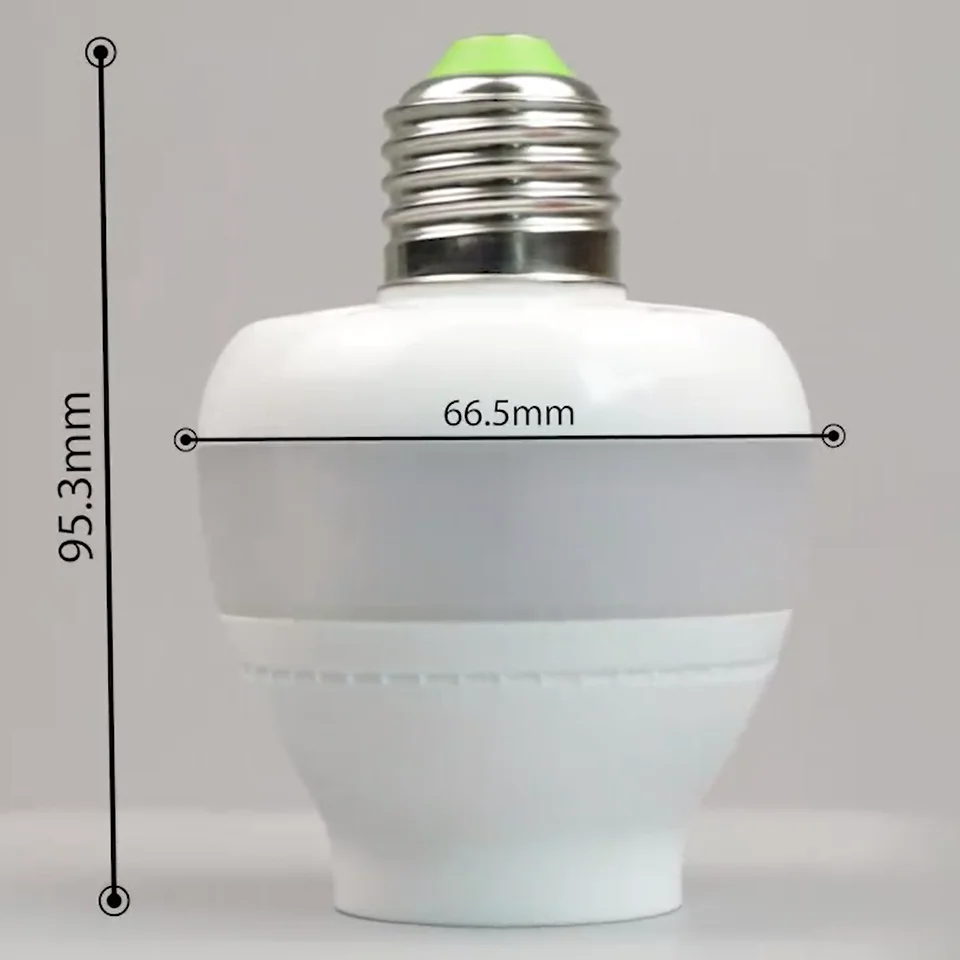

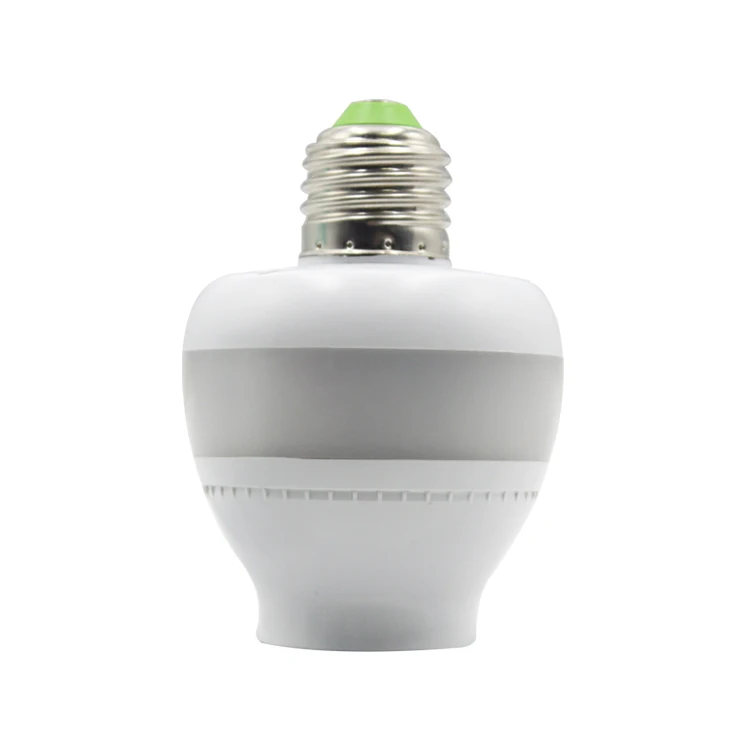

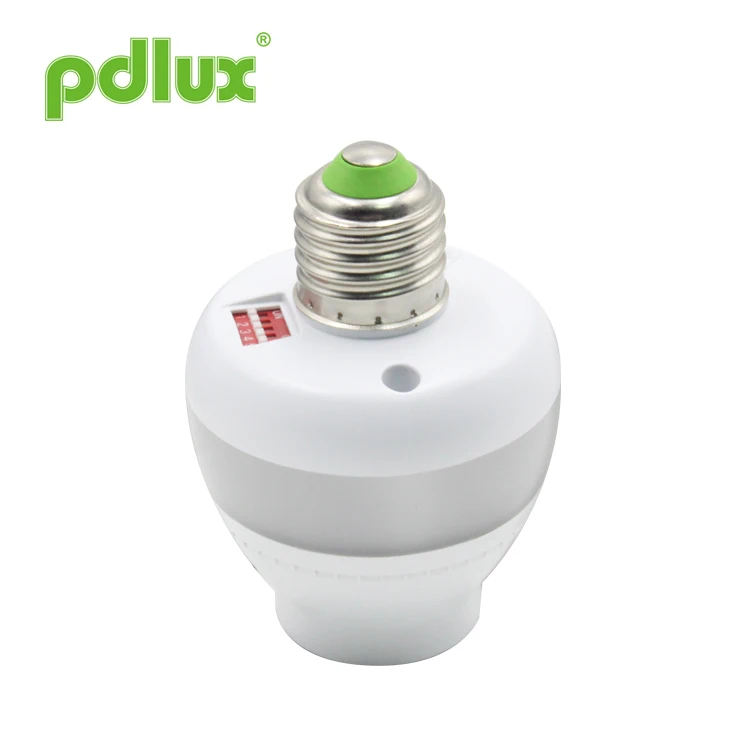

PDLUX PDDT-V01 360 Degree Ceiling Sensor Microwave Radar Sensor Module Human Body Induction Switch E27
Power Source | 100-240VAC |
Power Frequency | 50/60Hz |
Rated Load | 60W Max. (any load) |
LED Rated Load | 1W |
LED Quantity | 8 PCS (2835) |
HF System | 5.8GHz CW Electric Wave, ISM Band |

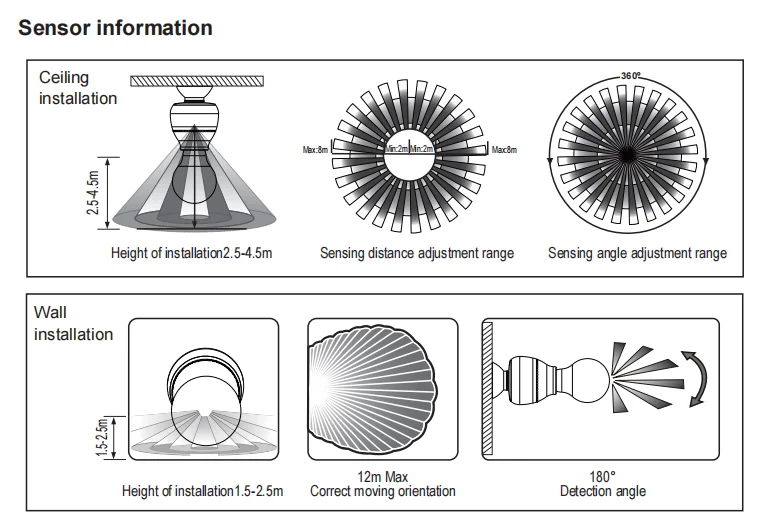

Detection Angle | 360° |
Detection Range | 2m-4m-6m-8m (radii.) (adjustable) |
Time Setting | 5sec-1min-3min-8min (adjustable) |
Light-control | <20LUX |
Power Consumption | <0.5W |
Installation | Ceiling Mounting, Wall Mounting |
Working Temperature | -15℃ ~ +70℃ |

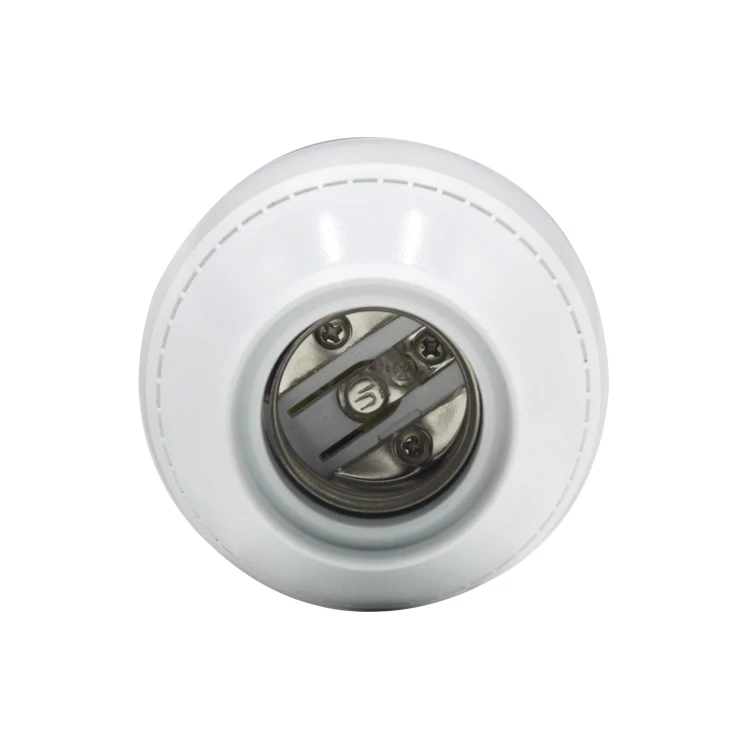

Lamp Socket Type | E27 (standard) |
--------------- PDDT-V01----------------
The product gathering intelligent & multifunction and can detect all-around,energy consumption is lower than 0.5w.
It has multiple patents,product design is unique in the world. The product adopt full range of microwave sensor as body movement detection,will not influenced by environmental temperature,can works under -15℃ to 70℃，at the same time the detect range will not be affected.
Night Light Function: when the ambient light is less than 20lux ,the built-in 8pcs LED lamp will be works!
Product Feature

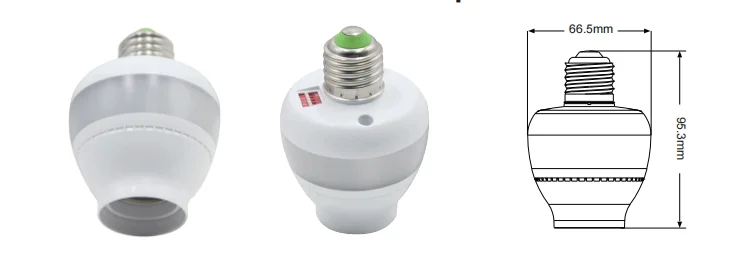

Product Display
Company Profile
NINGBO PDLUX ELECTRONIC TECHNOLOGY CO.,LTD
Ningbo Pdlux electronic technology co.,ltd is a professional high-tech enterprise specializing in the research, manufacture and sales of electronic products, which was first established in 1989.
Our products include: PIR sensor switch, M/W sensor switch, sensor light, wireless remote control doorbell, sensor doorbell, light-control switch, smoke alarm and multi-function wireless home security alarm system etc. Our products have a wide application in places, such as apartment, villa, hotel, supermarket, office building, etc. We're export to Europe, America, Southeast Asia and so on, and receive consistent good appraise from clients all over the world.
ISO9001 quality control system is strictly implemented in Pdlux, we use high quality SMD components, every procedure is strictly checked and monitored to ensure high quality products.
We have an independent mould workshop, a plastic injection workshop equipped with 50 injection molding machines, 6 large scale assembly workshops, and 12 advanced high speed SMT machines, there's a powerful production capacity. We have a professional team in product design and an independent mould workshop which makes us capable of developing 100 new products every year.
WELCOME TO VISIT OUR COMPANY
Certifications
The advanecd equipment laid a solid foundation for the qualified products, the effactive management ensures the standard efficiently executed.
All the products made by PDLUX have approved by the authority organizations.
All the standards have been
greatly manifested by PDLUX's products, which have the following certifications:
greatly manifested by PDLUX's products, which have the following certifications:
Why Choose Us
1) More than 30 years experience and 134 patents.
2) Warrenty for 3 years, zero-crossing technology's is for 6 years.
3) Strong technical support for any problems.
4) Exclusive sales right of your ODM products.
5) Good after-sales service.
6) OEM & ODM.
FAQ
How and how long can I get a sample to check your quality? Can I expect to get the sample?
After price confirmation, you can require for samples to check our quality. Then after you pay the sample charge and send us confirmed files, the samples will be ready for delivery in 3-5 days. The samples will be sent to you via express and arrive in 3-5 workdays. You can use your own express account or prepay us if you do not have an account.
Can you do the design for us?
Yes. Send us high resolution images, your Logo and text then tell us how you would like to arrange them, We will send you finished files for confirmation.
What about the lead time for mass production?
Honestly, it depends on the order quantity and the season you place the order. Normally we have enough stock about standard products, delivery can be made within 1~2 days once order confirmed, if our stock is not enough, production time is about 2~3 weeks.
Do you have inspection procedures for sensor?
100% self-inspection before packing.
Can I have a visit to your factory before the order?
Welcome! Our factory address: 35 Zhuquan Road, Science&technology Industrial Park, Ninghai, Zhejiang, China
