Customized Pure Sine Wave AC110/230V Wifi Module Hybrid Off grid 5kw 6kw 12kw Battery DC 24V 48V Solar Inverter Low Frequency
- Category: >>>
- Supplier: Shenzhen Huiming New Energy Co. Ltd.
Share on (1601061646572):
Product Overview
Description
Specification
Model | HS4KW | HS5KW | HS6KW | HS8KW | HS10KW | HS12KW | |||||
Battery Voltage | 24V/48V | 48V | |||||||||
Rated Power | 4KW | 5KW | 6KW | 8KW | 10KW | 12KW | |||||
Peak Power | 12KW | 15KW | 18KW | 24KW | 30KW | 36KW | |||||
Output Power | 110V/120V/220V/230V/240V | ||||||||||
Power way | Pure Sine Wave | ||||||||||
MAX PV charge Current | 60A | ||||||||||
MAX PV Power | 1650W | 2270W | 2800W | 3400W | 4540W | 5600W | |||||
MPPT Range | 35~150Vdc@24V/60~150Vdc@48V | ||||||||||
Max PV voltage | 150V | ||||||||||
Battery | Lithium battery/Gel battery | ||||||||||
Size | 560*420*235MM | 655*490*240MM | |||||||||
Packaged | 660*470*310MM | 720*470*310MM | |||||||||
Net Weight | 31.5KG | 33.5KG | 37.5KG | 56.5KG | 58.5KG | 61.5KG | |||||
Gross Weight | 40KG | 44KG | 45.5KG | 66KG | 68.5KG | 70.5KG | |||||
Monitoring | Wifi | ||||||||||
Warranty | Three Years | ||||||||||
Product details

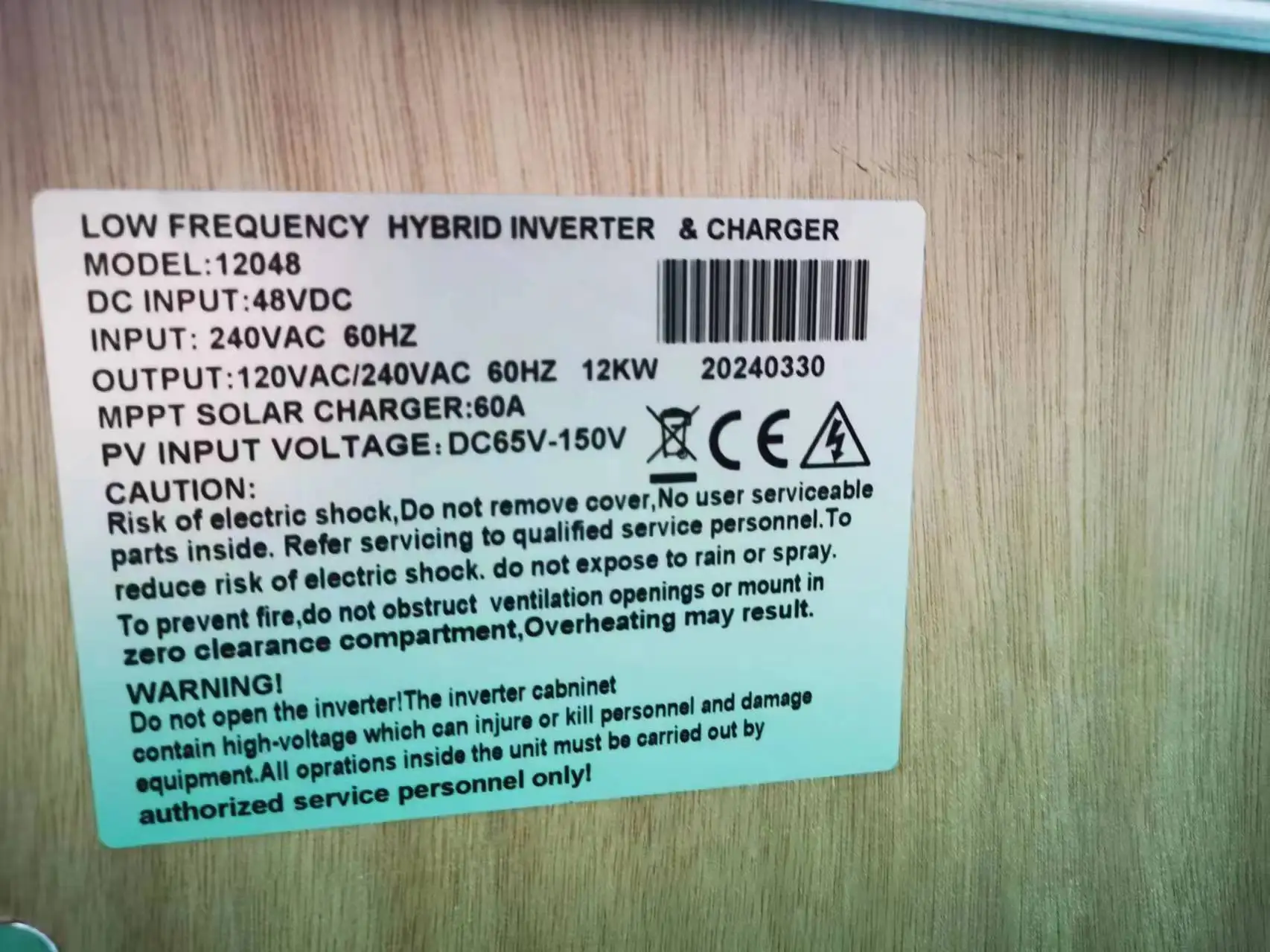

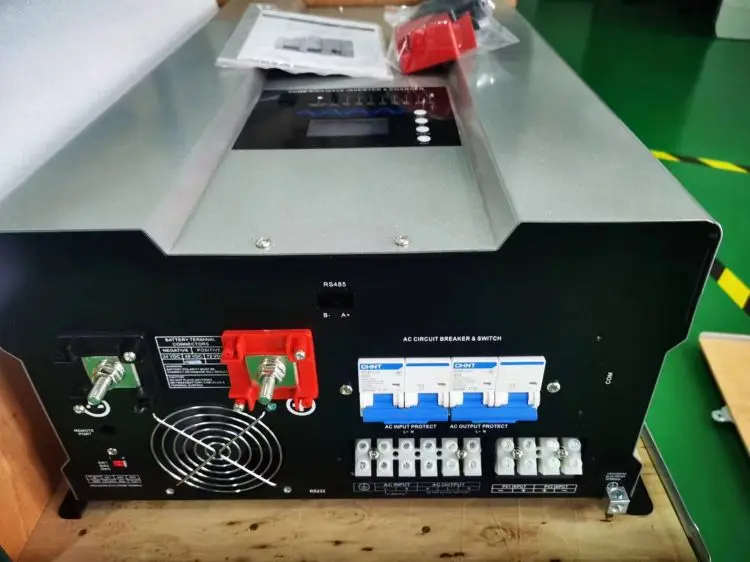

HMX 12KW LOW FREQUENCY SOLAR INVERTER
Rated Power: 12KW
Output Voltage: 120V/230V split
Mppt Solar Charger: 60A
PV Input Voltage: 60V~150V
Pure sine wave series inverters
Support main grid/diesel generators
Three times peak power
Support lithium battery and gel battery

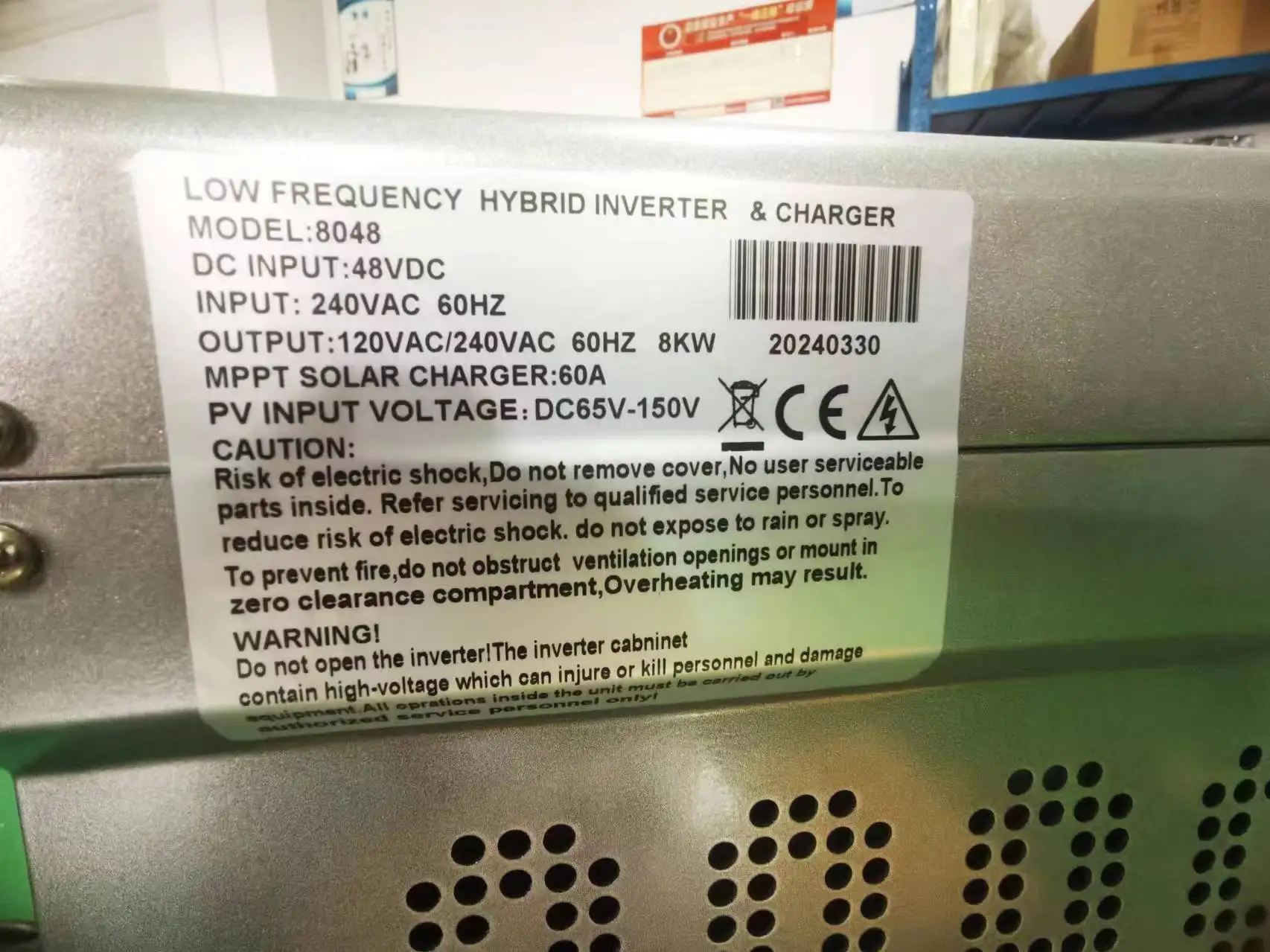

HMX 8KW LOW FREQUENCY SOLAR INVERTER
Rated Power: 8KW
Output Voltage: 120V/230V split
Mppt Solar Charger: 60A
PV Input Voltage: 60V~150V
Pure sine wave series inverters
Support main grid/diesel generators
Three times peak power
Support lithium battery and gel battery
Products Description
1. Pure sine output is suitable for various loads. It can be used with mixed power supply such as mains/diesel generators/Automatic switching
2.Support 5 functions: mains bypass, mains charging, solar charging, inverter, UPS
3. Built-in MPPT/solar charge controller (controller power /80A/100A/120A optional)

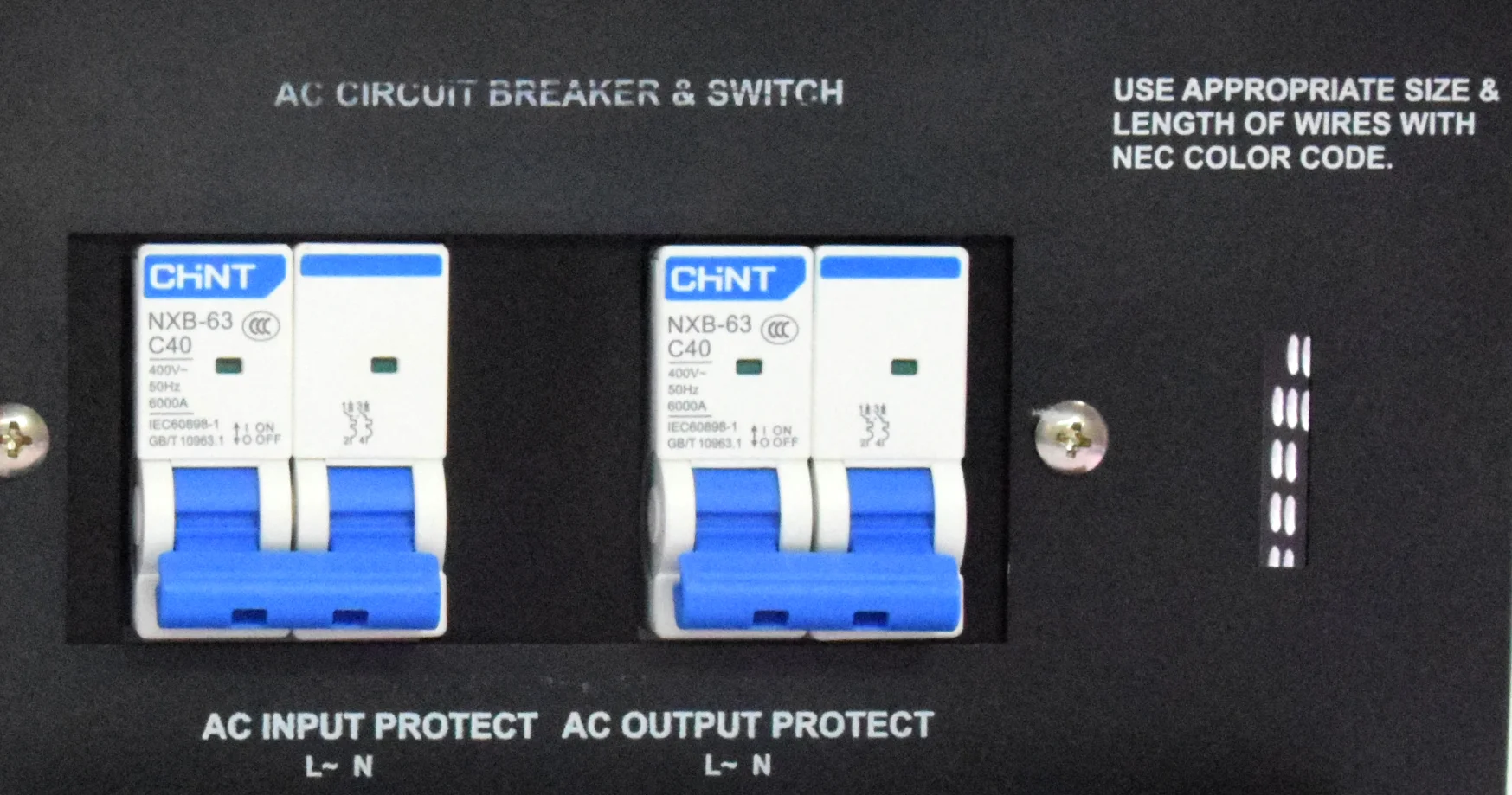

4. AC/DC circuit breaker, protections such as under voltage/over voltage/short circuit/overload/over temperature
5. DIP switch selection: battery under voltage point, input AC range, energy saving mode, output frequency, priority mode
6. The efficiency is 3~5% higher than the ordinary power frequency series, and the self- consumption is reduced by 30%~50%
7. Professional off-grid solar system solutions (optional)
8. Remote Control RJ11 / RJ45 and RS232 / 485 Interface Remote Control Panel (optional), App Features Options
9. Pure sine wave series inverters are suitable for renewable energy systems, solar photovoltaic systems, vehicles, ships,Marine and emergency applications.
2.Support 5 functions: mains bypass, mains charging, solar charging, inverter, UPS
3. Built-in MPPT/solar charge controller (controller power /80A/100A/120A optional)
4. AC/DC circuit breaker, protections such as under voltage/over voltage/short circuit/overload/over temperature
5. DIP switch selection: battery under voltage point, input AC range, energy saving mode, output frequency, priority mode
6. The efficiency is 3~5% higher than the ordinary power frequency series, and the self- consumption is reduced by 30%~50%
7. Professional off-grid solar system solutions (optional)
8. Remote Control RJ11 / RJ45 and RS232 / 485 Interface Remote Control Panel (optional), App Features Options
9. Pure sine wave series inverters are suitable for renewable energy systems, solar photovoltaic systems, vehicles, ships,Marine and emergency applications.

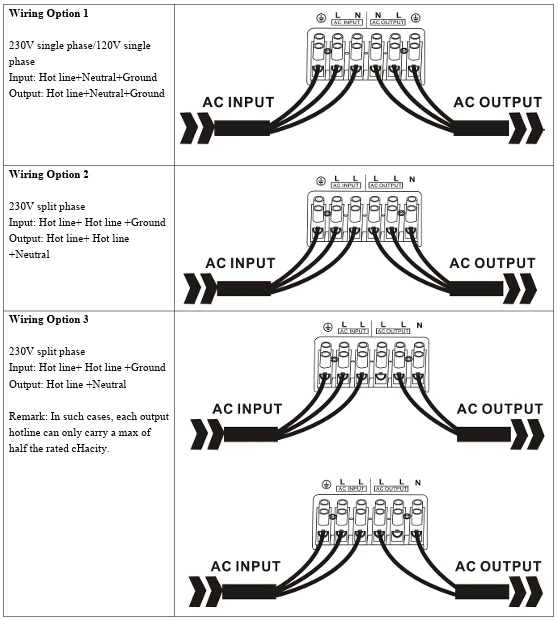

Wiring types
HMX low frequency split solar inverter
Support 110V/230V output power to supply your house power

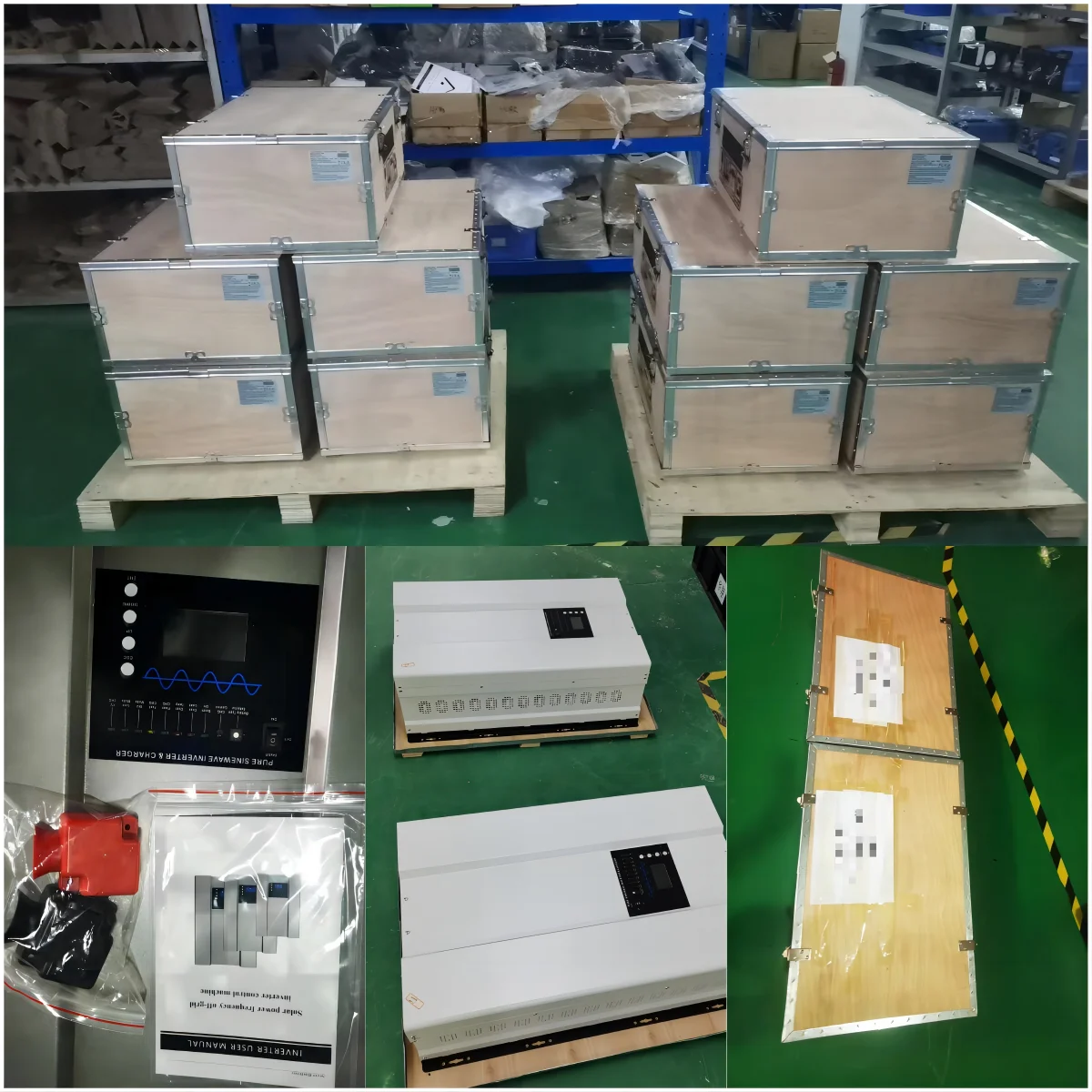

Packaging
Certification
FAQ and Precautions
Q: Are you factory or trade company?
A: Factory in shenzhen city over ten years
Q: What is your warranty
A: Solar inverter 2 years warranty, some model with two years, Lithium battery 10 years warranty, solar system support 5 years
warranty
Q: What is your after-sales
A: During warranty, we provide free parts and shipping to you
Q: What is your delivery time
A: Please inquiry salesman for update delivery time. Usually several quantity in stocks. Usually within 3 days
Q: Do you support OEM?
A: Support customized logo, packaging and product design
A: Factory in shenzhen city over ten years
Q: What is your warranty
A: Solar inverter 2 years warranty, some model with two years, Lithium battery 10 years warranty, solar system support 5 years
warranty
Q: What is your after-sales
A: During warranty, we provide free parts and shipping to you
Q: What is your delivery time
A: Please inquiry salesman for update delivery time. Usually several quantity in stocks. Usually within 3 days
Q: Do you support OEM?
A: Support customized logo, packaging and product design
