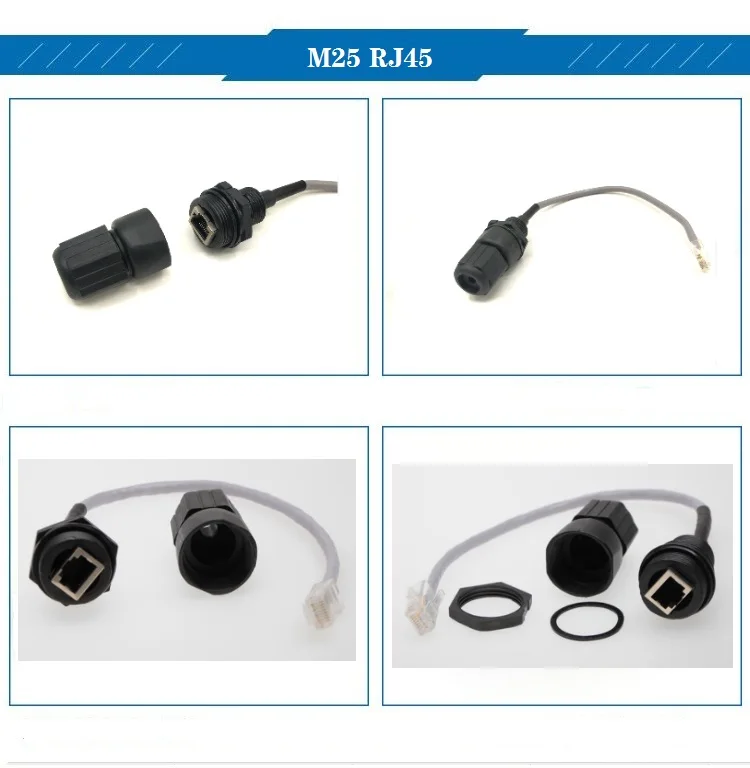

M25 CAT5E waterproof RJ45 Ethernet Connector Panel Mount With Pigtail Cable Outdoor L 25cm
- Category: >>>
- Supplier: Shenzhen Hengzhan Shidai Technology Co. Ltd.
Share on (1601061647723):
Product Overview
Description

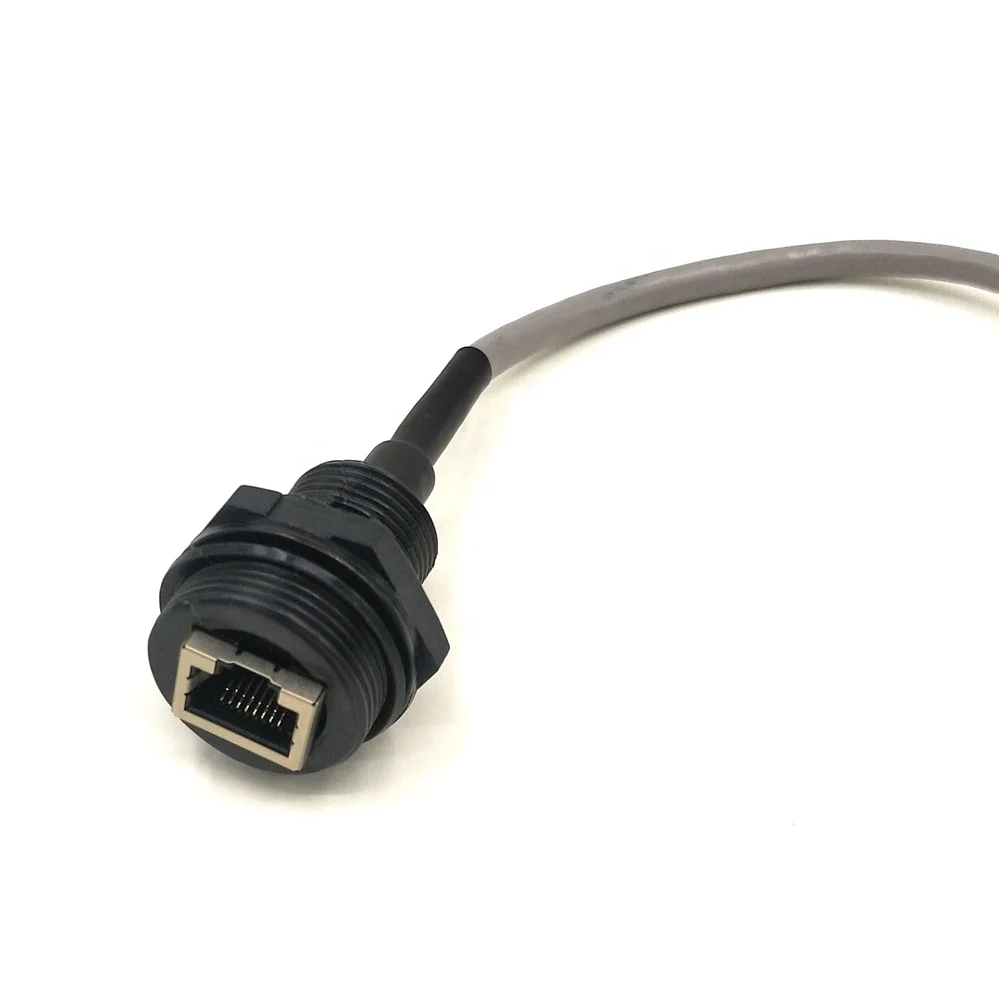

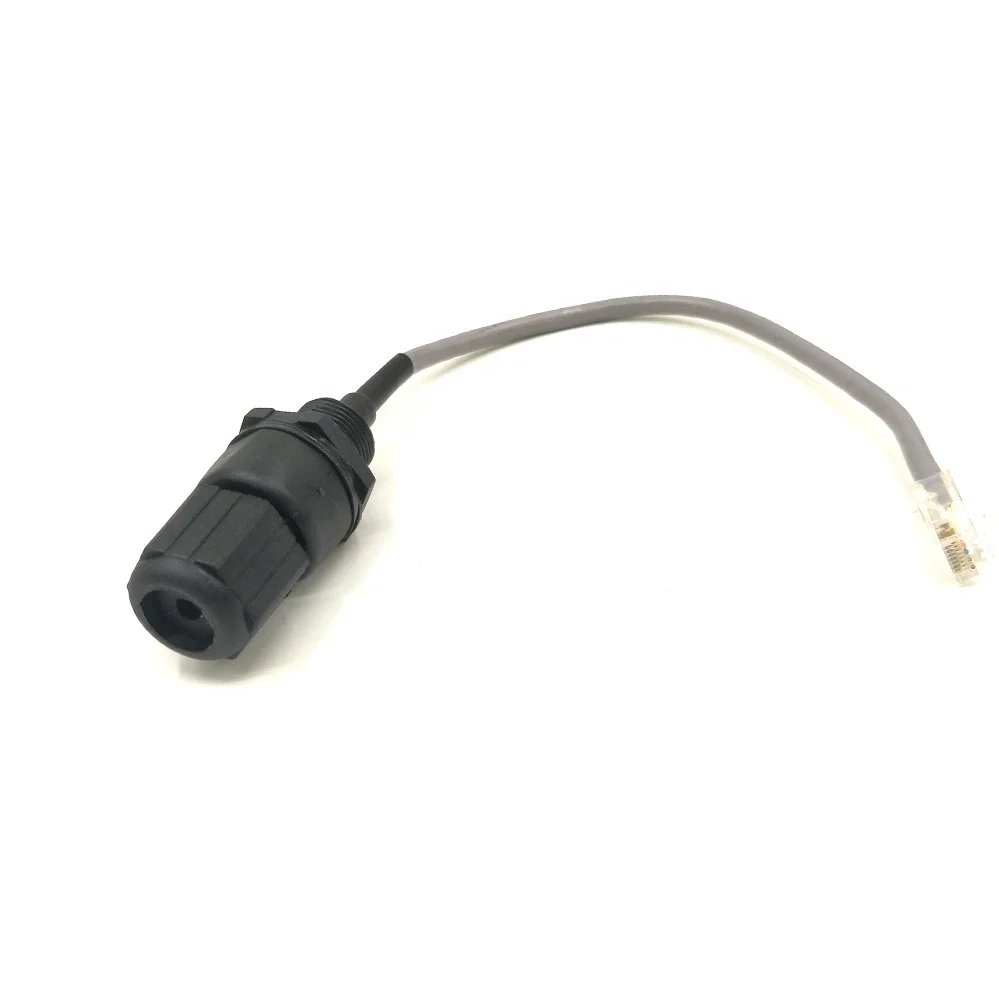

M25 CAT5E waterproof RJ45 Ethernet Connector Panel Mount With Pigtail Cable Outdoor L 25cm
Product Description
1. General characteristics
This network cable waterproof connector is suitable for waterproof quick connection of network cables such as ADSL and control cables of new optoelectronic technology products such as LED and LCD. An 8-core network cable has been connected, and the other end can be quickly plugged into another network cable.
1). Product form: one end is fixed on the box body, the outer end is waterproof,
2). Product model: M25AP3
3). Number of cores: eight cores (one end is equipped with a 25cm super-category five pure copper four-strand twisted pair network cable, and the length of the cable can also be customized according to the buyer's requirements)
4), protection level: IP67
5). Access method: RJ45

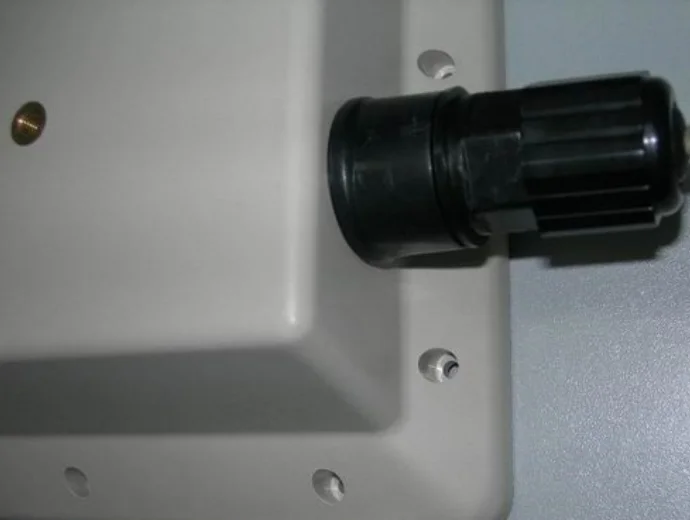

Installation size M25 This model is suitable for outdoor AP waterproof boxes with a thickness below 6MM
Product Information
1 | Model No. | RJ45 waterproof connector |
| 2 | Housing Material | Nylon(PA66)+GF UL94V-0 1/16'' |
| 3 | Contact Material | Brass with Gold Plated |
| 4 | Sealing Material | Silica Gel |
| 5 | Contact Number | 8 Pin |
| 6 | Contact Resistance | <10mΩ |
| 7 | Insulation Resistance | ≥500mΩ |
| 8 | Operating Temperature | -25℃ ~ +105℃ |
| 9 | Durability(Plug/Unplug) | 3000times |
| 10 | Waterproof Rating | IP67 |
| 11 | Thickness of Opening Panel | 1.5mm-10mm |
| 12 | Cable Specification | 20AWG-26AWG |

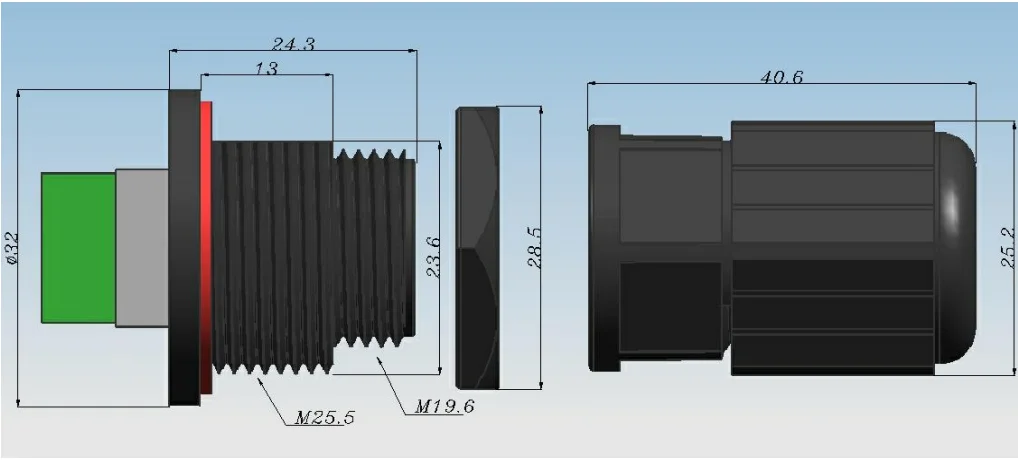

Size
Packaging & Shipping
Packaging Details: Outdoor ethernet rj45 M25 cable waterproof connector will be packed in one small bag and then put in one box.If you need custom package, we will do as your requirest.
Delivery Detail: About 7 workdays after payments.
Applications
Our Services
We supply M8 M12 cable connector, M25 cable connector, heavy duty connectors , 5015 connector and other many kinds of connectors. If you need cable harness, we also can supply harness processing, you just need let us now the spec of the cable and the connectors, we will give you a cable harness drawing.
Company Information
FAQ
Q1.Are you a manufacturer?
A1: Yes, we are a experienced manufacturer with our own molds and production lines.
Q2.How about quality of products?
A2: Our technicians and QC teams test the products one by one using specail device and instruments.
Q3.How about price?
A3: We are a manufacturer and always offer our customers the most competitive factory price.
Q4.How to play an order?
A4: Contact with online service, or sent an email to us,we will confirm you with product price,specs,packing etc.
Q5.May I buy samples from you?
A5: Yes! You are welcome to place sample order to test our superior quality and services.
Q6.Can I visit your factory?
A6: Yes, welcome to our factory.
Q7.How can I make OEM or ODM orders?
A7: We have different print processing,different OEM orders please contact again or view more items on our alibaba page.
Q8.How do you ship the finished product?
A8: Based on the customer request, we can ship by customer's international express account like DHL,TNT,UPS,FEDEX or by our forwarder shipping.
