Likelight Individually DC5V addressable SIDE VIEW led chip SK6812 RGBW flexible Side glow led strip light
- Category: >>>
- Supplier: Shenzhen Like Light Co. Limited.
Share on (1601061651622):
Product Overview
Description
Product Description
Product Name | L-S-SK6812-RGBW-100144 |
Lighting Source | SMD 4818 RGB LED |
Beam Angel | 120 degree |
Operate Voltage | DC5V |
Consumption Watt/M | 43.2W |
Pixel Pitch (mm) | P6.9mm |
LEDs(Pixel)/M | 144m（Pixel） |
IC chip | SK6812 |
PCB Color | Black/White |
PCB Width | 8mm |

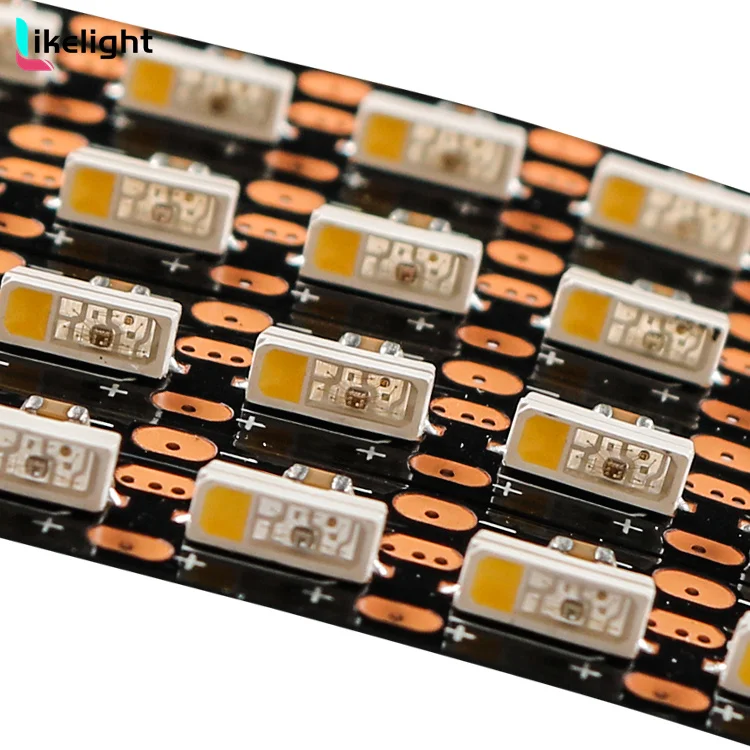

4818 side luminous lamp bead luminous area large long life old model upgrade new, high density long life, high luminous efficiency, good effect, quality assurance.
Direct touch, safe self-DINy, cut along dotted line.
3MM back stick, a tear stick with good back stick, easy installation, low pressure safety

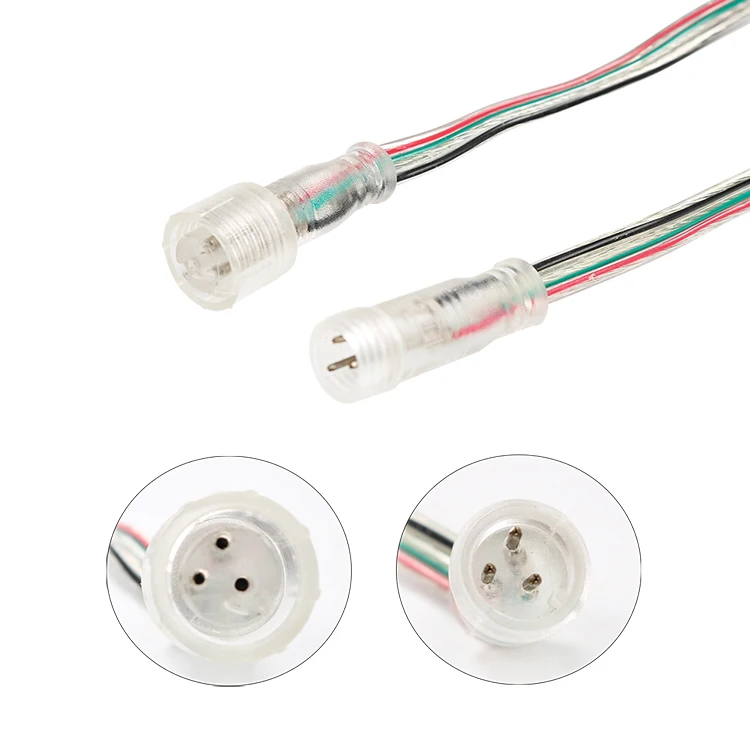

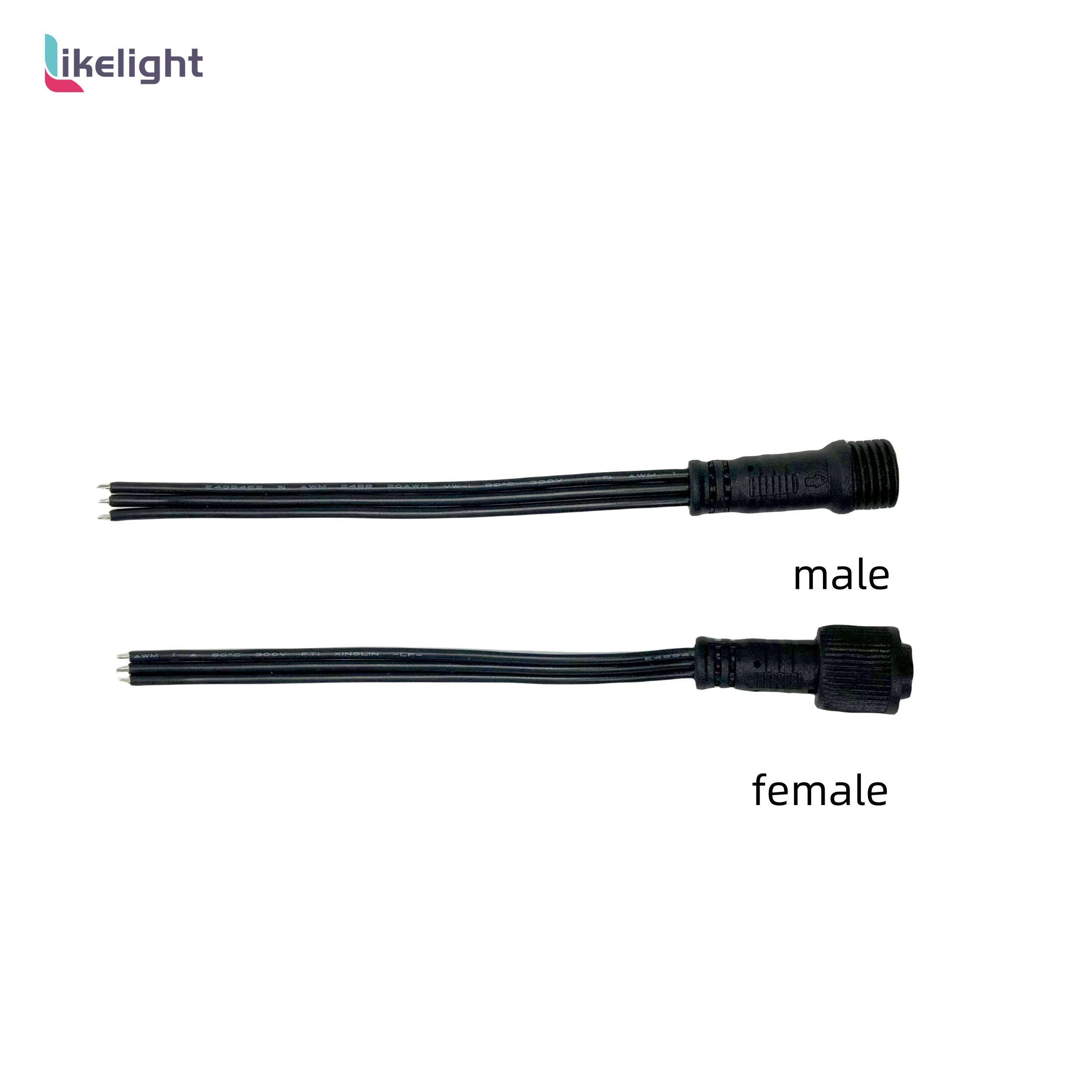

4.Waterproof terminal
Waterproof or not
A variety of styles to choose from
A variety of styles to choose from

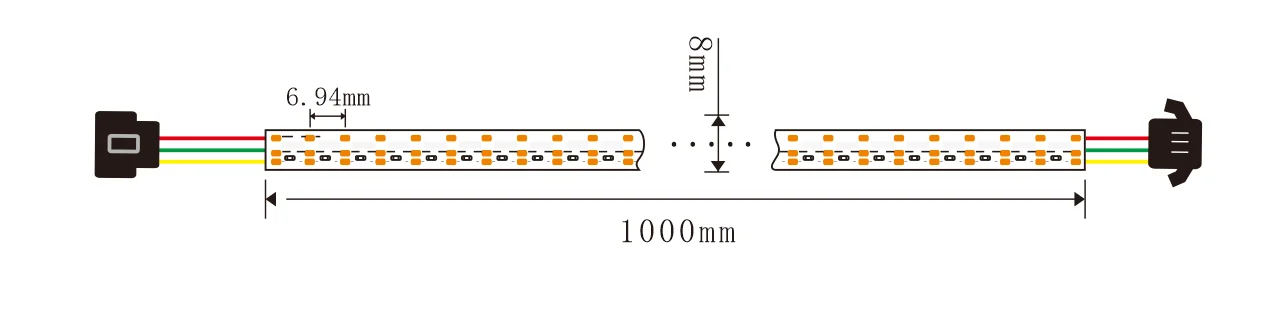

Dimension drawing
1. Control IC SK6812 inserted in 4818 RGB LED diode, supporting numerous color-change effects .
2. White PCB and black PCB optional .

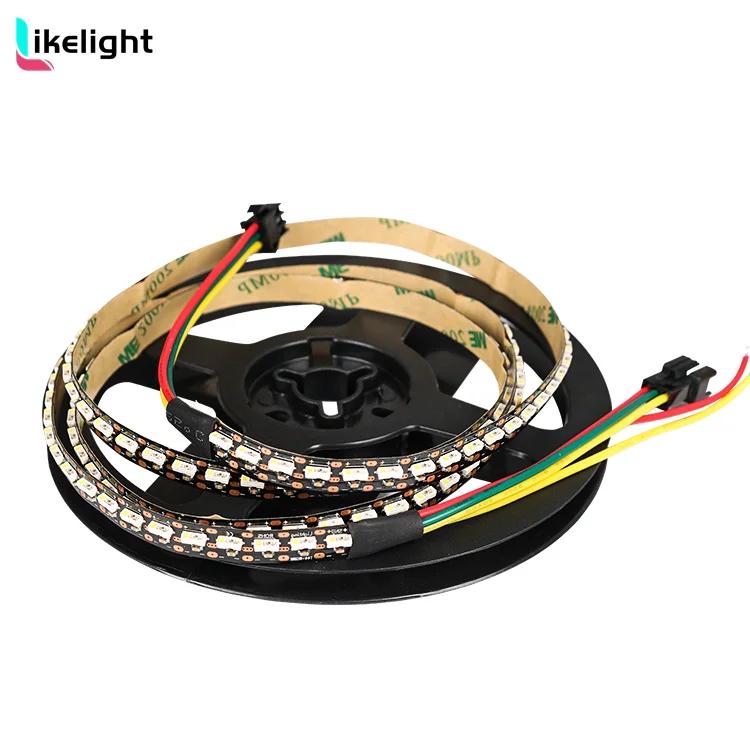

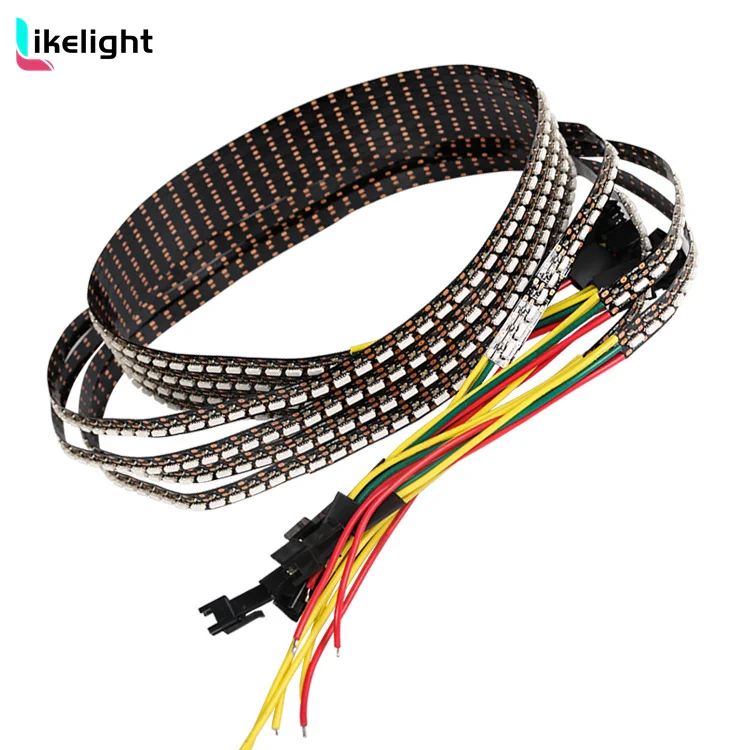

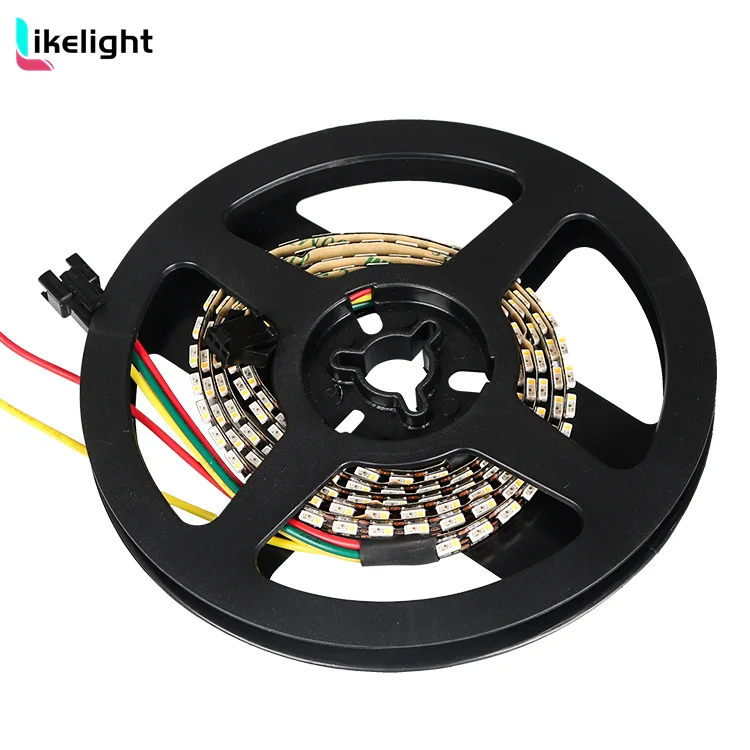

3. It comes in 1 meters per reel with 3Pin female/male JST SM connector on both end and separated Power / Ground Wires. Customized length is workable .

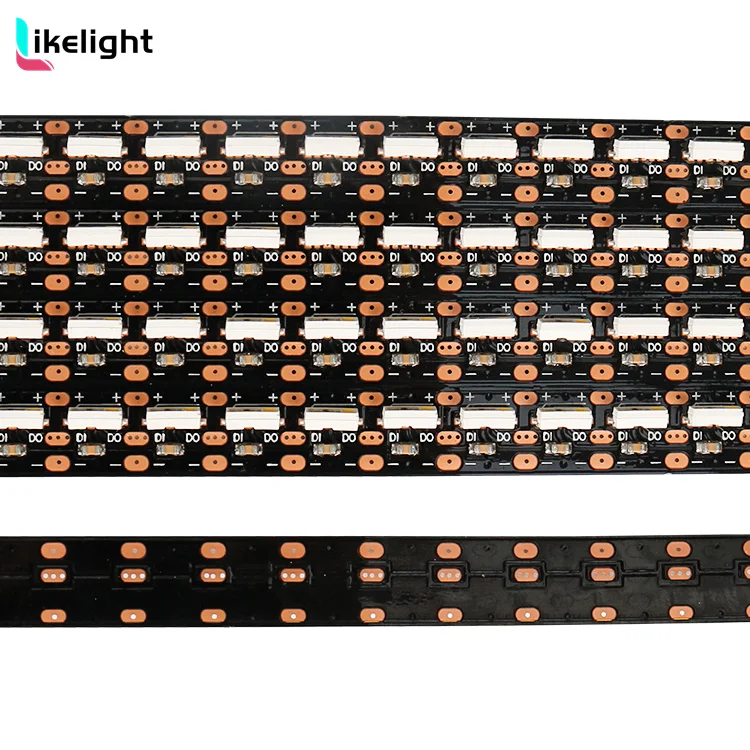

4. Flexible PCB material . Each LED/Pixel can be cut , there is cut lines every 6.9mm.
5. 144LEDs/M . 5V low voltage inputted , don’t over 6V , otherwise you will destroy the entire strip .
6. 8mm width PCB , 0.25mm thickness with 3M tape back side for non-weatherproof version . 12.5mm width , 4mm thick with silicon tube for waterproof type .
7. It is only Date Pin for signal transfer , no Clock Pin .
2. White PCB and black PCB optional .
3. It comes in 1 meters per reel with 3Pin female/male JST SM connector on both end and separated Power / Ground Wires. Customized length is workable .
4. Flexible PCB material . Each LED/Pixel can be cut , there is cut lines every 6.9mm.
5. 144LEDs/M . 5V low voltage inputted , don’t over 6V , otherwise you will destroy the entire strip .
6. 8mm width PCB , 0.25mm thickness with 3M tape back side for non-weatherproof version . 12.5mm width , 4mm thick with silicon tube for waterproof type .
7. It is only Date Pin for signal transfer , no Clock Pin .

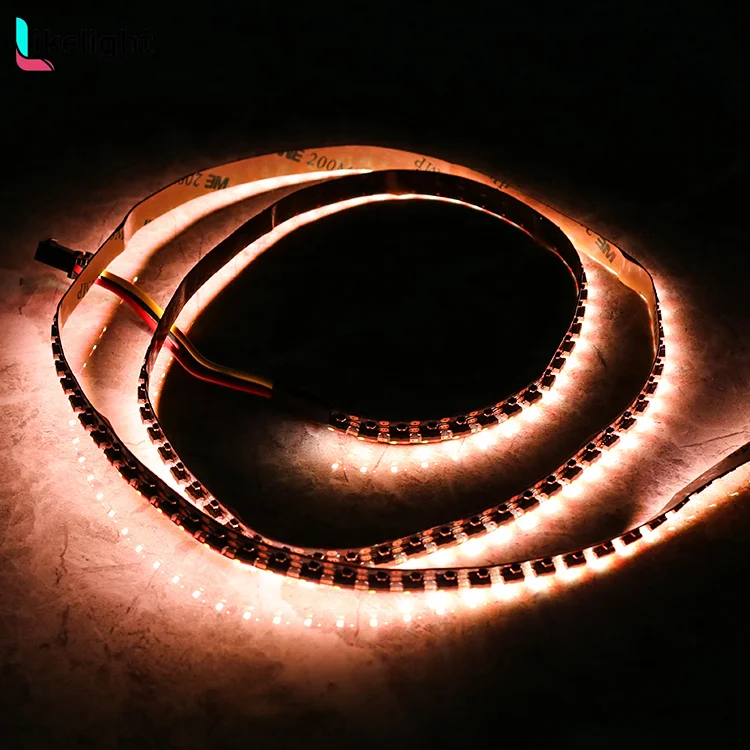

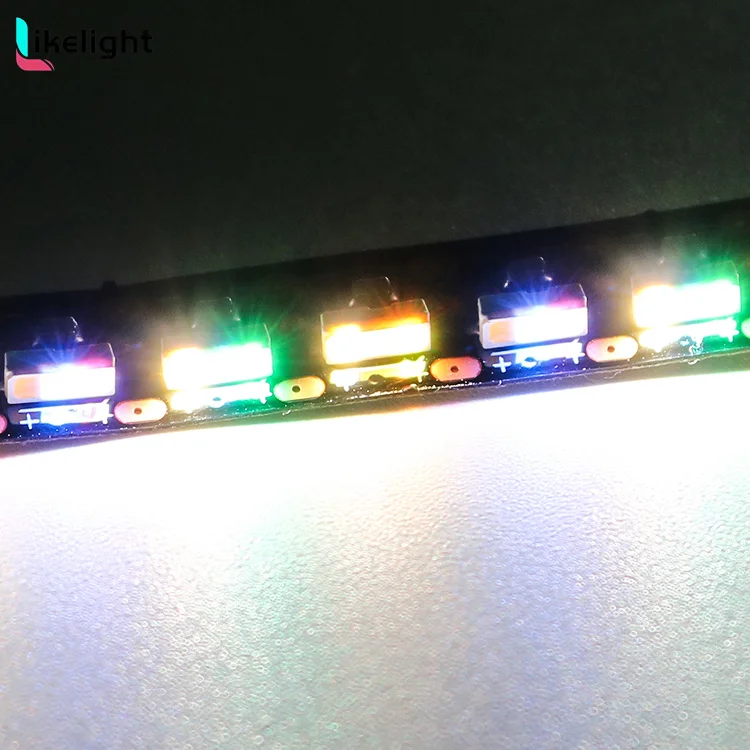

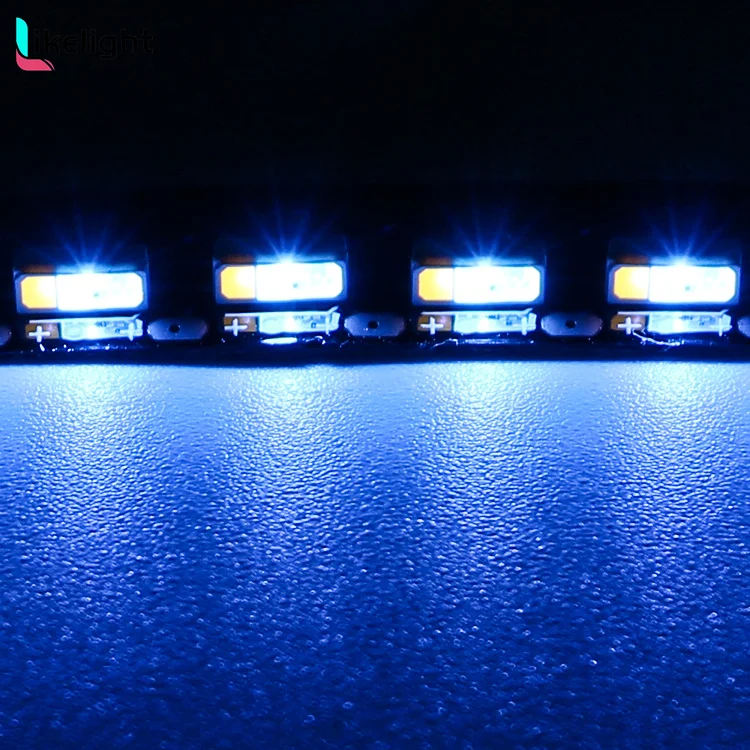

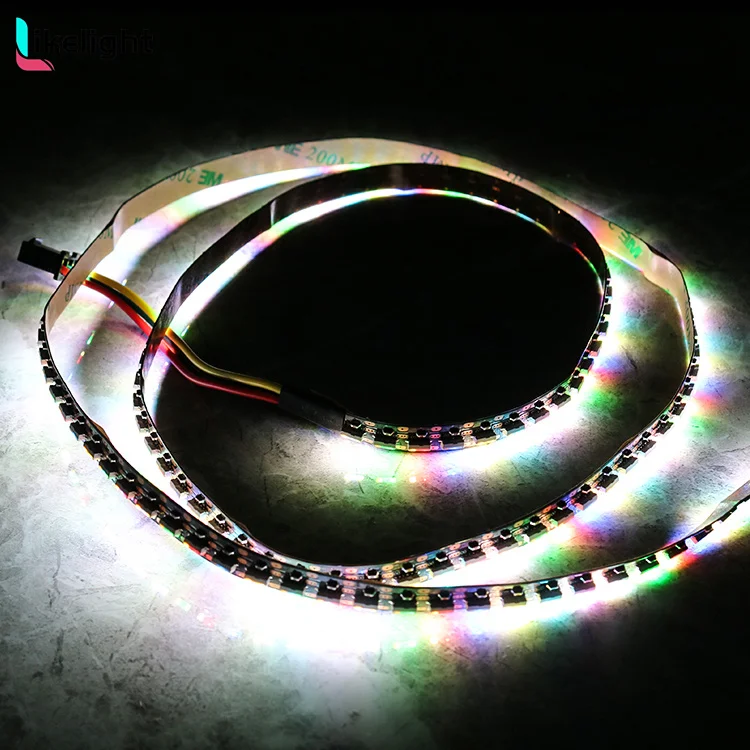

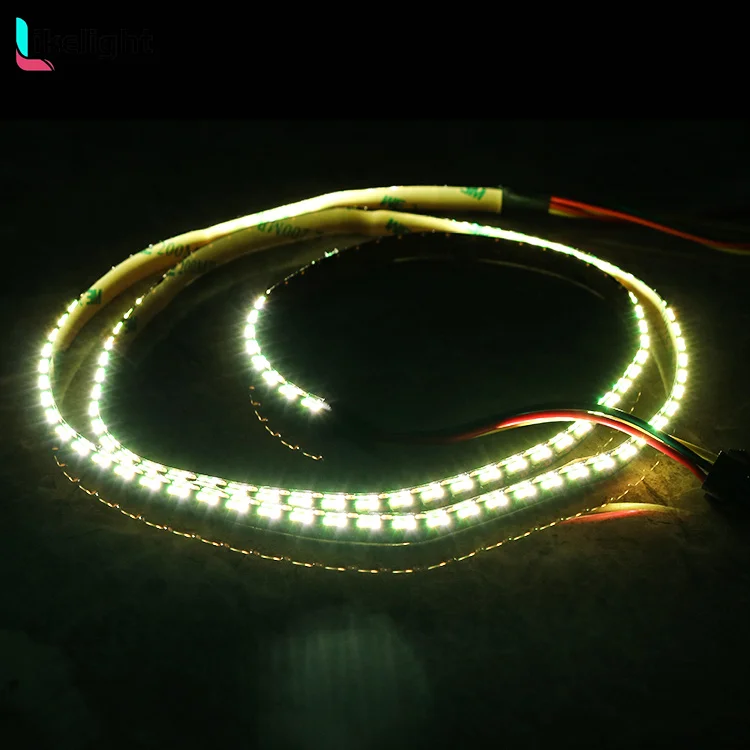

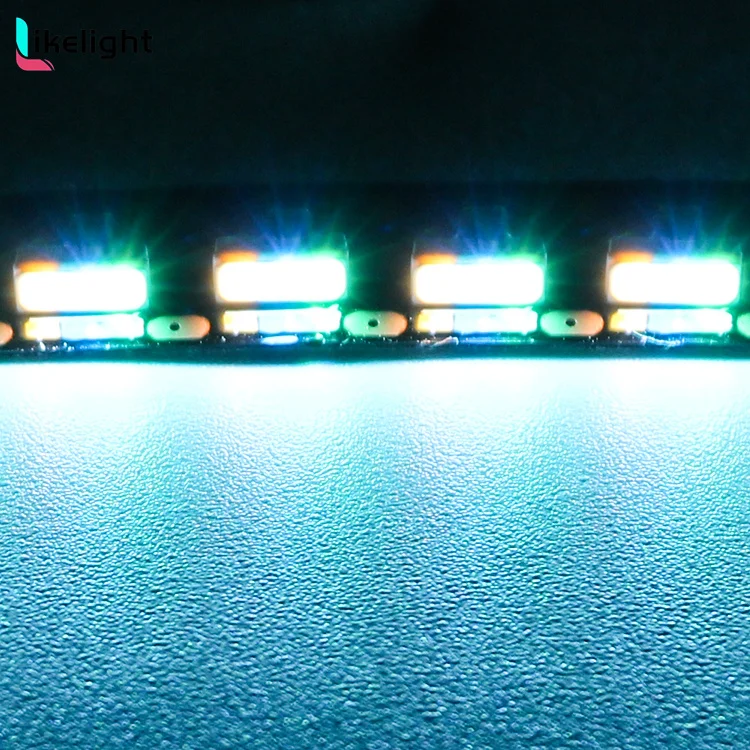

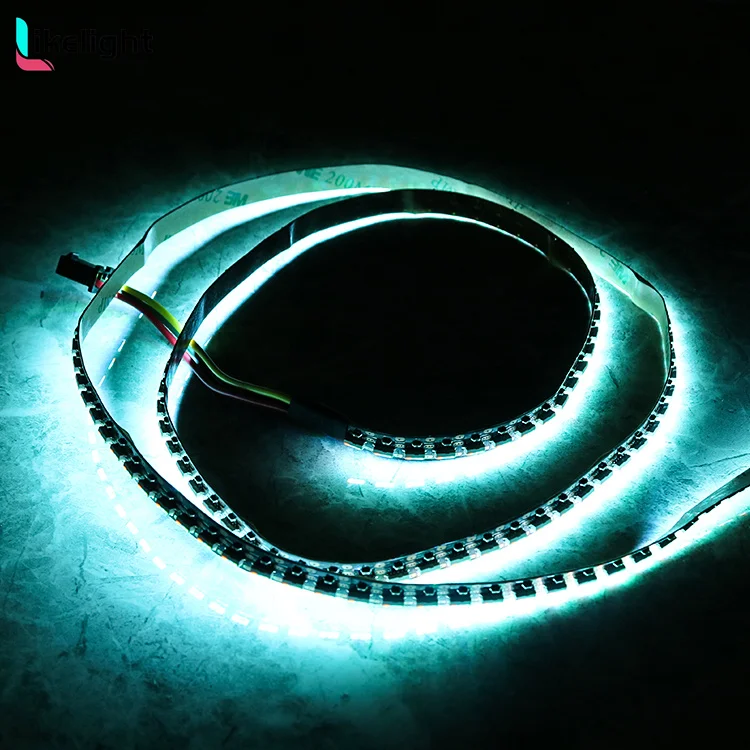

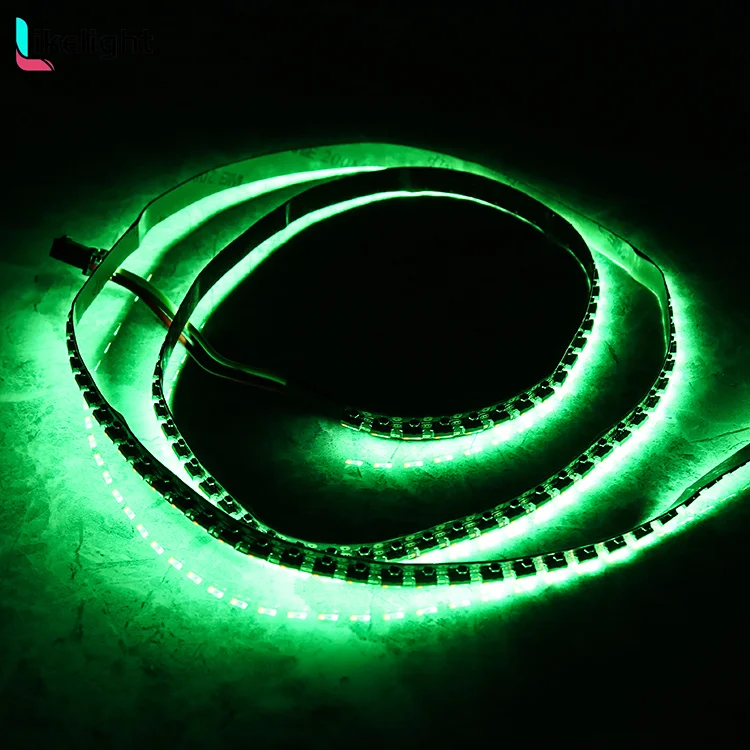

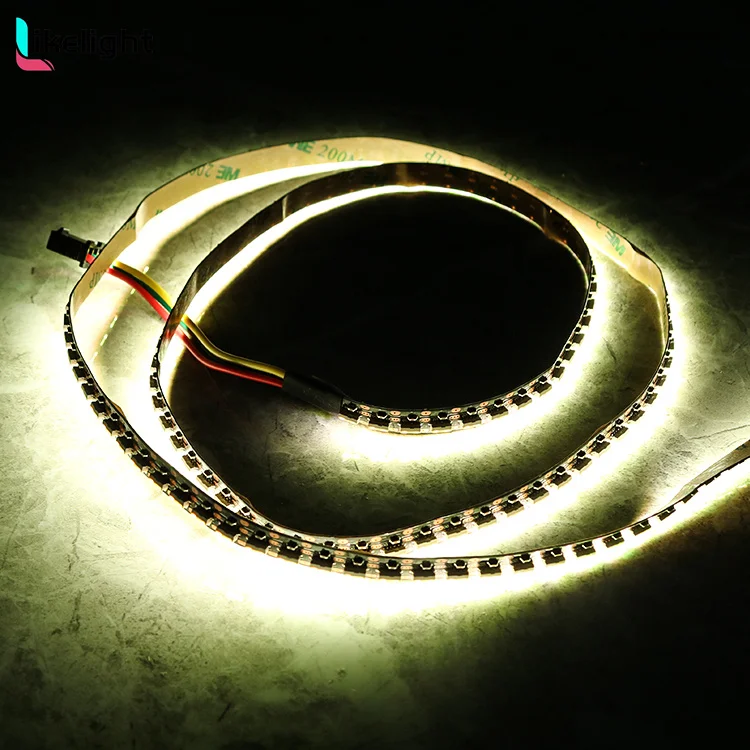

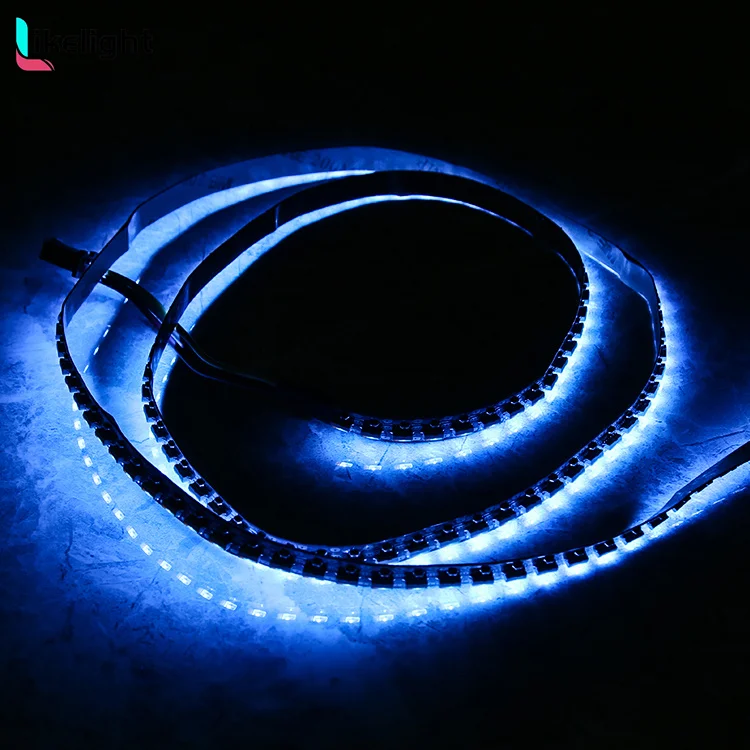

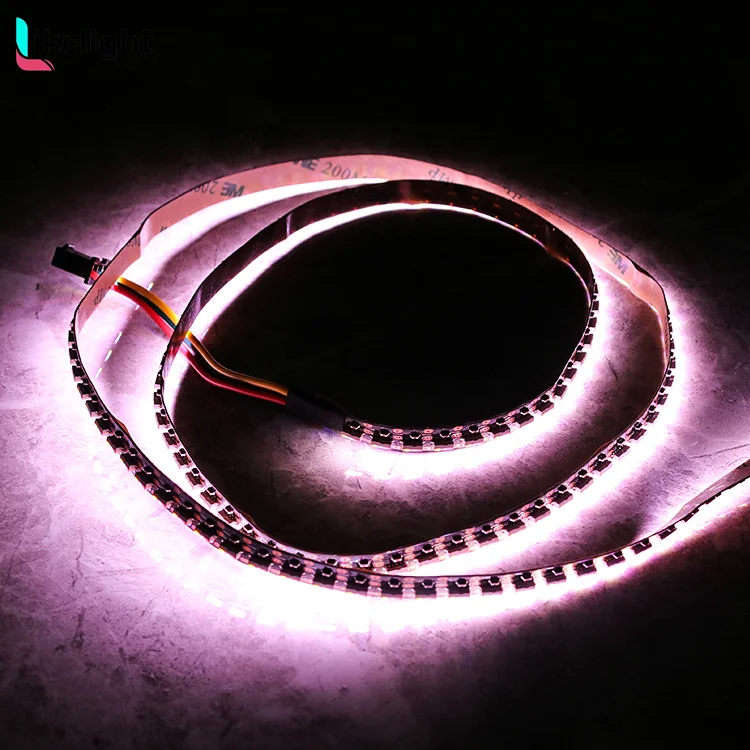

Lighting effect

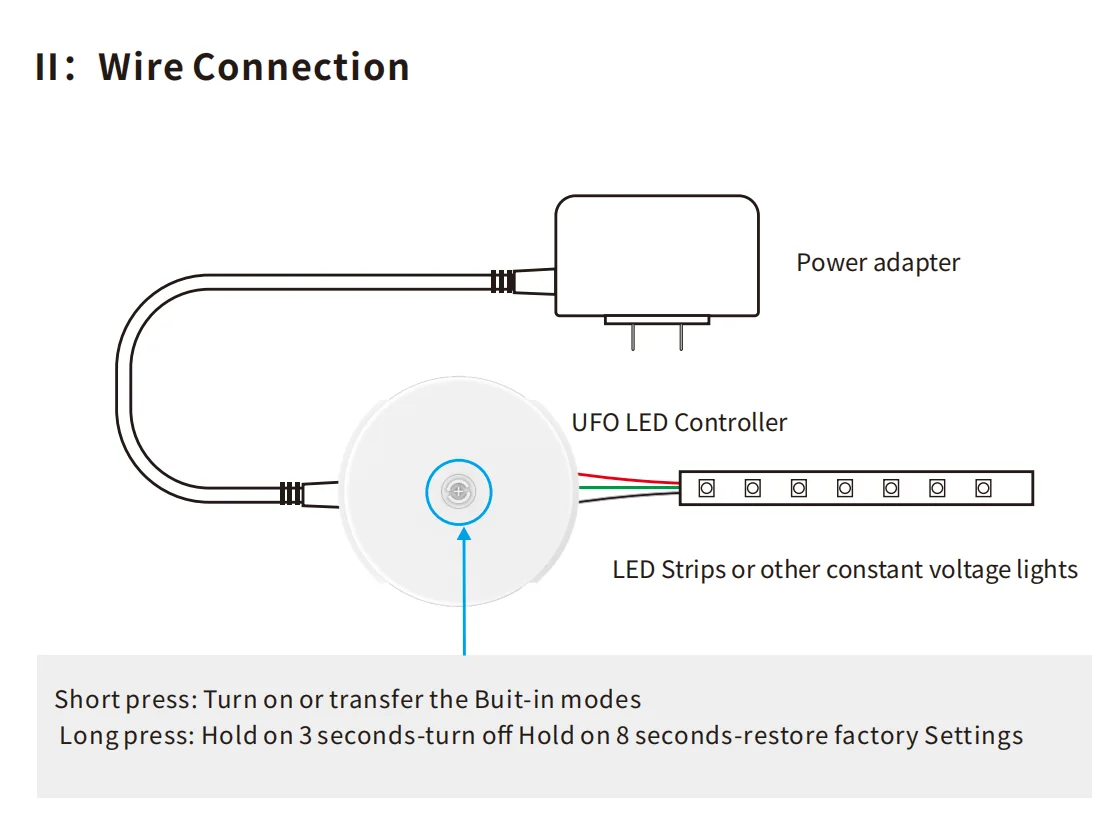

Power supply and controller
1. SD Controller T400K, T500K, T4000C, K1000C, K8000C; Online Controller; Artnet;Arduino and DMX controller.
2. Software to make program, now we often use LEDEDIT, LED EASY and MADRIX.
3.Contact me for more information.
Normal Controller
2. Software to make program, now we often use LEDEDIT, LED EASY and MADRIX.
3.Contact me for more information.
Normal Controller

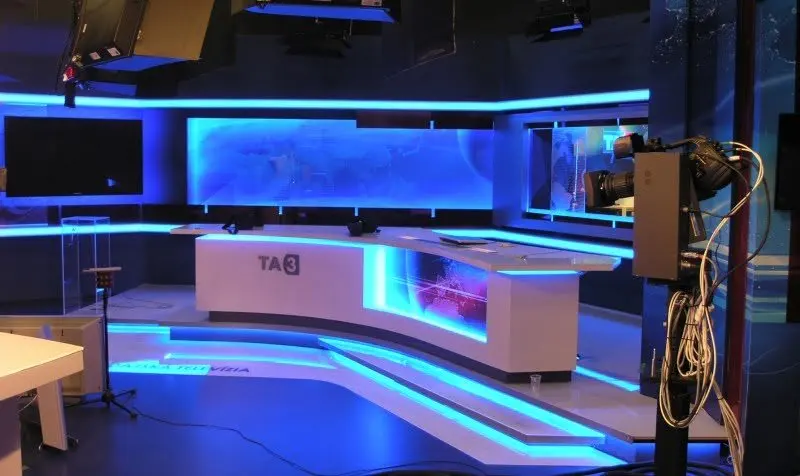

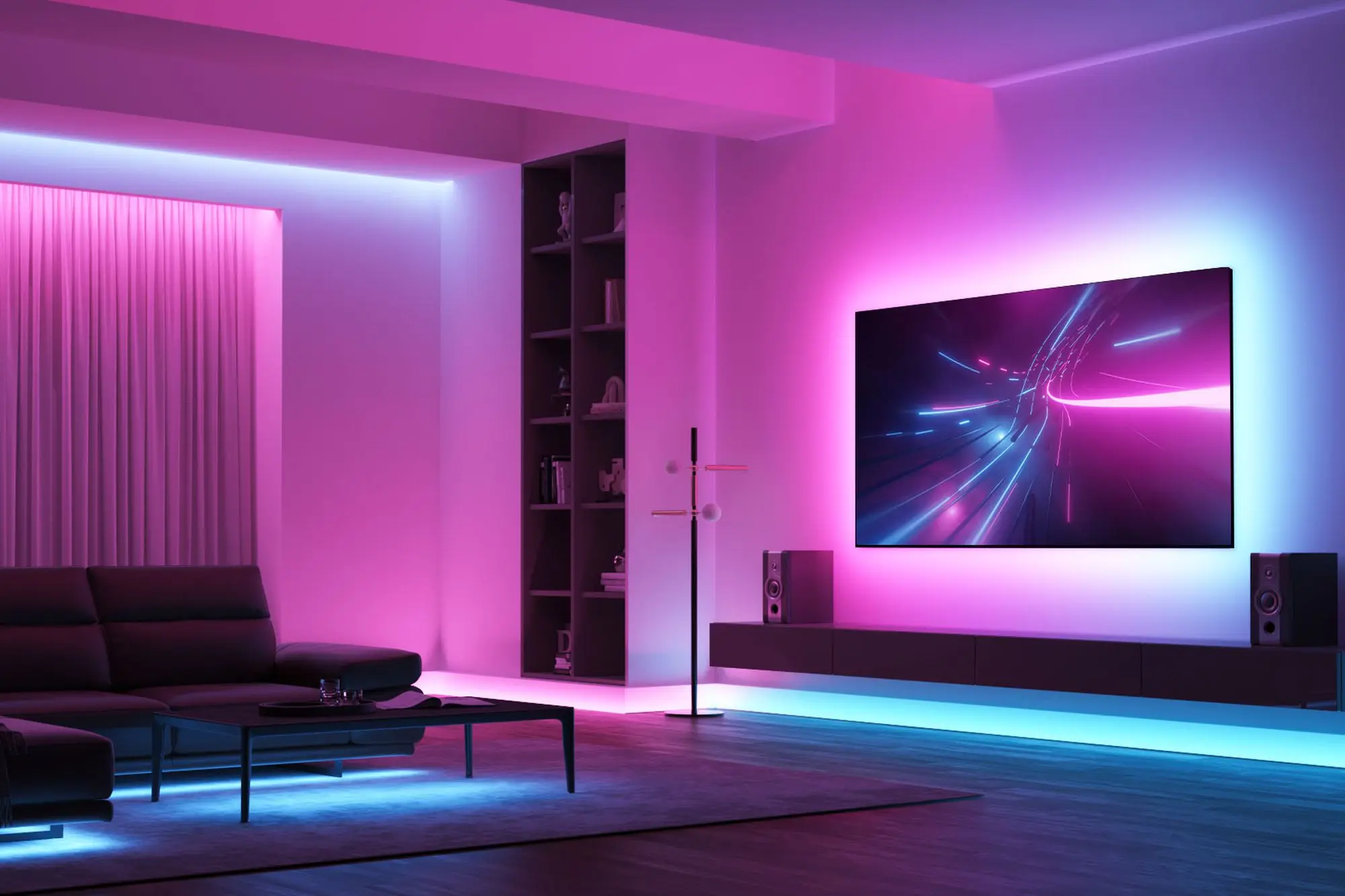

Application：
for indoor and outdoor use.
Also can better meet your decorative lightening needs for its flat and flexible features.
