2023 Hot Selling Airless Line Striper Automatically Stripe Skip lines Cold Paint Road Marking Machines

Product Overview

Description

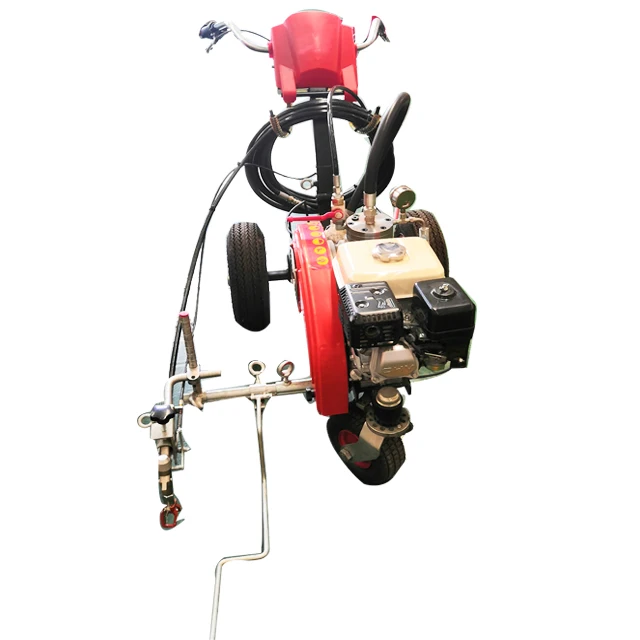

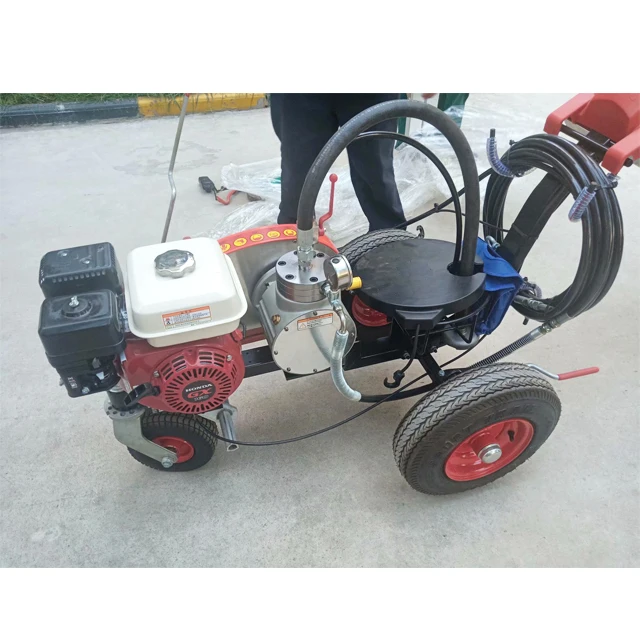

Small Airless cold paint road painting machine with honda engine

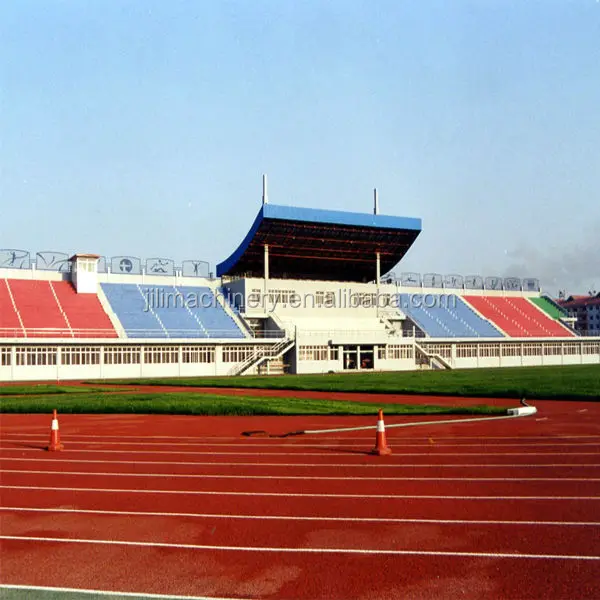

1. Hand-push cold paint road marking machine series are specially designed for small scale line marking jobs, such as zebra line, parking, sports, special letter, arrow and signs, and so on.



2.Alloy chassis, compact structure, high-speed bearing, inflatable tires, all of them ensure most flexible operation

New-style high-pressure airless pump, larger flow with stable pressure, can ensure high efficiency and high quality marking job.



3.Lockable wheel directional device make sure of straight line marking and flexible turning.



4. Marking width can be flexibly adjusted according to individual requirements.



5.User can require to additionally equip with Roll booster to realize self-propelled function.



6.User can require to additionally equip with stainless spraying system for spraying water-based paint or micro-electronic control system to realize automatically control....

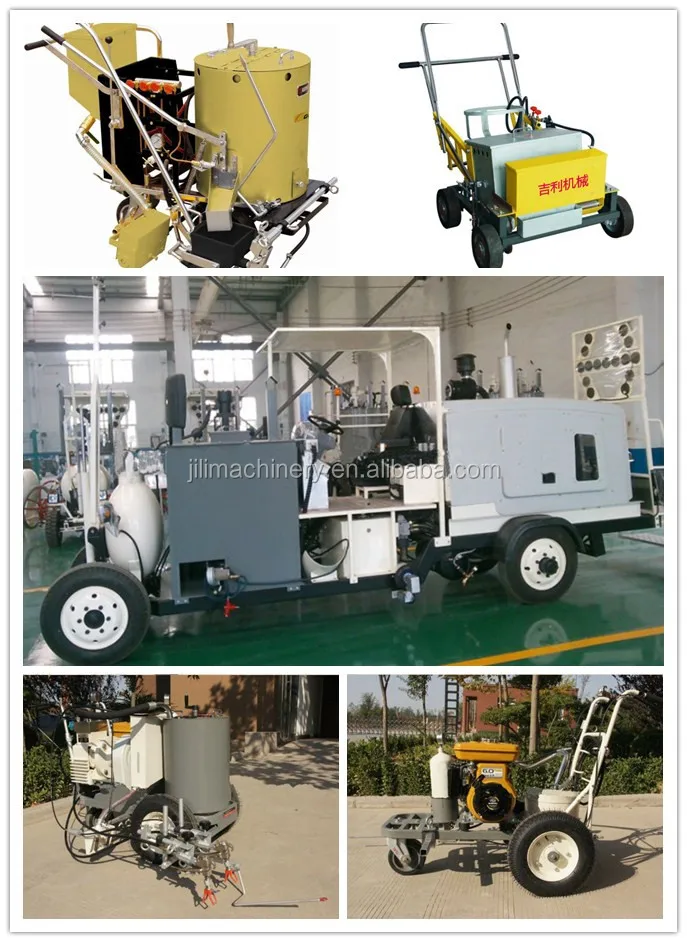

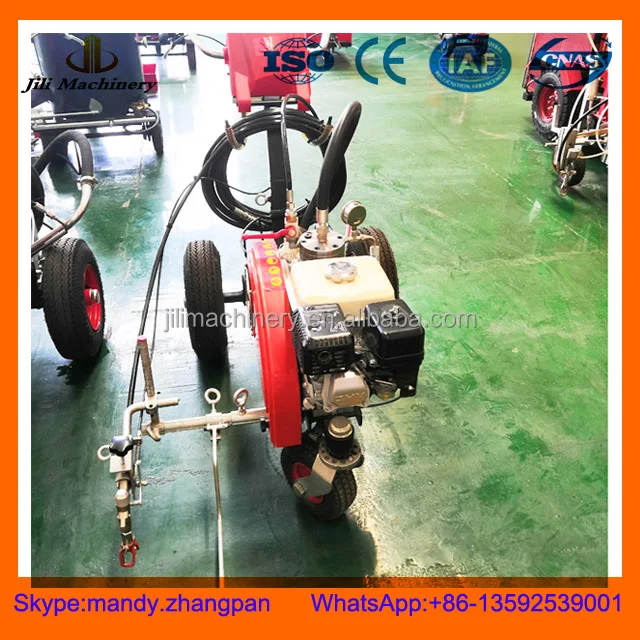

Sport Ground Manual Airless Spraying Cold Paint Road Line Marking Machine

Technical Information



	JLSCP85-I	JLSCP85-II
Engine	Kohler 6.0HP or Robin 6.0HP gasoline engine
Paint pump	Diaphragm type, flow 8.5L/min, maximum pressure 25Mpa
Paint tank capacity	55L
Glass beads system	6L dispenser	9L capacity, spraying

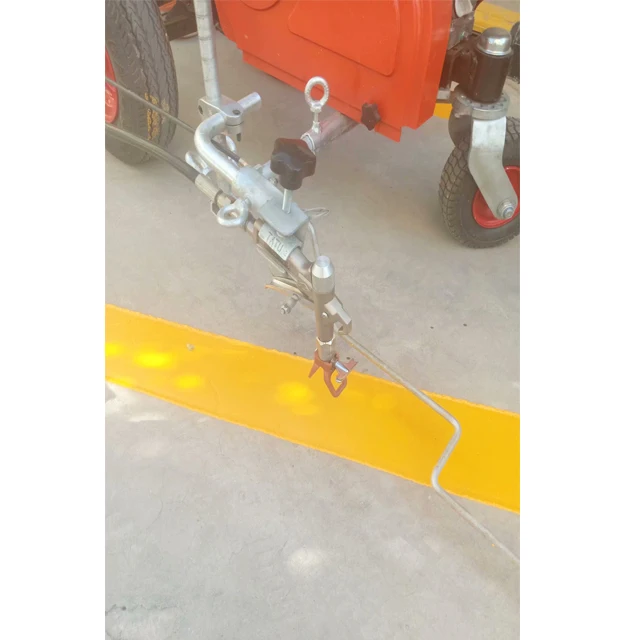

Spray gun	Double manual spray guns
Applied paint	Cold-solvent paint	Cold-solvent paint and water-based paint
Marking width	50-450mm (adjustable)
Dimensions (L*W*H), Weight	1350×1200×950mm, 180kg	1620×1260×1200mm, 200kg
Optional system	Booster, warning light and lighting lamp

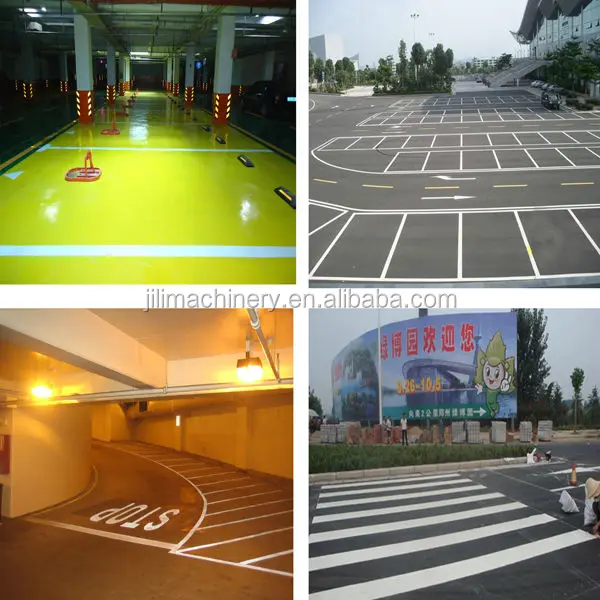

 Cold spraying road marking machine Marking line
