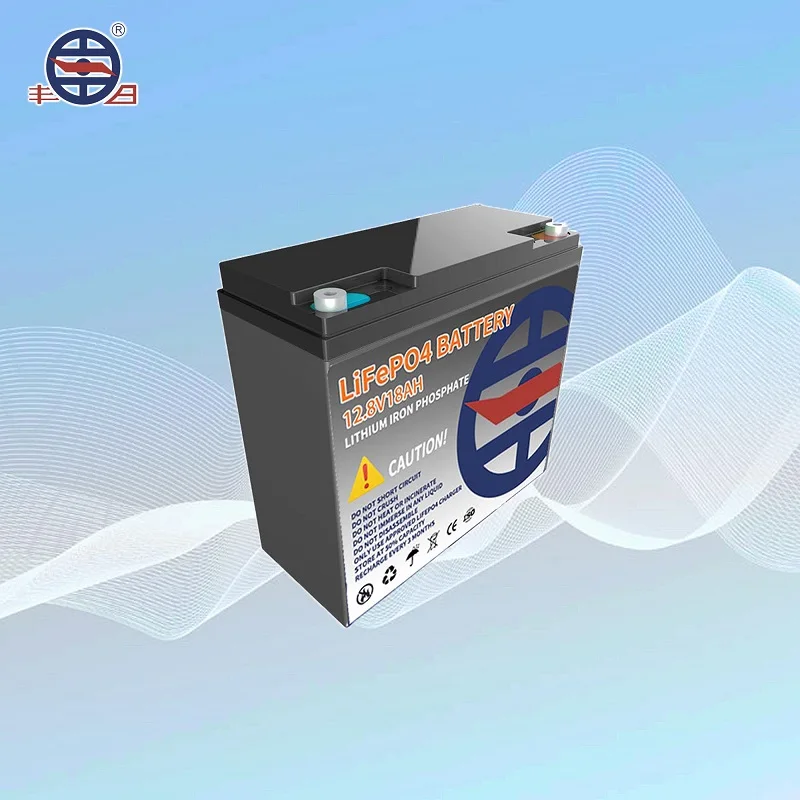

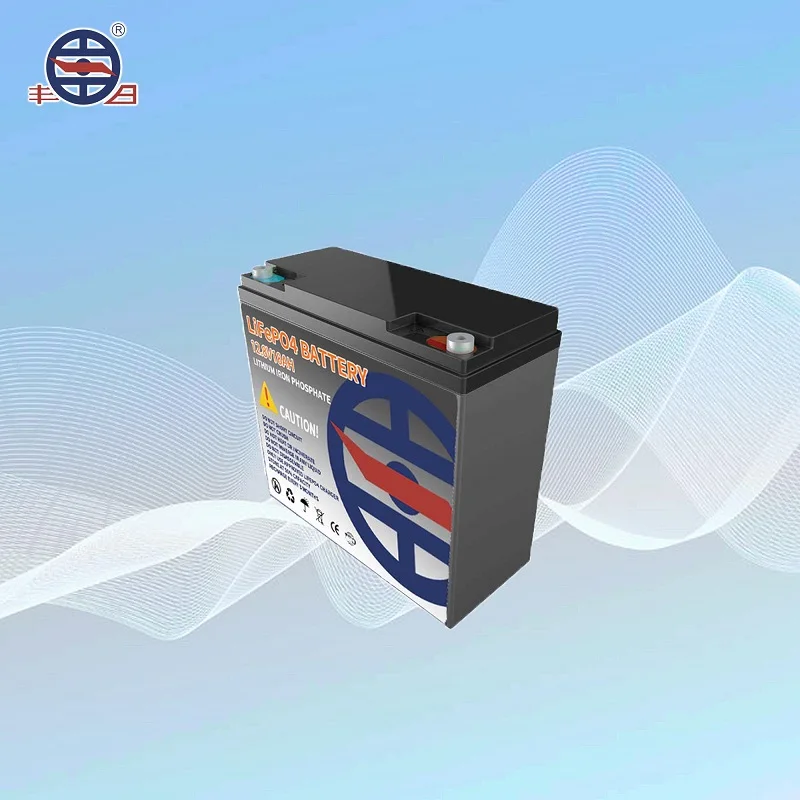

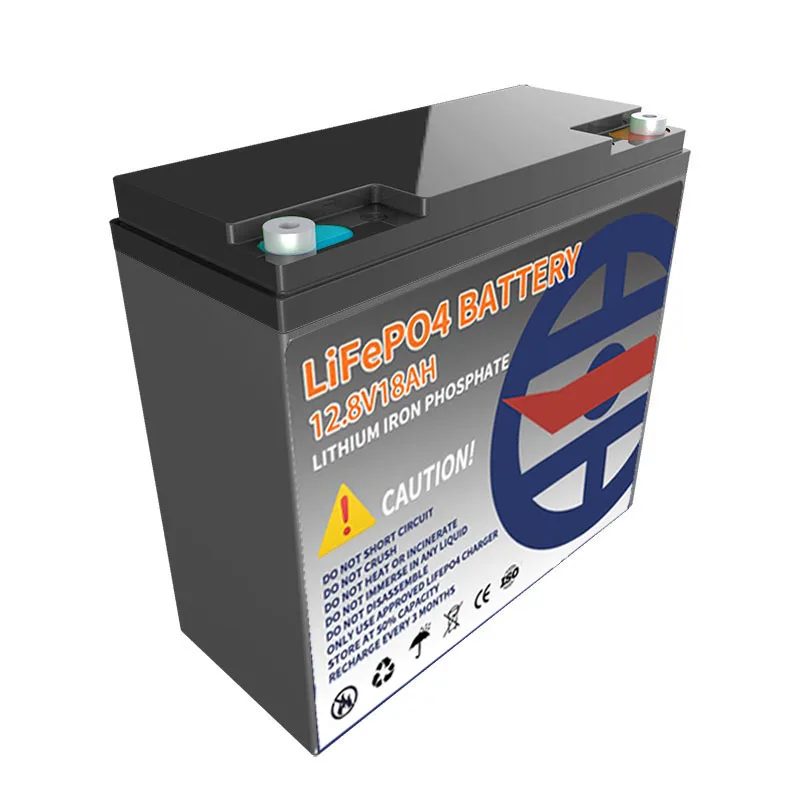

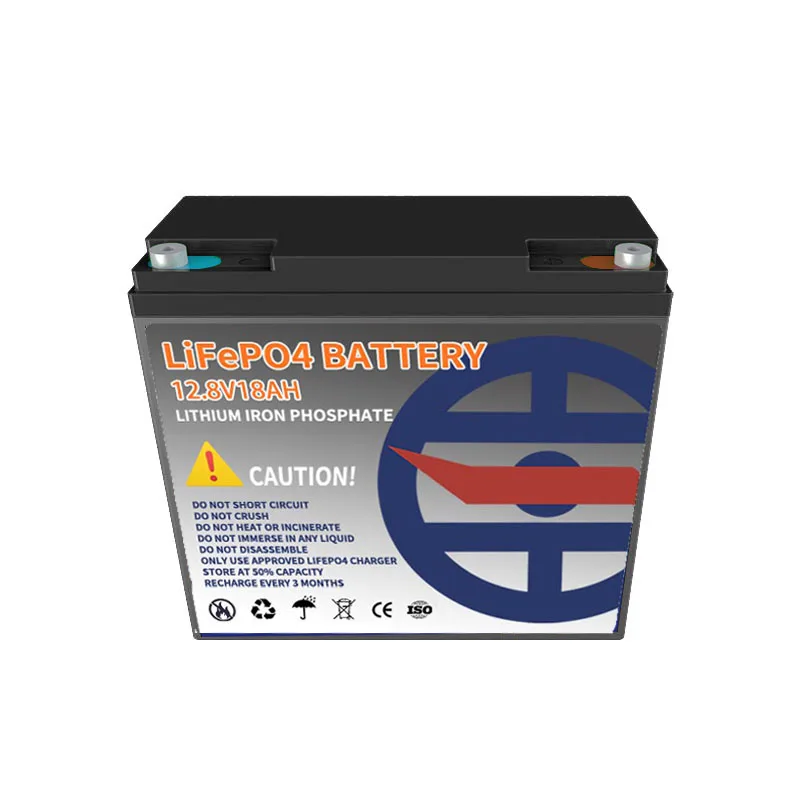

Factory price Longer life 32650 battery Solar deep cycle 12v 18Ah lithium battery pack
- Category: >>>
- Supplier: Hunan Fengri New Energy Technology Co. Ltd.
Share on (1601061663503):
Product Overview
Description
Products Description
Lead Acid Replacement | ||||
Model | LBR12-18 | |||
Nominal capacity | 18Ah | |||
Min. capacity | 17.5Ah | |||
Nominal energy | 230.4Wh | |||
Combination structure of battery | 32700-4S3P | |||
Nominal voltage | 12.8V | |||
Discharge cut-off voltage | 10.8V | |||
Standard charge voltage | 14.6±0.2V | |||
Float charge voltage | 13.8V | |||
Standard charge current | 5A | |||
Recommended charge current | ≤20A | |||
Allowed Max. continuous charge current | 20A | |||
Standard discharge current | 5A | |||
Recommended discharge current | ≤20A | |||
Allowed Max. continuous discharge current | 30A | |||
Peak current | 50A,10Sec | |||
Internal Impedance | ≤50mΩ | |||
Weight | Approx.2.1kg | |||
Dimensions | 181*77*167mm | |||
Case material | ABS | |||
Terminals | M5 | |||
Ex-factory capacity | Approx.50% SOC | |||
Service life | ≥2000 cycles | |||
Operation temperature range | Discharge | -20℃~60℃ | ||
Charge | 0℃~45℃ | |||
Storage conditions | ≤1Month | -20～+60℃、5～75%RH | ||
≤6Month | -10～+45℃、5～75%RH | |||
Recommend environment | 15～+35℃、5～75%RH | |||
Professional product customization service! | ||||
Compared with lead-acid batteries, lithium batteries have the following advantages:
1. Environmental protection: lead-free, in line with new energy environmental protection requirements;
2. Light weight: only 30% of the weight of lead-acid batteries;
3. Long life: more than 2000 cycle life, life span of up to 10 years;
4. High power: can provide twice the power output of lead-acid batteries;
5. Temperature range: Wider temperature use environment, low temperature discharge is better than lead-acid battery.
6. Flexibility: Modular design, 4 series and multiple parallels can be realized.
3. Long life: more than 2000 cycle life, life span of up to 10 years;
4. High power: can provide twice the power output of lead-acid batteries;
5. Temperature range: Wider temperature use environment, low temperature discharge is better than lead-acid battery.
6. Flexibility: Modular design, 4 series and multiple parallels can be realized.
