STONKAM MDVR 4G GPS System with 4 Camera 4CH 4 Channel ADAS DMS BSD/360 Algorithm IP69K Waterproof for Fleet Management
- Category: >>>
- Supplier: Stonkam Co. Ltd.
Share on (1601061668487):
Product Overview
Description
Product Description

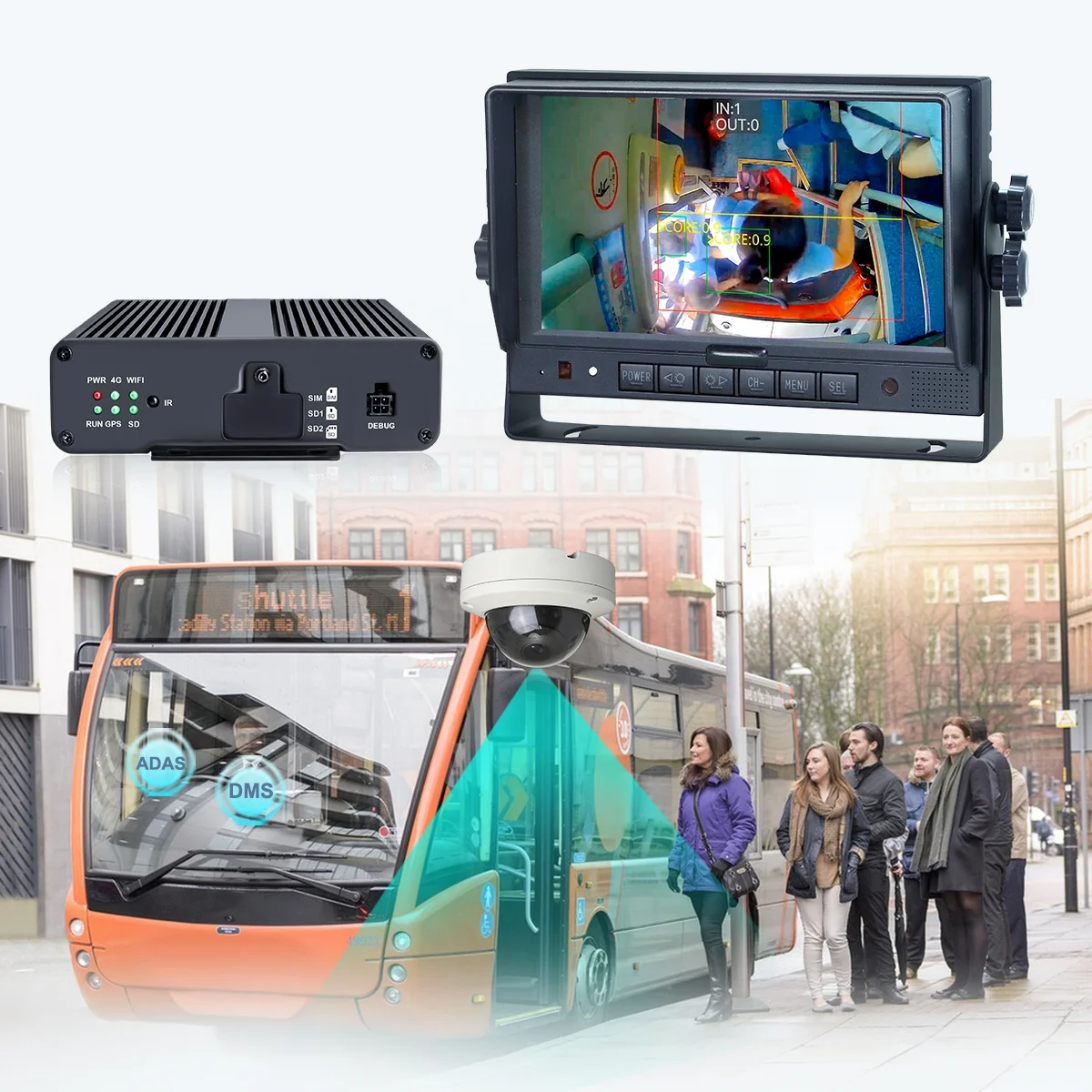

STONKAM mdvr kit dvr for truck bus 4g 3g wifi support ADAS/AVM/DSM/people counting function, which adopts multi-core processor and neural network inference engine. It integrates algorithms and applications, supporting AHD/TVI/CVBS vehicle cameras, and setup intelligent algorithm analysis according to the scenario, such as APC, ADAS, DMS, BSD, 360 and others; The applications can be extended and upgraded through the AI algorithm library to meet the need to monitor all abnormal conditions on the road and collect the data for a comprehensive fleet management.

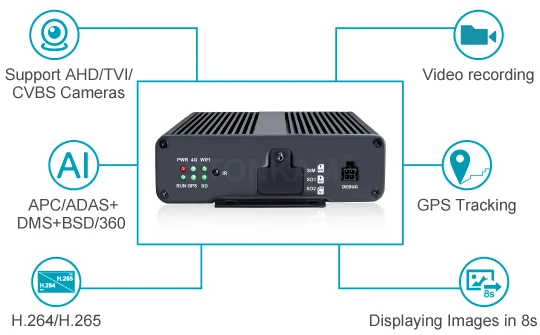

【AI Algorithms】We integrate multiple algorithms such as APC, ADAS, DMS, BSD, 360, meanwhile support integration of customer self-developed algorithms to meet the needs.
【High compatibility】Support AHD/TVI/CVBS cameras
【Displaying image within 8 seconds】Fast startup, displaying image within 8 seconds, the fastest speed up to 2 seconds
【H.264/H.265】Support dual compressions, improving the usage of storage space and wireless network traffic
【Video recording function】Support multiple modes of triggering recording, such as boot triggering recording, timing triggering recording, motion triggering recording, etc., and support 15 seconds of pre-recording, convenient to obtain evidence
【Fleet management】PC/mobile terminal remote real-time monitoring, historical track and video query, dangerous events can be uploaded to the vehicle monitoring platforms to achieve efficient fleet management
【Convenient operation】Support HD touch screen control, IR remote control, and flat human-device interaction interface, convenient for customers to operate
【Multi-function access】Integration for Radar, OBD, voice intercom, speed, tire pressure, fuel consumption, temperature, door switch, vehicle weight, vibrator and other sensors access is available
【AI Algorithms】We integrate multiple algorithms such as APC, ADAS, DMS, BSD, 360, meanwhile support integration of customer self-developed algorithms to meet the needs.
【High compatibility】Support AHD/TVI/CVBS cameras
【Displaying image within 8 seconds】Fast startup, displaying image within 8 seconds, the fastest speed up to 2 seconds
【H.264/H.265】Support dual compressions, improving the usage of storage space and wireless network traffic
【Video recording function】Support multiple modes of triggering recording, such as boot triggering recording, timing triggering recording, motion triggering recording, etc., and support 15 seconds of pre-recording, convenient to obtain evidence
【Fleet management】PC/mobile terminal remote real-time monitoring, historical track and video query, dangerous events can be uploaded to the vehicle monitoring platforms to achieve efficient fleet management
【Convenient operation】Support HD touch screen control, IR remote control, and flat human-device interaction interface, convenient for customers to operate
【Multi-function access】Integration for Radar, OBD, voice intercom, speed, tire pressure, fuel consumption, temperature, door switch, vehicle weight, vibrator and other sensors access is available
Video input | 4CH 1080P |
Video standard | PAL: 25FPS, NTSC: 30FPS |
Compression | H264/H265 |
Video output | AHD |
Total frame rate | 1080P 120FPS |
IR | Available |
LTEmodule | Available |
WIFI | Available |
GPS | Available |
Attitude sensor | Available |
Power supply | less than 15W (without camera) |
Storage temperature | -20~70℃, RH <80% |
Algorithm | DMS/ADAS/BSD/360AVM/people counting |
Audio input | 4CH |
Audio coding | ADPCM |
Image quality | 1~8 level adjustable |
Video bitrate | 128kbps~4Mbps/channel |
Storage consumption | 56~1800MB/(channel*hour) |
Playback | 4*1080P |
Audio bitrate | 32kbps |
Storage | SD card * 2, max 512GB |
Alarm input | 4CH |
Alarm output | 1CH |
RS232 | 1CH（Optional） |
RS485 | 1CH |
CAN | 1CH |
USB2.0 | 1CH |
Ethernet | 1CH |
Have you ever been disturbed by following questions?
Where to find the perfect fleet management solution?
How to achieve abnormal situations' monitoring of people, vehicle, and road?
How can we quickly provide evidence when encountering accidents or thefts?
Where to find the perfect fleet management solution?
How to achieve abnormal situations' monitoring of people, vehicle, and road?
How can we quickly provide evidence when encountering accidents or thefts?
Vehicle AI box solves all your concerns with its high performance of the AI algorithms
STONKAM mdvr kit dvr for truck bus 4g 3g wifi support ADAS/AVM/DSM/people counting function is integrated with APC, ADAS, DMS, BSD, 360 andoother algrithms, speically designed reliable vehicle management solution for all kinds of vehicles, widely applied in buses, tourist buses, escort vehicles, school buses, cargo van, fire engines, emergency vehicles, passenger vehicles, etc. When it comes to fleet management of these vehicles, our AI box
delivers a professional solution with its high performance, securirty guarantee, integration compatibility and customization capability..
delivers a professional solution with its high performance, securirty guarantee, integration compatibility and customization capability..

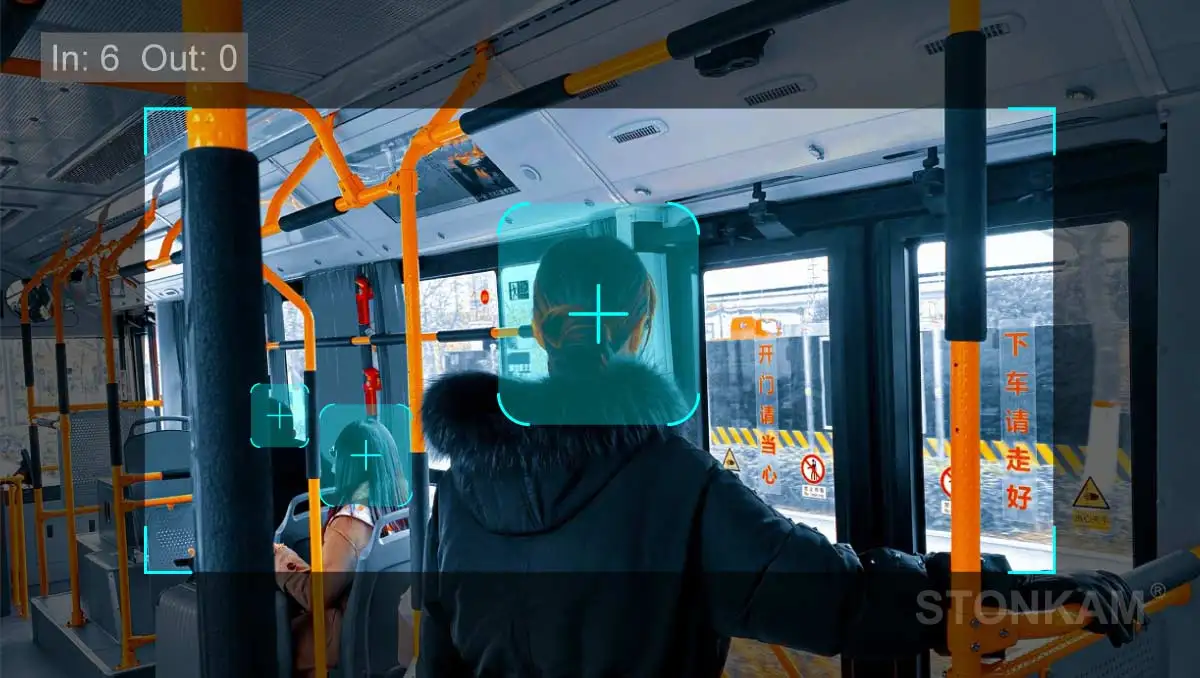

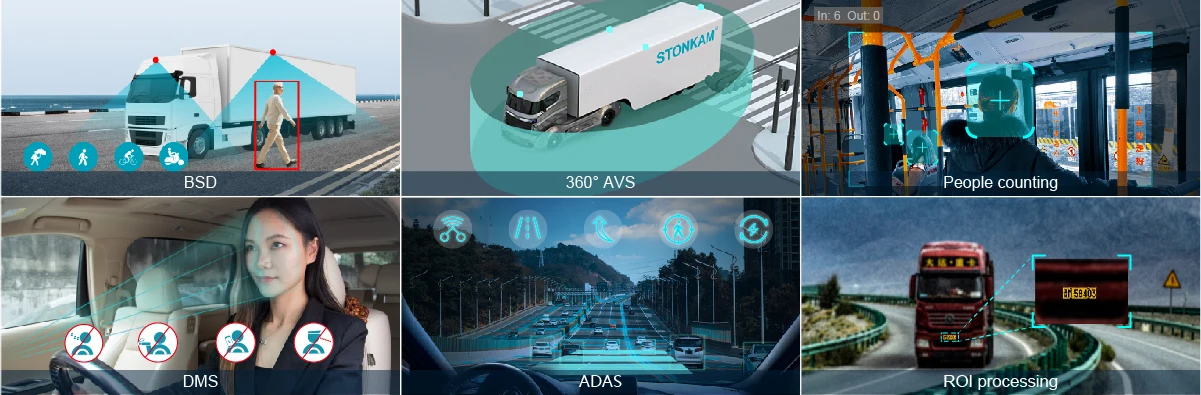

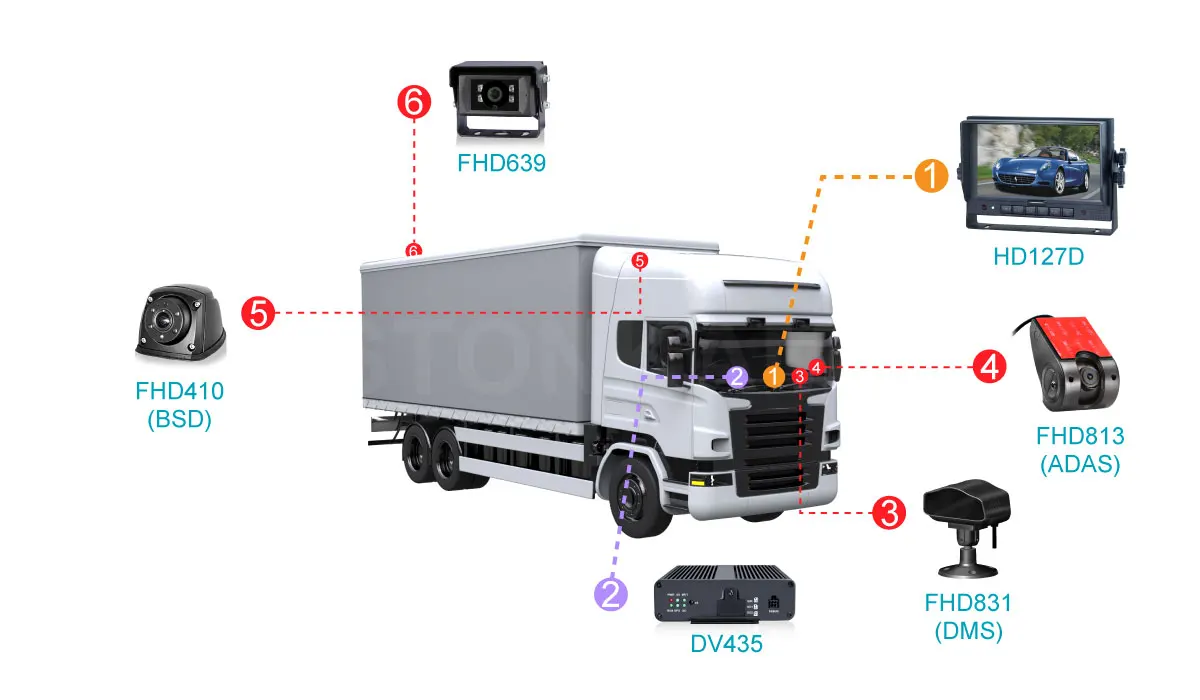

Latest AI technology, able to achieve multiple algorithms and functions
Integrating APC/ADAS+DMS+BSD/360 algorithms, the AI box is very efficient in processing multi-channel AI tasks and identifying different types of targets in real time, and thus is an excellent driving assistance. Since we also suppport algorithm customization, customers can even put their own algorithm disnide and make it run with the others to handle all sorts of applications.

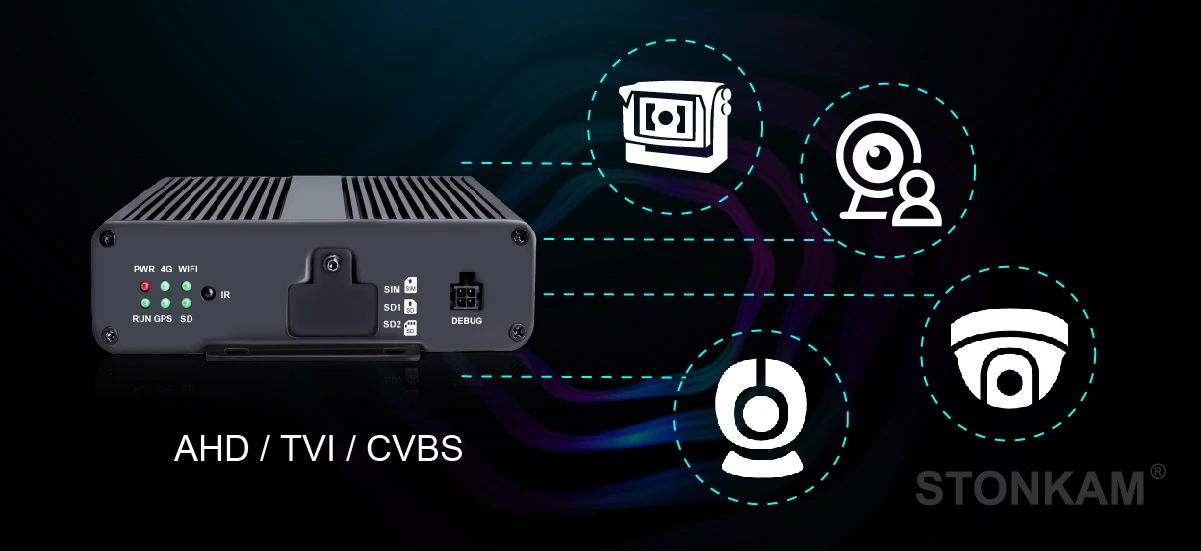

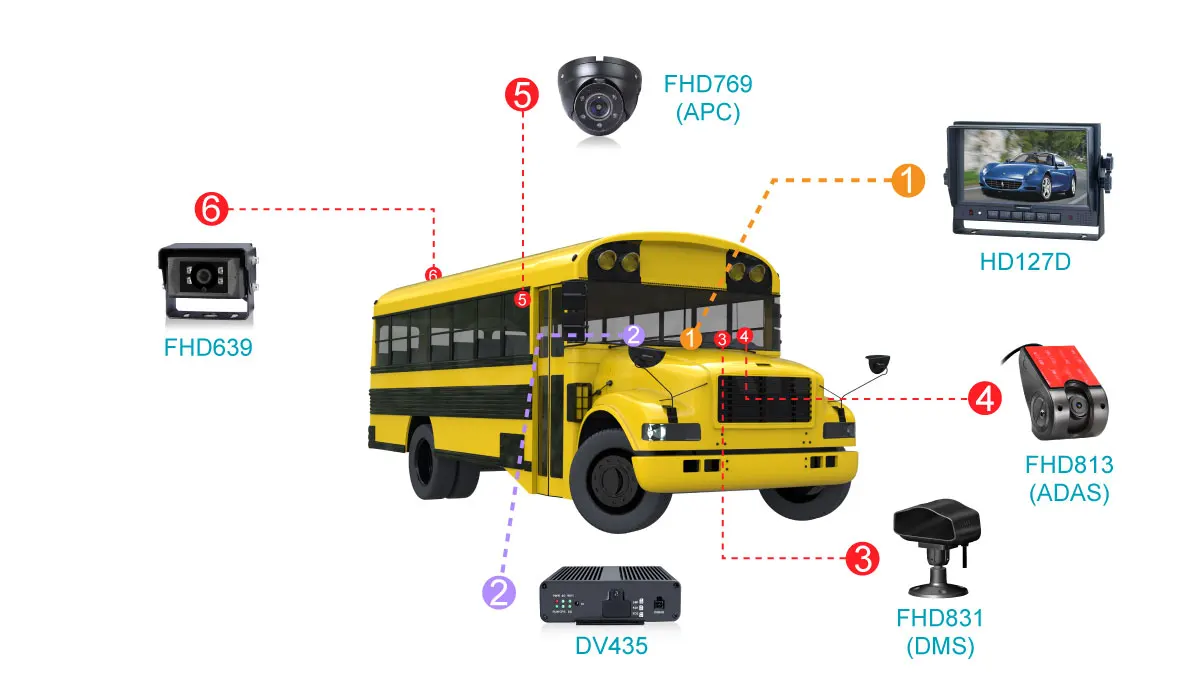

It supports multiple interface protocols, that's why any AHD/TVI/CVBS standard camera has access to it. All we need is simple configuration on the AI box menu.

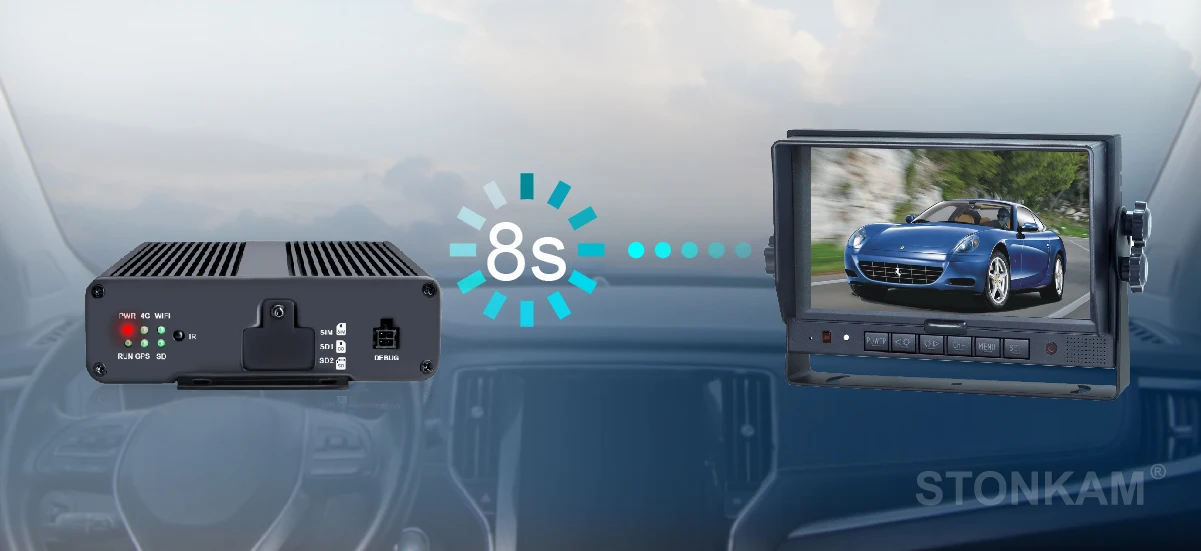

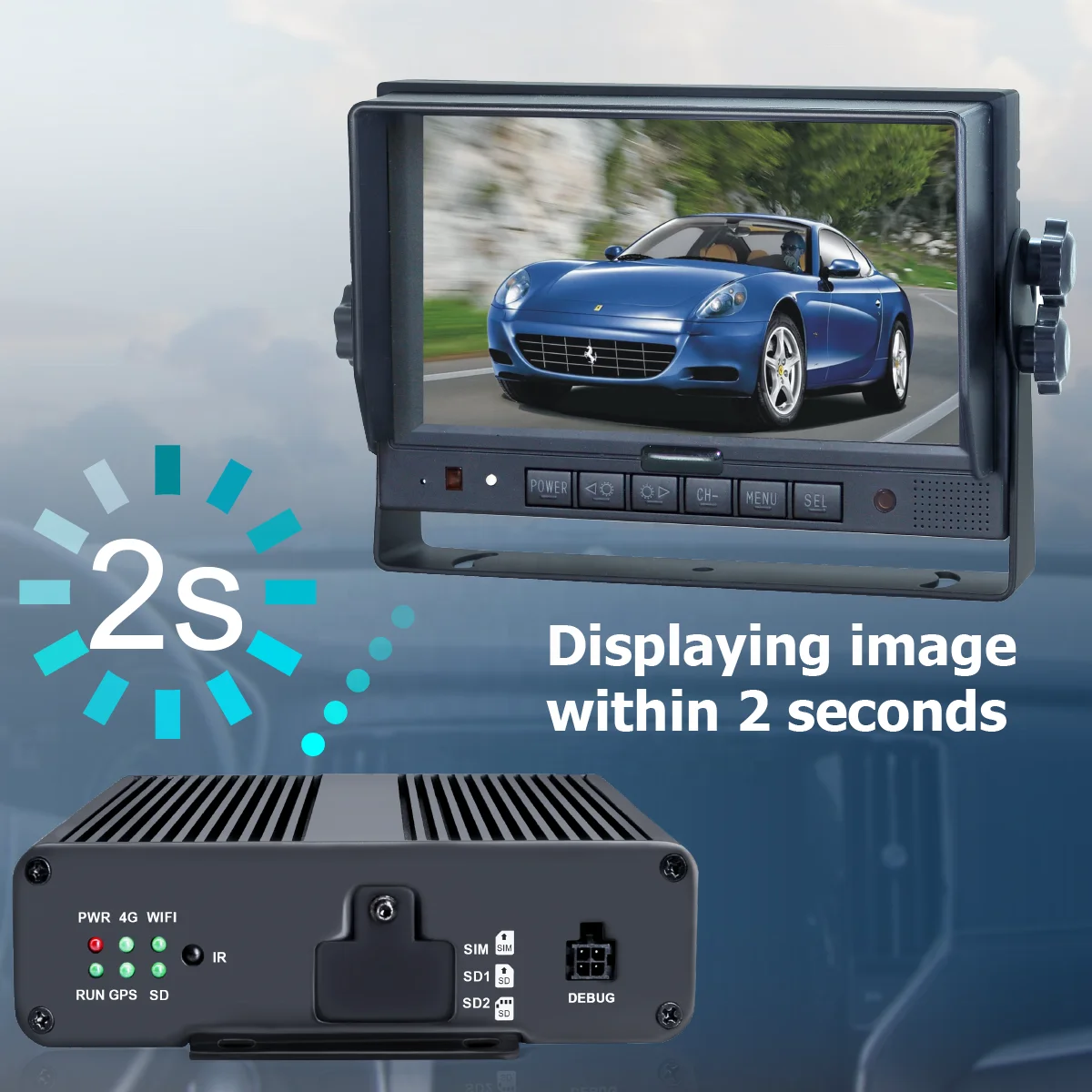

Fast startup speed, displaying images within 8 seconds
Startup speed is greatly optimized, displaying images within 8 seconds, reducing unnecessary waiting time (able to be customized, even up to 2s displaying).

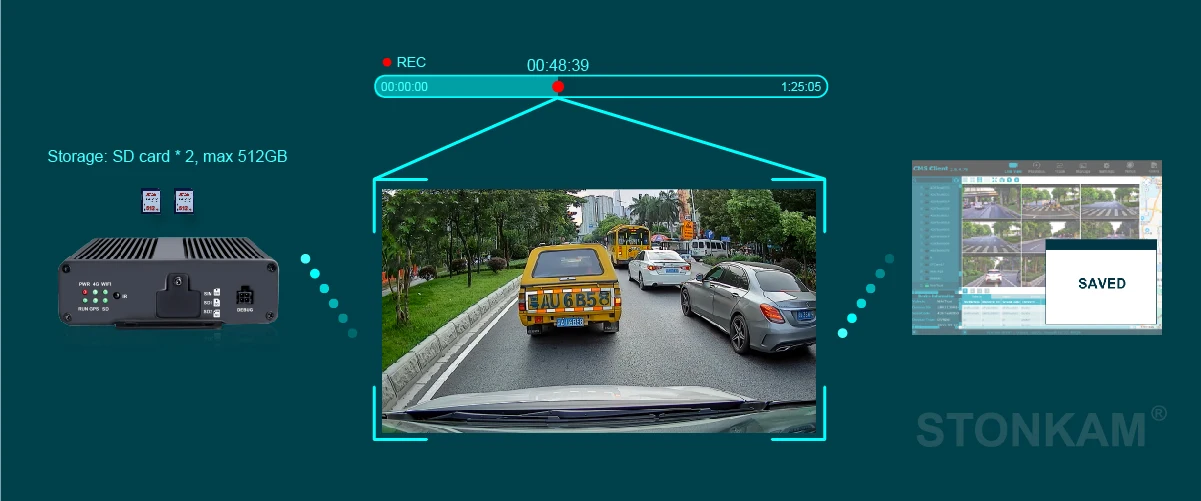

HD real-time monitoring & Strong recording function
FHD image, supporting IPC and thermal imager input and RTSP video output; Support user-defined resolution, able to preview or backtrack the videos/pictures at any time; Support multiple modes of triggering recording, DMS/ADAS/BSD alarm with full function; Support 2x SD card, max 512GB.
FHD image, supporting IPC and thermal imager input and RTSP video output; Support user-defined resolution, able to preview or backtrack the videos/pictures at any time; Support multiple modes of triggering recording, DMS/ADAS/BSD alarm with full function; Support 2x SD card, max 512GB.

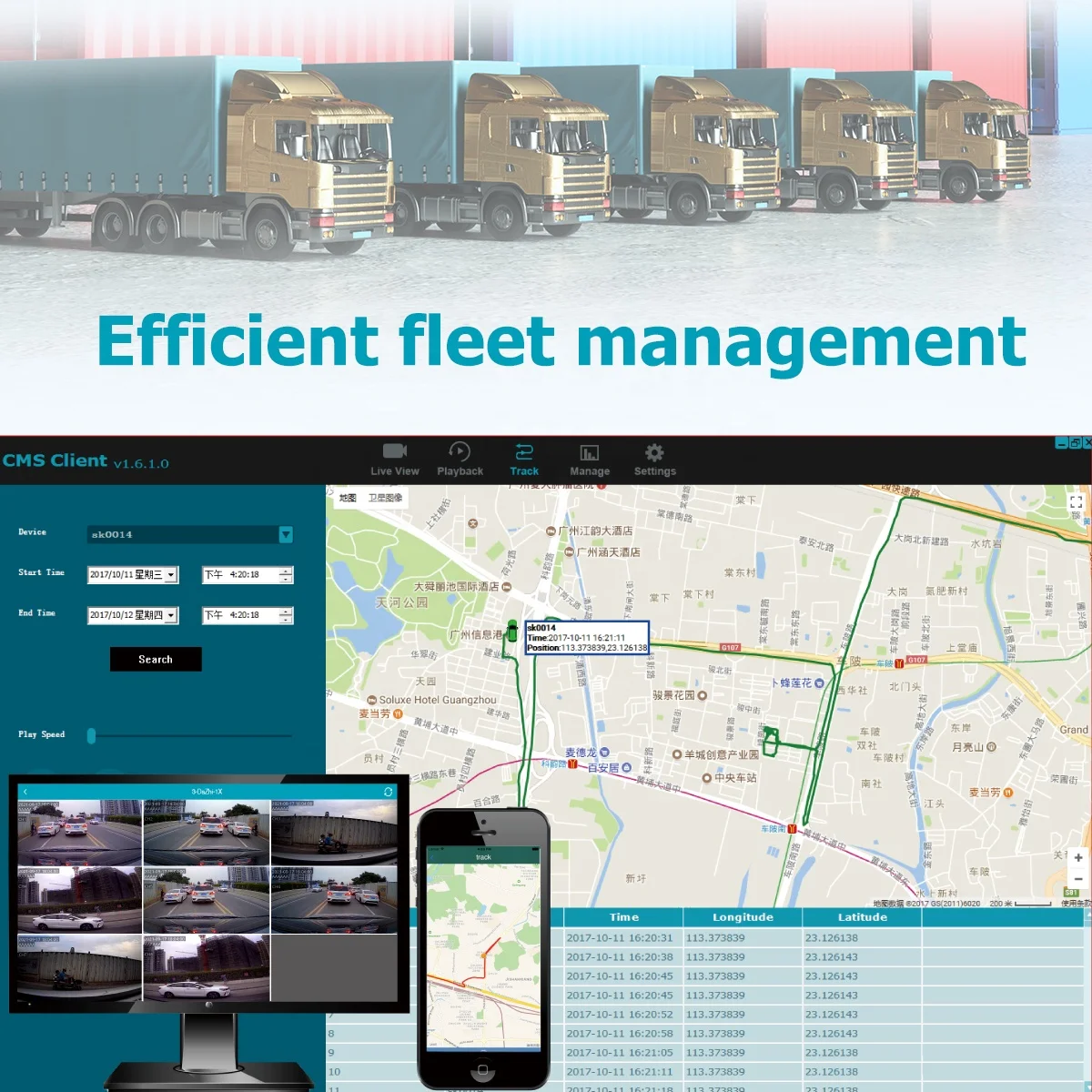

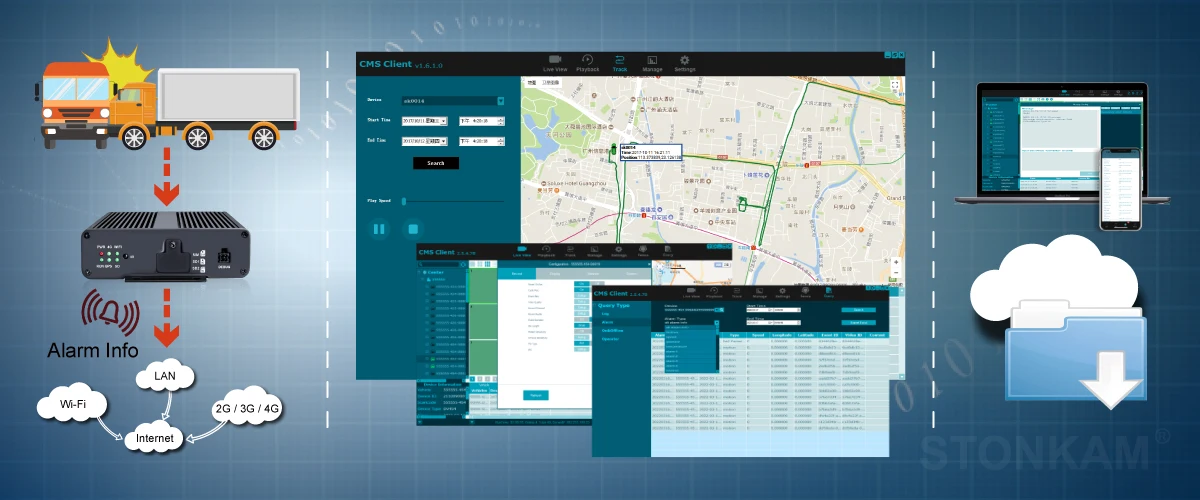

Support PC or mobile remote control; Support real-time positioning, historical track query, remote download recording, electronic fence and other special functions; Dangerous driving events and abnormal vehicle staus can be uploaded to fleet monitoring platform; Support rapid customization development to meet customer needs. Achieve data platform management and enable fleet management.

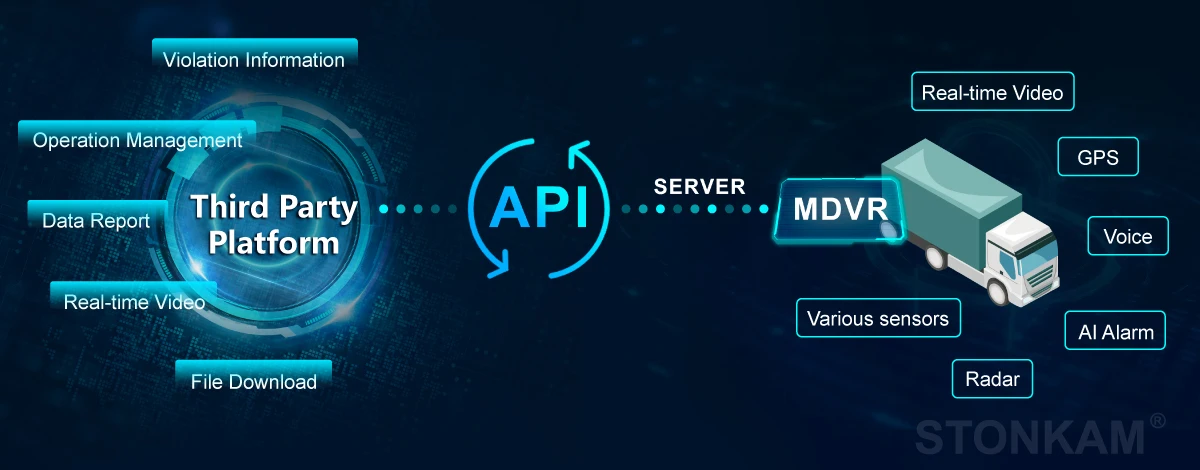

Support API to realize the interface with customer's system
MDVR could be linked to the server to provide API for customers to realize the interface with customer systems. Customers can either use our client or connect to their own system through the API. Thus, data exchange and information sharing could be achieved.
Data security is guaranteed
SSL encryption and https secure transmission available, supporting Amazon S3 storage to ensure data security; Support super capacitor power failure protection to prevent data file loss caused by sudden power failure.
SSL encryption and https secure transmission available, supporting Amazon S3 storage to ensure data security; Support super capacitor power failure protection to prevent data file loss caused by sudden power failure.
Support offline operations and offline device parameters configuration, notification function and record result processing; Direct WIFI connection and convenient preview through mobile; Support HD touch screen control and IR remote control, and interface operation is more convenient for customers.

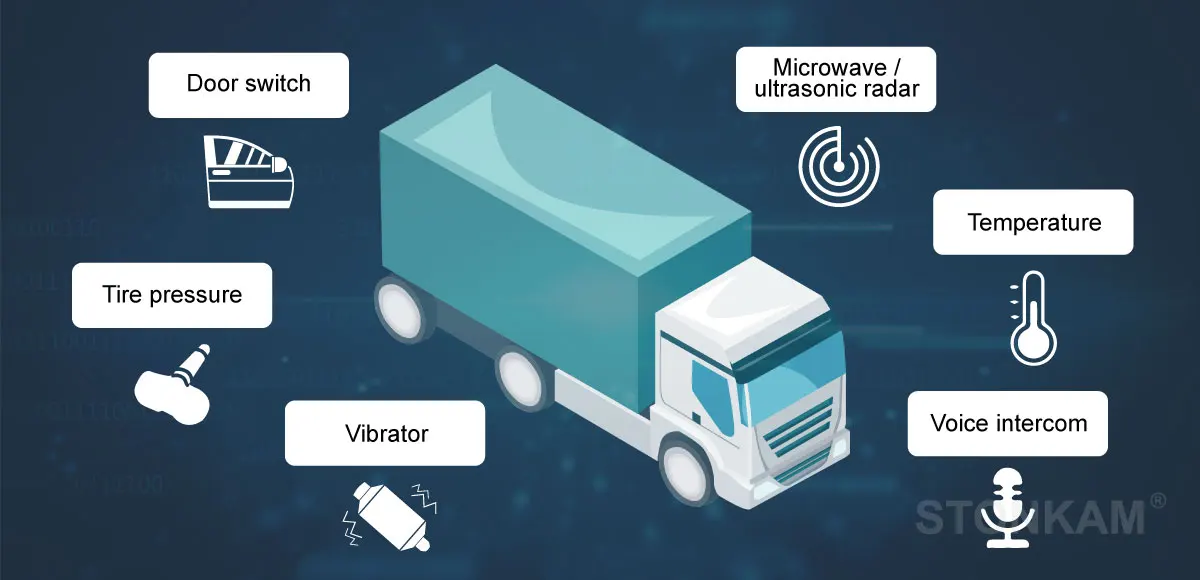

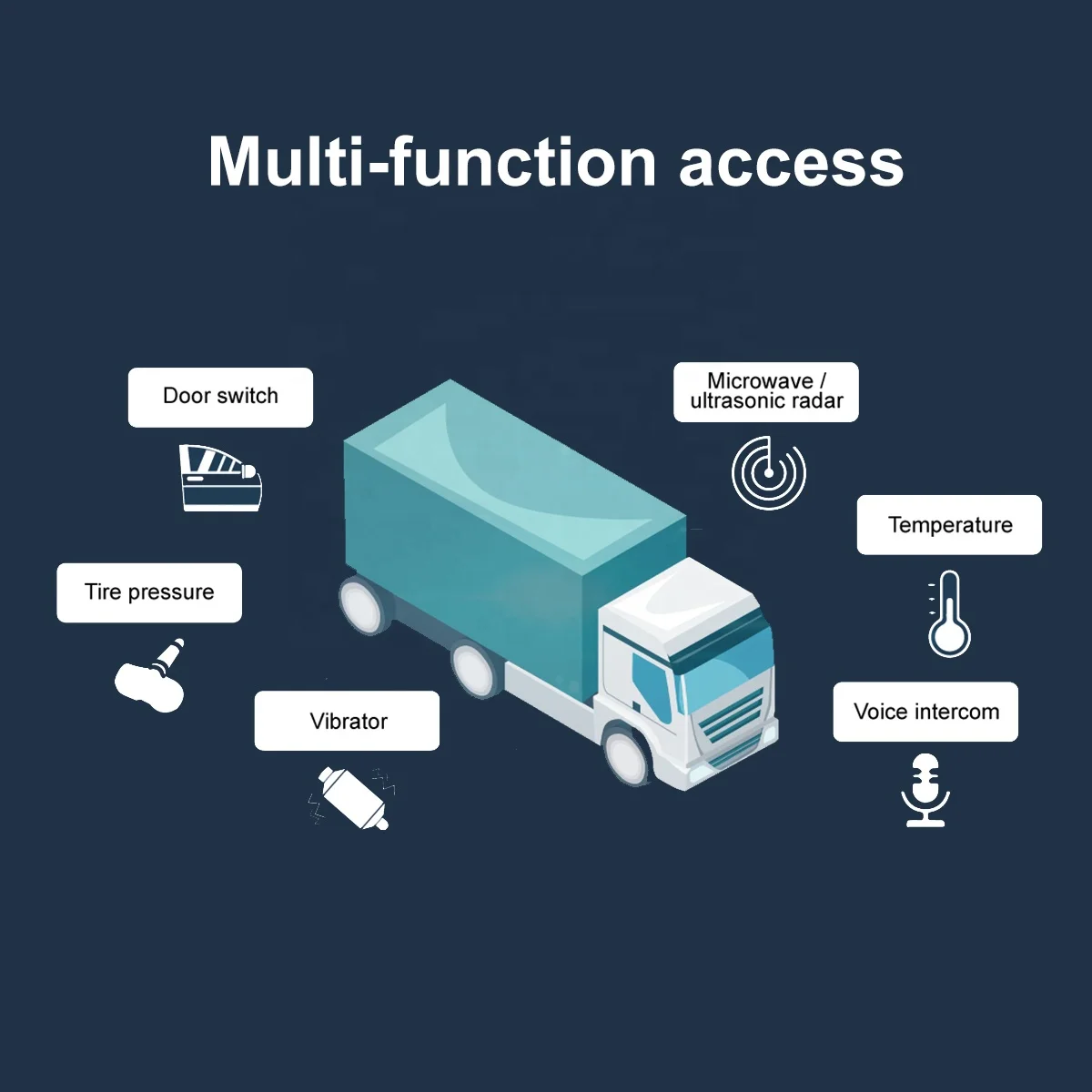

Support other multi-function access
Microwave radar, ultrasonic radar, OBD, voice intercom, speed, tire pressure, fuel consumption, temperature, door switch, vehicle weight, vibrator and other sensors available, ensuring safe driving.
Application

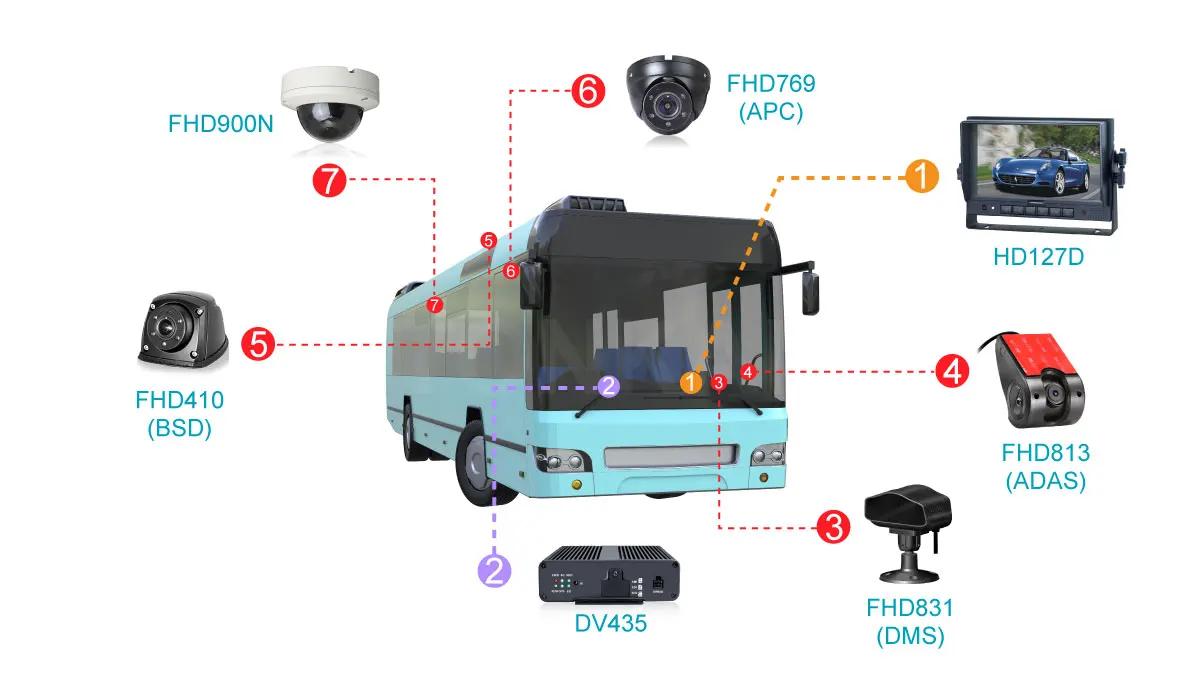

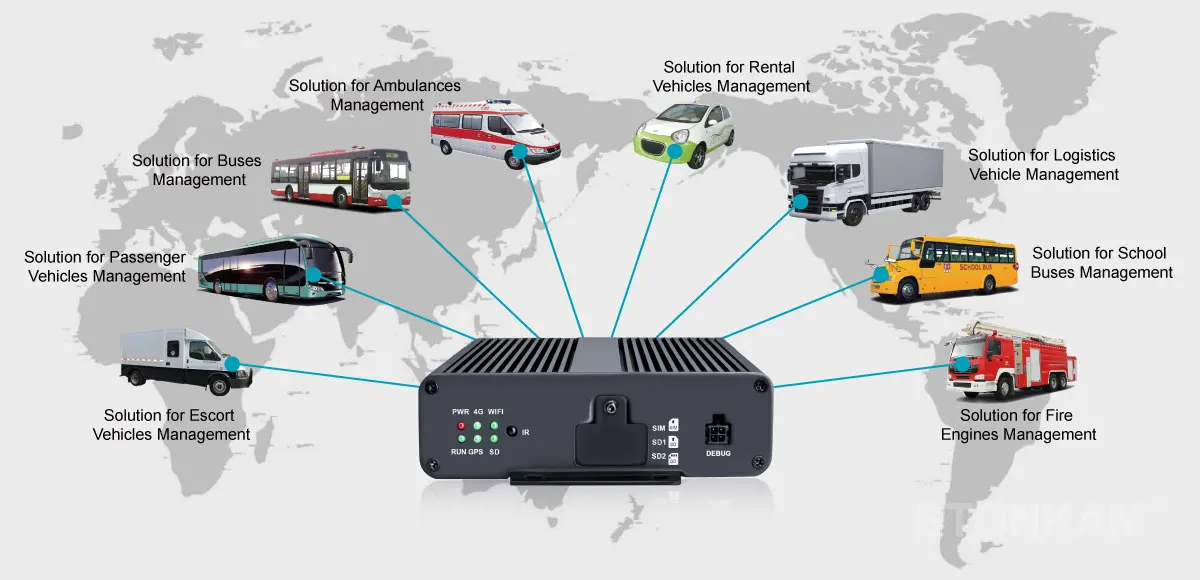

STONKAM mdvr kit dvr for truck bus 4g 3g wifi support ADAS/AVM/DSM/people counting function integrates APC, ADAS, DMS and 360 algorithms, the fleet management it provides fits for various scenarios such as city buses, tourist buses, escort vehicles, school buses, logistics trucks, fire engines, emergency vehicles, buses.
