180 CBM Per Hour Environmental Friendly Automatic Ready Concrete Mixing Plant
- Category: >>>
- Supplier: Aimix Group Co. Ltd.
Share on (1601061680412):
Product Overview
Description
Successful Cases
Customer Praise
Product Paramenters
Model | AJ-180 | ||
Theoretical productivity(m3/h) | 180 | ||
Mixer | JS3000 | ||
Power of mixing machine(kw) | 2×55kw | ||
Aggregate maximum particle | 80 | ||
Feeding capacity(L) | 4500 | ||
Discharge capacity(L) | 3000 | ||
Aggregate bin capacity(m3)(optional) | steel storage | 4×25 | |
barn | 4×6 | ||
Aggregate batching capacity(L) | 4800 | ||
Belt conveying capacity(t/h) | 900 | ||
Screw conveying capacity(t/h) | 80 | ||
Discharge height(m) | 4.2 | ||
Installed capacity(kw) | 220 | ||
Weighing range | stone | （900-3600）±2% | |
sand | （900-3600）±2% | ||
cement | （300-1800）±1% | ||
fly ash | （200-600）±1% | ||
water | （200-800）±1% | ||
additive | （15-70）±1% | ||
Product Classification
Core Component Display
Aggregate Batching System
Measures and dispenses aggregates
Accurate weighing
Accurate weighing
Storing System
Horizontal/Vertical/Welded Type
Storage capacity: 100T to 800T
Horizontal/Vertical/Welded Type
Storage capacity: 100T to 800T

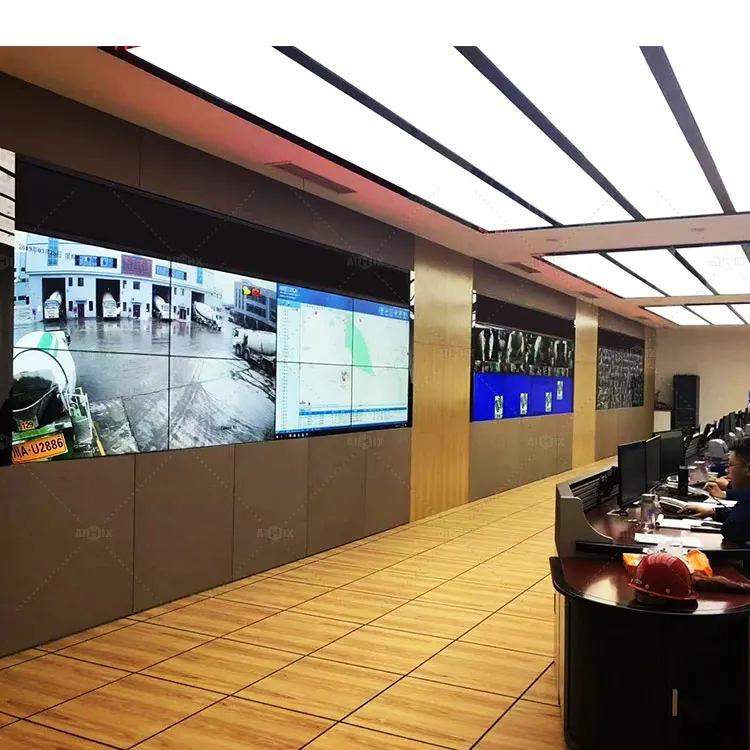

Control System
Sensors, PLCs, and operator interfaces
Sensors, PLCs, and operator interfaces

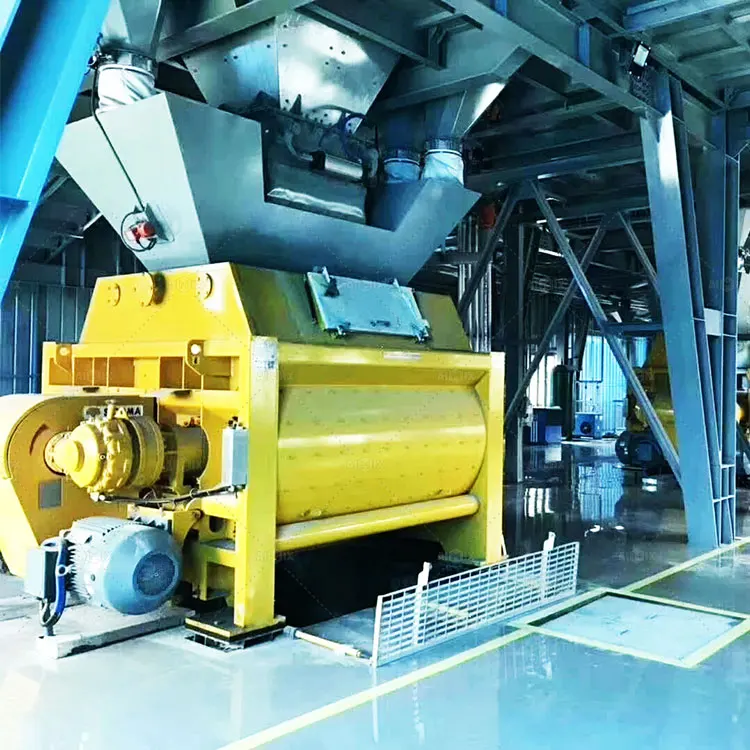

Mixing System
JS shaft mixer, SICOMA mixer, planetary Type
JS shaft mixer, SICOMA mixer, planetary Type
Industry Application
Our Services
Technical Support
Remote troubleshooting
On-site debugging & maintenance
Remote troubleshooting
On-site debugging & maintenance
Customization
Based on kinds of needs
Help to achieve the productivity & efficiency
Based on kinds of needs
Help to achieve the productivity & efficiency
Spare Parts
Provide wearing parts
Delivery in time
Provide wearing parts
Delivery in time
Quality Control & Monitoring System
Quality control teams & system
Run tests before delivery
Quality control teams & system
Run tests before delivery
About Us
FAQ
A1: Aimix professional engineers and sales manager will suggest the best choice according to your needs. Such as the mixing capacity, site planning & design, installation period, project budget, etc.
Q2: Do you provide overseas service to install and debug ?
A2: Sure friend. We have overseas after-sale service team to meet customer requires. And Aimix have branch offices in the Philippines, Malaysia, Indonesia, Uzbekistan, Pakistan, etc. As a reputable supplier we provide 24 hours On-site Service.
Q3: How about the fee for the engineer who come to work for installation and debugging ?
A3: The fees are negotiable. According to geographic location, project scale and complexity, project duration, transportation and accommodation expenses, etc.
Q4: Do you provide free spare parts for concrete batch plant ?
A4: Yes friend.We will supply the wearing parts before delivery and we have 12 months warranty. If there any question, feel free to contact.
Q5: Do you have CE certificate for your concrete batching plant / cement silo ?
A5: Yes, we have. Both are our patent products, certificated by CE & ISO.
