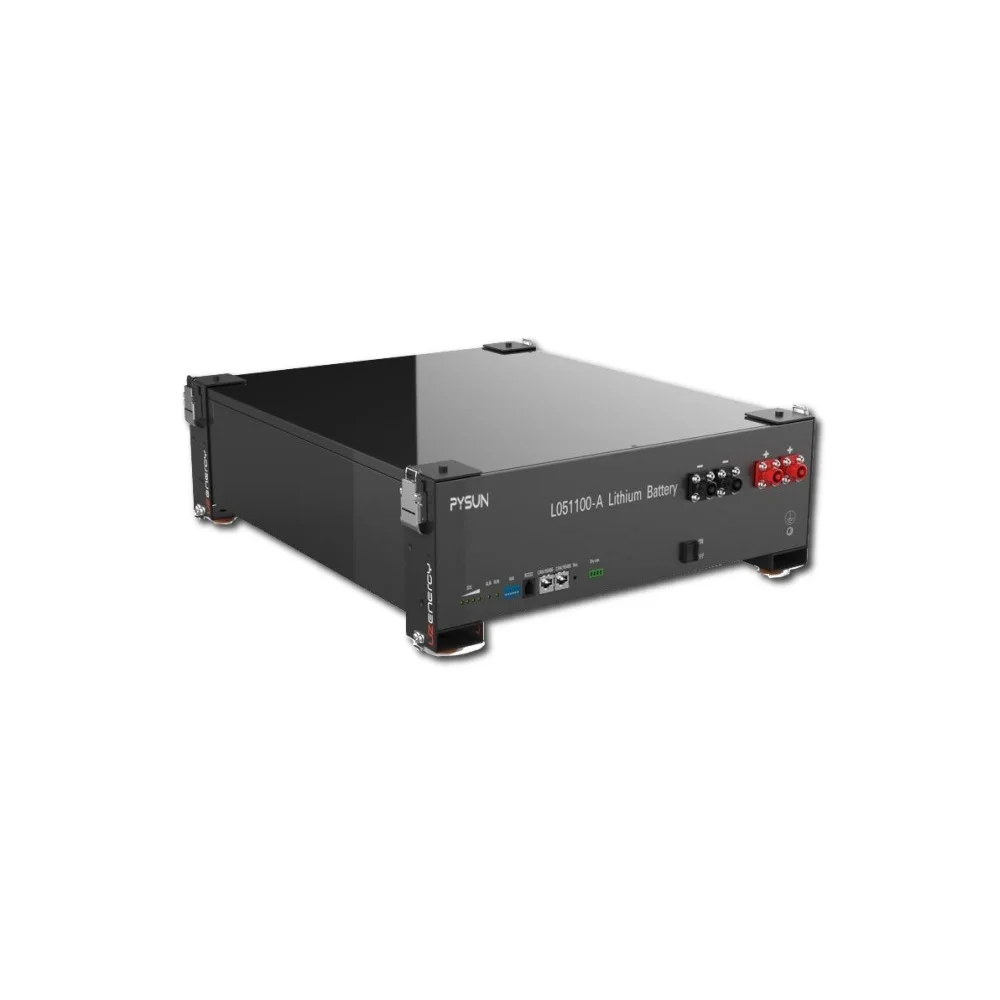

PYSUN Ess Lifepo4 48v Lithium Ion Battery 100Ah 200Ah Stacked All In One System High Voltage Hybrid Energy Storage Battery
- Category: >>>
- Supplier: Suzhou Joylive Intelligent Technology Co. Ltd.
Share on (1601061696293):
Product Overview
Description

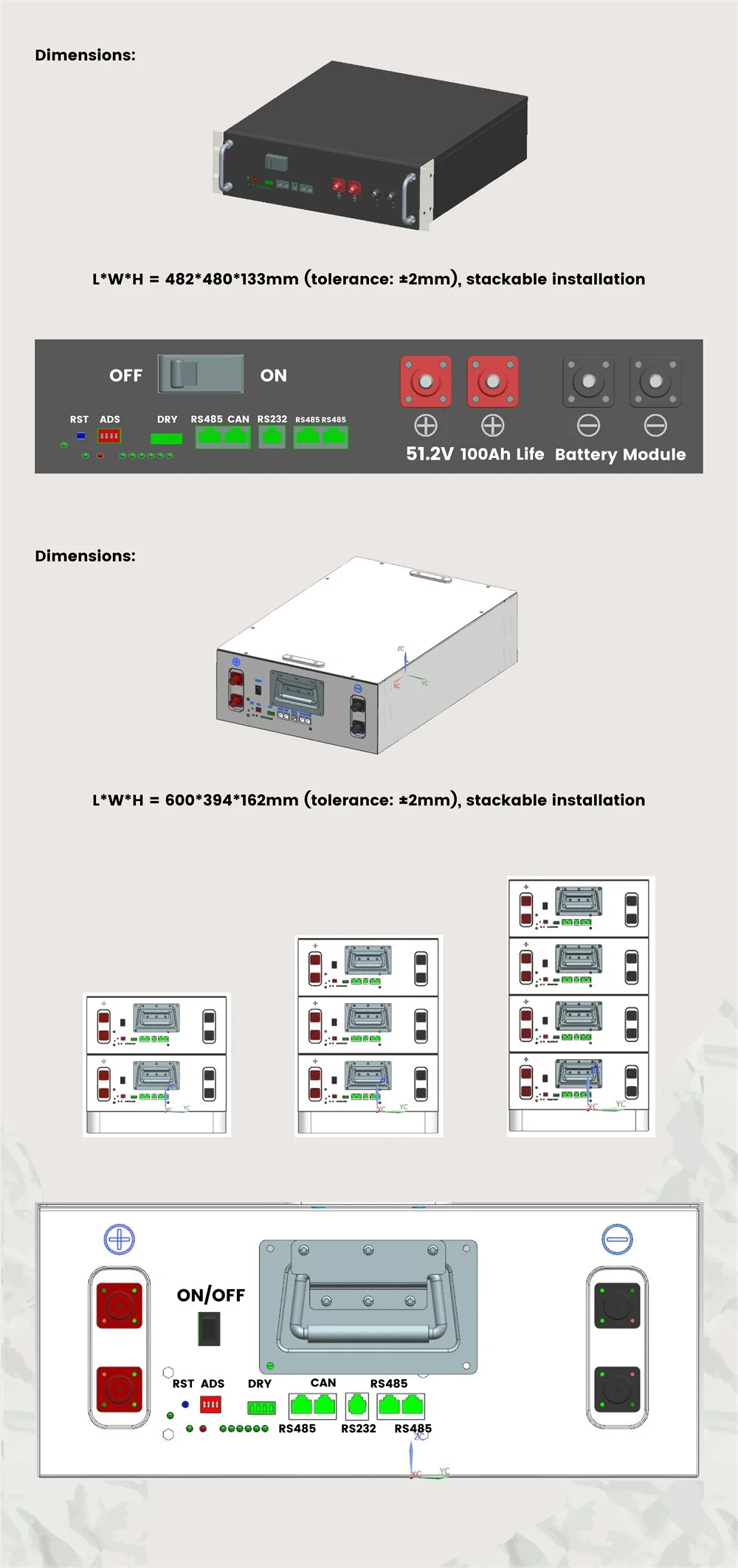

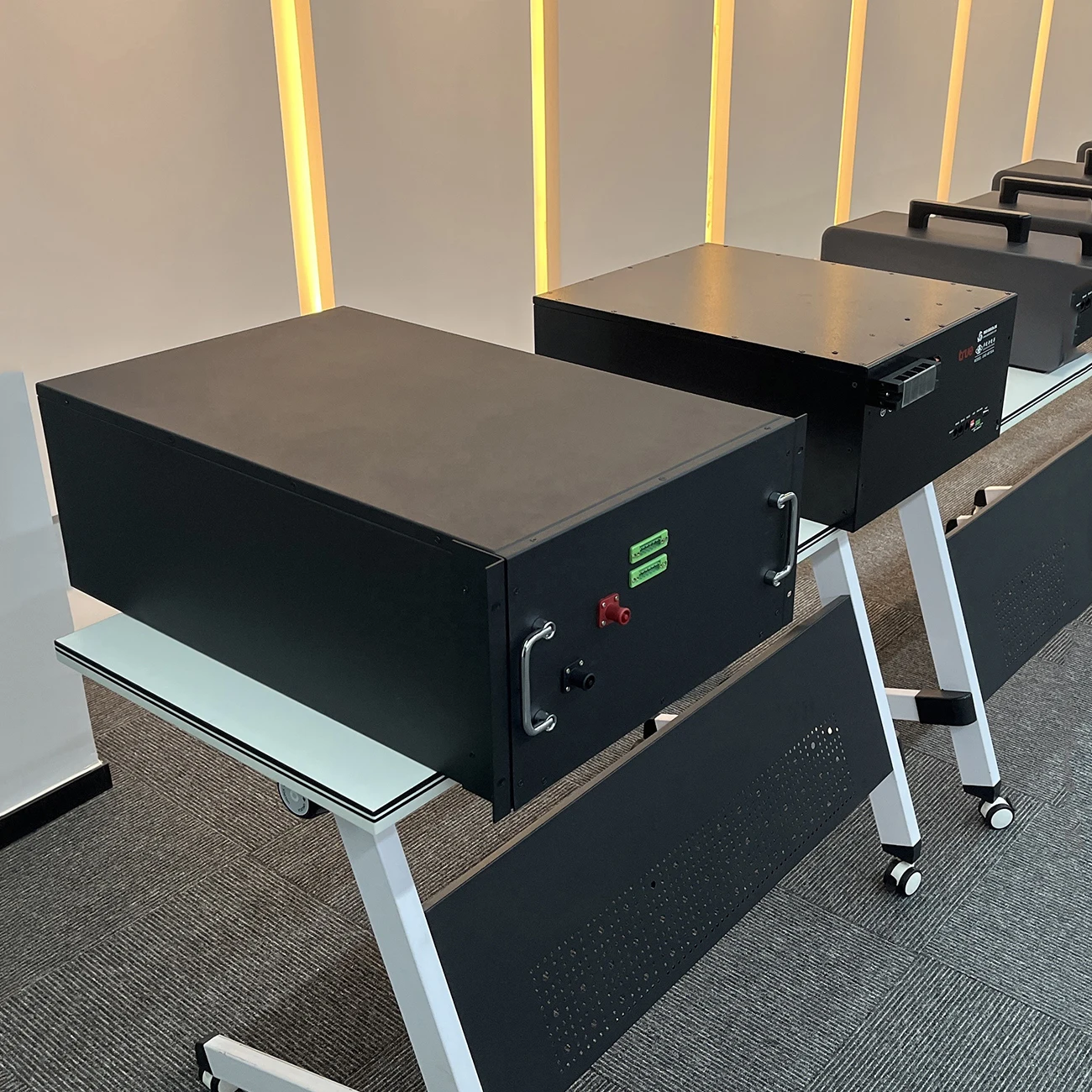

Backup Battery | Pack Battery A4850 | Pack Battery A48100-3UA | Pack Battery A48100-3UB | Pack Battery A48100-4U | Pack Battery A48100-5U | Pack Battery A48150 | Pack Battery A48200 | ||||||
Nominal Voltage | 51.2V | 51.2V | 51.2V | 51.2V | 51.2V | 51.2V | 51.2V | ||||||
Nominal Capacity | 50Ah | 100Ah | 100Ah | 100Ah | 100Ah | 150Ah | 200Ah | ||||||
Dimension | 400*442*132 | 440*442*133 | 430*442*132 | 430*442*177 | 430*442*222 | 480*442*177 | 500*442*221 | ||||||
Weight | 24KG | 46KG | 46KG | 48KG | 50KG | 65KG | 80KG | ||||||
Charging Method | CC/CP/VP | ||||||||||||
Recharging Current | 0.2C standard 1C maximum continuous charging current | ||||||||||||
Charge Cutoff Voltage | 438V/CELL | ||||||||||||
Discharge Method | CC/CP/VP | ||||||||||||
Discharge Current | 0.5C standard 1.5C maximum continuous discharge current | ||||||||||||
Discharge Cutoff Voltage | 324V/CELL | ||||||||||||
Display | LCD | ||||||||||||
Communication Interface | 485/232/Can | ||||||||||||
Operating Temperature | Charging: 0~+50℃ Discharging: -20~+55℃ | ||||||||||||
Storage Temperature | Short-term storage: -10~+45°C (<3 months,SOC:20%~60%) Long-term storage: -10~+40°C (<1 year,SOC:30%~60%) Recharge every 3 months | ||||||||||||
Storage Humidity | 5%~95% | ||||||||||||
Shipping Status | Voltage: 380~420V SOC: 30%~50% | ||||||||||||

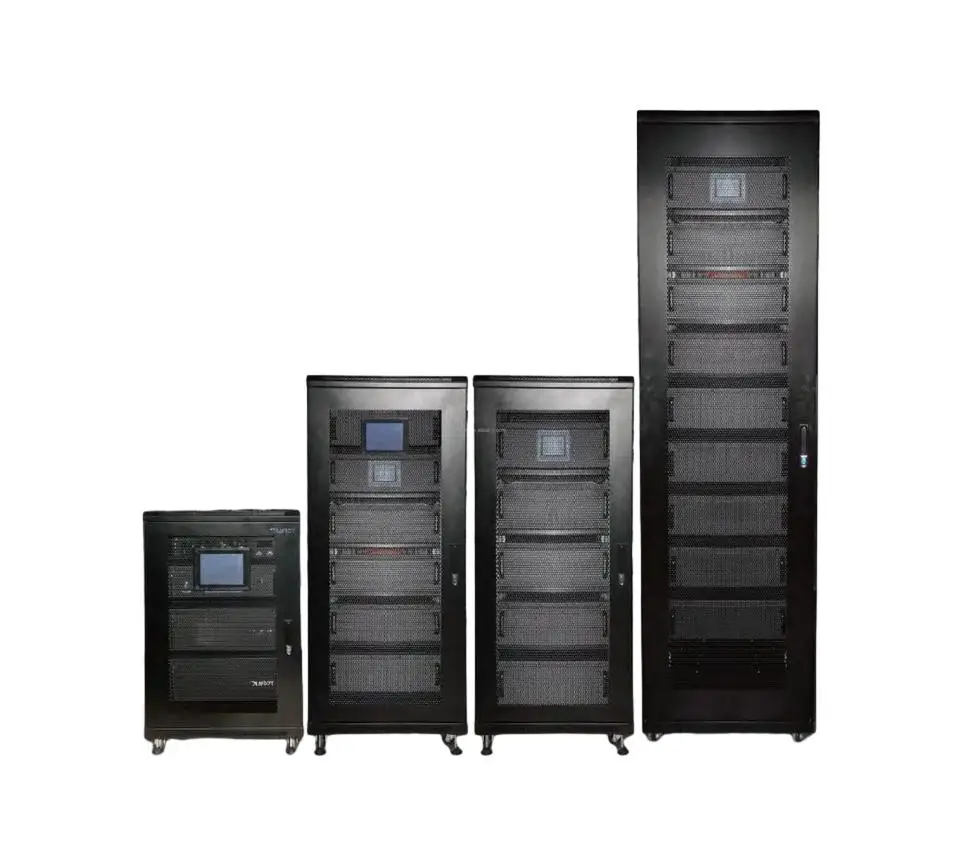

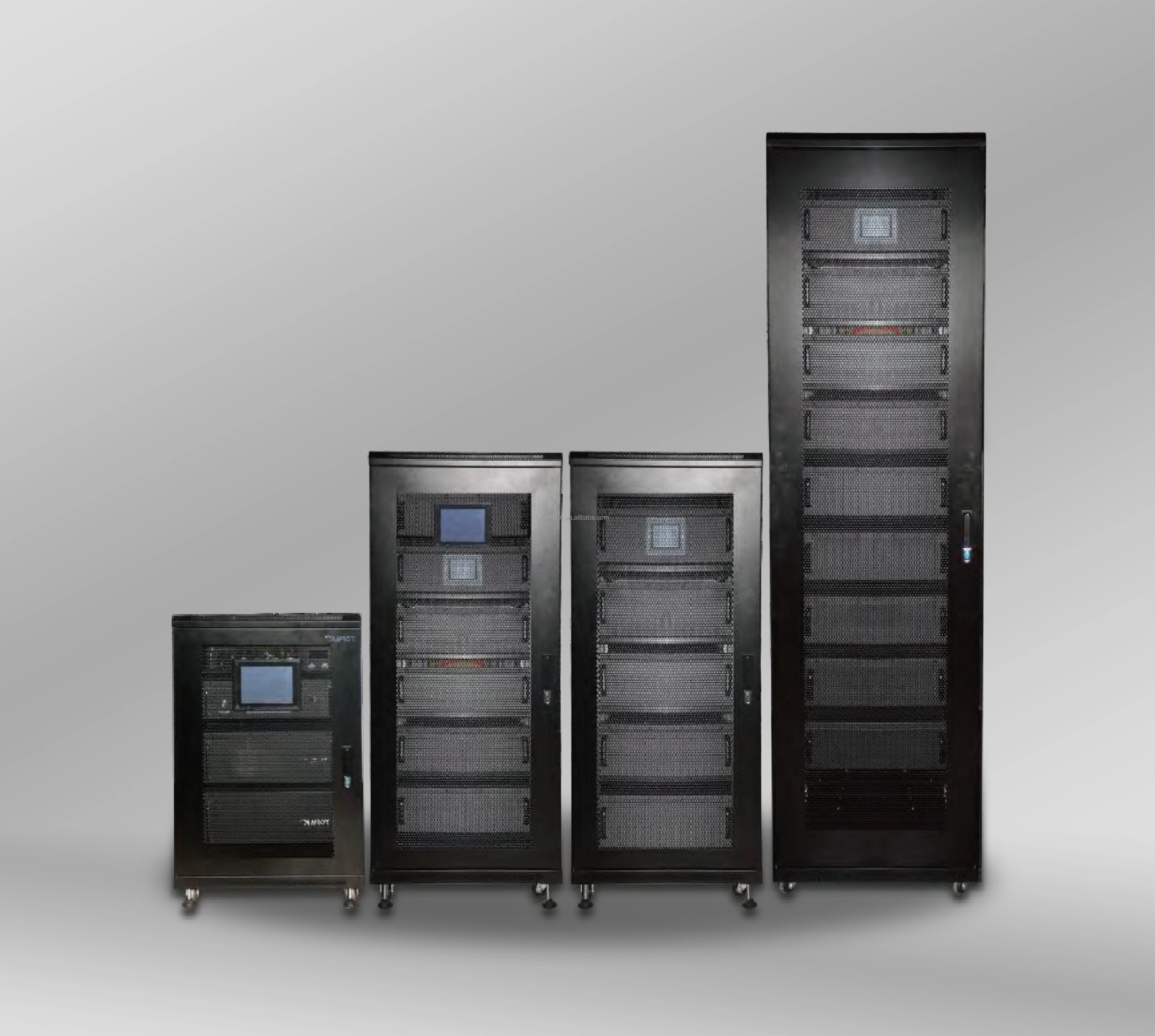

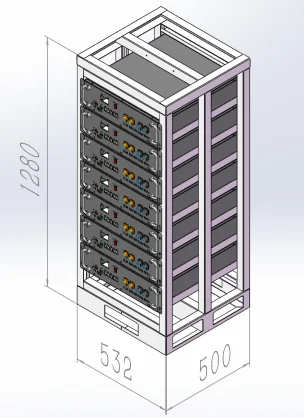

Battery Power System | Rack Battery 192-50 | Rack Battery 192-100 | Rack Battery 384-50 | Rack Battery 384-100 | |||
Nominal Voltage | 192V | 192V | 384V | 384V | |||
Nominal Capacity | 50Ah | 100Ah | 50Ah | 100Ah | |||
Dimension | 600*600*1000 | 600*800*1400 | 600*800*1400 | 600*800*2000 | |||
Weight | 110KG | 180KG | 200KG | 350KG | |||
Charging Method | CC/CP/VP | ||||||
Recharging Current | 0.2C standard 1C maximum continuous charging current | ||||||
Charge Cutoff Voltage | 438V/CELL | ||||||
Discharge Method | CC/CP/VP | ||||||
Discharge Current | 0.5C standard 1.5C maximum continuous discharge current | ||||||
Discharge Cutoff Voltage | 324V/CELL | ||||||
Display | LCD | ||||||
Communication Interface | 485/232/Can | ||||||
Operating Temperature | Charging: 0~+50℃ Discharging: -20~+55℃ | ||||||
Storage Temperature | Short-term storage: -10~+45°C (<3 months,SOC:20%~60%) Long-term storage: -10~+40°C (<1 year,SOC:30%~60%) Recharge every 3 months | ||||||
Storage Humidity | 5%~95% | ||||||
Shipping Status | Voltage: 380~420V SOC: 30%~50% | ||||||

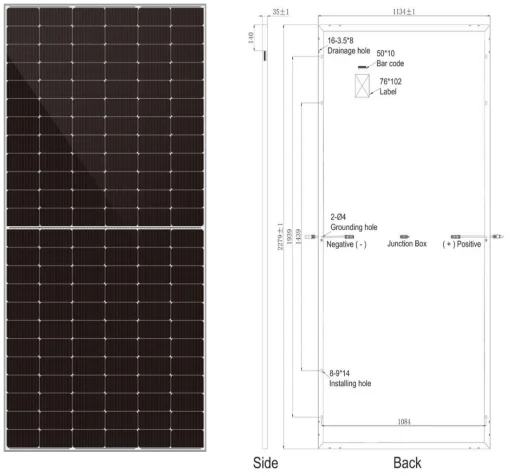

Solar Panel (Mono Half Cut)
25Years Warranty
Maximum Power: 550W
Short Circuit Current(Isc): 13.99A
Open Circuit Voltage(Voc): 49.8V
Size:2278*1134*35mm
Weight: 28.6kg
5pcs/2strings
Short Circuit Current(Isc): 13.99A
Open Circuit Voltage(Voc): 49.8V
Size:2278*1134*35mm
Weight: 28.6kg
5pcs/2strings

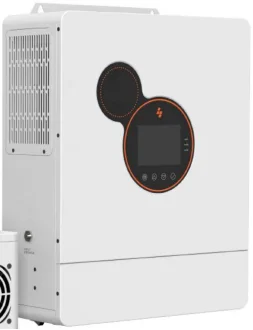

Off Grid inverter
With Wifi
5Years Warranty
Output Power:5KW
AC Output Voltage:
single phase 230V, 50Hz
Mppt Voltage: 90-450V
Battery Voltage: 48V
Size: 603mm*455mm*170mm
Weight: 12kg
AC Output Voltage:
single phase 230V, 50Hz
Mppt Voltage: 90-450V
Battery Voltage: 48V
Size: 603mm*455mm*170mm
Weight: 12kg
Lithium power wall
5Years Warranty
Nominal capacity: 5.12 kWh*2
Depth of discharge(DoD): 80%
Cell Technology: LFP
Size: 195mm*670mm*570mm*2
Weight: 44kg*2
Depth of discharge(DoD): 80%
Cell Technology: LFP
Size: 195mm*670mm*570mm*2
Weight: 44kg*2

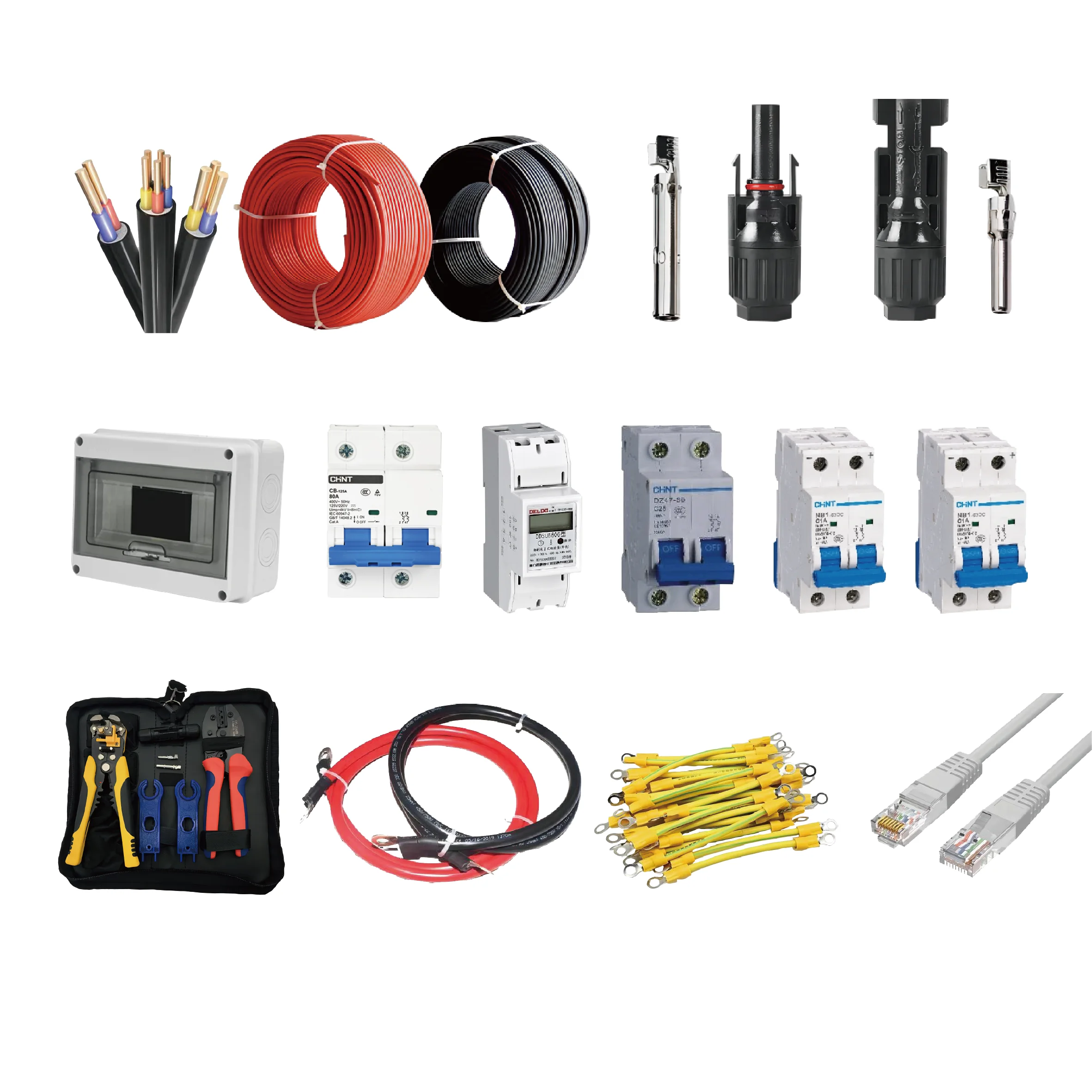

Battery cable、PV Cable、MC4 Connector
2 Years Warranty
25mm2/L2000mm
Red and black
Red and black
PV 4 mm2
Rated current: 30A
Rated voltage: 1000VDC
Rated voltage: 1000VDC

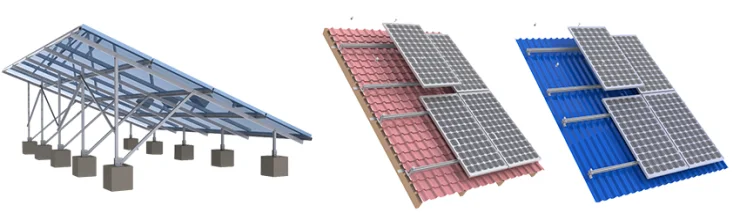

Roof/ground mounting System
(including all parts)
10Years Warranty
10Years Warranty
whole set for all panels

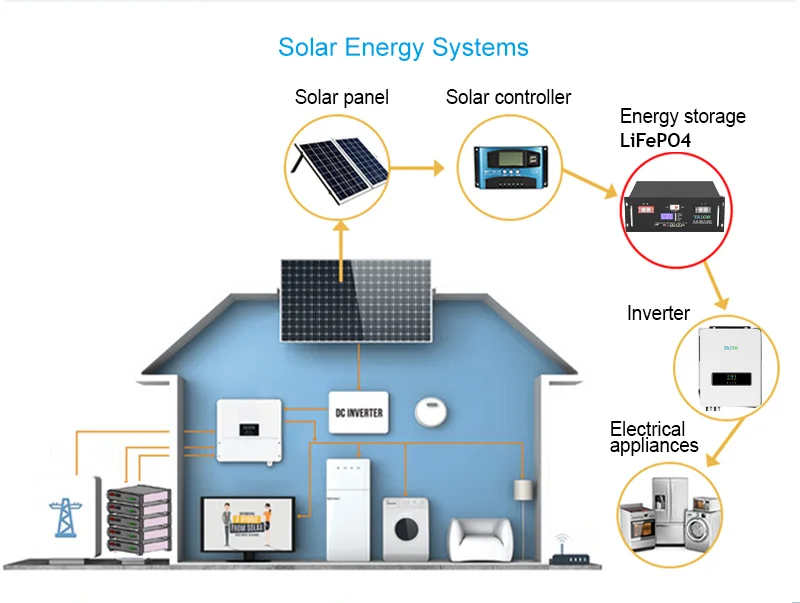

Residential Energy Storage System
Solar Rack & Pack Battery
5kw(Solar Inverter)+5kwh/10kwh/15kwh
Advantages:
•Multiple sizes available
•Patented design for appearance
•Easy installation
•Customizable panel service
•Supports parallel expansion
•Customizable BMS online communication protocol.
•Patented design for appearance
•Easy installation
•Customizable panel service
•Supports parallel expansion
•Customizable BMS online communication protocol.
Application Scenarios:
Backup power systems, data processing centers, home backup power, hospitals, banks, small businesses, uninterrupted power supply for small base stations.

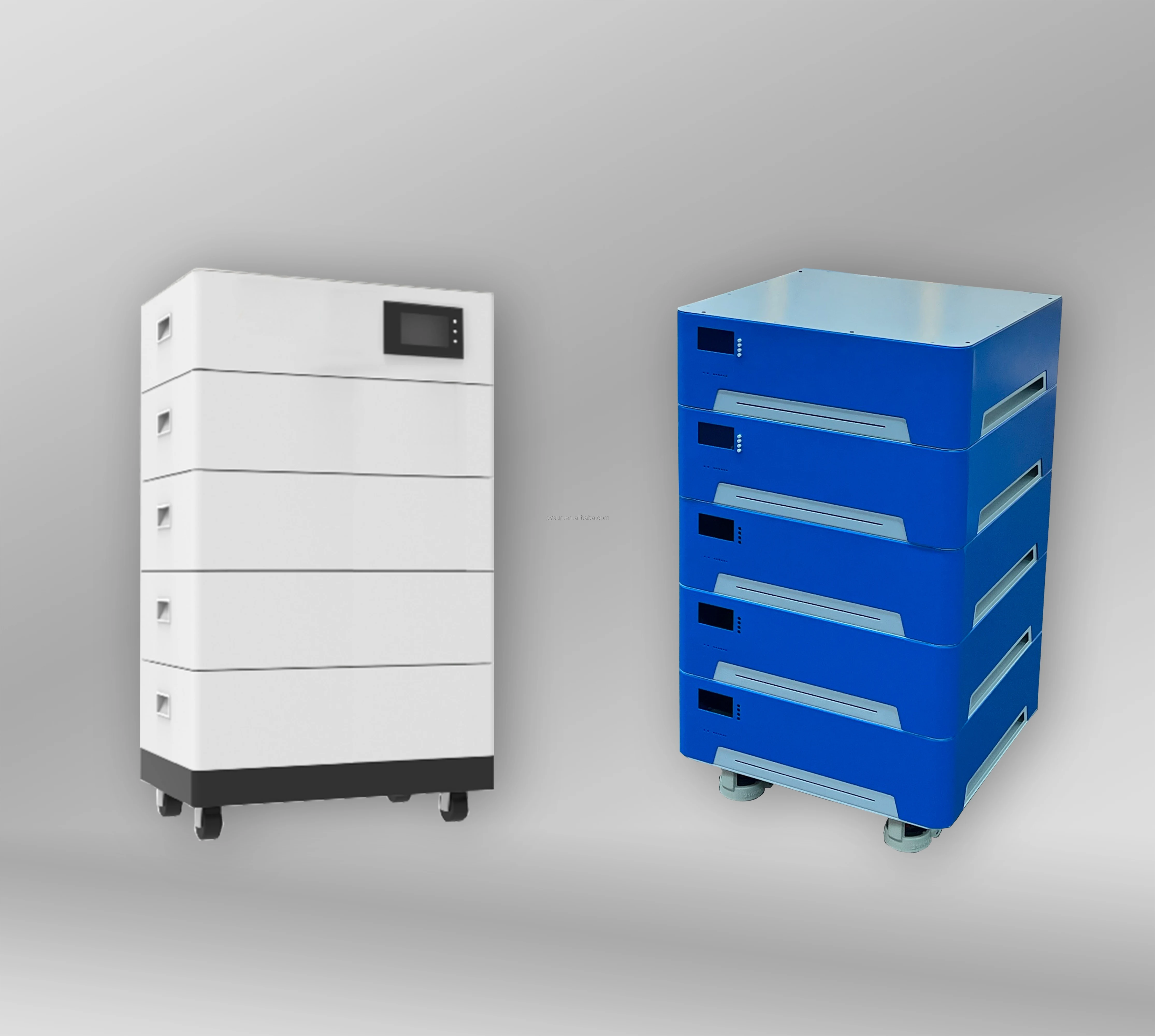

Off Grid Stackable Battery System
5kw(SRNE/Deye)+ 5kwh/10kwh/15kwh
Advantages:
•Longer runtime and larger energy storage capacity.
•Flexibility: modular design and scalability according to specific requirements.
•High power output
•Space efficiency: Effectively utilizes limited space.
Application Scenarios:
Renewable energy storage, network backup power, Home energy storage, Industrial energy storage systems: industrial automation, emergency backup power, and other industrial applications.
•Flexibility: modular design and scalability according to specific requirements.
•High power output
•Space efficiency: Effectively utilizes limited space.
Application Scenarios:
Renewable energy storage, network backup power, Home energy storage, Industrial energy storage systems: industrial automation, emergency backup power, and other industrial applications.

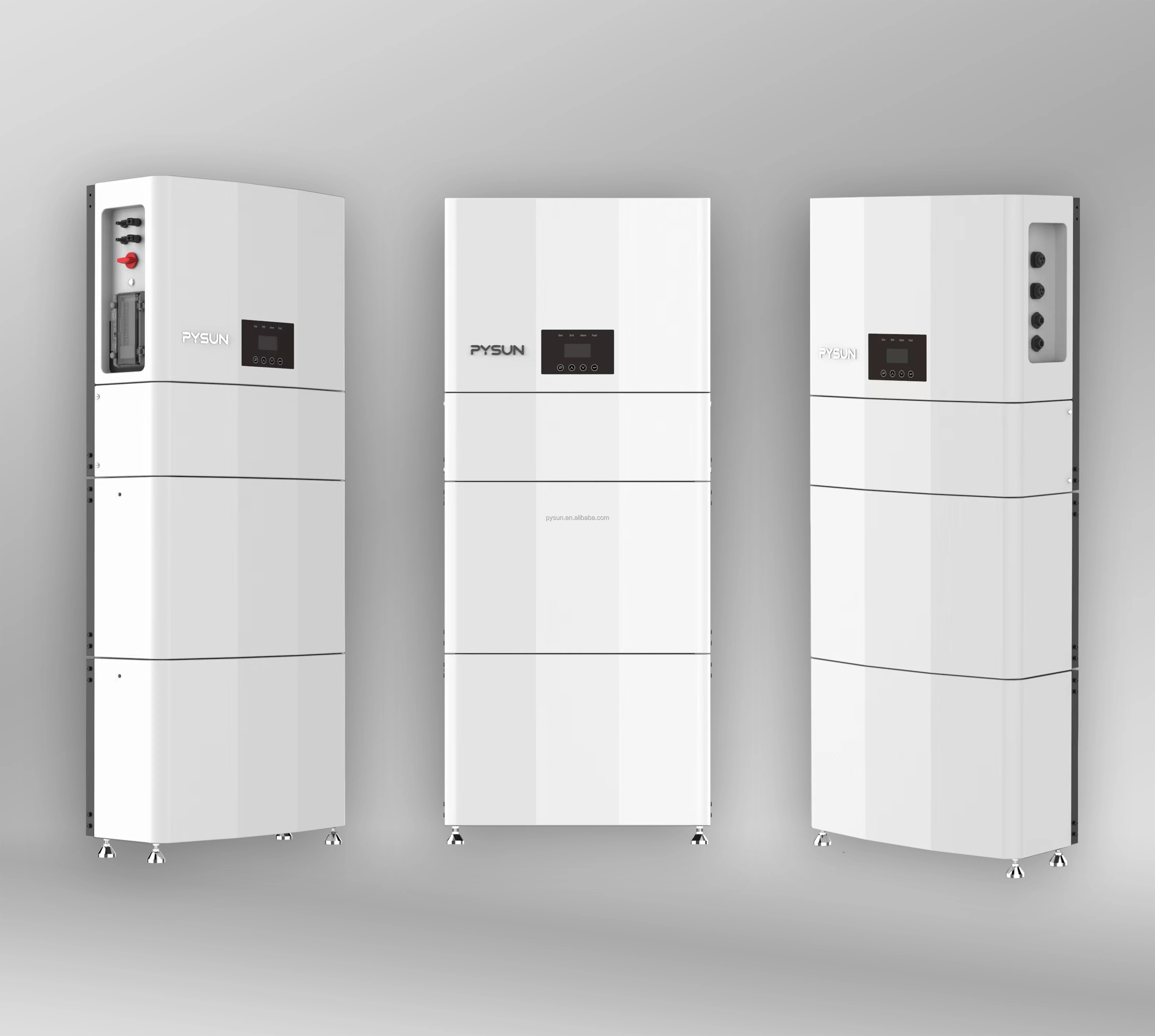

All in One Home Solar Energy Storage System
Advantages:
•Expandable capacity options
•LiFePo4 battery•Charge/recharge cycles >6000
•IP 65 protection rating
•Easy installation
•Split or all-in-one types to choose from
•Wall-mounted/Stacked models
Application Scenarios:
•Solar self-consumption
•Peak shaving and load shifting
•Emergency backup power
•Energy management and optimization:
•Peak shaving and load shifting
•Emergency backup power
•Energy management and optimization:

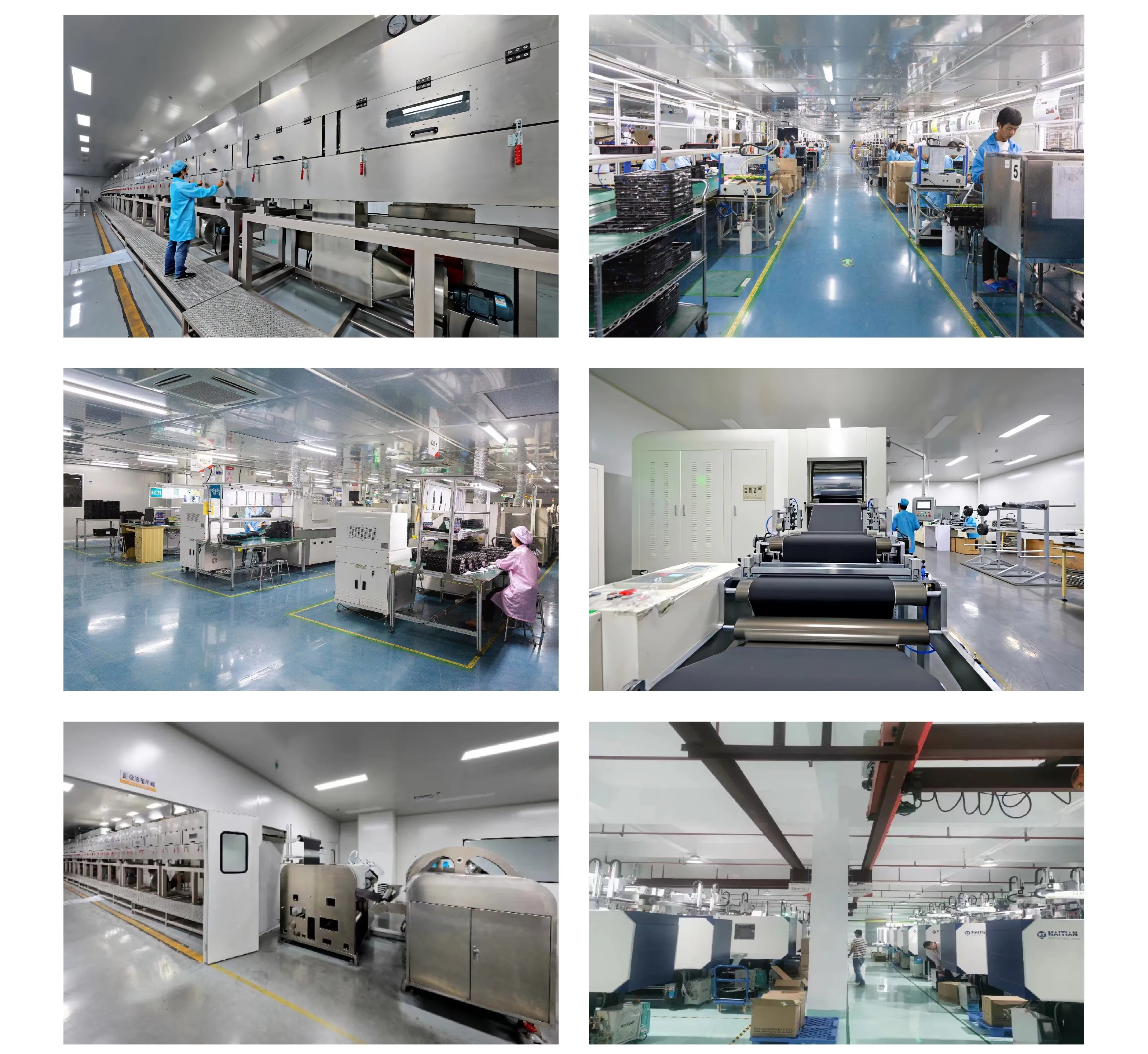

Company Profile
Suzhou Joylive Intelligent Technology Co., Ltd. was established in 2016 and is committed to "Smart Home Energy" solutions. The main products include all in one household energy storage systems, balcony solar system, inverters, battery packs, portable power station, EV charger stations, and villa lifts, etc. Our mission is to provide the safe, reliable, efficient and economical green energy solutions to the home users worldwide.
Our household energy storage system adopts safer LiFePO4 battery technology. In the structural design, it adopts high protection level, anti-mistouch design and the other technologies which greatly improve the safety of the products. Meanwhile, the users can check the operation status and power consumption of the equipment at any time via the App. With EMC, IEC62109, VDE4105, G99, EN50549, UN38.3, NRS097 and other international certificates, the high-quality operation and safety performance are ensured. Other advantages such as fast charging, easy installation, and long battery life. Welcome inquiry！
Our portable power station product covers battery capacities from 300Wh to 5000Wh, and battery life from 1000+ cycles to 6000+ cycles based on different types. The product integrates USB-A, USB-C, 220V AC sockets, solar charging, cigarette lighter, and DC5521 various interfaces. Customization is welcomed.
If you have any interest on our products, or any question, please don’t hesitate to contact us.
If you have any interest on our products, or any question, please don’t hesitate to contact us.
Joylive, all for the joyful life!
FAQ
Q1. Is the battery used in the battery pack grade A？
Yes, we only use Grade A and Brand new cells inside.

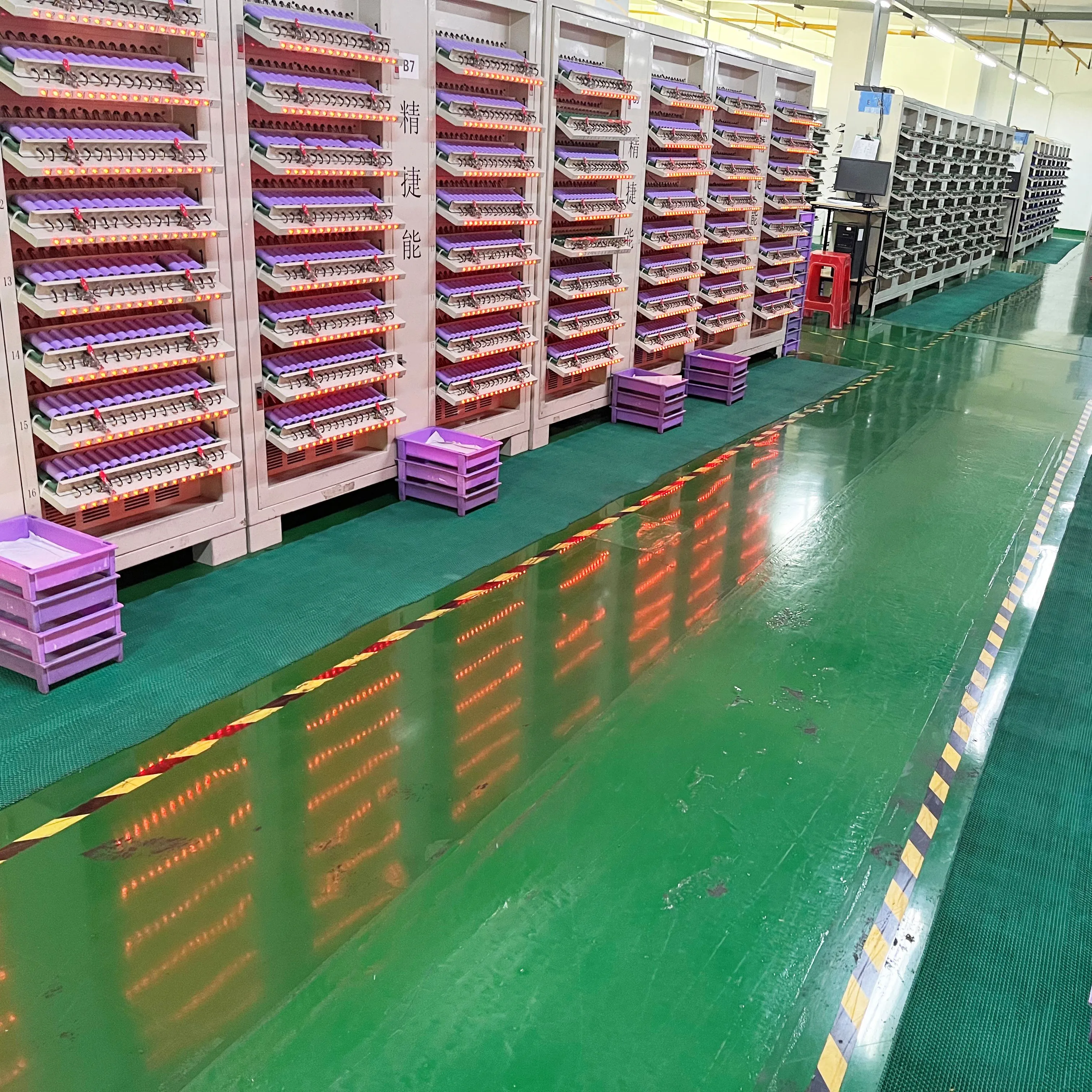

Q2.Do you test and match the battery before installing the battery pack?
Yes, every cell will be tested capacity, IR, voltage to surely match
Voltage:The deviation less than 0.01V
Resistance:The deviation less than 0.1mΩ
Capacity: Tested and label the data on each cell
Q3.How do I store my batteries?
When the product is not in use for a long time, it should be stored in a dry, clean and well-ventilated warehouse at 10°C～35°C, avoiding inflammable and explosive materials; the battery pack should be charged and maintained regularly every three months to ensure that the battery best performance state.
Q4.What is the cycle life of the battery?
6000 cycle life @ 80% DOD
Q5.What's the warranty of your battery pack?
5years warranty, if there is broken item under quality problem within warranty time, we will offer free replacements or refund, up to your needs
Q6.Do your batteries support series or parallel connection?
Our battery packs support in parallel, if you need series connection, please contact our sales staff
Yes, we only use Grade A and Brand new cells inside.
Q2.Do you test and match the battery before installing the battery pack?
Yes, every cell will be tested capacity, IR, voltage to surely match
Voltage:The deviation less than 0.01V
Resistance:The deviation less than 0.1mΩ
Capacity: Tested and label the data on each cell
Q3.How do I store my batteries?
When the product is not in use for a long time, it should be stored in a dry, clean and well-ventilated warehouse at 10°C～35°C, avoiding inflammable and explosive materials; the battery pack should be charged and maintained regularly every three months to ensure that the battery best performance state.
Q4.What is the cycle life of the battery?
6000 cycle life @ 80% DOD
Q5.What's the warranty of your battery pack?
5years warranty, if there is broken item under quality problem within warranty time, we will offer free replacements or refund, up to your needs
Q6.Do your batteries support series or parallel connection?
Our battery packs support in parallel, if you need series connection, please contact our sales staff
