Hua wei EU version SUN2000 50KTL M3 Hua wei Solar Inverter 30KW 36KW 40KW 50KW On Grid Three Phase Hua wei Inverter
- Category: >>>
- Supplier: Anhui Minvic Import & Export Co. Ltd.
Share on (1601061772077):
Product Overview
Description
Products Description

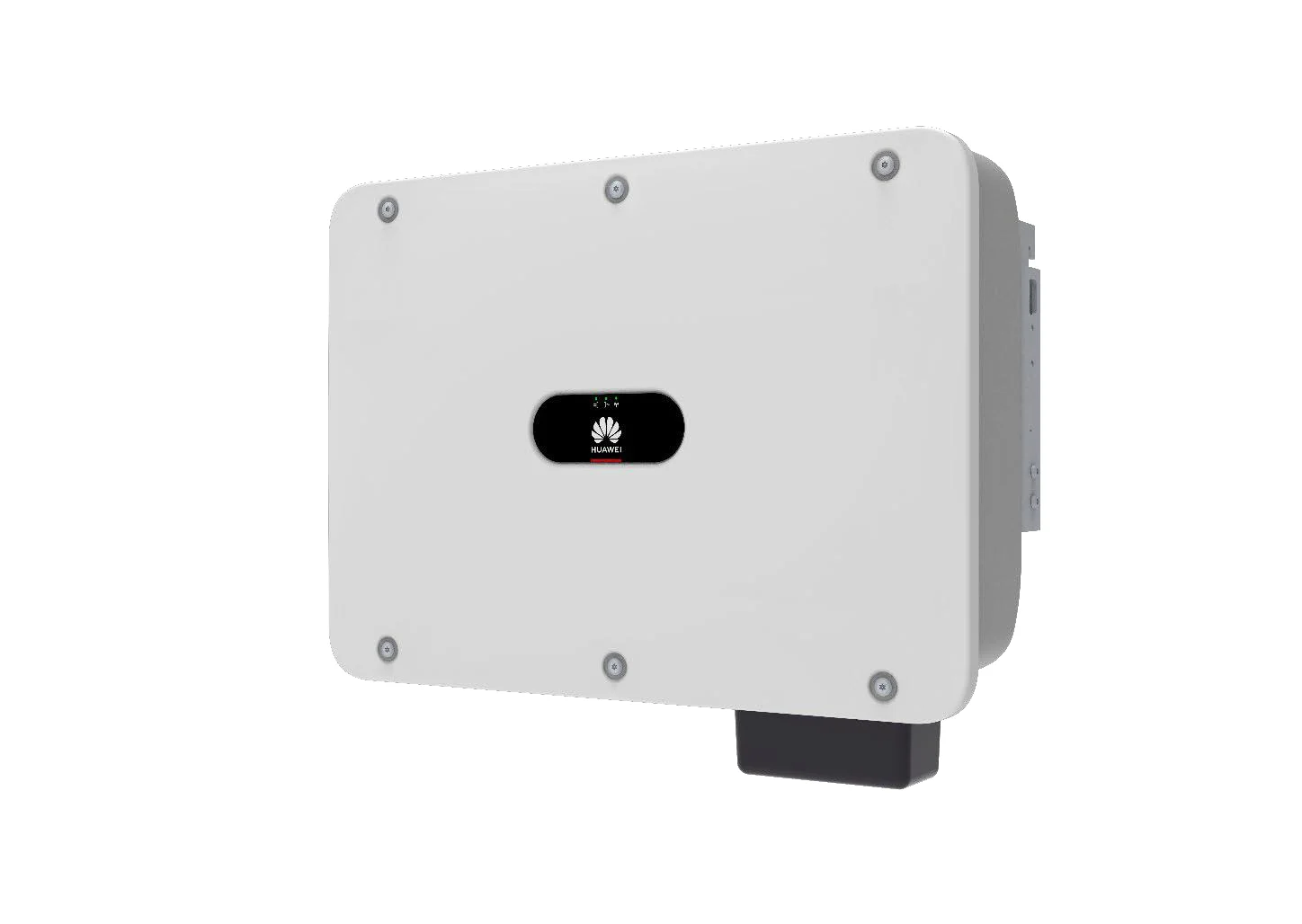

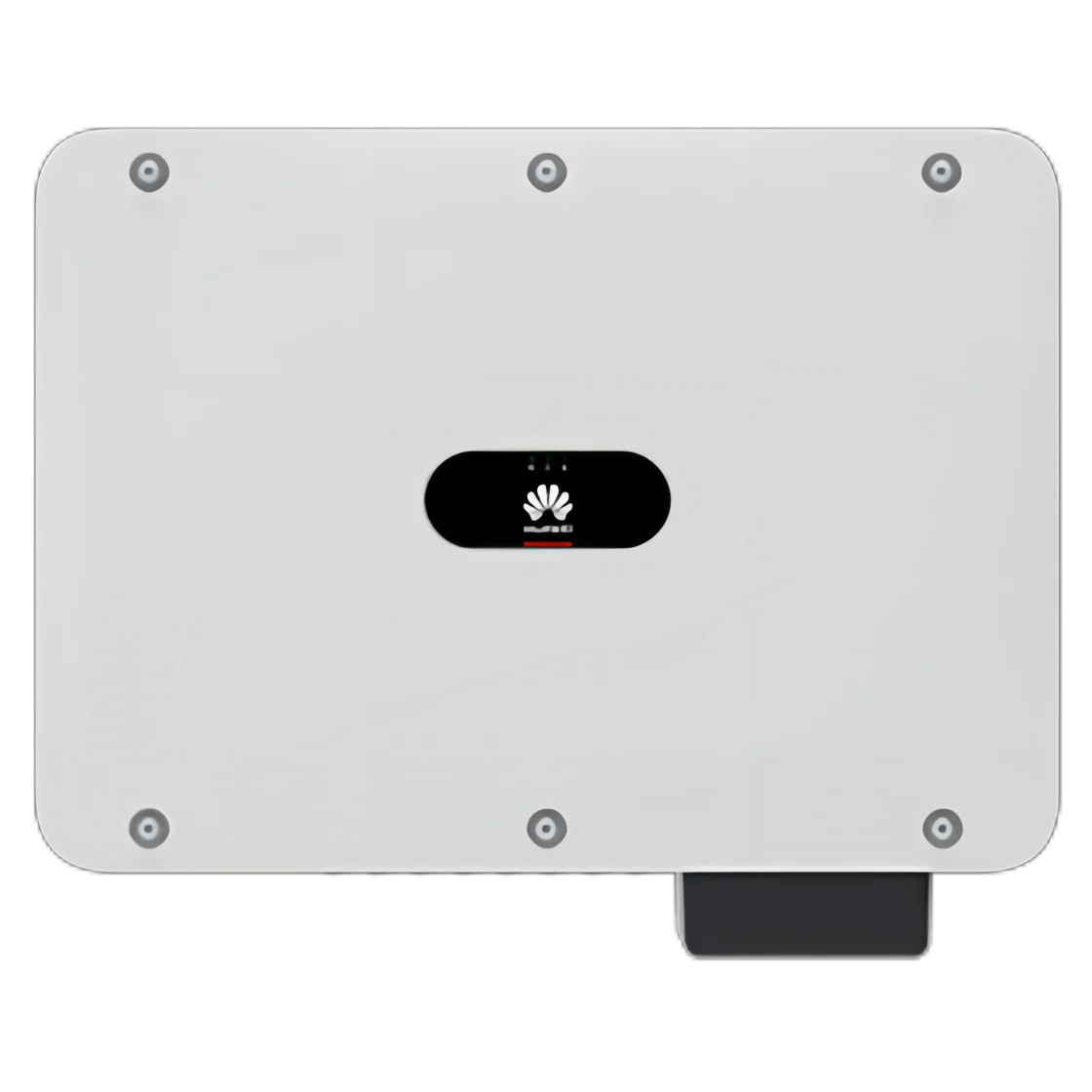

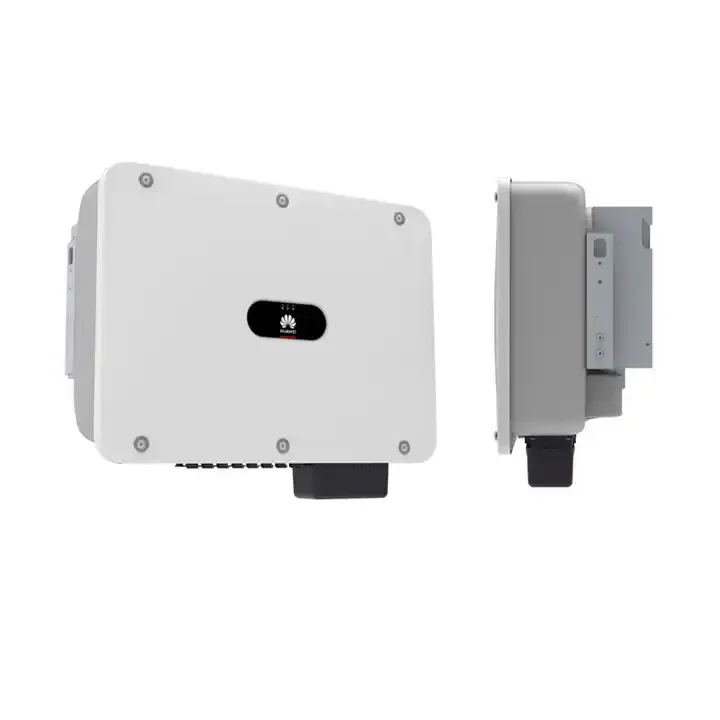

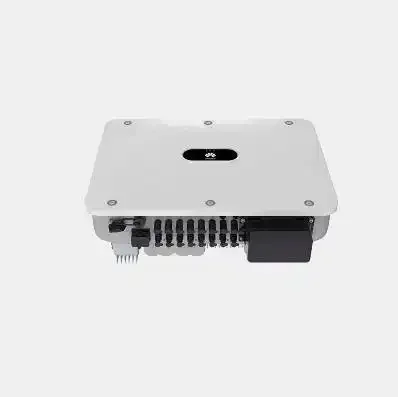

SUN2000-50KTL-M3
Key Features
Higher Yields
Up to 30% More Energy
with Optimizer
Active Safety
AI2 Powered
Active Arcing Protection
Efficient
Max. efficiency 98.5%
Flexible Communication
WLAN, Fast Ethernet, 4G
Communication Supported
Communication Supported
Product Paramenters
Technical Specification | SUN2000-50KTL-M3 | |||||
Efficiency | ||||||
Max.efficiency | 98.5% | |||||
European weighted efficiency | 98.0% | |||||
Input | ||||||
Max. Input Voltage 1 | 1,100 V | |||||
Max. Current per MPPT | 30 A | |||||
Max. Current per Input | 20 A | |||||
Max. Short Circuit Current per MPPT | 20 A | |||||
Start Voltage | 200 V | |||||
MPPT Operating Voltage Range 2 | 200 V ~ 1000 V | |||||
Rated Input Voltage | 600 V | |||||
Number of Inputs | 8 | |||||
Number of MPP Trackers | 4 | |||||
Output | ||||||
Rated AC Active Power | 50,000 W | |||||
Max. AC Apparent Power | 55,000 VA | |||||
Max. AC Active Power (cosφ=1) | 55,000 W | |||||
Rated Output Voltage | 400 Vac / 480 Vac, 3W+(N) + PE | |||||
Rated AC Grid Frequency | 50 Hz / 60 Hz | |||||
Rated Output Voltage | 72.2 A @ 400Vac, 60.1 A @ 480Vac | |||||
Max. output current | 79.8 A @ 400Vac, 66.5 A @ 480Vac | |||||
Adjustable power factor | 0.8 LG ... 0.8 LD | |||||
Max. Total Harmonic Distortion | <3% | |||||
Protection | ||
Input-side Disconnection Device | Yes | |
Anti-islanding Protection | Yes | |
AC Overcurrent Protection | Yes | |
DC Reverse-polarity Protection | Yes | |
PV-array String Fault Monitoring | Yes | |
DC Surge Arrester | Yes | |
AC Surge Arrester | Yes | |
DC Insulation Resistance Detection | Yes | |
Residual Current Monitoring Unit | Yes | |
Arc Fault Protection | Yes | |
Ripple Receiver Control | Yes | |
Integrated PID Recovery 3 | Yes | |
Communication | ||
Display | LED Indicators, Integrated WLAN + FusionSolar APP | |
RS485 | Yes | |
Smart Dongle | WLAN/Ethernet via Smart Dongle-WLAN-FE (Optional) 4G / 3G / 2G via Smart Dongle-4G (Optional) | |
General Data | ||
Dimensions (W x H x D) | 640 x 530 x 270 mm (25.2 x 20.9 x 10.6 inch) | |
Weight (with mounting plate) | 43 kg (94.8 lb) | |
Operating Temperature Range | -25 ~ + 60 °C (-13 °F ~ 140 °F) | |
Cooling Method | Natural Convection | |
Max. Operating Altitude | 4,000 m (13,123 ft.) (Derating above 2000 m) | |
Relative Humidity | 0% RH ~ 100% RH | |
DC Connector | Amphenol Helios H4 | |
AC Connector | Waterproof Connector + OT/DT Terminal | |
Protection Degree | IP 66 | |
Topology | Transformerless | |
Nightime Power Consumption | ≤ 5.5W | |
Optimizer Compatibility | ||
DC MBUS Compatible Optimizer | SUN2000-450W-P2, SUN2000-600W-P,MERC-1100W/1300W-P | |
Standard Compliance (more available upon request) | ||
Safety | EN 62109-1/-2, IEC 62109-1/-2, EN 50530, IEC 62116, IEC 60068, IEC 61683 | |
Grid Connection Standards | IEC 61727, VDE-AR-N4105, VDE 0126-1-1, BDEW, G59/3, UTE C 15-712-1, CEI 0-16, CEI 0-21, RD 661, RD 1699, P.O. 12.3,RD 413, EN-50438-Turkey, EN-50438-Ireland, C10/11, MEA, Resolution No.7, NRS 097-2-1, AS/NZS 4777.2, DEWA | |

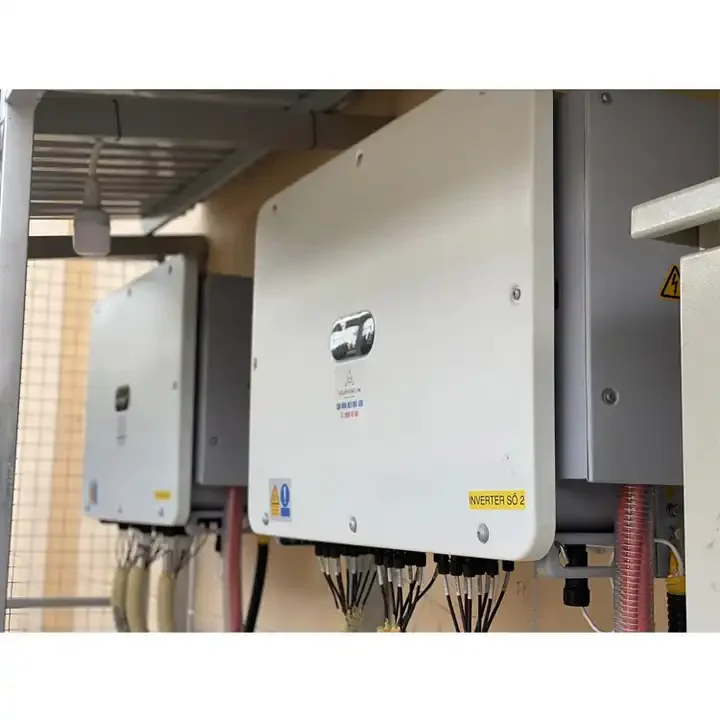

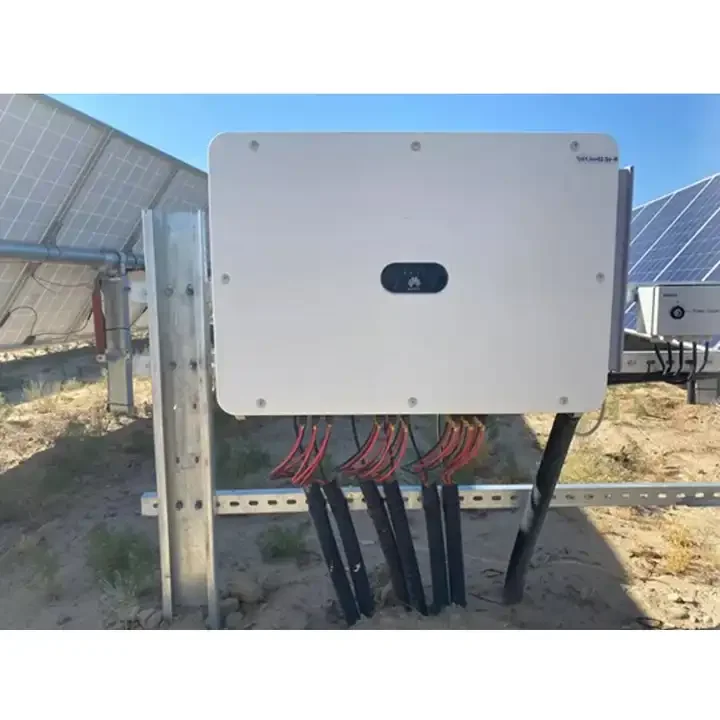

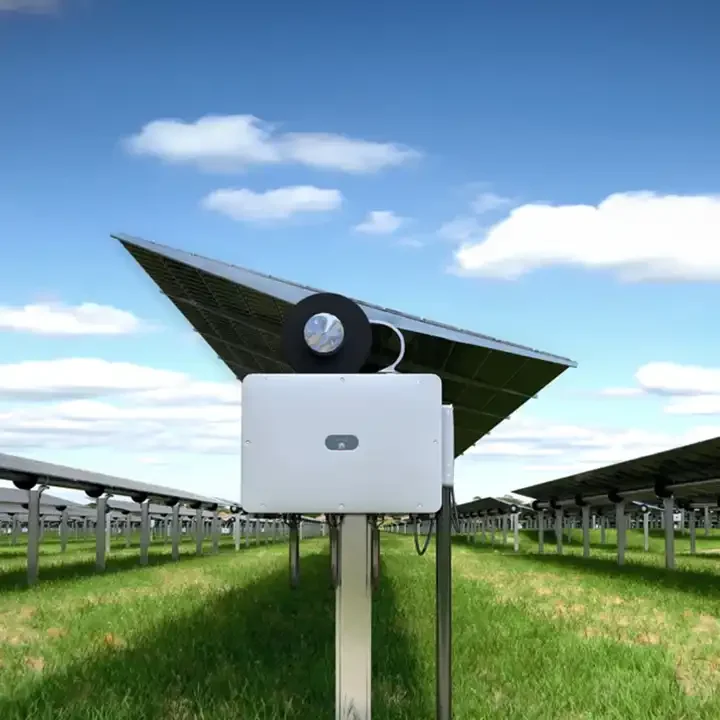

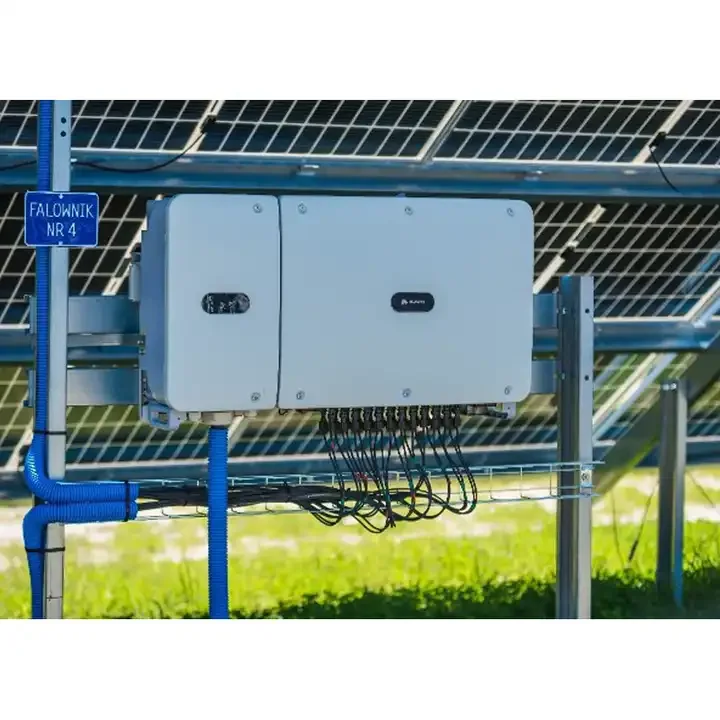

Project Case

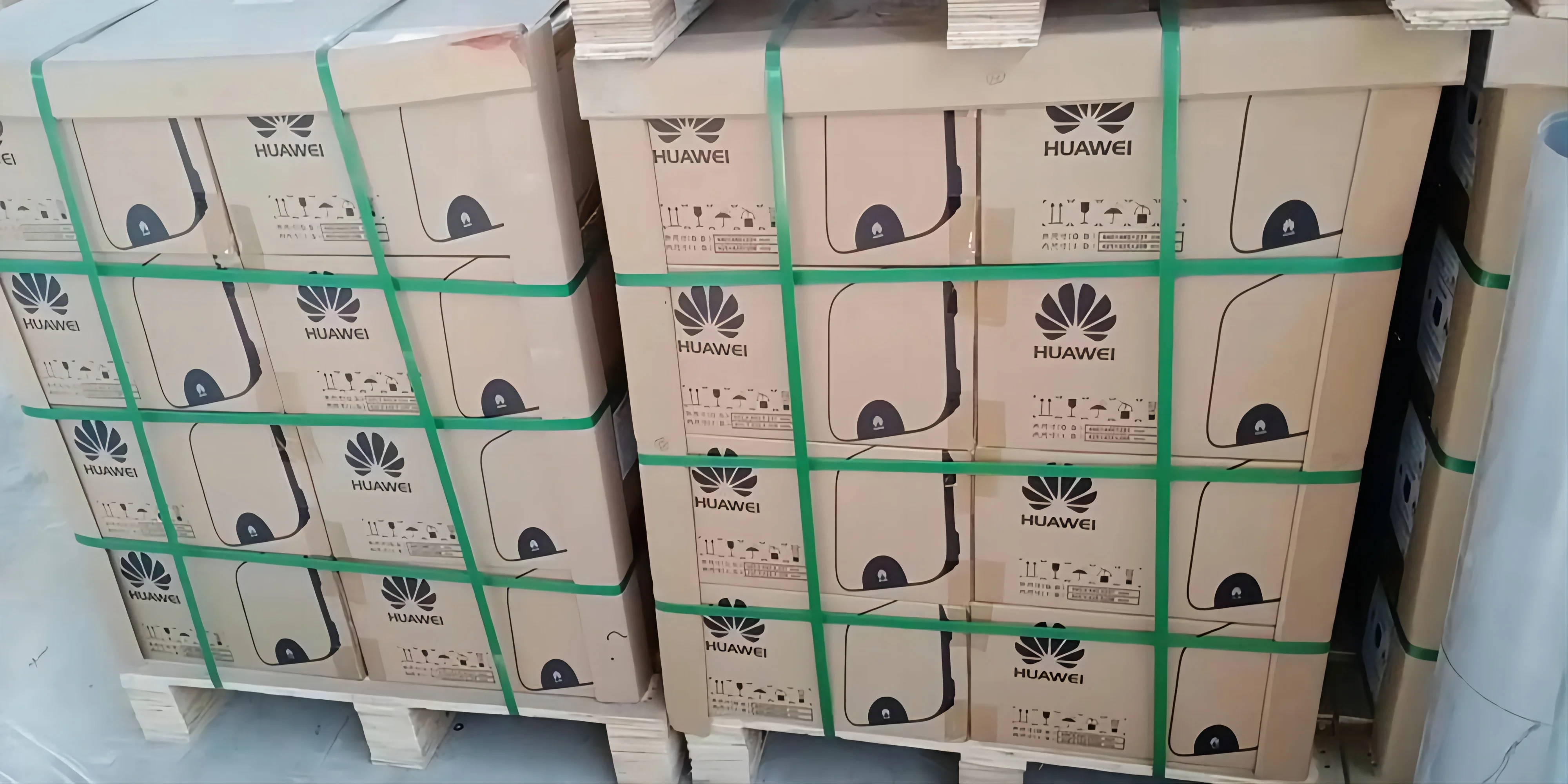

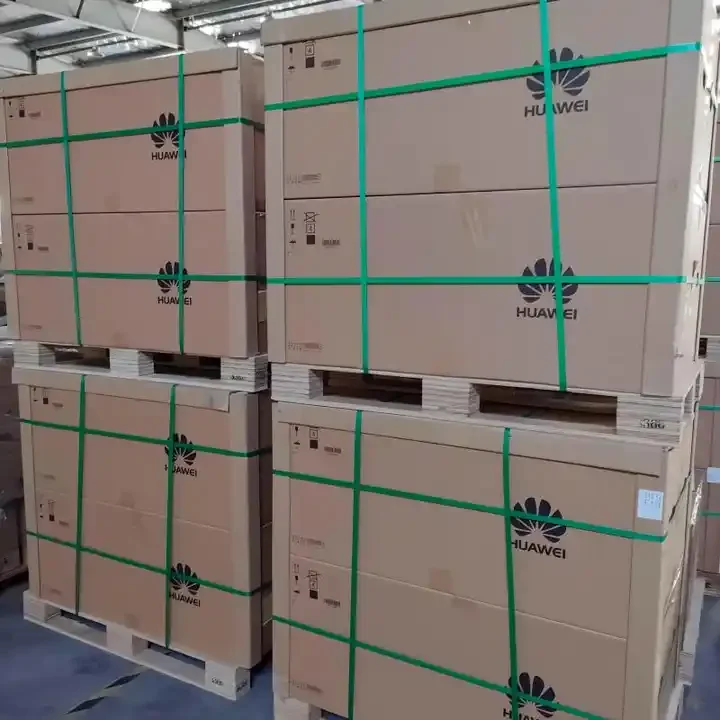

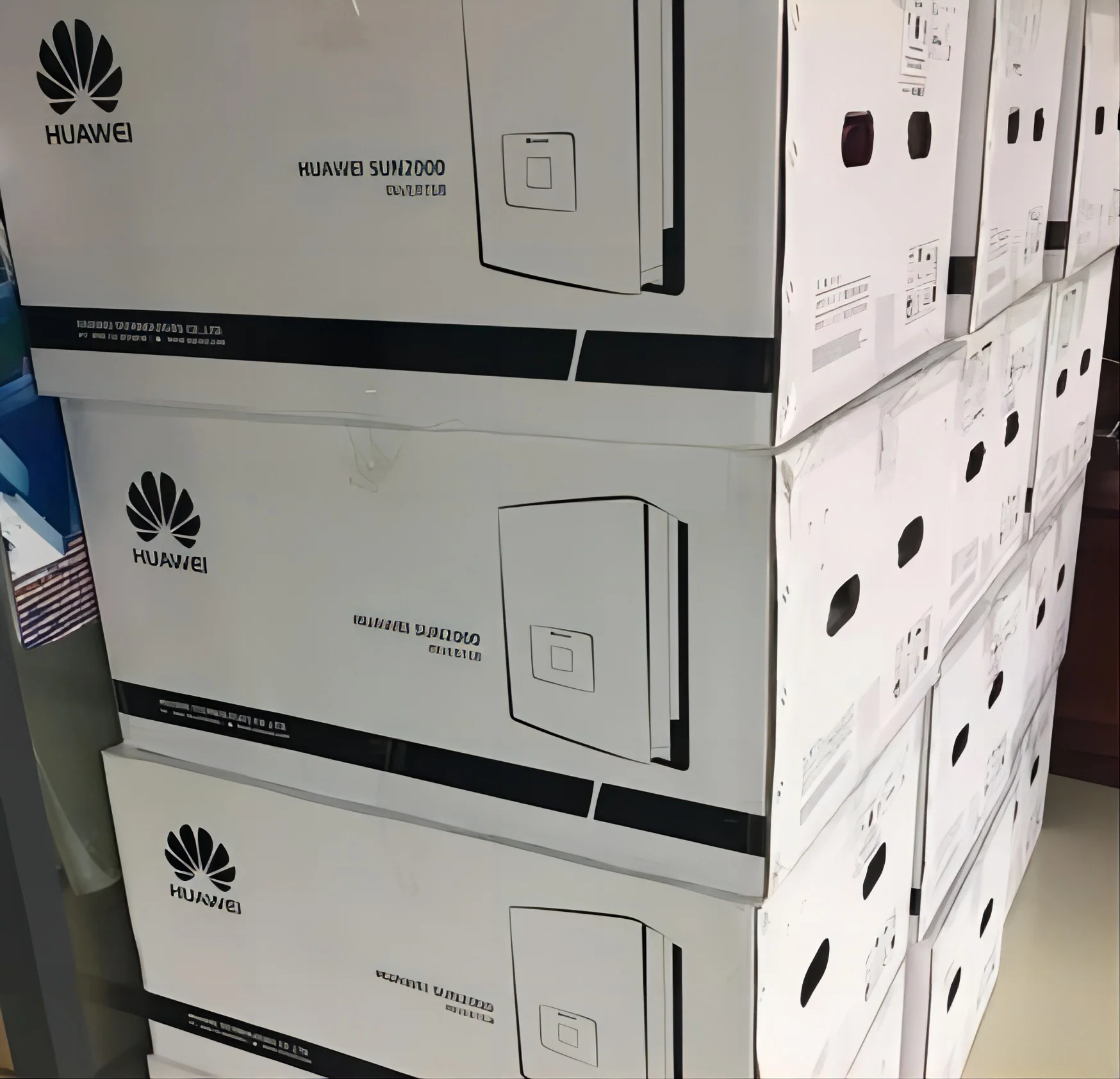

Packing & Delivery
Exhibition

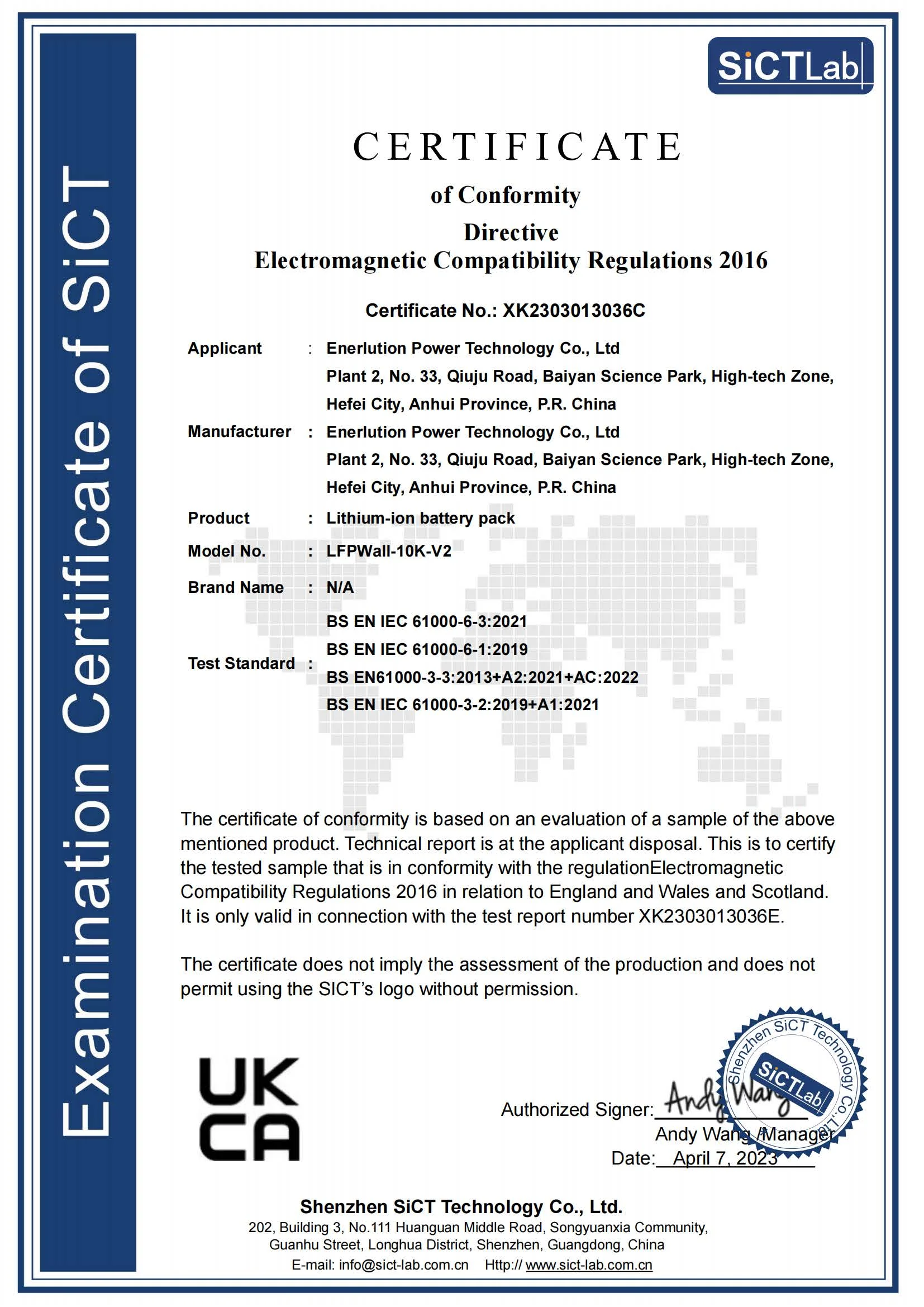

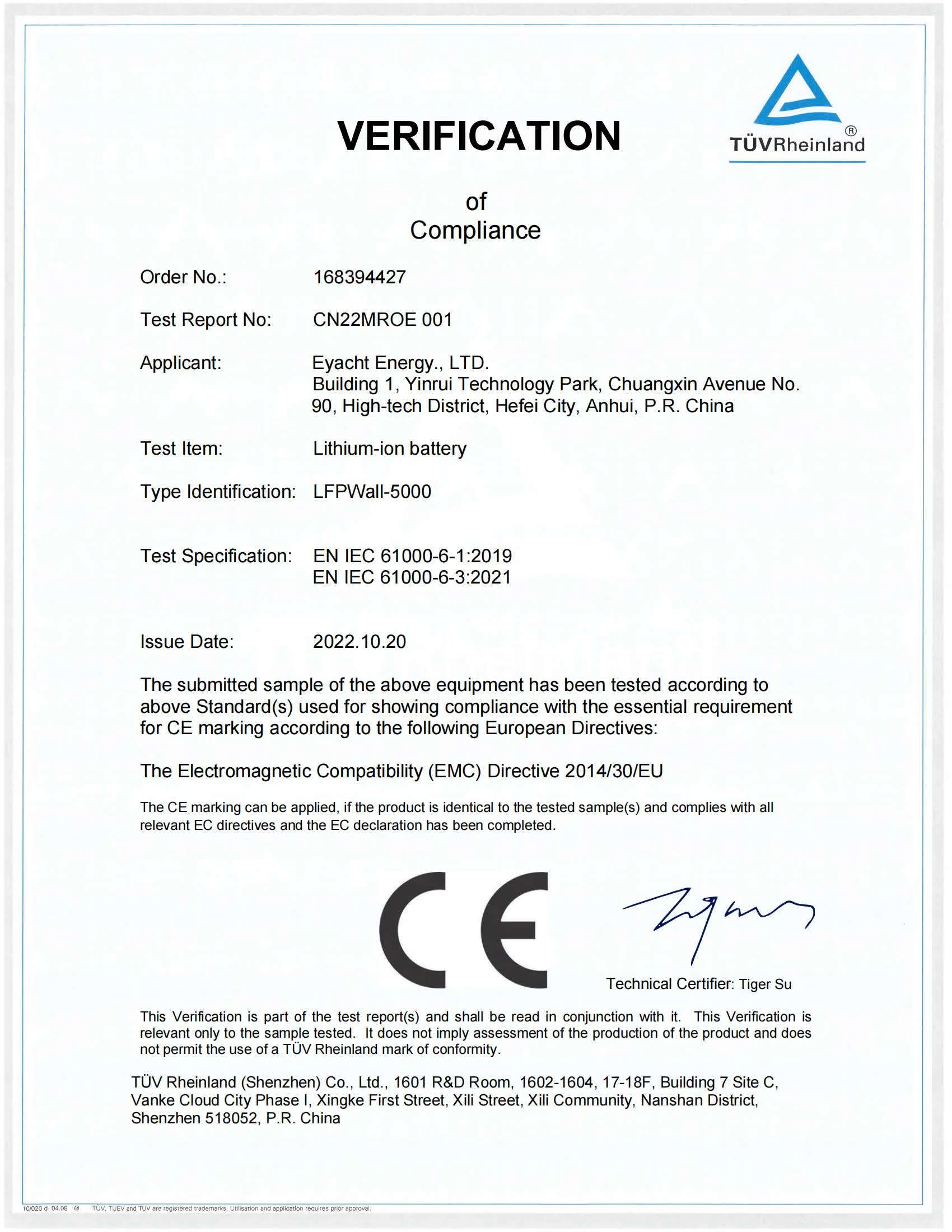

Certificate

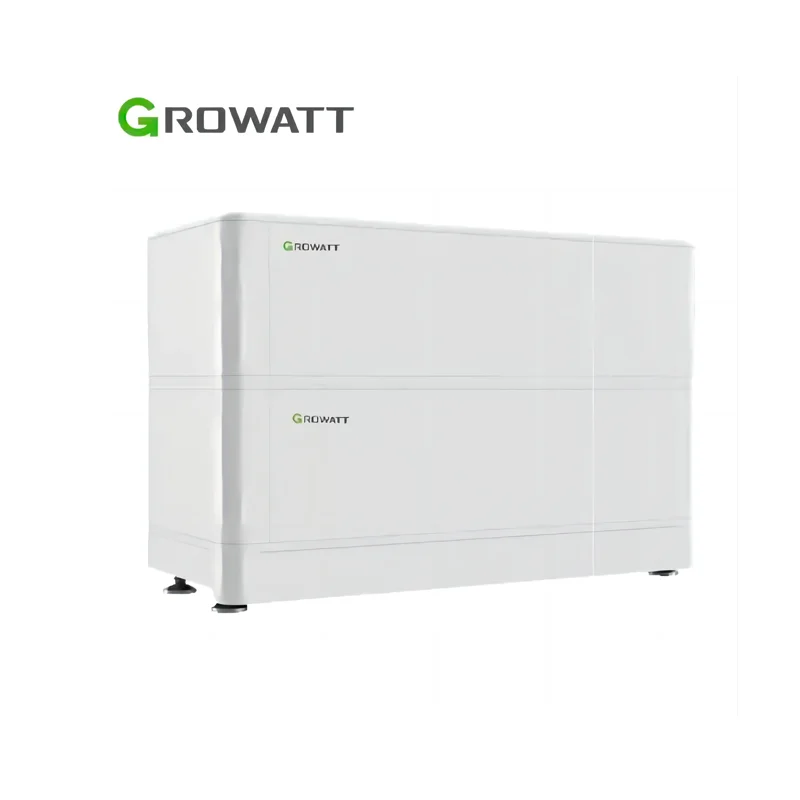

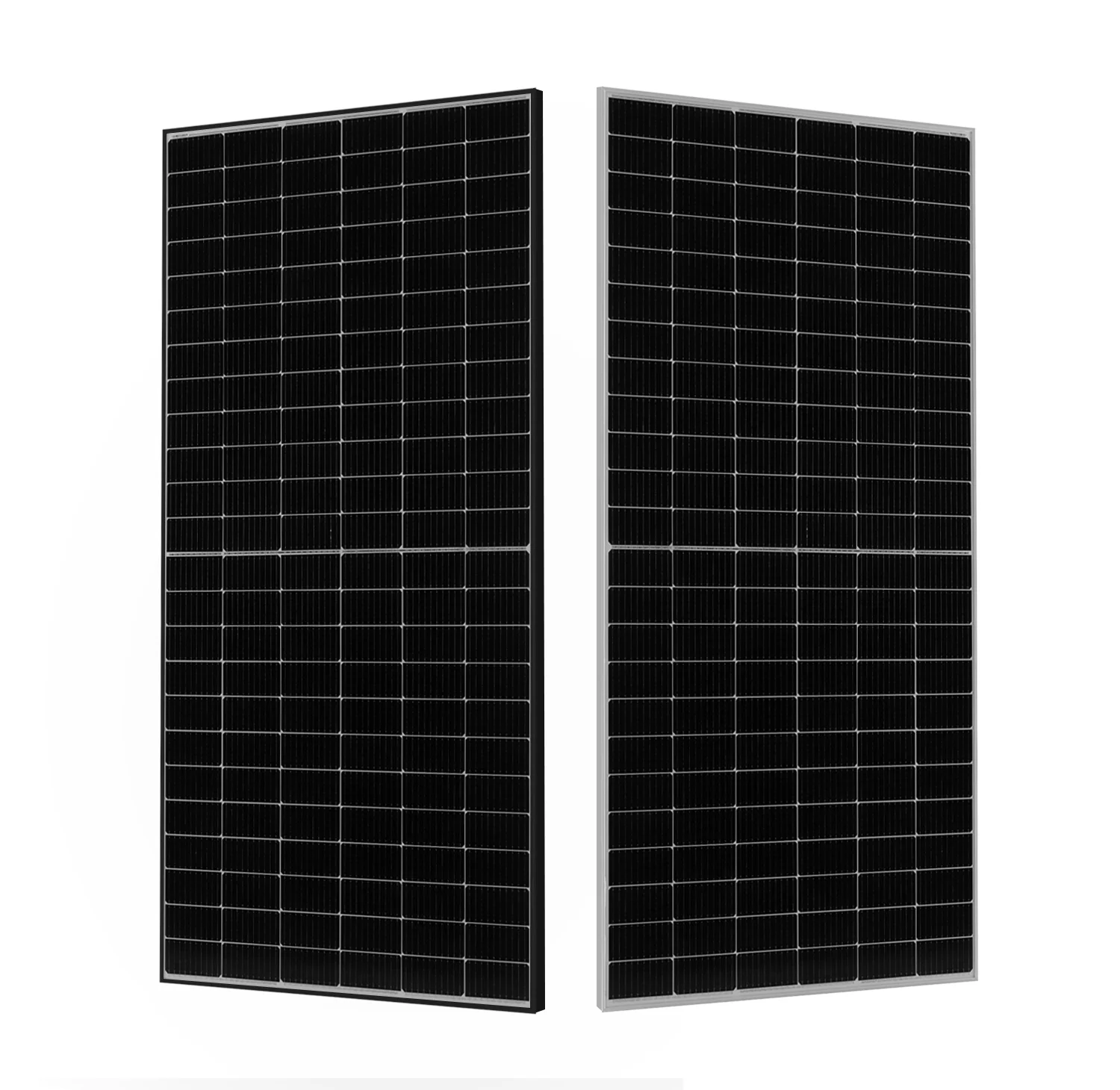

Recommend Products
