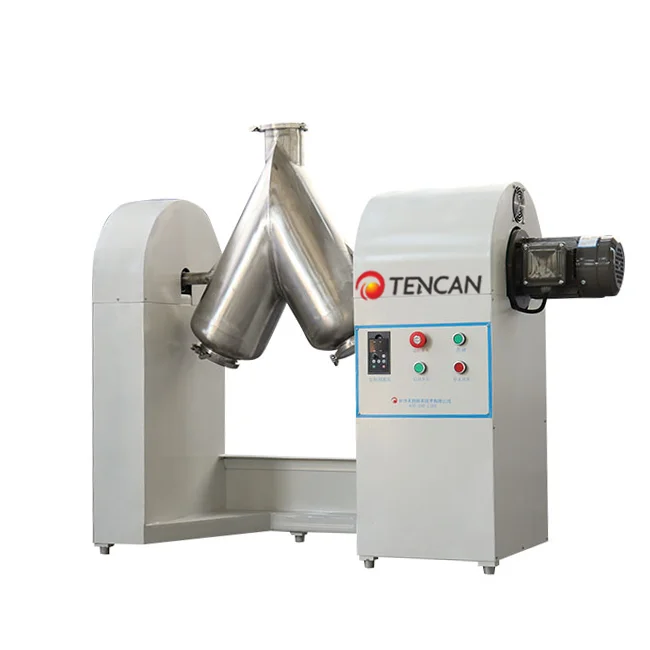

China Tencan 20L Factory Direct Sale Lab Color Pigments Powder Mixing Machine
- Category: >>>
- Supplier: Changsha Tianchuang Powder Technology Co. Ltd.
Share on (1601061862877):
Product Overview
Description
Recommend Products
Products Description

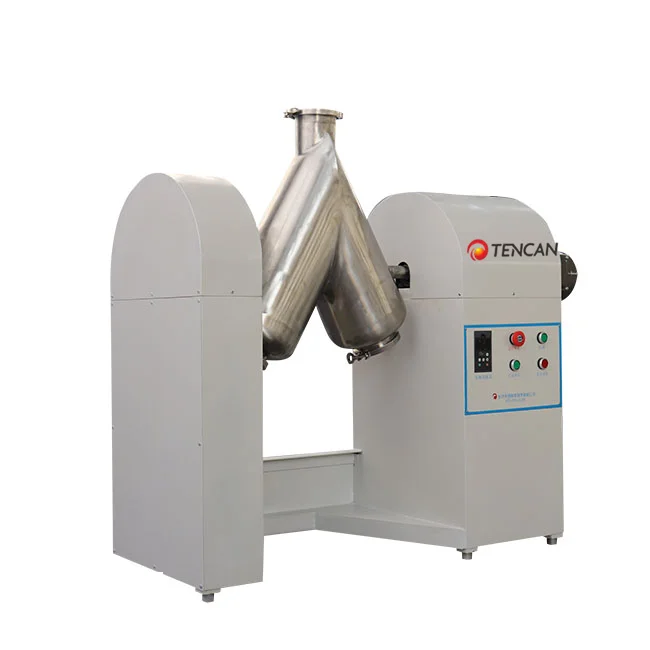

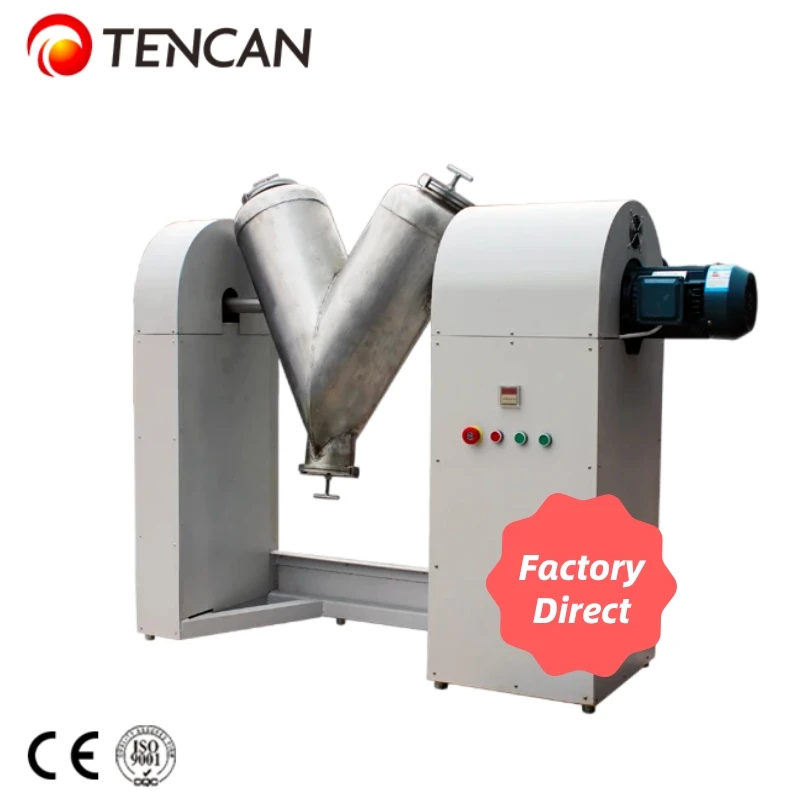

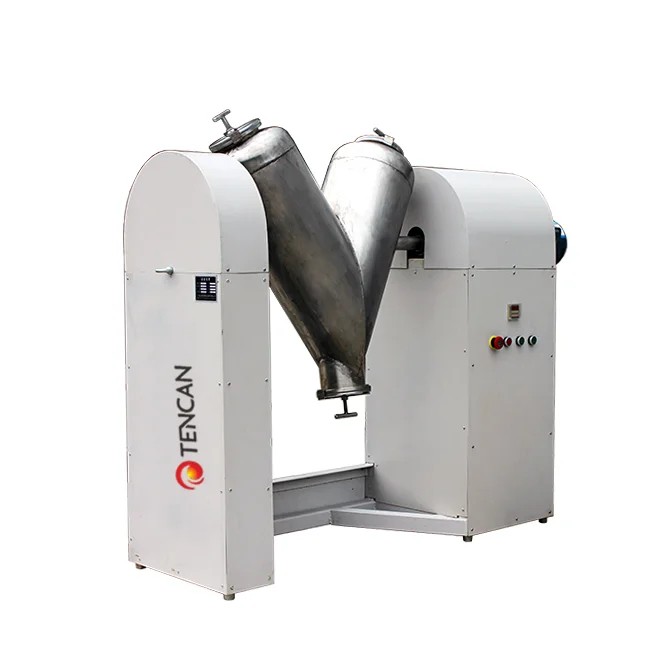

China Tencan 20L Factory Direct Sale Lab Color Pigments Powder Mixing Machine
Technical Parameters of V-type Mixer
Model NO. | Rotation Speed(r/min) | Fix Speed(r/min) | Motor (KW) | Grade of Motor | Power Supply | Capacity (L) | Dimension(mm) | Reference Weight(kg) |
V-5 | 10-50 | 50 | 0.37-B5 | 4 | Single Phrase 220V | 2.5 | 1060*410*890 | 78 |
V-10 | 10-50 | 50 | 0.37-B5 | 5 | 1060*410*890 | 82 | ||
V-20 | 8-34 | 34 | 0.75-B5 | 10 | 1360*480*980 | 139 | ||
V-50 | 8-34 | 34 | 1.5-B5 | 25 | 1680*510*1270 | 200 | ||
V-100 | 8-34 | 34 | 2.2-B5 | Three Phrase 380V | 50 | 1570*475*1500 | 280 | |
V-200 | 5-24 | 24 | 3-B5 | 100 | 1980*770*1680 | 379 | ||
V-300 | 5-20 | 20 | 4-B5 | 150 | 2000*800*1800 | |||
V-400 | 4-12 | 12 | 5.5-B5 | 200 | 2300*1000*2000 | |||
V-500 | 4-12 | 12 | 7.5-B5 | 250 | 3120*1850*2130 |

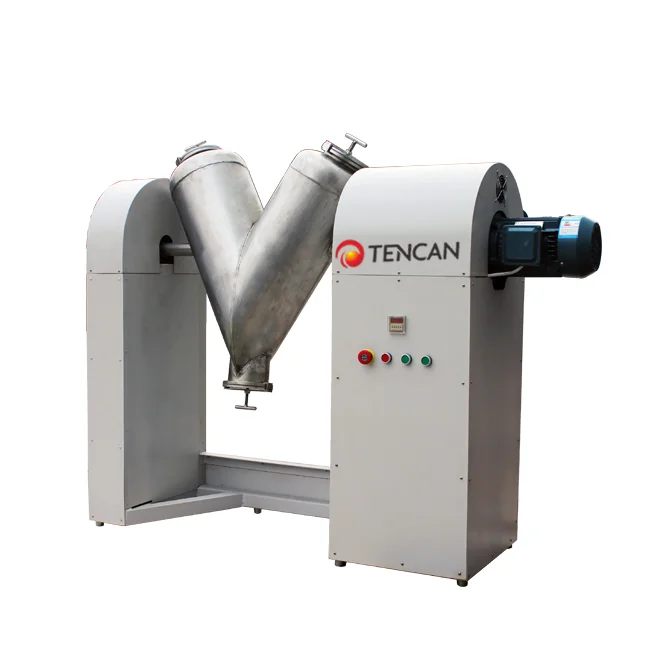

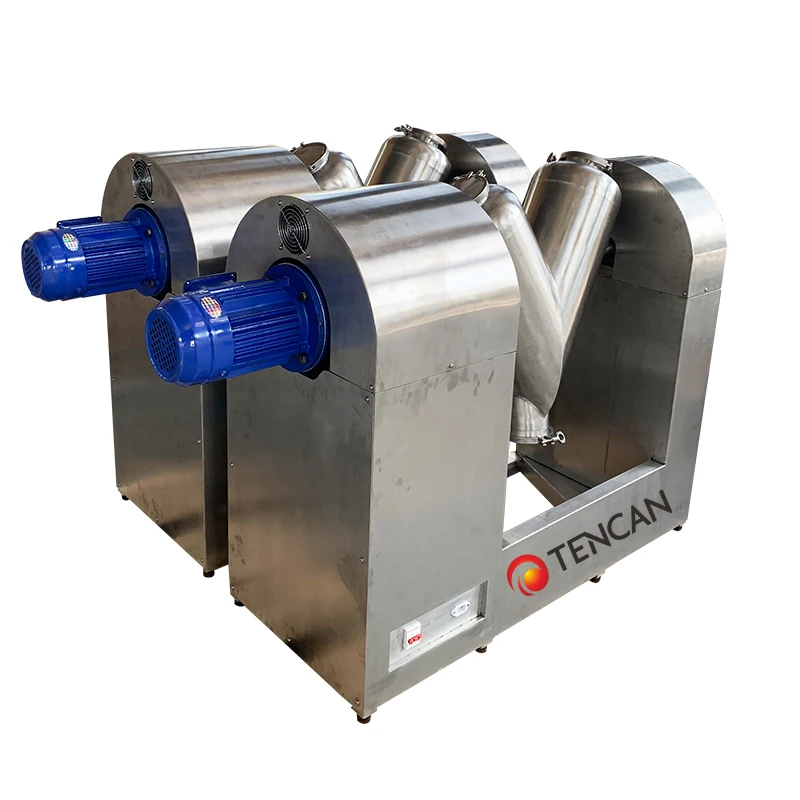

Overview

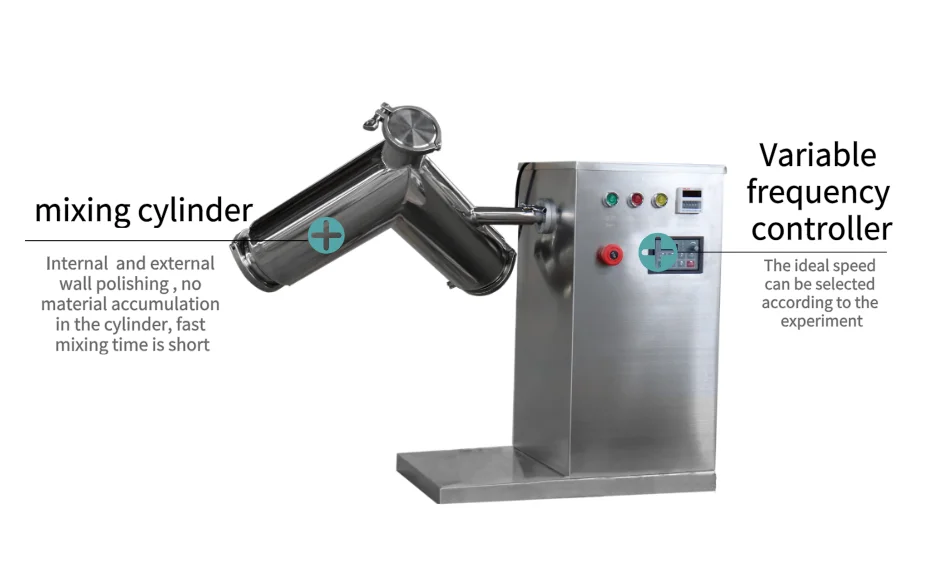

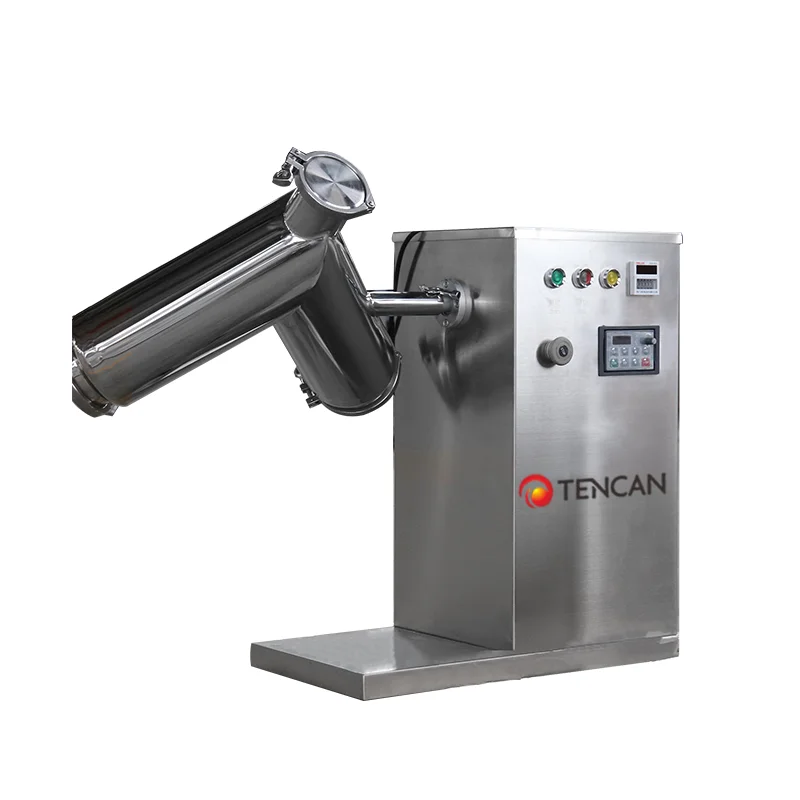

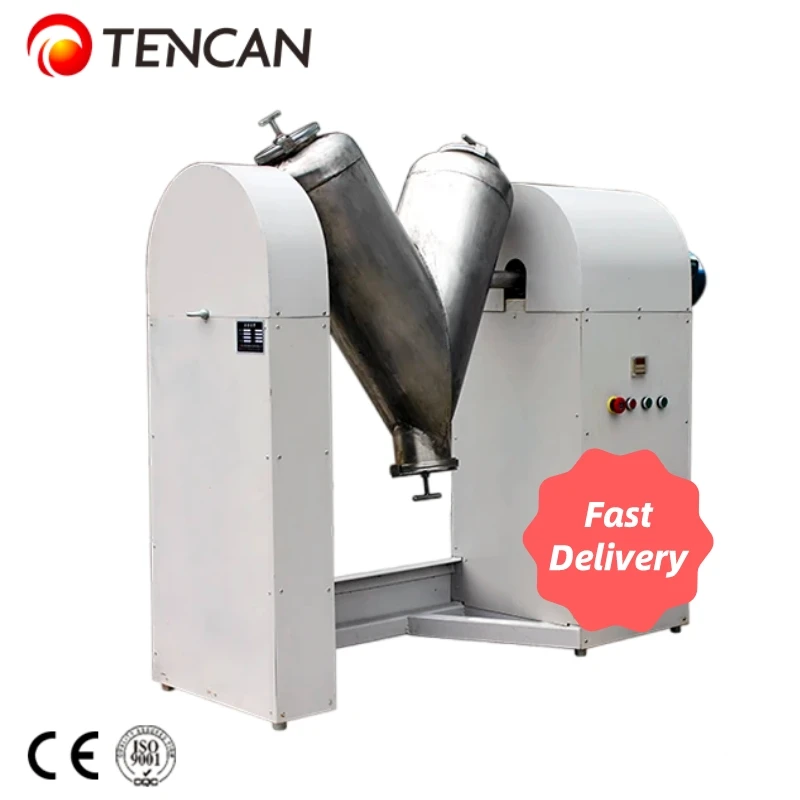

V-type mixer machine is suitable for pharmacy,food,chemical, metallurgy,electronics and other industries, used for mixing the dry granule materials. The machine adopts manual feed and closed disc valve discharge, which can avoid dust spilling; with unique mixing barrel structure, high efficiency blending, and no dead angle. Using stainless steel material, prevent the mixing materials from being polluted.The inside and outside of machine are polished. Mixing the materials materials evenly and apply to a wide range of fields. It also can be equipped with the compulsory mixer, which is according to the users’ demand. It is suitable for smaller powder, blocks and the material that contain a certain mixture of water.
1. High efficiency for mixing materials at close or same granularity and density.
2. It is not easy to crush granule when mixing materials.
3. The machine keeps material particle integrity without extrusion and strong wear.
4. Internal and external of the mixing vat are polished without dead angle, to avoid cross contamination of materials.
5. Available materials of mixing vat: carbon steel, stainless steel, nylon, and etc.
5. The machine is equipped with a timing device, it can set mixing time to realize automatic stop.
Applications
V-type mixer is applied to industries of food, chemical engineering, metallurgy, electron, which need to mix two or more kinds of dry powder and particles. With such a special structure of V-type mixing tank, materials inside are turning around repeatedly to achieve uniform mixing. The machine has many features such as no dead angle, high speed, short mixing time, uniform mixing.

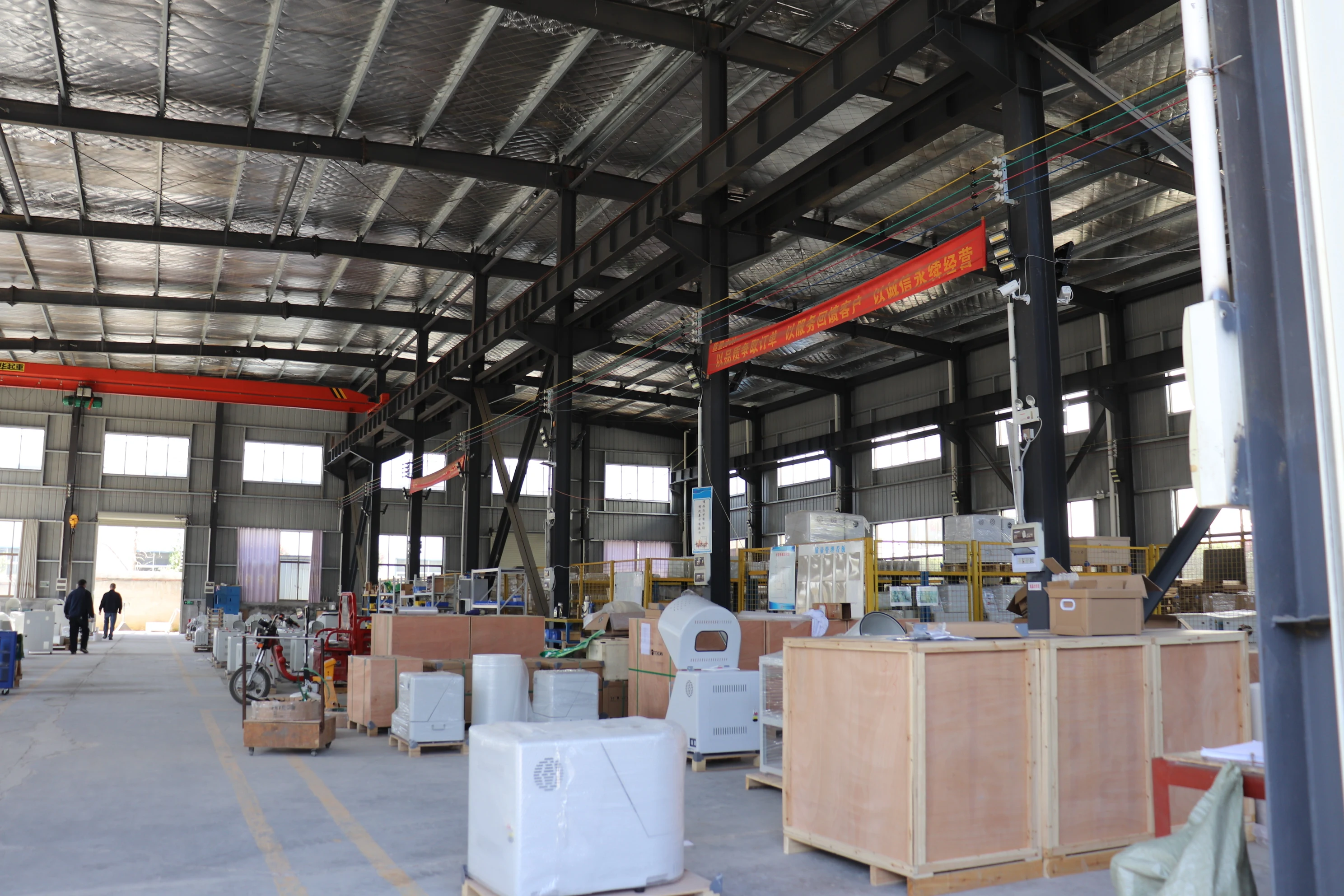

Company Profile
Changsha Tencan Powder Technology Co.,ltd is founded in 2006. It is located in Xingsha Town, Changsha City of Hunan Province,China. Our factory is a supplier of manufacturing planetary ball mill, roll ball mil, stirring machine, mixer machine, vibrationball mill, vacuum glove box, mill tank, ball media.. Harvard University, Peking University, Tsingha University, Foxconn, BYD, CASCetc are our regular customers, giving high praise for our machines for their long using life with less mechanical failure.
With the sustained business conception of "credit is the basis, quality is the first", we gain the high trust from customers. A first-class enterprises goal ----- brand, do first-class enterprises, and take Group operations, to the international development.
Communication with Customers
Certifications
FAQ
1. Are you manufacturer or trade company?
We are one of leading manufacturers in China, which focuses on designing, manufacturing and selling all kinds of powder grinding equipment including planetary ball mills, roll ball mills, stir ball mills, crushers, mixers and sieve shakers as well as
accessories matched with machines.
2. What is your delivery time if I place an order?
We often have a great deal of regular machine models and accessories in stock available. If you want to order our regular items, it takes about 1-3 working days to finish packing and inspection, Generally speaking we can make shipment of regular order from our warehouse within 3-7 working days after payment is received.
3. What questions about requirements are required to provide to us if you inquiry about ball mills?
Answers:
* What material is needed to be grind? By wet or dry method?
* How many liters of material are required to be ground per batch?
* What is feed size (mm) of starting materials?
* What final particle size (μm or nm or meshes) is required by grinding?
* Is material allowed with metal impurity contamination while grinding?
4. Can you provide testing service of grinding experiment before we place an order?
Yes. sample grinding experiment is available for any customer who is willing to send materials to us, and grinding experiment of sample is always free of charge.
Delivery address of material sample:
Changsha Tianchuang Powder Technology Co., Ltd
Room 804, 2nd Building, No.68 Luositang Road, Changsha Economic and Technological Development Zone, Changsha, Hunan, China 410100
Contact Name: Aivin Ai Mobile Phone: +86 13548659522
5. What’s your warranty?
One-year warranty period is provided. If any problem while you are using the machine, you can send Email to: service@lab-mills.com for after-sale services.
6. What is MOQ (Minimum Order Quantity) of one order?
One set of machine or one piece of accessories (like ball mill jar and balls) are acceptable.
