Tobee Effluent Handling
$12,600

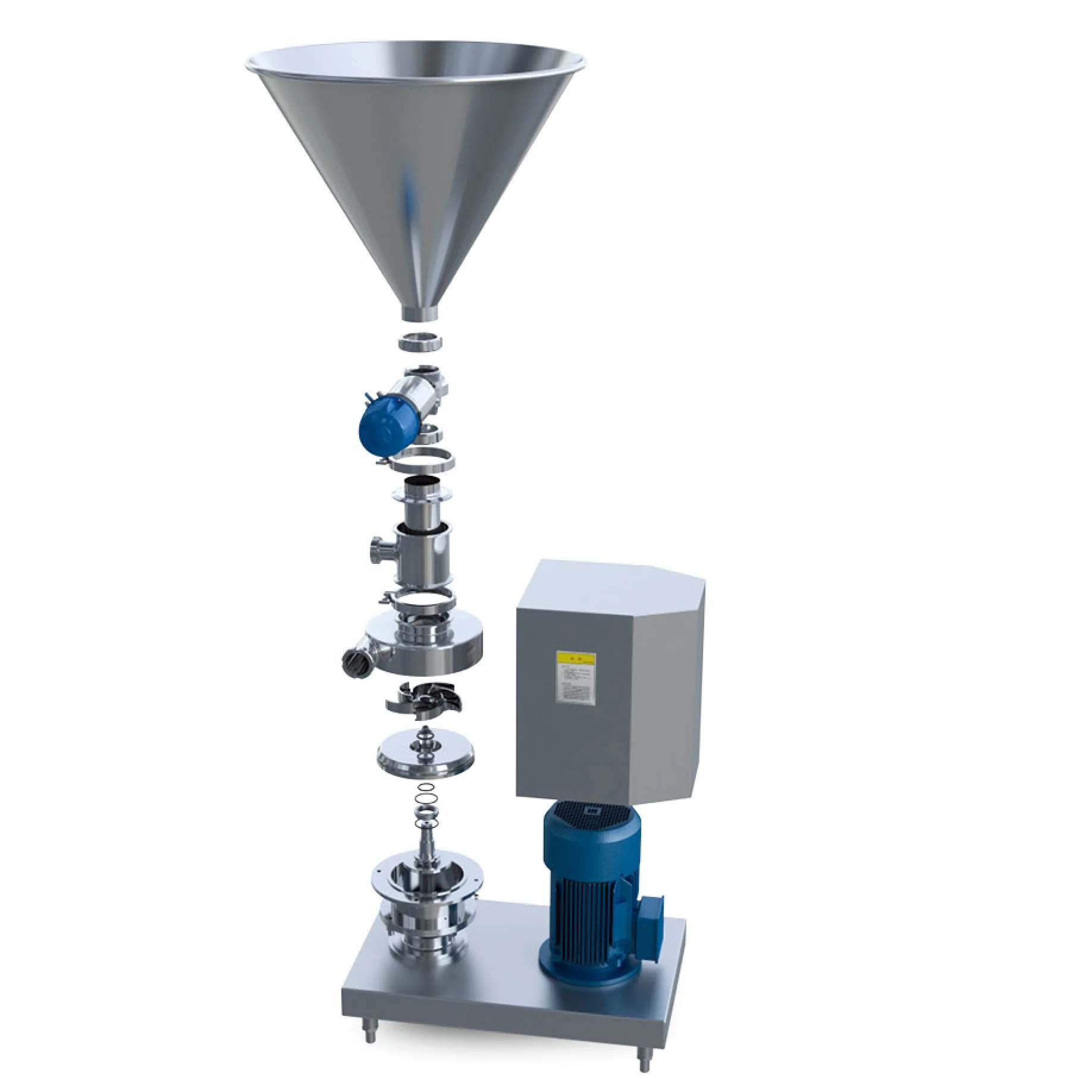

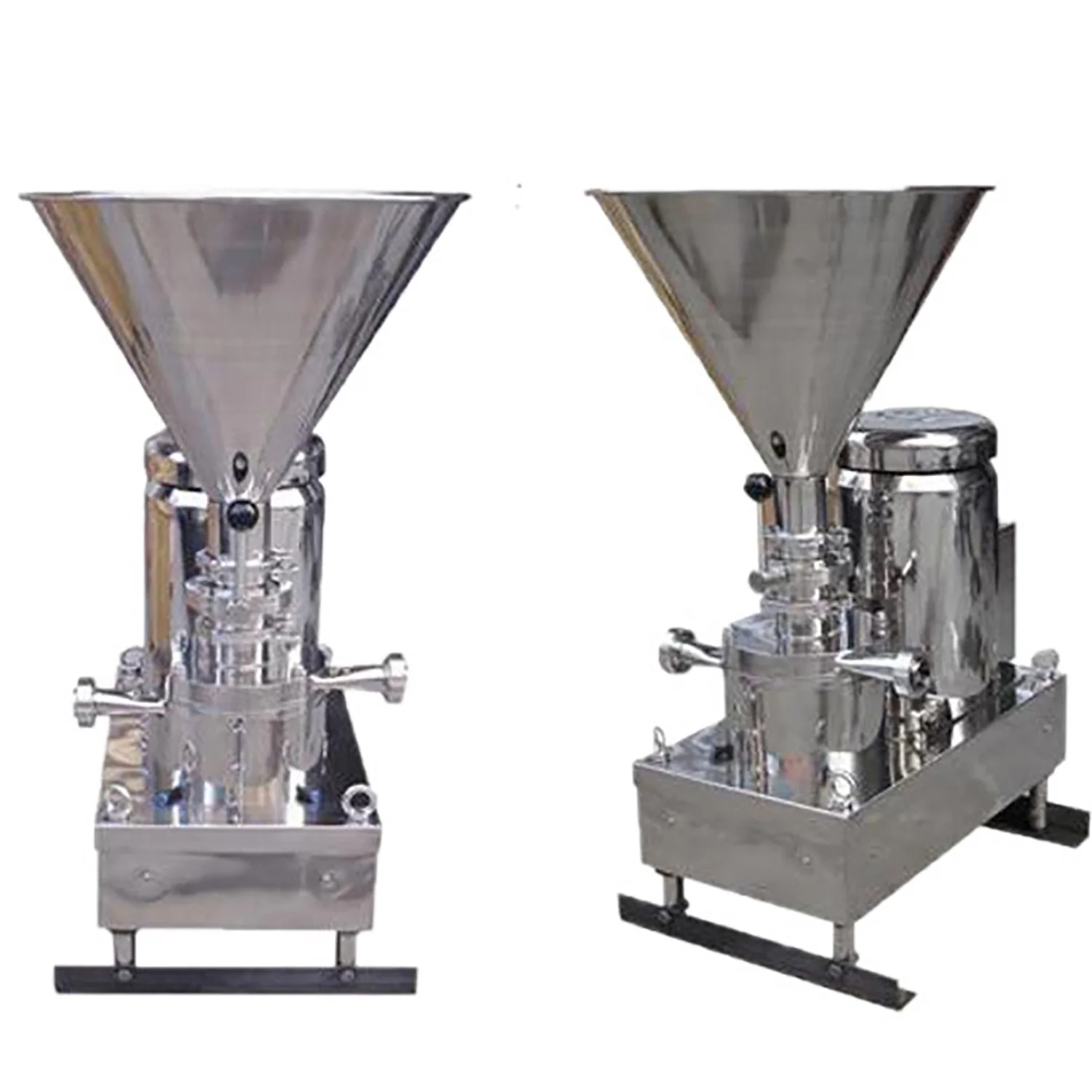

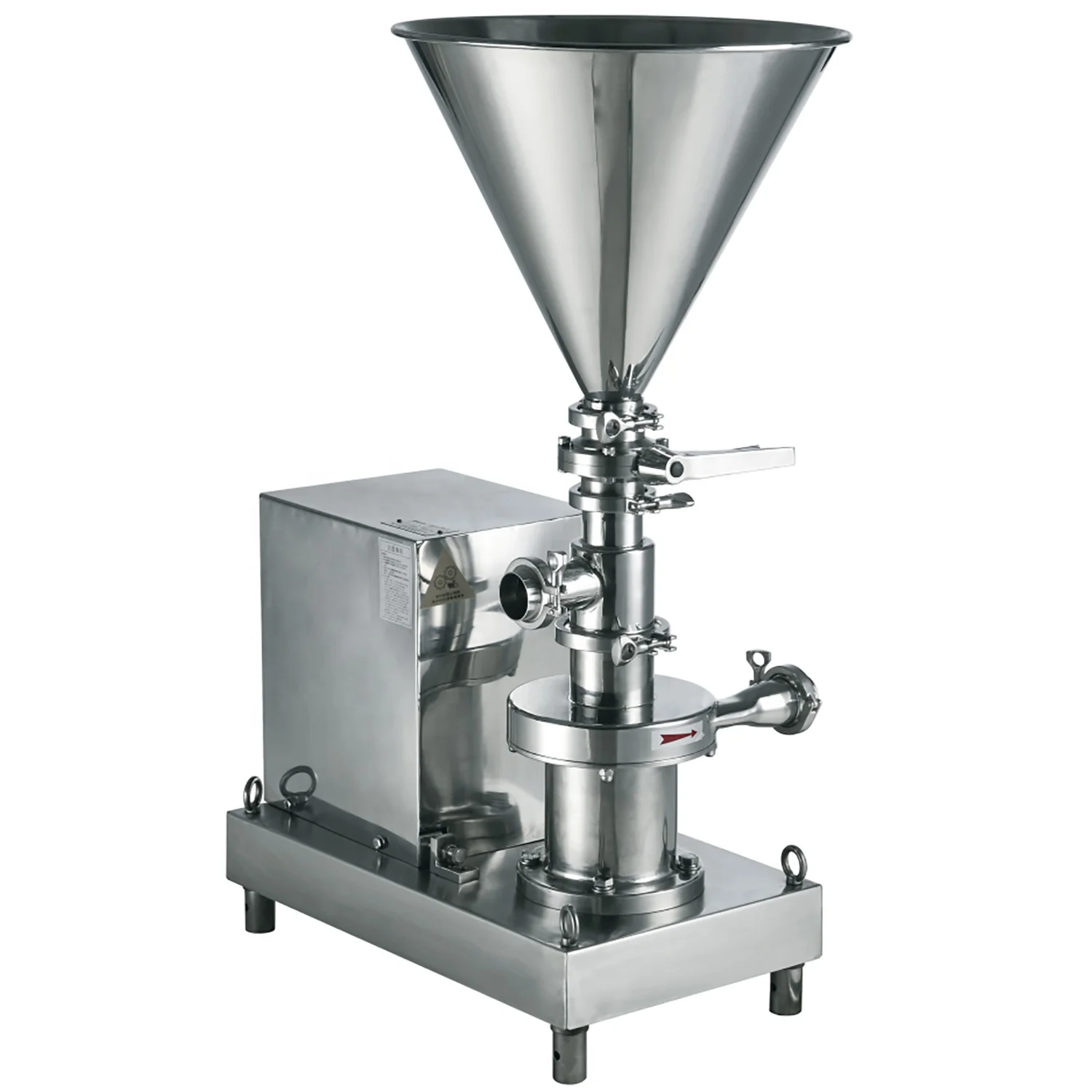

HHB 30 5.5KW 7.5hp Sanitary Food Grade Stainless Steel SS304 SS316L Blending Mixer Mixing Pump with Mix Solid in Liquid
- Category: >>>
- Supplier: Wenzhou Compass Machinery Co. Ltd.
Share on (1601062024938):
Product Overview
Description
HHB-10 3KW 4hp Sanitary Food Grade Stainless Steel SS304 SS316L Blending Mixing Mixer Pump
Applications
The Mixer Pumps are used to mix solids in liquids In the food-processing industry, they provide a perfect solution for reconstituting powdered milk, making syrups, preparing brines, etc They can also be a solution for preparing solid-liquid mixturesin the pharmaceutical,cosmetics and chemical industries.

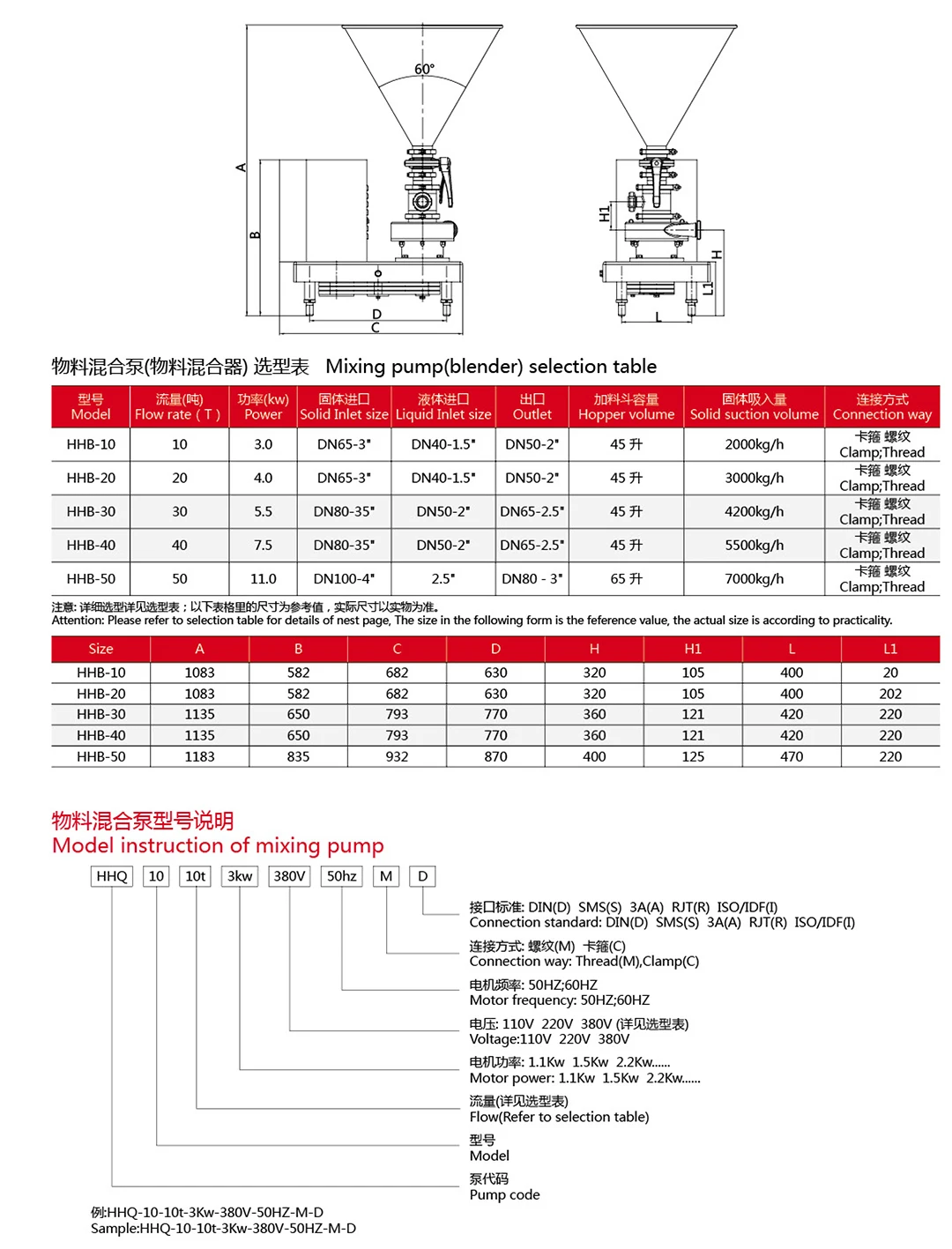

Material Contact Parts | SS304, SS316L (1.4301,1.4404) | Provided with material inspection report | |||||
Material Non-contact Parts | SS304 (1.4301) | ||||||
Seal Gasket | SILICONE, EPDM, NBR, FPM and PTFE | ||||||
Max Flow | 50m³/h | ||||||
3Motor Power | 3kw~11kw | ||||||
Motor Brand | ABB, SIEMENS, CHINA MOTOR | ||||||
Max. Speed | 3600RPM, 2900RPM, 1400RPM | ||||||
Voltage | 110V, 220V, 380V, 440V | ||||||
Motor Frequency | 50HZ, 60HZ | ||||||
Type of Motor | Explosion-proof or without Explosion-proof | ||||||
Type of Hertz | Single Phase, Three Phase | ||||||
Available Connection | Clamp, Union, Flange, Threaded Fittings | ||||||
Mechanical Seal | Alloy Material | ||||||
Type of Mechanical Seal | Double Mechanical Seal | ||||||
Type of Impeller | Open Impeller, Close Impeller, Semi-open Impeller | ||||||
Manual Butterfly Valve, Pneumatic Butterfly Valve, Auto Pneumatic Butterfly Valve | |||||||
60° Hopper 45L, 60° Hopper 65L | |||||||
Temperature | -20°C ~140 °C | ||||||
Operation Principle

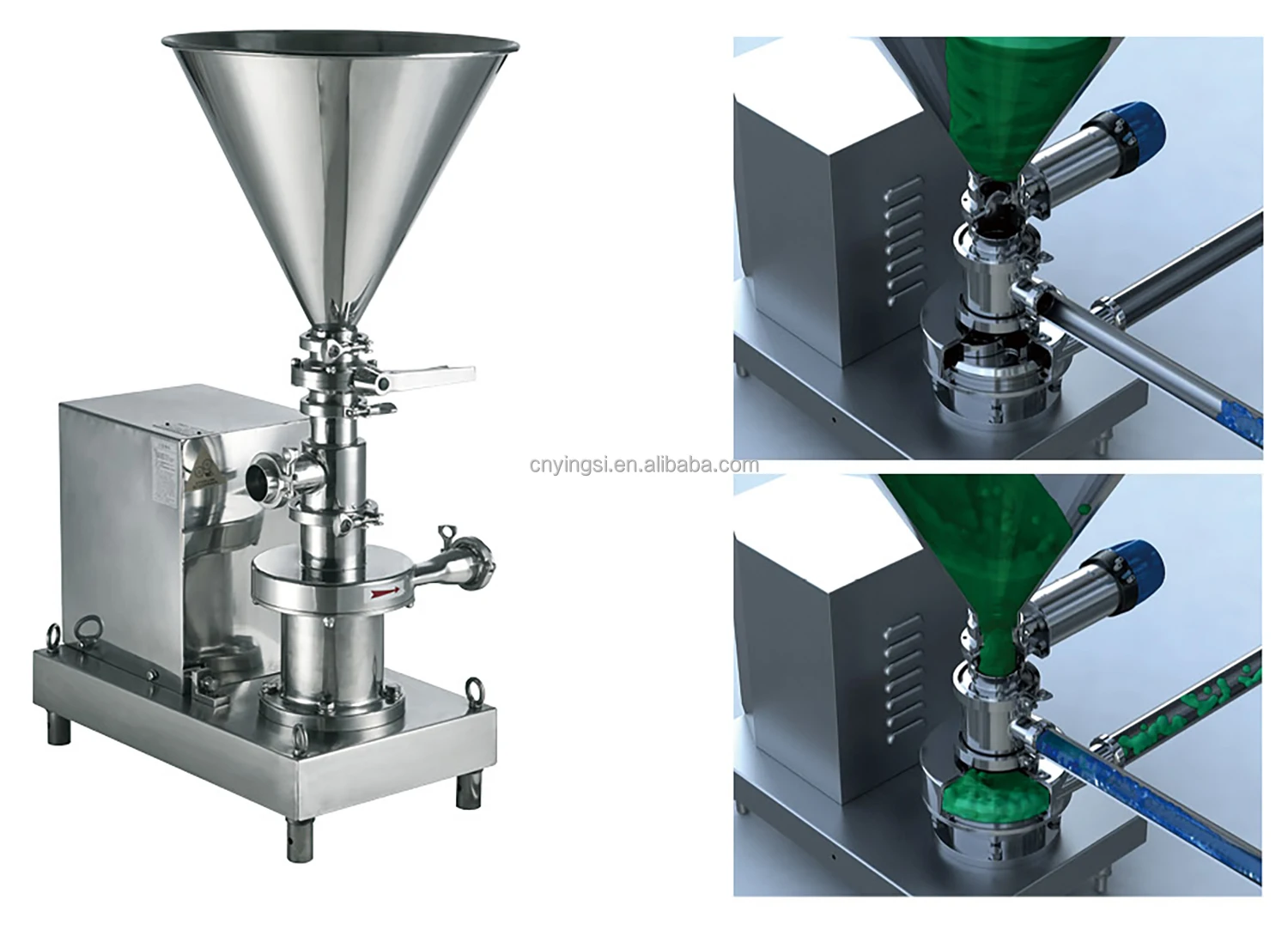

1. The mixer basically consists of a casing and a centrifugal pump impeller which are mounted vertically. The suction side
has a double-walltube that keeps the nlet of solids separate from that of liquids, thus avoiding the formation of flocs
before the material enters the casing.
2. The liquid enters the mixing chamber at a high velocity, thereby creating a vacuum on the center of the impeller,
which causes the suction of the solids.The fall of the solids can be regulated by means of a valve situated at thebottom
of the hopper.
3. It is important to keep low pressure at the suction and at the dishcrage sides of the blender.Avoid cavitation. Thus a
feeding pump must be provided only for the applications that really equire it (considerable pressure drops at the suction
side, high viscosity products, etc.),please, keep in mind that the suction capacity will decrease·
has a double-walltube that keeps the nlet of solids separate from that of liquids, thus avoiding the formation of flocs
before the material enters the casing.
2. The liquid enters the mixing chamber at a high velocity, thereby creating a vacuum on the center of the impeller,
which causes the suction of the solids.The fall of the solids can be regulated by means of a valve situated at thebottom
of the hopper.
3. It is important to keep low pressure at the suction and at the dishcrage sides of the blender.Avoid cavitation. Thus a
feeding pump must be provided only for the applications that really equire it (considerable pressure drops at the suction
side, high viscosity products, etc.),please, keep in mind that the suction capacity will decrease·
4. When discharge pressure is high, a centrifugal pump needs to be fttedto the discharge side of the blender.For viscosities above 500 CP, the feeding pump and the discharge pump must be positive dispacement pumps.
Materials
Parts in contact with the media : SS304, SS316L Gaskets(standard): Silicone, EPDM, NBR, FPM and PTFE
Mechanical Seal(standard) : Alloy Material for Double Mechanical Seal
Inside finish : Mirror Polished Ra≤0.4um
Inside finish : Mirror Polished Ra≤0.4um
Outside finish : Mirror polished Ra≤0.8um
Options
Connections: DIN, SMS
Material of Valves: Manual Butterfly Valve, Pneumatic Butterfly Valve, Auto Pneumatic Butterfly Valve
60° Hopper 40L, 60° Hopper 50L
Screen in the mixing chamber
Drainage
Design and features
1. Simple and versatile assembly for quick and homogeneous mixing of a great variety of solids without contact with the air.

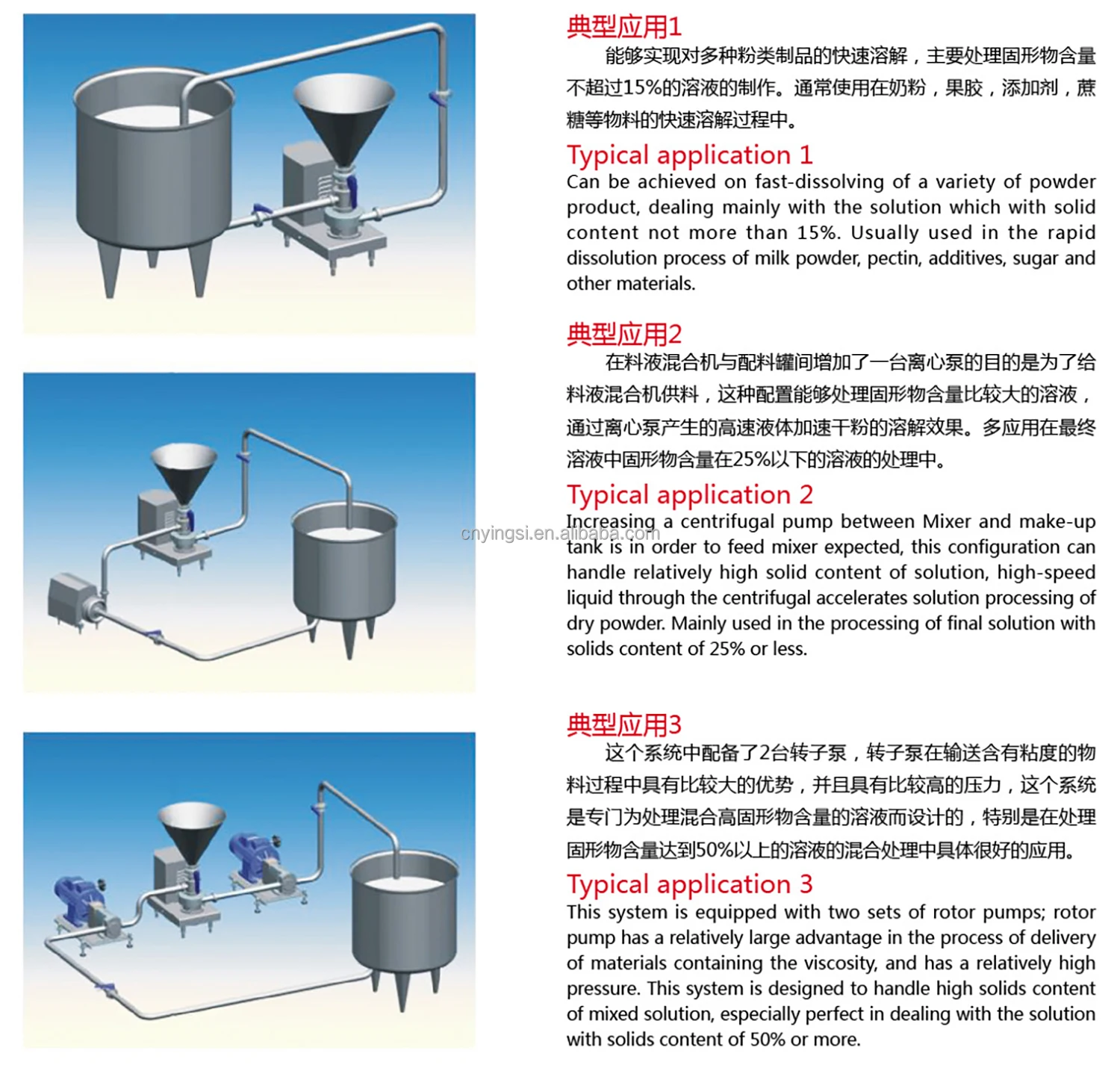

2. Complete mixing with recirculation of the material.In some applications, it can be used in line, without recirculation. 3A Sanitary design.
3. Easy assembly and disassembly by Clamp connections. Cleaning can be carried out without disassembling the unit. 4. Sanitary Double mechanical seal
3. Easy assembly and disassembly by Clamp connections. Cleaning can be carried out without disassembling the unit. 4. Sanitary Double mechanical seal
Applications
1. Preparation of sugar syrup, sorbitol, glucose, lactose and derivatives
2. Reconstituton of powdered milk
3. Dissolution of cocoa and/or sugar in milk
4. Reconstitution of powdered whey
5. Preparation of flour and starch slurries
6. Preparatio of brines
7. Pre-mixtures of yogurt and other milk-based desserts
8. Dissolution of casein and caseinatesin the cheese-making industry
9. Preparation of pesticides and fertilizers.
It is applied in industry and sanitary system. Good sealing,no leak,in the oil, chemical industry, water conservancy,electric power, boiler, machinery, metallurgy, sanitary, construction etc
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
If small order and choose by express , the items are packed by shrink wrap and secondly carton cases.
If heavy weight of cargos,which be packed by strongly seaworthy plywooden cases .
In order to protective items , which will be packed by safety and resistance to shock in plywooden cases ..
COMPASS are manufacturer and supplied with sanitary valves, pumps, pipe fittings, tanks, tube. They are widely used for food,beer,beverage, chemical,biological, pharmacy and so on. Totally 112nos of workers and the factory Covers 4035m2,our warehouse covers1000m2. We have 29 sets of LG Mazak machines and other CNC machine from Japan ; Meanwhile,we have 2 sets of automatic machiningunit. Here is our range of products as below.
A. Sanitary valve includes of butterfly valve, mix-proof valve, division valve,diaphragm valve, ball valve, check valve, safety valve, air relief valve, angle seat valve, constant pressure valve, bottom tank valve, racking arms valve, float valve, breather valve, and so on.
B. Sanitary pumps includes of centrifugal pump, rotary lobe pump, CIP self priming pump, mixing pump, vacuum pump, Emulsion Pump,screw pump, and so on.
C. Sanitary tank component includes of manhole cover, cleaning ball, filter,sight glass.
D. Sanitary pipe fitting has union, ferrule, clamp, solid end cap, pipe holder, nipple, coupling, adapter,elbow, tee, reducer.
E. Sanitary tanks includes of storage tank, mixing tank, fermentation beer tank, and so on.
F. Sanitary tube has seamless and weld type
14 years experiences in design and good solution in food grade production line.
A. Sanitary valve includes of butterfly valve, mix-proof valve, division valve,diaphragm valve, ball valve, check valve, safety valve, air relief valve, angle seat valve, constant pressure valve, bottom tank valve, racking arms valve, float valve, breather valve, and so on.
B. Sanitary pumps includes of centrifugal pump, rotary lobe pump, CIP self priming pump, mixing pump, vacuum pump, Emulsion Pump,screw pump, and so on.
C. Sanitary tank component includes of manhole cover, cleaning ball, filter,sight glass.
D. Sanitary pipe fitting has union, ferrule, clamp, solid end cap, pipe holder, nipple, coupling, adapter,elbow, tee, reducer.
E. Sanitary tanks includes of storage tank, mixing tank, fermentation beer tank, and so on.
F. Sanitary tube has seamless and weld type
14 years experiences in design and good solution in food grade production line.
Competitive prices & High quality products to achieve win-win mutual benefits.
Professional & Communicate easily.
Huge warehouse & Delivering shortly.
Huge warehouse & Delivering shortly.
Strong team & Better after-sale.
COMPASS Manufacturing.
Valve Workshop Section 1
Valve Workshop Section 2
Pipe Fitting Workshop
CNC Mahchine Working
Processing Center
Warehouse Section
Raw Material Section 1
Raw Material Section 1
Compass Exhibition for Pump and Valve
Compass Exhibition for Pump and Valve
Compass Exhibition for Pump and Valve
Compass Team Meeting
Conversation
Conversation
Engineer Meeting Conversation
Engineer Design Valves
Q1. Who are we?
We are based in ZHEJIANG, China, Founded in 2011,sell to Southeast Asia(30.00%),North America(10.00%),Domestic Market(10.00%),South Asia(5.00%),South America(5.00%),Western Europe(5.00%),Southern Europe(5.00%),Central America(5.00%),Northern Europe(5.00%),Africa(5.00%),Eastern Europe(5.00%),Mid East(5.00%),Eastern Asia(3.00%),Oceania(2.00%).
Q2. Are you a trading company or factory?
We are a manufacturing factory.
Q3. Why should you buy from us not from other suppliers?
We are 14 years professional valves & fittings manufacturer.
Warranty:Any question or problem will be respond within 24 hours.
Quality control:All the products are calibrated with real working condition, and tested before shipping as qualified product.
Q4. May I have free sample before ordering?
Yes, our company is very pleased to send you free sample for quality test as long as
freight cost being paid by buyers themselves.
Q5. What's the payment terms?
For small testing orders, we accept Paypal, Western Union, T / T and credit Card.
For mass orders, we accept T/T and L/C.
Q6. How do you control the quality?
Quality control is very important to avoid material mixing and poor quality,We control the
quality from begining to the end. We only have 304 and 316L two different material.100%
inspection on raw material.During production, different materials in different place. After
materials are finished, we choose 10% for inspection.If there is 0.1% problem in 10%,
then no excuse to go ahead for inspecting 100% of the materials.
Q7. If there is any quality problem, how do you solve it?
We are proud that we never let one customer leave us. We are not 100% perfect,there is
some quality problem.We try our best to provide the correct materials in the begining, so
we need less time for quality problem.If there is an quality problem,we take the
responsibility, customer will leave us.If we always take our responsibility, we keep our
customers with us.
Q8. How long is your delivery time?
For normal production in 7-10 days.For bullk order in 15-25 days.
Q9. Warranty
One year warranty for all of our stainless steel products.Gaskets are not included due to
the different application for customers.
Q10. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDU,Express Delivery.
Accepted Payment Currency:USD,EUR,CNY.
Accepted Payment Type: T/T,L/C,D/P D/A,Credit.
Q11. More questions are appreciated.
We are based in ZHEJIANG, China, Founded in 2011,sell to Southeast Asia(30.00%),North America(10.00%),Domestic Market(10.00%),South Asia(5.00%),South America(5.00%),Western Europe(5.00%),Southern Europe(5.00%),Central America(5.00%),Northern Europe(5.00%),Africa(5.00%),Eastern Europe(5.00%),Mid East(5.00%),Eastern Asia(3.00%),Oceania(2.00%).
Q2. Are you a trading company or factory?
We are a manufacturing factory.
Q3. Why should you buy from us not from other suppliers?
We are 14 years professional valves & fittings manufacturer.
Warranty:Any question or problem will be respond within 24 hours.
Quality control:All the products are calibrated with real working condition, and tested before shipping as qualified product.
Q4. May I have free sample before ordering?
Yes, our company is very pleased to send you free sample for quality test as long as
freight cost being paid by buyers themselves.
Q5. What's the payment terms?
For small testing orders, we accept Paypal, Western Union, T / T and credit Card.
For mass orders, we accept T/T and L/C.
Q6. How do you control the quality?
Quality control is very important to avoid material mixing and poor quality,We control the
quality from begining to the end. We only have 304 and 316L two different material.100%
inspection on raw material.During production, different materials in different place. After
materials are finished, we choose 10% for inspection.If there is 0.1% problem in 10%,
then no excuse to go ahead for inspecting 100% of the materials.
Q7. If there is any quality problem, how do you solve it?
We are proud that we never let one customer leave us. We are not 100% perfect,there is
some quality problem.We try our best to provide the correct materials in the begining, so
we need less time for quality problem.If there is an quality problem,we take the
responsibility, customer will leave us.If we always take our responsibility, we keep our
customers with us.
Q8. How long is your delivery time?
For normal production in 7-10 days.For bullk order in 15-25 days.
Q9. Warranty
One year warranty for all of our stainless steel products.Gaskets are not included due to
the different application for customers.
Q10. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDU,Express Delivery.
Accepted Payment Currency:USD,EUR,CNY.
Accepted Payment Type: T/T,L/C,D/P D/A,Credit.
Q11. More questions are appreciated.
1.What’s material quality? Such as SS304 and SS316L for optional
2.What’s flow rate for mixer pump, such as 10000liters per hour ?
4. What's motor power, such as 3.0kw ?
5. What's voltage and hertz, such as 380v, 50hz, three-phase?
6. What's motor brand, such as ABB motor ?
5. What's voltage and hertz, such as 380v, 50hz, three-phase?
6. What's motor brand, such as ABB motor ?
7.What’s connection end? Such as butt-weld, tri-clamp, male threaded, female threaded, union, ect.
8. Type of impeller, such as open impeller, close impeller, semi-open impeller ?
9. What's design temperature and working temperature for pump ?
8. Type of impeller, such as open impeller, close impeller, semi-open impeller ?
9. What's design temperature and working temperature for pump ?
10. What's products used for mixer pump ?
