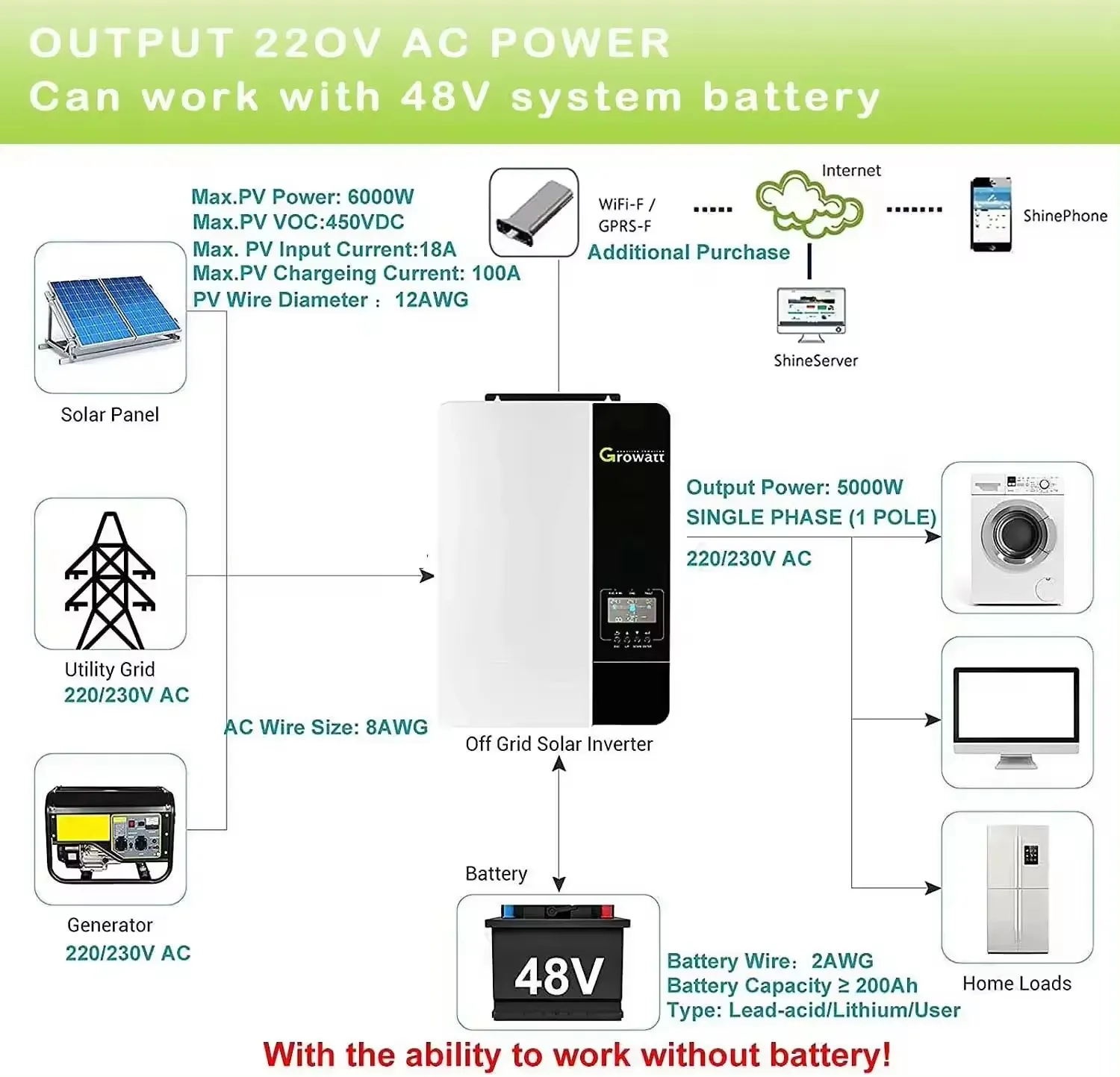

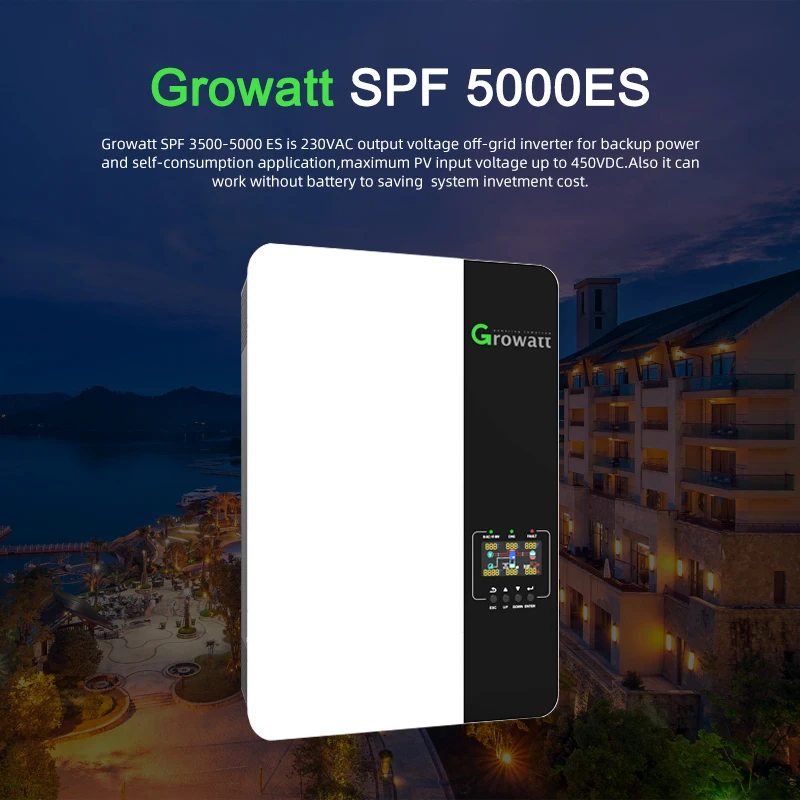

Growatt 3KW 5KW Off Grid Inverter SPF5000 ES 48V Off Grid Hybrid Pv Inverter With Mppt Charge Controller
- Category: >>>
- Supplier: Anhui Sungeter New Energy Technology Co. Ltd.
Share on (1601062101232):
Product Overview
Description
Product Description
Product Analysis
Datasheet | SPF3500ES | SPF5000ES | |||||
Battery Voltage | 48VDC | ||||||
Battery Type | Lithium/Lead-acid | ||||||
INVERTER OUTPUT | |||||||
Rated Power | 3500VA/ 3500W | 5000VA/ 5000W | |||||

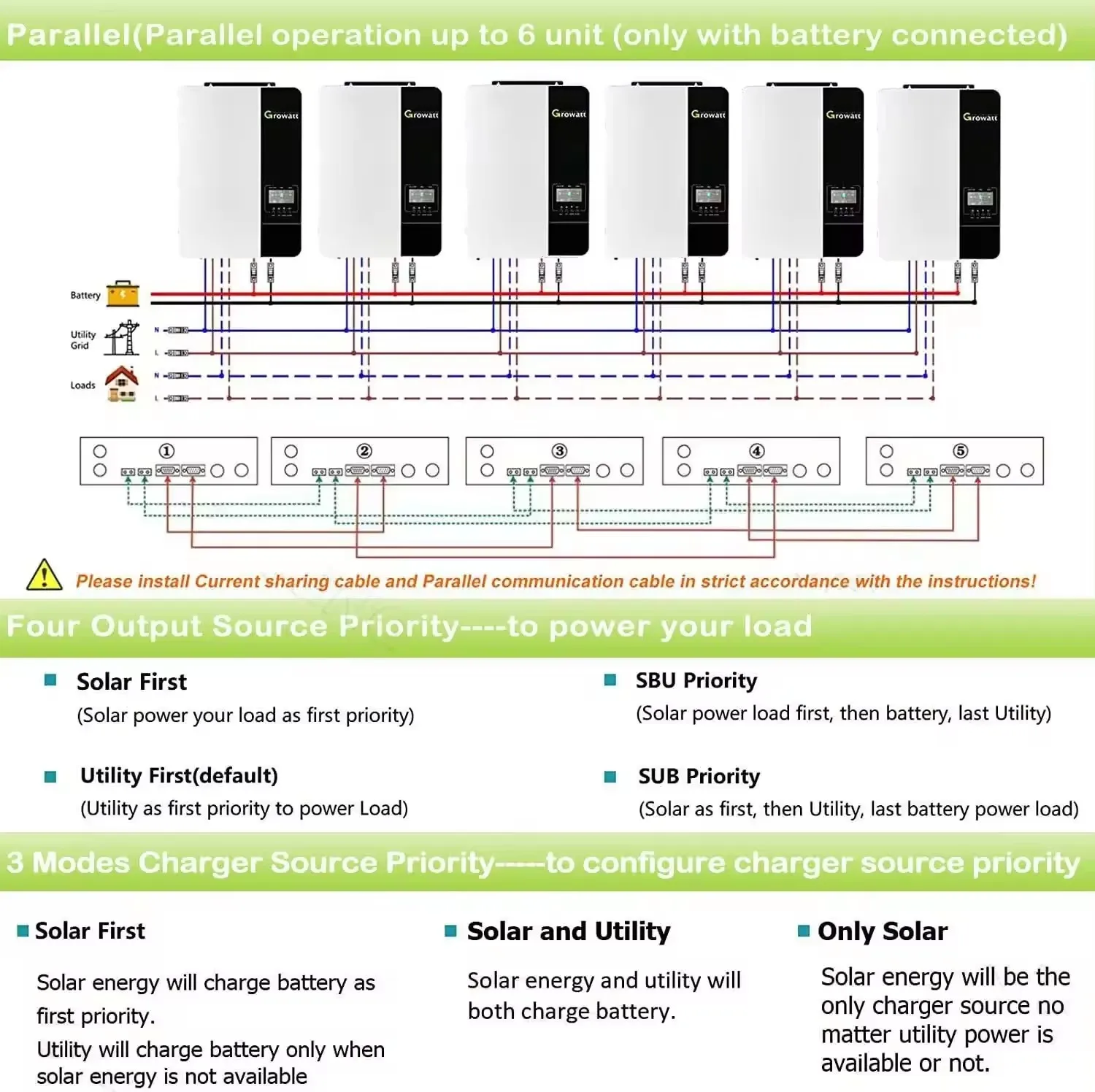

Parallel Capability | Yes, 6 units maximum | ||||||
AC Voltage Regulation (Battery Mode) | 230VAC ± 5% @ 50/60Hz | ||||||
Surge Power | 7000VA | 10000VA | |||||
Efficiency (Peak) | 93% | ||||||
Waveform | Pure sine wave | ||||||
Transfer Time | 10ms typical, 20ms Max | ||||||
SOLAR CHARGER | |||||||
Maximum PV Array Power | 4500W | 6000W | |||||
MPPT Range @ Operating Voltage | |||||||
Number of Independent MPP Trackers/ Strings Per MPP Tracker | 1/1 | ||||||
Maximum PV Array Open Circuit Voltage | 450VDC | ||||||
Maximum Solar Charge Current | 80A | 100A | |||||
AC CHARGER | |||||||
Charge Current | 60A | 80A | |||||
AC Input Voltage | 230VDC | ||||||
Selectable Voltage Range | 170-280 VAC (For Personal Computers) ; 90-280 VAC (For Home Appliances) | ||||||
Frequency Range | 50Hz/60Hz (Auto sensing) | ||||||
PHYSICAL | |||||||
Protection Degree | IP20 | ||||||
Dimension (W/H/D) | 330/485/135mm | 330/485/135mm | |||||
Net Weight | 11.5kgs | 12kgs | |||||
OPERATING ENVIRONMENT | |||||||
Humidity | 5% to 95% Relative Humidity(Non-condensing) | ||||||
Altitude | ＜2000m | ||||||
Operating Temperature | 0℃~55℃ | ||||||
Storage Temperature | -15℃~60℃ | ||||||

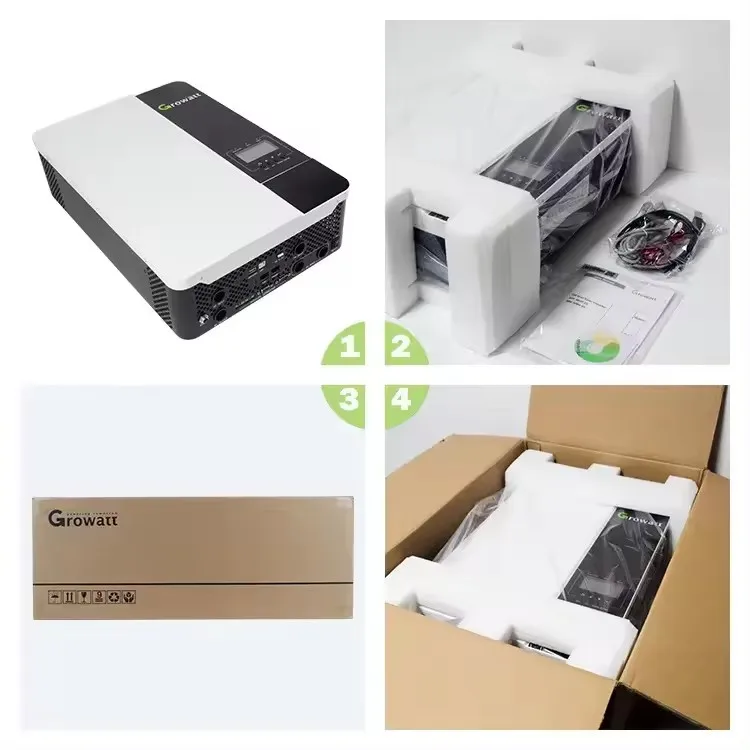

Packing & Delivery
Professional Packing: Carton, Wooden Pallet and Wooden Box | ||||||
By Express | TNT, DHL, FedDex, UPS available | |||||
By Air | Shenzhen/Shanghai or other Designated Airport | |||||
By Sea | Shenzhen, Shanghai, Ningbo or other Designated Port in China | |||||

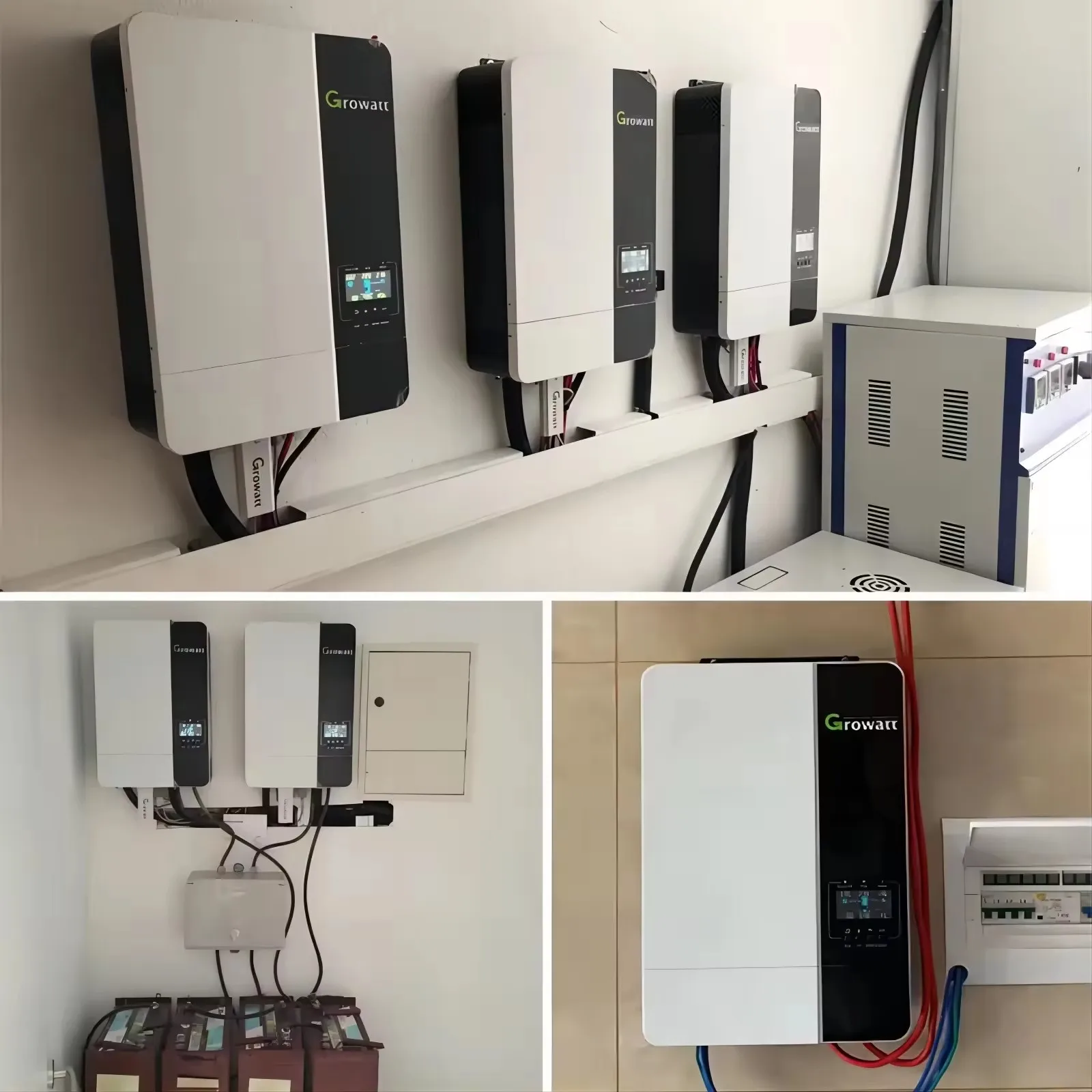

Project Case

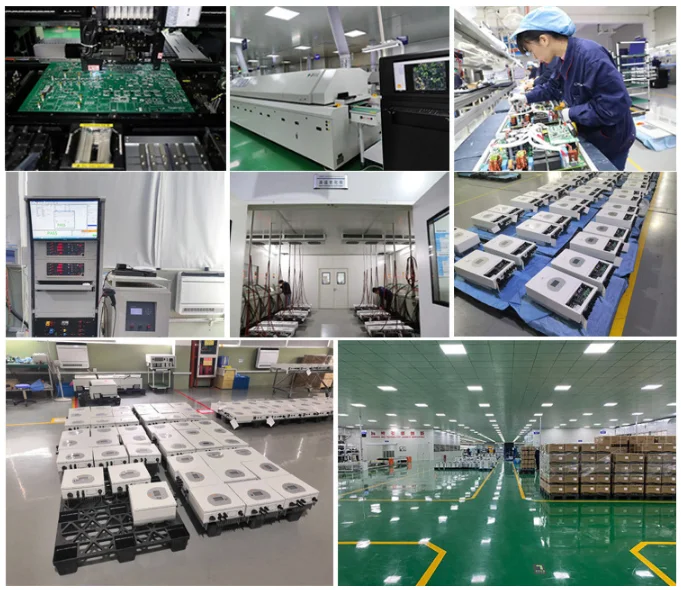

About us
Anhui Sungeter energy Co.,Ltd. , located in Hefei, an international manufacturing city in the center of the Yangtze River Delta,is a high-tech photovoltaic enterprise integrating R & D, production and sales. Holding the concept of "Focusing cn
quality,technology upgrading, customers' demand and professional service',Sungeter has become the strategic partner with many famous solar energy companies in the world. Adhering to the development strategy of being professional and international. Sungeter makes great efforts to provide high-quality comprehensive services to customers around the world. As the participant and promoter of the development of the global photovoltaic energy storage industry, Sungeter realizes self-worth by continuously improving its services. Sungeter's main products include solar photovoltaic energy storage inverters, energy storage battery systems, solar photovoltaic panel etc.Cur mission is to promote the development of renewable energy globally, benefiting all humanity. Sungeter brings warmth to your life by helping you access clean energy anywhere in the world!
quality,technology upgrading, customers' demand and professional service',Sungeter has become the strategic partner with many famous solar energy companies in the world. Adhering to the development strategy of being professional and international. Sungeter makes great efforts to provide high-quality comprehensive services to customers around the world. As the participant and promoter of the development of the global photovoltaic energy storage industry, Sungeter realizes self-worth by continuously improving its services. Sungeter's main products include solar photovoltaic energy storage inverters, energy storage battery systems, solar photovoltaic panel etc.Cur mission is to promote the development of renewable energy globally, benefiting all humanity. Sungeter brings warmth to your life by helping you access clean energy anywhere in the world!
