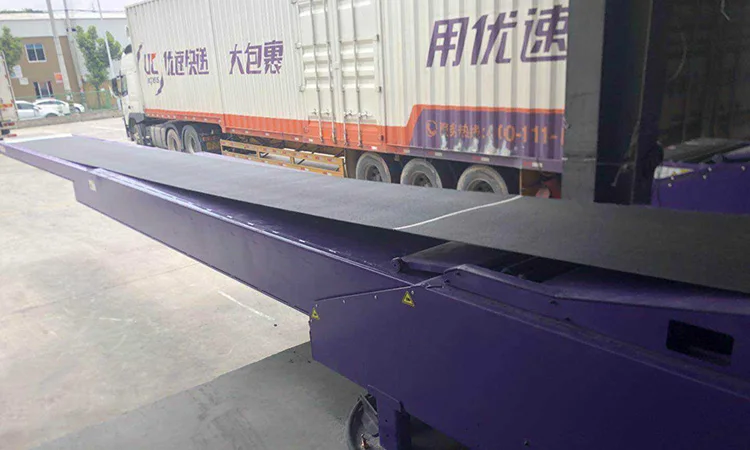

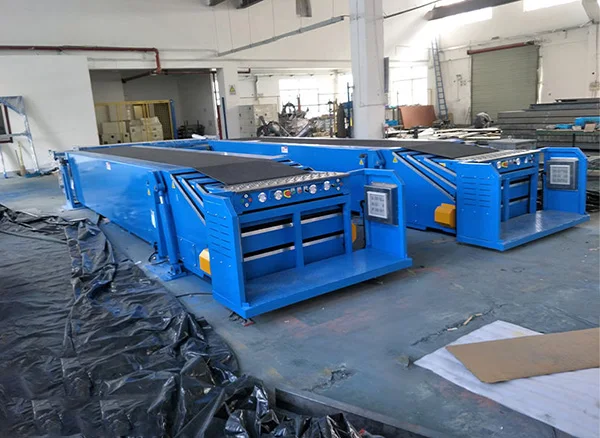

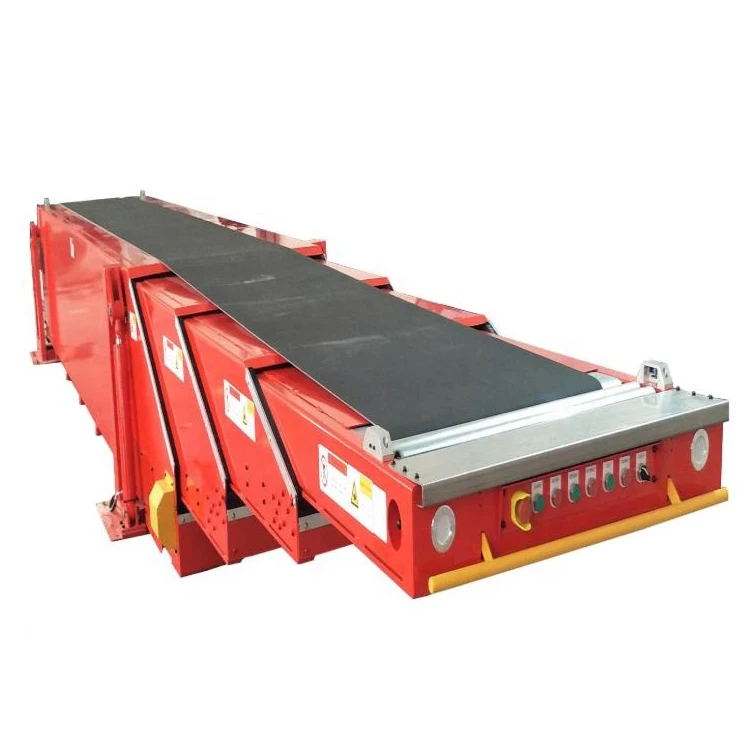

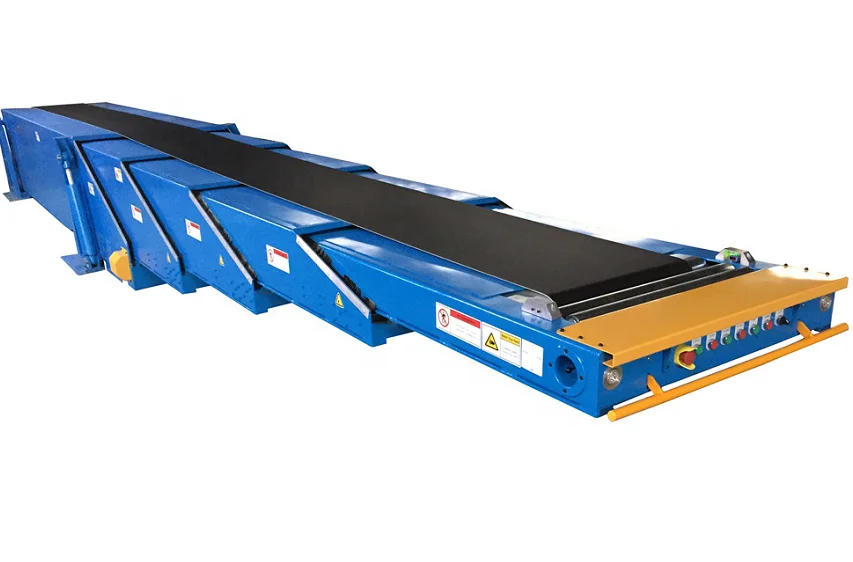

5 Section Telescopic Belt Conveyor for Truck and Container Loading/Unloading for Manufacturing Plants
- Category: >>>
- Supplier: Senad Robot(Shanghai) Co. Ltd.
Share on (1601062136908):
Product Overview
Description
The telescopic belt machine is to increase the telescopic mechanism on the ordinary belt conveyor, which can adjust the telescopic length freely according to the site size and the actual demand. It is a special conveying equipment designed for the problems existing in the loading and unloading of goods. Under the condition of meeting the human body engineering, it can effectively reduce the damage of goods and the labor intensity of personnel, and improve the efficiency of loading and unloading vehicles. It is mainly used in vehicle loading and unloading and material transfer system with telescopic requirements.
Product Paramenters
Model | TBC2S-6/4 | TBC3S-6/8 | TBC4S-6/12 | TBC5S-6/14 | |||
Retracted Length(A) | 6,000mm | 6,000mm | 6,000mm | 6,000mm | |||
Extended Length(B) | 4,000mm | 8,000mm | 12,000mm | 14,000mm | |||
Total length(C) | 10,000mm | 14,000mm | 18,000mm | 20,000mm | |||
Height | 750mm | 800mm | 1,000mm | 1,200mm | |||
Conveyor Width | 1,380mm | 1,400mm | 1,470mm | 1,530mm | |||
Belt Width | 600mm or 800mm | 600mm or 800mm | 600mm or 800mm | 600mm or 800mm | |||
Belt Direction | Reversible | Reversible | Reversible | Reversible | |||
Belt Speed | 0~36M/minute(adjustable) | ||||||
Capacity | 60kg/meter | ||||||
Tilting | 0~+5o, adjustable by hydraulic | ||||||
Driven Motor | 1.5KW | 2.2KW | 3.0KW | 4.0KW | |||
Weight | 2T | 3T | 4T | 5T | |||

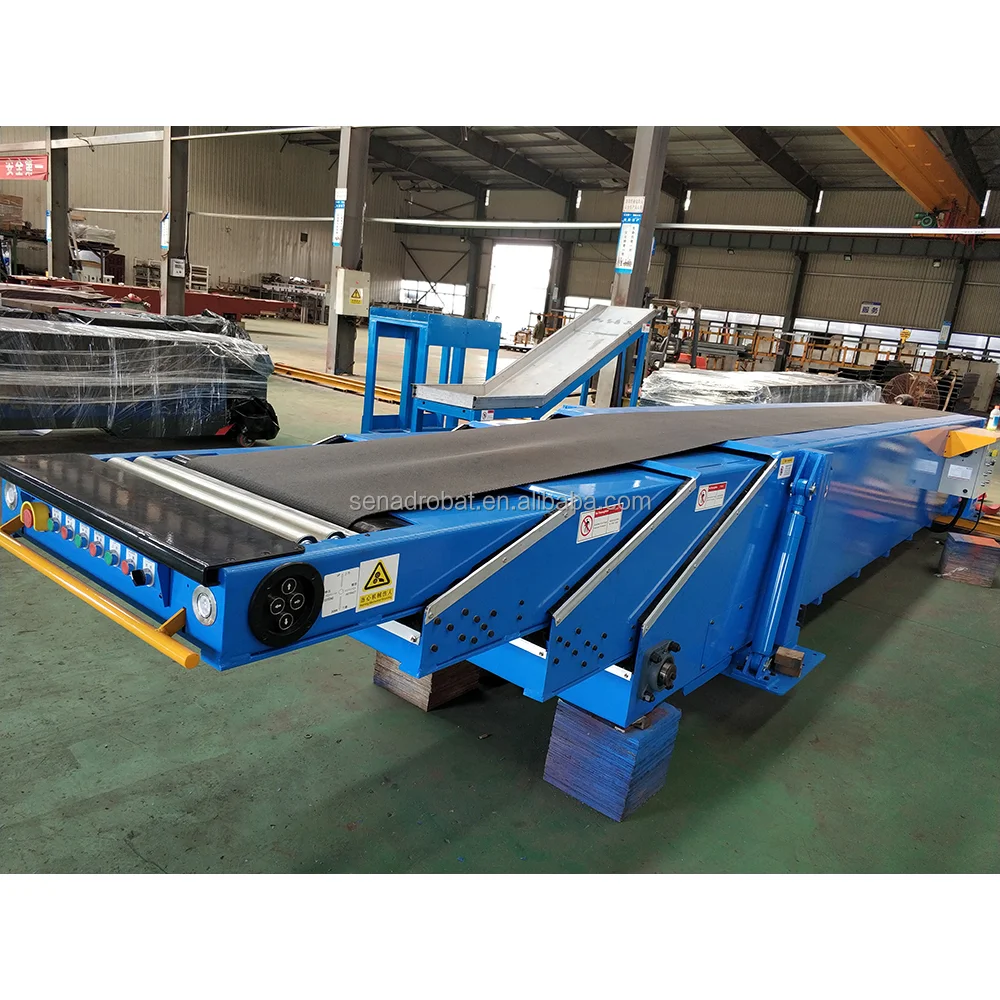

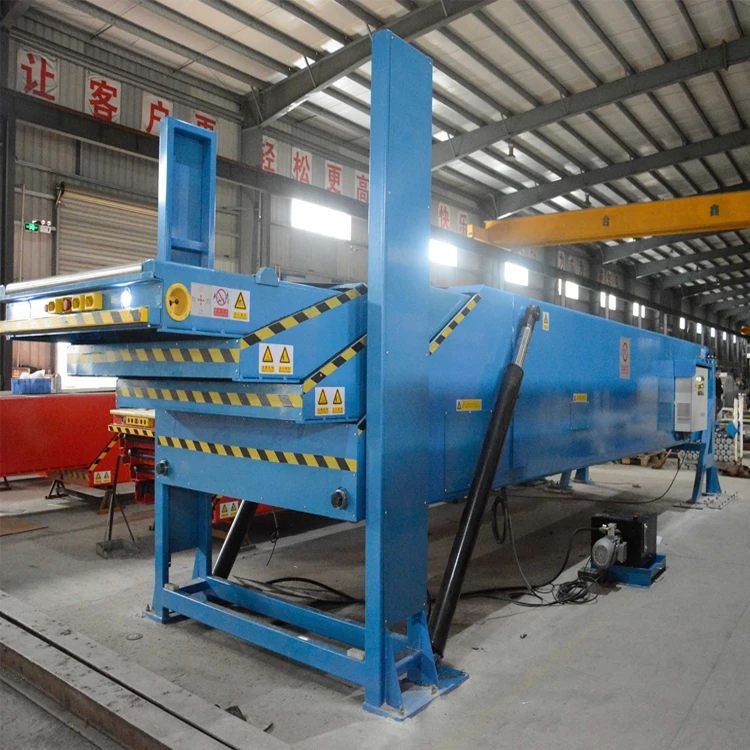

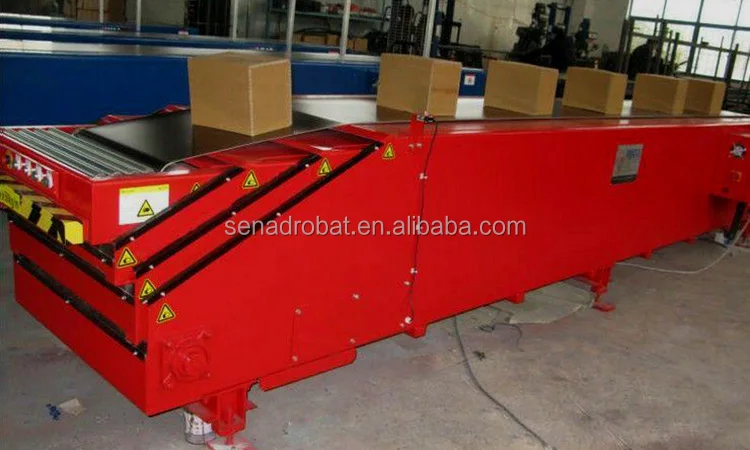

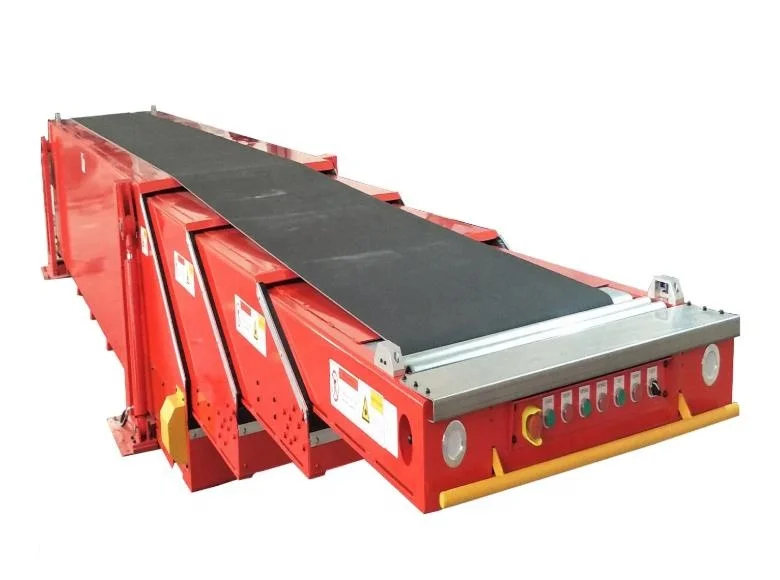

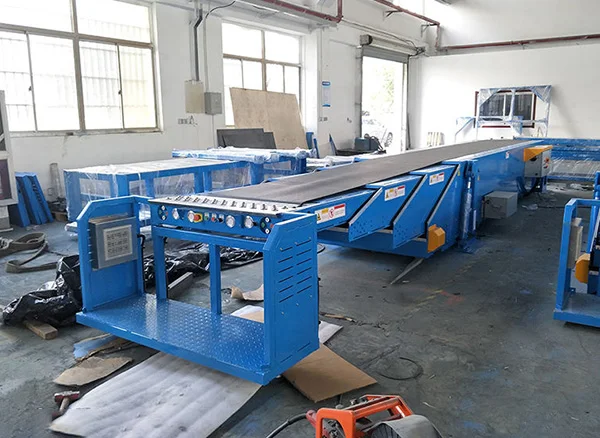

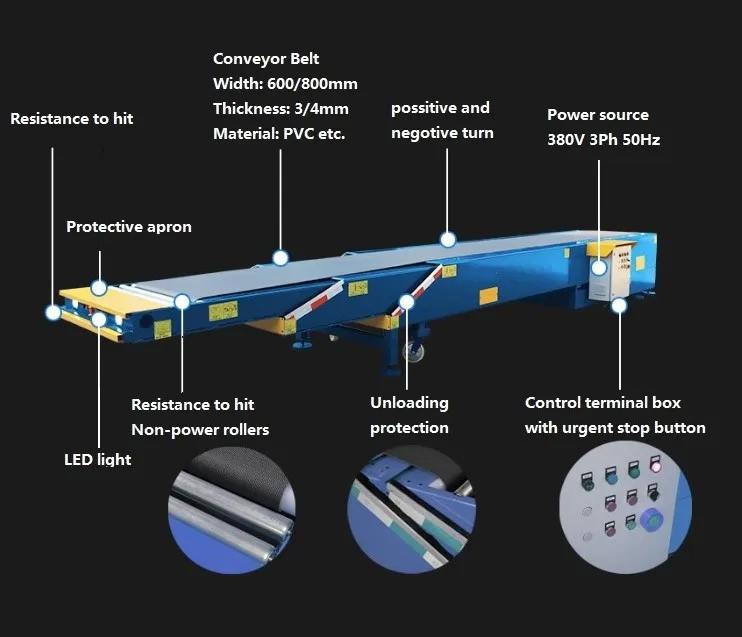

Product Details
__________
__________
__________
Application
Recommend Products
OUR Service
Our services
__________
1. Assemble and debug before delivery
2. Respond within 24 hours and proceed to deal with the problem.
3. 1 year free repair service (no-human damage only).
4. Overall warehousing solution provided
2. Respond within 24 hours and proceed to deal with the problem.
3. 1 year free repair service (no-human damage only).
4. Overall warehousing solution provided
Why Choose Senad
◆ High-tech manufacturer with research anddesign capacity
◆ Concentrated on DWS equipment and sorting warehousing system overall solution
◆ Related software and system are with patents
◆ Stable and mature supplying system
◆ Young active sales and engineers for instant services(16-20 hours online)
◆ Upgrading on mechanism according to ergonomics and easy maintenance
◆ Top quality sense, customers' requests come first
◆ Our structure design principle: easy maintenance & installation, low cost maintenance, maintenance not affect production
◆ Concentrated on DWS equipment and sorting warehousing system overall solution
◆ Related software and system are with patents
◆ Stable and mature supplying system
◆ Young active sales and engineers for instant services(16-20 hours online)
◆ Upgrading on mechanism according to ergonomics and easy maintenance
◆ Top quality sense, customers' requests come first
◆ Our structure design principle: easy maintenance & installation, low cost maintenance, maintenance not affect production
About Us
Welcome to visit us！
Senad Robot(Shanghai)Co.,LTD.
Founded in 2012,Senad is a high-tech enterprise concentrated on research & development and production of high-end warehouse automation equipments. There are not only standard equipments but also customizable ones to realize different functions,such as high speed barcode scanning, weighing, volume dimensions measuring, conveying and sorting, singulating, as well as dimension weigh scan and sorting integrated line system,etc. These equipments take machine vision deep learning algorithm and robot motion control as the core, and adopt image processing algorithm, artificial intelligence, pattern recognition, video analysis algorithm, ARM|FPGA|DSP embedded software and hardware development, industrial machine vision positioning, vision tracking, vision detection, multi-sensor information fusion and other technical methods to achieve the goal of "replacing manual labor with robot". These devices are designed to enable companies to get rid of labor problems, disputes and losses caused by human errors and achieve high efficiency. Technology makes production easier. We pursue a win-win situation. Our mission is to make work easier and more efficient for our partners. We will continue to contribute to upgrading and developing the practical application of new technologies, providing our partners with high quality equipment and professional consulting services.Our Factory
Development history
Our Certifications
Partners
Exhibition
Packaging & Delivery
FAQ
Q1. Are you a trade company or manufacturing company?
We are a manufacturing company.
Q2. What's your advantage?
Senad is a national high-tech enterprise,has its own software development team with complete,fast and efficient R&D capabilities .
Q3. What is the services?
Q4. How long is the product warranty period?
One year warranty except the consuming spare parts.
Q5. What is your payment terms?
Normally T/T, L/C, D/P, D/A， Western Union, Money Gram and Alibaba.If you have other payment,please contact me.
Q6. Where does your company located?
Both our company and factory are located in Shanghai.
We are a manufacturing company.
Q2. What's your advantage?
Senad is a national high-tech enterprise,has its own software development team with complete,fast and efficient R&D capabilities .
We support OEM and ODM services.
Device color support customization.
Q3. What is the services?
Pr-sales:Customized solutions, planning and design;One-to-one service
After sales:7 days 24 hours on line service, Remote guidance of installation, docking with customer software system
Q4. How long is the product warranty period?
One year warranty except the consuming spare parts.
Q5. What is your payment terms?
Normally T/T, L/C, D/P, D/A， Western Union, Money Gram and Alibaba.If you have other payment,please contact me.
Q6. Where does your company located?
Both our company and factory are located in Shanghai.
