200 w 240 w 320 w outdoor Body Housing lamp post light with sensor landscape exterior warm white SKD streetlight
- Category: >>>
- Supplier: Ningbo Die-Casting Man Technology Co. Ltd.
Share on (1601062140769):
Product Overview
Description
Products Description
LED Street Light YASL-28 series
lnstalling Ways:

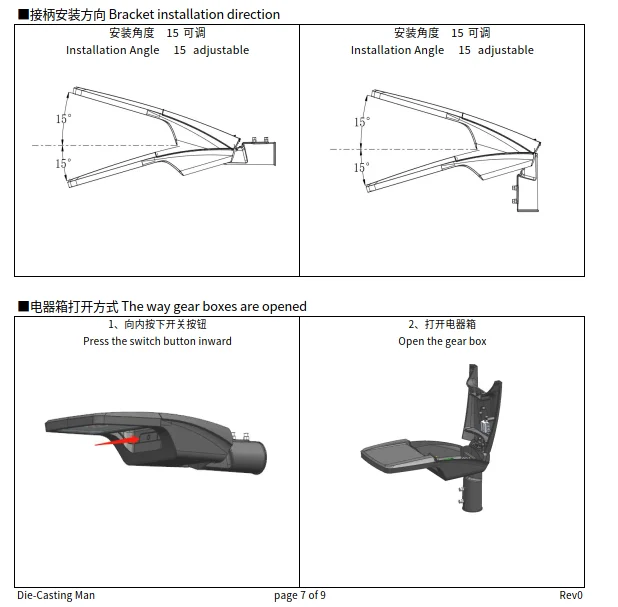

Both Horizontal and Vertical available and adjustable angle-15°to+15°
This series is a high-performance street lighting available in three sizes.
The lunimaire is manufactured from high pressure die-casting aluminum.
It shall have a led efficiency up to 130 lm/w and will be capable of producing.
Up to 26000 luminaire lumens at 4000K finished in Grey or black as standard.
IP66 CE ROHS
Both Horizontal and Vertical available and adjustable angle-15°to+15°
This series is a high-performance street lighting available in three sizes.
The lunimaire is manufactured from high pressure die-casting aluminum.
It shall have a led efficiency up to 130 lm/w and will be capable of producing.
Up to 26000 luminaire lumens at 4000K finished in Grey or black as standard.
IP66 CE ROHS
Product Specification
Product code | YASL-28-60 | YASL-28-120 | YASL-28-200 | |||||||
Input Wattage | 30/40/50/60W | 80/100/120W | 150/200/240W | |||||||
Color Temperature | 2700～6500K | 2700～6500K | 2700～6500K | |||||||
Luminous Flux | 6500-7250lm | 13000-15000lm | 26000-28000lm | |||||||
Input Voltage | AC90～305V | AC90～305V | AC90～305V | |||||||
Frequency Range | 50/60Hz | 50/60Hz | 50/60Hz | |||||||
Power Factor | PF≥0.95 | PF≥0.95 | PF≥0.95 | |||||||
color rendering index | Ra≥70 | Ra≥70 | Ra≥70 | |||||||
Temperature of Working Condition | -40～50℃ | -40～50℃ | -40～50℃ | |||||||
Humidity of Working Condition | 20%～90%RH | 20%～90%RH | 20%～90%RH | |||||||
LED Lifetime | 50000h | 50000h | 50000h | |||||||
Protectin Grade | IP66 | IP66 | IP66 | |||||||
Protection level | IK08/09/10 | IK08/09/10 | IK08/09/10 | |||||||

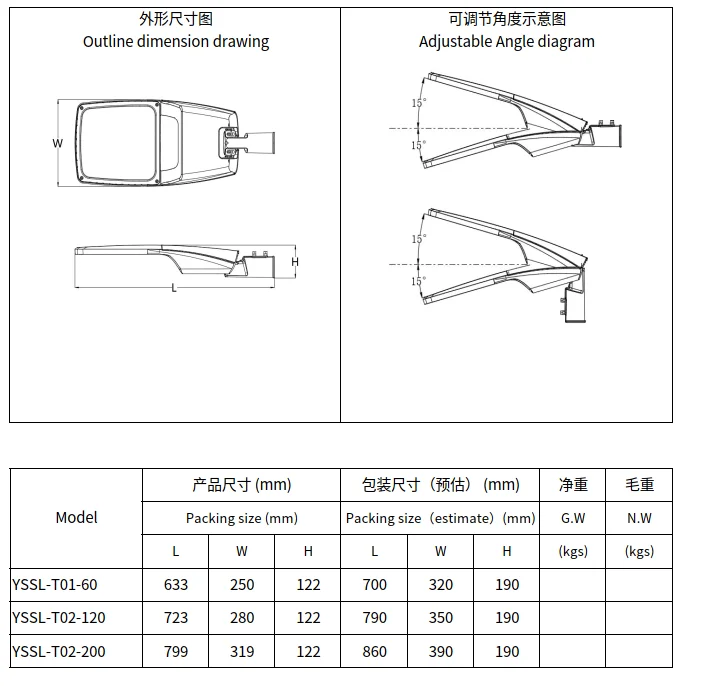

Installation Pipe Diameter | φ45/60mm | φ45/60mm | φ45/60mm | |||||||
Installation Height | 4-8m | 6-10m | 8-12m | |||||||
Net Weight | kgs | kgs | kgs | |||||||
Gross Weight | kgs | kgs | kgs | |||||||
Packing Size（cm） | 70*32*19 | 79*35*19 | 86*39*19 | |||||||
Specification of SL27 family for your reference. Kindly notice this information are for your reference only | ||||||||||

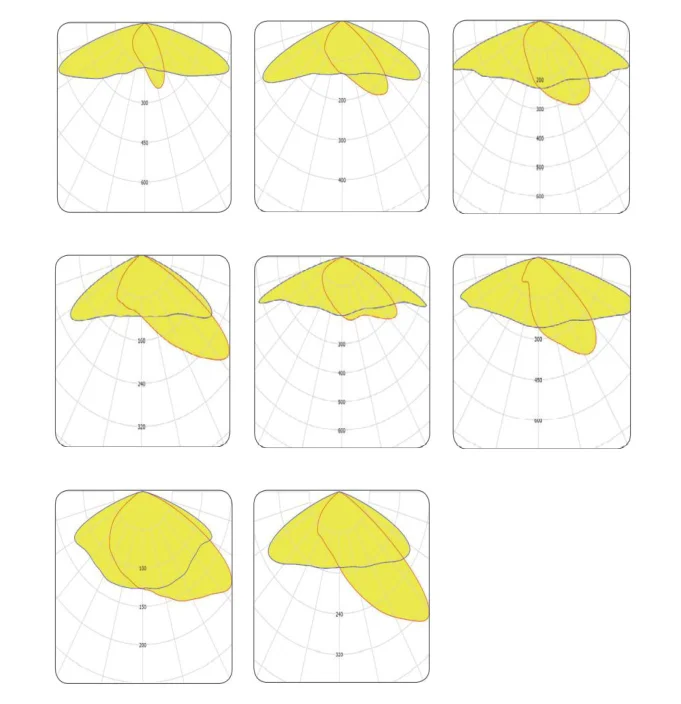

Photometric
Accessories you can select
Details Images
Company Profile
Die-Casting man was established in 1996 which is one of the lighting manufacturers with design & development, production & testing.We continue to offer a superior range of production and service including street light, high bay and die casting OEM products.
We can offer a full service or simple SKD supply only.
We understand that lighting technology has to be practical, affordable and reliable. So we always design and develop products with our customers needs in mind. We have a team of lighting designers to design, develop and manufacture our own luminaries. Also we fully understand high quality is another important element for long term business development. We keep it in mind that products need to meet all EU requirements when we start design process. Our products are tested in credible, recognized laboratories and throughout product development process they go through rigorous performance testing too.
We are a company never stand still on products and service.
We can offer a full service or simple SKD supply only.
We understand that lighting technology has to be practical, affordable and reliable. So we always design and develop products with our customers needs in mind. We have a team of lighting designers to design, develop and manufacture our own luminaries. Also we fully understand high quality is another important element for long term business development. We keep it in mind that products need to meet all EU requirements when we start design process. Our products are tested in credible, recognized laboratories and throughout product development process they go through rigorous performance testing too.
We are a company never stand still on products and service.
FAQ
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: Sample needs 5-7 days.
Q3. Do you have any MOQ limit for led light order?
A: Regular 100 MOQ and we accept small order quantity from beginning.
Q4. Do you supply OEM and ODM service ?
A: Yes. we do.
Q5: Do you offer guarantee for the products?
A: Yes, we offer 5 years warranty to our products.
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: Sample needs 5-7 days.
Q3. Do you have any MOQ limit for led light order?
A: Regular 100 MOQ and we accept small order quantity from beginning.
Q4. Do you supply OEM and ODM service ?
A: Yes. we do.
Q5: Do you offer guarantee for the products?
A: Yes, we offer 5 years warranty to our products.
Q6: Do you supply empty house only， without LED and driver ?
A: Yes, we do.
