Hot selling reverse osmosis treatment and EDI system ultra pure water deionized water equipment for industrial
- Category: >>>
- Supplier: Sichuan Zhuoyue Water Treatment Equipment Co. Ltd.
Share on (1601062163396):
Product Overview
Description
Products Description

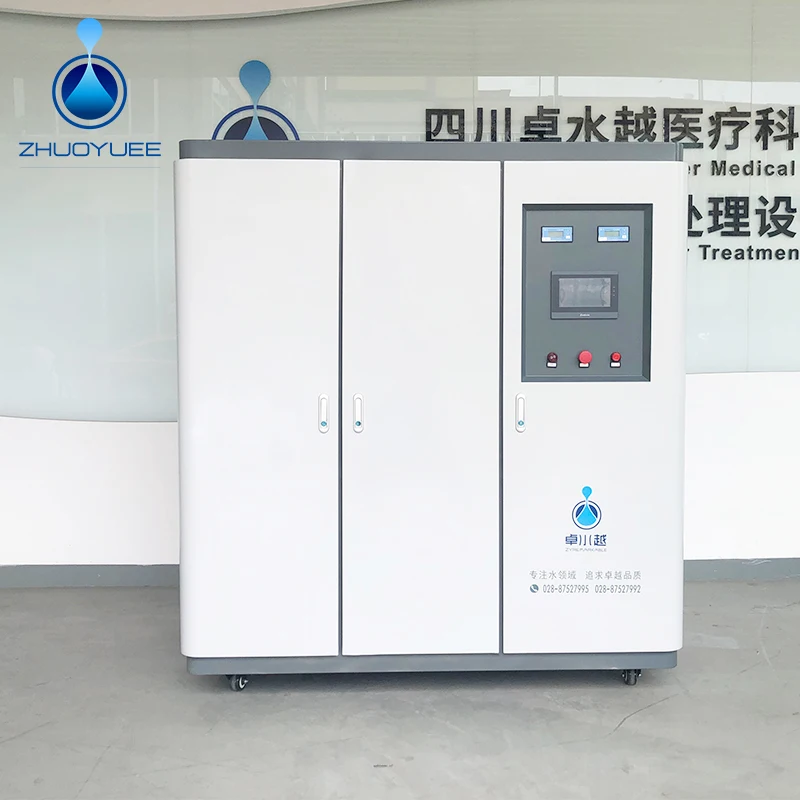

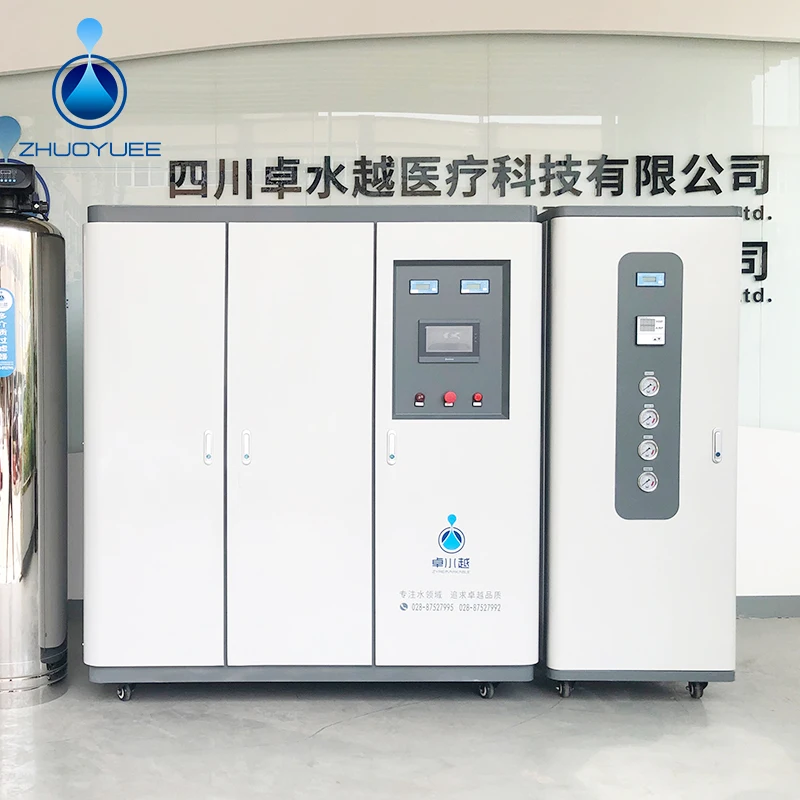

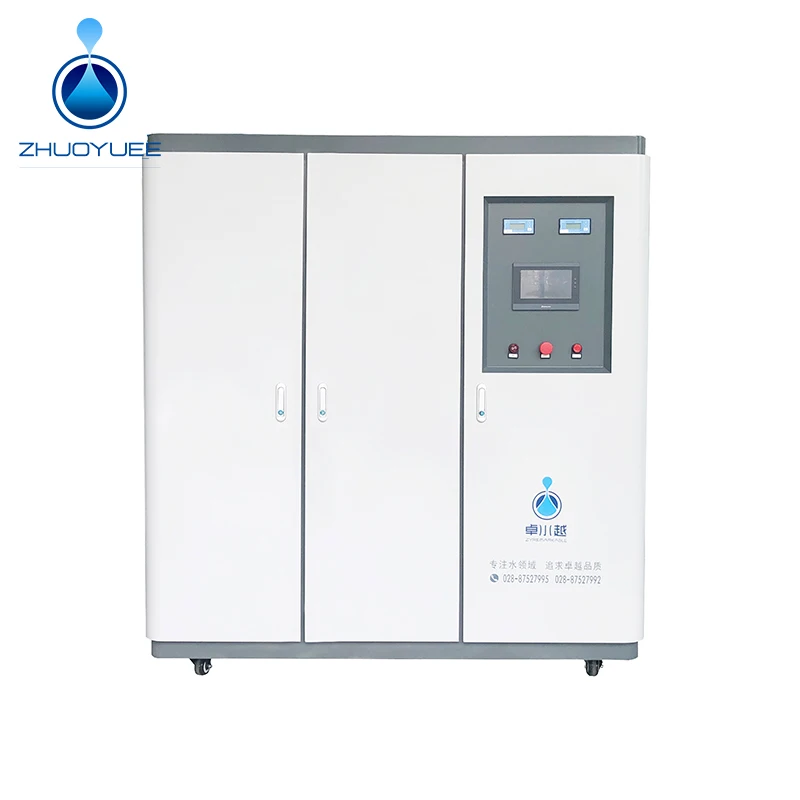

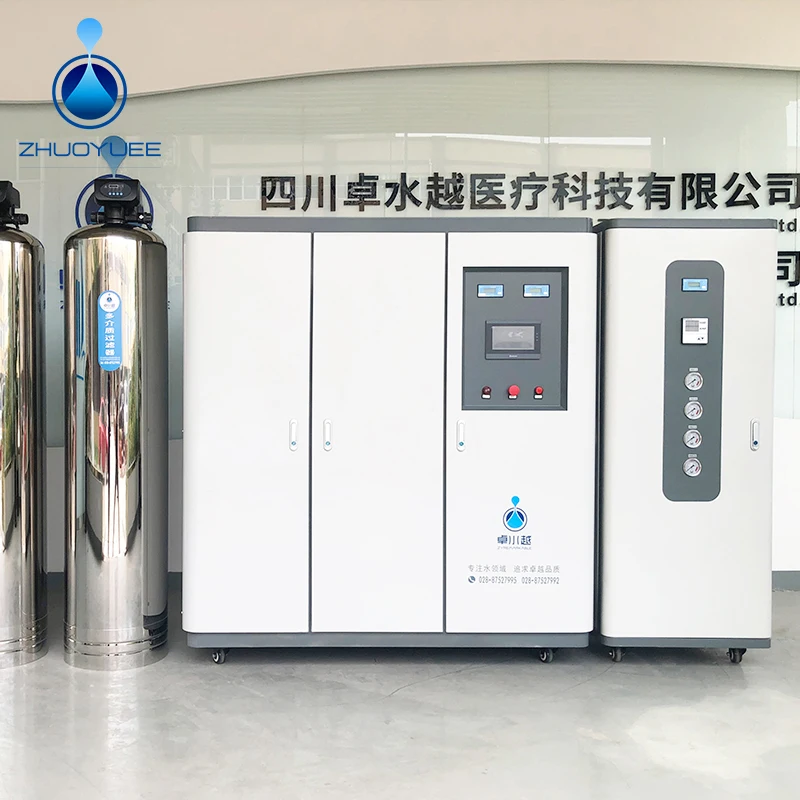

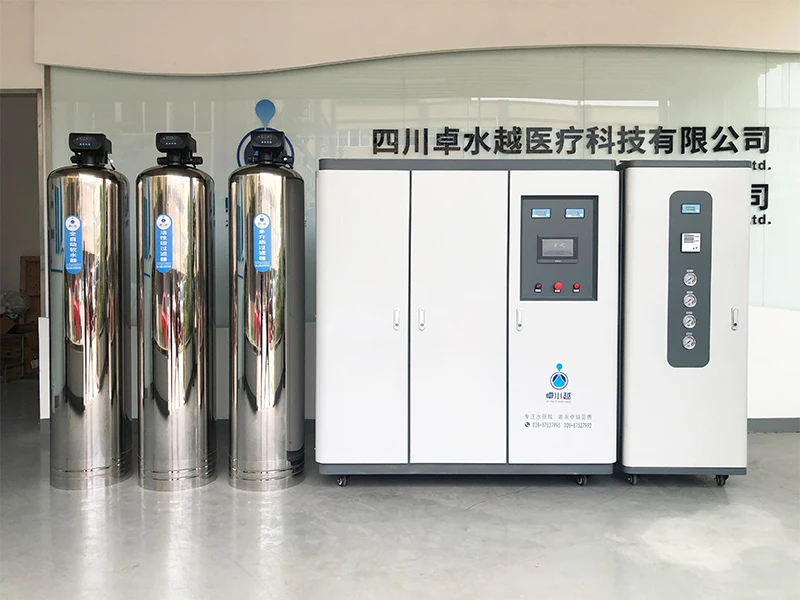

ZYUP RO EDI Deionized Water Plant

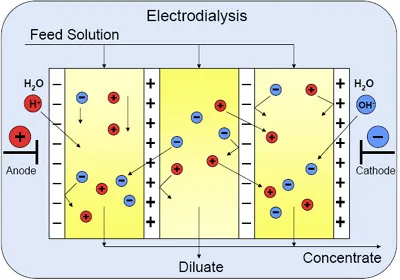

The ZYUP Electrodeionization Machine can convert the pure water to ultrapure water by mixed bed resin or EDI membrane. The resitivity usually can up to 10-18.25MΩ.cm.
The ZYUP Electrodeionization Machine can convert the pure water to ultrapure water by mixed bed resin or EDI membrane. The resitivity usually can up to 10-18.25MΩ.cm.
Parameter of RO EDI Deionized Water Plant
1. Capacity: 1000 liters per hour (Customized is available);
3. Working pressure: 0.2-0.4MPa; Working temperature: 4-45℃, Best temp.: 25℃;
4. Environment temperature: 5-40℃; humidity <85%RH;
3. Configuration: PLC touch screen+Quartz sand filter+Active carbon filter+Softener resin+Security filter+Double RO system+EDI
system;
3.1. Optional parts: UF system, UV lamp, ozone generator, etc.
4. Diameter:
4.1. DN of PP filter: 5um;
4.2. DN of RO membrane: 0.0001-0.001um.
4.3. Salt/bacteria removal rate: ≥99%, recovery rate: ≥75%.
1. Capacity: 1000 liters per hour (Customized is available);
3. Working pressure: 0.2-0.4MPa; Working temperature: 4-45℃, Best temp.: 25℃;
4. Environment temperature: 5-40℃; humidity <85%RH;
3. Configuration: PLC touch screen+Quartz sand filter+Active carbon filter+Softener resin+Security filter+Double RO system+EDI
system;
3.1. Optional parts: UF system, UV lamp, ozone generator, etc.
4. Diameter:
4.1. DN of PP filter: 5um;
4.2. DN of RO membrane: 0.0001-0.001um.
4.3. Salt/bacteria removal rate: ≥99%, recovery rate: ≥75%.

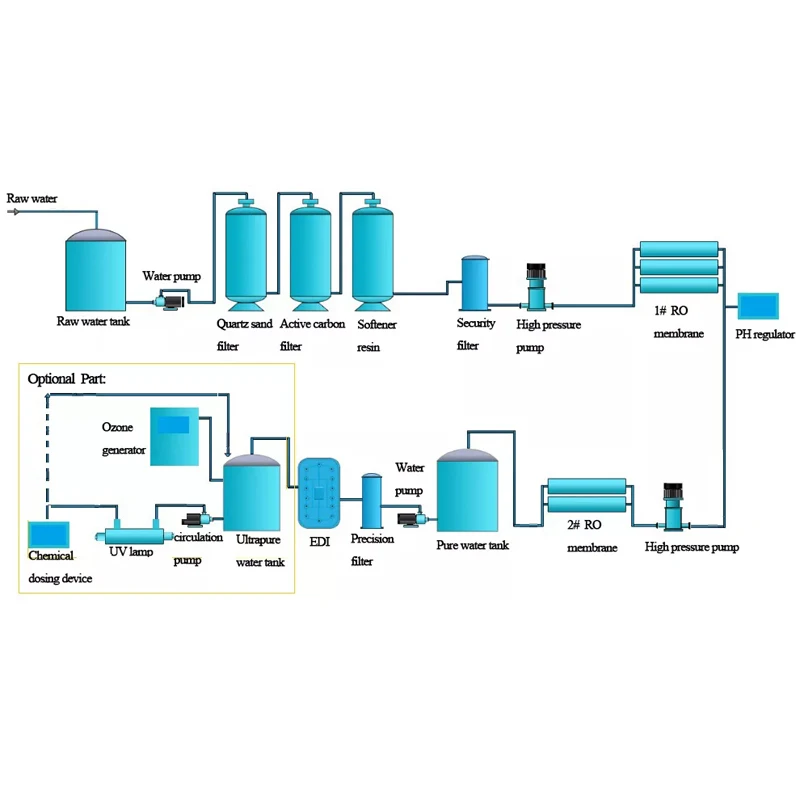

The process flow
1. Raw water pump-- provide the pressure to quartz sand filter/active carbon filter.
2. Multi-medium filter-- get rid of turbidity, suspended matter, organic matter, colloid, ect
3. Actived carbon filter--Remove the color, free chloride, organic matter, harmful matter, ect.
4. Water softener--exchange "ions" of calcium and magnesium with the most common and easiest method.
5. Security filter--prevent large particles, bacteria, viruses into RO membrane, accuracy is 5um.
6. High pressure pump-- Provide the high pressure to RO membrane.
7. 2# RO membrane-- remove more than 99% ions, bacteria, salt, microorganism, heavy ions, colloid,emdotoxin and other particles in the water.
8. EDI membrane-- produce more than 15MΩ.cm ultrapure water.
2. Multi-medium filter-- get rid of turbidity, suspended matter, organic matter, colloid, ect
3. Actived carbon filter--Remove the color, free chloride, organic matter, harmful matter, ect.
4. Water softener--exchange "ions" of calcium and magnesium with the most common and easiest method.
5. Security filter--prevent large particles, bacteria, viruses into RO membrane, accuracy is 5um.
6. High pressure pump-- Provide the high pressure to RO membrane.
7. 2# RO membrane-- remove more than 99% ions, bacteria, salt, microorganism, heavy ions, colloid,emdotoxin and other particles in the water.
8. EDI membrane-- produce more than 15MΩ.cm ultrapure water.
*. Automatic PLC touch screen operation, intelligent and simple;
*. Post-on self-test, automatic shutdown due to water shortage, water tank full or power off;
*. Automatic flush RO membrane after post or water tank full;
*. Water quality monitor on-line(conductivity&resistivity meter);
*. Flow meter and pressure gauge show on-line;
*. Automatic alarm function for equipment failure.
*. Post-on self-test, automatic shutdown due to water shortage, water tank full or power off;
*. Automatic flush RO membrane after post or water tank full;
*. Water quality monitor on-line(conductivity&resistivity meter);
*. Flow meter and pressure gauge show on-line;
*. Automatic alarm function for equipment failure.

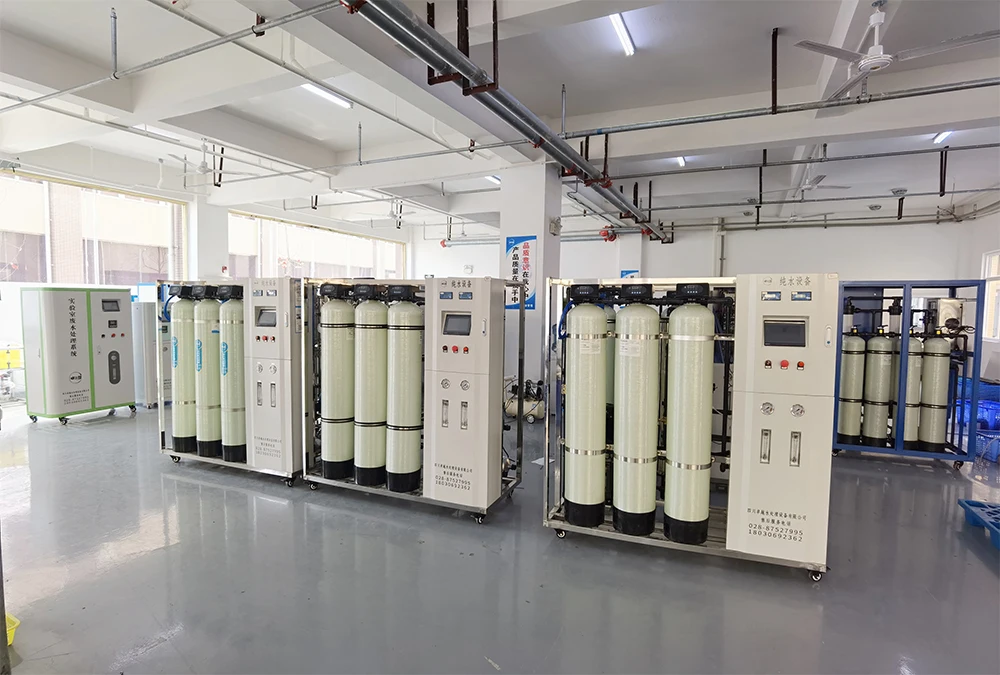

Compang information
1.Q:Are you a factory?
A:Yes,our factory is in Sichuan, China,warmly welcome to visit us.
2.Q:Do you provide after-sale service?
A:Sure, we have a good after sale service.
3.Q:what is your advantage?
A:We have the high quality ,and the good factory price.
4.Q:How can you control the quality and delivery?

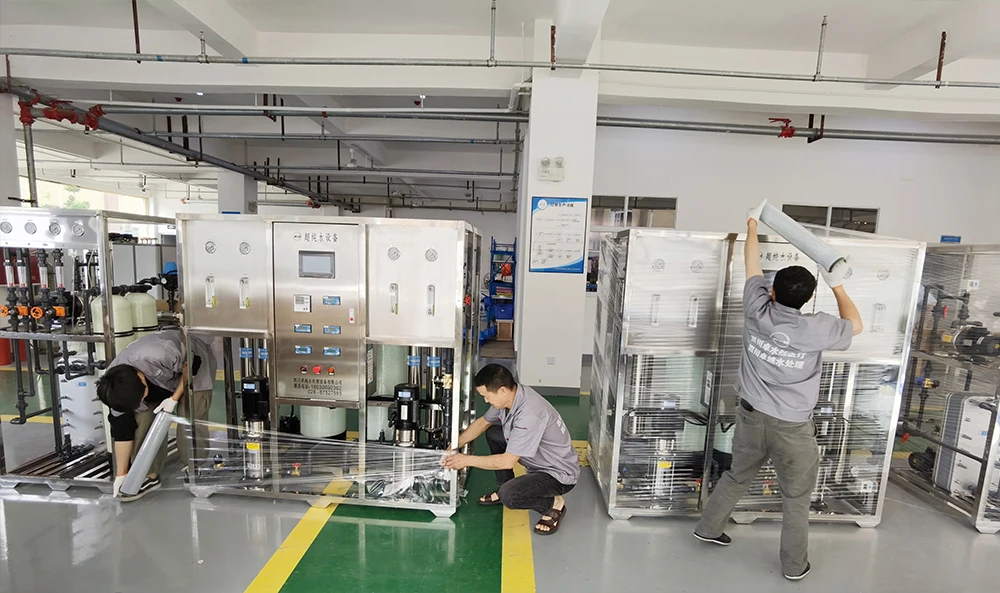

A: All our machines will be tested before packaging. wooden packaing is strong and safety for long delivery.
A:Yes,our factory is in Sichuan, China,warmly welcome to visit us.
2.Q:Do you provide after-sale service?
A:Sure, we have a good after sale service.
3.Q:what is your advantage?
A:We have the high quality ,and the good factory price.
4.Q:How can you control the quality and delivery?
A: All our machines will be tested before packaging. wooden packaing is strong and safety for long delivery.
