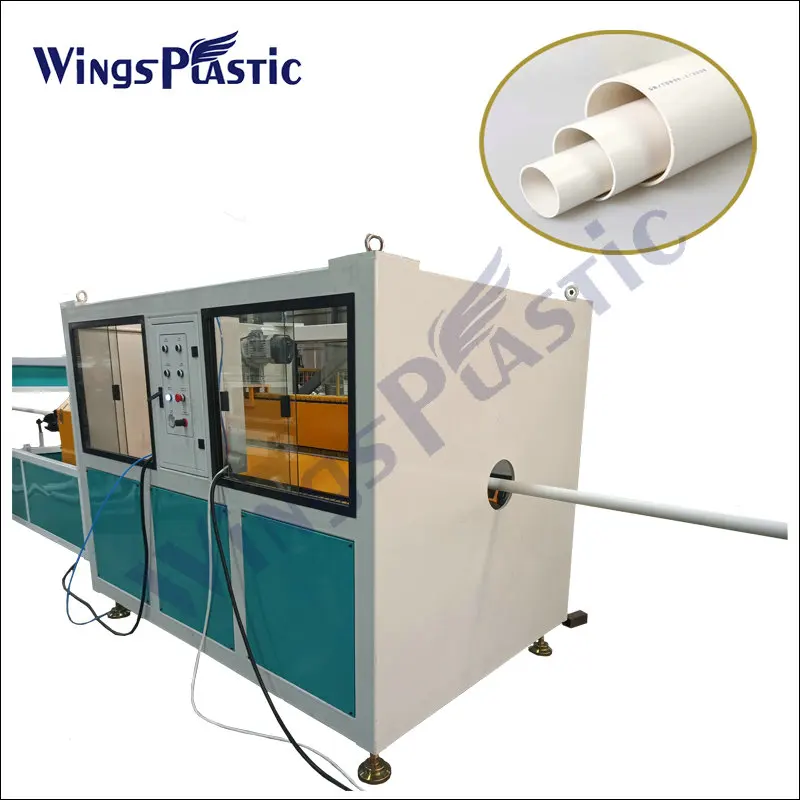

Wings Plastic High Quality Plastic Pvc Upvc Pipe Electrical Hose Machine Extruder Extrusion Making Machine Production Line
- Category: >>>
- Supplier: Qingdao Wings Plastic Technology Co. Ltd.
Share on (1601062190632):
Product Overview
Description
Product Description
Plastic Pvc Conical Twin Screw PVC Pipe Extruder Extruding Making Machine For Pvc Pipe Tube Hose Extrusion Production Line
1. Plastic Tubes
2. Plastic Pipe Extruder
3. Plastic Pipe Extruder Machine

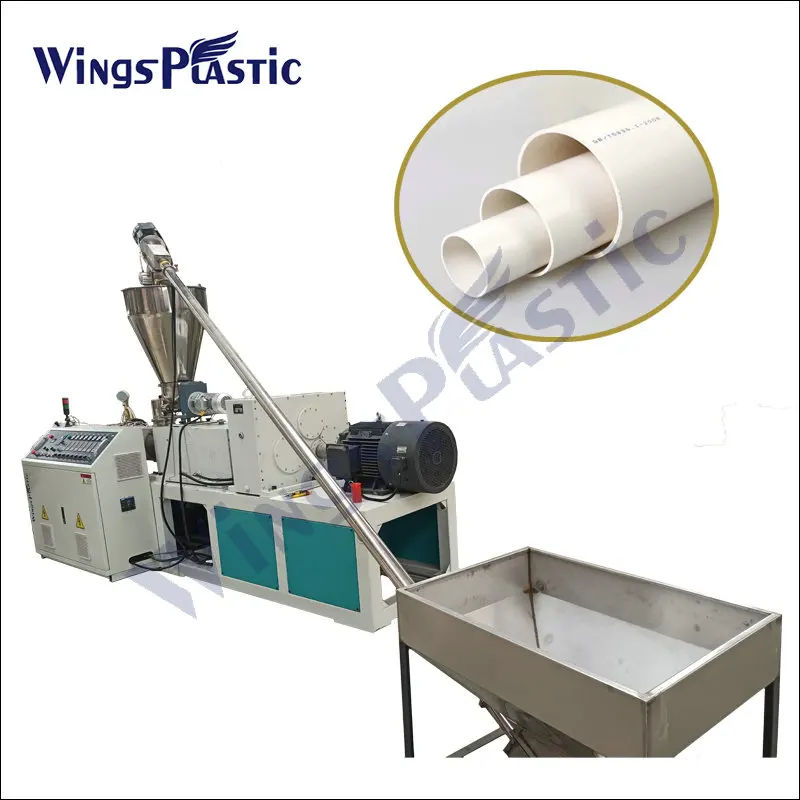

Twin Screw PVC Pipe Machine / Extruder Machine / Plastic Extruder / Production Line
SJSZ series plastic extruder/ extrusion machine are special equipments which can extrude and mold by using various kinds PVC powders. Equipped with different kinds of molds and auxiliary machines, it can produce various PVC pipe diameters.PVC series pipes are mainly used for agricultural water supply system, sewer system, waters discharge systems for civil and industrial buildings, cable conduits, protection sheathing for electric cables, etc.PVC Series pipe solution, equipped with new design high-efficiency twin-screw conical extruder, which is high speed high efficiency; Reasonable flow channel design, accurate melting temperature control; planetary non-dust cutting, uniform chamfering.
Item | SJZ51/105 | SJZ55/110 | SJZ65/132 | SJZ80/156 | SJZ92/188 |
Diameter of screw | 51/105mm | 55/110mm | 65/132mm | 80/156mm | 92/188mm |
Main Motor | 22kw | 30kw | 37kw | 55kw | 90/110kw |
Max capacity | 120kg/h | 180kg/h | 300kg/h | 500kg/h | 900kg/h |

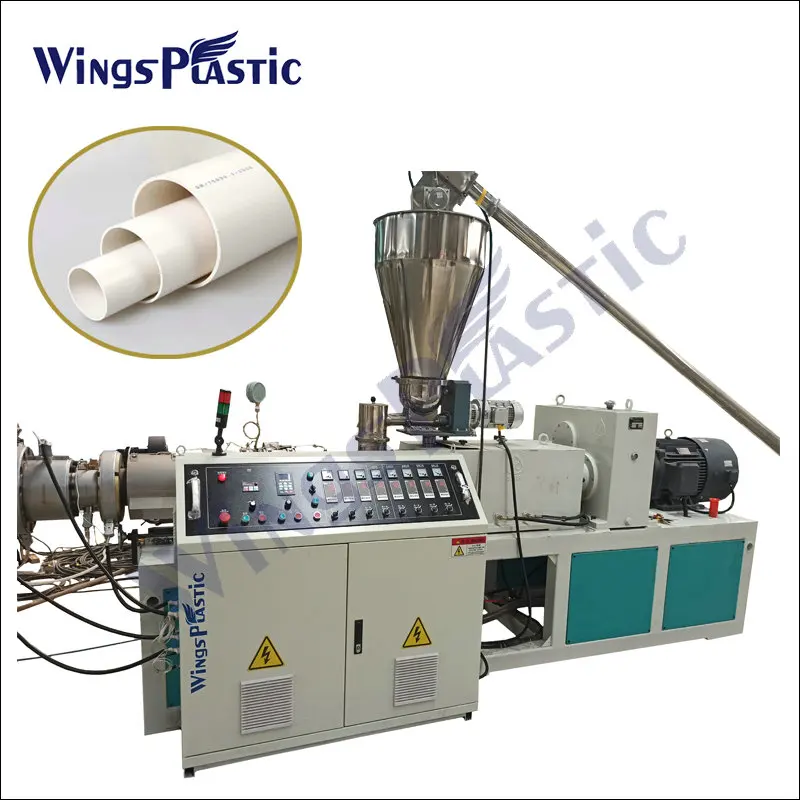

Twin screw extruder
High production capacity of extrusion on the high quality basis. Lower temperature plasticizing design, ensure high quality pipe extrusion. Material of screw and barrel: 38CrMoAlA, nitrogen quenched (0.4-0.7mm ), Rigidity of screw: >740 , Rigidity of barel>940, the surface of screw is chromeplated Feeding bush with water cooling system

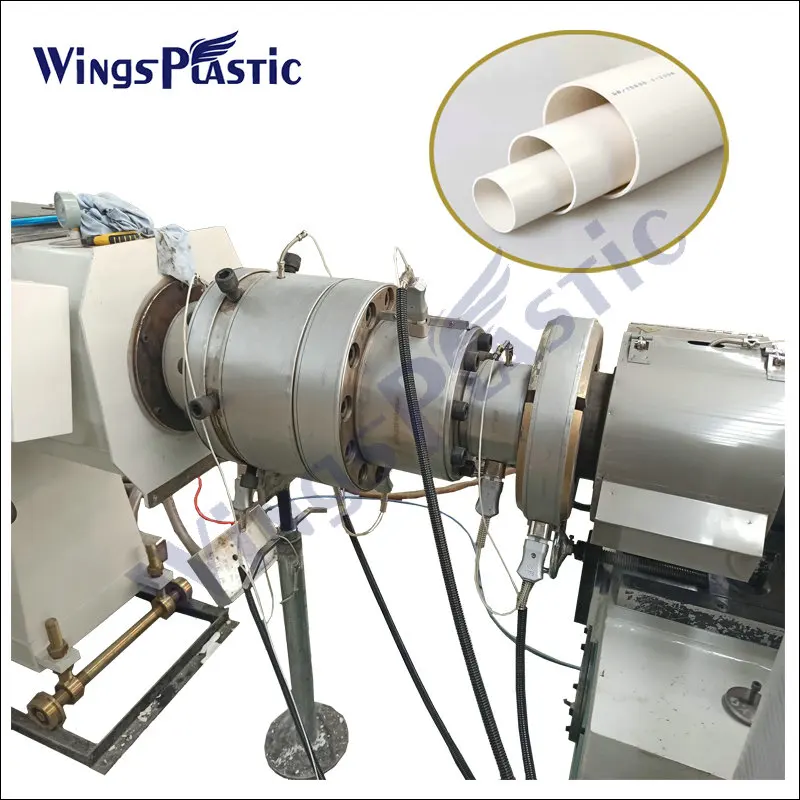

Pipe Extrusion Die head
The die head is made by 40Cr moulds materials.
Using mica heating way
Using mica heating way
Pipe Vacuum Tank
It is adopted stainless steel materials, high quality vacuum and water pumb. There is flow stabilization system for better pipe surface.
Haul off unit
It is rubber block clamping way.
2 claw, 3 claw, 4 claw ,6 claw, 8 claw, 12 claw made according pipe diameters.
2 claw, 3 claw, 4 claw ,6 claw, 8 claw, 12 claw made according pipe diameters.

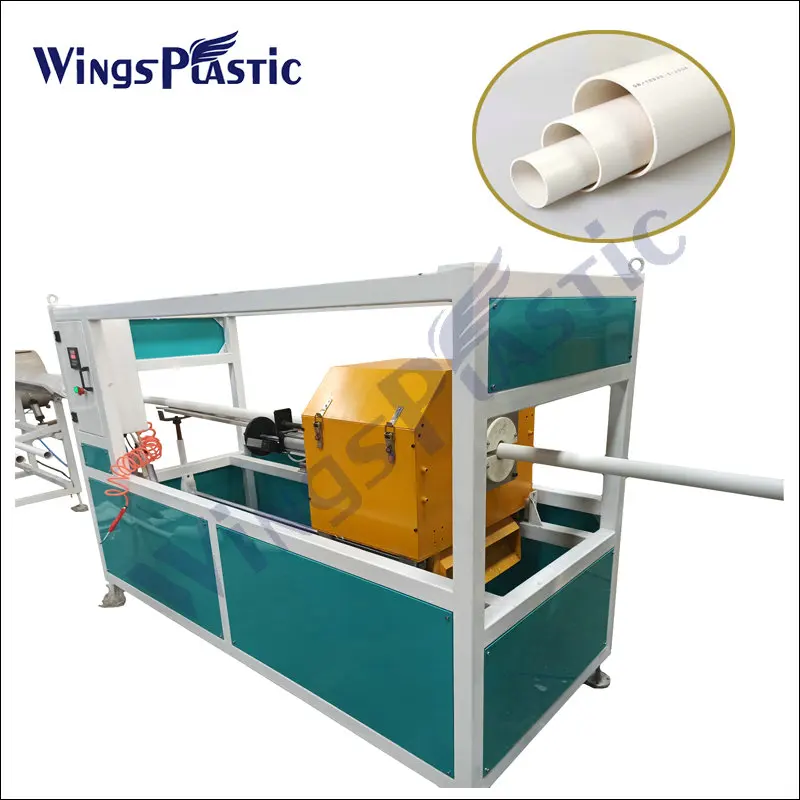

Cutting Machine
It could be no dust cutting,planetary cutting,chamfer cutting,saw cutting according customer reques
Stacker
Length 6000mm
Stacking way:Pneumatic way
Stacking way:Pneumatic way
Mixer
It is working for mixing pvc powder materials with additives according formula.
It could be 200/500mixer,300/600mixer,500/1000mixer always.
It could be 200/500mixer,300/600mixer,500/1000mixer always.
Electric Control Unit
Switch and Button brand:CHNT/Schneider
Temperature Controller:Omron
Inverter:Siemens/ABB/Delta
Contactor:Siemens
Temperature Controller:Omron
Inverter:Siemens/ABB/Delta
Contactor:Siemens

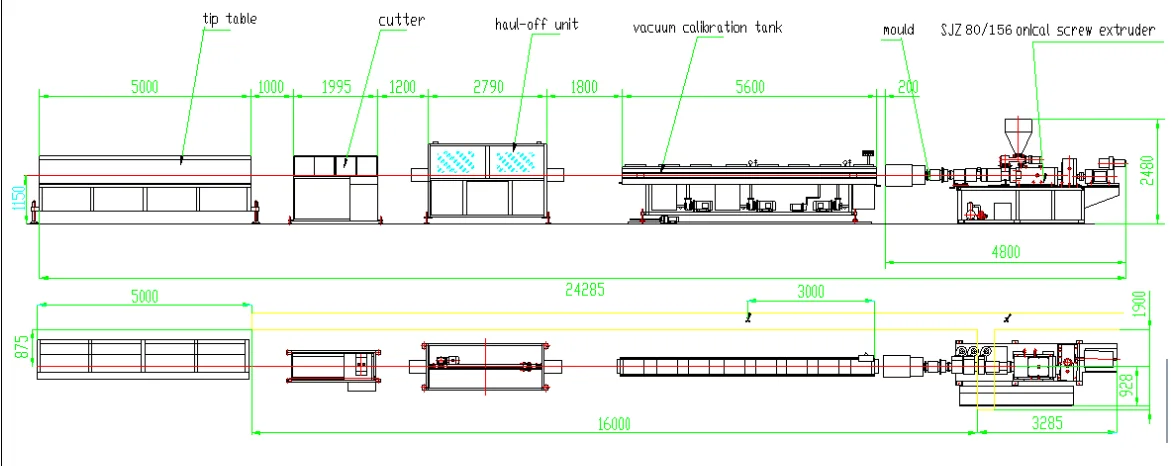

Machine List
Production Process
PVC powder + additive — mixing—material feeder—twin screw extruder—mould and calibrator—vacuum forming machine—spraying cooling machine—haul-off machine—cutting machine—discharge rack or pipe belling machine.

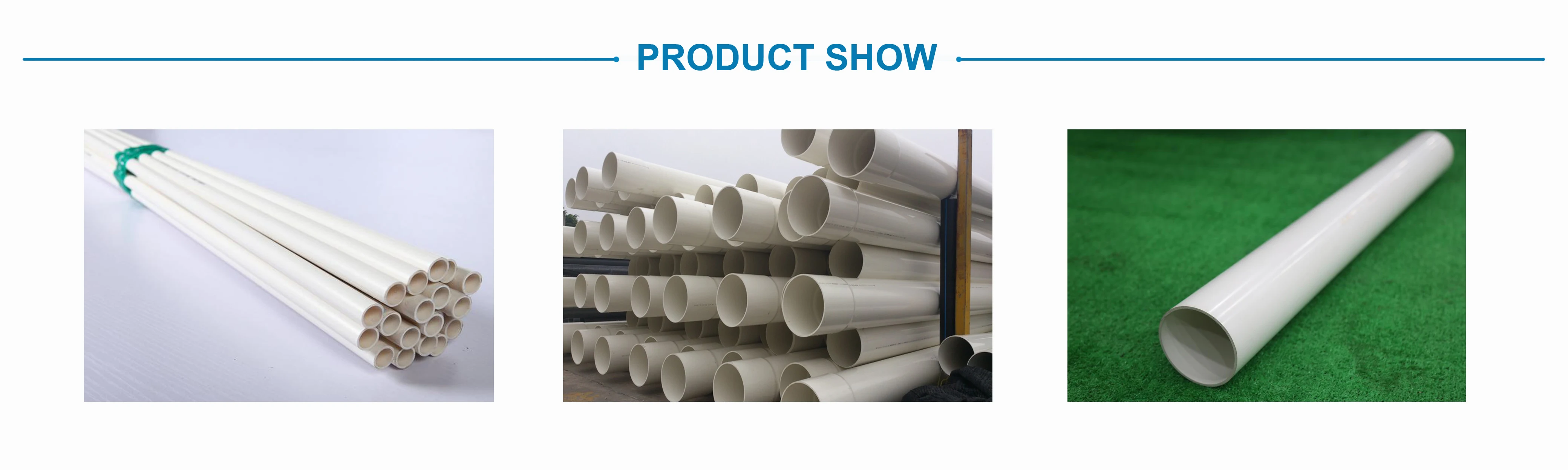

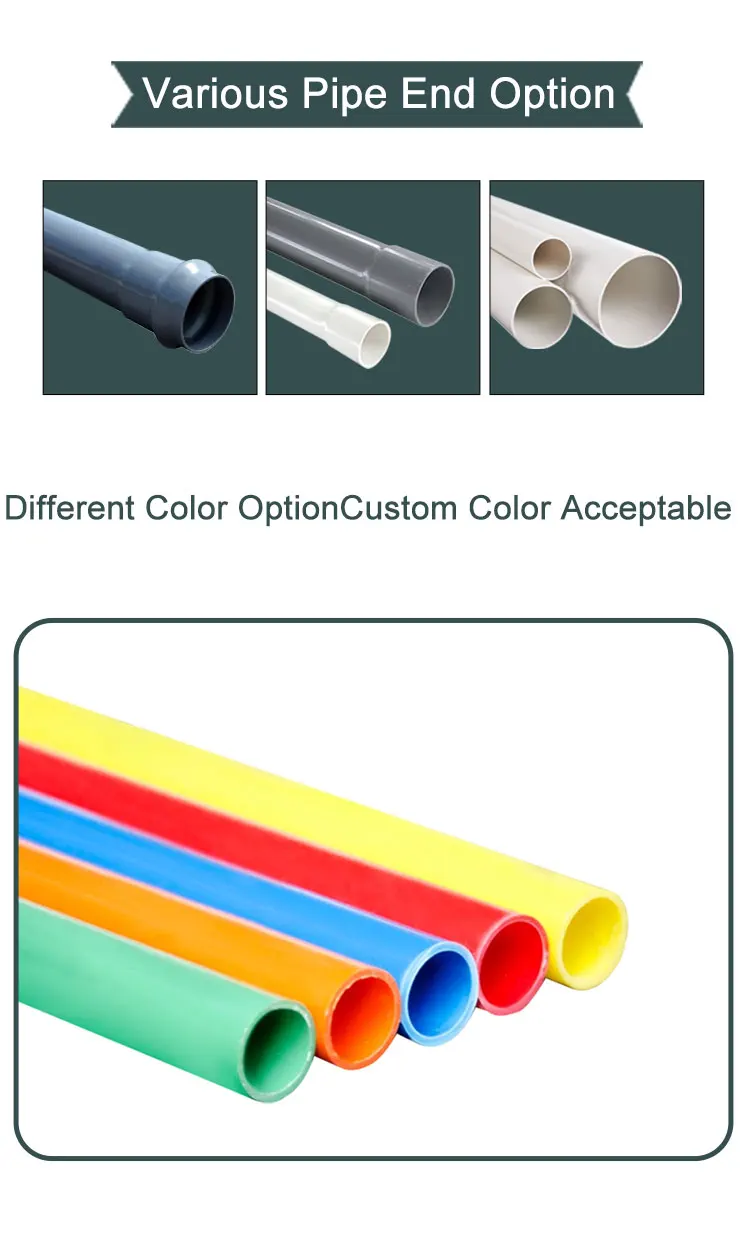

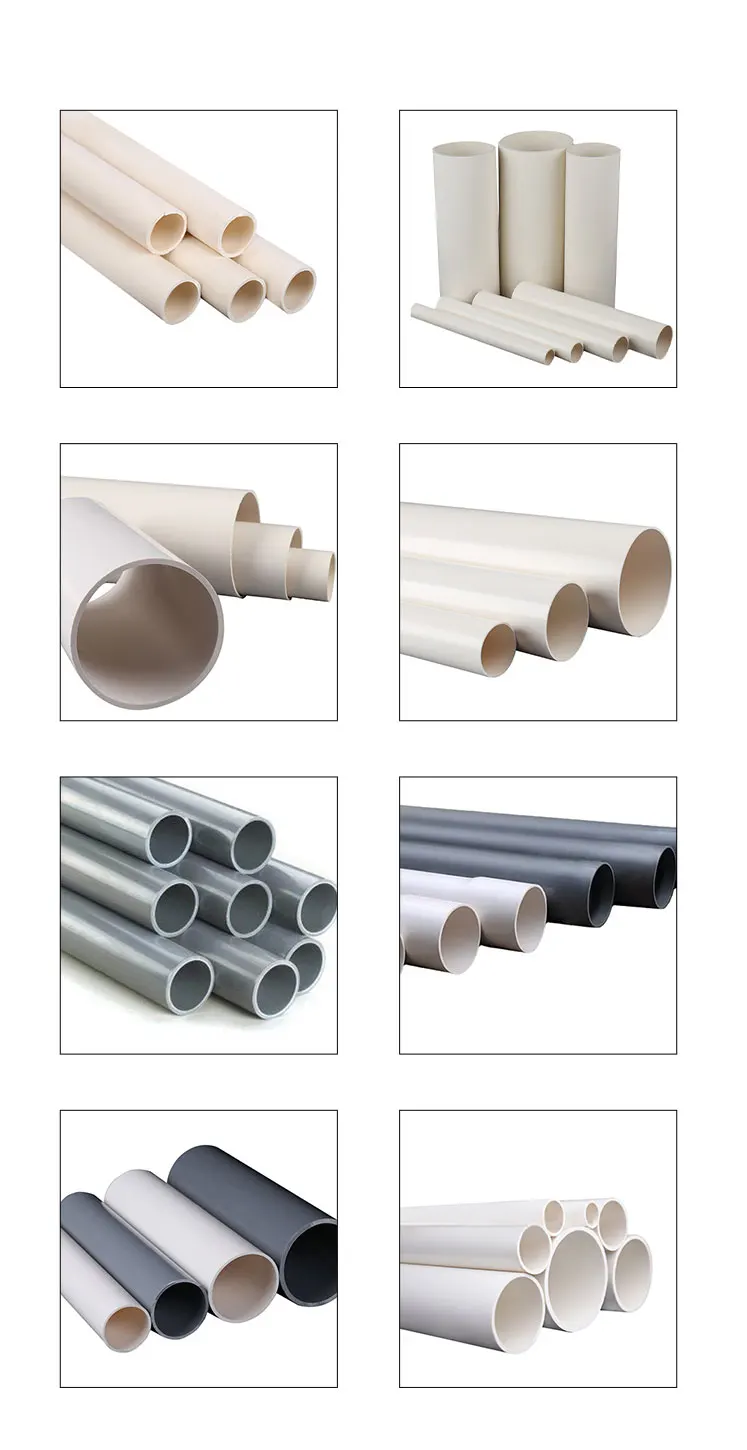

Final Product & Application
Our Advantage
A.We are specialized in the extruder making machine production line for 5 years, price is competitive.
B.We owned many experienced staff, who are on this field for no less than 7years, youthful and efficient.
C.We can meet any demands from our clients, different package, different design, different brand name, different color.....Whatever
you care, we can serve you the best.
D.We give our clients the word-- the best quality, while we can provide customers the competitive value.
E.We hold powerful production capacity. If you are urgent, please call us and we will take the least time to make it.
F.We are one of the best cooperator for you to choose.
B.We owned many experienced staff, who are on this field for no less than 7years, youthful and efficient.
C.We can meet any demands from our clients, different package, different design, different brand name, different color.....Whatever
you care, we can serve you the best.
D.We give our clients the word-- the best quality, while we can provide customers the competitive value.
E.We hold powerful production capacity. If you are urgent, please call us and we will take the least time to make it.
F.We are one of the best cooperator for you to choose.
Company Introduction
Qingdao Wings Plastic Technology Co., LTD., specializing in the production of HDPE PP PVC PA single wall corrugated pipe machine, double-wall corrugated pipe production line, HDPE PP PVC Sheet, Coil Mat, Strap, Protector Machine
Equipment operation is stable, automatic production, saving labor, efficient extrusion
Equipment operation is stable, automatic production, saving labor, efficient extrusion
After-sales service
Service Before Sale 1. 24 hours online. Your inquiry will be quick reply by email. Also can go through all questions with you by any online chatting tools (Wechat, Whatsapp, Skype, Viber, QQ, TradeManager )
2. Professionally and patiently introduction,details pictures and working video to show machine Service On Sale
1. Test every machine and inspect the machine seriously.
2.Send the machine picture which you order, then packing it with standard export wooden box after you confirm the machine is ok.
3.Delivery: If ship by sea .after delivery to seaport. Will tell you the shipping time and arrival time. Finally, send all
original documents to you by Express For Free. If delivery it by Express to your door (DHL, TNT, Fedex, etc) or by air to your
airport, Or logistic to the warehouse which you request. We will tell you the tracking number after delivery.
Service After Sale
1. 24 hours online to solve any problem. Supply you English manual book and technical support, maintain and install video to help you solve the problem, or dispatch worker to your factory. All the symbols on the equipment should be in English. Seller is responsible to provide general layout plan, electric plan, installation direction, and manual book in English to Buyer on time.
Wings will provide long-term technical guide.
2. Professionally and patiently introduction,details pictures and working video to show machine Service On Sale
1. Test every machine and inspect the machine seriously.
2.Send the machine picture which you order, then packing it with standard export wooden box after you confirm the machine is ok.
3.Delivery: If ship by sea .after delivery to seaport. Will tell you the shipping time and arrival time. Finally, send all
original documents to you by Express For Free. If delivery it by Express to your door (DHL, TNT, Fedex, etc) or by air to your
airport, Or logistic to the warehouse which you request. We will tell you the tracking number after delivery.
Service After Sale
1. 24 hours online to solve any problem. Supply you English manual book and technical support, maintain and install video to help you solve the problem, or dispatch worker to your factory. All the symbols on the equipment should be in English. Seller is responsible to provide general layout plan, electric plan, installation direction, and manual book in English to Buyer on time.
Wings will provide long-term technical guide.
FAQ
Q:Are you machinery factory or trading company?
A:We are machinery factory
Q:If we have very special request for the production line,could you help me to do the design?
A:Experienced mechanical designer customized-design provided.
Q: Installation and stuff training available from you?
A: Yes, our engineers will guide machine installation and train your workers.
Q: How can we visit your company and machines?
A : Our factory is in Jiaoxi Town, Qingdao City, Shandong Province, China. About 0.5 hours from Qingdao Jiaodong International Ariport.
Q:What`s the payment method?
A: T/T, L/C,Western Union,etc
A:We are machinery factory
Q:If we have very special request for the production line,could you help me to do the design?
A:Experienced mechanical designer customized-design provided.
Q: Installation and stuff training available from you?
A: Yes, our engineers will guide machine installation and train your workers.
Q: How can we visit your company and machines?
A : Our factory is in Jiaoxi Town, Qingdao City, Shandong Province, China. About 0.5 hours from Qingdao Jiaodong International Ariport.
Q:What`s the payment method?
A: T/T, L/C,Western Union,etc
