Product Overview
Description
Products Description

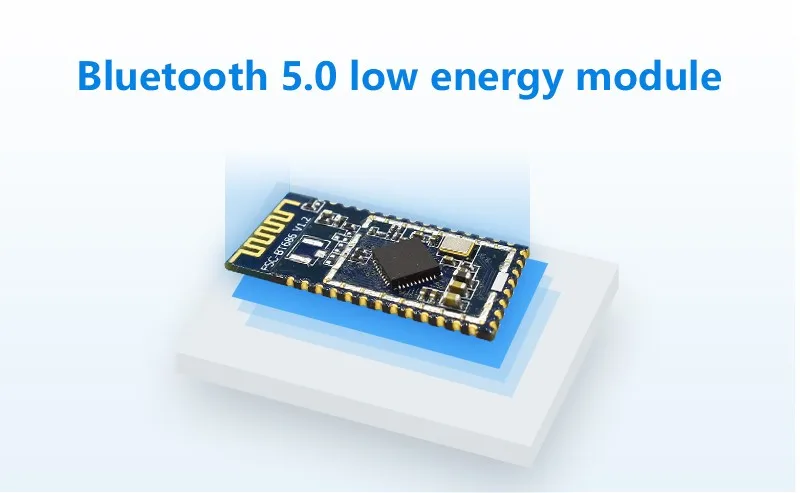

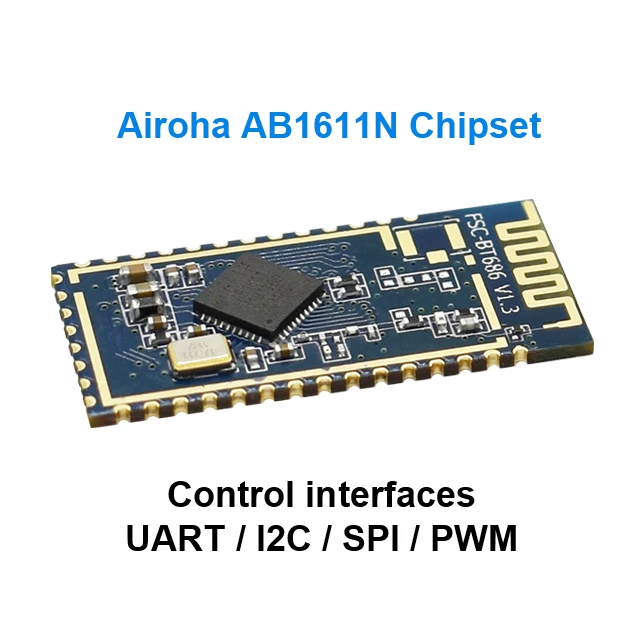

FSC-BT686 is a cost-effective BLE 5.0 module and adopt AIROHA AB1611 chipset.
It supports UART interface to transfer data at pass-through mode, customers can also configure the Bluetooth module parameters via AT commands.
FSC-BT686 supports GATT(central/peripheral),BLE Mesh profiles, it integrate PCB antenna(default version) and supports install external antenna through a pad(Optional).

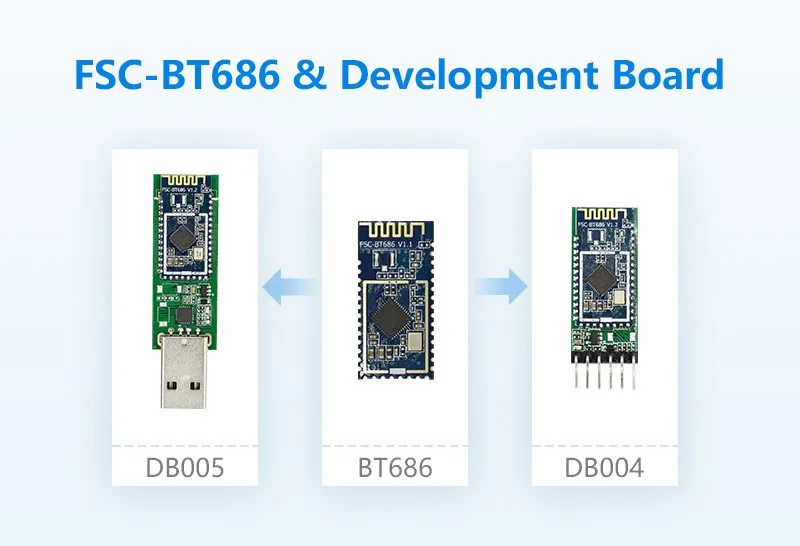

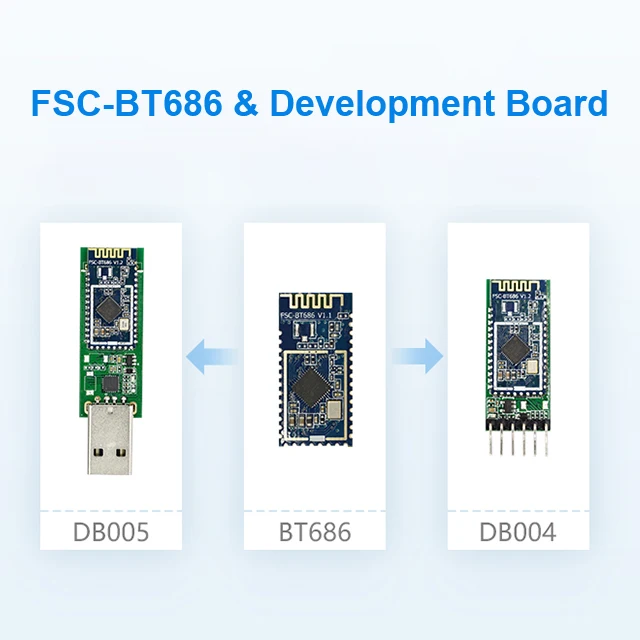

FSC-DB004-BT686: It contains a 6-pin(STATUS, RXD, TXD, GND, VCC, KEY) interface that connects with FSC-BT686 and is convenient for customer to test the Bluetooth module.
FSC-DB005-BT686: It contains a USB-to-UART interface that connects with FSC-BT686, customer could test the Bluetooth module with Feasycom Serail Port - a Windowa app of Feasycom.
Specification
Bluetooth module model | FSC-BT686 |
Bluetooth version | Bluetooth 5.0 low energy |

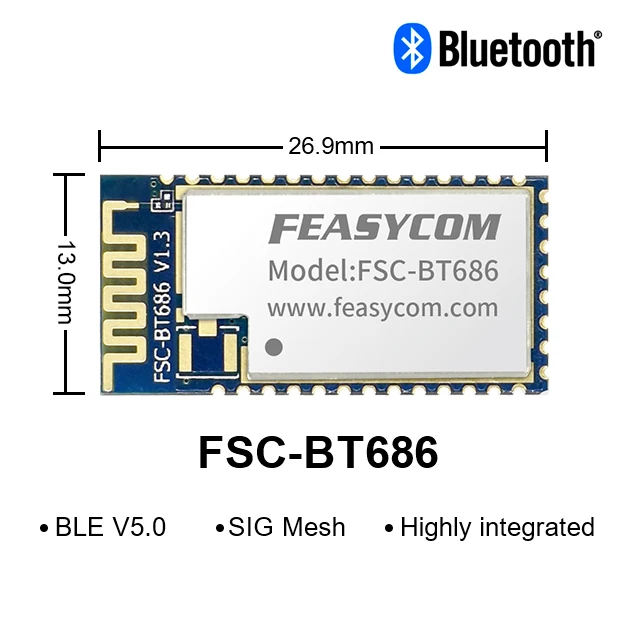

Dimension | 13mm*26.9mm*2.0mm |
Transmit power | +9.5dBm |
Power supply | 1.9 - 3.6V |
Frequency | Frequency |

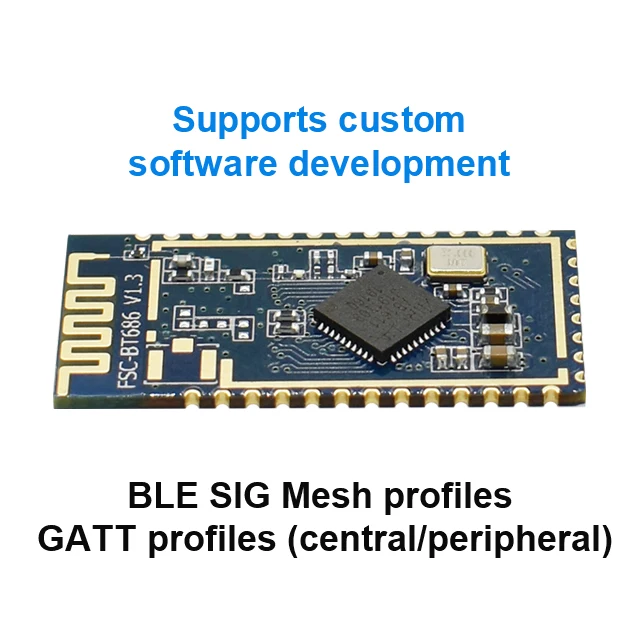

Profile | GATT(central/peripheral),SIG MESH |
Antenna | Built-in PCB antenna(Default version),supports install external antenna(Optional) |
Features | High speed, long range, BLE Mesh network |
* More details | * Please contact us for more product information |
Features
* Compliant with BLE 5.0 specification
* Embedded 32-bit MCU and 4Mbit flash
* 64KB SRAM
* Low power consumption
* TX power up to 9.5 dBm
* Postage stamp sized form factor
* UART programming and data interface (baudrate can up to 921600 bps)
* Supports UART, I2C, SPI, and PWM control interfaces
* Supports external antenna
* Supports I-PEX antenna
* RoHS compliant
* Embedded 32-bit MCU and 4Mbit flash
* 64KB SRAM
* Low power consumption
* TX power up to 9.5 dBm
* Postage stamp sized form factor
* UART programming and data interface (baudrate can up to 921600 bps)
* Supports UART, I2C, SPI, and PWM control interfaces
* Supports external antenna
* Supports I-PEX antenna
* RoHS compliant
