Product Overview
Description
Products Description
Description
determination of the diameter and velocity of the outlet jet
study of openings with different inlet and outlet contours
determining the contraction coefficient
Pressure losses in the flow from tanks are essentially the result of two processes: the jet deflection upon entry into the opening and the wall friction in the opening. As a result of the pressure losses the real discharge is smaller than the theoretical flow rate.
It determines these losses at different flow rates. Different diameters as well as inlet and outlet contours of the openings can be studied. Additionally, the contraction coefficient can be determined as a characteristic for different contours.
determination of the diameter and velocity of the outlet jet
study of openings with different inlet and outlet contours
determining the contraction coefficient
Pressure losses in the flow from tanks are essentially the result of two processes: the jet deflection upon entry into the opening and the wall friction in the opening. As a result of the pressure losses the real discharge is smaller than the theoretical flow rate.
It determines these losses at different flow rates. Different diameters as well as inlet and outlet contours of the openings can be studied. Additionally, the contraction coefficient can be determined as a characteristic for different contours.
Input power | Three-phase four-wire system AC380V±10% 50Hz | |
Dimensions | 1800X1760X700mm | |
Machine capacity | <1.5KVA | |
Working conditions | <120kg | |
Safety protection | Ambient temperature -10℃～+40℃ relative humidity ＜85% (25℃) | |
With leakage voltage and leakage current protection devices, safety compliance with national standards | ||
Product Details

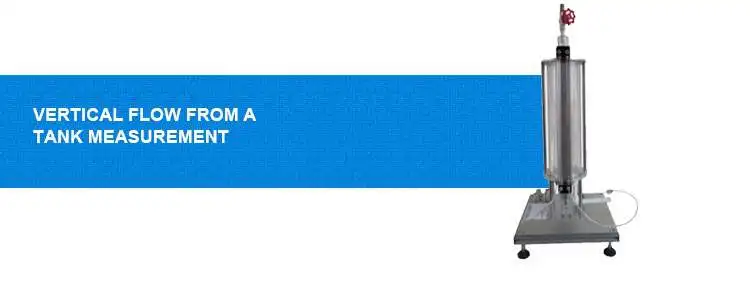

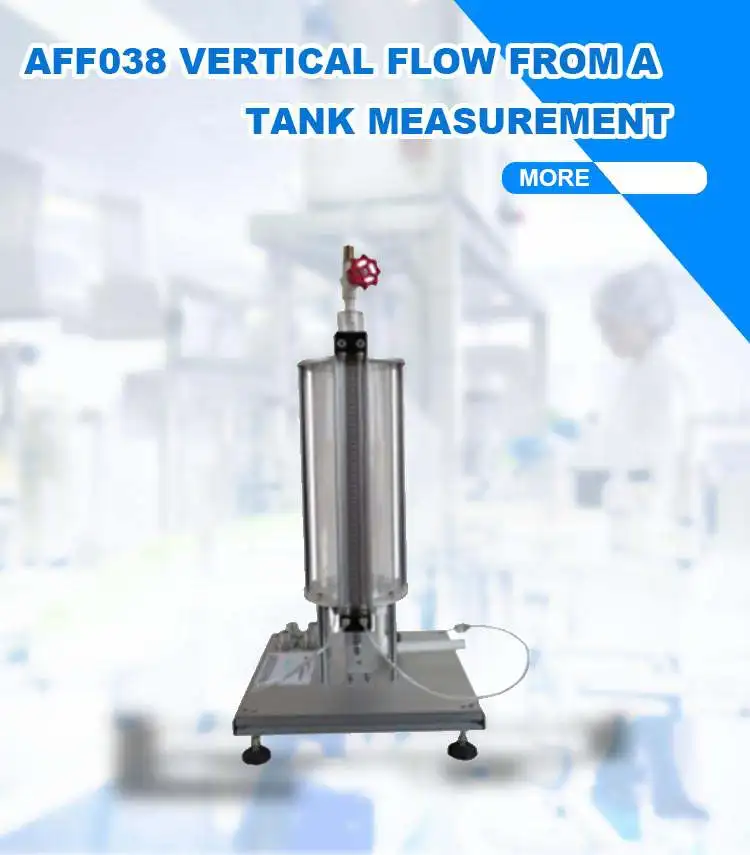

The experimental unit includes a transparent tank, a measuring device as well as a Pitot tube and twin tube manometers. An interchangeable insert is installed in the tank’s water outlet to facilitate the investigation of various openings. Five inserts with different diameters, inlet contours and outlet contours are provided along with the unit.
The issued water jet is measured using a measuring device. A Pitot tube detects the total pressure of the flow. The pressure difference (read on the manometer) is used to determine the velocity.
The issued water jet is measured using a measuring device. A Pitot tube detects the total pressure of the flow. The pressure difference (read on the manometer) is used to determine the velocity.
