1 5 outlets Volumetric Grease Distributor Or Metering Devices Manifold Block For Lubrication System/CNC Machine

Product Overview

Description

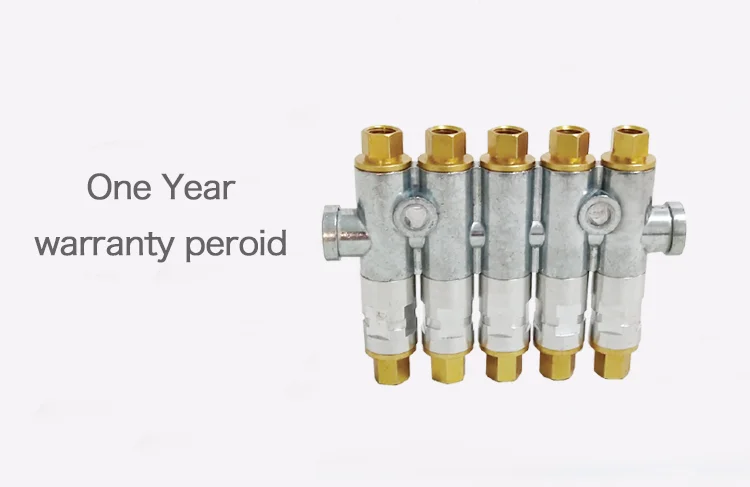

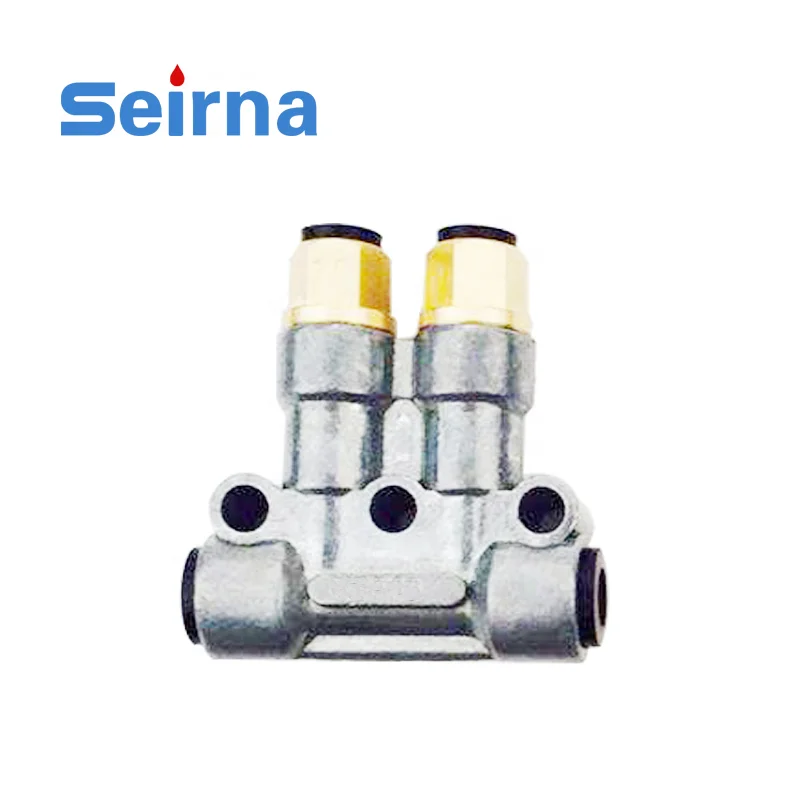

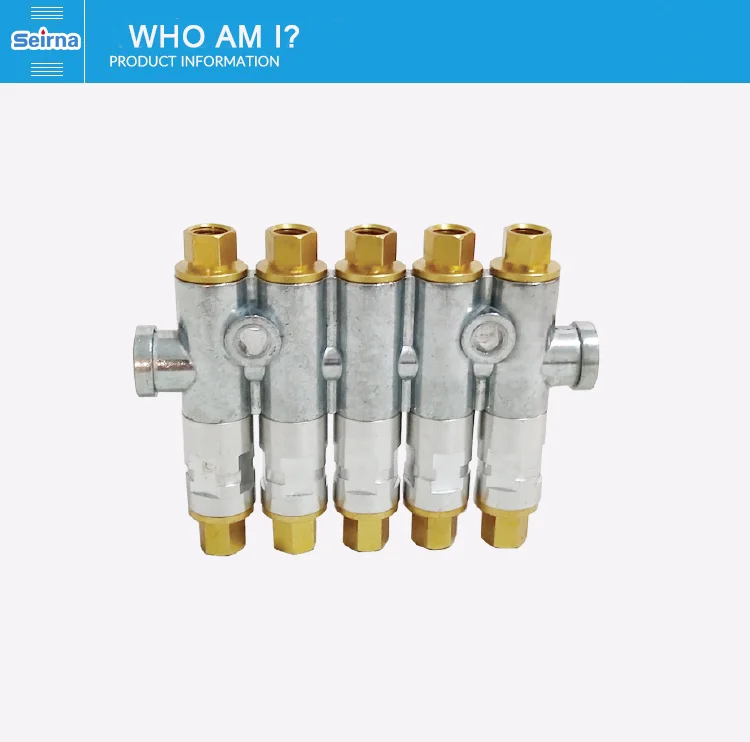

 VPA Lubrication Oil Injector Grease Injector Grease Valve For Volumetric Lubrication System

VPA is our company's pressure relief type for the design of volumetric thin oil lubrication system.
The quantitative injector stores the lubricating oil when the lubrication pump is pressurized
There is a quantitative cavity, when the system stops working, the main road pressure is reduced, and the storage
There is a lubricating oil in the quantitative cavity, which will be injected into the run under the force of the spring.slippage.
Performance and features:
There are 1 to 5 outlets available, each outlet, and multiple displacements are available.
Unused outlets can be blocked with a special plug.
Quantitative cavity precision machining, accurate measurement and sensitive action.
Equipped with an oil indicating rod, it can be judged whether it is blocked according to the movement of the indicator rod.
Multiple lubrication points can be used in series to meet multiple lubrication point requirements.

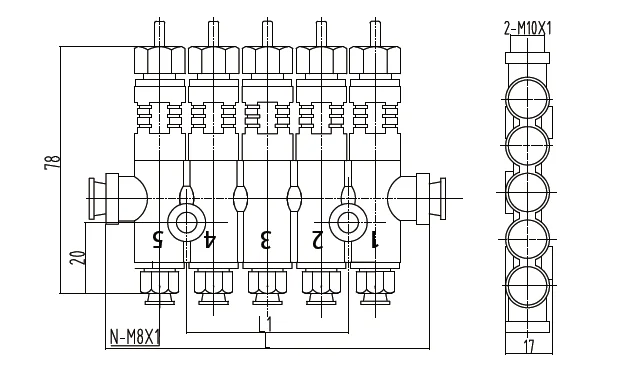

Model	Number of outlets	Flow rate   mm/cyc	Lubricating oil viscosity range	L1	L
VPA1	1	0.06. 0.1. 0.2 0.3 0.4	N20--N320		35
VPA2	2				51
VPA3	3			17	68
VPA4	4			34	85
VPA5	5			51	102
