MT Medical Professional 5kw X Ray Machine With Detector Digital X ray for veterinary hospital
- Category: >>>
- Supplier: Hefei Mt Medical Co. Ltd.Hefei Ltd.
Share on (1601062353218):
Product Overview
Description
Hot sales
Product Description

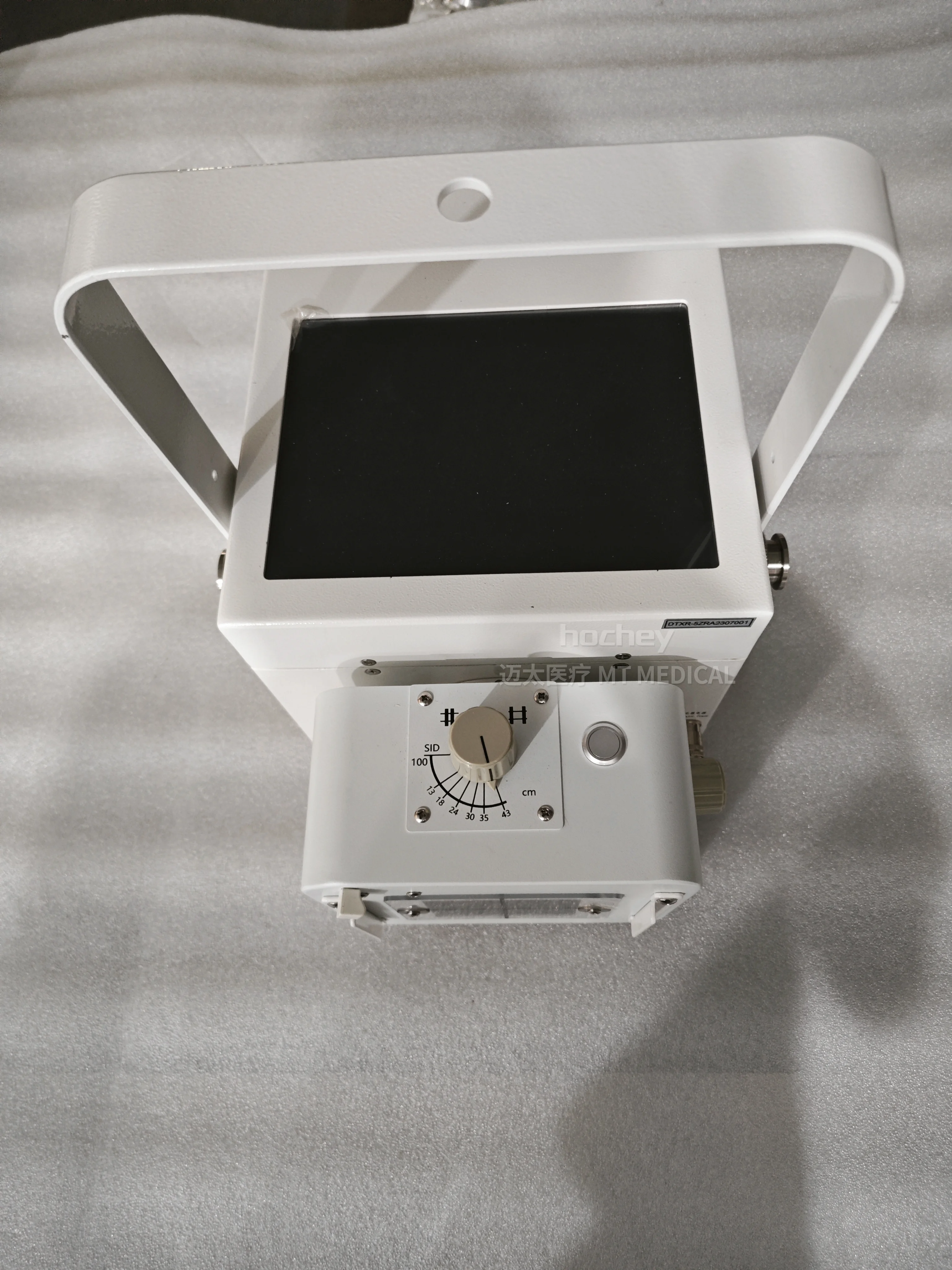

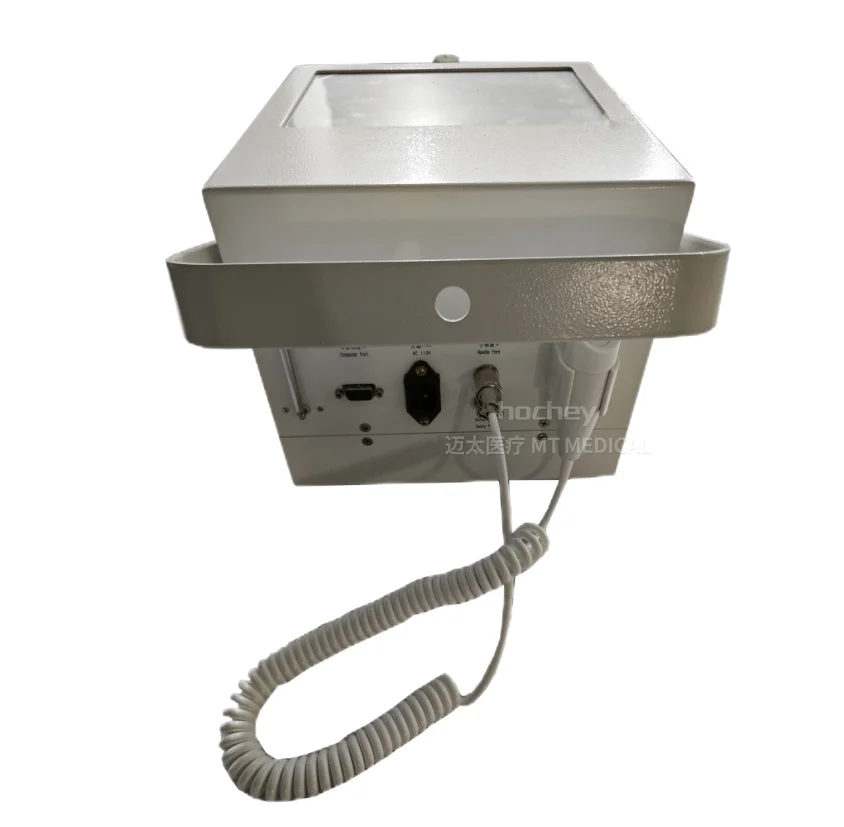

5KW Portable Veterinary X-ray Machine
1. It can be widely used for limb examination and diagnosis of small and medium-sized animals, and is suitable for scientific research and teaching in pet hospitals, medical research institutions and medical schools.
2. Simple structure, small size, light weight, not subject to environmental restrictions, no need to build a lead-shielded darkroom, easy to carry and work in different areas and locations, and can be used for X-ray photography in the field and special occasions

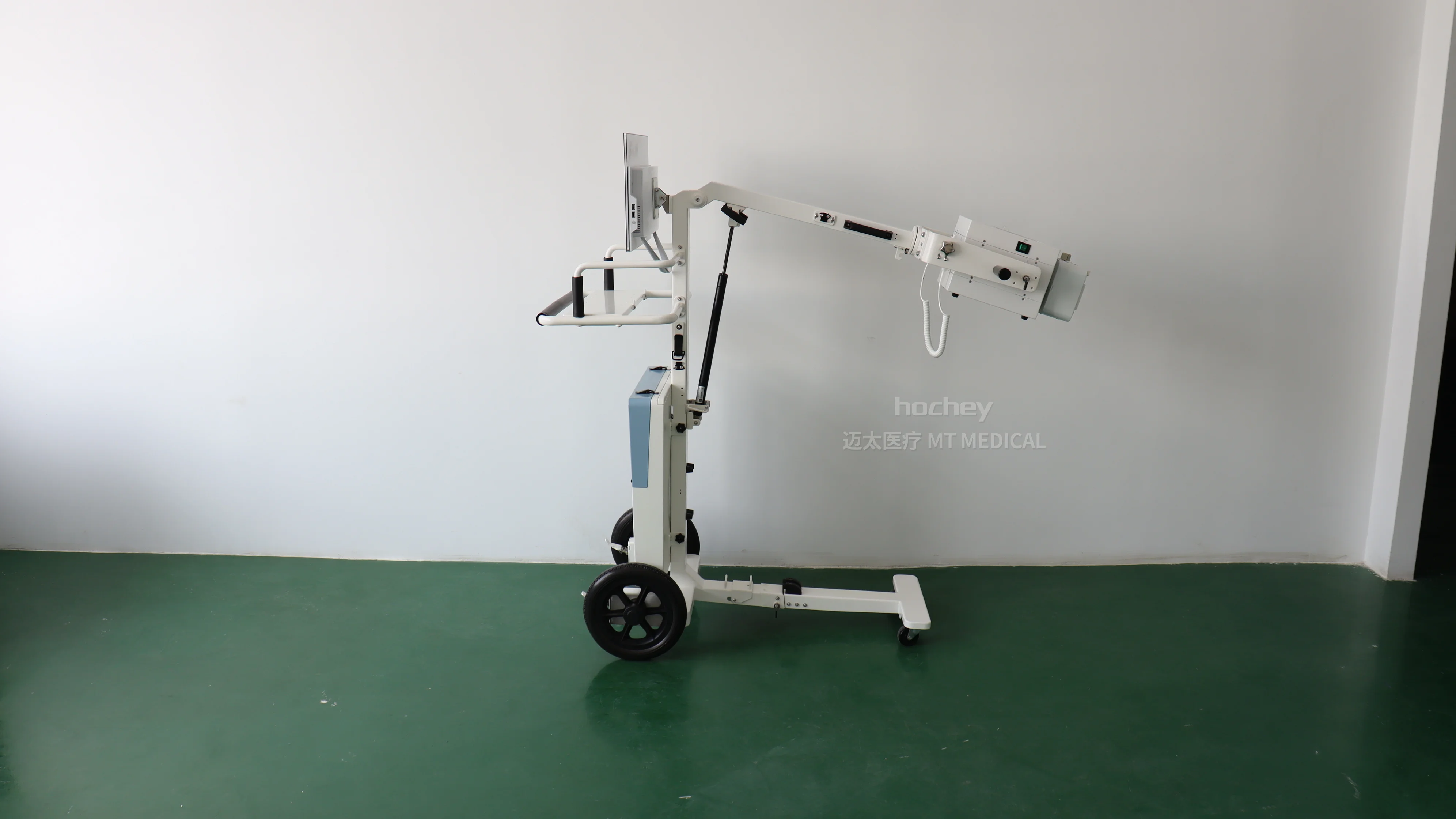

3. The optional mobile rack is flexible and convenient, can meet different workstation requirements, and can be used as bedside shooting in hospital wards.
4. It has a variety of exposure control methods: remote control type and hand brake type;
5. Fault self-protection, self-diagnosis, high-precision control of tube voltage and tube current
6. Produced using high-frequency inverter technology, stable high-voltage output can achieve good image quality
7. Can be used with DR flat panel detector to form a DR digital X-ray photography system.
2. Simple structure, small size, light weight, not subject to environmental restrictions, no need to build a lead-shielded darkroom, easy to carry and work in different areas and locations, and can be used for X-ray photography in the field and special occasions
3. The optional mobile rack is flexible and convenient, can meet different workstation requirements, and can be used as bedside shooting in hospital wards.
4. It has a variety of exposure control methods: remote control type and hand brake type;
5. Fault self-protection, self-diagnosis, high-precision control of tube voltage and tube current
6. Produced using high-frequency inverter technology, stable high-voltage output can achieve good image quality
7. Can be used with DR flat panel detector to form a DR digital X-ray photography system.
Specification
Model | MT-5KW-A | |
Ambient Conditions | ||
Ambient temperature | 10℃～40℃ | |
Relative humidity | 30％～75％ | |
Atmospheric | 70～106kPa | |
Portable Monoblock X-ray Unit | ||
Output power | 5.0KW | |
Frequency | 100KHZ | |
Current | 10～100mA | |
Voltage | 40～125KV | |
mAs | 0.1～200mAs | |
Exposure time | 1～4000ms | |
Intelligent protection system | It has self-protection system. It will give an alarm and check fault code. | |

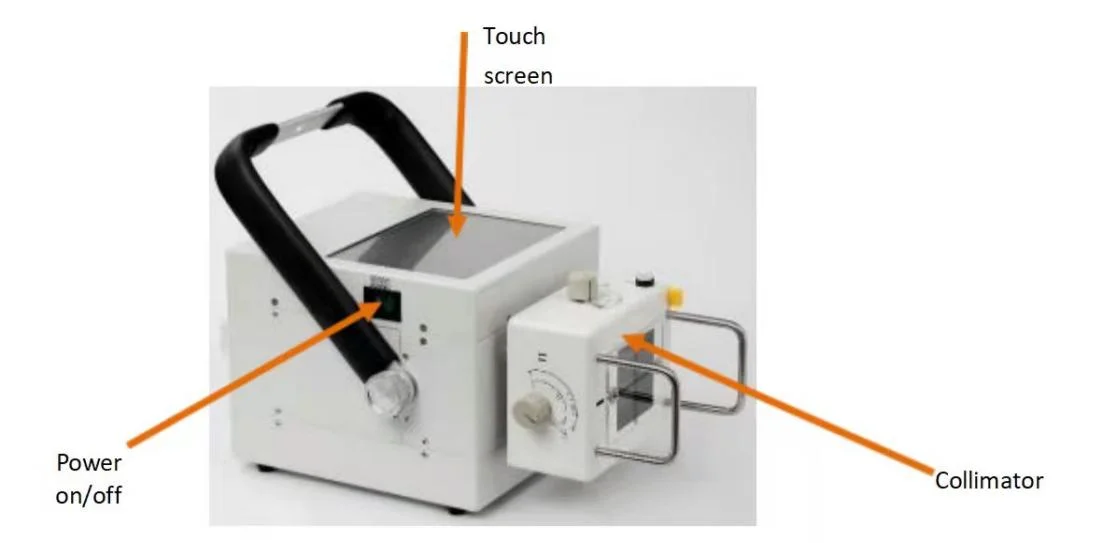

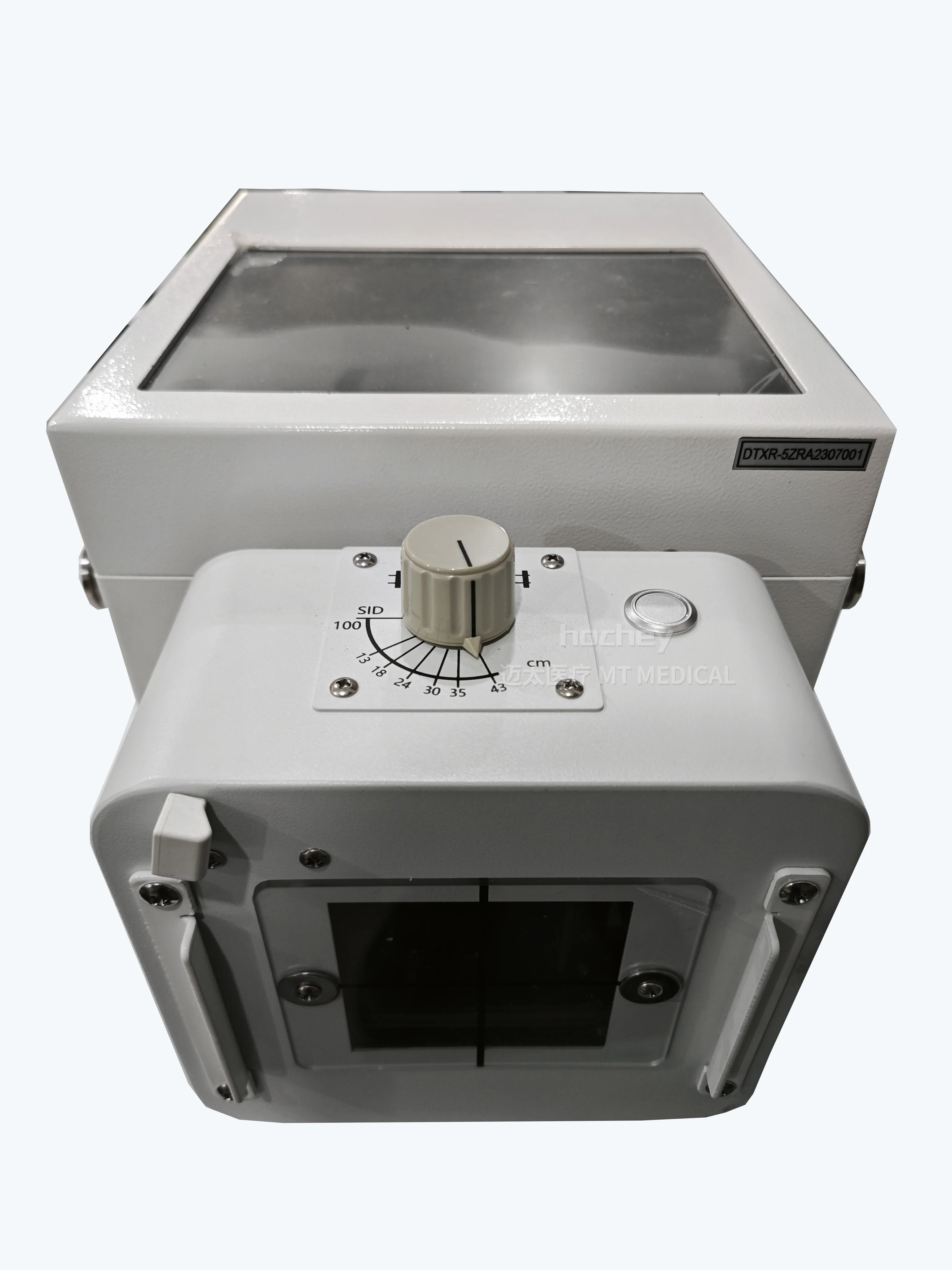

Collimator | ||
Type | Manual Collimator | |
Max. Window | 440mm×440mm（SID=100cm） | |
Lamp | AC/DC24V、5W | |
Lamp timer | Automatic illumination with timer for lamp(30S) | |
Inherent filtration | 1.0mmAl | |
Illuminant | LED | |

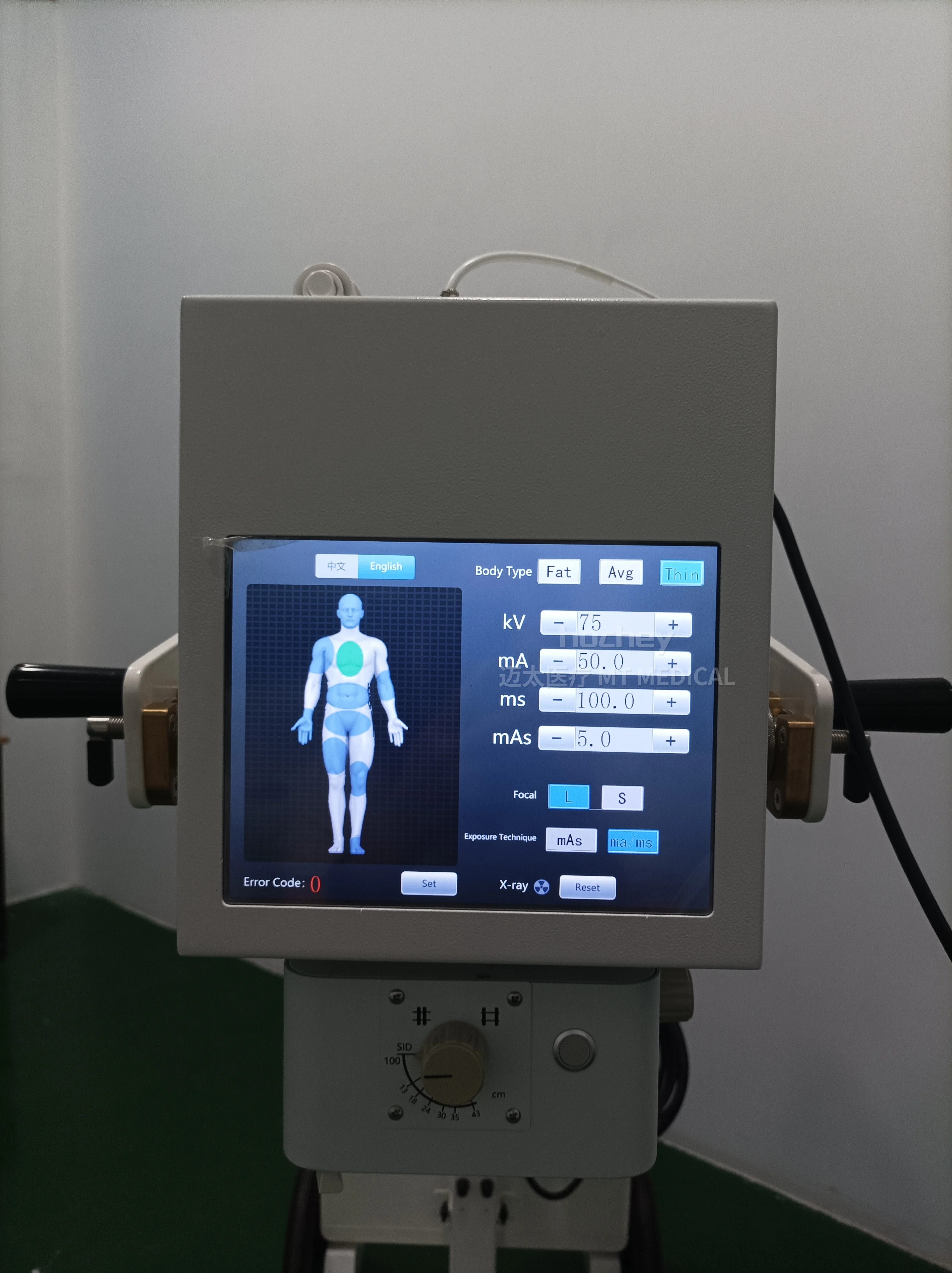

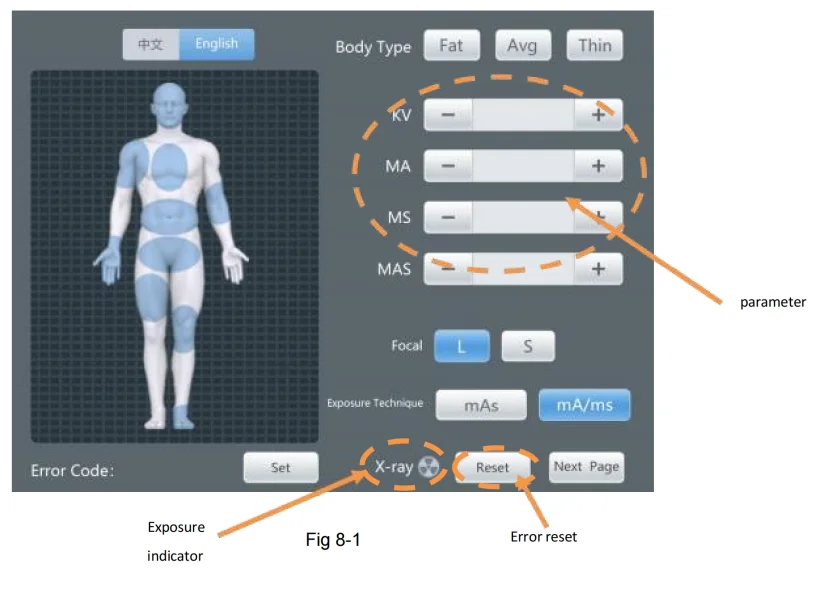

◆Easy Exposure interface
◆Hand switch and visual console
◆Fast work flow
◆High-frequency inverter technology
◆Automatic measurement of shooting distance and thickness
◆Hand switch and visual console
◆Fast work flow
◆High-frequency inverter technology
◆Automatic measurement of shooting distance and thickness
Company Profile
MT MEDICAL focus on OR & ICU Room Solutions, our main products: operation table, operation lamp, ceiling pendant, hospital bed,medical trolley, patient monitor,x-ray film viewer, medical cabinets, Digital x-ray machine, and other hospital furniture and veterinary equipment. We have a professional marketing team and After-sales team.Every year we have new product research and development. our main markets are 10% North American, 10% South American, 15% Middle East, 15% Southeast Asia, 10% Europe, 10% the Commonwealth of the Independent States, 10% Oceanic and others 5%. if you want to get more information, pls contact us.
Exhibition
FAQ
Q: Are you manufacturer?
A: Yes, we have our own R&D team and sales team, We provide you one-stop service.Q: Do you have CE, ISO13485?
A: Yes, our products are approved by CE, ISO13485
Q: Is OEM &ODM available in your factory?
A: Yes, you just offer us necessary documents and then we will produce the products as your requirements.
Q: What is your Payment term?
A: 1.L/C at sight
2.T/T: 30% deposit by T/T, 70% balance by T/T before shipment
3.Trade term: EXW, FOB Shanghai or CIF&CFR
Q: What is your Packing details?
A: 1.Wooden case or carton package, standard export packages
2.All of the productions are inspected carefully by QC before delivery
Q: What is your Min.order?
A: There's no minimum quantity.
A: Yes, we have our own R&D team and sales team, We provide you one-stop service.Q: Do you have CE, ISO13485?
A: Yes, our products are approved by CE, ISO13485
Q: Is OEM &ODM available in your factory?
A: Yes, you just offer us necessary documents and then we will produce the products as your requirements.
Q: What is your Payment term?
A: 1.L/C at sight
2.T/T: 30% deposit by T/T, 70% balance by T/T before shipment
3.Trade term: EXW, FOB Shanghai or CIF&CFR
Q: What is your Packing details?
A: 1.Wooden case or carton package, standard export packages
2.All of the productions are inspected carefully by QC before delivery
Q: What is your Min.order?
A: There's no minimum quantity.
