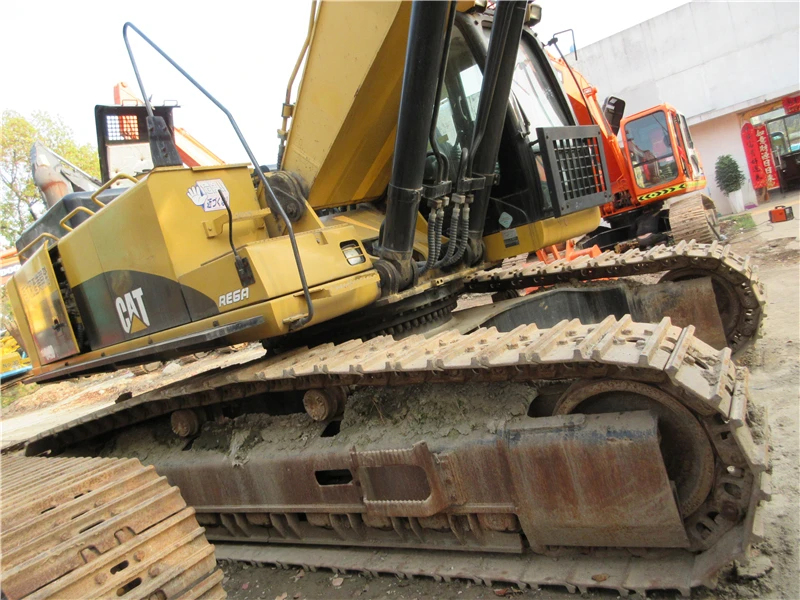

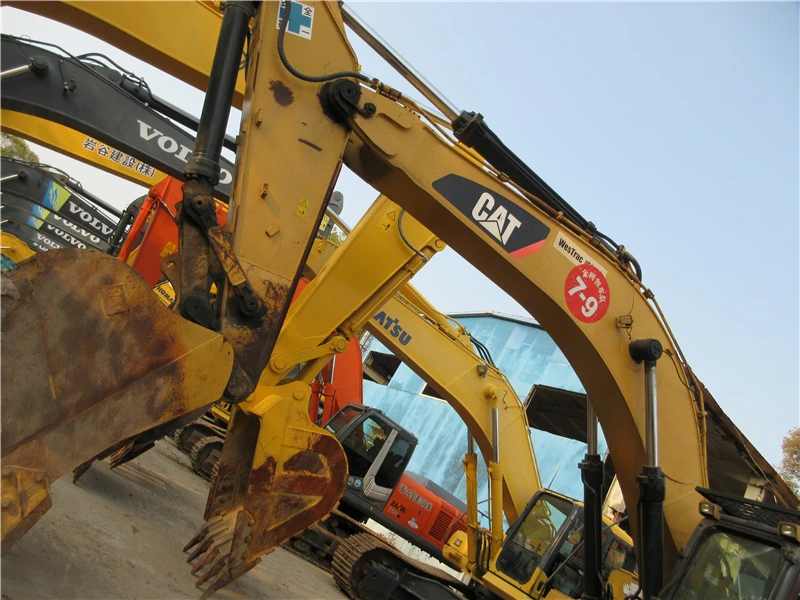

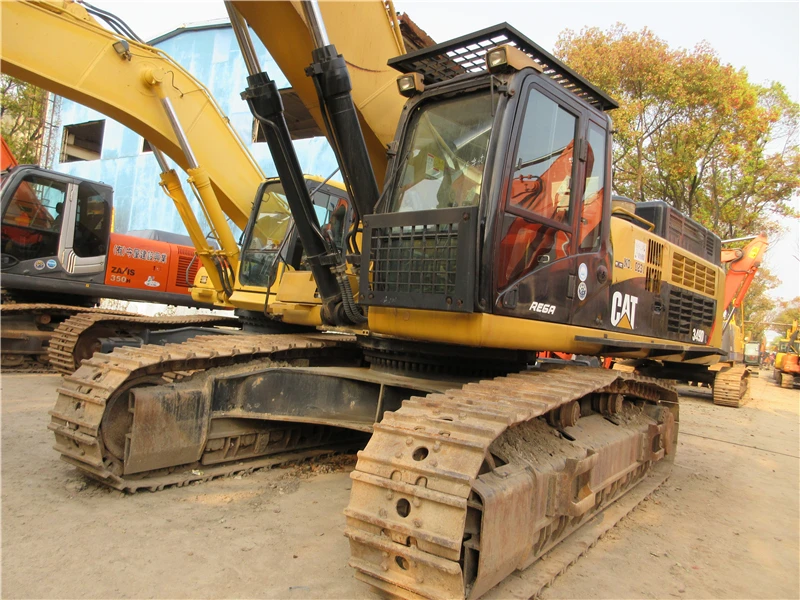

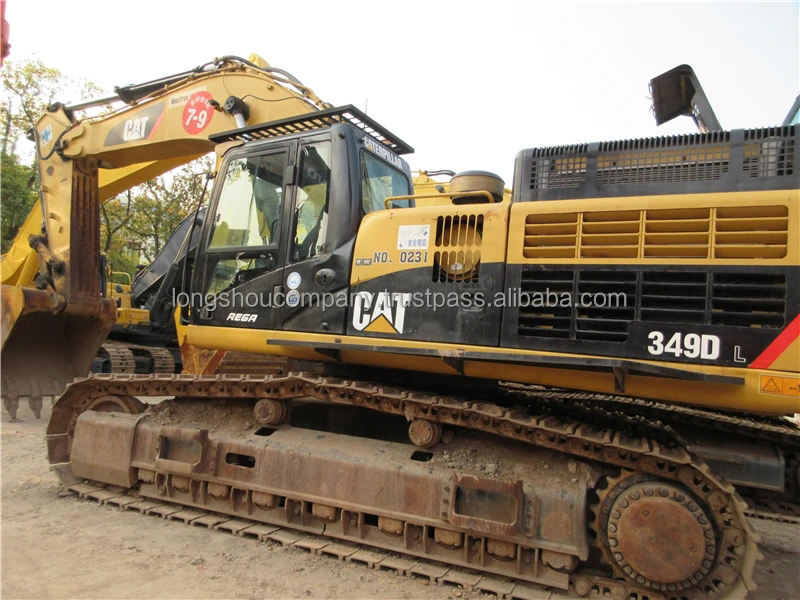

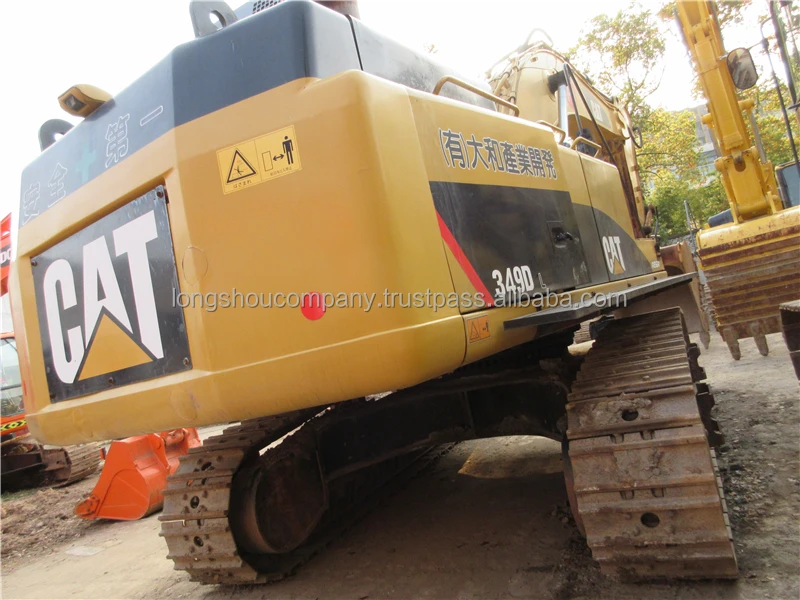

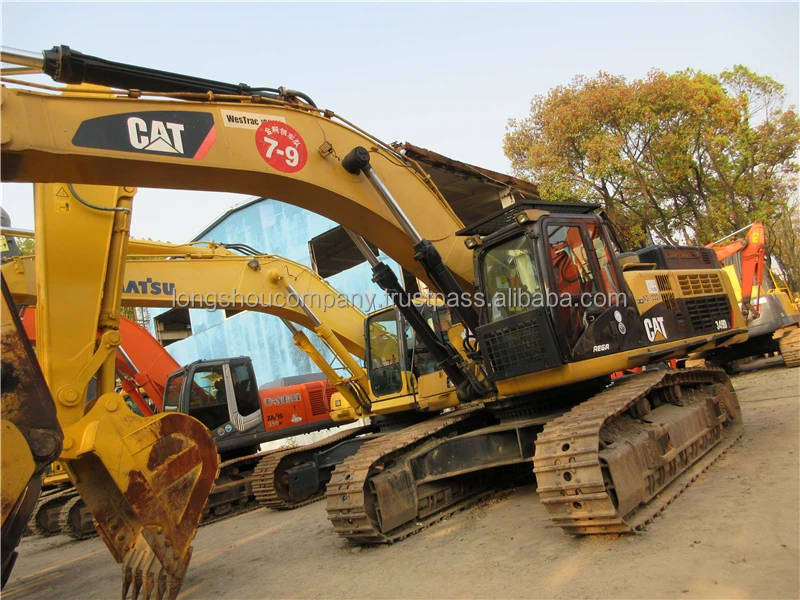

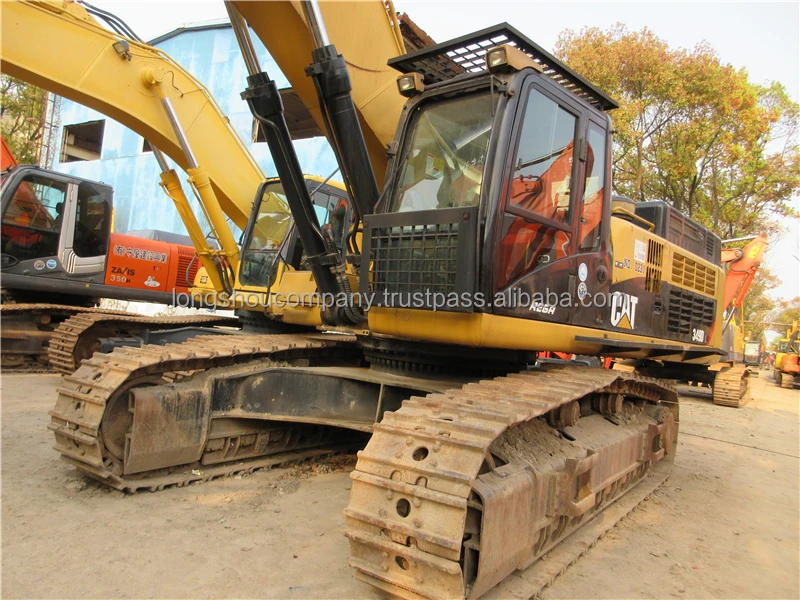

49 Ton Original Caterpillar Excavators New Cat 349D Crawler Excavator Machine Bucket Excavators
- Category: >>>
- Supplier: SHANGHAI LONGSHOU MACHINERY COMPANY LIMITED
Share on (1601062374424):
Product Overview
Description
About us
package and shipping
load method
advantage and weekness :best ,keep machine complete and well .u can use when received it ,only waste freight
Method 2 (take boom and bucket out ,put boom on top of machine or other pieces ,same CBM )
Method 3 use 40FR Frame
Method 4 use 40HQ container ,cheapest but destroy machine
Name:ShangHai Long shou Machinery Co,Ltd |
|
Parameter Configuration of Caterpillar 349D Hydraulic Excavator |
specifications |
Power Traditional Power |
Manufacturer joint venture/import |
Bucket Backhoe |
Tonnage (ton) 49 |
Working weight of the whole machine (kg) 46285 |
Bucket capacity (m ³) 1.8-3.11 |
Boom length (mm) 7400/6900/6550 |
Stick length (mm) 4300/3900/3350 |
Origin Xuzhou, Jiangsu |
performance |
Rotation speed (rpm) 8.7 |
Walking speed (km/h) 4.5 |
dynamic system |

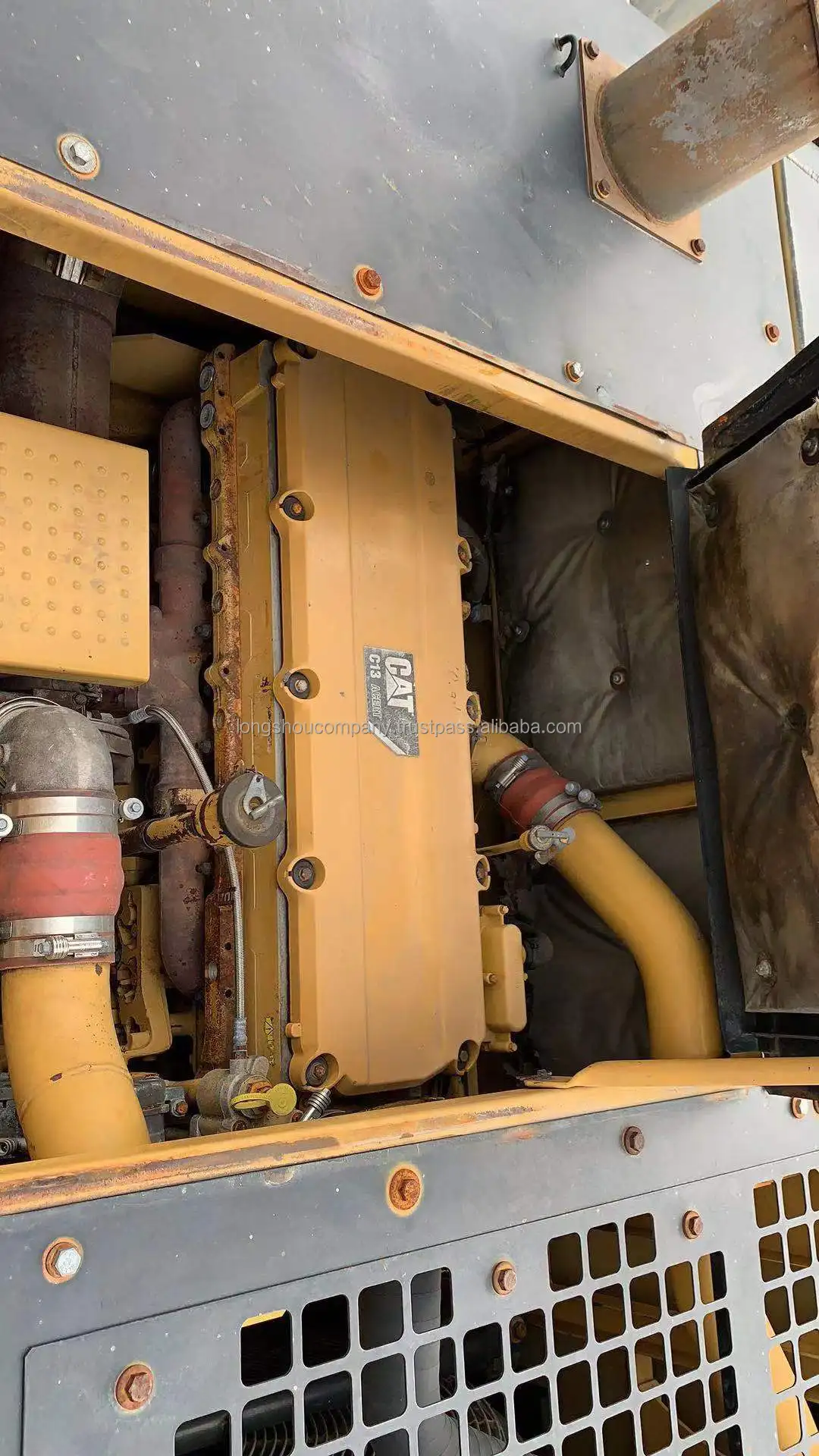

Engine model Caterpillar Cat C13 ACERT |
Rated power (kW/rpm) 283 |
Displacement (L) 12.5 |
Cylinder diameter x stroke (mm) 130 x 157 |
Cooling method: water cooling |

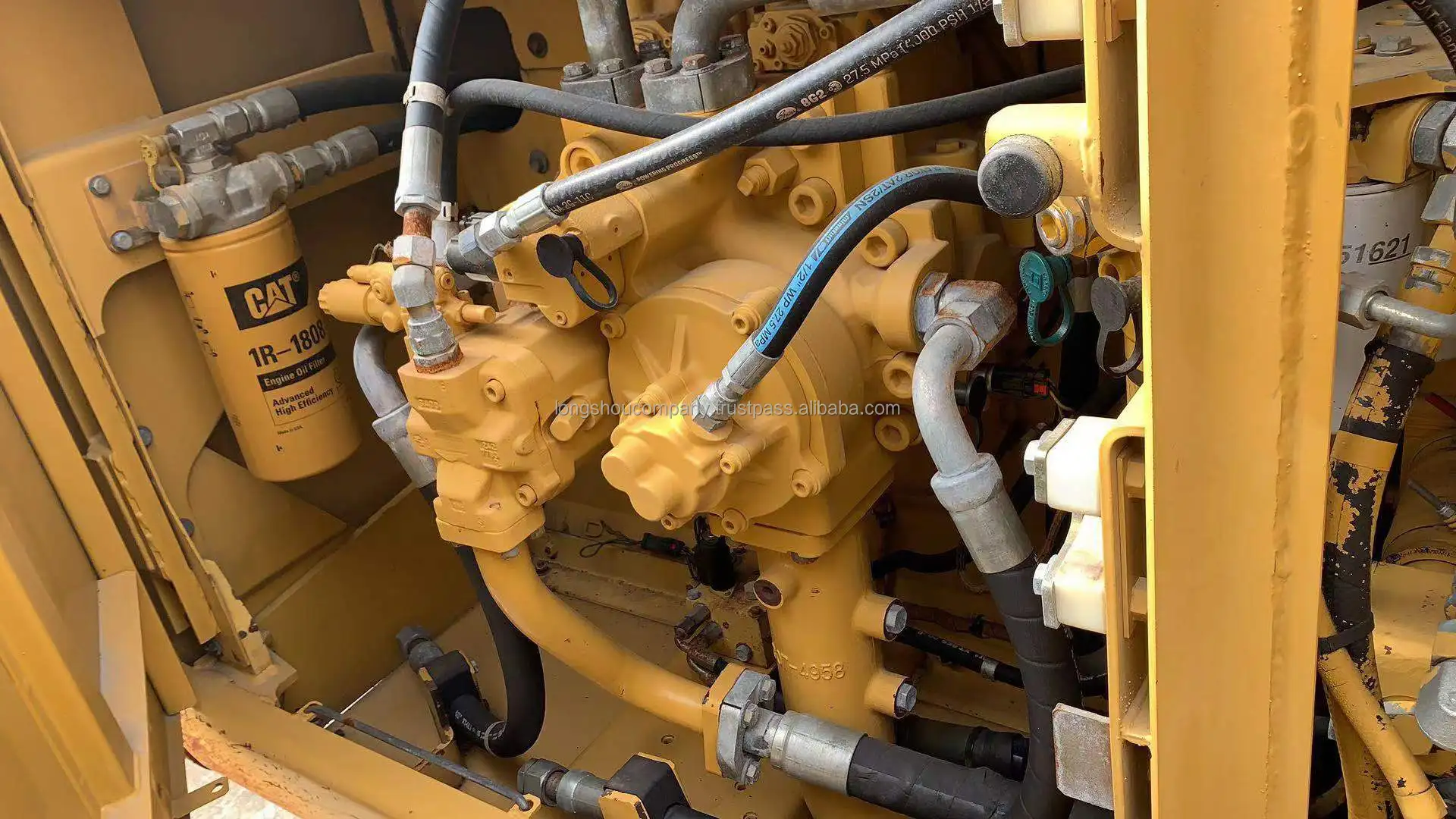

hydraulic system |
Maximum flow rate of main pump (l/min) 734 |
Pilot pump flow rate (L/min) 43 |
Pilot oil circuit (MPa) 4.11 |
Working hydraulic oil circuit (Mpa) 35 |
Hydraulic circuit for walking (Mpa) 35 |
Rotary hydraulic circuit (Mpa) 31.4 |
Main overflow set pressure (Mpa) 35 |
Boom oil cylinder - number x cylinder diameter x stroke (mm) 1-160 x 1575 |
Stick oil cylinder - number x cylinder diameter x stroke (mm) 1-190 x 1778 |
Bucket oil cylinder - number x cylinder diameter x stroke (mm) 1-160 x 1356 |
Oil capacity |
Fuel tank (L) 705 |
Hydraulic oil tank (L) 243 |
Hydraulic system (L) 570 |
Engine oil change quantity (L) 42 |
Cooling liquid (L) 35.5 |
Main body size |
Total length of transportation (mm) 12450 |
Total transportation width (mm) 3640 |
Total transportation height (mm) 3680 |
Full height of cab (mm) 3210 |
Total length of track (mm) 5070 |
Track shoe width (mm) 750 |
Total width of track (mm) 3640 |
Track gauge (mm) 2740 |
Minimum ground clearance (mm) 510 |
Balance weight ground clearance (mm) 1320 |
Rear end turning radius (mm) 3770 |
Scope of work |
Maximum excavation radius of the parking surface (mm) 12940 |
Maximum excavation depth (mm) 8920 |
Maximum unloading height (mm) 7870 |
Maximum vertical excavation depth (mm) 5860 |
Maximum effective excavation depth (mm) 8790 |
